Stop Guessing Placement: Add a New Name on a Baby Lock Venture Using the Camera Scan (Without Re-Stitching the Whole Design)

Mastering the Art of Rework: How to Add Names to Finished Embroidery Without Ruining It

If you’ve ever finished a beautiful embroidery design and then realized the name is wrong—or you need to personalize a pre-stitched gift for a sibling—your stomach drops. That feeling of dread is normal. Reworking a finished piece is high-stakes: one mistake and the entire project is ruined.

The good news: on machines like the Baby Lock Venture (10-needle), the Camera Function turns a "heart-attack moment" into a controlled, repeatable workflow.

In this guide, I’m rebuilding the exact process shown in the industry demo: adding the name “Sarai” onto a plush minky blanket where the main design (“1st Christmas” + elephant) is already stitched. We will use a 5.5" x 5.5" blue magnetic hoop and the Venture’s scan-and-overlay technology to ensure millimeter-perfect placement.

The Calm-Down Primer: Why Camera + Magnets = Safety

Rework is where even experienced embroiderers get burned. The risk isn’t "will it stitch?"—it’s "will it stitch in the exact right place?"

The Venture’s camera scan takes a photo of what’s physically in your hoop, then overlays your new digital file on top of that image onscreen. This eliminates the guesswork of chalk marks or plastic grid templates, which are notoriously inaccurate on puffy fabrics like minky.

However, a camera is only as good as the frame holding the fabric. If the fabric slips after the scan, the camera lies. This is where magnetic hoops for embroidery machines become essential safety gear. Unlike screw hoops that require brute force (and often distort the fabric grain or leave permanent "hoop burn" rings), magnetic hoops clamp vertically. They hold thick, slippery minky flat and secure without crushing the pile, creating the stable canvas the camera needs to work.

The “Hidden” Prep Pros Do Before Touching the Screen

The video demonstrates a grey plush/minky baby blanket. This material is deceptive. It looks soft, but physically, it is a moving target. The pile compresses, the knit base stretches, and stitches can sink.

The "Sandwich" Physics

You cannot just rely on the hoop. You need a stable system.

• The Foundation: Use a Cutaway stabilizer. Tear-away is too weak for minky; the stitches will pull the fabric, causing the name to warp.
• The Topping (Hidden Consumable): While not explicitly highlighted in every basic demo, a water-soluble topping (Solvy) is mandatory for professional text on minky. It prevents the needle from dragging loops of pile up through the thread.
• The Grip: The magnetic hoop acts as the "hands" holding this sandwich together.

Warning: Keep hands away from the embroidery arm during the camera scan and ANY automatic movement. The machine moves fast; fingers can get pinched between the hoop and the machine body.

How to Check Your Hooping (Sensory Anchors)

Before you scan, use your senses:

1. Visual: Is the magnetic ring fully seated? It should look flush with the bottom frame all around.
2. Tactile: Press your finger gently on the fabric in the center. It should feel taut like a fitted sheet—not as tight as a drum (too much stretch), but there should be no loose waves.
3. Auditory: When you snap the magnets down, listen for a solid thud or clean snap. A weak click might mean fabric is bunched in the mechanism.

If you are new to this clamping style, researching how to use magnetic embroidery hoop properly is vital. It’s not about strength; it’s about technique to ensure even tension on all four sides.

Prep Checklist (Do this BEFORE loading the file)

• Hoop Check: Confirm the project is clamped in the magnetic hoop with no lifted corners.
• Stabilizer Check: Confirm backing covers the entire hoop area, not just the text area.
• Clearance: Confirm existing stitches (the elephant) are clean with no loose threads that could fool the camera.
• Thread Load: Confirm your Red thread is actually on the specific needle you plan to use (e.g., Needle #8).
• Safety: Ensure embroidery arm has clearance to move fully forward and back.


Load the “Sarai” File (Wi-Fi Import + Set + Edit)

In the workflow, the creator retrieves the clean text file ("Sarai") via Wi-Fi, taps Set, and enters Edit mode.

Crucial Logic: You are not editing the original design file that contained the elephant. You are bringing in a separate, small file containing only the name. This isolates your variables. If you accidentally move the elephant in the software, you ruin the alignment. By loading only the name, the elephant exists only as a physical object to align against, not a digital object you can mess up.

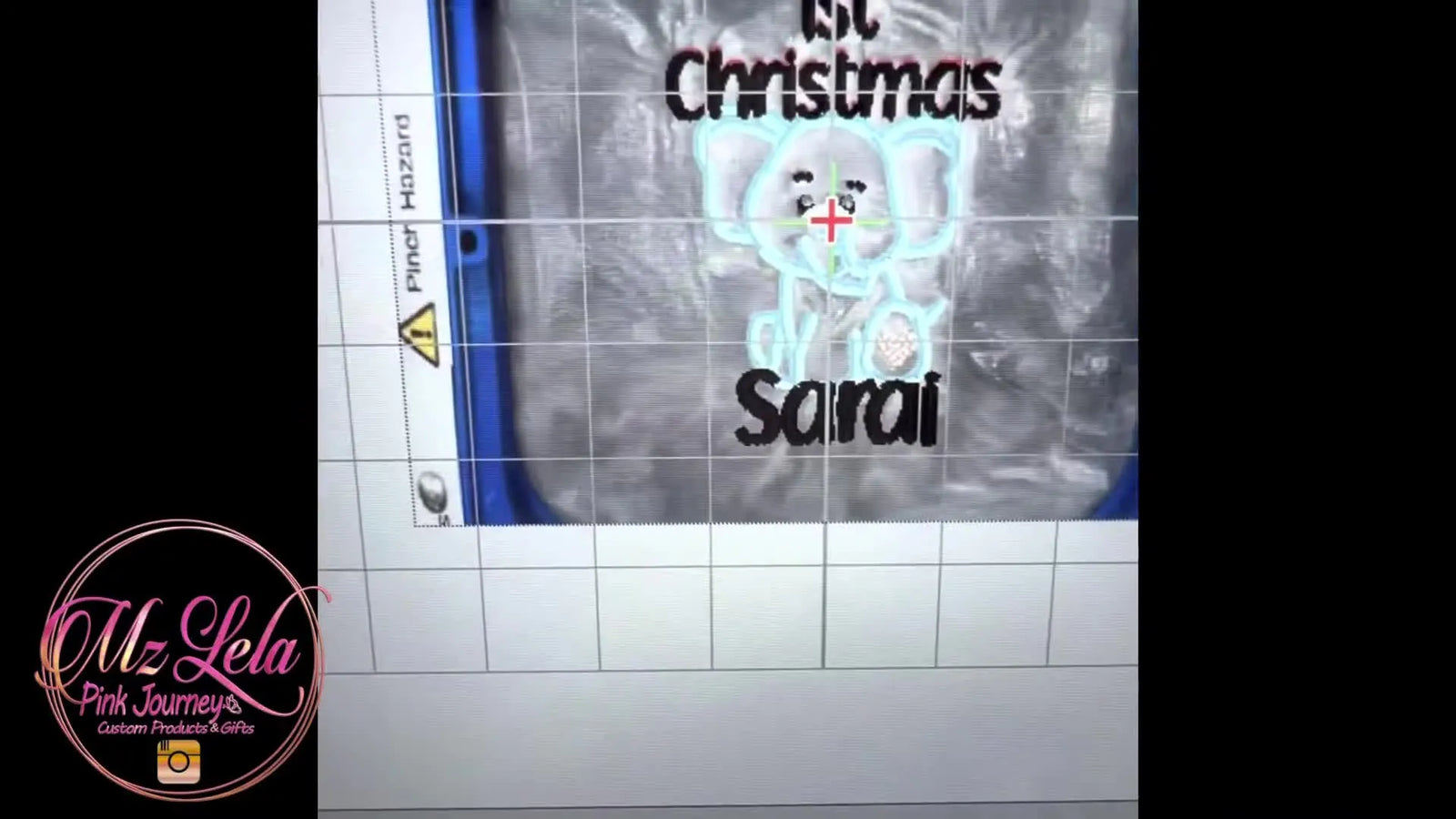

The Money Step: Scanning and Trusting the Overlay

The creator activates Camera Function → Scan. The Venture moves the hoop and generates a composite image:

• Red Lines on Screen: These represent the actual stitches the camera sees on your fabric.
• Black Lines on Screen: This is your new digital design (the name).

The Alignment Goal: Look at the screen. The Red lines (existing elephant/text) should align perfectly with the context of where you want the new name. In the video, the creator notes that only a tiny bit of red peeks out from the black, indicating near-perfect physical alignment.

She uses the Arrow Keys to nudge the digital name until it sits perfectly centered under the existing "1st Christmas."

This is the exact scenario where babylock magnetic hoops shine. Because the hoop doesn't force you to pull and tug the fabric to get it tight, the fabric remains undistorted. What you see on the screen matches what will happen under the needle.

When You *Do* Need to Nudge: What the Arrow Keys Can’t Fix

Sometimes people blame the camera when the real culprit is physics.

The "Drift" Phenomenon: If you scan the hoop, and the overlay matches, but two minutes later the design stitches crooked, your fabric "crept." This happens when the hoop pressure is uneven. The fabric slowly relaxes or slips under the vibration of the machine.

If you find yourself having to move the design more than 10-15mm on screen to get it aligned, STOP. Your physical hooping is likely crooked. It is safer to re-hoop straight than to tilt a design 15 degrees to match a crooked hoop.

Assign the Correct Needle (The Mental Check)

After alignment, the creator switches to the embroidery screen.

• Requirement: The name "Sarai" must be Red.
• Reality: Her Red thread is on Spool #8.
• Action: She manually assigns Needle 8 to the text layer.

On a multi-needle machine, the machine does not know you changed thread colors unless you tell it. If you skip this, it might stitch the name in Black (Needle 1) or Green (Needle 5).

Professional setups often pair magnetic embroidery hoops for babylock multi-needle machines because the speed of the magnetic hoop matches the speed of the machine. You save time on hooping, so take that saved time to double-check your needle assignment.

The “Skip Without Regret” Technique: Stitch Navigation

The loaded file might technically start at the beginning (0 stitches), but visually, the creator wants to verify the start point. She uses the +/- Key (Stitch Navigation) to fast-forward the needle to the exact starting point of the letter "S".

The Navigation Sequence (Action-First):

1. Macro Jump: Press +1000 to move through the design rapidly.
2. Middle Jump: Press +100 to get close to the name.
3. Correction: If you overshoot, press -100 or -10.
4. Micro Precision: Press +1 until the crosshair sits exactly at the first needle penetration of the "S."

Why do this? It verifies exactly where the needle will drop first. You can physically lower the needle bar (carefully!) to see if it lands in a safe spot, ensuring it won't hit the existing satin stitch of the line above.

Setup Checklist (Pre-Flight)

• Overlay Verification: Does the screen show the name centered below the designs?
• Needle Check: Is the text layer assigned to Needle 8 (Red)?
• Zone Check: Is the presser foot height set correctly for the thickness of the minky? (Too low = drags fabric; Too high = skipped stitches).
• Start Point: Have you navigated to stitch #1 of the name to verify landing?


Stitching: The "Sweet Spot" Speed

In the video, the machine is set to 600 SPM (Stitches Per Minute).

For beginners or rework functionality, do not run at 1000 SPM.

• Beginner Safe Zone: 400-500 SPM. This gives you reaction time to stop if the fabric shifts.
• Pro Speed: 600-800 SPM.
• Danger Zone: 900+ SPM on unsupported Minky rework. The vibration can cause loop issues on the existing embroidery.

The 20-Second Rule: Press Start and watch the first 20 seconds like a hawk.

• Listen: Is the sound rhythmic and smooth? A "slap-slap" sound means loose thread or fabric flagging.
• Look: Is the "S" forming clearly? If stitches look buried, stop and add water-soluble topping.

Warning: Needle and trimming hazards are real. Keep fingers clear of the needle case. Do not try to trim a loose thread while the machine is moving—pause it first!

Troubleshooting Rework: Symptom → Fix

Even with cameras, things happen. Use this table to diagnose issues quickly.

Decision Tree: Choosing Stabilizer for Plush Rework

Don't guess. Follow the physics of the fabric.

START HERE: Is the fabric stretchy?

• YES (Minky, Sweatshirt, Knit)
  • Must use: Cutaway Stabilizer (2.5oz or 3.0oz).
  • Hoop: Magnetic Hoop (to prevent stretching while hooping).
  • Top: Solvy / Water Soluble film.
• NO (Canvas, Denim, Felt)
  • Can use: Tear-away (2 layers) OR Cutaway.
  • Hoop: Standard or Magnetic.
• MAYBE (Quilt Sandwich)
  • Must use: No stabilizer needed if batting is thick, otherwise one sheet of Tear-away to "float" under the hoop.


The Upgrade Path: When to Buy Better Tools

This video demonstrates a workflow that is "easy" because the tools are professional. If you are struggling with a single-needle machine and standard hoops, here is your path to easier embroidery:

• Level 1: The "Hoop Burn" Fix.
  If you ruin delicate fabrics (velvet, minky) with screw hoops, upgrade to a magnetic embroidery hoop. The investment pays for itself by saving just 2-3 ruined garments.
• Level 2: The Fatigue Fix.
  If your wrists hurt from wrestling hoops, or you have large orders, look into a magnetic hooping station. This tool holds the frame for you, ensuring consistent placement every time without physical strain.
• Level 3: The Profit Fix.
  If you are turning away orders because you can't change threads fast enough, it’s time to look at SEWTECH Multi-Needle Machines. The ability to assign needles (like Needle 8 for Red) and let the machine run unattended is the key to scaling a business.

Warning regarding Magnets: These industrial magnets are extremely powerful. They can pinch skin severely. Do not place them near pacemakers, mechanical watches, or magnetic media (credit cards). Handle with respect.

The "Invisible Finish" Operation

The best rework is the one nobody notices. Before handing the gift to the customer or family member:

1. Trim Jump Stitches: Even if the machine trims, check for "tails" on the back.
2. Remove Topping: Tear away the excess Solvy and dab the remainder with a damp Q-tip.
3. Fluff the Pile: Gently rub the minky with a scrap of stiff fabric or a fingernail to hide the needle penetrations.


Operation Checklist (Post-Stitch)

• Completeness: Did the name finish with no thread breaks?
• Placement: Is it visually centered under the main design?
• Cleanliness: Are all jump threads trimmed close to the fabric?
• Backside: Is the excess stabilizer trimmed neatly (leaving 1/2 inch border)?
• Documentation: take a photo of the settings used (density/pull comp) so you can repeat this easily next time.

By combining the Digital Precision of the camera with the Physical Security of magnetic hoops, you remove the fear factor. Rework doesn't have to be a nightmare—it can be just another service you offer with confidence.

FAQ

• Q: How do I stop Baby Lock Venture Camera Function rework placement from shifting after a scan on minky fabric?
  A: Prevent fabric creep by stabilizing the “sandwich” and re-hooping if the hoop tension is uneven.
  • Use cutaway stabilizer under the entire hoop area and clamp it evenly with the magnetic hoop before scanning.
  • Add water-soluble topping on top of the minky so the pile doesn’t drag and distort stitches as the machine runs.
  • Slow the machine down for rework (a safe starting point is 400–600 SPM) and watch the first 20 seconds.
  • Success check: the magnetic ring sits fully flush all around, and the fabric feels taut like a fitted sheet with no waves.
  • If it still fails: stop immediately, pick out the new stitches, and re-hoop; do not “correct” large drift by forcing big on-screen moves.
• Q: How can I tell if a 5.5" x 5.5" magnetic embroidery hoop is seated correctly before scanning on a Baby Lock Venture?
  A: Confirm seating with a quick visual + touch + sound check before pressing Scan.
  • Look: verify the magnetic ring is fully seated and flush against the bottom frame on all sides.
  • Press: gently press the center; aim for taut-but-not-stretched (no loose ripples).
  • Listen: close the magnets and confirm a solid “thud/clean snap,” not a weak click.
  • Success check: no lifted corners and no “spongy” movement when you lightly push the hooped fabric.
  • If it still fails: remove the top ring and re-clamp slowly, keeping even tension on all four sides.
• Q: What stabilizer and topping should be used to add names onto finished embroidery on minky when using Baby Lock Venture rework?
  A: Use cutaway stabilizer plus water-soluble topping to keep lettering from warping or sinking into the pile.
  • Back: choose cutaway stabilizer (tear-away is often too weak for minky rework) and make sure it covers the full hoop area.
  • Top: place water-soluble topping (Solvy) over the minky before stitching the name.
  • Stitch: if letters still look buried, adjust your workflow (generally: stop, add topping, then restart rather than “hoping it clears”).
  • Success check: the first letter forms clearly on top of the pile instead of disappearing into fuzz.
  • If it still fails: consider increasing pull compensation in software (machine/software behavior varies—follow the manual/software guide).
• Q: Why does Baby Lock Venture stitch the added name in the wrong color when adding a separate “Sarai” text file, and how do I fix needle assignment?
  A: Manually assign the correct needle number to the text layer because the machine cannot guess which spool you loaded.
  • Confirm: identify which spool position holds the intended color (example shown: Red on Needle #8).
  • Assign: switch the text layer to the correct needle number before starting.
  • Recheck: verify the thread path is correct for that needle and the right spool is active.
  • Success check: the screen shows the text layer mapped to the intended needle (e.g., Needle 8 for Red).
  • If it still fails: stop before stitching and reassign—do not let the machine stitch “just to see,” because rework removal can damage the base embroidery.
• Q: How do I use Baby Lock Venture stitch navigation (+/- keys) to verify the first needle drop for name rework without hitting existing satin stitches?
  A: Jump through stitches in big steps, then fine-tune to stitch #1 so the starting penetration lands in a safe spot.
  • Jump: press +1000 to move quickly, then +100 to get close to the start of the name.
  • Correct: use -100 or -10 if you overshoot.
  • Dial in: press +1 until the crosshair is exactly at the first penetration of the first letter (example shown: “S”).
  • Success check: the on-screen crosshair matches the intended start point under the existing “1st Christmas” line, with safe clearance.
  • If it still fails: re-check the camera overlay alignment and re-hoop; stitch navigation cannot fix a crooked physical hoop.
• Q: What should I do if Baby Lock Venture camera overlay alignment requires moving the name more than 10–15 mm during rework?
  A: Stop and re-hoop, because large on-screen nudges usually indicate crooked hooping or distorted fabric.
  • Stop: avoid “saving it” with a big digital move; that often creates a visually tilted result.
  • Re-hoop: clamp the minky evenly in the magnetic hoop without stretching the knit base.
  • Re-scan: run the Camera Function scan again and only do small arrow-key nudges afterward.
  • Success check: the overlay needs only minor adjustments and the physical fabric looks undistorted in the hoop.
  • If it still fails: check for loosened corners or uneven clamping pressure that could cause drift after scanning.
• Q: What are the main safety risks when using Baby Lock Venture Camera Function with a magnetic embroidery hoop, and how can they be avoided?
  A: Treat both the moving embroidery arm and the industrial magnets as pinch hazards and keep hands clear during motion.
  • Clear hands: keep fingers away from the hoop/arm area during scan and any automatic movement because the machine moves fast.
  • Pause first: never trim loose thread while the machine is moving—pause/stop before reaching in.
  • Handle magnets: close the magnetic ring deliberately and keep magnets away from pacemakers, mechanical watches, and magnetic media (credit cards).
  • Success check: the hoop path is unobstructed and no hands/tools are inside the motion zone before pressing Start or Scan.
  • If it still fails: power down and reposition the hoop/work area for more clearance before resuming.
