Stop Guessing Placement: A Paper-Template Trick for Cap Driver Centering + The 1/2–3/4" Rule Above Shirt Pockets

If you have ever stood in front of an embroidery machine, staring at a finished cap, and felt that sinking feeling in your stomach because the logo looks slightly rotated to the left, you are not alone. That specific anxiety—the "It looks centered, I think" guess—is the most expensive sensation in the embroidery business.

In the world of commercial embroidery, "almost centered" is a reject. And rejects eat your profit margin faster than thread breaks.

The good news is that precision isn't a talent; it is a rigid process. In this guide, we are deconstructing the methodology of embroidery veteran Joyce Jagger (The Embroidery Coach) and layering it with shop-floor physics and cognitive checklists. We will move beyond "eyeballing" into a system where you can physically prove your center point before the needle ever drops.

Whether you are struggling with "hoop burn" on delicate shirts or fighting the curvature of a structured cap, the solution lies in mechanical references, not visual guesses.

The “Crooked Cap Panic” Is Normal—Here’s the Calm, Repeatable Cap Driver Reference Point

Caps are notoriously unforgiving. This is not because you have bad eyesight; it is because of parallax. A structured cap front is a dome, the cap frame is a curve, and your design is 2D digital data. When you look at a cap hoop from a standing position, the curvature distorts your perception of the center. If you rely on what "looks right," you will drift off-center 30% of the time.

Joyce’s anchor point eliminates the variable of the curve. She references the metal strap on the cap driver. This strap is mechanically fixed; it does not move, breathe, or stretch like fabric. By using a template that squares up against this strap, you are registering the needle to the machine's axis, not the fabric's unstable surface.

The "Upside Down" Reality One detail that trips up even experienced operators moving from flatbed to cap drivers is orientation. On most standard cap driver systems, the cap is loaded "brim out" (away from the machine body). This means the design file must be rotated 180 degrees—upside down—in the machine settings. If you forget this, you will embroider a perfect logo nicely centered on the bottom edge of the cap, upside down.

Speed Calibration for New Users While seasoned pros might run caps at 850+ SPM (Stitches Per Minute), the vibration of the cap frame can cause registration issues if your hooping isn't "drum-tight."

• Expert Recommendation: Start cap runs between 500–600 SPM.
• Sensory Check: Listen to the machine. A rhythmic, steady humming is good. If you hear a loud "clacking" or the cap frame rattling against the driver, you are running too fast for your hooping tension.


Build the Paper Alignment Template Once, Then Reuse It Like a “Placement Key”

Joyce’s template is intentionally low-tech, but the material matters. Do not use flimsy copy paper that curls in humidity. Use cardstock (like a manila folder or business card thickness). It needs to hold its edge against the metal strap without buckling.

Construction Steps:

1. Cut a piece of cardstock.
2. Cut a small hole (approx. 5mm) in the exact center.
3. Crucial Step: Make the height of the template equal to the height of your embroidery design.

That last point is the "secret sauce." By matching the template height to the design height, you are physically defining the "kill zone"—the area where the needle will travel. This prevents the nightmare scenario of centering the design perfectly, only to have the top of the logo hit the stiff buckram or the bottom crash into the sweatband seams.

The "Job Traveler" Concept From a 20-year production perspective, treating these templates as disposable is a mistake. Treat them like tooling:

• Label each template: "Logo A - 2.5 inch height."
• Store them flat in a plastic sleeve.
• Variable Sizing: If you digitize the same logo in a 2-inch version for visors and a 3-inch version for trucker hats, make a template for each. Scaling changes the visual center relative to the curve.

If you are currently using a hooping station for machine embroidery for your flats and jackets to ensure consistency, think of this paper template as the "hooping station" for your caps. It removes the guesswork and standardizes your start point.

The 1/2–3/4" Strap Rule: Position the Cap Template Before You Touch the Needle Jog

Joyce’s placement rule on caps is specific and derived from mechanical clearance requirements:

• Lay the template on the front of the cap.
• Position the bottom edge 1/2 to 3/4 inch up from the metal strap on the cap driver assembly.

Why this specific distance? It isn't just aesthetic. The presser foot of your commercial machine needs clearance. If you get closer than 1/2 inch to the metal strap, the presser foot may strike the strap or the cap frame clips, resulting in a shattered needle or a scratched driver. That 1/2-inch gap is your mechanical safety buffer.

The “Hidden” Prep That Prevents Slippage on Caps

Before you even touch the jog keys, you must perform a "Pre-Flight Check." 90% of cap failures (birdnesting, registration loss) happen because the prep was skipped.

Prep Checklist (Caps & Drivers)

• [ ] Seat Check: Push the cap frame onto the driver. You must hear/feel a distinct mechanical CLICK. If it slides on without locking, it will fly off at 800 RPM.
• [ ] Tension Check: Run your fingers over the cap front. It should feel tight, like a drum skin. If you can pinch fabric loosely in the center, the embroidery will pucker.
• [ ] Sweatband Clearance: Flip the sweatband out. Ensure the inner seams are pulled back and clipped. If the needle catches the sweatband, it will sew the hat shut.
• [ ] Center Seam Alignment: Visually confirm the center seam of the cap is perfectly vertical, aligned with the red mark on your cap driver (if applicable).
• [ ] Warp Check: Confirm your paper template is laying flat against the curve and not lifting at the corners.

A practical note on physics: Structured caps have "memory." They want to return to their manufactured shape. If you force a cap onto a frame without proper clips, it stores kinetic energy and releases it during stitching, causing the design to "walk" slightly to the left or right.

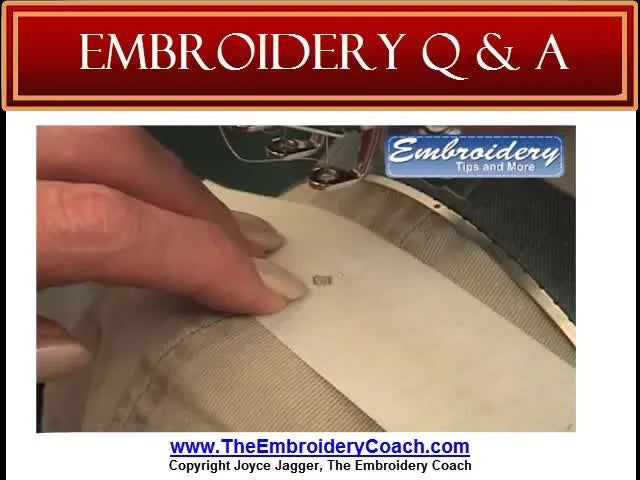

Needle-Over-the-Hole Alignment: Jog the Pantograph Until the Start Point Is Physically Proven

This is the heart of the method. You are converting a visual estimation into a binary mechanical fact: The needle is either over the hole, or it is not.

The Workflow:

1. With the template taped or held in position (1/2" up from the strap), go to your control panel.
2. Manually jog the pantograph (move the frame).
3. Bring the needle bar down slowly (using the manual knob or "needle down" function) to check position.
4. Align the needle point directly over the center of the cutout hole.

Warning: Point of Operation Hazard
Keep your fingers and the loose paper template clear when jogging the machine.
* Do not look away at the screen while your hand is near the needle.
* Do not lower the needle electrically unless your hands are clear.
A needle strike on a finger is a severe injury. Always use the manual wheel to lower the needle for alignment checks if you are a beginner.

Expected Outcome (What “Correct” Looks Like)

• Visual: The needle tip hovers exactly in the dead center of your cardstock cutout.
• Tactile: The template is resting naturally against the cap curve; you aren't bending it to match the needle.
• Repeatability: If you take this cap off and load the next one, utilizing the same measurement from the strap, the needle should land in the same spot.

One Setting You Must Not Forget

Joyce’s reminder is blunt for a reason: Turn your design upside down. Commercial machines read the coordinates based on the frame type. When you select "Cap Frame" in your SEWTECH or similar interface, it usually handles the rotation, but never trust the software blindly. Always look at the orientation icon on your screen. If the letters are right-side up on the screen, and the cap is loaded brim-out, you are about to ruin a hat.

Why This Works (And Why Eyeballing Fails on Curved Caps)

The human brain is wired to "smooth out" visual data. When you look at a curved cap front, your brain ignores the distortion caused by the dome shape effectively "lying" to you about where the absolute center is.

The template method works because it bypasses your brain's processing. It creates a physical constraint.

• Commercial Shop Logic: In a high-volume shop, this method reduces rework because it removes the "operator's opinion" from the equation. It doesn't matter if the operator is tired or if the lighting is bad—the mechanical alignment remains true.

The Capacity Wall If you are doing 5 or 10 caps, this method is perfect multiple times a day. However, if you are tackling orders of 500+ caps, the time spent taping templates becomes a bottleneck. That is the moment to consider an upgrade path. High-throughput demands often require stepping up to a dedicated multi-needle setup (like the SEWTECH series) which allows for faster color changes and more robust cap driver systems, reducing the "bounce" and need for constant micro-adjustments.

Pocket Placement Without Regret: Center by Measuring the Pocket Seams (Not by “Looks Centered”)

Moving from caps to garments, the logic remains the same: Stop guessing.

Pockets are sewn by humans, which means they are rarely perfectly square. If you center a logo based on the "shirt center," it might look crooked relative to the pocket. The pocket is the visual anchor for the logo, so you must align to the pocket, not the shirt body.

The Measurement Rule:

• Measure the pocket width from side seam to side seam.
• Mark the exact mathematical center with a water-soluble pen or chalk.
• Center your hoop/design to that mark.

If you are currently relying on a pocket hoop for embroidery machine (the clamped style) to stabilize finished garments, remember that the hoop ensures tension, but the measurement ensures placement. A tight hoop in the wrong place is still a ruined shirt.

Setup Checklist (Shirts & Pockets)

• [ ] Vertical Seam ID: Identify the left and right stitching lines of the pocket.
• [ ] Physical Measurement: Use a ruler. If the pocket is 4.5 inches wide, mark at 2.25 inches. Do not eyeball it.
• [ ] Job Type Verification: Is this a Monogram (On-Pocket) or a Corporate Logo (Above-Pocket)?
• [ ] Placket Check: Ensure the shirt button placket is straight and hasn't pulled the pocket fabric skewed during hooping.


The “Don’t Stitch the Pocket” Rule—Except Monograms (And Even Then, Be Picky)

Joyce’s general rule is clear: Avoid embroidering on the pocket itself unless it is a Monogram.

Why experienced shops avoid direct pocket embroidery:

1. Functionality: It often sews the pocket shut if you aren't careful.
2. Stability: Pockets are "floating" fabric layers. They shift more than the shirt body.
3. Thickness: The needle has to penetrate the pocket layer and the shirt layer and the backing. This increases thread breaks.

If you are doing a high volume of finished garments, specifically thick mechanic shirts or polos, clamping them into standard plastic hoops can be physically exhausting and often leaves "hoop burn" (the shiny ring mark). This is where a magnetic embroidery hoop becomes a distinct advantage. Magnetic frames use directed magnetic force rather than friction to hold the garment, allowing you to slide thick seams in without wrestling screws, reducing wrist strain and eliminating hoop burn on delicate performance fabrics.

Warning: Magnetic Field Safety
Magnetic hoops use powerful Neodymium magnets.
* Pinch Hazard: They snap together instantly. Keep fingers clear of the mating surfaces.
* Medical Devices: Keep magnetic frames at least 6 inches away from pacemakers and ICDs.
* Electronics: Do not place them near credit cards, phones, or machine logic boards.

The 1/2–3/4" Clearance Rule Above the Pocket: Where Logos Look Professional on Uniform Shirts

For 95% of corporate work (Left Chest Logos), you should place the design above the pocket.

Vertical Placement Standard: The bottom edge of the embroidery design should sit 1/2 to 3/4 inch above the top hem of the pocket.

Why this specific gap?

1. Visual Breathing Room: If the text sits right on the pocket line, it looks crowded.
2. Mechanical Necessity: The top hem of a pocket is very thick (often 4-6 layers of fabric). If your needle hits that ridge while doing delicate lettering, it will deflect, causing a broken needle or a "shredded" thread look. The 1/2-inch gap keeps the needle in the safe, single-layer zone.

Decision Tree: Fabric Pattern + Garment Type → Stabilizer & Placement

Use this logic flow at the intake desk to avoid mistakes later.

• 1. Is the design going ON the pocket?
  • YES: Use a Micro-font (min 5mm height). Use Iron-on Tearaway stacks to stiffen the pocket.
  • NO: Look above the pocket. Apply the 1/2–3/4" clearance rule.
• 2. Is the shirt fabric Stretchy (Performance/Polo) or Stable (Woven/Oxford)?
  • Stretchy: YOU MUST USE CUTAWAY STABILIZER. Tearaway will allow the knit to distort, and your circle logo will turn into an oval.
  • Stable: Tearaway is acceptable, but a Cutaway/Tearaway hybrid is safer for high stitch counts.
• 3. Is there a pattern (Stripes/Plaid)?
  • YES: Slow down. Visual alignment to the pattern overrides measurement (see below).
  • NO: Proceed with standard seam-to-seam centering.


Striped Shirts Are a Trap: The Alignment Standard That Separates Pros From Rework

Joyce calls out the "Stripe Trap." This is the most common cause of customer complaints on high-end polos.

The Problem: You measure the pocket center perfectly. You hoop perfectly. You stitch perfectly. But when you take it off, the logo looks crooked. The Cause: The stripes on the shirt draw the human eye. If your lettering is perfectly level to gravity, but the shirt's stripes are slightly slanted (due to manufacturing tolerances), the eye sees the difference and perceives the text as crooked.

Symptom → Cause → Fix (Striped/Checkered Edition)

Hidden Consumable: For stripes, use translucent vellum for your paper template. This lets you see the stripes through the template to verify alignment before you stitch.

The “Seam-to-Seam” Centering Trick: Make Pocket Logos Look Consistent Across Different Shirt Brands

Consistency is the currency of the embroidery business. If a customer orders 50 shirts, and they mix brands (e.g., Nike, Ogio, Port Authority), the pocket sizes will vary.

The Workflow:

1. Measure: Seam-to-seam width.
2. Mark: Center point with disappearing ink/chalk.
3. Hoop: Align the hoop's center marks to your chalk crosshair.
4. Verify: Trace the design box on the machine to ensure the bottom edge clears the pocket header by that critical 1/2 inch.

If you are using standard machine embroidery hoops and finding it difficult to keep the fabric square while tightening the screw, you are experiencing "torque drift"—the fabric twists as you tighten.

• Technique Fix: Pre-tape the backing to the garment with temporary spray adhesive before hooping.
• Tool Fix: Consider upgrading to magnetic frames which snap down vertically, eliminating the torque twist entirely.


Operation Checks That Prevent “One Good Shirt, One Bad Shirt” in a Batch

In a production run, the first shirt is usually perfect because you are paying attention. The 20th shirt fails because you got comfortable.

Operation Checklist (Batch Consistency)

• [ ] Orientation Lock: Confirm the design orientation (UP arrow on screen) matches the garment load direction.
• [ ] Needle Verification: (Caps) Jog needle to center hole of template. (Shirts) Align needle to chalk crosshair.
• [ ] Clearance Gap: Visually verify the presser foot will not hit the pocket hem (use the "Trace" feature).
• [ ] Stabilizer Type: Confirm you represent using Cutaway for knits/polos. Do not cheat and use tearaway just because it is easier to clean up—the shirt will pucker after the first wash.
• [ ] Bobbin Check: Before starting a large solid fill, check your bobbin. Running out halfway through a precise letter can cause registration errors when you resume.

If you find yourself spending more time measuring and re-measuring than stitching, using a dedicated hoop master embroidery hooping station can drastically reduce this setup time. These stations use fixtures to hold the garment and hoop in the exact same spot every time, allowing for "assembly line" speed.

The Upgrade Path When Placement Is Costing You Money (Caps, Pockets, and Production Reality)

If you are a hobbyist doing one or two items a week, Joyce’s paper template and careful measuring are all you need. They are free, accurate, and safe.

However, if you are running a business, time is your most expensive inventory. Here is how to diagnose when it is time to upgrade your tools:

Scenario 1: "My wrists hurt, and I have hoop burn marks on dark shirts."

• Diagnosis: Mechanical hoops rely on friction and force.
• Prescription: Magnetic Hoops. They reduce operator fatigue and surface damage. If you are doing 50+ left-chest logos a week, the time saved in hooping pays for the hoop in a month.

Scenario 2: "I spend more time changing threads than stitching."

• Diagnosis: Single-needle machines are entry-level barriers.
• Prescription: Multi-Needle Machines (e.g., SEWTECH). Moving to a 10, 12, or 15-needle machine allows you to preset colors. You press start and walk away to hoop the next item. This is the shift from "crafting" to "manufacturing."

Scenario 3: "My employees can't hoop consistent straight lines."

• Diagnosis: Human error variable.
• Prescription: Hooping Stations (e.g., HoopMaster). Fixturing removes the human eye from the alignment process. The shirt fits onto a board; the hoop snaps into a jig. Repeatability is guaranteed.

If you are currently researching terms like hoopmaster, you are likely already feeling the pain of inconsistency. Remember: The best tool is the one that makes the "right way" the "easiest way."

Quick Recap You Can Tape to the Wall (Caps + Pockets)

For Caps:

• Make a rigid cardstock template with a center hole.
• Place it 1/2–3/4" above the metal strap on the driver.
• Jog the needle to the center hole to verify electrical center.
• Set design orientation UPSIDE DOWN.

For Pockets:

• Center by measuring seam-to-seam (ignore the shirt placket).
• Place logos above the pocket with 1/2–3/4" clearance from the hem.
• Avoid stitching ON pockets unless it is a Monogram.
• For stripes: Align visually to the stripes, not the math.

Stop trusting your eyes on curves. Trust the math, trust the template, and trust the tools that give you repeatable results.

FAQ

• Q: How do I center embroidery on a commercial cap driver using the cap driver metal strap reference point?
  A: Use the cap driver metal strap as the fixed reference, then prove the start point by jogging the needle over a template hole.
  • Build: Cut a rigid cardstock template with a ~5 mm center hole, and make the template height equal to the embroidery design height.
  • Place: Position the template bottom edge 1/2–3/4 inch above the cap driver metal strap before touching the jog keys.
  • Jog: Manually jog the pantograph and lower the needle slowly to align the needle tip directly over the hole.
  • Success check: The needle tip hovers dead-center in the hole without bending the template to “make it fit.”
  • If it still fails: Re-check cap frame seating (must “CLICK”) and cap front tension (drum-tight), because slippage will mimic bad centering.
• Q: What does “drum-tight” cap hooping tension mean on a structured cap, and how can a cap embroidery operator confirm correct tension before stitching?
  A: “Drum-tight” means the cap front is tensioned so it cannot be pinched loose in the center, reducing registration walk and puckering.
  • Feel: Run fingers over the cap front; do not start if the center can be pinched or feels soft.
  • Prep: Clip and clear the sweatband and pull inner seams back so the needle cannot catch and drag fabric.
  • Align: Confirm the center seam is perfectly vertical to the cap driver’s center mark (if present).
  • Success check: The cap feels tight like a drum skin and stays stable when the frame is handled—no shifting or spring-back.
  • If it still fails: Slow the run down to a safer starting point (500–600 SPM), because vibration can amplify small tension mistakes.
• Q: What is a safe starting speed in SPM for running caps on a commercial embroidery cap driver, and what sounds indicate the cap frame is moving?
  A: Start caps at 500–600 SPM until hooping tension and frame stability are proven, then increase only after results are stable.
  • Listen: Run a short test and monitor machine sound during stitching.
  • Reduce: Slow down immediately if a loud “clacking” occurs or if the cap frame rattles against the driver.
  • Verify: Re-check that the cap frame fully locks onto the driver (distinct CLICK).
  • Success check: A steady, rhythmic humming sound with no rattling, plus consistent registration on the stitched design.
  • If it still fails: Re-check clearance and placement (keep the design area 1/2–3/4 inch above the metal strap) to avoid contact-induced vibration.
• Q: How do I prevent needle strikes and finger injuries when aligning the needle over a paper template hole on a commercial embroidery machine?
  A: Keep hands out of the point-of-operation and use slow, manual alignment methods until the process is routine.
  • Move: Hold or tape the template so fingers never sit under the needle path while jogging the pantograph.
  • Lower: Use the manual wheel/slow needle-lower method for alignment checks if the operator is a beginner.
  • Pause: Do not look away at the screen while hands are near the needle area.
  • Success check: The needle is aligned over the hole with hands fully clear before any powered movement or stitching starts.
  • If it still fails: Stop and reset the alignment from the beginning—rushing alignment is a common cause of accidental strikes.
• Q: What is the 1/2–3/4 inch clearance rule above a uniform shirt pocket, and how does it prevent presser-foot hits and crooked-looking logos?
  A: Place the bottom edge of a left-chest logo 1/2–3/4 inch above the top pocket hem to avoid thick seams and keep a clean visual gap.
  • Measure: Use a ruler and mark placement; do not rely on “looks centered.”
  • Verify: Use the machine “Trace” feature to confirm the design box clears the pocket header and thick top hem.
  • Avoid: Do not let delicate lettering run into the pocket’s thick ridge where needle deflection can occur.
  • Success check: The stitched logo has visible breathing room above the pocket and shows no distortion from seam impacts.
  • If it still fails: Switch to seam-to-seam pocket centering marks and re-check the shirt placket isn’t skewing the fabric during hooping.
• Q: How do I center embroidery on a shirt pocket when the pocket is not perfectly square, and why is seam-to-seam measuring better than eyeballing?
  A: Center by measuring the pocket seam-to-seam width and marking the mathematical midpoint, because pockets are rarely sewn perfectly square.
  • Identify: Find the left and right pocket stitching lines (the true visual boundaries).
  • Mark: Measure seam-to-seam, then mark the exact center with water-soluble pen/chalk.
  • Align: Match hoop center marks to the chalk crosshair before stitching.
  • Success check: The logo appears centered relative to the pocket edges (what customers visually judge), not merely centered on the shirt body.
  • If it still fails: For patterned shirts (stripes/plaid), align the baseline/vertical strokes to the pattern lines even if that slightly overrides the measured center.
• Q: What magnetic hoop safety rules apply when using a Neodymium magnetic embroidery hoop on finished garments to reduce hoop burn?
  A: Treat magnetic embroidery hoops as pinch hazards and keep them away from medical implants and sensitive items.
  • Guard: Keep fingers clear of the mating surfaces because magnets can snap together instantly.
  • Separate: Keep magnetic hoops at least 6 inches away from pacemakers and ICDs.
  • Protect: Do not place magnetic hoops near credit cards, phones, or machine logic boards.
  • Success check: The hoop closes smoothly without finger pinches, and the garment is held securely without friction marks (“hoop burn”) on delicate fabrics.
  • If it still fails: Re-check garment thickness and seam placement—magnetic hoops help clamping, but placement still must follow pocket clearance and centering rules.
