Stop Guessing Placement: A HoopMaster Workflow That Nails Left-Chest, Tote Bags, and Cap Backs Every Time

If you have ever hooped a shirt, stepped back, stitched it, and then realized the logo is almost level—but tilted just 2 degrees downward—you know the sinking feeling. In a commercial shop or a serious home studio, placement mistakes are not just annoying; they are the single biggest thief of profit. They burn garments, waste backing, destroy thread, and worst of all, erode your confidence.

As someone who has trained hundreds of operators, I can tell you: Placement is a process, not a talent. If you rely on "eyeballing it," you will eventually fail when fatigue sets in.

This guide breaks down the science of using a systematic hooping station (like the HoopMaster system demonstrated). We will move beyond the basic "how-to" and into the "why" and "feel" of production hooping, transforming the "measure-and-pray" method into a documented engineering process.

The Calm-Down Moment: Why the HoopMaster System Fixes the Most Expensive Part of Embroidery—Placement

The presenter’s goal in this demonstration is simple: hit the exact same spot on the 50th shirt as you did on the 1st, regardless of how tired you are. The system utilizes a Base Station (for flat garments), a FreeStyle Arm (for tubular items like bags), and specific fixtures matched to your hoop size.

But here is the psychological shift you need to make: The station doesn't replace your embroidery machine; it replaces the guesswork. It acts as a "jig"—a concept borrowed from woodworking and metalworking—to constrain variables.

The Commercial Reality: When a customer orders 20 shirts, they don't actually care if the logo is mathematically 4.5 inches from the center. They care that all 20 shirts look identical. A station guarantees relative consistency, which is what the human eye perceives as quality.

The “Hidden” Prep That Makes Hooping Fast (and Keeps You From Re-Hooping)

Amateurs rush to the hoop. Pros rush to the prep. Before you touch a single garment, you must stabilize your environment. If your backing slides 2mm while you are loading a shirt, your design will be off-center, no matter how good your measurements are.

The "Invisible" Consumables Kit: To make this workflow sing, you need more than just the station. Ensure you have:

• Pre-cut Backing: Don't cut from a roll for every shirt. Use pre-cut squares (e.g., 8x8" for left chest) to ensure consistent tension.
• Lint Roller: Dust on the fixture causes friction. A sticky roller ensures the shirt glides rather than drags.
• Fabric Pen/Chalk: For marking outliers.

Expert Reality Check: The magnetic backing hold shown in the demo is the "secret sauce." By pinning the stabilizer to the underside of the outer ring using magnets, you remove the single most frustrating variable: the "backing drift."

Warning: Physical Safety
When pressing the inner ring into the outer ring, keep your fingers on the rim of the hoop, never underneath or inside the ring. The snap-action creates a significant pinch point that can bruise fingers or break nails. Treat the hoop press like a power tool—respect the crush zone.

Prep Checklist (Do this before the first item)

• Fixture Match: Confirm the fixture size matches your actual hoop (e.g., if using a 15cm hoop, the fixture must say "15cm").
• Backing Stage: Pre-cut your stabilizer stack. Place it within arm's reach (left side if you are right-handed).
• Surface Glide: Wipe the fixture surface with a silicone cloth or dry rag to remove humidity/lint.
• Data Log: Have a notebook ready to record the Grid/Letter coordinates.
• Hoop Staging: Separate your hoops. Stack outer rings on the left, inner rings on the right.


Base Station Left-Chest Hooping: The Fixture Mount That Makes Everything “Square” Again

The Base Station workflow begins with physics: anchoring the World Coordinate System.

The Setup Protocol

1. Mount the Fixture: Align the fixture pegs to the Base Station holes.
2. The "Click" Test: Press down firmly. You should hear a distinct clunk or click. If the fixture wobbles even 1mm, stop. A loose fixture means every single shirt will be crooked.
3. Visual Confirmation: Locate the "L" (Left Chest) and "R" (Right Chest) markings.

Why this fails: I often see operators rushing this step, leaving the fixture slightly unseated. This creates a "drift" where the first shirt is perfect, but the tenth shirt is twisted because the jig itself moved.

The Backing-Doesn’t-Move Trick: Loading the Outer Ring + Magnetic Backing Holder

This is the step that makes hooping feel less like wrestling an octopus. Standard hooping requires you to hold the bottom ring, the backing, the shirt, and the top ring simultaneously. The station reduces this to zero.

The Sensory Check

1. Drop and Lock: Place the outer ring into the fixture recess. It should sit flush—run your finger over the edge; it should not protrude.
2. Magnetic Snap: Lay your pre-cut backing over the ring. Fold the fixture’s magnetic flaps over the backing.
3. The "Drum Skin" Test: Tap the backing. It should be flat and taut, but not stretched. If it sags, lift the magnet and pull it tight.

If you are researching efficiency tools, understanding this "hands-free backing" concept is key. This is the core value proposition of a magnetic hooping station—it immobilizes the foundation (the stabilizer) so you can focus entirely on the variable (the fabric).

The Neckline Letter Guides (A–E): How the 2XL “D” Setting Saves You From Measuring Every Time

The demo illustrates aligning a 2XL shirt to the "D" marking on the neckline guide. This replaces the ruler.

The Alignment Choreography

1. The Pull-Over: Pull the shirt over the board like putting a pillowcase on a pillow.
2. The Letter Logic: Align the neck seam to the specific letter (e.g., D for 2XL).
3. The "Ironing" Hand: Use your palms to smooth the fabric from the center out.
   • Tactile Tip: You are not stretching the fabric; you are relaxing it. If you pull too hard, the knit will retract later, causing puckering.
4. Square the Placket: If it’s a polo, the buttons/placket must be perfectly vertical. Use the grid lines on the board as a visual guide.

Addressing the "Logo Sizing" Question

Comment question: “When you go from medium to XXL, do you have to resize the logo?”

Expert Answer: Generally, no. In commercial embroidery, a left-chest logo (typically 3.5" to 4" wide) usually stays the same size. What changes is the placement.

• Small Shirt: Logo sits higher and closer to the center.
• 2XL Shirt: Logo sits lower and further out to avoid the armpit.

The station handles this automatically via the grid. You don't resize the file; you just move the shirt to a different letter guide.

The “Press-and-Release” Hooping Action: What You Should Feel When the Inner Ring Locks In

This is the moment of truth.

The Mechanics of the Press

1. Pin Alignment: Place the inner ring onto the alignment pins at the top of the fixture.
2. The Controlled Press: Push down with even pressure on both hands (3 o'clock and 9 o'clock positions).
3. The Release: Lift the shirt off.

Sensory Feedback—What does "Good" feel like?

• Too Tight: If you have to put your body weight into it, your adjustment screw is too tight. You risk "hoop burn" (crushing the fabric fibers).
• Too Loose: If the inner ring falls in without resistance, the fabric will slip during stitching (flagging), causing registration errors.
• The Sweet Spot: You want a firm thud. When you pull on the fabric gently after hooping, it should feel like a trampoline—firm but with a tiny bit of give.


The Number Scale (5 / 10 / 15): Build a Repeatable Placement Recipe for Reorders

The presenter mentions a general rule: Smalls at 5, XLs at 10, 2XLs at 15. These numbers represent the vertical position (height) of the fixture.

The "Commercial Continuity" Notebook The biggest failure in shops isn't the first order; it's the reorder three months later. If the new batch doesn't match the old batch, the customer walks.

Create a "Recipe Card" for every client:

• Client: Joe's Plumbing
• Garment: SanMar Polo #ST650
• Fixture: 15cm
• Neck Alignment: Letter C
• Vertical Station: #10

This turns a hoop master embroidery hooping station from a piece of plastic into a standardization system.

Setup Checklist (Base Station Left Chest)

• Fixture Seating: Fixture is flush with no wobble.
• Backing Security: Magnetic flaps are engaged; backing is flat.
• Garment Draping: Shirt shoulders are even on the board.
• Neck Alignment: Neckline touches the specific Letter Guide (e.g., D).
• Placket Check: Buttons/Center line is perfectly parallel to vertical grid lines.
• Smoothing: Fabric is relaxed, no ripples under the hoop area.

The Crooked Pocket Reality: Why “Square to the Pocket” Looks Better Than “Square to the Shirt”

The demo correctly identifies a harsh truth: Factories sew pockets on crooked. If your embroidery is perfectly level to gravity, but the pocket is crooked, the customer will think you made the mistake.

The Optical Illusion Rule: Always square your design to the feature closest to it.

• If there is a pocket, align to the pocket top.
• If there are stripes, align to the stripes.
• If it is a plain shirt, align to the placket/center line.

Action: Use the specific "Pocket Alignment Fixture" which has a lip that grabs the top of the pocket, forcing the hoop to match the pocket's angle.

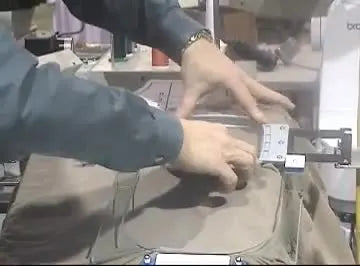

FreeStyle Arm Tote Bag Production: The Ruler Stop That Turns 24 Bags Into a 10-Second Rhythm

Now we switch to the FreeStyle Arm. This is essential for "tubular" items (bags, sleeves) that cannot be split open.

Setting the Production Line

1. Mount: Secure the fixture to the FreeStyle Arm.
2. The "Stop" Logic: You have a batch of 24 bags.
3. First Bag Setup: manually align the first bag until it is perfectly centered.
4. Lock the Ruler: Slide the L-shaped ruler guide against the side of the bag and tighten the two yellow thumbscrews.




The Efficiency Gain: For the next 23 bags, you do not measure. You slide the bag on until it hits the ruler, smooth it, and hoop.

• With Ruler: 10 seconds per bag.
• Without Ruler: 45 seconds per bag.


This concept is why commercial shops invest in dedicated hooping stations; the ROI comes from the seconds saved on every repetition.

Decision Tree: Choosing Stabilizer for Shirts vs. Tote Bags vs. Caps

New embroiderers often guess here. Use this logic tree to make safe decisions.

• IF Fabric = Stretchy Knit (Polo/T-Shirt)
  • AND Design is heavy (>10k stitches) → Action: Use 2.5oz Cutaway.
  • AND Design is light (Text) → Action: Use 2.0oz Cutaway (No-Show Mesh).
  • Rule: Knits always need Cutaway. Tearaway will leave the design distorted.
• IF Fabric = Woven/Canvas (Tote Bag)
  • AND Fabric is thick/stiff → Action: Use Tearaway (the fabric supports itself).
  • AND Fabric is thin/flimsy → Action: Use Cutaway to prevent puckering.
• IF Fabric = Structured Cap
  • Action: Use specialized Cap Backing (tearaway that is stiff and typically 3oz+).

Cap Back Hooping Without Stitching the Sweatband: The One Fold That Saves the Job

Embroidering the back of a cap (the arch) is high-profit work, but risky.

The "Sweatband Flip" Technique

1. Fold: Before the cap touches the station, flip the sweatband out of the cap.
2. Slide: Slide the cap onto the fixture.
3. Confirm: ensure the sweatband is sitting outside the target area. If you stitch the sweatband to the cap, the hat is ruined (it won't fit perfectly).
4. Hoop: adhere the cap to the backing (or clamp it) depending on your fixture type.






This workflow is critical for machines like the Brother PR series. If you are looking for a brother pr600 hat hoop solution, ensure your fixture matches the specific curvature of your machine's driver.

The “Extra Set of Hands” Principle: Physics of Hooping, Fabric Tension, and When to Upgrade

The fundamental problem with hooping is that you need three hands:

1. One to hold the hoop.
2. One to smooth the fabric.
3. One to hold the backing.

The station provides the third hand. However, sometimes the hoop itself is the bottleneck.

The Level 2 Upgrade: Magnetic Hoops Standard plastic hoops require force to "friction fit" the fabric. This causes "hoop burn" (shiny rings) on delicate performance wear. If you notice you are spending too much time wrestling the outer ring, or if you are getting wrist pain, this is the trigger to investigate magnetic embroidery hoops.

• How they work: Instead of friction, they use powerful magnets to sandwich the fabric.
• The Benefit: No friction burn, and they snap together instantly without adjusting screws.

Warning: Magnetic Safety
If you upgrade to magnetic hoops (like the MaggieFrame or equivalent), be aware they generate strong magnetic fields.
1. Pacemakers: Keep at least 6 inches away.
2. Pinch Hazard: These magnets are industrial strength. They can shatter bone if fingers get caught between them. Handle with extreme care.

Troubleshooting the Stuff That Wastes the Most Time (Symptoms → Causes → Fixes)

Use this table when things go wrong on the floor.

The Upgrade Path: When a Hooping Station Is Enough—and When You Should Level Up Tools

A hooping station standardizes your placement, but it doesn't solve capacity.

Phase 1: The Struggle

• Equipment: Single-needle machine + Manual Hooping.
• Pain: Slow thread changes, crooked shirts.
• Solution: Buy a Hooping Station.

Phase 2: The Efficiency Gap

• Equipment: Multi-needle (Brother PR / Baby Lock) + Hooping Station.
• Pain: Hooping takes longer than stitching; hoop burn on expensive Nike polos.
• Solution: Upgrade to SEWTECH Magnetic Hoops. This speeds up the "load/unload" cycle by 30%.
• Compatibility: Many users search specifically for magnetic hoops for babylock embroidery machines or Brother machines. Verify your arm width (e.g., 130mm vs 360mm) before buying.

Phase 3: The Scale-Up

• Equipment: Capped out on capacity.
• Pain: Turning away orders.
• Solution: Add more heads (Multi-head machines) or high-speed dedicated Multi-needle machines (like SEWTECH commercial models).

Operation Checklist (Keep quality high when moving fast)

• Force Control: Press the inner ring with controlled, even pressure. Do not "slam" it.
• Wrinkle Patrol: Smooth fabric away from the center. Do not trap ridges under the ring.
• Batch Consistency: For tote bags, verify the ruler thumbscrews are tight after every 5 bags.
• Cap Clearance: Always visual-check the sweatband is folded out before pressing start.
• Record Keeping: log the letter/number setting immediately after the first successful sew-out.

FAQ

• Q: What consumables should be staged before using a HoopMaster-style embroidery hooping station to prevent stabilizer drift on left-chest shirts?
  A: Stage the “invisible kit” first—most placement problems start because backing and fabric are fighting you, not because measurements are wrong.
  • Prepare: Use pre-cut backing squares (for example, 8x8" for left chest work) instead of cutting from a roll each time.
  • Clean: Run a lint roller on the fixture/board so the garment glides instead of dragging.
  • Mark: Keep a fabric pen/chalk ready for oddball garments that don’t match the usual letter/number settings.
  • Success check: When loading, the backing stays flat and does not shift while you drape and smooth the shirt.
  • If it still fails: Pin the stabilizer more securely using the fixture’s magnetic backing hold so the backing cannot walk during loading.
• Q: How do I confirm a HoopMaster Base Station fixture is seated correctly so the left-chest embroidery logo does not stitch crooked?
  A: Seat the fixture like a precision jig—if the fixture moves, every shirt can drift.
  • Mount: Align the fixture pegs to the Base Station holes and press down firmly.
  • Test: Do the “click/clunk” test and then try to wiggle the fixture; stop if there is even slight wobble.
  • Verify: Confirm you are using the correct fixture size for the hoop (example: 15cm fixture for a 15cm hoop).
  • Success check: The fixture is flush, makes a distinct click/clunk, and shows zero wobble when pressed or nudged.
  • If it still fails: Remove and re-seat the fixture before hooping any garments; do not “hope it’s fine” and continue the batch.
• Q: What is the correct hooping tension feel when pressing an inner ring into an embroidery hoop to avoid hoop burn or fabric slipping?
  A: Aim for a firm “thud” with a trampoline-like fabric feel—too tight causes hoop burn, too loose causes slipping/flagging.
  • Adjust: Loosen the adjustment screw if you must use body weight to press the ring in.
  • Control: Press evenly with both hands (around 3 o’clock and 9 o’clock) rather than slamming one side.
  • Check: Gently tug the fabric after hooping to confirm it is firm but not overstretched.
  • Success check: You feel a firm thud on lock-in, and the fabric feels like a trampoline—firm with a tiny bit of give.
  • If it still fails: If hoop burn persists on delicate performance wear, consider switching to magnetic embroidery hoops to reduce friction pressure.
• Q: How do I stop drifting embroidery designs caused by stabilizer moving during garment loading on a hooping station?
  A: Immobilize the stabilizer before you drape the garment—backing drift is the most common cause of “mysteriously off-center” logos.
  • Lock: Place the outer ring into the fixture so it sits flush, then lay the pre-cut backing on the ring.
  • Secure: Engage the fixture’s magnetic flaps to pin the backing to the underside of the outer ring.
  • Tension: Do the “drum skin” test—lift the magnet and pull the backing taut if it sags.
  • Success check: Tapping the backing feels flat and taut, and the backing does not creep while positioning the shirt.
  • If it still fails: Re-check that the outer ring is fully seated in the fixture recess (flush edge with no protrusion).
• Q: What alignment method prevents a crooked left-chest embroidery logo on polo shirts when the placket or pocket is not straight?
  A: Square the logo to the nearest visual reference (pocket top, stripes, or placket), not to the overall shirt—factories often sew features crooked.
  • Choose: If there is a pocket, align to the pocket top; if there are stripes, align to the stripes; otherwise align to the placket/center line.
  • Use: For pockets, use a pocket alignment fixture with a lip that references the pocket edge.
  • Verify: Use the board grid lines as a visual guide to keep the placket vertical when applicable.
  • Success check: The embroidery looks visually level relative to the pocket/stripes/placket even if the shirt body is slightly skewed.
  • If it still fails: Re-hoop and ignore “perfect to gravity” if the garment feature is clearly tilted—customers judge by what they see closest to the logo.
• Q: What safety steps prevent finger pinch injuries when pressing an inner ring into an embroidery hoop at a hooping station?
  A: Keep fingers on the hoop rim only—the snap-action creates a serious pinch zone.
  • Position: Place fingers on the rim of the hoop, never underneath or inside the ring area.
  • Press: Push down with controlled, even pressure using both hands rather than a sudden slam.
  • Pause: Stop immediately if the ring binds or you feel unstable hand placement—reset and try again.
  • Success check: The ring locks with a controlled thud and no fingers are near the crush zone during the press.
  • If it still fails: Slow the workflow down and treat the hoop press like a power tool—speed is never worth a pinch injury.
• Q: What magnetic embroidery hoop safety rules should be followed when upgrading to magnetic hoops for faster hooping and less hoop burn?
  A: Treat magnetic hoops as industrial pinch hazards and keep them away from medical devices.
  • Distance: Keep magnetic hoops at least 6 inches away from pacemakers.
  • Handle: Keep fingers clear when magnets snap together; these magnets can injure fingers if caught.
  • Stage: Separate and place magnetic parts deliberately on the table—do not let them “jump” together unexpectedly.
  • Success check: The magnetic hoop closes without finger contact in the gap, and loading/unloading feels fast without crushing force.
  • If it still fails: If pinch control is difficult, return to standard hoops until safe handling habits are consistent, then reintroduce magnetic hoops with slower, two-hand placement.
