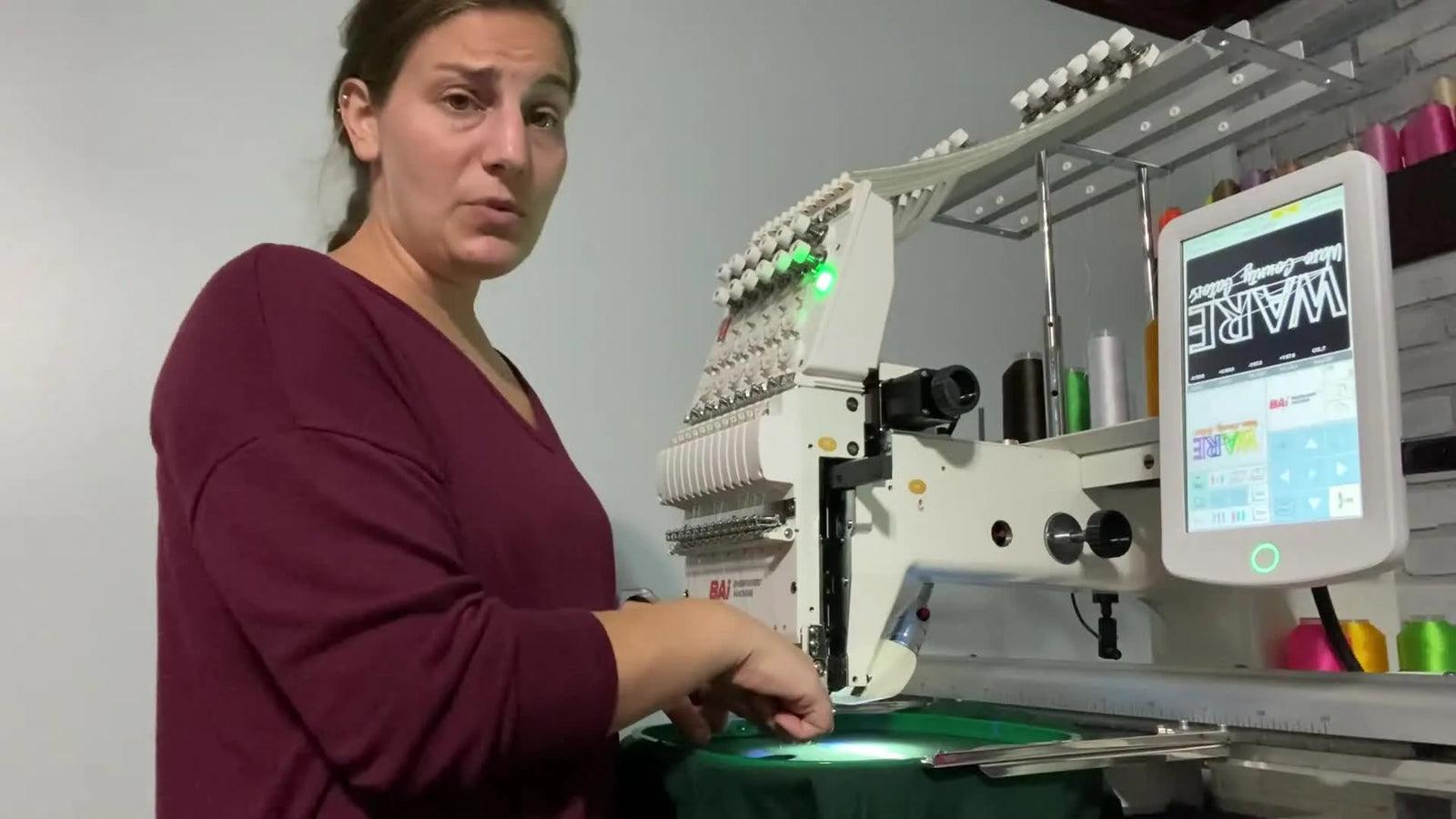

Stop Guessing on Your BAI: The Blue Tape + Needle #1 Trick That Finally Centers Sweatshirt Embroidery

**The Zero-Guesswork Protocol: Master Centering on Multi-Needle Embroidery Machines**

Transitioning from a domestic single-needle machine to a multi-needle workhorse is an exhilarating leap. Suddenly, you have speed, color capacity, and professional power. But let’s validate the elephant in the room: Centering on a multi-needle machine can feel terrifying.

On a single-needle machine, the center is right there. On a multi-needle platform, you are managing a larger sewing field, heavier gravity acting on your garment, and a pantograph system that feels disconnected from your hands. If your first project landed crooked, too low, or hit the hoop—you are not alone.

This guide is not just a tutorial; it is an operational standard. We are rebuilding the "Blue Tape Method" into a repeatable, failure-proof workflow. We will cover the tactile sensations of correct hoop placement, the safety margins expert operators use, and the specific tools that eventually replace manual guesswork with industrial precision.

1. The Physics of Alignment: Why Multi-Needle Feels Different

To master your bai embroidery machine (or any similar multi-needle platform), you must first understand the "Floating Variable."

On a home machine, the hoop often snaps into a fixed tray close to the needle plate. On a commercial-style machine, the hoop arms extend outward, creating a cantilever effect. Heavy garments—like the thick hoodies popular in fall/winter seasons—weigh down the front of the hoop, creating "drag."

The Mental Shift: The machine does not know where your garment is. It only knows where the hoop is. Your job is to create a physical reference (tape) and force the digital needle to acknowledge it.

Expert Insight: Do not trust your eyes from a sitting position. Parallax error—the optical illusion caused by viewing the needle from an angle—causes 80% of centering mistakes. You must stand up and view the needle tip directly perpendicular to the fabric.

2. The Two-Tape Protocol: Your Visual Anchor

The method involves using low-tack blue painter’s tape. Why tape? Because chalk can rub off under the friction of the presser foot, and air-erase markers disappear too quickly in humid shops. Tape provides a high-contrast physical barrier.

Step 1: The Target (Bottom Tape)

Place a strip of tape horizontally across the chest where you want the vertical center of the design to sit. Draw a crisp, vertical line intersecting it. This is your Crosshair.

• Sensory Check: Use a ruler. Don't eyeball it. A standard left-chest logo typically centers 7-8 inches down from the shoulder seam and 4 inches over from the center line.

Step 2: The Ceiling (Top Tape)

Place a second strip of tape parallel to the first, marking the absolute highest point the design is allowed to touch (usually 1 inch below the collar or clavicle).

• The "Why": Most beginners center onto the crosshair but forget to check the height. The design stitches perfectly centered left-to-right, but lands awkwardly low on the stomach. The top tape is your hard "Ceiling Boundary."

This method is critical when using standard bai embroidery hoops, which rely on manual adjustment and visual confirmation.

3. The "Invisible" Step: The Ruler Verification

Before the hoop ever touches the machine, you must verify the garment is straight inside the hoop.

In the tutorial context, a clear plastic grid ruler is placed over the hoop.

1. Align the ruler's grid lines with the hoop's inner ring.
2. Look at your tape crosshair through the ruler.
3. The Verdict: If the tape line runs diagonal to the ruler's grid, your shirt is hooped crooked. No amount of screen adjustment will fix a twisted grainline.

Hidden Consumable: Always keep a 6-inch x 24-inch quilting ruler at your station. It is the only way to objectively judge straightness before you commit to the machine.

Phase 1: Prep Checklist (The "Pre-Flight" Inspection)

Perform these checks on the workbench, not the machine.

• Hoop Tension Check: Drum the fabric with your fingers. It should sound like a dull "thump," not a loose rattle. (Avoid pulling knits so tight they distort).
• Geometry Check: Verify the clear grid ruler shows your tape line is parallel to the hoop frame.
• The "Ceiling" Check: Is the Top Tape placed to prevent the logo from riding into the collar?
• Consumable Check: Have you applied the correct stabilizer? (Rule of thumb: Cutaway for wearables/knits, Tearaway only for towels/caps).
• Size Validation: Does the design size on your computer match the hoop you just loaded?

4. Mounting: Fighting Gravity and Kinetic Friction

Mounting a heavy sweatshirt onto the pantograph arms is a physical skill. The tubular arms must slide into the machine's receiver brackets until you hear a mechanical engagement.

Sensory Anchor: Listen for a sharp "Click". If you push the hoop in and it feels "mushy" or doesn't click, it is not locked. A loose hoop will vibrate during stitching, causing registration errors (gaps between outlines and fill).

Scenario Trigger: If you find yourself sweating while wrestling a hoodie to keep it straight, or if you notice "hoop burn" (shiny rings) on delicate fabrics from clamping too hard, this is a hardware limitation.

• Standard Hoops: Great for beginners, but labor-intensive for bulk.
• The Upgrade Path: This is where professionals switch to Magnetic Hoops. They self-align and clamp instantly without the "unscrew-tighten-pray" cycle, significantly reducing wrist strain and mounting time.

Warning: Magnet Safety
If you upgrade to magnetic frames (like those from SEWTECH or Mighty Hoop), handle with extreme care. The clamping force is powerful enough to pinch fingers severely. Never place magnetic hoops near individuals with pacemakers, as the magnetic field can disrupt medical devices.

5. The Digital Handshake: Validating the Screen

Now that the physical garment is mounted, we move to the screen.

The Red Crosshair Icon: On your bai embroidery machine interface, look for the red crosshair in the design preview.

• Critical Check: Is the red crosshair in the actual center of your design?
• The Trap: Some digitized files have their "origin" set to the bottom-left corner. If you align Needle 1 to your tape center, but the file thinks "center" is the bottom corner, your logo will stitch off into the armpit. Always confirm the software "center" matches the visual "center."


6. The "Reset to Needle 1" Ritual

Multi-needle machines have a memory. If your previous job finished on Needle 9 (yellow), the machine might still be effectively "parked" there.

The Ritual:

1. Press the button to select Needle 1.
2. Wait for the head to slide over.
3. Why: You need a consistent physical pointer. Needle 1 is the comprehensive industry standard for alignment. "Always align with One."


7. The Pull-Down: Physical Confirmation

This serves as the most critical moment of the setup. You cannot trust the laser (if equipped) 100%, and you cannot trust your eye from a distance.

The Maneuver:

1. Use the arrow keys to jog the pantograph until Needle 1 is roughly over your bottom tape crosshair.
2. Physically grab the needle bar (the metal shaft holding the needle) and gently pull it down against the spring pressure.
3. Bring the distinct tip of the needle within 2mm of the tape.
4. Micro-Adjust: While holding it down (or locking it, if your machine permits), use the slow-jog arrows to place the tip exactly into the ink of your crosshair.

Warning: Mechanical Safety
Keep your other hand away from the "Start" button and keep your feet away from any pedals while your fingers are near the needle. A sudden machine movement while your finger is on the needle bar can result, very quickly, in a severe puncture injury.

Phase 2: Setup Checklist (At the Machine)

Perform these checks immediately before pressing Trace.

• Active Needle: Is the screen highlighting Needle 1?
• Origin Lock: Is the Red Crosshair verified in the center of the screen design?
• Needle Tip Check: Did you physically pull the bar down to touch the tape mark?
• Clearance: Is the garment draping freely, not bunched up behind the pantograph arm?

8. The Trace: The "Dry Run"

Tracing (or "Frame Out") moves the hoop around the perimeter of the design without stitching. This is your final fail-safe.

The Strategy:

1. Initiate the Trace.
2. Watch the needle (Needle 1) as it travels.
3. The "Ceiling" Test: Does the needle cross your Top Tape line?
   • If Yes: The design is too high.
   • If No: Watch how far below the tape it stays. Ideally, the top of the design should sit exactly where you planned relative to that boundary line.


9. The Y-Axis Correction (The "Elevator" Rule)

In the source video, the trace reveals the design is too low.

The Fix: Use the Y-Axis (Up/Down) arrows on the screen to slide the hoop backward (moving the design higher on the chest).

• The Golden Rule: Do not touch the X-Axis (Left/Right) arrows. You have already centered the design horizontally with your tape. Only move it like an elevator—straight up or down—to fix the height while preserving the center.

Note: It is normal for the design on the screen to shift visually within the digital hoop frame. Trust the physical relationship between the needle and the Top Tape.

Decision Tree: Which Alignment Method Do I Need?

10. The Final "Don't Forget" Moment

Before you press the green button, you must execute the "Clean & Clear."

1. Remove the Tape: Peel off the blue tape. If you stitch over it, picking the tape bits out from under the thread is a nightmare that will cost you 15 minutes of tweezers work.
2. The Underside Sweep: Run your hand under the hoop.
   • Risk: Sleeves on sweatshirts love to fold under the hoop. If you stitch a sleeve to the chest, the garment is ruined.
   • Tactile Check: Ensure only one layer of fabric and the stabilizer are in the stitch zone.




Phase 3: Operation Checklist (The Final Countdown)

• Tape Removal: All visual aids peeled off?
• Sleeve Check: Underside of hoop is clear of obstructions?
• Thread Path: Is the thread tree clear of tangles? (Look for loops on the spool pin).
• Speed Check: For the first minute, reduce speed to 600 SPM (Stitches Per Minute). Listen to the rhythm. If it sounds smooth (a consistent hum), you can ramp up to 800+.

11. Beyond the Basics: Upgrading Your Layout Logic

As you gain confidence, you will naturally seek speed. The bottleneck often shifts from "centering" to "hooping."

If you are running a business, the time spent wrestling standard tubular hoops is "dead time." This is where the industry ecosystem steps in:

1. Hooping Stations: These hold the hoop and garment in a fixed position, ensuring that if you hoop 10 shirts, the logo lands in the same spot on all 10.
2. Precision Tools: Terms like mighty hoop left chest placement fixtures refer to systems that standardize this measurement.
3. Magnetic Hoops: For the BAI and similar machines, upgrading to magnetic frames is often the first "profitability" purchase. They drastically reduce the physical effort of hooping thick fleece and virtually eliminate "hoop burn."






12. Troubleshooting the "Gremlins"

Even with perfect centering, things go wrong. Here is a rapid-response diagnostic table based on common user experiences.

Conclusion: Confidence Comes from Protocol

Getting to know your bai embroidery machine hoop sizes and limitations takes time. Do not rush. The difference between a ruined garment and a perfect stitch-out is rarely "talent"—it is protocol.

Use the tape. Pull the needle down. Trace the boundary. Check underneath.

Once these steps become muscle memory, the fear evaporates, and you can focus on the creativity—and the volume—that your multi-needle machine was built to handle.

Ready to streamline your production? Explore our range of magnetic hoops and commercial-grade stabilizers designed to make standardizing your workflow effortless.

FAQ

• Q: How do I center a left-chest logo on a BAI multi-needle embroidery machine without guessing the height?
  A: Use the Two-Tape Protocol so the needle aligns to a crosshair and the design never crosses a “ceiling” line.
  • Place bottom tape at the target height, then draw a clean vertical line to form a crosshair.
  • Place top tape parallel above it to mark the highest allowed edge of the design (a hard boundary).
  • Jog Needle 1 to the crosshair and run Trace to confirm the design stays below the top tape.
  • Success check: During Trace, the needle path does not cross the top tape line and the needle tip can be placed exactly on the crosshair.
  • If it still fails: Adjust only the Y-axis (up/down) after tracing—do not change X-axis after the crosshair is set.
• Q: How do I verify a shirt is hooped straight for a BAI multi-needle embroidery machine before mounting the hoop?
  A: Use a clear grid ruler over the hoop to catch a twisted grainline before the hoop reaches the machine.
  • Lay a clear plastic grid ruler on top of the hooped area and align ruler grid lines to the hoop’s inner ring.
  • Check the tape crosshair line through the ruler; re-hoop if the tape line runs diagonally to the grid.
  • Recheck hoop tension after re-hooping so knits are not stretched and distorted.
  • Success check: The tape line reads parallel to the ruler grid and the fabric “drums” with a dull thump, not a loose rattle.
  • If it still fails: Un-hoop and re-hoop—screen adjustments will not correct a crookedly hooped garment.
• Q: How do I confirm the hoop is fully locked on the pantograph arms of a BAI multi-needle embroidery machine when mounting heavy hoodies?
  A: Push the hoop arms in until a clear mechanical “click” confirms engagement—anything mushy is not locked.
  • Support the garment weight so it does not drag the hoop down while you mount it.
  • Slide the tubular arms into the receiver brackets until you hear/feel the sharp click.
  • Before stitching, check the garment is draping freely and not pulling against the arms.
  • Success check: You hear a distinct click and the hoop feels solid with no wobble when lightly tested.
  • If it still fails: Stop and remount; a partially seated hoop can vibrate and cause registration gaps mid-design.
• Q: How do I avoid aligning to the wrong “center” on a BAI embroidery machine screen when a design origin is not set to center?
  A: Confirm the red crosshair on the BAI interface matches the true visual center of the design before aligning Needle 1 to fabric marks.
  • Open the design preview and locate the red crosshair icon.
  • Verify the crosshair sits in the actual center of the artwork (not a corner-origin file).
  • If the origin is wrong, correct the file in software or re-load a properly centered version before stitching.
  • Success check: Needle 1 aligned to the fabric crosshair produces a trace that stays centered around that point.
  • If it still fails: Do a full Trace and re-validate both the screen crosshair position and the physical tape crosshair.
• Q: What is the safest way to do the “pull-down needle tip” centering check on a BAI multi-needle embroidery machine?
  A: Pull down the needle bar gently to bring the needle tip within ~2 mm of the mark, and keep all start controls out of reach while hands are near the needle.
  • Select Needle 1 first so the pointer is consistent every time.
  • Physically pull the needle bar down against spring pressure and use slow-jog arrows to micro-place the tip into the crosshair ink.
  • Keep the other hand away from the Start button and keep feet away from any pedals during this check.
  • Success check: From a perpendicular standing view, the needle tip lands exactly on the crosshair without parallax guessing.
  • If it still fails: Stand up and view straight-on; parallax from a seated angle is a common cause of “looks centered” but stitches off-center.
• Q: What safety precautions should operators follow when using SEWTECH magnetic hoops (or similar magnetic frames) on multi-needle embroidery machines?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from pacemakers due to strong magnetic fields.
  • Separate and join the magnets slowly with controlled hand placement to avoid finger pinches.
  • Keep magnetic hoops away from anyone with a pacemaker (or similar medical implant) and store them responsibly.
  • Use the magnetic clamp force instead of over-tightening standard hoops, especially on delicate fabrics to reduce hoop burn risk.
  • Success check: The frame clamps evenly without excessive force, and hands never enter the closing gap during magnet engagement.
  • If it still fails: Switch back to standard hoops until safe handling is consistent, then reintroduce magnetic frames with deliberate technique.
• Q: How do I stop bird nesting (thread tangles under the needle plate) on a BAI multi-needle embroidery machine at the start of a design?
  A: Re-seat the upper thread deeply into the tension disks—bird nesting is commonly caused by effectively “zero tension.”
  • Stop immediately and remove the tangled thread before continuing.
  • Floss the upper thread firmly into the tension disks so it is fully seated.
  • Check the thread path for snags or loops on the spool pin/spool cap area before restarting.
  • Success check: The next test start forms clean stitches without a wad of thread accumulating underneath.
  • If it still fails: Re-thread the entire upper path and verify nothing is catching; persistent nesting can also indicate a setup issue that needs systematic re-checking.
