Stop Guessing on Sleeves: Centering and Tracing a Design on the Brother PR600 (Without Marking Fabric)

Sleeve placement is the "dark art" of the embroidery world. It’s where good shops quietly make their margin—and where new PR600 owners quietly waste the most blanks.

The fear is real: you press "Start," and the machine begins stitching a quarter-inch higher than you thought, ruining a $40 hoodie and wasting an hour of unpicking. But master embroiderers don't rely on luck. They rely on physics and protocols.

The fix is a repeatable, boredom-proof centering routine: Paper Template + Needle-Drop Verification + Trace.

Below is the exact workflow demonstrated on a Brother PR-600, rebuilt into a clean, shop-ready process you can run under pressure. We will move beyond "guessing" and into "calibrated precision."

Print a Paper Template Crosshair and Save Your Sleeve From Permanent Marks (Brother PR600 placement)

The video starts with a simple truth: sleeves are too visible to "eyeball," and distinct fabrics (like pique or fleece) are too awkward to mark with chalk or pens confidently.

Instead, we use a 1:1 Printed Paper Template. The design is printed from your software (like PE-Design or Hatch) with a crosshair center point, then cut out and laid directly on the hooped sleeve.

Comparison: Why Paper Beats Chalk

That paper template does two jobs at once:

1. Visual Confirmation: It shows you exactly how the logo rotates on the curved arm.
2. Mechanical Target: It gives the needle tip a physical "X" to hit. If the needle lands on the paper crosshair, it will land on the fabric center.

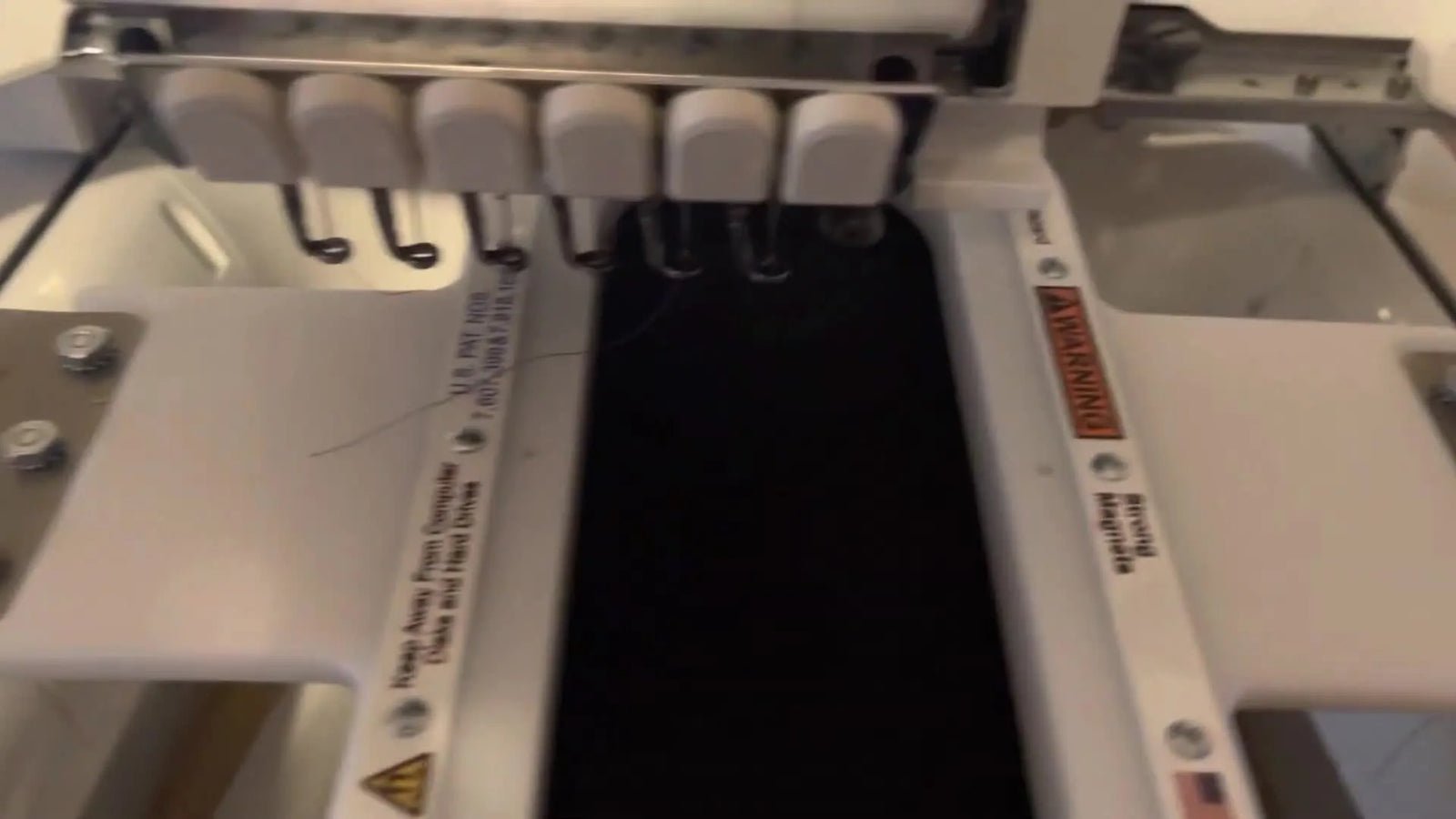

In the clip, the sleeve is already hooped. Note that for sleeves, traditional hoops can leave "hoop burn" or struggle with tubular items. Many pros upgrade to a magnetic embroidery hoop specifically for sleeves to avoid the "wrestling match" of framing a tube.

The “Hidden” Prep Most People Skip (and then blame the machine)

Before you touch the screen to rotate or jog, you must perform a physical audit. This prevents the two most common disasters: fabric shifting (lazy hooping) and hoop strikes (improper bracket seating).

Prep Checklist (The "Save Your Machine" Audit):

• Bracket Lock: Listen for the audible click when attaching the hoop arm. Wiggle it gently; there should be zero play.
• Hoop Orientation: Confirm the sleeve is hooped the way you intend to stitch (usually upside down on a multi-needle arm).
• Template Flatness: Ensure the paper template is taped or pinned flat. If it curls, your visual "center" is an optical illusion.
• Needle Clearance: Check that no loose threads or paper edges are curling up where they could snag the presser foot.


Rotate the Design 180° on the Brother PR-600 Screen When the Sleeve Is Hooped Upside Down

Physics dictates that on a free-arm machine like the Brother PR series or a SEWTECH multi-needle, you load the garment "upside down" (cuff towards the machine body) to utilize the open space.

However, your digital file usually loads "right side up." If you stitch now, your logo will be upside down on the customer.

The Action: On the PR-600 touchscreen, locate the Rotate function.

1. Press the 90° rotate button.
2. Press it once more (Total: 180°).
3. Visual Check: Look at the screen thumbnail. The top of your logo should now be pointing down towards the bottom of the screen.

This step feels "too basic" until you skip it at 2:00 AM—then you stitch a perfect design perfectly upside down.

Warning: Pinch Hazard. Keep fingers, tools, and loose paper away from the needle area when you’re manually pulling the needle bar down or using the needle position function. A sudden movement can pinch skin or puncture a finger, and a dropped tool can shatter the needle plate.

Use the PR600 Edit Jog Keys for Coarse Placement—But Don’t Trust Your Eyes Yet

After rotation, we move into Edit Mode to access the directional arrows (jog keys). This is the "Coarse Alignment" phase.

You will jog the design until the active needle position looks roughly over the paper crosshair.

The "Parallax Error" Trap

Here is the detail that trips people up (and fills forums with "my center is off" complaints): Parallax. If you look at the needle from an angle (sitting in your chair), it looks centered. If you stand up and look straight down, it’s off by 3mm.

The Golden Rule of Needles: The video states that the needle you are tracing with is always the one currently behind the active position (the "Gate").

• Myth: "Everything centers on Needle 1."
• Fact: The machine centers based on the active needle position relative to the hook. Don't assume. Look at which needle bar is aligned with the presser foot shaft.


Why “coarse placement” is still valuable

Even in a production shop, you don’t want to needle-drop from across the hoop. Jogging close first reduces the number of micro-adjust cycles you’ll need later.

Pro Workflow Tip: If you find yourself constantly re-adjusting because the fabric slips while you jog, your hooping method is the bottleneck. A stable magnetic hooping station ensures the fabric doesn't migrate while you are focusing on the screen.

The Needle-Drop Method on Brother PR600: The Only Centering Check That Doesn’t Lie

This is the heart of the tutorial and the only way to guarantee 100% accuracy. We stop guessing and start measuring.

The Protocol:

1. Jog: Move the frame using the screen arrows.
2. Drop: Physically lower the needle to see exactly where the tip lands.
3. Verify: Does the tip touch the ink of the crosshair?
4. Repeat: If there is any gap (even 1mm), lift the needle, jog deeply, and drop again.

The video shows two ways to "see the truth":

1. Manual Pull-Down: Grabbing the needle bar notch and pulling it down (requires manual spiraling of the shaft).
2. Mechanical Drop: Switching to the Sewing screen and pressing the Needle Position button (often called the "Cut/Thread" button on older models) to mechanically cycle the needle down.






A comment-based pro tip that makes centering easier

A viewer noted: if you push the manual needle bar down firmly, it can "lock" temporarily in the down position, allowing hands-free inspection. This is excellent for black garments where contrast is low.

The “started above the ear” problem (and why it happens)

One viewer described a real failure: “The machine started much higher and stitched off the bunny ear onto stabilizer.”

The Diagnosis: This is rarely a machine glitch. It is almost always an Alignment Drift.

• Cause: You aligned to the "general area" of the paper, not the specific pixel-perfect center.
• Cause: The paper template shifted because it wasn't taped down.
• Cure: Do not accept "close enough." The needle tip must eclipse the center dot of your crosshair.

Setup Checklist (The "Pre-Flight" Confirmation)

Before you move to tracing, you must answer "Yes" to all four:

• Is the design rotated 180°?
• Did you verify the center with a physical needle drop (not just eyes)?
• Is the paper template still flat and unshifted?
• Are you certain which needle bar is the active one?




Trace the Design on a Brother PR Machine and Watch the “Ball” So You Don’t Crash a Magnetic Hoop

Once centered, the video moves to Tracing. The machine moves the hoop to outline the outer boundary of the design area (usually a rectangle).

Why this is non-negotiable: Sleeves use small hoops (often 100x100mm or specialized sleeve frames). The margin for error is near zero. If the presser foot strikes the plastic or metal hoop wall at 600 stitches per minute, you risk breaking the needle bar reciprocator—a $500+ repair.

The Visual Anchor: Watch the "Ball" (the nub/screw on the needle clamp or presser foot shaft).

• Safe Zone: The "Ball" must stay inside the inner perimeter of the hoop frame.
• Danger Zone: If the "Ball" hovers over the hoop wall, you will crash during the stitch out.






Warning: Magnetic Safety. If you are using upgrading to magnetic hoops for brother machines, be aware they use powerful Neodymium magnets.
* Pacemakers: Keep at least 6 inches away.
* Pinch: Do not let two rings snap together without a garment in between.
* Electronics: Keep credit cards and phones away from the magnet clusters.

Why tracing matters even when you “know” the design size

The design size shown in the video is 4.30" x 2.01". You might think, "That fits easily in a 5x7 hoop."

The Reality: Alignment is rarely perfect center. If you hooped the sleeve slightly crooked, a 4-inch design might be rotated 15 degrees, pushing the corner of the design into the hoop wall. Tracing reveals this rotation instantly.

Assign Thread Color to Needle 6 on the PR600, Remove the Paper Template, Then Stitch at 700 RPM

The setup is done. Now we execute.

The Sequence:

1. Assign Colors: The video sets the design to Needle 6 (Hot Pink).
2. REMOVE PAPER: This is critical. Do not stitch through the paper template unless you want to spend 20 minutes with tweezers picking paper out of your satin stitches.
3. Unlock & Start: The speed is set to roughly 700 SPM (Stitches Per Minute).

Beginner Sweet Spot (Speed): While the video shows ~700 SPM, if you are new to standard or sleeve hoop embroidery, slow down to 500-600 SPM. Sleeves are tubular and can bounce. Slower speeds reduce "flagging" (fabric bouncing) and result in cleaner text.

Operation Checklist (The "No-Regrets" Start Sequence)

Run this mental list right before your finger hits the green button:

• PAPER GONE: I have removed the template.
• Clearance: The trace showed the foot stays inside the hoop.
• Color: Needle assignment matches my thread cone setup.
• Speed: Set to a safe limit (start 600, increase if stable).
• Watch: I will watch the first 100 stitches to ensure the underlay anchors correctly.

The Real “Why” Behind This Workflow: Physics of Hooping, Repeatability, and Profit-Safe Placement

This routine looks slow the first time you do it. Then it becomes the fastest way to be right.

1) Hooping physics: sleeves shift when tension is uneven

Sleeves are narrow tubes. When you clamp them in standard hoops, the fabric distorts. When you release the hoop later, the fabric relaxes, and your straight logo looks crooked.

• The Physics: You need "Neutral Tension" (drum tight, but not stretched).
• The Tool: This is why a brother pr magnetic hoop is often preferred for tubular items; it holds the fabric firmly without the "pull-and-screw" distortion of traditional frames.

2) Commercial scalability: one perfect routine beats ten “pretty good” guesses

If you are running a business, repeatability is your product. A customer ordering 50 shirts expects the logo to be in the exact same spot on every sleeve.

• Hobbyist: "Looks about right."
• Pro: "Verified centered to within 0.5mm."

If you find that hooping is your biggest bottleneck (taking 5 minutes per shirt), that is your signal to upgrade your workflow, not just your machine. Tools like a magnetic hooping station can cut hooping time by 60% by standardizing the placement logic.

3) Tool ROI: When to upgrade?

If you are still on a single-needle machine and frustrated by thread changes, or your current multi-needle workflow is slow:

• Level 1 Upgrade: Better Stabilizers (Cutaway for knits).
• Level 2 Upgrade: embroidery sleeve hoop or Magnetic Frames (Speed & Safety).
• Level 3 Upgrade: Production capacity. Moving to a robust multi-needle platform (like SEWTECH machines) allows you to preset 15 colors and run continuous production while you hoop the next batch.

A Simple Decision Tree: Sleeve Fabric → Stabilizer Strategy (so placement stays true)

The best placement in the world won't save you if the fabric warps during the stitch. Use this logic tree to choose your "foundation."

• Hidden Consumable: Always keep a can of Temporary Spray Adhesive (like 505) handy. A light mist on the stabilizer prevents the sleeve fabric from sliding creating "bubbles" in the center of the design.

Quick Troubleshooting: Symptoms → Likely Cause → Fix (Brother PR600 sleeve alignment)

When something goes wrong, don’t restart blindly—diagnose using a "Low Cost First" logic.

Symptom: Design starts too high/low (misses the target)

• Likely Cause: Physics. You checked visually, but didn't perform the Needle Drop. Parallax error fooled you.
• Quick Fix: Re-center using the physical "Touch the Paper" test.

Symptom: Hoop Burn (Shiny ring marks on the sleeve)

• Likely Cause: Mechanical. You tightened the outer ring too much, crushing the fabric fibers.
• Quick Fix: Use steam to lift the fibers.
• Prevention: Switch to a magnetic embroidery hoop which uses vertical magnetic force rather than friction, eliminating hoop burn entirely.

Symptom: Threat of Hoop Strike (Trace looks dangerous)

• Likely Cause: Orientation. The design is too wide for the sleeve frame, or the sleeve is hooped crookedly.
• Quick Fix: Rotate the design 1-2 degrees in the software to match the hoop skew, OR re-hoop the garment straight. Do not "risk it."

The Upgrade Path That Feels Natural (Not Salesy): When Your Sleeve Workflow Outgrows Your Current Tools

If you’re doing occasional sleeves, this video workflow (Paper + Drop + Trace) is perfect.

However, if sleeves are becoming a weekly revenue stream, this manual process might be too slow. That is when it’s worth evaluating:

1. Hooping Speed: A magnetic hooping station to standardize alignment.
2. Machine Throughput: If you are rejecting orders because you can't stitch fast enough, consider expanding your fleet with high-efficiency multi-needle machines like those from SEWTECH.

The goal isn’t to buy more gear. The goal is to buy back time and confidence.

FAQ

• Q: How do I center a sleeve design on a Brother PR600 without leaving chalk or pen marks on the garment?
  A: Use a 1:1 printed paper template with a crosshair, then center by needle-drop instead of eyeballing.
  • Print the design at actual size with a clear crosshair center, cut it out, and place it on the hooped sleeve.
  • Tape or pin the paper template flat so it cannot curl or slide during jogging.
  • Jog the frame in Edit mode until the active needle is roughly over the crosshair, then verify with a physical needle-drop.
  • Success check: the needle tip lands exactly on the inked crosshair center (no visible gap, even ~1 mm).
  • If it still fails: re-check that the template did not shift and confirm which needle is truly the active needle under the presser foot.
• Q: Why does a Brother PR600 sleeve design stitch too high or too low even after the design looks centered on the screen?
  A: This is usually parallax and alignment drift—fix it by re-centering using the physical needle-drop on the paper crosshair.
  • Stand up and look straight down at the needle area; do not trust the seated viewing angle.
  • Lower the needle (manual pull-down or Needle Position button) to see the true landing point.
  • Jog, drop, and repeat until the needle tip touches the crosshair center precisely.
  • Success check: repeated needle-drops land on the same crosshair point without “creeping” away between checks.
  • If it still fails: secure the paper flatter (tape/pin) and re-audit hoop attachment so the frame cannot wiggle.
• Q: When loading a sleeve upside down on a Brother PR600, how do I keep the logo from stitching upside down?
  A: Rotate the design 180° on the Brother PR600 screen before stitching.
  • Open Rotate on the PR600 touchscreen.
  • Press the 90° rotate button twice (total 180°).
  • Confirm the on-screen thumbnail shows the logo oriented correctly for the upside-down hooped sleeve.
  • Success check: the “top” of the logo on the screen points toward the bottom of the screen after the 180° rotation.
  • If it still fails: stop and re-check sleeve orientation in the hoop (how the cuff is loaded onto the free-arm) before stitching.
• Q: What is the Brother PR600 “Save Your Machine” prep checklist to prevent hoop strikes and fabric shifting on sleeves?
  A: Do a quick physical audit before any screen jogging to prevent loose mounting and clearance mistakes.
  • Listen for the hoop bracket lock “click,” then wiggle-test for zero play.
  • Confirm the sleeve is hooped in the intended orientation (commonly upside down on a multi-needle arm).
  • Flatten and secure the paper template so it cannot curl into the needle path.
  • Clear away loose thread tails and paper edges that could snag under the presser foot.
  • Success check: the hoop arm feels solid with no movement, and nothing is protruding into the needle/presser-foot area.
  • If it still fails: remove and re-mount the hoop until the lock is fully seated and stable.
• Q: How do I use the Trace function on a Brother PR600 to prevent a hoop strike, especially when using a magnetic hoop?
  A: Always trace after centering and watch the “ball” (nub/screw near the needle clamp/presser foot area) to confirm clearance inside the hoop.
  • Run Trace to outline the design boundary before stitching.
  • Watch the “ball” and ensure it stays inside the inner perimeter of the hoop/frame during the entire trace.
  • If the trace looks close, stop and re-hoop straighter or adjust rotation slightly before stitching.
  • Success check: the “ball” never hovers over or crosses the hoop wall during tracing.
  • If it still fails: do not “risk it”—choose a smaller/safer design size for the sleeve frame or re-hoop to correct the skew.
• Q: What needle-related safety steps should I follow when doing manual needle-drop checks on a Brother PR600?
  A: Keep hands and tools fully clear of the needle area during manual pull-down or Needle Position cycling to avoid pinch/puncture injuries.
  • Move fingers, tweezers, and scissors away before lowering the needle bar or pressing Needle Position.
  • Control the needle-drop slowly and deliberately so nothing is under the presser foot.
  • Use the down-position hold only if it is stable and your hands are not in the hazard zone.
  • Success check: the needle can be lowered and raised repeatedly without any contact with skin, tools, or loose paper edges.
  • If it still fails: stop immediately and switch to the machine’s Needle Position button method rather than pulling down near the needle.
• Q: What magnetic hoop safety rules should I follow when using magnetic embroidery hoops on a Brother PR600 sleeve job?
  A: Treat the magnets as pinch hazards and keep them away from sensitive medical devices and electronics.
  • Keep magnetic hoops at least 6 inches away from pacemakers.
  • Prevent the rings from snapping together without fabric in between to avoid pinching.
  • Keep credit cards and phones away from the magnet clusters.
  • Success check: the magnetic rings come together in a controlled way with fabric/stabilizer in place—no sudden snap or finger pinch.
  • If it still fails: slow down the handling process and reposition hands to the outer edges before bringing rings together.
• Q: What is a practical upgrade path when Brother PR600 sleeve embroidery is too slow or inconsistent (placement, hoop burn, or frequent re-hooping)?
  A: Improve technique first, then consider hooping tools, then consider production capacity upgrades if volume demands it.
  • Level 1 (technique): standardize the routine—paper template + needle-drop verification + trace every time.
  • Level 2 (tooling): switch to magnetic hoops or a hooping station when hoop burn, sleeve “wrestling,” or fabric migration keeps happening.
  • Level 3 (capacity): move to a multi-needle production platform when throughput limits orders and you need continuous workflow.
  • Success check: placement repeatability improves (consistent center hits and safe trace clearance) and hooping time drops job-to-job.
  • If it still fails: identify the bottleneck (hooping stability vs. stitch speed vs. thread-change downtime) and address that single constraint next.
