Stop Guessing Fonts: Build a Client-Ready Embrilliance Font Option Chart (and Cut Approval Time in Half)

If you sell custom embroidery—especially names, monograms, and boutique-style appliqué—your biggest bottleneck usually isn’t the stitching speed of your machine. It isn’t even your thread tension.

It’s the Decision Gap.

The Decision Gap is that exhausting back-and-forth where customers say they want “options,” but freeze when they can’t visualize their specific child’s name in your library of fonts. A clean, professional font option chart bridges that gap. But if you build it the way I’m about to teach you, it becomes more than just a pretty JPEG—it becomes a repeatable Rapid Approval System that you can run in under 3 minutes.

In this master workflow, we will use Embrilliance (Express mode is sufficient for the core chart) to engineer a system that stops the endless emails. We are going to build a tool you can:

• Stitch out on a multi-needle hoop for a physical boutique display (tactile sales).
• Screenshot for Etsy listings and website FAQs (visual sales).
• Reuse as a “dynamic working file” to generate custom previews instantly.


Why an Embrilliance font selection chart calms picky customers (and protects your time)

When a customer asks, “Can I see it in a different font?” they aren’t trying to be difficult. They are experiencing Buyer’s Remorse in Advance. They are afraid the finished product won’t match the image in their head.

A scientifically designed font option chart does three things for your business psychology:

1. Curated Freedom: It narrows the playing field. Too many choices cause paralysis; curated choices cause conversions.
2. Standardized Approvals: You stop re-typing names and taking crooked photos of your screen.
3. Risk Mitigation: When a customer selects "Option C," they own that decision. If they don't like the style later, you have the paper trail.

If you are running a production setup, such as a brother embroidery machine with 8x12 hoop, this ties directly into your efficiency metrics. A consolidated chart means fewer color stops, fewer trim commands, and a streamlined batching process.

The “hidden” prep pros do first: pick fonts that won’t trap you later in sizing

Before you touch the keyboard, we need to talk about physics. Text is the most deceptively difficult thing to embroider because small flaws in density or pull compensation are immediately visible.

In this workflow, the chart is built around eight core fonts. Why eight? It’s the "Goldilocks" number—enough to feel like a variety, not enough to overwhelm.

The Golden Rule of Font Selection: Only choose fonts that have at least two (ideally three) native sizes available (e.g., 1", 2", 3").

• Why? If a customer with a short name like "Ava" picks a font, and a customer with a long name like "Christopher" picks the same font, you need to be able to scale the font down for Christopher without crushing the stitch density into a bulletproof bullet.

The Physical Sample Strategy: If you plan to stitch this chart as a shop sample, you must use the materials you actually sell. If you sell children's tees, stitch this on knit fabric.

• The Stabilizer Rule: For knit/stretchy fabrics, you must use Cutaway Stabilizer (2.5 oz or heavier). Do not use Tearaway; the letters will distort (skew) as the fabric relaxes, looking like they are "dancing" incorrectly.
• Hidden Consumables: You will need temporary adhesive spray (like Odif 505) to float the fabric if you aren't hooping it directly, and fresh 75/11 ballpoint needles to prevent cutting the knit fibers.

Warning: Mechanical Safety. If you are stitching physical samples on a fast multi-needle machine (800+ stitches per minute), keep hands and fingers well clear of the needle bar area. A multi-needle head moves laterally (side-to-side) without warning. Never reach into the hoop area to snip a thread while the machine is in "Ready" mode.

Prep Checklist (before you build the chart)

• Theme Selection: Define the vibe (e.g., “Heirloom Script,” “Modern Block,” “Playful/Boy”).
• Font Audit: Verify every font chosen has a BX file or mapped sizing for 1" up to 2.5".
• Output Decision: Is this for digital screens only, or a physical wall hanging?
• Material Match: If stitching, secure the exact fabric (e.g., Interlock Knit) and stabilizer (Mesh or Cutaway) you use for orders.
• File Naming: Create a folder named __MASTER_CHARTS so it stays at the top of your directory.


Lock your workspace to the right hoop size in Embrilliance (so your layout is real-world accurate)

Software lets you do impossible things; physics does not. You must set your digital workspace to match your physical reality to avoid the heartbreak of a design that is 2mm too wide for your frame.

The Setting:

• Go to Preferences → Hoops → select 200 mm x 300 mm (This is the standard 8x12 field for many Brother/Baby Lock multi-needle machines).

The Sensory Check: You should see the hoop boundary lines clearly on your screen. If your design touches these lines, you are in the "Danger Zone."

• Rule of Thumb: Always leave a 10mm visual buffer inside the hoop line to account for thick seams or imperfect hooping.

This is critical even for digital-only charts. Customers have zero concept of scale. If you show them a chart laid out in a massive hoop, they will assume those fonts fit on a newborn onesie. They won't. If you typically work with smaller areas, such as a brother 5x7 hoop, you must set your software to that specific restriction. It is better to have multiple pages of charts than one chart that promises impossible physics.

Build lettering objects the fast way: the “A button” routine that keeps charts consistent

Efficiency is about rhythm. We are going to use a "Batch Creation" loop to build this chart rapidly.

The Action Sequence:

1. Click the “A” (Create Lettering) button.
2. Type the Name of the font (e.g., "Bean Stitch").
3. Click Set.
4. Select the actual Font from the specific dropdown list.
5. Stop and Check: Does the font name match the visual style? (e.g., don't label a script font with a block font).
6. Repeat.

Size Management: For an 8x12 hoop, stick to 1.5 inch and 1.25 inch heights.

• Visual Anchor: These sizes are large enough to show the detail of the serifs or swirls, but small enough to stack 8-10 lines vertically.

Pro Tip: If a font name is long ("Tickle Me Elmo Script"), abbreviate it ("Tickle"). You are selling the look, not the file name.

Color-coding fonts in Embrilliance: make the chart readable and customer-proof

A wall of mono-colored text is hard for the brain to process. We use color not for decoration, but for cognitive separation.

The Workflow:

• Click a text object.
• Select the Color tab.
• Change the catalog to Palettes (this keeps your options simple).
• Cycle colors: Pink, Green, Blue, Pink, Green, Blue.

The "Why": When a customer messages you, they might say, "I like the green swirly one." Even if they forget the name, the color gives you a secondary verification point. This acts as a failsafe against miscommunication.

The stitch-order trick in the Object Pane that saves multi-needle time (and prevents 8 stops)

This is the difference between a hobbyist file and a production file.

If you create 8 objects in alternating colors, your machine will stop and trim 8 times.

• Sound check: You will hear the machine slow down, the "thunk-thunk" of the trimmers, and the hiss of the pantograph moving. That is the sound of wasted time.

The Fix:

• Look at the Object Pane on the right side of the screen.
• Click and drag the objects to Group by Color.
• Put all Pinks first. All Greens second. All Blues third.

The Result: Your machine will now stitch all the pink text in one continuous run, stop once for a color change, stitch all green, stop once, and finish with blue. You have reduced your interaction time by 60%.

Save it like a pro: why you need both the .PES stitch file and the .BE working file

You must save two distinct assets. This is non-negotiable for a scalable business.

1. The Stitch File (.PES / .DST / .EXP): This is the dumb data. It tells the machine where to drop the needle. It enters your USB drive. Most Brother/Baby Lock users need .PES.
2. The Working File (.BE): This is the smart data. It remembers that "This object is text," "This is the font used," and "These are the properties."

Why? Six months from now, when you buy a new font ("Magnolia Toolkit"), you can open the .BE file, delete the font nobody buys, and slot the new one in. If you only saved the .PES, you cannot edit the text; you would have to rebuild the entire chart from scratch.

Make screenshots look like product photos: white background, no grid, no hoop lines

If you are listing on Etsy or a website, your image must look like a finished graphic, not a CAD drawing.

The Cleanup Protocol:

1. Preferences → Grid Settings → Change background to White.
2. View Menu → Uncheck Draw Grid.
3. View Menu → Uncheck Draw Hoop.

The Visual Check: Your screen should now look like a piece of white paper with clean text. No distracting yellow boxes, no graph paper lines. This builds trust. Customers perceive "messy" screenshots as "messy" stitch work.

Capture the chart image on Mac or Windows (and keep it consistent across updates)

Mac Users:

• Press Command + Shift + 4.
• Your cursor turns into a crosshair. Click and drag specific box around just the text.

Windows Users:

• Use the Snipping Tool (Win + Shift + S).

Consistency Hack: Always leave a standard amount of "white space" around the text (e.g., roughly 1 inch on screen). This ensures that if you put three different charts next to each other on your website, they look like a cohesive collection, not a ransom note.

One-click black-and-white charts: use “One Color” to convert everything to black

Sometimes you need a high-contrast version for a printed maximizing sheet or a watermark.

The Action:

• detailed in the video: Click the One Color button (looks like a palette).
• Select Black.

The Nuance: Be careful. Color helps separate lines of text. When you convert to B&W, the spacing might look tighter. You may need to manually nudge the lines apart slightly to maintain readability.

Align & Distribute: the fastest way to make your font chart look “designed,” not dragged

Humans are very good at spotting things that are slightly off-center. It creates subconscious friction.

The Tool:

• Select a vertical column of text objects.
• Open the Align and Distribute panel.
• Click Center Align (vertical axis).
• Click Distribute Vertically (equidistant spacing).

The Result: The text snaps into a mathematically perfect grid. It looks professional immediately. This implies to the customer that your embroidery alignment will be equally precise.

The real money move: batch-preview a customer’s exact name across every font in minutes

This is the core value proposition. This is the "Closer".

When a customer is hesitating ("I don't know if 'Jackson' will look good in that script..."), do not argue. Show them.

1. Open your .BE Working File.
2. Copy the name "Jackson" to your clipboard.
3. Click the first font object -> Logic Text Box -> Highlight old text -> Paste -> Set.
4. Repeat down the line.

In under 60 seconds, you have a custom chart showing "Jackson" in 8 styles. Screenshot it. Send it. The sale is usually closed within 5 minutes of them seeing that image.

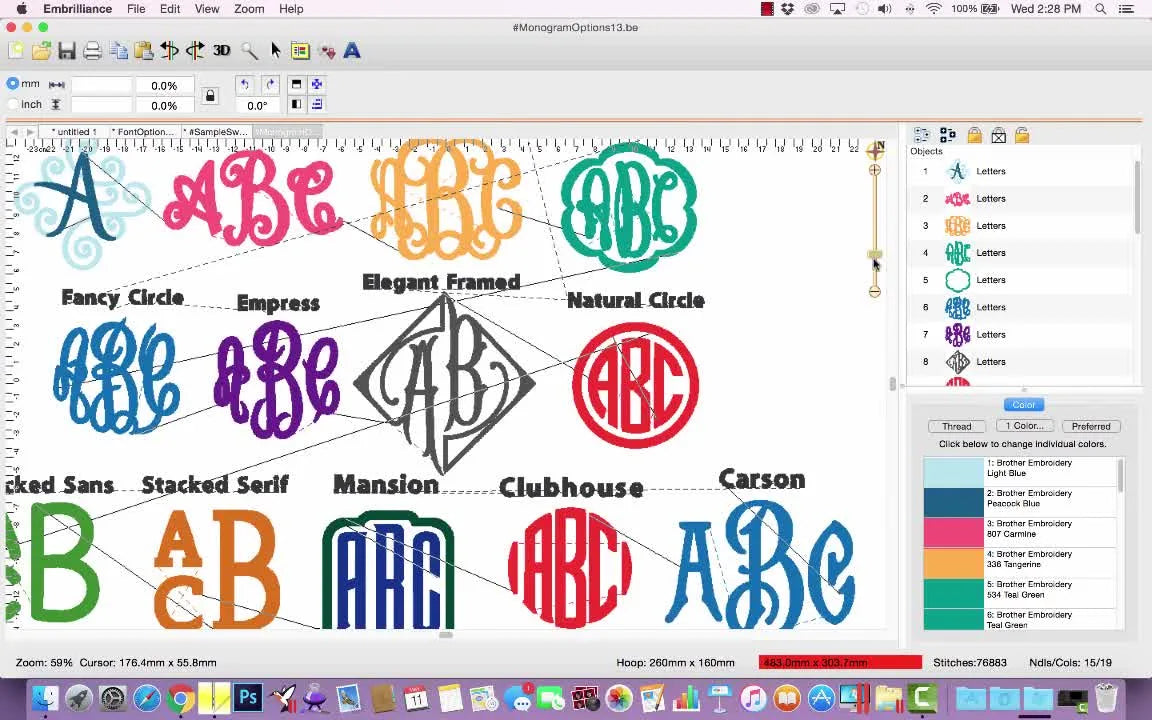

Build a massive monogram options chart (19" x 12") without ever stitching it

For monograms, you need a "Catalog," not just a sample. Since you likely won't stitch every monogram style on one piece of fabric, you can create a "Digital Catalog" using a virtual hoop size capable of holding massive layouts.

The Setup:

• Set a custom hoop size (e.g., 19 in x 12 in).
• Create objects for every monogram style (Circle, Interlocking, Bow, Diamond).
• Label them clearly using a basic block font.

This file lives on your computer as your "Menu." You never stitch it; you use it to help the customer order off the menu.

Stacked monograms in Embrilliance: why they’re different (and how to set them up cleanly)

Stacked monograms (First Name initial top left, Middle Name initial bottom left, Last Name initial large on right) are tricky because standard tools expect left-to-right text.

The Workaround: Build them as Two Separate Objects:

1. Object A (Left): Use the Enter key to stack the lowercase letters vertically.
2. Object B (Right): The single large Capital letter.

Alignment: Visually align them. When you batch-update this for a customer, you simply change the letters in Object A and Object B separately.

Decision tree: choose stabilizer + hoop strategy for font samples (stitched vs screenshot)

Embroidery is 20% software and 80% materials science. Use this logic flow to ensure your physical samples don't pucker.

START: Is this a Digital Chart or a Physical Sample?

• DIGITAL CHART ONLY:
  • Goal: Clarity.
  • Action: White background, No Grid, High Contrast Colors.
  • Hoop: Any size that fits the text layout comfortably (virtual).
• PHYSICAL SAMPLE:
  • Question: What fabric are you stitching on?
    • Stable Fabric (Canvas, Denim, Felt):
      • Stabilizer: Medium Weight Tearaway (1.8 oz) or Cutaway.
      • Hooping: Standard hoop tension (tight as a drum skin).
    • Unstable Fabric (T-shirts, Knits, Waffle Weave):
      • Stabilizer: MUST use No-Show Mesh or Medium Cutaway (2.5 oz).
      • Hooping: Do not overstretch. Float the stabilizer if necessary to avoid "Hoop Burn."
      • Topping: Use water-soluble topping (Solvy) to prevent stitches sinking into the knit.

NEXT: What is your production reality?

• Production Run (50+ items): Use the 8x12 layout.
• Small Batch / Boutique: Break the charts into smaller categories (e.g., "Boys," "Girls," "Holidays") that fit smaller screens or hoops.


Setup Checklist (so your chart stitches cleanly and screenshots look professional)

• Hoop Consistency: Preferences → Hoops set to 200 x 300 mm (or your machine's max) before starting.
• Size Variety: Fonts set to 1.5" and 1.25" (verified against the font author's recommendations).
• Color Grouping: Object Pane reordered (Pink, then Green, then Blue) to minimize thread changes.
• Asset Protection: File saved as BOTH Stitch (.PES) and Working (.BE) formats.
• Visual Clarity: Grid lines and Hoop markers toggled OFF before capturing screenshots.
• Consumables Check: Ensure you have enough Bobbin Thread (white usually) to run the full chart without running out halfway.


Troubleshooting the two most common “why does this look wrong?” moments

Symptom: My machine stops constantly for thread changes

• Likely Cause: You skipped the "Group by Color" step. The machine reads the file linearly (Top to Bottom in the object pane).
• Quick Fix: In software, open the Object Pane. Drag all objects of the same color so they are adjacent. Re-save the stitch file.
• Prevention: Always check the "Color Change" count in your machine's screen before pressing start. It should say "3", not "24".

Symptom: The screenshot looks messy / has yellow squares

• Likely Cause: The software grid (10mm/1 inch squares) is still visible.
• Quick Fix: Go to the View menu (or magnifying glass icon) and toggle "Draw Grid" off.
• Prevention: Create a "Screenshot Preset" in your mind: Grid Off, Hoop Off, Background White.


The upgrade path: when your workflow outgrows your tools (and what to upgrade first)

Standardizing your fonts is Step 1 in professionalizing your shop. Once you fix the software bottleneck, you will immediately feel the physical bottlenecks in your production line.

Here is how to diagnose which tool you need to upgrade next based on your physical symptoms:

• Symptom: Wrist pain or "Hoop Burn" on delicate items.
  • The Problem: Traditional hoops require force to screw tight, and the friction can leave permanent ring marks on velvet or performance wear.
  • The Solution: magnetic embroidery hoops. These use powerful magnets to clamp fabric instantly without friction. They are the industry standard for reducing hooping time and preventing "hoop burn."
  • > Warning: Magnet Safety. Magnetic hoops (like those for the Brother 8x12) are extremely powerful. They can pinch skin severely if they snap together. Do not use if you have a pacemaker. Keep away from credit cards and hard drives.
• Symptom: Crooked chest logos or uneven placements.
  • The Problem: Guessing where the center is.
  • The Solution: A hooping station for machine embroidery. This provides a physical grid and jig to ensure every shirt is hooped in the exact same spot, every time. If you start fulfilling bulk orders, hooping stations are mandatory for consistency.
• Symptom: Spending more time changing thread than stitching.
  • The Problem: Single-needle machines require a manual thread change for every color stop.
  • The Solution: Moving to a multi-needle platform (like SEWTECH multi-needle embroidery machines). When you can load 10-15 colors at once, you hit "Start" and walk away to do other work. This is how you scale from "Hobby" to "Business."
• Symptom: Fighting with specialized items (Caps, Bags).
  • The Problem: Standard flat hoops can't hold bulky items.
  • The Solution: Specialized tooling. Searching for the right hoop for brother embroidery machine or a dedicated monogram machine setup allows you to clamp difficult items that flat hoops simply reject.

Operation Checklist (the repeatable routine that keeps approvals fast)

• Load Master File: Open the saved .BE working file corresponding to the customer's request category.
• Batch Paste: Copy the customer’s name once; select each text object and Paste + Set explicitly.
• Visual Audit: Check for "awkward kerning" (gaps between letters) or letters that crash into each other. Nudge if necessary.
• Clean Capture: Verify Grid/Hoop are HIDDEN. Capture the screenshot.
• Refuse Debate: Send the image with the prompt: "Please reply with your choice (e.g., Top Left Pink)."
• Input Order: Immediately type the chosen font name into your official Work Order or Invoice notes. Do not rely on remembering it.

FAQ

• Q: In Embrilliance Express, how do embroidery businesses lock the workspace to a real Brother/Baby Lock 8x12 hoop size (200 mm x 300 mm) so a font chart layout stitches accurately?
  A: Set the hoop size first, then build the chart inside a safety buffer so the layout matches real-world hoop limits.
  • Open Preferences → Hoops → select 200 mm x 300 mm before creating any lettering objects.
  • Leave a 10 mm visual buffer inside the hoop boundary instead of designing right on the line.
  • Build the chart using the same size targets used in the workflow (often 1.5" and 1.25" for readable stacked lines in an 8x12 field).
  • Success check: the entire chart sits comfortably inside the hoop outline with clear margin; nothing touches the hoop boundary lines.
  • If it still fails: switch the workspace to the exact smaller hoop you actually use (for example a Brother 5x7 hoop) and split the chart into multiple pages.
• Q: In Embrilliance, why does a multi-needle embroidery machine stop and trim constantly when stitching a color-coded font chart, and how do you fix stitch order using the Object Pane?
  A: Reorder objects to group by color in the Object Pane, then re-save the stitch file to reduce stops.
  • Open the Object Pane and identify all text objects by color.
  • Drag objects so all Pink stitch first, then all Green, then all Blue (or your chosen sequence).
  • Re-save the stitch file format your machine needs (for many Brother/Baby Lock users, that is .PES).
  • Success check: the machine shows a low color-change count (for example 3 groups) and you no longer hear repeated trim/stop cycles between every line.
  • If it still fails: confirm the objects truly share the same exact color assignments (not “similar” shades) before exporting again.
• Q: When making Etsy-ready screenshots from Embrilliance, how do you remove the grid, hoop lines, and “yellow squares” so the font chart looks like a clean product graphic?
  A: Turn off grid and hoop display and switch to a white background before capturing the screenshot.
  • Go to Preferences → Grid Settings → set background to White.
  • Open the View menu → uncheck Draw Grid.
  • Open the View menu → uncheck Draw Hoop.
  • Success check: the screen looks like clean white paper with only the text visible—no graph lines and no hoop boundary box.
  • If it still fails: re-check the View toggles (grid/hoop) before taking a new capture with Mac (Command + Shift + 4) or Windows Snipping Tool (Win + Shift + S).
• Q: For a physical Embrilliance font chart stitched on knit T-shirts, what stabilizer, needle, and spray choices prevent skewed “dancing” letters and distortion?
  A: Use cutaway (2.5 oz or heavier) on knits, pair it with a 75/11 ballpoint needle, and use temporary adhesive spray when floating fabric.
  • Choose Cutaway Stabilizer (2.5 oz or heavier) or no-show mesh for stretchy knits; avoid tearaway when distortion is a risk.
  • Install a fresh 75/11 ballpoint needle to reduce knit fiber damage.
  • Use temporary adhesive spray (for example Odif 505) if you are floating fabric rather than hooping it directly.
  • Success check: stitched letters stay straight after the fabric relaxes—no leaning baseline and no wavy, “dancing” text.
  • If it still fails: add water-soluble topping on knits to prevent stitches sinking and re-check that the fabric was not overstretched during hooping.
• Q: When building a reusable Embrilliance font selection system, why must embroidery shops save both the stitch file (.PES/.DST/.EXP) and the Embrilliance working file (.BE)?
  A: Save both because the stitch file runs the machine, but the .BE file preserves editable text and font properties for fast updates later.
  • Export a stitch file (often .PES for Brother/Baby Lock) for actual embroidery output.
  • Save the .BE working file to keep “this is text,” the font choice, and object settings editable.
  • Use the .BE file to quickly swap fonts, delete unpopular options, or batch-preview a customer name across all styles.
  • Success check: months later you can open the .BE file, click a text object, and directly edit the lettering instead of rebuilding the whole chart.
  • If it still fails: confirm you saved the project as .BE (not only exported a stitch format) before closing Embrilliance.
• Q: What mechanical safety rule should operators follow when stitching font charts on a fast multi-needle embroidery machine (800+ stitches per minute)?
  A: Keep hands completely out of the needle/hoop area whenever the machine is in “Ready,” because the multi-needle head can move laterally without warning.
  • Stop the machine fully before reaching near the needle bar area for any trimming or adjustment.
  • Treat “Ready” mode as live motion risk—do not snip threads with fingers inside the hoop zone.
  • Position tools and thread tails so you are not tempted to reach in during operation.
  • Success check: no hand ever crosses into the hoop/needle area unless the machine is stopped and safe to service.
  • If it still fails: slow the workflow down and retrain the routine—speed is never worth an injury.
• Q: For magnetic embroidery hoops used to prevent hoop burn and speed up hooping, what safety precautions are required to avoid pinched fingers and pacemaker risk?
  A: Handle magnetic hoops as high-force clamps: keep fingers clear during closure, and do not use magnetic hoops if a pacemaker is present.
  • Separate and join the magnetic sections slowly to prevent a sudden snap that can pinch skin severely.
  • Keep magnetic hoops away from credit cards and hard drives.
  • Do not use magnetic hoops if you have a pacemaker (follow medical/device guidance).
  • Success check: the hoop closes under control without snapping onto fingers, and fabric is clamped quickly without friction ring marks.
  • If it still fails: switch to a standard hooping method for that operator or workstation and revisit handling technique before returning to magnets.
