Stop Guessing: Cap Driver Centering and Shirt Pocket Placement That Looks “Factory-Correct” Every Time

If you have ever delivered a custom embroidered cap or a pocket polo to a client, only to have them tilt their head and say, “It looks just a little… off,” you know that sinking feeling.

In embroidery, placement error is a silent killer. You can have perfect tension, zero thread breaks, and high-quality digitization, but if the logo is twisted three degrees to the left, the garment is ruined. Caps exaggerate every millimeter because of their curve. Pockets are even more unforgiving because the human eye naturally judges “straightness” against the pocket seams, the fabric stripes, and the body’s centerline simultaneously.

The good news? You don’t need a $5,000 laser alignment system to get consistent results. You need a repeatable mechanical reference.

In the referenced training, expert Joyce Jagger (The Embroidery Coach) demonstrates a template-and-needle method that turns cap placement into a boring, simple mechanical routine. She also lays out the "Golden Rules" of pocket placement that will keep you out of trouble.

As your guide through this process, I have taken Joyce’s core methodology and expanded it with safety protocols, sensory checks, and the "why" behind the physics, helping you move from "hoping it's straight" to "knowing it's straight."

The Calm-Down Truth: Cap Driver placement and pocket placement are fixable (and you’re not “bad at embroidery”)

When placement goes wrong, the immediate reaction is panic. Beginners often blame their digitizing ("Is the file crooked?"), their machine calibration, or their own lack of talent.

Here is the industry reality: 90% of placement errors happen because the operator didn’t lock in a consistent center reference before pressing start.

On caps, the structure is rigid but curved. You cannot trust your eyes alone because the curve distorts perspective. You need to trust the hardware. The cap driver gives you a physical landmark—the metal strap. On pockets, the garment itself provides the landmarks—seams and stripes.

The secret to professional embroidery isn't having "better hands." It is shifting your mindset. Do not aim for "close enough." Aim for repeatable. Repeatability is what makes your work look premium, and more importantly, it makes your production profitable by eliminating the cost of replacing ruined garments.

The “Hidden” Prep: Build a paper template that matches your design height (so your needle has a target)

Eye-balling the center of a cap is a gamble. Joyce’s method removes the gamble by creating a physical targeting system.

You are going to build a simple template. Do not use flimsy notebook paper; it will bend and give you false readings. Use heavy cardstock or a double layer of heavy tearaway stabilizer. This template serves as a ruler that contours to the shape of the cap face.

Why the hole matters: You aren't just drawing a dot. You are cutting a physical hole. This allows your machine needle to actually pass through the template, confirming absolute mechanical alignment without puncturing the cap material during the setup phase.

How to make the cap alignment template (exactly as shown)

1. Material: Cut a piece of heavy paper, cardstock, or stiff stabilizer.
2. Sizing: Cut the height of the paper to match remaining height of your design exactly. (e.g., if your logo is 2 inches tall, the paper should be 2 inches tall).
3. The Target: Fold the paper in half to find the exact horizontal center. Cut a small diamond or circle (approx. 3-5mm) exactly in that center fold.

That’s it. It is simple, but it is a powerful measuring tool.

Warning: Mechanical Safety Hazard
When jogging the needle bar over a cap driver, you are working in a tight space with moving metal parts.
* Keep fingers clear of the presser foot and needle bar.
* Slow Down: Set your machine speed to its lowest setting (or use "Trace" mode) when moving the pantograph manually. A sudden jog in the wrong direction can crush a finger or snap a needle against the cap driver metal, creating dangerous flying debris.

Prep Checklist (do this before you touch the cap driver)

• Template Check: The template is cut from stiff material (cardstock/stabilizer) and sits flat.
• Center Accuracy: The hole is physically cut, not just drawn, allowing for a needle-drop check.
• Design Height: The template height matches your actual embroidery design height.
• Machine State: The cap driver is securely locked in place. Give it a gentle shake—it should feel solid, not wobbly.
• Tools: You have sharp scissors and your emergency stop button is within reach.

The Cap Driver routine: place the template 1/2–3/4 inch from the metal strap, then jog the needle to the hole

This is the core of the video and the standard for many professional shops. We are using a relative distance measurement to guarantee the design sits in the "sweet spot" of the cap—not too high (hitting the crown structure) and not too low (hitting the bill or brow).

1) Position the template on the cap (using the metal strap as your reference)

Joyce places the template on the hooped cap. She does not measure from the bill (which can be sewn on crookedly by the manufacturer). She uses the metal strap of the cap driver as the "God" reference.

The Sweet Spot: Position the bottom edge of your template 1/2 to 3/4 inch (approx. 12-19mm) away from the metal strap.

• Why this distance? This ensures the embroidery clears the thick seam where the bill meets the cap and sits comfortably on the forehead panel without creeping up into the softer, unstructured curve of the crown where puckering occurs.

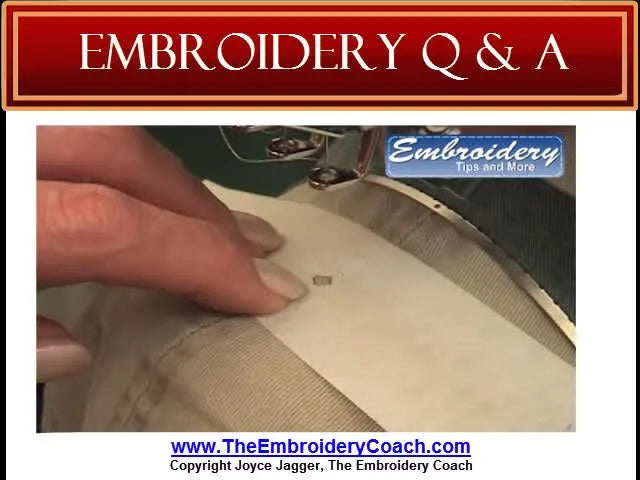

2) Jog the machine needle to the template’s center hole (this becomes your start point)

With the template held in place by hand (carefully) or with a piece of masking tape:

1. Use your control panel to manually move the pantograph (the machine head).
2. Align Needle #1 (or your active needle) directly over the cut hole in your template.
3. Sensory Check: Lower the needle bar manually (if your machine permits) until the tip enters the hole. You should see it pass through cleanly without touching the paper edges.
4. Once aligned, this coordinate is your Design Center / Start Point.






3) Don’t forget the cap design orientation: rotate the design upside down

Joyce calls out a detail that causes instant failure for beginners: on her specific cap setup, the design must be oriented upside down in the software.

Crucial Context: Most commercial cylinder-arm machines (like Tajima, Barudan, or SEWTECH multi-needle machines) require the design to be rotated 180 degrees because of how the cap driver interprets the text. However, some modern machines auto-rotate.

The Rule: If you see the text "right side up" on your computer screen, verify if your machine driver requires distinct rotation. If you stitch a logo upside down, you ruin the cap.

If you are running production and want fewer surprises, this is where a consistent workflow applies. Many shops standardize their cap process with a dedicated hooping station for machine embroidery setup, ensuring that every cap is loaded onto the frame with the exact same tension and alignment, reducing the variable of human error.

The “Why” behind the template trick: controlling hooping tension on a curved cap without fighting the fabric

Caps are notoriously difficult because they fight back. The fabric, buckram (the stiff mesh inside), and seams resist being flattened. When you clamp a cap into a driver, two physics problems occur:

1. Rotational Drift: As you tighten the band, the cap likes to twist slightly to the left or right.
2. Vertical Creep: The fabric pushes up away from the bill.

If you rely on your eyes, you will naturally follow the curve of the bill, which might be twisted. By anchoring your placement to the metal strap distance (a fixed mechanical point) and using a template, you bypass the optical illusions.

Pro Tip for Flat Goods: If you find yourself fighting tough fabrics on jackets or bags, this is where tool upgrades pay off. Many embroiderers move toward magnetic embroidery hoops for flat goods. Unlike standard hoops that require significant wrist strength to force together, magnetic frames snap vertically, holding thick material without "hoop burn" (friction marks). While magnetic hoops are rare for caps, the philosophy is the same: reduce the physical struggle to increase precision.

Pocket placement that doesn’t get returns: measure seam-to-seam, then keep logos above the pocket

Changing gears to polo shirts: Pockets are high-risk zones. Stitching a pocket closed effectively ruins the shirt’s utility. Joyce provides two rules to keep you safe.

Rule 1: Find the pocket center by measuring side seam to side seam

Do not guess the center. Pocket widths vary by brand and size.

• The Action: Take a physical ruler. Measure the width of the pocket from the left vertical stitch line to the right vertical stitch line. Divided by two. Mark that center point with a disappearing ink pen or a small sticker.

This centers the design relative to the pocket, which is what the eye looks at, rather than the shirt body.

Rule 2 (the standard): don’t embroider directly on pockets—place the design above the pocket

Unless the client explicitly demands "ON the pocket," the standard corporate look is "ABOVE the pocket."

The Golden Ratio: The standard placement is for the bottom edge of the design to sit 1/2 to 3/4 inch above the top pocket seam.

• Why: If you get closer than 1/2 inch, you risk hitting the thick folded hem of the pocket, which can break needles. If you go higher than 3/4 inch, the logo looks like it is floating toward the shoulder, disconnected from the pocket anchor.

If you are doing this repeatedly, consistency is everything. Shops that do uniforms at scale often rely on an embroidery hooping station to lock in this vertical placement across Small, Medium, and 2XL shirts without re-measuring every single time.

Setup Checklist (pocket jobs that look straight on the body)

• Measurement: Pocket center is marked based on exact seam-to-seam width.
• Vertical Spacing: The bottom of the design is confirmed to be 1/2–3/4 inch above the pocket hem.
• Obstruction Check: You have felt behind the hoop to ensure the pocket flap is not caught in the sewing field.
• Consumables: If the shirt is a loose weave (pique knit), you are using a topped stabilizer (water-soluble film) to prevent the stitches from sinking.

The exception that causes the most complaints: monogramming striped pockets means aligning to stripes, not just seams

Joyce makes one exception to her "don't stitch on pockets" rule: The Monogram.

However, she warns of the "Striped Shirt Trap." If you are embroidering on a striped pocket, the stripes are the boss—not your ruler.

The Reality: Even if the pocket is sewn on slightly crookedly by calculation, the human eye tracks the vertical stripes of the fabric pattern.

The Fix: You must align the vertical axis of your monogram letter to the vertical stripe of the fabric.

• Visual Check: Stand back 3 feet. Does the letter 'I' or 'L' run parallel to the stripe? If yes, it is straight. If it crosses a stripe line, it will look crooked forever.

This is where hooping technique becomes critical. If you torque the fabric while hooping, the stripes will curve. A lot of embroiderers solve this with a repositionable embroidery hoop approach (often achievable with magnetic frames) that allows you to stimulate the fabric's natural lay and make micro-adjustments without un-hooping the entire garment.

A quick decision tree: choose your alignment reference and stabilizing approach before you stitch

Use this logic flow to avoid the "I centered it… why does it look crooked?" conversation.

Decision Tree (Pocket & Cap Placement):

1. Are you embroidering a cap on a cap driver?
   • YES: Use the metal strap as your "Zero Point." Place template 1/2–3/4 inch up. Jog needle to hole. Verify rotation.
   • NO: Go to Step 2.
2. Is the design going ABOVE a pocket (Corporate Logo)?
   • YES: Measure pocket width for center. Place design bottom 1/2–3/4 inch above top seam. Stabilize with Cutaway.
   • NO: Go to Step 3.
3. Is it a Monogram DIRECTLY ON a striped pocket?
   • YES: Ignore the seam measurements slightly if needed. Align the letter's vertical axis perfectly to the fabric stripes.
   • NO (Solid Pocket): Align to pocket seams. Use a clamp frame or magnetic hoop to avoid crushing the pocket structure.

Troubleshooting the “it’s off” feeling: symptoms, causes, and fixes you can do fast

Even with good measurements, distinct issues show up in real shops.

The upgrade path that actually makes sense: when to change tools (and when to just tighten your process)

If you are only doing occasional family caps and pocket shirts, Joyce’s manual template method is perfect: it is almost free, highly accurate, and repeatable.

However, if you are doing these jobs weekly—or holding up production because you dread hooping—your bottleneck is no longer "skill," it is equipment.

Here is a practical breakdown of when to upgrade your workflow:

• Pain Point: Misplaced chest logos on polos.
  • Solution: A dedicated hoop master embroidery hooping station style system. This fixture holds the hoop in the exact same spot for every shirt size, turning a 2-minute guestimate into a 10-second load.
• Pain Point: Wrist pain, "Hoop burn" (shiny marks), or inability to hoop thick Carhartt jackets.
  • Solution: Magnetic Frames. In a high-volume shop, we see hooping for embroidery machine tasks become dramatically faster with magnetic hoops. You simply lay the top magnet over the fabric—Snap—and it is secure. No screw tightening, no forcing plastic rings.
• Pain Point: Constant thread changes.
  • Solution: If you are running a single-needle machine and spending more time re-threading colors than sewing, you have outgrown your hardware. This is the trigger to look at a SEWTECH multi-needle machine. Moving from 1 needle to 10+ needles isn't just about speed; it's about not having to babysit the machine during a run.

Warning: Magnetic Safety
If you choose to upgrade to magnetic hoops/frames, remember: these are industrial magnets, not fridge magnets.
* Pinch Hazard: They snap together with immense force. Keep fingers clear of the mating surfaces.
* Medical Safety: Keep strong magnetic hoops at least 6-12 inches away from pacemakers or sensitive medical implants.

Operation Checklist (the “no-regrets” final pass before you stitch)

Before you press that green button, pause for 5 seconds and run this mental scan:

1. Cap Check: Template measured 1/2–3/4 inch from the metal strap? Needle jogged to the absolute center hole?
2. Orientation: Is the cap design upside down (if required by your driver)?
3. Pocket Check: Did you measure seam-to-seam? Is the design bottom 1/2–3/4 inch above the pocket?
4. Stripes: If the fabric is striped, does the design align with the lines, not just the seams?
5. Clearance: Is the pocket flap or sweatband cleared from the stitch path?

When you build your placement around fixed references—metal strap distance on caps, seam-to-seam measurement on pockets, stripe alignment on striped fabric—you stop gambling on eyeballing. That is how you get the clean, confident look customers call “professional,” and it is how you protect your profit margins.

FAQ

• Q: How do I center a cap design on an industrial cap driver using the cap driver metal strap and a needle-drop template method?
  A: Use the cap driver metal strap as the fixed reference, then needle-drop into a cut hole to confirm true mechanical center.
  • Build a stiff template (cardstock or heavy tearaway stabilizer) with the template height matching the design height, and cut a 3–5 mm center hole.
  • Position the bottom edge of the template 1/2–3/4 inch (12–19 mm) above the cap driver metal strap (do not reference the bill).
  • Jog Needle #1 to the cut hole and lower the needle tip into the hole to confirm alignment before stitching.
  • Success check: The needle passes cleanly through the hole without touching the paper edges, and the template distance to the strap stays consistent.
  • If it still fails: Re-check that the template height truly matches the design height and that the cap driver is locked solid (not wobbly).
• Q: What mechanical safety steps should I follow when jogging the needle bar over an industrial cap driver to avoid finger crush or needle impact?
  A: Slow the machine down and keep hands out of the pinch zone before any manual jogging near cap driver metal parts.
  • Set the machine to the lowest speed or use a trace/manual move mode before moving the pantograph.
  • Keep fingers clear of the presser foot, needle bar, and cap driver metal strap area while aligning the needle to the template hole.
  • Use masking tape to hold the template when possible instead of holding it close to the needle path.
  • Success check: You can complete a full jog/trace movement without your hands entering the moving metal zone.
  • If it still fails: Stop and reset your setup—do not “fight” the tight space; reposition the cap/template so alignment can be done hands-off.
• Q: Why does a cap logo stitch upside down on a commercial cylinder-arm cap driver, and how do I prevent an upside-down cap embroidery result?
  A: Verify whether the cap driver workflow requires a 180° rotation in software before sewing, because many commercial cap drivers interpret orientation differently.
  • Check the design orientation rule for your specific cap setup and driver before loading the file.
  • Run a trace/perimeter test on the cap driver to confirm the design is traveling in the expected direction.
  • Standardize your workflow so you always perform the same orientation check before production runs.
  • Success check: During trace, the design boundary aligns where you expect and the text direction matches the intended finished view on the cap.
  • If it still fails: Stop the run immediately and re-open the file to rotate 180° as required by your specific driver behavior.
• Q: How do I stop an industrial cap driver design from stitching into the bill when using the cap driver metal strap as the placement reference?
  A: Reset placement so the template bottom edge is 1/2–3/4 inch above the cap driver metal strap, and ensure the cap is clamped extremely tight to prevent shifting.
  • Re-position the template to the correct 1/2–3/4 inch (12–19 mm) spacing from the metal strap.
  • Tighten the cap band on the driver so the cap cannot creep downward during sewing.
  • Needle-drop through the template hole again after tightening to confirm nothing drifted.
  • Success check: The traced design boundary clears the bill seam area and stays on the forehead panel “sweet spot.”
  • If it still fails: Watch for cap rotational drift while tightening—re-load the cap and repeat the tighten-then-needle-drop sequence.
• Q: How do I center a logo above a polo pocket using pocket seam-to-seam measurement, and what is the standard distance above the pocket seam?
  A: Measure the pocket seam-to-seam width to find true pocket center, then keep the design bottom edge 1/2–3/4 inch above the top pocket seam.
  • Measure from left pocket stitch line to right pocket stitch line, divide by two, and mark the center.
  • Place the design so its bottom edge is 1/2–3/4 inch above the top pocket seam (avoid stitching into the pocket hem).
  • Feel behind the hoop to ensure the pocket fabric is not caught in the stitch field if you are sewing above the pocket.
  • Success check: The logo reads visually centered against the pocket seams and does not “float” high toward the shoulder.
  • If it still fails: Re-check that you measured the pocket itself (not the shirt body) and keep the vertical spacing strict within 1/2–3/4 inch.
• Q: Why does a monogram look crooked on a striped pocket even when the pocket seams are measured, and how do I align monograms on striped fabric?
  A: Align the monogram’s vertical axis to the fabric stripes (not just the pocket seams), because the eye judges straightness by the stripe lines.
  • Use the stripes as the primary reference line, even if the pocket seam is slightly off.
  • Stand back about 3 feet and visually confirm the letter’s vertical stroke runs parallel to a stripe.
  • Make small rotation adjustments in the machine (often 1–2 degrees) until the monogram tracks the stripe direction.
  • Success check: The monogram does not cross stripe lines at an angle; it stays parallel and “settles” visually when viewed from a distance.
  • If it still fails: Re-hoop carefully to avoid torquing the fabric, because hooping twist can curve stripes and force a crooked-looking result.
• Q: What safety precautions should I follow when using industrial magnetic embroidery hoops/frames to avoid pinch injuries and medical device risks?
  A: Treat magnetic embroidery hoops/frames as industrial magnets—keep fingers out of the snap zone and keep magnets away from pacemakers/implants.
  • Separate and bring magnets together slowly; do not let the rings “jump” shut over fingers.
  • Keep hands on the outside edges when closing the magnetic frame to avoid pinch points.
  • Keep magnetic hoops at least 6–12 inches away from pacemakers or sensitive medical implants.
  • Success check: The frame closes securely without hand contact between mating surfaces, and fabric is held without needing force.
  • If it still fails: Pause and reset your grip/approach—do not try to “catch” a snapping magnet mid-close.
