Stop Guessing: Build a Rock-Solid 8x14 Flip Hoop Layout in Embrilliance Enthusiast (Durkee EZ Sturdy Frame, PRS100-Style Tubular Machines)

When you first attempt a multi-position “flip hoop” project, the anxiety is visceral. It feels like performing microsurgery while wearing oven mitts: one wrong move, one slipped millometer, and the two halves of your design don’t meet. You are left with a visible gap—or worse, an overlap that breaks needles—and a ruined garment.

Take a breath. You are not alone. In my shop, the number one reason people "hate" flip hoops involves a fundamental misunderstanding of the workflow. It isn’t usually the hoop's fault. It is a software layout that leaves zero margin for error and a failure to establish a repeatable registration routine.

This guide rebuilds the workflow based on Lisa Shaw’s Embrilliance Enthusiast method, using a Durkee 8x14 EZ Sturdy Frame as our case study. However, we are going to add the industrial-grade guardrails—safety margins, sensory checks, and specific parameter limits—that I have developed after years of salvaging misaligned jobs.

The Flip-Hoop Reality Check: Why a 14-inch Design Works on a 200x200mm Tubular Machine

To master this, you must first understand the physics. A flip hoop is simple in concept but unforgiving in execution. On a machine with a standard 8-inch (200mm) field, you are cheating the system by stitching in two targeted zones:

1. Zone A (Top): You stitch the first half.
2. The Physical Action: You manually remove the hoop, rotate it 180° (upside down), and click it back in.
3. Zone B (Bottom): You stitch the second half.

This allows a machine with a limited travel range to produce a design roughly 14 inches long. However, this relies on the hoop providing two locking positions that share an exact centerline.

Think of Lisa’s “cookie” analogy: splitting a design is like snapping a cookie in half. If you want to glue it back together invisibly, the two halves must return to the exact same spatial relationship. If your fabric shifts by even 1mm, you will see the crack.

Pro Tip (The Sensory Check): When you lock your hoop into the machine, listen for a definitive, sharp "click" or solid mechanical thud. If it feels mushy or if you can wiggle the frame arm, your registration is already compromised. Tighten your bracket screws until they are finger-tight plus a quarter turn.

Warning: Mechanical Safety Hazard. Keep hands, hair, and loose sleeves at least 6 inches away from the needle area during test-outs. When watching alignment lines stitch, use a stylus (not your finger) to point. A moving pantograph does not stop for fingers.

The “Hidden” Prep Pros Don’t Skip: Frame Instructions, Clearance, and the 190mm Safety Margin

Before you even touch your mouse, we must perform a "pre-flight" check. You verify three physical realities:

1. Machine Field Limits: Confirm your machine's maximum stitch field is indeed 200mm square (common for the 8-inch class).
2. Physical Frame Capacity: Ensure your frame—and your garment—can accommodate an 8" x 14" total area.
3. Manufacturer Specs: Have the frame’s manual (specifically the stitch field values) on your desk.

Here is the secret that separates pros from amateurs: Clearance is king. Just because a frame measures 200mm wide doesn’t mean you should stitch to the very edge. The presser foot needs clearance, especially near the frame clips. If the foot strikes the frame, you risk knocking the machine out of timing.

Furthermore, if you load a design that is exactly 200mm x 200mm onto a machine with a 200mm limit, the machine’s operating system will often lock the design in place (center only). It removes your ability to "nudge" or jog the position on-screen.

Therefore, this tutorial enforces a 190mm x 190mm safety rule. By designing slightly smaller than the max field, you buy yourself 10mm of "wiggle room" to correct alignment errors later.

If you are setting up this workflow for the brother prs100 embroidery machine, that 10mm buffer is often the only thing standing between a salvageable project and the scrap bin.

Prep Checklist (Do Prior to Software Launch)

• Machine Class Verification: Confirm machine is an 8-inch class (200x200mm max).
• Consumables Check: Ensure you have temporary adhesive spray (like Odif 505) and a fabric marking pen (water-soluble/air-erase) for visual confirmation.
• Naming Strategy: Decide on a hoop name that includes "Flip" (e.g., "PRS100_Durkee_Flip").
• Safety Margin: Commit to using 190mm, not the full 200mm.
• Visual Aid: Plan to use specific basting colors (e.g., Hot Pink) for alignment lines so they are impossible to miss.


The Click Path That Matters: Embrilliance Enthusiast Preferences → Hoops → Multi-Position

In Embrilliance Enthusiast, we build the "virtual hoop" to match our "physical hoop."

Action Steps:

1. Click Preferences in the tool bar.
2. Navigate to the Hoops tab.
3. Under the "Style" dropdown, select Multi-Position.
4. Click the New button.

This opens a dialog specifically designed for split designs. Unlike a standard hoop, this interface requires us to define the spatial relationship between the two distinct sewing areas.

Name It Like You’ll Thank Yourself Later: “PRS100 8x14 Flip” and the PES File Type Choice

Naming conventions are not administrative busywork; they are safety protocols. Lisa names the hoop “PRS100 8x14 Flip.”

Why this works:

• Machine Context: "PRS100" tells you which machine this is safe for.
• Action Trigger: "Flip" reminds you that physical intervention is required mid-print.

Select the PES file type (or your specific machine format) in the dialog. This ensures the output is readable by your specific hardware.

Watch Out: Avoid generic names like "Large Hoop." Six months from now, you will forget if "Large Hoop" has the 190mm buffer or the risky 200mm limit. Be specific.

The 190 x 190 Rule: Set Individual Field Size Smaller So You Can Still Nudge on the Machine

This is the most critical parameter in this guide. In the Hoop Properties dialog, input:

• Individual Field Size (X): 190
• Individual Field Size (Y): 190

The Physics of Fabric Pull: Why sacrifice 10mm? Because fabric is dynamic. When you stitch the top half (Section 1), the thread tension pulls the fabric slightly inward (a phenomenon called "push-pull"). By the time you flip to Section 2, the fabric geometry has changed microscopically.

If your design is maximized to the limit, you cannot adjust the second half to match the stressed fabric. By using 190mm, you retain the ability to use the machine's arrow keys/jog buttons to re-align the second half perfectly.

Mastering hooping for embroidery machine technique means anticipating these distortions. If you are working on real garments—t-shirts, hoodies, or knits—rather than stable stiff felt, this 10mm buffer is your insurance policy against gaps.

Two Rows, One Goal: Split the Layout into 2 Positions (Top Then Bottom)

Next, tell the software how the physical frame is orientated.

Action Step:

• Set Rows to 2.
• Leave Columns at 1.

This matches the physical reality: first you stitch the top, then you flip vertically to stitch the bottom.

Pro Tip: Visualize gravity. You are stacking these designs vertically. Always think "Top-to-Bottom."

The Only Math You Need: Overall 370 − Individual 190 = Offset 180

You must calculate the Offset—the distance from the center of Position 1 to the center of Position 2.

Lisa’s calculation for the Durkee frame is:

• Desired Overall Length: 370mm (matches the frame's physical capability).
• Individual Field Length: 190mm (our safety setting).
• Math: 370 - 190 = 180.

Action Step:

• Enter Offset: 180.

The software will verify:

• Overall Size: 190mm x 370mm.




Expert Reality Check: If the offset is wrong, your design will either overlap (breaking needles) or have a massive gap. When configuring brother prs100 hoops or similar tubular setups, verify this offset number against your actual stitch-out results. If you consistently see a 2mm gap, reduce your offset by 2mm.

The Two Checkboxes That Save Jobs: “Rotate for Flip Hoop” + “Add Basting Alignment Lines”

These two checkboxes are non-negotiable for this workflow.

Action Steps:

1. Check Rotate for flip hoop.
2. Check Add basting alignment lines.




Checkbox #1: Rotate for Flip Hoop

Because you are physically turning the hoop upside down (180°) for the second pass, the software must rotate the second half of the design 180° to compensate. If you miss this, Section 2 will stitch upside down relative to Section 1.

Checkbox #2: Add Basting Alignment Lines (Your Registration Anchor)

This inserts a crucial verification step into the stitch file.

• End of Section 1: The machine stitches a crosshair or line.
• Start of Section 2: The machine stitches a matching crosshair or line before starting the design.

The Theory: If these two lines stitch perfectly on top of each other, your registration is correct. If they do not match, DO NOT PROCEED.

Warning: Magnet Safety Hazard. If you upgrade to magnetic hoops/frames, be aware they use powerful neodymium magnets. They can pinch skin severely causing blood blisters. Keep away from pacemakers, insulin pumps, and credit cards. Use a sliding motion to separate magnets, not a pulling motion.

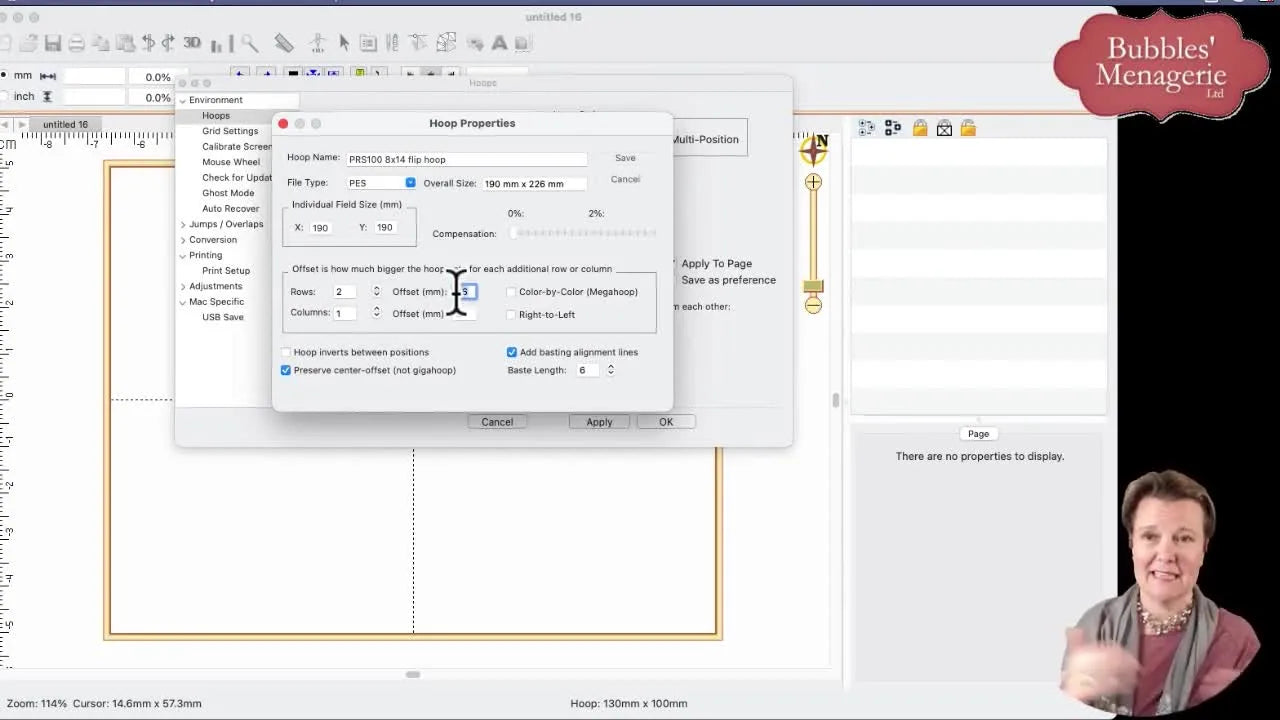

The Save-and-Verify Moment: Find Your New Hoop in the List and Apply It

We must confirm the settings took hold.

Action Steps:

1. Click Save.
2. Select your new hoop ("PRS100 8x14 Flip") from the list.
3. Click Apply, then OK.
4. Zoom out (Ctrl + Roll Mouse Wheel) to see the full dual-stage layout on your canvas.




When the Two Halves Don’t Meet: Fix Gaps and “No On-Screen Move” Problems Without Panic

Even with perfect data, reality happens. Here is your structured troubleshooting guide for when things go wrong.

In the world of multi hooping machine embroidery, having the ability to nudge on-screen (Constraint Fix #2) is the single most valuable asset for saving a garment.

The “Why” Behind the Wiggle Room: Fabric Behavior, Density, and Repeatable Registration

Why do we obsess over 10mm? Because fabric is not a rigid board.

• Percussion Test: When hooped, your fabric should sound like a drum when tapped firmly—thump, thump. If it sounds dull, it's too loose. If it sounds high-pitched or distorts the weave, it's too tight.
• Stabilizer Density: Dense designs (like logos with 15,000+ stitches) will shrink the fabric area. The 190mm buffer accounts for this "shrinkage," ensuring you still have room to align the second half.

Decision Tree: Stabilizer Strategy for Flip Hoops (So the Seam Doesn’t “Creep”)

Your software can be perfect, but if your stabilizer fails, the seam will drift. Use this logic flow to choose the right foundation.

Q1: Is the fabric stretchy (T-shirts, hoodies, performance knits)?

• YES: Use Fusible Cut-Away. Do not use tear-away. The stabilizer must remain part of the garment to support the seam for the life of the product.
• NO: Proceed to Q2.

Q2: Is the fabric textured or lofty (Terry cloth towels, fleece)?

• YES: Use Medium Cut-Away + Water Soluble Topper (Solvy). The topper prevents stitches from sinking; the cut-away prevents distortion during the flip.
• NO: (e.g., Denim, Canvas) Use Adhesive Tear-Away or Firm Cut-Away.

Consumables Alert: Keep a can of temporary spray adhesive nearby. Floating a layer of stabilizer under the hoop area adds rigidity without increasing hoop burn risks.

If you struggle with "Hoop Burn" (permanent shiny rings on fabric) or wrist fatigue from tightening screws, professionals often switch to embroidery magnetic hoops to eliminate these mechanical stressors.

The Upgrade Path (Without the Hype): When Better Hooping Tools Actually Pay Off

Flip-hoop layouts are a fantastic "hack" to get large designs out of smaller machines. However, if you find yourself doing this daily, you will hit a productivity wall. The bottleneck isn't the software—it's the physical setup time.

Here is a rational guide to upgrading your toolkit based on your business volume:

Level 1: The Efficiency Upgrade (Tools) If you are sticking with your current machine but hate the re-hooping process, look at magnetic options. Tools similar to durkee magnetic hoops specifically designed for single-needle machines can drastically reduce the time it takes to clamp a garment.

• Why Upgrade: No screws to tighten, zero hoop burn, and 30% faster loading.
• Recommendation: SEWTECH Magnetic Hoops offer compatible, high-grip solutions for Brother/Baby Lock generic frames that rival the big brands in holding power but offer excellent value.

Level 2: The Production Upgrade (Machinery) Are you turning away orders of 50+ shirts because flip-hooping takes too long? This is the signal to scale.

• Why Upgrade: SEWTECH Multi-Needle Machines provide larger uninterrupted stitch fields, meaning you don't need to split the design at all. No splitting = no alignment gaps.
• The Bottom Line: When you spend more time fixing alignment lines than stitching, it’s time to add needles.

If you are currently comparing specific frames like durkee ez frames against other systems, prioritize grip strength and repeatability over just price. A frame that slips 1mm costs you a $20 shirt every time.

Setup Checklist (Verify BEFORE you leave the computer)

• Loop Style set to Multi-Position in Preferences.
• File Name includes "Flip" descriptor.
• Individual Field Size: 190 x 190mm (Safety Buffer Active).
• Rows: 2.
• Offset: 180 (or calculated per frame).
• Checkbox Active: Rotate for flip hoop.
• Checkbox Active: Add basting alignment lines.
• Visual verification: Make sure the layout looks like a long vertical rectangle on canvas.

Operation Checklist (The Stitch-Out Routine)

• Hoop & Stitch Section 1: Secure fabric drum-tight. Run the first file.
• The Flip: Remove hoop, rotate 180°, re-attach. Listen for the rigid "click".
• Registration Check: Run the first color of Section 2 (The Alignment Line).
• The Decision:
  • If lines match: Proceed to stitch design.
  • If lines gap: STOP. Use machine layout/move arrows to nudge the needle position.
• Final Stitch: Complete Section 2.
• Cleanup: Remove basting stitches and trim jump threads.

FAQ

• Q: What consumables must be on hand before starting an Embrilliance Enthusiast Multi-Position flip hoop layout for a 200x200mm tubular embroidery machine?
  A: Prepare the key consumables first so alignment can be verified and fabric can be controlled during the flip.
  • Confirm temporary adhesive spray (for example Odif 505) is available to help stabilize layers.
  • Prepare a water-soluble or air-erase fabric marking pen for visual confirmation points.
  • Choose a high-contrast basting color so alignment lines are impossible to miss.
  • Success check: The setup table has spray + marking pen ready before Embrilliance Enthusiast is opened.
  • If it still fails: Re-check the Prep Checklist and verify the frame manual is on hand for stitch field values.
• Q: How do Embrilliance Enthusiast “Rotate for flip hoop” and “Add basting alignment lines” prevent misalignment in a 2-position flip hoop stitch file?
  A: Enable both checkboxes every time—one corrects the 180° physical flip, the other gives a stop/go registration test.
  • Check “Rotate for flip hoop” so Section 2 is rotated to match the hoop being turned upside down.
  • Check “Add basting alignment lines” so Section 2 starts with a line that must land exactly on Section 1’s line.
  • Stop immediately after the Section 2 alignment line stitches if anything looks off.
  • Success check: The Section 2 alignment line stitches directly on top of the Section 1 alignment line before the design continues.
  • If it still fails: Do not proceed—use the machine’s on-screen move/jog to nudge until the needle drop matches the previous line.
• Q: Why does a 200x200mm tubular embroidery machine not allow on-screen moving when the Embrilliance Enthusiast flip hoop field is set to 200x200mm, and what setting fixes it?
  A: Set the Embrilliance Enthusiast Individual Field Size to 190 x 190mm to keep “wiggle room” so the machine can nudge/jog.
  • Open Preferences → Hoops → Multi-Position → Hoop Properties.
  • Enter Individual Field Size (X) 190 and (Y) 190 instead of the full 200.
  • Re-save the hoop and re-apply it to the design before exporting.
  • Success check: The machine’s move/jog arrows allow small position adjustments instead of locking to center-only.
  • If it still fails: Confirm the design is not maxed to the machine limit and re-check the saved hoop selection is the new 190mm version.
• Q: How do I troubleshoot a visible gap between Section 1 and Section 2 on a flip hoop project after flipping the hoop 180°?
  A: Use the basting alignment line as a controlled checkpoint, then nudge Section 2 before stitching the design.
  • Start Section 2 and stitch only the alignment line, then stop immediately.
  • Measure the separation visually; use the machine screen to nudge until the needle drops exactly on the Section 1 line.
  • Re-seat the frame and tighten bracket screws finger-tight plus a quarter turn to prevent play.
  • Success check: After nudging, the Section 2 alignment line stitches directly over the Section 1 alignment line with no visible “double line.”
  • If it still fails: Verify the hoop locks in with a solid, sharp click and that the frame arm cannot be wiggled once seated.
• Q: How do I fix flip hoop design sections overlapping on a 2-position Embrilliance Enthusiast Multi-Position layout using a Durkee-style 8x14 frame?
  A: Increase the Offset in Hoop Properties slightly because overlap usually means the offset value is too small.
  • Open the Multi-Position hoop settings and locate the Offset value used between Position 1 and Position 2.
  • Increase the Offset a small amount (for example, adjust from 180 to 182) and re-save/export.
  • Stitch the alignment lines again before committing to the full Section 2 design.
  • Success check: The Section 2 alignment line lands on the Section 1 line without the design stitching into the already-stitched area.
  • If it still fails: Compare results stitch-out to stitch-out and adjust the offset in small steps, using the alignment lines as the decision point.
• Q: What is the safest way to confirm a flip hoop frame is fully seated on the embroidery machine before stitching alignment lines?
  A: Use the “click test” and a no-wiggle check before running any stitch-out near the frame edge.
  • Lock the hoop/frame into the machine and listen for a definitive sharp “click” or solid mechanical thud.
  • Wiggle-test the frame arm gently; if there is movement, tighten bracket screws finger-tight plus a quarter turn.
  • Keep hands, hair, and loose sleeves at least 6 inches away from the needle area during test-outs; use a stylus, not a finger, to point.
  • Success check: The hoop seats with a rigid click and the frame arm does not feel mushy or loose.
  • If it still fails: Stop and re-seat the hoop—do not start the alignment line until the seating feels mechanically solid.
• Q: What magnetic hoop safety rules should be followed when upgrading from screw-tightened hoops to neodymium embroidery magnetic hoops for flip hoop workflows?
  A: Treat magnetic hoops as pinch hazards and keep them away from medical devices and sensitive items.
  • Slide magnets apart to separate them; do not pull directly apart to avoid sudden snap-back pinches.
  • Keep fingers out of the closing path to prevent blood blisters from pinching.
  • Keep magnetic hoops away from pacemakers, insulin pumps, and credit cards.
  • Success check: Magnets separate with a controlled sliding motion and the hoop closes without any hand being in the pinch zone.
  • If it still fails: Pause and reposition hands—never “fight” the magnets; reset and close slowly with a safe grip.
• Q: For frequent large split-design orders, what is a practical upgrade path from flip hoop optimization to magnetic hoops to multi-needle embroidery machines?
  A: Start with process control, then upgrade hooping tools, and only then consider a production machine if setup time is the true bottleneck.
  • Level 1 (technique): Enforce the 190mm safety margin, use basting alignment lines, and rely on the stop/nudge routine to save garments.
  • Level 2 (tooling): Switch to magnetic hoops if screw tightening causes hoop burn or the re-hooping process is slowing daily work.
  • Level 3 (capacity): Move to a multi-needle machine when time spent flipping, aligning, and fixing gaps outweighs actual stitching time on volume runs.
  • Success check: The chosen level reduces either misalignment rework (gaps/overlaps) or loading time in a measurable, repeatable way.
  • If it still fails: Re-assess whether the main constraint is registration accuracy (solve with process/tooling) or uninterrupted field/throughput (solve with machinery).
