Stop Guessing Bobbin Tension: Use the Echidna Thread Tension Gauge (and Get Clean Stitch Backs Every Time)

The Science of Tension: A Master Class in Calibrating Your Brother Embroidery Machine

If you have ever stared at the back of an embroidery sample and thought, "Why does this look nothing like the textbook photos?"—take a breath. You are not alone, and you are not "bad at embroidery."

Embroidery is physics. It is a tug-of-war between the top thread and the bobbin thread. Bobbin tension is the foundation of that physics, yet it is invisible to the naked eye until it ruins a project. It is the silent variable that can make a perfectly digitized design look messy, loopy, or distorted.

In this white paper, we will strip away the guesswork. You will learn the exact, data-driven method for calibrating a generic drop-in bobbin system (specifically demonstrated on a Brother Innov-is VE2200 DreamMaker XE, but applicable to most Brother models) using an Echidna spring-loaded tension gauge.

We are moving from "guessing and hoping" to measuring and knowing.

The "Calm Rule": Why You Must Diagnose Before You Dial

Here is the hard truth I have learned after two decades of fixing "mystery tension" problems: If the bobbin tension isn't in a sane range, you cannot fix the problem by adjusting the top tension.

You can tighten that top dial until the thread snaps, and your result will still look unprofessional.

The images below demonstrate four stitch-outs. From the front, they might pass a quick glance. But the back tells the forensic story. The width of the white bobbin thread column varies dramatically because each sample was stitched with a different gram-force of tension.

The Data: What "Perfect" Actually Means

Instead of vague terms like "tight enough," let’s use industry-standard metrics.

• The Sweet Spot: 30–40 grams of pull force.
• The Danger Zone (Loose): ~10 grams. The bobbin offers no resistance.
• The Danger Zone (Tight): 50–55 grams. The bobbin fights the top thread too hard.

Visual & Sensory Diagnosis: How to "Read" the Back

Don't just look; look for specific structural markers.

1. Too Loose (~10g):
   • Visual: You see the white bobbin thread pulling up to the front of the fabric (peeking around the edges of letters). On the back, the white column is wide and sloppy.
   • Sensory: The stitching feels "mushy" or soft to the touch.
2. Too Tight (50g+):
   • Visual: The white bobbin column on the back is a hairline thin strip or invisible. The top thread is being pulled entirely to the back.
   • Sensory: The embroidery feels hard, rigid, or bulletproof. The fabric may tunnel (pucker) around the design.
3. Balanced (30–40g):
   • Visual: The Rule of Thirds. You should see 1/3 top colour, 1/3 white bobbin, 1/3 top colour.
   • Sensory: The back feels secure but flat against the fabric.

If you are running a brother embroidery machine for commercial clients or Etsy orders, hitting this 30-40g window is the difference between a homemade craft and a professional product.

Phase 1: The "Hidden" Prep (Sanitizing Your Test Environment)

Before you measure, you must ensure you are reading tension, not friction. A snag, a burr on the needle plate, or a trapped lint ball will give you a false reading.

The demonstration uses a high-contrast peacock blue bobbin thread. For your daily work, your standard 60wt or 90wt bobbin thread is fine, but ensure the path is clean.

Hidden Consumables Check

• Fresh Needle: A burred needle adds friction.
• Canned Air / Brush: To clear the bobbin case before starting.
• Unwaxed Floss: Great for clearing debris from the tension spring.

Pre-Flight Prep Checklist

• Surface Check: Confirm you are testing on a stable, plain swatch with medium tearaway stabilizer.
• Load Correctly: Drop the bobbin into the case. Ensure it rotates counter-clockwise (the "P" shape rule).
• BYPASS THE CUTTER: Crucial Step. Do not use the automatic cutter blade. You need a long tail (6-8 inches) to tie your knot.
• Clearance Check: Ensure your hands and tools are floating freely and not rubbing against the plastic bed of the machine while you pull.
• Tool Prep: Have a precision flat-head screwdriver ready. (Not a kitchen knife, not a coin—a precision driver).

A Note on Stabilization: While we are focusing on mechanical tension, remember that physics requires a stable base. If your fabric is shifting, you might blame the bobbin when the culprit is actually poor hooping. Before turning screws, ensure you understand hooping for embroidery machine fundamentals. Loose fabric is a lying witness.

Phase 2: The Setup (Creating the Test Loop)

This is where beginners fail. If you pull the thread sideways, you add drag against the casing, spiking the reading.

The Action Plan:

1. Drop and Guide: Place the bobbin in the holder and route it through the metal tension plate guide.
2. The Extraction: Hold the needle thread (top thread) with your left hand.
3. The Cycle: Press the Needle Up/Down button twice. You will hear the mechanical thunk-thunk.
4. The Retrieval: Gently pull the top thread. It will fish out a loop of bobbin thread.
5. The Stage: Pull that bobbin loop straight up through the needle plate hole.




Why this matters: You want the thread exiting the machine exactly as it does when sewing—vertical and straight.

Setup Checklist

• Bobbin is seated; rotation direction confirmed.
• Thread is engaged in the tension spring (you should feel slight resistance, like pulling dental floss).
• Long tail is accessible above the needle plate.
• Visual Check: Thread path is clear of lint.

If you perform this test daily in a production environment, consistency is key. Using a dedicated hooping station for machine embroidery ensures your fabric is prepped the same way every time, and using a gauge ensures your machine is set the same way every time. Remove variables to find the truth.

Phase 3: Zeroing the Gauge (The 1-Second Calibration)

Scientific instruments must be calibrated. An Echidna gauge uses a spring. Gravity and temperature can affect springs.

The Check: Hold the gauge vertically by the ring. Let the hook hang. The white indicator line must sit exactly at 0.

The Fix: If it reads +5g or -5g, twist the knurled nut at the top of the gauge until it hits zero.

Do not skip this. If your scale is wrong, your embroidery is wrong.

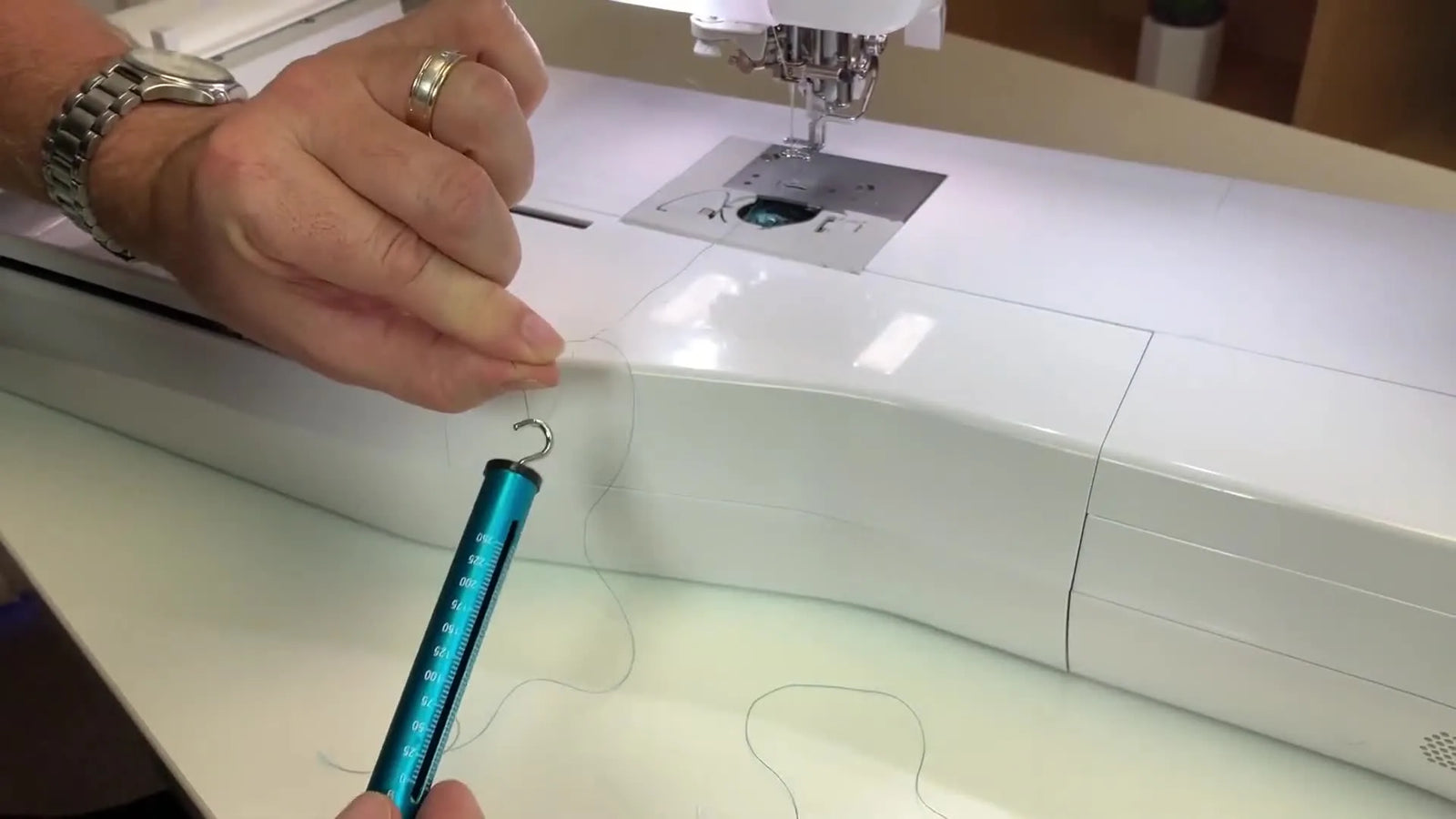

Phase 4: The Measurement (The Pull)

Now, we extract the data.

1. The Knot: Tie a simple overhand loop knot in the bobbin tail. Make it secure.
2. The Hook: Catch the gauge hook into the thread loop.
3. The Pull: Pull the gauge slowly and steadily toward you (or strictly vertical).
4. The Read: Watch the white line while the thread is unspooling. Do not read it while stopped.






Target Range: 30g – 40g. In the demonstration video, the machine reads 30–35g. This is the "Green Zone."

Sensory Anchor:

• Correct Feel: Smooth, consistent drag. No stuttering.
• Incorrect Feel: Jerky resistance suggests the bobbin is bouncing in the case or winding is messy.

Warning: Field Safety Protocol.
Keep fingers clear of the needle bar and uptake lever. Ensure the machine is in a stopped state (red light) or powered off if your model allows manual bobbin pulling. Do not rush the pull; jerky movements yield inaccurate data and risk chipping the needle plate if the hook slips.

Phase 5: The Adjustment (The Quarter-Turn Rule)

If your reading is 15g (too loose) or 60g (too tight), you must adjust the bobbin case.

Identify the Target: Remove the plastic bobbin case from the machine. Look for two screws:

1. Phillips (+) Head: This holds the case together. DO NOT TOUCH.
2. Slotted (-) Head: This is the tension spring screw. This is your target.






The Adjustment Protocol:

• To Tighten (Increase Grams): Turn Clockwise (Right).
• To Loosen (Decrease Grams): Turn Counter-Clockwise (Left).

The Sensitivity Factor: These screws are micrometric.

• The Quarter-Turn Rule: A mere 1/4 turn can shift tension by 10–15 grams.
• Visual: Imagine a clock face. Move the screw from 12:00 to 1:00. That is often enough.


Operation Checklist (The Adjustment Loop)

• Measure current tension (e.g., 15g).
• Remove bobbin case.
• Locate the Slotted Screw.
• Adjust in tiny increments (1/8 to 1/4 turn).
• Reinstall bobbin case.
• Re-thread and pull-test.
• Success Metric: Reading lands between 30g and 40g.

This precision is why generic instructions fail. They say "tighten the screw," but they don't tell you that 360 degrees of turning will make the case unusable. Precision tools require precision mindsets. This applies to your accessories too—terms like magnetic embroidery frames often come up here because, like a tension gauge, they provide consistent, measurable pressure on the fabric, eliminating manual error.

Troubleshooting: When the Screw "Does Nothing"

Scenario: You tighten the screw. The reading is 15g. You tighten again. Still 15g.

Diagnosis: You have a "Lint Block." A tiny piece of fluff is wedged under the metal tension leaf spring. It acts like a doorstop, preventing the spring from clamping down on the thread.

The Fix:

• Do not keep tightening. You will bend the spring.
• Take a business card or a piece of unwaxed dental floss.
• Slide it under the tension spring to floss out the debris.
• Retest. You will likely find the tension suddenly jumps to 70g because you over-tightened it earlier. Back it off.

Diagnostic Decision Tree: Solve It Fast

Use this logic flow to stop guessing.

Expert Note on Hooping: If your tension numbers are perfect (35g) but your outlines are still registering poorly, the fabric is moving. On sleek fabrics (satin, performance wear), standard friction hoops fail. This is where a brother magnetic hoop saves the day by clamping the fabric without the "drum skin" distortion pulling that traditional hoops cause.

Warning: Magnetic Safety
Magnetic hoops use industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers away from the snap zone.
* Medical Risk: Keep away from pacemakers.
* Electronics: Keep magnets away from the machine's LCD screen and SD cards.

The Theory: Why 30g Matters

Why this specific number? An embroidery stitch is a knot. To hide that knot inside the fabric (the "sandwich"), both threads need to pull against each other with equivalent force.

• <30g: The top thread wins the tug-of-war, pulling the knot to the top.
• >40g: The bobbin thread wins, pulling the top thread to the bottom, causing tunneling.
• 30-40g: Equilibrium. The knot buries itself in the stabilizer.

Note: If you switch thread brands or weights (e.g., metallic thread), this logic holds, but the numbers might shift. Test every time you change materials.

Real-World Pitfalls: The Bobbin Winder Trap

A frequent frustration mentioned in user forums (specifically for the Brother Quattro 6000D/Dream Machine series) is bobbins that wind loosely before they even get to the case.

The Check: Look at your bobbin. Is it spongy? Can you squish it with your fingers? The Fix: When winding a bobbin, ensure the thread clicks firmly into the pretension disc (the little metal button on top of the machine). If it bypasses this, the bobbin winds loose, and no amount of case adjustment will fix the inconsistent feed.

The Upgrade Path: From Struggle to Scale

Understanding tension is Level 1. Once you master this, you will naturally hit new bottlenecks. Here is how to navigate your growth:

1. Level 1: The Quality Control Kit. A tension gauge and a set of hollow-ground screwdrivers. These are essential, not optional.
2. Level 2: The Workflow Upgrade. If you are spending 5 minutes hooping a shirt and fighting wrinkles, look into a hoop for brother embroidery machine that uses magnetic force. It creates a flatter field faster.
3. Level 3: The Production Solution. If you are doing volume orders (50+ shirts), a single-needle machine—even a great one like the DreamMaker—becomes your bottleneck. This is when professionals move to multi-needle platforms (like SEWTECH solutions or similar industrial commercial machines). Multi-needle machines handle tension more robustly and require fewer bobbin changes.

For owners of high-end single-needle machines, specifically the V-Series, a specific magnetic hoop for brother dream machine can bridge the gap, giving you "industrial-style" hooping ease without buying a new machine immediately.

Final Thoughts: Write It Down

The difference between an amateur and a pro is documentation. Once you find that perfect 35g setting for your favorite bobbin thread: Write it down. Tape it to the wall.

When your next project goes wrong, utilize the brother sewing and embroidery machine capabilities by first verifying your baseline. Measure your tension. If it is 35g, you know the machine is fine, and you can focus on your stabilizer or digitizing.

Turn the "Art" of embroidery into the "Science" of manufacturing. Measure, adjust, verify.
