Stop Guessing Bobbin Tension: Dial In Your Melco Bobbin Case with the Melco Gauge (and Avoid the “False Break” Trap)

Mastering Bobbin Tension: The "Hidden" 50% of Embroidery Quality & Stability

Bobbin tension isn’t a “fussy detail”—it’s the bottom half of your stitch formation, and when it’s off, everything upstream looks guilty: thread, needle, design, even the fabric. If you’ve ever chased random bobbin breaks, inconsistent backs, or that nagging feeling that your machine is “moody,” this is the reset that brings you back to predictable sewing.

As an educator who has watched thousands of beginners struggle, I can tell you: Machines don't have feelings; they have physics. When you master the physics of the bobbin, you stop guessing and start producing.

Bobbin tension is 50% of stitch quality—so let’s stop blaming the top thread

Juliette’s point is the one I’ve watched save the most time in real shops: the bobbin is half the sewing process. When the bottom tension is wrong, you can waste hours “fixing” top tension that was never the root cause.

Think of tension as a tug-of-war. If the bottom team (the bobbin) decides to let go of the rope, the top team (top thread) pulls everything to the top, creating ugly loops. If the bottom team pulls too hard, the top thread snaps.

Here’s the calm truth: most bobbin tension problems are measurable and repeatable. Once you treat bobbin tension like a number (not a vibe), your troubleshooting gets faster, your stitch quality stabilizes, and your production becomes easier to scale—especially if you’re using professional equipment like melco embroidery machines where consistency is the whole game.

Paper-sided, plastic-sided, and magnetic core bobbins: what changes (and what doesn’t)

Juliette shows a simple but important reality: the bobbin style doesn’t magically set your tension for you. However, the friction coefficient changes with materials, so you must re-test when you switch types.

• Paper-sided bobbins: Common for commercial pre-wounds (like NEB). They provide moderate friction.
• Plastic-sided bobbins: Handy when you want empty bobbins to wind your own colors. They are slicker and often spin faster.
• Magnetic core bobbins: These have a magnet strip that helps keep the bobbin from falling out of the case and provides a consistent "drag" to prevent over-spinning. Note: The magnet helps with consistency, but you must still adjust the screw for tension.


The practical takeaway: regardless of paper/plastic/magnetic, you still need to check and adjust bobbin case tension.

Hidden Consumable Alert: If you are winding your own bobbins (plastic sided), you cannot just use "any" thread. You need high-quality 60wt bobbin thread. Using thick 40wt top thread in the bobbin will drastically change your tension requirements.

Standard bobbin case vs. backlash spring bobbin case: pick the case that matches your bobbin workflow

This is one of those “small hardware choices” that prevents big headaches.

A standard bobbin case has a regular metal interior. It relies purely on the side pressure of the bobbin against the wall.

A backlash spring bobbin case has a distinctive, oddly shaped spring (often blue steel or gold-colored) at the very bottom of the case. Its job is to apply gentle upward pressure on the bobbin to prevent it from spinning backward and unspooling when the machine stops suddenly (at 1000 stitches per minute).

Juliette’s rule of thumb is industry standard:

• Commercial pre-wound bobbins often have a bit of adhesive/glue or magnetic core that helps prevent backlash naturally.
• Custom-wound bobbins (smooth plastic on smooth metal) typically don’t have that friction, so the backlash spring case becomes the safer choice to prevent "bird nesting."

If you’re doing any volume work—logos, uniforms, repeat orders—this is a quiet upgrade that reduces “mystery nests” and stop-start waste. And if you’re pairing stable tension with faster hooping systems (for example, magnetic hooping stations), you’ll feel the difference immediately because your machine stops become less frequent and less chaotic.

The “hidden” prep: tools, thread weights, and the one screwdriver you must not mix up

Before you touch the tension screw, set yourself up like a pro. Juliette shows two screwdrivers and makes a point I strongly agree with: use a dedicated small-blade screwdriver for the bobbin tension screw.

Why this matters in the real world:

• A blade that’s too large can slip and burr the screw head. A burred screw is ruined; you will never get a precise adjustment again.
• A slipping driver is how people scratch parts, bend springs, and create new problems while “fixing” tension.

Also, don’t ignore thread weight changes:

• Typical bobbin thread is around 60 wt (thinner).
• If you wind your own bobbin with 40 wt thread (thicker), tension often needs to change.

That’s not a defect—it’s physics. Thicker thread creates more friction under the tension spring, so the same screw position can yield a different reading.

Prep Checklist (do this before you measure anything)

• Case Inspection: Confirm if you are using a standard or backlash spring case (look inside the bottom of the case).
• Bobbin Match: Ensure your bobbin type (plastic/paper/magnet) matches your case choice.
• Thread Weight: Confirm if you are using 60wt (standard) or 40wt (custom).
• Tool Safety: Grab the small-blade screwdriver (specifically for bobbins).
• Clean State: Use a brush or air to blow out any lint from the bobbin case before inserting the bobbin.

The “Number 9” bobbin insertion rule: the fastest way to prevent a bad reading

Juliette demonstrates the insertion orientation that prevents a shocking number of tension mistakes. This is the single most common error beginners make.

The bobbin goes into the case so the thread forms a visual number 9:

1. Hold the bobbin so the thread tail hangs off the left side.
2. Drop it into the case.
3. Pull the thread into the slit (at roughly 3 o'clock).
4. Pull it up under the tension leaf spring until it exits the pigtail at 12 o’clock.

Sensory Check: You should hear or feel a distinct slight "click" or resistance as the thread slides fully under the tension spring. If it slides freely with zero resistance, you missed the spring.

If the thread isn’t fully under the spring, you can get:

• A falsely low tension reading (near zero).
• Inconsistent stitch formation.
• “It sews fine for 30 seconds, then falls apart” behavior.

Warning: Keep fingers, snips, and loose thread tails under control around moving parts and sharp tools. A bobbin case edge, a slipped screwdriver, or a sudden thread snap can cut you faster than you expect—slow down and work on a stable surface.

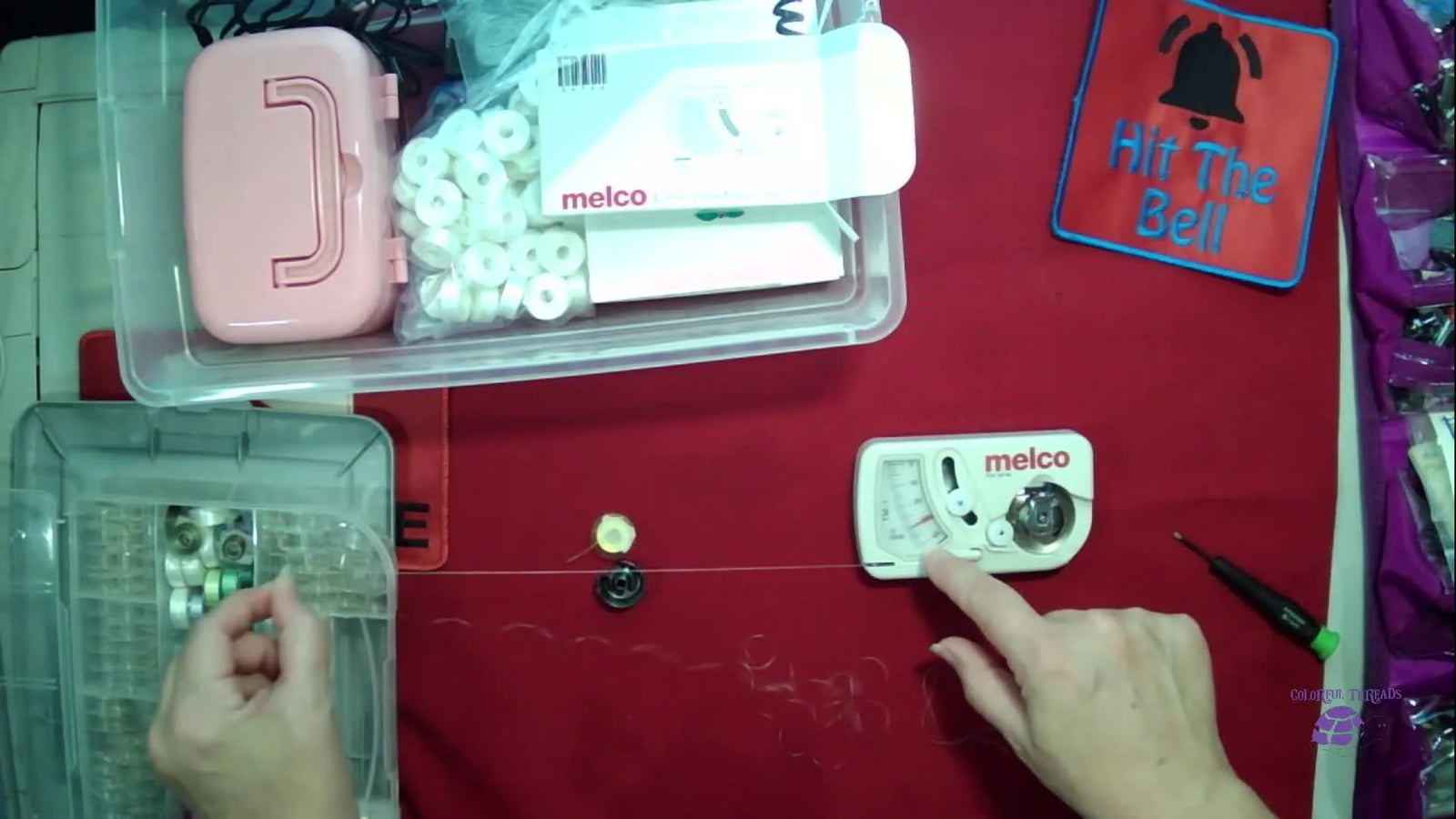

The Melco Bobbin Case Tension Gauge: turn the drop test into a number you can repeat

The heart of the video is using the Melco (or TOWA) gauge to remove guesswork. The "Drop Test" (holding the thread and bouncing the case like a yo-yo) is an old-school method, but it is subjective. My "yo-yo" might be more aggressive than yours. A gauge gives us data.

Juliette shows the instruction sheet range from Melco:

• Manual spec: 180–220 gF (Grams of Force)
• Her practical preference: 200–220 gF to reduce false bobbin breaks


The reason experienced operators lean slightly tighter (within spec) is simple: bobbin tension that is too loose can mimic a break. The sensor expects resistance; if the thread flops around, the machine "thinks" the thread is broken and stops.

How to load the bobbin case onto the gauge (exact thread path)

Juliette’s setup sequence is critical. If you load it wrong, the number is wrong.

1. Lock the bobbin case onto the gauge spindle until it clicks/locks.
2. Thread the bobbin thread under the first bottom roller.
3. Bring it over the top roller (the pulley).
4. Pull the thread end smoothly to read the dial.


Checkpoint: The pull should be smooth and consistent, like pulling dental floss. If the needle on the gauge jumps wildly (e.g., 180 to 250 back to 190), your winding is bad, or there is lint caught in the spring.

Reading the dial and adjusting the tension screw: tiny turns, frequent checks

Juliette demonstrates a real measurement that’s very common in the field: an initial reading around 300 gF, which is too tight.

Her adjustment method is exactly what I recommend: The "Clock Face" Method.

• Insert the small screwdriver into the larger tension screw.
• Imagine the screw slot is the hand of a clock.
• Turn counter-clockwise (lefty-loosey) only 5 minutes on the clock face.
• Stop. Remove the driver.
• Re-check the gauge.


In the video, the needle drops from ~300 down into the 200–250 gF range.

Expected outcomes (so you know you’re “done”)

• Target: Your reading lands in the 200–220 gF range.
• Stability: The needle movement is stable when you pull constantly.
• Repeatability: You can repeat the reading multiple times without wild swings.

Setup Checklist (end this section with a clean, repeatable setup)

• Bobbin inserted using the Number 9 orientation.
• Thread confirmed fully under the tension leaf spring (felt the resistance).
• Bobbin case locked into the gauge correctly.
• Thread routed: under bottom roller → over top roller → pull point.
• Tension adjusted in micro-turns (5 minutes like a clock), re-checking after each change.
• Final verification: Pull thread for 3 seconds; verify needle stays in the 200-220 zone.

Target numbers: factory spec vs. real-world stability (and why “false breaks” happen)

Juliette calls out a symptom that frustrates operators: false bobbin breaks.

In her troubleshooting notes:

• Cause: Tension too loose (below 180 or low 200s). The thread slackens, the check spring dances, and the sensor trips.
• Fix: Tighten into the 200–220 gF range.

This is where experience matters: Stabilizing the physics.

However, tension is only half the stability equation. If your fabric is moving in the hoop, perfect tension won't save you. If you are running production and struggling with "hoop burn" (ring marks) or slipping fabric, you effectively have a "tension" problem caused by the hoop, not the thread.

This is where professionals often look at upgrading their tools. While standard hoops are fine for beginners, using magnetic embroidery hoops can drastically reduce fabric shifting. By clamping the fabric firmly without forcing it into a ring, you provide a stable canvas for your perfectly tensioned thread. It’s a holistic system: Stable Thread Tension + Stable Fabric = Perfect Embroidery.

Custom-wound bobbins and the Side Winder: color matching without chaos

Juliette demonstrates switching to a backlash spring case and testing a custom-wound bobbin with 40 wt thread.

She also shows the Side Winder portable bobbin winder and notes that its tensioning controls affect how tight the bobbin is wound.

Here’s the shop-floor reality: winding your own bobbins is great for specific color matching (e.g., matching the back of a towel), but it introduces two variables you must control:

1. Backlash control: Custom-wound bobbins on smooth plastic spools slide very fast. Use the backlash spring case.
2. Winding consistency: A bobbin that is wound too spongy will catch; one wound too tight will deform the spool.

If you’re doing one-off personal projects, you can experiment. If you’re doing repeat client work, document what you did: thread brand, weight, bobbin type, and the gauge reading you settled on.

The Post-it cleaning trick: remove lint and glue without bending the tension spring

Inconsistent tension often isn’t “mystical”—it’s contamination under the tension spring.

Juliette explains why buildup happens:

• Pre-wound bobbins can have adhesive/wax that sheds under the spring.
• Bobbin thread is made of multiple filaments twisted together, and it sheds fibers (lint).

Her cleaning method is simple, safe, and brilliant:

1. Take a Post-it note or a piece of paper.
2. Fold it so the sticky side faces out.
3. Slide the corner under the tension leaf spring.
4. Drag it along to pick up lint/glue.


Important Don'ts:

• Don’t use business cards (too thick; you will permanently bend the spring open).
• Don’t use metal pins/needles (you will scratch the metal path, cutting your thread).

Quick decision tree: backlash, false breaks, or inconsistent tension—what are you actually seeing?

Use this when the machine starts acting up mid-run.

1. Is the machine checking for a bobbin break constantly, but the thread is fine?
   • Yes: Your tension is likely too loose (<180g).
   • Action: Tighten screw clockwise to reach 200-220gf.
2. Is there a "Bird Nest" (huge knot) under the specific needle plate?
   • Yes: The top thread wasn't caught by the bobbin.
   • Action: First check if bobbin pigtail is properly threaded. Then check if you used a backlash spring (for custom bobbins).
3. Is the tension reading jumping wildly on the gauge?
   • Yes: Lint or debris.
   • Action: Use the Post-it Note trick. If still jumping, the bobbin itself might be wound poorly.

Troubleshooting table: symptom → likely cause → fix you can do today

Here are the exact issues Juliette calls out, translated into a shop-friendly format.

The "upgrade" mindset: when better hooping and better tension control pay you back

Once your bobbin tension is measurable, you’ll notice something: your machine stops less, your sew-outs become more predictable, and your hooping process becomes your next biggest bottleneck.

If you’re still fighting slow loading, fabric marks (hoop burn), or inconsistent clamping pressure, that’s where magnetic hooping systems can be a practical next step. In many shops, the best workflow is:

1. Stabilize Stitch Formation: Dial in that 200-220g bobbin tension.
2. Stabilize the Workflow: Speed up loading and reduce re-hooping errors.

For example, if you are scaling up with large designs, switching to a melco xl hoop or similar magnetic frames allows you to hoop thick items (like Carhartt jackets) without fighting the screws. Less distortion means fewer registration shifts, fewer trims, and fewer “why did this suddenly pucker?” moments.

And if you’re doing repetitive garment work like left-chest logos, pairing stable tension with a consistent hooping workflow—whether that’s a jig-based station or a hoop master embroidery hooping station—often turns “I can embroider” into “I can profit.”

Warning: If you move into magnetic frames (Level 2 Upgrade), treat magnets with respect. These are industrial neodymium magnets. Keep them away from pacemakers/implanted medical devices, avoid pinching fingers between magnetic surfaces (it hurts!), and store them so they can’t snap together unexpectedly.

Operation Checklist (the routine that keeps you out of trouble)

• Change Routine: Measure bobbin tension with the gauge every time you change thread brand or weight.
• Micro-Adjust: Only turn the screw 5 minutes (on a clock face) at a time.
• Spring Check: If using custom bobbins, verify the backlash spring is present.
• Hygiene: Clean under the tension spring with a Post-it note weekly (or daily if using adhesive pre-wounds).
• Order of Operations: When stitch quality fails, check the bobbin tension first. It is the foundation. Only touch top tension once the bottom (bobbin) is verified correct.

FAQ

• Q: How do I measure and set Melco bobbin case tension with a Melco/TOWA bobbin tension gauge to the correct gF range?
  A: Set Melco bobbin case tension by measuring with a gauge and micro-adjusting the tension screw until the dial repeatedly reads 200–220 gF.
  • Lock the bobbin case onto the gauge until it clicks/locks, then route thread under the bottom roller → over the top roller → pull.
  • Turn the bobbin tension screw in tiny steps (about 5 minutes on a clock face), then re-check the dial after every change.
  • Success check: Pull smoothly for ~3 seconds and the gauge needle stays steady in the 200–220 gF zone without wild jumps.
  • If it still fails: Clean lint/glue from under the tension spring and re-test; a jumping needle often points to debris or a poorly wound bobbin.
• Q: How do I insert a bobbin into a Melco-style bobbin case using the “Number 9” orientation so the reading is not falsely low?
  A: Insert the bobbin so the thread path visually forms a number 9, then seat the thread fully under the tension leaf spring before measuring tension.
  • Hold the bobbin so the thread tail hangs on the left, drop it in, then pull thread into the slit (~3 o’clock).
  • Pull thread up under the tension leaf spring and out through the pigtail at 12 o’clock.
  • Success check: Feel/hear a slight “click” or definite resistance as the thread slides fully under the spring (not free-sliding).
  • If it still fails: Re-thread the pigtail path again—missing the spring can produce near-zero readings and unstable stitching.
• Q: When should I choose a standard bobbin case vs. a backlash spring bobbin case to prevent bobbin backlash and bird nesting?
  A: Use a backlash spring bobbin case when running custom-wound bobbins (especially smooth plastic-sided bobbins) to reduce backlash and “mystery nests.”
  • Identify the case: Look inside the bottom—backlash spring cases have a distinctive spring at the very bottom.
  • Match the workflow: Use standard cases more often with commercial pre-wound bobbins; use backlash spring cases more often with custom-wound bobbins.
  • Success check: After a stop/start at speed, the bobbin thread does not “explode” or unspool inside the case.
  • If it still fails: Re-check bobbin insertion (Number 9) and confirm the bobbin thread is fully under the tension spring.
• Q: Why does a commercial embroidery machine show false bobbin breaks even when the bobbin thread is not broken, and what is the fastest fix?
  A: False bobbin breaks often happen when bobbin tension is too loose; tighten bobbin tension into the 200–220 gF range to stabilize sensor behavior.
  • Measure bobbin tension with a gauge instead of relying on a subjective drop test.
  • Tighten the tension screw clockwise in micro-turns and re-check until readings land in spec.
  • Success check: The machine stops less frequently for “bobbin break” while the stitch formation remains consistent.
  • If it still fails: Verify the bobbin thread is routed correctly under the spring and clean any lint/wax buildup affecting smooth drag.
• Q: How do I clean under the bobbin case tension leaf spring without bending the spring or scratching metal thread paths?
  A: Use the Post-it note cleaning method to remove lint/glue safely without deforming the tension spring.
  • Fold a Post-it so the sticky side faces out, then slide the corner gently under the leaf spring.
  • Drag the sticky edge along the spring contact area to lift lint/adhesive residue.
  • Success check: Bobbin tension readings become smooth and repeatable (the gauge needle stops jumping wildly).
  • If it still fails: Discard the suspect bobbin (bad winding can cause erratic readings) and re-test with a known-good bobbin.
• Q: What screwdriver should I use for the bobbin tension screw on a bobbin case, and why does the wrong driver cause long-term problems?
  A: Use a dedicated small-blade screwdriver for bobbin tension screws to avoid slipping and burring the screw head.
  • Select a blade that fits the tension screw slot correctly before turning.
  • Turn only micro-adjustments, then remove the driver and re-measure—do not “crank” the screw.
  • Success check: The screw slot remains crisp (not chewed up), and adjustments stay precise and repeatable.
  • If it still fails: Replace a damaged screw/case as needed; a burred screw can prevent consistent tension settings.
• Q: What safety precautions should I follow when adjusting a bobbin case tension screw and handling thread/snips near moving embroidery parts?
  A: Slow down and work on a stable surface; keep fingers and loose thread away from sharp edges and moving parts to prevent cuts and pinches.
  • Stop the machine before handling the bobbin case, and control thread tails so they do not snag unexpectedly.
  • Use the correct small screwdriver to reduce slips that can scratch parts or cut fingers.
  • Success check: Adjustments are completed with no slipping tools, no scratched components, and no sudden thread snaps near hands.
  • If it still fails: Step back and re-set the workspace—most injuries happen when rushing or working without stable support.
• Q: If embroidery stitch quality is still unstable after setting bobbin tension to 200–220 gF, when should I switch to magnetic embroidery hoops or upgrade to a multi-needle embroidery machine?
  A: If tension is verified but fabric still shifts (puckering, hoop marks, inconsistent registration), treat it as a hooping stability problem and escalate from technique to tools.
  • Level 1 (technique): Re-check stabilizer choice and confirm the fabric is not moving during stitching.
  • Level 2 (tool upgrade): Use magnetic embroidery hoops to clamp more consistently and reduce shifting/hoop burn.
  • Level 3 (capacity upgrade): Consider a multi-needle embroidery machine when frequent stops, re-hooping, and repeat orders make consistency and throughput the main bottleneck.
  • Success check: Fewer re-hoops, fewer stop-start interruptions, and cleaner results on the same design run.
  • If it still fails: Document thread weight, bobbin type, case type, and final gF reading—then troubleshoot the remaining variable (winding consistency or hoop/fabric movement).
