Stop Fighting Your Text: Control Stitching Order in Embrilliance Essentials for Cleaner Monograms, Better Cap Registration, and Fewer Jump Stitches

When lettering stitches in the “wrong” order, it doesn’t just look off—it wastes your time, dulls your trimmer blades with unnecessary cuts, and can ruin registration on curved projects like caps. I’ve watched plenty of capable embroiderers blame their machine mechanics when the real culprit was the stitch path defined in the software.

In this lesson, based on Lisa Shaw’s expert demonstration, we unlock a deceptively powerful feature inside the Embrilliance Platform (specifically Embrilliance Essentials): controlling stitching order for lettering objects. We will rebuild her workflow into a shop-ready process you can repeat. I will also add the "sensory cues" and physical parameters you need to understand why these settings work, so you can prevent the same problems on your next job.

The “Don’t Panic” Truth: Stitching Order in Embrilliance Lettering Tool Is a Design Choice, Not a Machine Problem

If you click the Lettering Tool and type text, Embrilliance will calculate the stitch path from left to right by default. That is the industry standard behavior. It works perfectly fine until you run into one of these specific production constraints:

• A 3-letter monogram where the center letter must sit physically on top (layering) or underneath.
• Cap lettering that needs to stitch from the center outward to push fabric bubbles away from the design rather than trapping them.
• A layout where the next text line should start near the needle’s last position to avoid a long travel/jump stitch (vital for single-needle machines like the Brother PE800/PE770).

If you’re running a single-needle machine, long jump stitches are the enemy. You are the manual trimmer. Every jump is a stop, a snip, and a restart. Controlling order is how you reclaim your time.

The “Hidden” Prep Pros Do First: Confirm Text Mode, Plan the Path, and Decide What You’re Optimizing

Before you touch the Order dropdown, you need to gather your "Digital Mise-en-place." In a professional shop, we don't guess; we inspect.

First, identify your optimization goal:

• Visual layering: What letter sits on top? (Aesthetics)
• Registration: How do we keep the fabric from shifting? (Physics)
• Efficiency: How do we reduce movement? (Speed)

Second, check your Text Mode. As Lisa clarifies, stitching order options are available in Single Line text and Circular Text objects. They are not available in Multi-Line mode. If you are stuck in Multi-Line, you cannot access these controls.

Hidden Consumables Check: Before you start any lettering project, ensure you have these often-overlooked tools at hand to verify your results:

• Curved Embroidery Snips: For trimming those jump stitches close to the fabric without nicking the threads.
• Water Soluble Pen: To mark your center point on the fabric (never trust the hoop alone).
• Fabric-Appropriate Stabilizer: For lettering, use Tearaway for stable woven fabrics (towels, denim) and Cutaway for anything that stretches (t-shirts, knits). Lettering on knits without cutaway will distort immediately.

Prep Checklist (The "Pre-Flight" Routine):

• Software Check: Confirm you are using Embrilliance Essentials (or higher) with the Lettering Tool active.
• Object Check: Click your text. verify it is set to Single Line (for straight text) or Circular Text (for arcs).
• Goal Definition: Are you fixing a monogram overlap, stabilizing a hat, or saving thread trims?
• Consumable Check: Do you have a fresh needle (Size 75/11 is the sweet spot for standard lettering)? A dull needle causes small letters to look ragged.
• Simulation Plan: Commit to using the Sew Simulator to watch the path before exporting.


Create a Baseline Text Object in Embrilliance Essentials (So You Can See What “Normal” Does)

Lisa starts by clicking the Lettering Tool (the “A” icon) and generating the default “ABC” text object. The font doesn't matter as much as the behavior.

The Default Physics:

• Direction: Left to Right.
• Sequence: First letter -> Last letter.

If you type "HELLO", the machine stitches H, ties off, trims, moves to E, stitches E, and so on.

Sensory Anchor: When running a default test, listen to your machine. If you hear the "thud-thud-thud" of the needle penetrating without the machine moving the hoop for a split second at the end of a letter, that's a tie-off. If the hoop then makes a long, whining emotional noise to move to the next letter, that's a travel movement. We want to control those noises.

Scenario 1: Fix Monogram Layering with the Embrilliance “Order” Dropdown (Without Breaking Objects Apart)

Monograms are where amateurs get frustrated and professionals get paid. The difference is often in the layering. I have seen users frantically creating extra color stops or splitting objects just to get the "S" to lay over the "K".

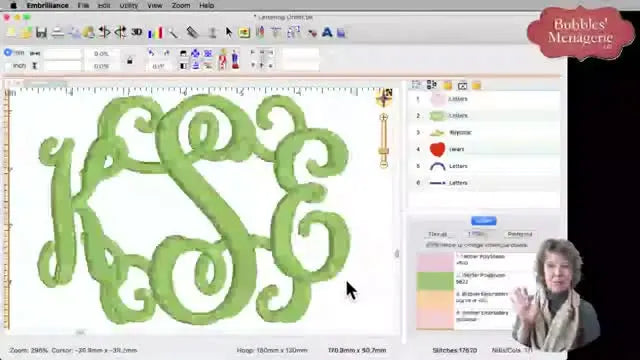

Lisa demonstrates an intertwined 3-letter monogram (K–S–E).

Where the control lives

• Select the lettering object.
• Look at the Properties pane.
• Click the Letters tab.
• Find the Order dropdown menu on the right side.


Option A: “Center” order (Center, Left, Right) — when you want the center letter stitched first

Lisa selects Center. The machine sequence becomes: S (Center) -> K (Left) -> E (Right).

The Result: The side letters sit on top of the center letter. This pushes the center letter into the background, making the initials framing it pop out.

Option B: “L-R-C” (Left, Right, Center) — when you want the center letter physically on top

Lisa selects L-R-C. The machine sequence becomes: K (Left) -> E (Right) -> S (Center).

The Result: The center letter—usually the family surname initial—stitches last. Because embroidery thread has physical thickness (loft), this letter will literally sit higher than the others, creating a subtle 3D effect that looks high-end.

This is the industry-standard way to stitch a proper 3-letter interlocking monogram.

Warning: Mechanical Safety. When testing new stitch orders, keep your hands away from the needle bar! It is tempting to reach in and trim a thread tail while the machine is moving slowly, but if the machine executes a jump command you didn't expect (because you changed the order), the hoop can slam into your hand, or the needle can strike your finger. Pause the machine to trim. Always.

The “Why” Behind Monogram Order: Layering Is Physical, and Thread Has Thickness

Here is the physics lesson most tutorials skip. Embroidery is 3-dimensional architecture.

• Loft: Standard 40wt embroidery thread has a thickness. When you stack satin stitches, you create ridges.
• Light: Light hits the top layer differently. The letter stitched last catches the light uninterrupted.

When you change the Order, you are engineering the structure of the patch. If you sew the center letter first (Option A), it acts as a foundation. If you sew it last (Option B), it acts as the roof.

Empirical Tip: For standard monograms, ensure your Density is set correctly (usually around 4.0 points or 0.4mm). If the density is too high (lower number), the bottom layers will become rock hard, and the top layer needles might deflect or break.

Scenario 2: Improve Cap Registration by Stitching Center-Out in Circular Text (Cap Driver Friendly)

Lisa shows a circular text logo (“Friday Night Flyers”). This is critical for hat production.

The Physics of "The Push": As stitches penetrate specific locations, they push the fabric slightly in the direction of sewing. On a flat hoop, this is manageable. On a curved cap frame, the fabric is under tension but wants to flag (bounce). If you stitch from far-left to far-right, you are "plowing" a wave of fabric in front of the needle. By the time you get to the right side, your registration could be off by 2-3mm.

What Lisa does in Embrilliance

1. Select the circular text object.
2. Change Order to Center (Center, Left, Right).
3. Run Simulator: Verify the needle starts in the middle of the phrase.

Expected Outcome: The design starts at the forehead center and works outward. The fabric "wave" is pushed equally to the left and right ears, neutralizing the distortion.

Why this matters for hardware

Software can help, but it cannot fix bad hooping. On caps, if your stabilizer isn't tight (drum-tight sound when tapped), software settings won't save you.

If you are struggling with caps, first check your stabilizer (use heavy cap tearaway). If the problem persists, many embroiderers investigate specialized hardware like a cap hoop for embroidery machine to ensure the bill of the cap doesn't interfere with the arm. But even with the best gear, Center-Out ordering is the "Best Practice" software setting for curved surfaces.

Scenario 3: Eliminate Long Jump Stitches with the Reverse Checkbox (A Lifesaver for Brother PE770 Owners)

Lisa’s third scenario is about path efficiency. She selects a bottom line of text: “Amsterdam, NY”.

The Problem: The previous design element finished on the right side. Standard text starts on the left. The machine must jump all the way across the design to start the "A". The Cost: A massive jump stitch. If your machine doesn't have auto-trimmers, you have to hand-cut this. If it does, it slows down the run time.

What Lisa does

1. Select the text object ("Amsterdam, NY").
2. In Properties, check the box marked Reverse.

The Result: The letters stitch Right to Left ("Y" first, then "N", etc.). The machine starts exactly where the previous object ended. Zero travel. Zero jump stitch.

Production Reality: If you own a single-needle machine like the Brother PE770 or PE800, using the Reverse function saves you manual labor. However, if you are doing high-volume production where handling time is the bottleneck, consider workflow upgrades like magnetic embroidery hoops for brother pe770. Magnetic hoops allow you to re-hoop fabric in seconds without unscrewing and tightening outer rings, which complements the time you save by optimizing your stitch path in software.

Setup Checklist (The "Configuration" Routine):

• Selection: Did you click the specific text object? (Watch the highlight box).
• Monograms: Set L-R-C for a bold center initial; Center for a background center initial.
• Caps: Always set Order to Center to manage fabric push.
• Pathing: Check Reverse only if the previous stitch ended on the right side of the hoop.
• Simulator: Run the simulator. Did the "ghost needle" move the way you expected?

Warning: Magnetic Hoop Safety. If you decide to upgrade to magnetic hoops, be aware they use powerful Neodymium magnets. Pinch Hazard: They can snap together with enough force to bruise skin or crack fingernails. Medical: Keep them at least 6 inches away from pacemakers. Always slide them apart; don't try to pull them apart directly.

“Why Can’t I See the Order Menu?” The Two Most Common Causes (and the Fast Fix)

I hear this question constantly. "My screen is broken!" No, it is just context-sensitive.

Cause #1: Wrong Mode

The Order dropdown only exists for Single Line or Circular Text.

• Fix: If you typed multiple lines in one box, break them into separate Single Line objects.

Cause #2: Outdated Software

The Embrilliance Platform updates frequently.

• Fix: Go to the Help menu -> Check for Updates. It is free for license holders.

“How Do I Change the Stitching Step Number?” Use the Object Pane Like a Production Operator

A viewer asked a great question: "How do I change which object stitches first?"

Lisa clarifies the difference:

• Letters Property Tab: Controls the order of letters inside a word.
• Objects Pane (Right side of screen): Controls the order of the words themselves.

The Workflow: To change the stitch step, click the object in the Object Pane and drag and drop it up or down the list. The top of the list stitches first.

Expert Tip: Group your colors. Drag all "Red" text objects together in the sequence so the machine doesn't ask for a color change five times. (Red -> Blue -> Red -> Blue is a novice mistake).

Centering Text vs Centering the Whole Layout: The “Combine” Habit That Prevents Misaligned Jobs

If you select a design and a name, and hit "Center in Hoop," they will center as a group. This might shove your design too far left if the name is long.

The Fix:

1. Center your main design.
2. Position your text relative to the design visually.
3. Use the Align tools to center the text horizontally relative to the design, not the hoop.

Hardware Stability: Even perfectly centered software files fail if the hoop is crooked. Use a marking tool (like the hidden consumable mentioned earlier) to draw a crosshair on your fabric. Align the hoop grid to the fabric crosshair. To make this physically easier—especially on slippery garments—many professionals stabilize their process with a hooping station for machine embroidery. This holds the hoop bottom and backing in place while you align the garment, ensuring what you see on screen is what you get on the shirt.

A Practical Decision Tree: When to Fix It in Software vs Upgrade Your Hooping Workflow

Use this logic flow to solve registration and pathing issues:

START HERE:

1. Is the text purely for aesthetics (Monogram layering)?
   • YES: Use Order dropdown ("L-R-C").
   • NO: Go to step 2.
2. Is the design distorting or "walking" on a curved item (Hat)?
   • YES: Set Order to Center. Check Stabilizer.
   • STILL FAILING? The issue is likely mechanical holding. Consider investigating a dedicated brother hat hoop or cap driver system.
   • NO: Go to step 3.
3. Is the machine leaving long threads across the design?
   • YES: Use the Reverse checkbox on the text line.
   • NO: Go to step 4.
4. Is the text misaligned on the actual shirt (Crooked)?
   • YES: This is physical, not software. Use a grid ruler and water-soluble pen. If doing bulk, look into a hooping station.

Troubleshooting Table: Symptoms → Likely Cause → Fix You Can Try Immediately

Operation Checklist: The “Export With Confidence” Routine (So You Don’t Learn the Hard Way)

Stop. Don't save yet. Do this 30-second audit:

• [ ] The Path Audit: Run the Sew Simulator at high speed. Does the needle jump around wildly? If so, re-order your objects in the Object Pane.
• [ ] The Layer Audit: Zoom in to 600%. regarding your monogram—is the correct letter on top?
• [ ] The Start Point: If doing a cap, does the simulation execute from the center?
• [ ] The format: Are you saving in the correct format for your machine (e.g., .PES for Brother, .JEF for Janome)?

The Upgrade Mindset: When Stitch-Path Control Turns Into Real Production Speed

Lisa’s three examples—monogram layering, cap registration, and jump stitch reversal—are "micro-optimizations." Alone, they save seconds. Together, they save hours and potential product loss.

Embroidery is a game of variables. You control the Software (Embrilliance), the Physics (Stabilizer/Hooping), and the Hardware. When you master the software settings like Stitch Order, you eliminate one variable.

But remember, the best file in the world won't stitch well if the fabric moves. If you find yourself constantly fighting the fabric, or dreading the "hooping" part of the job, that is your signal to look at your tools. Whether it is comparing a dedicated brother hat hoop workflow for curves, or upgrading to magnetic frames for speed, balancing your software skills with the right hardware is how you move from "hobbyist" to "production expert."

FAQ

• Q: In Embrilliance Essentials Lettering Tool, why is the Order dropdown missing when editing Embrilliance lettering objects?
  A: The Order dropdown only appears for Single Line or Circular Text lettering objects, not Multi-Line.
  • Click the text object and confirm the Text Mode is Single Line (straight text) or Circular Text (arc text).
  • If the text was typed as multiple lines in one box, split it into separate Single Line objects.
  • Check for updates in Embrilliance (Help → Check for Updates) if the interface looks different.
  • Success check: The Letters tab shows an Order dropdown on the right side after the correct mode is selected.
  • If it still fails: Verify the lettering object (not a different object) is selected by watching the highlight box around the text.
• Q: In Embrilliance Essentials, how do I set a 3-letter monogram stitch order so the center letter stitches on top (true interlocking monogram look)?
  A: Set the monogram Order to L-R-C so the center initial stitches last and sits physically on top.
  • Select the monogram lettering object.
  • Open Properties → Letters and choose Order: L-R-C (Left, Right, Center).
  • Run Sew Simulator before exporting to confirm the stitching sequence.
  • Success check: In simulation and on the stitch-out, the center letter looks slightly more raised and visually “on top” due to thread loft.
  • If it still fails: Zoom in closely and confirm you changed the correct lettering object (not a grouped design element) and re-check the simulator path.
• Q: In Embrilliance Essentials Circular Text, how do I stitch cap lettering center-out to reduce registration drift on hats?
  A: Set Circular Text Order to Center so stitching starts in the middle and works outward, which helps manage fabric push on caps.
  • Select the Circular Text object on the design.
  • In Properties → Letters, set Order: Center (Center, Left, Right).
  • Run Sew Simulator to confirm the “ghost needle” starts near the center of the phrase.
  • Success check: The simulation begins at the center and progresses left and right rather than traveling from far-left to far-right.
  • If it still fails: Re-check hooping and stabilizer tightness (cap backing should be very firm); software can’t compensate for loose physical holding.
• Q: In Embrilliance Essentials, how do I use the Reverse checkbox to eliminate long jump stitches on a second text line (single-needle workflow like Brother PE770/PE800)?
  A: Enable Reverse on the text line so it stitches right-to-left, starting closer to where the previous object ended.
  • Select the specific text object (for example, the bottom line like “Amsterdam, NY”).
  • In Properties, check Reverse.
  • Run Sew Simulator to confirm the start point is now on the right side for that line.
  • Success check: The machine path no longer makes a long travel move across the design area to start the text.
  • If it still fails: Reorder objects in the Objects Pane (drag/drop) so the prior object actually ends near the new text start point.
• Q: In Embrilliance Essentials, how do I change which text object stitches first using the Objects Pane (not letter order inside a word)?
  A: Use the Objects Pane to drag and drop entire objects up/down—top stitches first.
  • Open the Objects Pane on the right side of the screen.
  • Click the object you want to move, then drag it higher (earlier) or lower (later) in the list.
  • Group color areas by dragging same-color text objects together to reduce unnecessary color changes.
  • Success check: In Sew Simulator, the design stitches in the same top-to-bottom object order shown in the Objects Pane.
  • If it still fails: Confirm you are not only changing Letters → Order (that controls letter sequence inside one object, not object-to-object sequence).
• Q: What consumables should be checked before Embrilliance Essentials lettering jobs to prevent ragged small letters and manual trimming delays?
  A: Use a simple “pre-flight” kit: sharp snips, a marking pen, correct stabilizer, and a fresh needle—these prevent most lettering headaches.
  • Prepare curved embroidery snips for clean jump-stitch trimming close to fabric.
  • Mark a center reference using a water-soluble pen instead of relying on hoop placement alone.
  • Match stabilizer to fabric: tearaway for stable woven fabrics and cutaway for knits/stretch fabrics.
  • Install a fresh needle (the blog notes 75/11 as a common sweet spot for standard lettering).
  • Success check: Letter edges look clean (not fuzzy/ragged), and trimming jump stitches is quick without tugging or snagging.
  • If it still fails: Re-check that the text is stitched in the intended order via Sew Simulator and confirm the fabric type truly matches the stabilizer choice.
• Q: What machine safety rules should be followed when testing new Embrilliance stitch order settings (Order changes and Reverse) on an embroidery machine?
  A: Pause before trimming—keep hands away from the needle bar and hoop area because unexpected jumps can slam the hoop or strike fingers.
  • Run a quick Sew Simulator first to reduce surprises in the stitch path.
  • Keep hands clear during motion; pause/stop the machine before reaching in to trim thread tails.
  • Watch for unexpected travel moves after changing Order or enabling Reverse.
  • Success check: Thread trims happen only while the machine is paused, and there are no surprise hoop movements near your fingers.
  • If it still fails: Re-simulate the stitch path and simplify the test (one text object at a time) until behavior is predictable.
• Q: What safety precautions are required when using magnetic embroidery hoops with Brother PE770/PE800-style workflows to speed up re-hooping?
  A: Treat magnetic hoops as pinch hazards—slide magnets apart and keep them away from pacemakers.
  • Slide hoop sections apart instead of pulling straight apart to reduce sudden snap-back.
  • Keep fingers out of the closing gap; strong magnets can bruise skin or crack fingernails.
  • Keep magnetic hoops at least 6 inches away from pacemakers.
  • Success check: The hoop closes in a controlled way without snapping onto fingers, and fabric is secured without excessive crushing.
  • If it still fails: Slow down the handling technique and consider practicing on scrap fabric until opening/closing is consistent and safe.
