The "Zero-Stress" Guide to T-Shirt Embroidery on a Single-Needle Machine

Machine embroidery on T-shirts looks deceptively simple—until you’re 10 minutes into wrestling a plastic hoop inside a stretchy knit, your stabilizer has shifted, and you have a sinking feeling the design is going to land crooked.

If that’s you, breathe. Nothing is "wrong" with you. Embroidering finished garments on a flatbed machine (like the Brother NQ1700E) is mechanically awkward. It is a skill that requires a specific "feel" for tension.

The good news? The workflow below (template + smart stabilizer choice + a tension-controlled hooping sequence) is how you get consistent, measurable results without ruining $20 shirts.

The Calm-Down Primer: Why T-Sirts Fight Back

Understanding the physics helps prevent the panic. A knit T-shirt is sewn on the bias, meaning it stretches in multiple directions. Unlike denim or canvas, it is unstable.

On a flatbed single-needle machine, you face two unique challenges:

1. Gravity & Friction: You don't have a tubular arm, so the rest of the shirt drags on the machine bed.
2. The "Tube" Trap: You are trying to achieve precision alignment while your hands are trapped inside a fabric tunnel.

Your goal is not just "hooping." It is stabilizing geometry. You must lock the stretchy fabric to the rigid stabilizer so it acts like a piece of cardstock.

Phase 1: The "Hidden" Prep (The Consumables You Can't Skip)

Before you touch the hoop, set your environment. Improvisation is the enemy of quality.

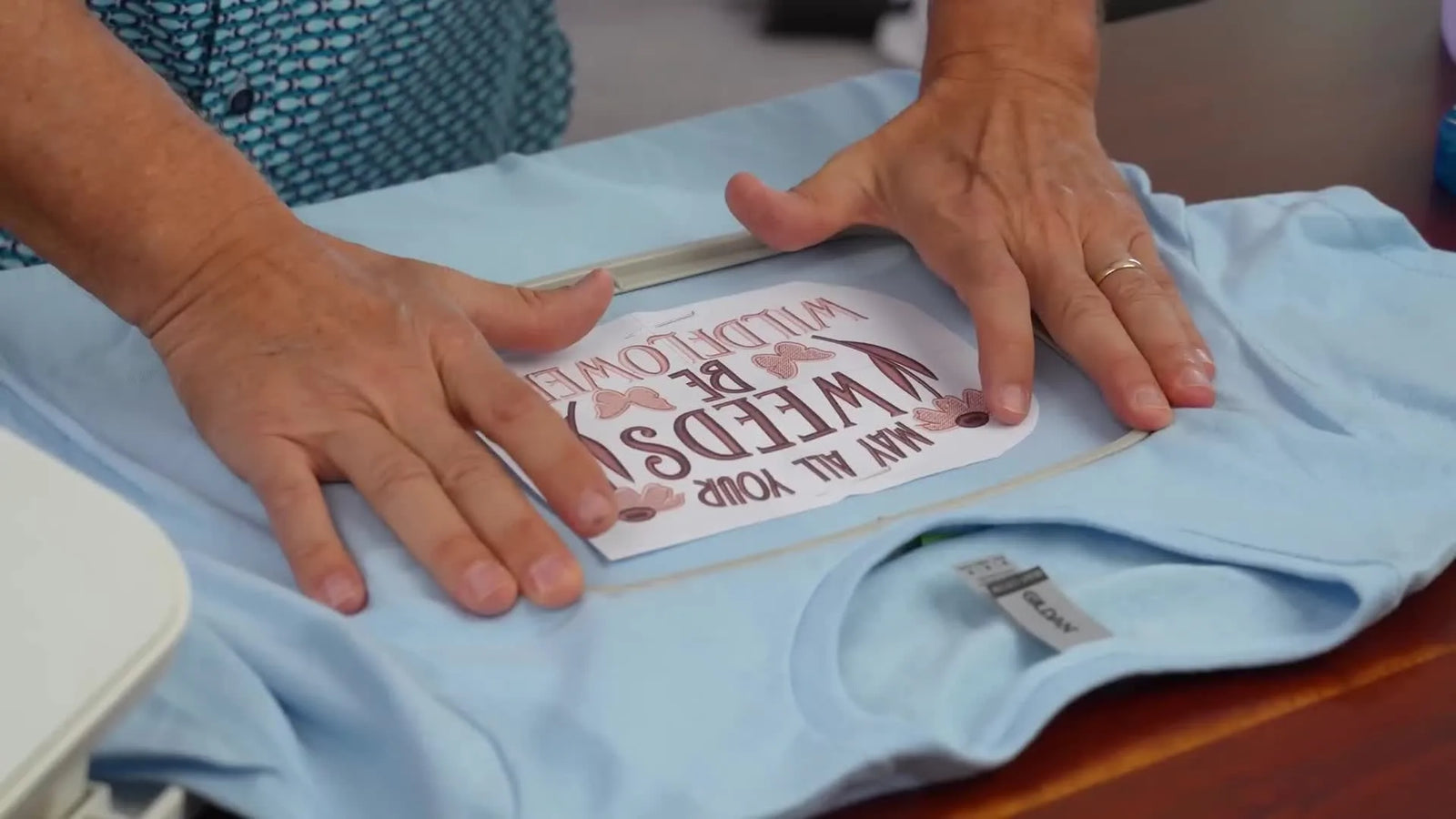

Print the Truth: The 1:1 Template

Never guess placement. Print your design template at Actual Size (100%) via your software.

• Visual Check: Ensure the print includes X and Y crosshair lines. These are your "truth source" for alignment.
• Physical Check: Cut the paper template out. Physically place it inside your chosen hoop. If the design is within 10mm of the edge, size up your hoop. Crowding the edge causes distortion.


Thread & Speed: The Beginner's Sweet Spot

The video suggests 40wt polyester thread. This is the industry standard for durability on wash-and-wear garments.

Expert Data Point: While experienced operators run machines at 1000 SPM (Stitches Per Minute), T-shirts are prone to puckering.

• Recommended Speed: Dial your machine down to 600-700 SPM.
• Why? Lower speed reduces the "push/pull" force on the stretchy knit, resulting in cleaner lettering and fewer birdnests.

The Toolkit: Pins, Scissors, and Spray

You will need:

• T-Pins (or Ballpoint Pins): To secure the template.
• Paper Scissors: Do not use your fabric shears on paper templates.
• Temporary Adhesive Spray (Optional but Recommended): A light mist (like Odif 505) on the stabilizer helps grip the fabric, acting as a "third hand."

Warning: Safety First. Keep sharp scissors and needles under strict control. One slip while trimming jump stitches inside a shirt can cut the fabric or your hand. Never place your fingers near the needle bar while the machine is running—a needle through the finger is a common and painful ER visit.

Prep Checklist:

• Printed template at Actual Size (1:1) with visible crosshairs.
• Hoop selected (allow 1/2 inch buffer around design).
• Machine speed reduced to ~600 SPM.
• 40wt Polyester thread loaded.
• Paper scissors and T-pins ready.


Phase 2: Stabilizer Physics (The Decision Matrix)

"Cutaway" is the only correct answer for T-shirts. Tear-away stabilizer will eventually disintegrate in the wash, leaving your heavy embroidery unsupported on stretchy fabric. This leads to a saggy, distorted mess.

You have two professional choices:

Option A: No-Show Mesh (PolyMesh)

• Texture: Soft, translucent, waffle-grid pattern.
• Use When: The shirt is white, light-colored, or thin.
• Why: It minimizes the "stabilizer shadow" (that square patch visible through the shirt).
• Layering: For dense designs (>10,000 stitches), use two layers of mesh, cross-laid at 45-degree angles.

Option B: Standard 2.5 oz Cutaway

• Texture: Stiff, felt-like paper.
• Use When: The shirt is a sweatshirt, dark-colored, or heavyweight cotton.
• Why: It provides maximum stability for crisp lettering.

Simple Rule: If you hold the stabilizer behind the shirt and can see a harsh white square through the fabric, switch to No-Show Mesh.

Phase 3: Placement That Looks "Store-Bought"

Stop eyeing it. Use the "Armpit Geometry" method.

1. Find the Center: Fold the shirt vertically to mark the center line (use a water-soluble pen or ironing crease).
2. The Horizon Line: Draw a line connecting the armpits. The intersection of Center + Armpit Line is usually the sweet spot for a center-chest logo (roughly 2-3 inches down from the collar).
3. The "Pin-and-Lift" Check:
   • Pin the paper template to the shirt.
   • Action: Hold the shirt up to your body in a mirror.
   • Check: Does it hit the solar plexus? (Too low). Does it choke the neckline? (Too high).


Phase 4: The Hooping "Click" (Crucial Technique)

This is where 90% of beginners fail. They tighten the screw after hooping. This "bulldozes" the fabric, causing ripples.

The "Pre-Tension" Trick

1. Loosen the screw extensively.
2. Action: Without fabric, insert the inner hoop into the outer hoop.
3. Adjust: Tighten the screw until the inner hoop stays in place but can pop out with a gentle push.
4. The Feel: You want a fit that allows the hoop to slide into the shirt without friction, but snaps closed with a firm, audible "CLICK."


The "Tape Hinge" Hack (If You Lack a Station)

A hooping station is a tool pros use to hold everything steady. If you don't have one yet, use gravity and tape:

1. Lay the stabilizer flat on a hard table.
2. Tape the top and bottom corners of the stabilizer to the table.
3. Designate this your "anchor point."


The Sequence

1. Insert Inner Hoop: Slide it inside the shirt.
2. Align: Match the hoop's plastic notches to your paper template's crosshairs.
3. The Motion: Check the top rim first. Then, push the hoop straight down (not sweeping) to lock the bottom.
4. Sensory Check: Run your fingers over the hooped area. It should feel taut like a drum skin, but not stretched like a rubber band. If you tap it, it should make a dull thumping sound.






Setup Checklist:

• Stabilizer is Cutaway (Mesh or Standard).
• Template crosshairs align perfect with hoop marks.
• Fabric is taut (no ripples) but not stretched (grain is straight).
• Hoop Screw: Tightened with a screwdriver (finger tight is rarely enough to hold during 600 SPM vibration).
• Excess shirt material is bunched away from the sewing field ("The Fabric Bowl").

Phase 5: The "Fabric Bowl" & The Needle Drop

On a flatbed machine, you must manage the bulk. Bunch the excess fabric around the hoop rim to create a "bowl" shape. Ensure no sleeves are tucked underneath the hoop.

The "Needle Drop" Final Verification:

1. Load the hoop onto the machine car.
2. Use the handwheel or "Needle Down" button to lower the needle (without piercing).
3. Visual Check: Does the needle tip hover exactly over the center crosshair on your paper template?
4. If yes -> Remove pins -> Remove paper template -> Press Start.




Phase 6: Clean Finishing

Once the machine stops, your job isn't done.

1. Trim Jump Stitches: Do this while the shirt is still hooped and taut. It prevents cutting the fabric.
2. Remove Stabilizer: Unhoop. Turn the shirt inside out. Cut the stabilizer roughly 1/4 to 1/2 inch away from the stitches. Curved scissors are best here to avoid snagging the knit.
3. Erase Hoop Burn:
   • Do not press the iron directly on the embroidery.
   • Action: Hover a steam iron over the ring marks.
   • Result: The steam relaxes the compressed fibers, and the "burn" disappears like magic.






Troubleshooting: The "Why is this happening?" Table

The Logical Upgrade Path: Solving Pain with Tools

As you move from doing one shirt a month to ten shirts a week, physical limitations will appear. Here is how to diagnose when it's time to upgrade your toolkit.

1. The Pain: "My wrists hurt and I get hoop burn."

• The Diagnostic: Traditional plastic hoops require significant hand force to snap shut, and the friction often leaves permanent marks on delicate knits.
• The Solution: Many enthusiasts switch to magnetic hoop for brother machines. These hoops use vertical magnetic force rather than friction.
  • Benefit: No "pushing" the inner hoop means zero fabric distortion.
  • Benefit: They snap on instantly, saving your wrists.

Warning: Magnet Safety. Magnetic hoops are industrial-strength. They can pinch fingers severely. Keep them away from pacemakers, credit cards, and computerized machine screens. Always slide the magnets apart; never pry them.

2. The Pain: "I can't get the logo straight on 10 shirts in a row."

• The Diagnostic: Floating stabilizers and manual measuring leads to "drift."
• The Solution: A dedicated magnetic hooping station. This acts as a jig, holding the hoop and stabilizer in a fixed position so you just pull the shirt on and snap the magnet. It turns a 5-minute struggle into a 30-second repeatable action.

3. The Pain: "It's taking too long to change colors/hoops."

• The Diagnostic: Single-needle machines are fantastic for hobbies, but managing threat changes and loading flatbed hoops kills production speed.
• The Solution: If you are consistently taking orders of 20+ items, consider the ROI of a SEWTECH multi-needle system. The tubular arm eliminates the "fabric bowl" risk entirely.

Final Operation Checklist (Go / No-Go)

• "Fabric Bowl" check: No sleeves under the needle.
• Needle Drop Verification confirms center.
• PAPER TEMPLATE REMOVED. (Don't sew through the paper!)
• Speed limited to 600-700 SPM.
• You are watching the first 100 stitches (disaster usually strikes early).

Mastering a single-needle flatbed machine is about process discipline. Follow the sequence, trust the math of the template, and respect the physics of the fabric.

FAQ

• Q: On a Brother NQ1700E single-needle flatbed machine, how do I set hoop tension correctly to avoid T-shirt puckering and hoop burn?
  A: Pre-set the hoop screw BEFORE hooping so the hoop closes with a firm “CLICK,” not a forced squeeze.
  • Loosen the screw a lot, then test-fit the inner hoop into the outer hoop with no fabric.
  • Tighten until the inner hoop holds but can pop out with a gentle push; then hoop the shirt/stabilizer.
  • Push the hoop straight down to lock (do not sweep or “bulldoze” the fabric).
  • Success check: The hooped area feels drum-taut (not stretched), and tapping gives a dull “thump” with no ripples.
  • If it still fails… Hoop on a flat surface and reduce stitching speed to about 600–700 SPM to reduce push/pull on knits.
• Q: For T-shirt embroidery on a Brother NQ1700E, should I use No-Show Mesh (PolyMesh) cutaway or standard 2.5 oz cutaway stabilizer?
  A: Use cutaway only; choose No-Show Mesh for light/thin shirts and 2.5 oz cutaway for heavier/darker garments.
  • Hold the stabilizer behind the shirt fabric and look for a visible “white square” shadow.
  • Switch to No-Show Mesh if the shadow looks harsh through the shirt.
  • Add two layers of No-Show Mesh (cross-laid) for dense designs (over ~10,000 stitches).
  • Success check: From the outside, the shirt does not show a noticeable stabilizer patch and the stitch area stays supported.
  • If it still fails… Reduce design density/size or switch from mesh to standard 2.5 oz cutaway for more rigidity.
• Q: On a Brother NQ1700E, how do I prevent an off-center chest logo on a finished T-shirt when hooping feels awkward?
  A: Stop eyeballing and use a 1:1 printed template with crosshairs plus the “armpit line” placement method.
  • Print the design at Actual Size (100%) with X/Y crosshairs and pin the template to the shirt.
  • Fold the shirt to find center, then mark the line connecting armpits; place the design at the intersection.
  • Do a mirror “pin-and-lift” check on your body before hooping to confirm height.
  • Success check: A needle-drop verification hovers exactly over the template center crosshair before stitching starts.
  • If it still fails… Re-check that the paper template fits comfortably inside the hoop (avoid designs crowded within ~10 mm of the hoop edge).
• Q: On a Brother NQ1700E, what is the fastest way to fix birdnesting (thread loops) at the start of T-shirt embroidery?
  A: Fully rethread the upper path with the presser foot UP using a firm “flossing” motion to seat the thread correctly.
  • Raise the presser foot, remove the thread, and rethread from spool to needle (do not “patch” one section).
  • Pull the thread through tension points with a gentle flossing action to ensure it drops into the discs.
  • Start again and watch the first stitches closely (problems usually show early).
  • Success check: The first 20–50 stitches form clean, flat top stitching with no looping or nests underneath.
  • If it still fails… Stop immediately and re-check the entire threading path again; a single missed guide can cause repeat nesting.
• Q: On a flatbed single-needle machine like the Brother NQ1700E, how do I do a “needle drop” check for correct placement before stitching a T-shirt?
  A: Use needle-down/handwheel to hover the needle tip over the template center crosshair before removing the paper.
  • Load the hooped shirt and create a “fabric bowl” so no sleeves or bulk sit under the sewing field.
  • Lower the needle carefully without piercing to confirm alignment over the template’s center mark.
  • Remove pins and remove the paper template only after placement is confirmed.
  • Success check: The needle tip hovers exactly over the center crosshair with the fabric lying flat and clear of trapped layers.
  • If it still fails… Re-hoop and re-align the hoop’s marks to the template crosshairs rather than shifting the shirt after hooping.
• Q: What needle-and-scissors safety rules matter most when trimming jump stitches inside a hooped T-shirt on a Brother NQ1700E?
  A: Treat trimming inside a garment like a controlled operation—keep fingers away from the needle bar and cut only when the machine is fully stopped.
  • Stop the machine completely before reaching inside the shirt to trim jump stitches.
  • Keep fingers away from the needle bar area at all times; never “hold” fabric near the needle while running.
  • Trim jump stitches while the shirt is still hooped and taut to avoid snipping the knit by accident.
  • Success check: Jump stitches are removed cleanly with no nicks, pulls, or pinholes in the shirt fabric.
  • If it still fails… Switch to curved scissors for better control and slow down—rushing is the usual cause of slips.
• Q: When T-shirt hooping on a Brother NQ1700E causes wrist pain and hoop burn, when should I switch to a magnetic embroidery hoop or upgrade to a multi-needle machine?
  A: If traditional plastic hoops require force and still distort knits, a magnetic hoop is the next step; if volume makes color changes the bottleneck, consider a multi-needle system.
  • Level 1 (technique): Use the pre-tension “CLICK” hoop setup, slow to ~600–700 SPM, and manage the “fabric bowl.”
  • Level 2 (tool): Move to a magnetic hoop to reduce friction-based distortion and repetitive hand force during hooping.
  • Level 3 (capacity): If you are consistently producing larger batches (often 20+ items), a multi-needle setup reduces time lost to color changes and flatbed garment handling.
  • Success check: Hooping becomes repeatable (less drift), the shirt shows fewer ring marks, and production time per shirt drops noticeably.
  • If it still fails… Add a hooping station-style setup (or a taped stabilizer “hinge” anchor) to eliminate stabilizer drift and alignment creep.
