Stop Fighting Your Standalone Bobbin Winder: The 5-Minute Setup That Prevents Loose, Lumpy Bobbins

if your standalone bobbin winder is giving you bobbins that feel spongy, wind unevenly, or slip on the spindle, you are not “bad at bobbins”—your setup is simply out of mechanical tolerance.

Embroidery is an experience-based science. A perfect bobbin isn't just about "neatness"; it's the foundation of tension consistency. If a bobbin is soft, it compresses under the thread tension of your machine, changing the drag mid-design. The good news: fixing this looks mysterious until you do it once, and then it becomes a 60-second ritual that secures your entire production line.

Don’t Panic—A Standalone Bobbin Winder Is Simple, Just Unforgiving About Fit

A standalone electric bobbin winder operates on three mechanical systems working in concert:

1. The Grip: A spindle that must physically lock onto the bobbin core.
2. The Drag: A tension assembly that must apply consistent resistance (like a brake).
3. The Limit: An auto-stop lever that shuts the motor off when the bobbin reaches a specific diameter.

When any one of these is slightly off, you will see—and feel—the classic symptoms: the bobbin doesn't rotate with the shaft, the thread stacks in ridges (hills and valleys), or the bobbin feels "mushy" like a marshmallow.

If you are running a multi-needle workflow—perhaps you are scaling up with a brother pr680w 6 needle embroidery machine or similar—this matters critically. Inconsistent bobbins manifest as "phantom" tension issues or thread breaks 20 minutes into a design, long after you can easily fix them.

The Spindle Fit Test: Adjust the Split Shaft Before You Thread Anything

Before you even touch the thread path, you must perform the "Dry Fit" check with an empty metal L-style bobbin.

You are checking for Physical Engagement: Does the bobbin fit snugly enough that it acts as one unit with the spindle, but not so tight that you have to hammer it on?

Scenario A: The Bobbin won’t slide onto the shaft (Too Tight)

The Fix:

• Insert a small flathead screwdriver into the slit of the split spindle shaft.
• Gently press to widen the gap. Do this in micro-movements—metal fatigue is real.

Success Metric: The bobbin slides down to the base with a firm push but does not require excessive force.

Scenario B: The Bobbin is too loose/freewheels (Too Loose)

The Fix:

• Use pliers to gently squeeze the split spindle shaft together.

Success Metric: When you turn the spindle by hand, the bobbin turns with it immediately. There should be zero "slip" before engagement.

Warning: Mechanical Safety Hazard. Keep fingers, loose hair, jewelry, and hoodie strings away from the spindle area when the motor is engaged. Treat embroidery scissors like machine tooling—only trim thread tails when the bobbin is stable or the motor is off. Never reach into the rotating zone while "zoning out."

Expert Insight (The Physics): The spindle-to-bobbin fit is a friction interface. If loose, the motor spins at 100%, but the bobbin lags at 80%. This lag creates low-tension zones in the thread pack, leading to a "spongy" bobbin that causes loops on your fabric later.

The “Hidden” Prep Pros Do: Set Up the Cone So It Feeds Smoothly

Place a large cone of bobbin thread on the holder. Do not skip this step: Check your alignment.

Bobbin winding quality depends entirely on drag consistency. If the cone wobbles, tips over, or the thread gets caught under the cone base, the tension discs cannot compensate.

Pro Tip: If using a lightweight cone that jumps around, use a weighted cone holder or tape the base. The thread must lift off the top of the cone vertically, not pull from the side.

Prep Checklist: The "Pre-Flight" Inspection

• Spindle Fit: Confirmed snug fit with empty bobbin (no freewheeling).
• Tools Ready: Pliers and flathead screwdriver nearby (hidden consumables often missed).
• Cone Stability: Thread lifts vertically without snagging the cone base.
• Safety Zone: Winder is on a flat surface and won't "walk" off the table due to vibration.

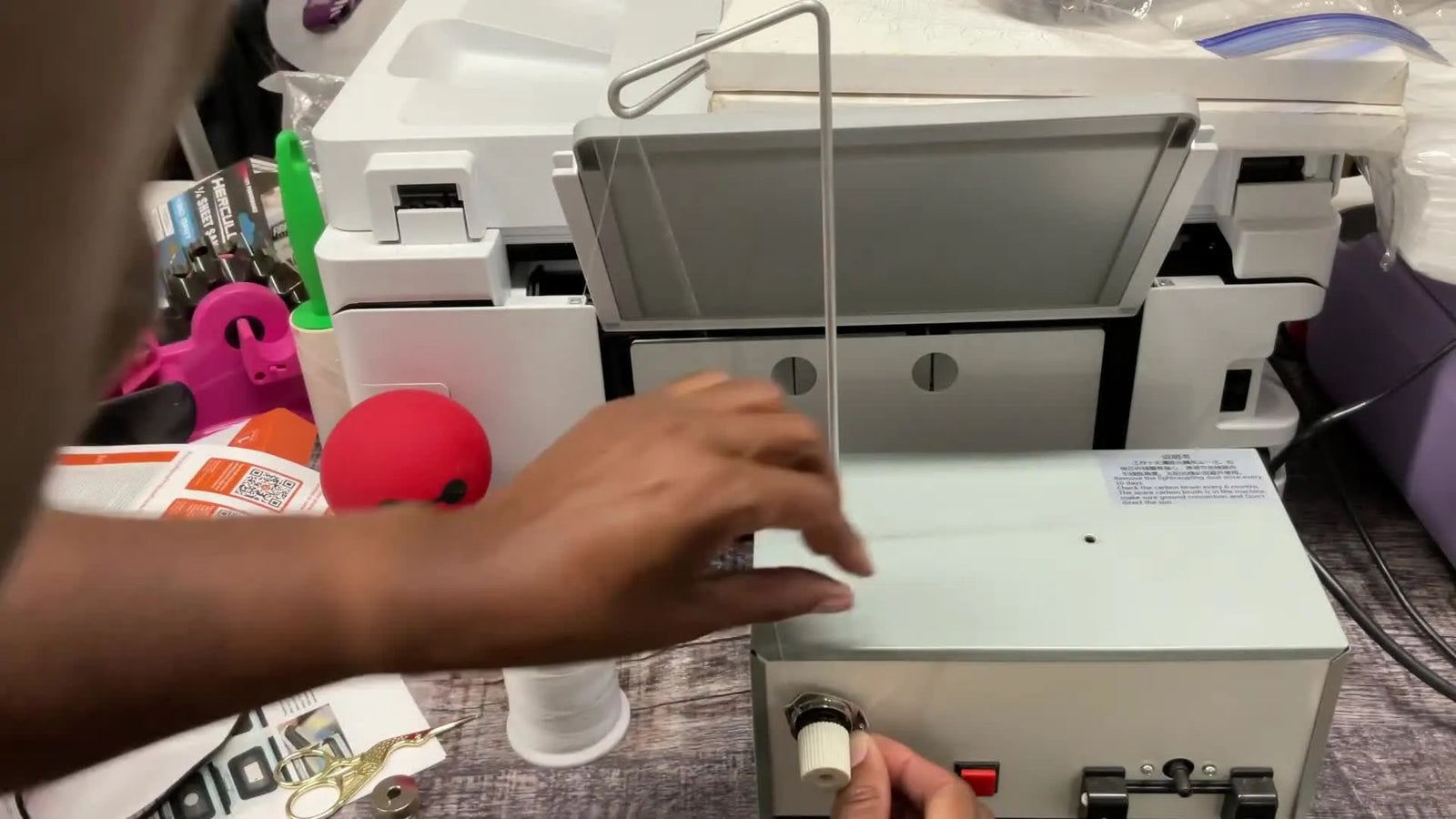

Threading the Standalone Bobbin Winder: The "Flossing" Technique

This is where 90% of failures occur. It is not enough to just put the thread near the tension discs; it must be in them.

1) Thread the first guide hole

Take the thread end and pass it through the rear guide hole on the housing.

Sensory Check: Pull the thread back and forth. It should glide silently. If you hear a scratching sound, check for burrs on the metal guide.

2) Seat the thread in the Tension Discs (Crucial Step)

The video demonstrates pulling the thread through the discs. However, beginners often let the thread "ride" on top.

The Action:

1. Hold the thread taut with both hands (like dental floss).
2. Slide it between the metal discs.
3. Pull firmly until you feel it "snap" or seat deeply into the center.


Sensory Anchor (Tactile): Tug the thread gently toward the spindle. You should feel rapid, consistent resistance—similar to pulling dental floss between tight teeth. If it pulls freely, you missed the discs.

3) Thread the second guide

Pass the thread through the second guide hole that angles toward the spindle.

Visual Check: The thread path should form a clean Z-shape or straight line (depending on model) under tension.

Many users end up searching for threading external bobbin winder tutorials simply because they missed that tactile "snap" into the tension discs. Without that friction, you are just spooling thread, not winding a bobbin.

Mounting the Bobbin and Starting Clean: The Friction Lock

Once threaded, push the empty metal bobbin firmly onto the spindle shaft.

The Manual Start:

1. Bring the thread over the top of the bobbin.
2. Wrap it around the core 3-4 times manually. Wind tightly.
3. Trim the excess tail close to the core immediately.


Why this matters: If you leave a long tail, the high-speed rotation will whip that tail around, potentially tangling under the bobbin or slapping your fingers.

Run the Motor: The 5-Second Audit

Press the red rocker switch to start the motor.

The bobbin should spin rapidly and fill evenly.

The Veteran Habit: Do not walk away yet. Watch the first 5 seconds intently.

Visual & Auditory Audit:

• Look: Is the thread traveling up and down evenly?
• Listen: Is the motor hum steady? A rhythmic "thump-thump" suggests a wobbling bobbin or unbalanced load.
• Feel (Carefully): Touch the machine housing. Excessive vibration means the winder is struggling or the bobbin is unbalanced.

Setup Checklist: The "Green Light" Validation

• Disc Engagement: Thread is legally parked inside the tension discs (resistance felt).
• No Tails: Starter tail is trimmed flush to the core.
• Smooth Feed: Thread cone is not jumping.
• Hardness Test: The first few layers on the bobbin look tight and shiny, not dull and loose.

Removing the Full Bobbin: Quality Control

When the auto-stop lever trips:

1. Cut the connecting thread.
2. Pull the filled bobbin off.


The Thumb Test: Squeeze the finished bobbin between your thumb and forefinger with significant pressure.

• Pass: It feels like a rock or a tightly packed spool. You cannot dent the thread.
• Fail: It feels spongy or has "give." Discard this bobbin. Do not use it. It will cause tension loops.

Operation Checklist: Post-Wind QC

• Hardness: Rock-solid density (no sponge feel).
• Evenness: Thread is level from top to bottom (no barbell shape).
• Cleanliness: No loose tails protruding from the center.

The Business of Efficiency: When to Upgrade Your Tools

Masterming the bobbin winder solves the input bottleneck. But as you scale—especially if you are moving toward commercial production with multi-needle machines—the next bottleneck is invariably hooping.

If you find yourself winding perfect bobbins but losing 10 minutes per shirt struggling to align logos, fight thick fabric, or scrub out "hoop burn" marks from traditional plastic rings, you have hit a Tooling Ceiling.

The Solution Path:

• Level 1 (Skill): Master your stabilizer choices (see decision tree below).
• Level 2 (Tooling): Upgrade to Magnetic Hoops.
  • Why: They hold thick items (Carhartt jackets, towels) without forcing the inner ring, eliminating hoop burn and wrist strain.
  • ROI: In a production run of 50 shirts, magnetic hoops can save 30-60 seconds per garment. That is nearly an hour of labor saved per job.
• Level 3 (Capacity): If you are consistently turning down orders, looking into multi needle embroidery machines for sale is the logical step to separate your winding/hooping time from your stitching time.

Warning: Magnetic Safety. Commercial magnetic hoops contain powerful Neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise skin or break fingernails. Handle by the edges.
* Medical Device Safety: Keep at least 6 inches away from pacemakers and insulin pumps.
* Electronics: Keep away from credit cards and phone screens.

A Simple Decision Tree: Stabilizer & Fabric Pairing

A perfect bobbin ensures the bottom tension is correct. But if your stabilizer is wrong, the fabric will shift, rendering the tension irrelevant.

Decision Tree (Fabric Category → Stabilizer Output):

Quick Troubleshooting: The Symptom-Cure Matrix

Stop guessing. Use this logic flow to fix issues efficiently (Low Cost → High Cost).

Symptom: Bobbin Feels "Squishy" / Thread Loops

• Likely Cause: Thread wasn't flossed into the tension discs.
• Quick Fix: Re-thread, ensuring you hear/feel the snap into the discs.

Symptom: Bobbin Winds in a Cone/Pyramid Shape

• Likely Cause: Thread guide height is misaligned or thread isn't passing through all guides.
• Quick Fix: Check that the thread goes through both guide holes. Ensure the winder is on a level surface.

Symptom: Motor Spins, Bobbin Stands Still

• Likely Cause: Spindle shaft is too compressed (loose fit).
• Quick Fix: Use pliers to gently widen the spindle shaft (see Section 2).

Symptom: Thread Nests at the Start

• Likely Cause: Tail wasn't trimmed, or not enough manual starter wraps.
• Quick Fix: Manually wind 5-6 tight turns and cut the tail flush before hitting the power.

If you have exhausted this list and still face issues, many users search for bobbin winding troubleshooting specific to their machine model, but 9 times out of 10, the issue is physical setup, not the machine itself.

Final Thoughts: Consistency is King

The difference between a hobbyist and a pro isn't the price of the machine—it's the consistency of the workflow.

1. Check the fit.
2. Floss the tension.
3. Audit the hardness.

Do this every time, and you stop blaming your embroidery machine brother for tension issues that actually started at the winder. And remember: when your skills outgrow your speed, better tools (like magnetic hoops) are the bridge to profitability.

FAQ

• Q: How do I fix a standalone bobbin winder that makes bobbins feel spongy or mushy on a multi-needle embroidery machine workflow?
  A: Re-thread the standalone bobbin winder and “floss” the thread fully into the tension discs so the bobbin packs tight.
  • Hold the thread taut with both hands and slide it between the metal tension discs.
  • Pull firmly until the thread seats deep in the discs (a small “snap” feeling is common).
  • Start winding and watch the first few layers before walking away.
  • Success check: The first layers look tight and slightly shiny, and the finished bobbin feels rock-solid in a thumb squeeze test.
  • If it still fails: Re-check cone stability (no wobble/snags) and confirm the bobbin is not slipping on the spindle.
• Q: How do I adjust the split spindle shaft on a standalone bobbin winder when an L-style metal bobbin is too tight to install?
  A: Widen the split spindle shaft slightly with a small flathead screwdriver so the bobbin fits snugly without force.
  • Insert a small flathead screwdriver into the slit of the split spindle.
  • Press gently in micro-movements to open the gap (avoid over-bending the metal).
  • Dry-fit the empty bobbin again before threading any thread.
  • Success check: The bobbin slides to the base with a firm push but does not require excessive force.
  • If it still fails: Stop and compare bobbin type/size—an incompatible bobbin may never fit correctly.
• Q: How do I fix a standalone bobbin winder spindle that spins but the bobbin does not rotate (freewheeling bobbin slip)?
  A: Tighten the split spindle shaft slightly with pliers so the bobbin locks to the spindle by friction.
  • Remove the bobbin and use pliers to gently squeeze the split spindle shaft together.
  • Dry-fit the empty bobbin and rotate the spindle by hand to confirm engagement.
  • Only thread and power on after the bobbin and spindle move as one unit.
  • Success check: When the spindle is turned by hand, the bobbin turns immediately with zero slip.
  • If it still fails: Inspect for oil/contamination on the spindle or bobbin core and re-test the dry fit.
• Q: How do I prevent thread nesting at the start when using a standalone electric bobbin winder?
  A: Start with a tight manual wrap and trim the tail flush before turning on the motor.
  • Bring the thread over the top of the bobbin and wrap 3–4 tight turns by hand.
  • Trim the excess tail close to the bobbin core immediately.
  • Start the motor and watch the first 5 seconds to confirm clean take-up.
  • Success check: No loose tail whipping around, and the thread begins stacking cleanly without tangling.
  • If it still fails: Add a couple more tight starter wraps and re-check that the thread is seated inside the tension discs.
• Q: How can I tell if a standalone bobbin winder setup is correct within the first 5 seconds of winding?
  A: Do a quick 5-second audit for even traverse, stable motor sound, and low vibration before you leave the winder running.
  • Look for even up-and-down thread travel across the bobbin (no ridges or “barbell” build).
  • Listen for a steady motor hum (rhythmic thumping often indicates wobble).
  • Feel the housing carefully for excessive vibration while it runs.
  • Success check: Smooth sound, minimal vibration, and evenly stacked thread right away.
  • If it still fails: Re-seat the thread in the tension discs and confirm the cone feeds vertically without snagging.
• Q: What mechanical safety rules should be followed when operating a standalone electric bobbin winder spindle?
  A: Treat the spinning spindle as a pinch-and-entanglement hazard and keep hands and loose items out of the rotating zone.
  • Keep fingers, loose hair, jewelry, and hoodie strings away from the spindle area during operation.
  • Trim thread tails only when the bobbin is stable or the motor is off.
  • Do not reach into the rotating zone to “fix” thread while the motor is engaged.
  • Success check: No need to touch the spindle area during rotation because threading, trimming, and fit checks are done before powering on.
  • If it still fails: Power off first, then re-check spindle fit and thread path methodically.
• Q: When should embroidery production upgrade from skill fixes to magnetic hoops and then to SEWTECH multi-needle embroidery machines for capacity?
  A: Upgrade in layers: fix winding/stabilizer basics first, move to magnetic hoops when hooping becomes the time sink, and consider a multi-needle machine when demand exceeds available stitching time.
  • Level 1 (Skill): Standardize bobbin hardness, tension-disc engagement, and stabilizer pairing for each fabric type.
  • Level 2 (Tooling): Switch to magnetic hoops if hoop burn, thick materials, or slow alignment is costing minutes per garment.
  • Level 3 (Capacity): Consider a SEWTECH multi-needle embroidery machine when orders are being delayed or turned down because hooping/winding time bottlenecks production.
  • Success check: Measurable time saved per item (less re-hooping, fewer marks, fewer mid-design tension surprises).
  • If it still fails: Audit where time is truly lost (winding vs hooping vs stitching) and address the biggest bottleneck first.
