Stop Fighting Your Magnetic Embroidery Hoop: Permanent Alignment Marks, the Tape “Third Hand,” and a No-Stretch Press-and-Slide Tightening Trick

If you have ever watched a powerful magnetic hoop snap shut and felt your stomach drop because you weren't quite sure if the center point held, you are experiencing a very common friction point in machine embroidery.

Magnetic hoops are widely regarded as the "secret weapon" of high-volume production shops. They eliminate hoop burn (referring to the crushing marks left by traditional screw buckets on delicate items like velvet or performance wear) and they drastically reduce strain on your wrists during long production runs. However, without a calibrated workflow, the very magnetic force that makes them secure can also be the force that pulls your fabric 2mm off-center in the final split-second of closure.

This guide is not just a tutorial; it is a production protocol. We are moving away from "eyeballing it" and toward a system of hard references, friction control, and mechanical locking. Whether you are running a single-needle home machine or scaling up to a SEWTECH multi-needle commercial unit, this workflow turns the "Chaos of the Snap" into a repeatable science.

Magnetic embroidery hoop alignment that actually repeats (and saves you from “almost centered” stitches)

In commercial embroidery, "almost centered" is a defect. The misalignment of just 3 millimeters is visible to the human eye, especially on uniform crests or geometric logos.

The core concept here is establishing a Immutable Reference System. When you use a traditional hoop, you often rely on the visual clearance between the inner and outer rings. With a magnetic hoop, the moment fabric covers the bottom frame, you are flying blind.

To fix this, we stop trusting our eyes and start trusting a grid. By physically marking your tools and locking them to a calibrated surface (a cutting mat), you create a system where the hoop has no choice but to be centered.

If you’re new to a magnetic embroidery hoop, adopting this "grid-locking" methodology is the difference between a hobbyist workflow (50% success rate on first try) and a professional workflow (99% success rate).

Permanent center marks on the top magnetic frame: the 60-second habit that fixes 60 minutes of re-hooping

The top frame of your magnetic hoop is your primary visual interface. Yet, many manufacturers send them out with only faint molded indentations or nothing at all. We need high-contrast, permanent crosshairs.

The Physics of Alignment: When you are hovering the top frame over the fabric, parallax error (viewing from an angle) can make you think you are centered when you are actually drifting left. Permanent black lines eliminate parallax interpretation.

The Protocol:

1. Stitch/Print an Alignment Reference: Use your machine to stitch a crosshair on stiff scrap stabilizer, or print a paper template provided by the hoop manufacturer. This is your "Master Truth."
2. Align the Top Frame: Place the top magnetic frame over this Master Truth.
3. Engage the Acrylic Ruler: Place a clear acrylic quilting ruler over the frame. Align the ruler's grid lines perfectly with the stitched Master Truth below.
4. Mark the Axis: Using a fine-tip permanent marker (like a Sharpie Ultra Fine), draw the vertical and horizontal center lines directly onto the surface of the top hoop.
5. Extension: extend these marks to the inner and outer edges of the frame rail. You need to see them from every angle.


Warning: Magnetic Pinch Hazard. Strong commercial magnets (especially on larger 8x13" or 10x10" hoops) generate significant closing force. If a fold of skin is caught between the frames, it causes severe pinching or blood blisters. Never place your fingers between the rails to "guide" them. Hold the frame by the outer perimeter only.

Bottom frame edge marks: the “hidden” reference that makes grid alignment possible when fabric covers everything

This is the step 90% of home embroiderers miss.

Once you lay your stabilizer and fabric over the bottom frame, the bottom frame disappears. You can no longer see if it is twisted relative to your workstation. By marking the outer vertical edges of the bottom metal frame, you create "handles" that allow you to align the hidden frame against your cutting mat grid.

The Protocol:

1. Place the bottom frame on your table without fabric.
2. Take your permanent marker and mark the exact center of the left and right outer edges.
3. Verification: Check these marks against your cutting mat. When the frame is concealed under a thick hoodie or towel, these exposed edge marks will tell you exactly where the "invisible" frame sits on the grid Y-axis.

Professionals who use a dime snap hoop style system often add color-coded tape here for even faster visual recognition, but permanent ink is more precise.

The “hidden prep” pros don’t skip: fabric center marks + tearaway + temporary spray adhesive

In the world of embroidery, Friction is your friend. We need the fabric and the stabilizer to act as a single, unified slab. If they slide against each other (shear force), your design will pucker even if the hoop is tight.

1. Mark Your Fabric (The "Safe Zone" Method)

Don't guess the center on the garment. Measure it. Mark the center of your placement area with a removable method (chalk, water-soluble pen) or, if possible, place marks inside the seam allowance on the wrong side.

• Sensory Check: Use a ruler. If your center mark is 1mm off now, it will be 1mm off forever.

2. Stabilizer Logic: Tearaway vs. Cutaway

For the project demonstrated (stable woven fabric), Tearaway is acceptable. However, note this industry rule:

• If it stretches (T-shirts, Polos), you must assume it will distort. Use Cutaway stabilizer.
• If it is stable (Denim, Canvas, Towels), you can use Tearaway.

3. The Spray Adhesive Bond

Temporary spray adhesive (like Sulky KK 2000 or similar) is non-negotiable for magnetic hooping. Magnets exert a vertical "snap" force that can create a puff of air, displacing the fabric. Adhesive prevents this "air jump."

• Application: Spray the stabilizer, not the fabric. Hold the can 10-12 inches away. You want a "mist," not a "puddle."
• Hidden Consumable: A Cardboard Spray Box. Never spray adhesive openly in your sewing room. The aerosol glue will settle on your machine's gears and sensors, causing expensive service calls. Spray inside a deep box.


Prep Checklist (The "Clean Table" Protocol):

• Master Reference: Alignment guide/marks verified on both top and bottom frames.
• Consumables: Permanent marker, acrylic ruler, and masking tape within reach.
• Fabric Point: Center crosshair marked on the fabric (using water-soluble pen or chalk).
• Stabilizer Bond: Stabilizer sprayed and adhered to the wrong side of the fabric.
• Environment: Cutting mat cleared of debris; spray box used for adhesive.

Centering stabilizer to fabric on a cutting mat grid: make the grid your “truth,” not your eyeballs

The cutting mat grid is the only straight line in the room you can trust.

The Protocol:

1. Lay the fabric face down on the mat (if marking the back) or face up (if confident in your bond). Let's assume face down for stabilizer placement.
2. Align the fabric's center marks with a major grid line (e.g., the 10-inch line).
3. Take your sticky stabilizer. Align its center (crease it if you need a reference) with that same grid line.
4. The Smooth-Out: Press from the center outward.

• Sensory Check: You should feel the fabric and stabilizer create a slightly stiff, unified board. If it feels floppy or separated, apply a tiny burst more spray.

Why does this matter? When the magnetic embroidery hoops engage, the pull is violent. If the stabilizer isn't bonded, the fabric stays put but the stabilizer shifts, ruining your pull compensation settings.

Lock the bottom frame to the grid (and never rotate it): the orientation rule that prevents sideways designs

Here is a habit that separates the pros from the frustrated: Orientation Discipline.

Most embroidery hoops are not perfectly symmetrical squares; they are rectangles or have a specific attachment bracket side.

1. Place the Bottom Frame: Lay it on the cutting mat.
2. Align to Grid: Use your Edge Marks (from the previous step) to lock it to the grid lines.
3. The Rule: Always orient the bracket side of the hoop towards the same direction on your table (e.g., bracket always points North).

If you rotate the hoop on the table "to make it easier to reach," you risk hooping your design upside down or sideways effectively 25% of the time. If you are creating a repeatable workflow with hooping stations or just a cutting mat, reliable orientation is the keystone of speed.

Decide stitch direction before hooping: the small question that prevents big regret

Before you commit to the magnetic snap, ask: "Which way is Up?"

In the software, is the design oriented so the top of the logo faces the bracket? Or is it rotated 90 degrees?

• Scenario A: You hoop the shirt "straight up." The design files sends it "sideways." Result: Ruined shirt.
• Correction: Always visualize the machine's "Top" (usually away from the user) relative to your hoop's bracket.

Material Science Note: Stitch direction usually runs perpendicular to the main pull of the fabric. If you have a choice, hoop so the fabric's most stable grain (warp) handles the heaviest stitching load.

The tape “third hand” trick: stop the magnetic snap from yanking your fabric off center

This is the "Secret Sauce" of the video workflow.

When you bring the top magnet down, the magnetic field intensifies rapidly in the last inch. It wants to grab the metal bottom frame. This attraction can create a "jump" that shifts your perfectly aligned fabric 3mm to the North.

The Fix: The Tape Anchor.

1. Align your fabric/stabilizer sandwich over the bottom frame.
2. Verify center using the grid.
3. Taping: Take a strip of painter's tape or masking tape. Secure the top edge of your fabric directly to the cutting mat (outside the hoop area).
4. The Anchor Effect: Now, your fabric is physically tethered to the table. When the magnet snaps, the fabric cannot jump forward because the tape holds it under tension against the mat.

This simple piece of tape acts as the "Third Hand" that solo operators desperately need. It makes using powerful magnetic embroidery hoops significantly less stressful.

Setup Checklist (The "Pre-Snap" Audit):

• Base Lock: Bottom frame edge marks aligned perfectly to the mat grid.
• Sandwich Lock: Fabric center marks aligned to the same grid coordinates.
• Orientation: Hoop bracket is pointing the correct direction for the design file.
• Anchor: Top edge of fabric taped to the mat to prevent "Magnet Jump."
• Hand Position: Fingers clear of the impact zone.

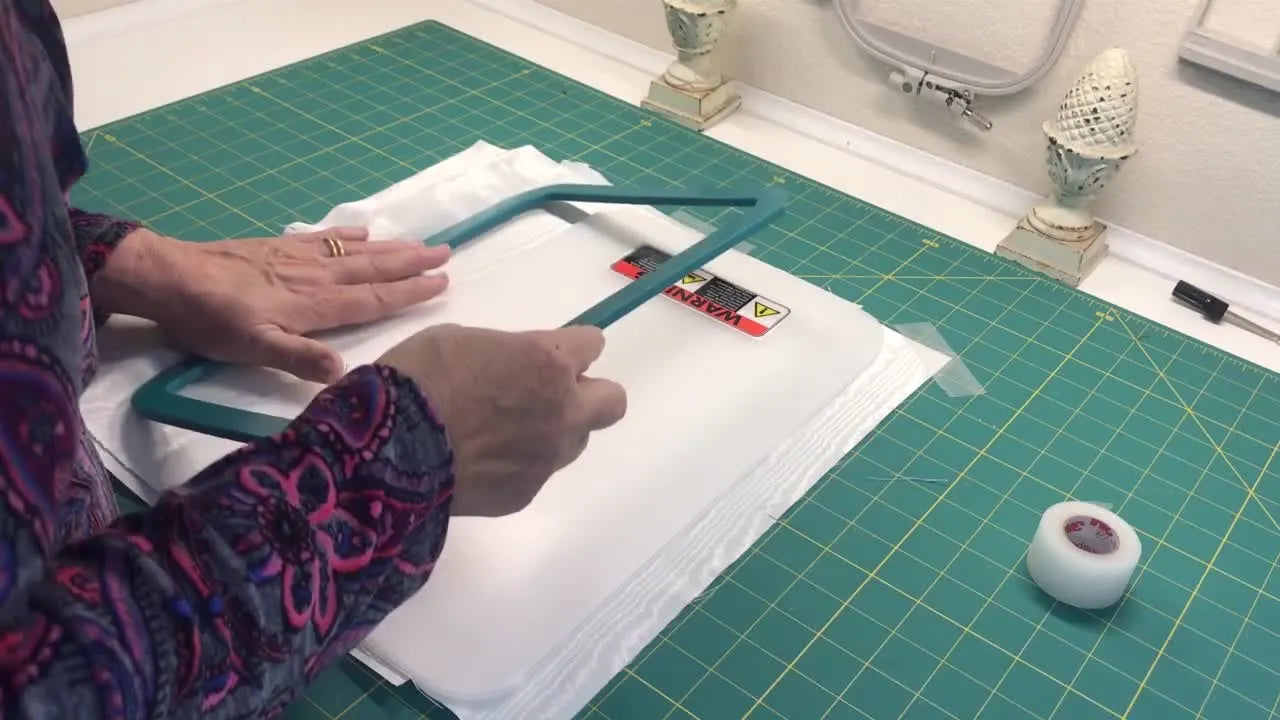

Snapping the top magnetic frame without drama: control one side, align by eye, then commit

Do not drop the hoop flat like a trapdoor. That traps air and ripples fabric.

The "Roll-On" Technique:

1. Hover: Hold the top frame at a 30-degree angle.
2. Anchor One Side: touching the bottom edge of the top frame to the fabric/bottom frame assembly. Don't let the magnets fully engage yet—just establish the pivot point.
3. Visual Confirmation: Look at your permanent center marks on the top frame. Do they align with the chalk marks on the fabric and the grid lines below?
4. The Snap: Lower the rest of the frame swiftly but under control.

• Sensory Check: Listen for a singular, solid CLACK. A double-clack usually means one side engaged before the other, which might have twisted the fabric.


The press-and-slide tightening move: get drum-tight fabric without stretching it into distortion

Crucial distinction: We want the fabric to be Taut, not Stretched. Stretched fabric rebounds after stitching, causing puckers.

With magnetic hoops, you cannot "screw tighten." Instead, use the Press-and-Slide:

1. Press Down: Apply downward pressure on the plastic/metal rail of the top frame.
2. Slide Out: Gently push the rail outward away from the center of the hoop.
3. Release: The magnet re-seats itself, pulling the slack out of the fabric.

Repeat this on all four sides. This method uses the magnet's vertical clamping force to walk the fabric taught without pulling on the fibers with your fingers (which creates "scalloping" distortion).

When mastering how to use magnetic embroidery hoop systems, this tactile skill is what separates a floppy, puckered embroidery from a flat, professional finish.

Quick inspection: what “ready to stitch” looks like before you walk to the machine

Stop. Don't walk away yet. Perform the "Drum Skin" audit.

1. Tactile Test: Tap the fabric in the center. It should sound slightly resonant, like a drum. It should not feel rock hard (overstretched) nor soggy (loose).
2. Visual Test: Look at the grid lines of the fabric weave. Are they straight? If they bow like an hourglass, you stretched the fabric during hooping. Re-hoop it.
3. Mark Test: Did your center chalk mark stay aligned with the sharpie marks on the hoop? If it moved >2mm, re-hoop.

Operation Checklist (Green Light for Production):

• Tension: Fabric is taut and smooth; no ripples near the edges.
• Geometry: Fabric weave is straight, not distorted into a diamond shape.
• Alignment: Center marks match the planned origin.
• Clearance: Tape anchor is removed from the table and the fabric.
• Travel Safety: Hoop is supported with two hands during transport.

Carrying the hoop to the machine without bending it: treat it like a precision tool, not a tray

Magnetic hoops are heavy. The top frame is often flexible. If you carry a large 8x13" magnetic hoop by one corner, gravity will flex the frame, potentially causing the magnets to slide and the fabric to loosen or "bubble" in the center.

The Protocol: Carry the hoop like a serving tray—two hands, supporting opposite sides. Or, slide a piece of stiff cardboard underneath it for transit. This maintains the "Drum Skin" tension you just worked so hard to achieve.

Fabric shifting, loose hooping, bent frames: the real-world fixes (symptom → cause → correction)

Even experts fail. Here is how to recover quickly without panicking.

Warning: Machine Safety. Embroidery needles move at 800-1000 SPM (Stitches Per Minute). When performing test traces, keep your hands entirely clear of the needle bar area. A "trace" operation can move the hoop surprisingly fast—do not let it smash your fingers against the machine arm.

A stabilizer decision tree you can use at the table (so you stop guessing)

Wrong stabilizer choice ruins more projects than bad hooping. Use this logic gate for every project:

Decision Tree: What goes underneath?

1. Is the fabric unstable? (T-shirt, Knit, Spandex, Lycra)
   • YES: MUST Use Cutaway Stabilizer (2.5oz or 3.0oz).
   • Reason: The fabric cannot support the stitches; the stabilizer must remain forever.
2. Is the fabric stable? (Denim, Canvas, Twill, Heavy Cotton)
   • YES: Use Tearaway Stabilizer.
   • Reason: Fabric supports the stitch; stabilizer just adds temporary stiffness.
3. Is the fabric "Napped" or "Lofty"? (Towel, Fleece, Velvet)
   • YES: Add Water Soluble Topping (Solvy) on top + Stabilizer on bottom.
   • Reason: Prevents stitches from sinking and disappearing into the fuzz.
4. Is the fabric sheer/skin-contact? (Baby onesie, Lingerie)
   • YES: Use No-Show Mesh (PolyMesh).
   • Reason: Soft against skin, doesn't show a heavy white square through the fabric.

Turning this into a faster production workflow: when tools matter more than technique

Once you master this technique, you will hit a plateau. You can only hoop so fast. You can only stitch so fast on a single-needle machine.

When you feel the pain of volume—when 50 Christmas orders are piling up—it is time to look at the Hardware Constraint.

• The Hooping Bottleneck: If alignment takes you 5 minutes per shirt, a magnetic hooping station pays for itself in one week. It integrates the grid, the holding clips, and the hoop fixture into one board.
• The Throughput Bottleneck: If you are spending 10 minutes changing thread colors on a single-needle machine, you are losing money. A SEWTECH multi-needle machine (like a 10-needle or 15-needle unit) allows you to set up the colors once and let the machine run uninterrupted. This is the shift from "Crafting" to "Manufacturing."
• The Hoop Bottleneck: If you are struggling with thick items like Carhartt jackets or heavy bags, a standard plastic hoop will pop open. A generic magnetic frame for embroidery machine provides the holding power required for these high-profit, heavy-duty items.

Magnet safety and shop reality: protect your fingers, your tools, and your electronics

Magnetic hoops are industrial tools. They use Neodymium magnets which do not degrade over time—they are permanently powerful.

Warning: Magnet Field Safety. These magnets are strong enough to erase credit cards, damage mechanical watches, and corrupt hard drives. Pacemaker Users: Consult your doctor before using large magnetic hoop systems. Always store hoops with the provided foam spacers between the frames to prevent them from locking together permanently (a very difficult situation to fix!).

The “why” behind the whole method: you’re controlling three forces—alignment, friction, and magnet pull

If you only remember three things from this white paper, remember these Physics of Embroidery:

1. Alignment is visual. We solve it with permanent markers and grids.
2. Friction prevents shifting. We solve it with Spray Adhesive (KK 2000).
3. Tension prevents flagging. We solve it with the "Press-and-Slide" technique.

When you control these three variables, you can embroider on a $5 canvas tote or a $100 North Face jacket with equal confidence.

If you are setting up a shop, consistency is your product. By implementing standardized reliable hooping stations protocols (like marking your hoops and using grids), you ensure that "Employee A" hoops a shirt exactly the same way "Employee B" does.

The upgrade result you should expect: fewer re-hoops, cleaner stitch-outs, and a workflow you can teach

By adopting this workflow, you eliminate the "Hope Factor." You are no longer hoping the fabric didn't move; you know it didn't move because it was taped, glued, and gridded.

The progression of a professional embroiderer follows a clear path:

1. Level 1: Learning to stabilize properly (Tearaway/Cutaway logic).
2. Level 2: Upgrading tools (Moving to Magnetic Hoops to save time and reduce fabric damage).
3. Level 3: Upgrading capacity (Moving to Multi-Needle machines to automate color changes).

Start with the Sharpie and the Grid today. When you are ready for the speed of Level 2 and Level 3, SEWTECH's ecosystem of magnetic frames and commercial machines will be the engine that powers your production growth.

FAQ

• Q: How do I stop a magnetic embroidery hoop snap from pulling fabric 2–3mm off-center at the last second?
  A: Anchor the fabric to the cutting mat and “roll-on” the top frame instead of dropping it—this is a common issue with strong magnets.
  • Tape: Secure the top edge of the fabric to the cutting mat (outside the hoop area) before closing the hoop.
  • Bond: Use temporary spray adhesive on the stabilizer (not the fabric) so the fabric + stabilizer act like one piece.
  • Close: Use the roll-on technique—touch one side first, verify alignment, then commit to the snap.
  • Success check: Center marks on the fabric stay aligned with the permanent center marks on the hoop after the “CLACK.”
  • If it still fails: Re-check bottom-frame edge marks against the mat grid and re-mark the top frame with high-contrast crosshairs.
• Q: What permanent marks should be added to a magnetic embroidery hoop top frame to get repeatable centering?
  A: Draw permanent, high-contrast vertical and horizontal center lines on the top magnetic frame using a verified crosshair reference.
  • Create: Stitch a crosshair on stiff scrap stabilizer (or use a printed template) as the master reference.
  • Align: Place the top frame over the master reference and square everything with a clear acrylic quilting ruler/grid.
  • Mark: Draw the center axes with a fine-tip permanent marker and extend the lines to the inner and outer edges of the rail.
  • Success check: The center lines are visible from multiple angles and remove “parallax guessing” during hovering.
  • If it still fails: Re-do the marks using the ruler grid—faint molded dots are often not accurate enough for production work.
• Q: How do I align a magnetic embroidery hoop bottom frame to a cutting mat grid when fabric covers the frame?
  A: Add center marks to the outer left and right edges of the bottom metal frame so the hidden frame can still be locked to the grid.
  • Place: Set the bottom frame on the table with no fabric.
  • Mark: Put a permanent center mark on the left and right outer vertical edges.
  • Lock: Use those exposed edge marks to align the bottom frame to the cutting mat grid and do not rotate the frame.
  • Success check: With fabric/hoodie/towel covering the frame, the edge marks still sit exactly on the chosen grid lines.
  • If it still fails: Add orientation discipline—keep the hoop bracket side pointing the same direction every time.
• Q: When should tearaway stabilizer vs cutaway stabilizer be used with a magnetic embroidery hoop to prevent puckering?
  A: Use cutaway on anything that stretches, and tearaway only on stable woven materials—don’t worry, stabilizer confusion is extremely common.
  • Decide: If the fabric is knit/stretch (T-shirts, polos, spandex), use cutaway because distortion is guaranteed.
  • Choose: If the fabric is stable (denim, canvas, towels), tearaway is acceptable for temporary support.
  • Add: For napped/lofty items (towel, fleece, velvet), add water-soluble topping on top plus stabilizer underneath.
  • Success check: After stitching, the fabric lies flat without rebound puckers around dense areas.
  • If it still fails: Stop stretching during hooping and switch to the press-and-slide tightening method.
• Q: What is the “ready to stitch” test for fabric tension in a magnetic embroidery hoop before walking to the embroidery machine?
  A: Do a quick “drum skin” audit: taut but not stretched, weave straight, and center marks still matched.
  • Tap: Lightly tap the center area to confirm a slightly resonant drum-like feel (not soggy, not rock hard).
  • Look: Check the fabric weave/grain—if it bows into an hourglass/diamond shape, the fabric was stretched during hooping.
  • Verify: Confirm chalk center marks still align within about 2mm of the hoop’s permanent center lines.
  • Success check: Fabric is smooth with no ripples near the rails and the weave lines stay straight.
  • If it still fails: Re-hoop and tighten using press-and-slide instead of pulling the fabric by hand.
• Q: How do I tighten fabric in a magnetic embroidery hoop without stretching it and causing puckering?
  A: Use the press-and-slide technique on all four sides to remove slack while keeping the fibers relaxed.
  • Press: Push down on the top frame rail to increase clamping contact.
  • Slide: Gently slide the rail outward away from the center, then let it re-seat.
  • Repeat: Work all four sides evenly rather than overworking one edge.
  • Success check: Fabric becomes taut and smooth without weave distortion (no hourglass look).
  • If it still fails: Increase friction by improving stabilizer bonding (spray adhesive on stabilizer) or consider switching to cutaway for unstable fabric.
• Q: What safety rules should be followed when closing a strong magnetic embroidery hoop and doing a machine trace at 800–1000 SPM?
  A: Keep fingers out of the impact/needle zones—magnetic pinch injuries and fast trace moves are real risks.
  • Hold: Grip magnetic frames by the outer perimeter only and never place fingers between the rails while closing.
  • Store: Use the provided foam spacers between frames to prevent the magnets from locking together unexpectedly.
  • Trace: Keep hands completely clear during test trace operations because the hoop can move suddenly and smash fingers.
  • Success check: The hoop closes with a single solid clack without any hand contact in the pinch zone.
  • If it still fails: Slow down the workflow—set the hoop down, reposition hands, and re-close using the roll-on method rather than forcing alignment.
