Stop Fighting Your Janome 500E/550E Screen: Border & Normal Sew Tricks That Make Bigger Frames (Without New Software)

If you have ever stared at your Janome screen, scrolling through menus and thinking, “I know this machine has more horsepower than I’m using,” you are not alone. And more importantly—you don’t need to buy expensive digitizing software to unlock that potential.

The Janome Memory Craft series (500E/550E/400E) has a robust internal editing suite that many users never touch because the icons aren't intuitive. In this master-class tutorial, we will deconstruct Sharon’s on-screen workflow to rebuild it into a fail-safe operational guide. We will cover how to manipulate hoop orientation to maximize space, where the “hidden” library of Border & Normal Sew designs lives, and how to mathematically arc those motifs into perfect circles, ovals, and square frames.

However, software is only half the battle. As any veteran embroiderer knows, a perfect design on the screen can turn into a disaster on the machine if the physics aren't right. I will bolster this guide with the "shop-floor" realities: managing heavy towel drag, stabilizing to prevent "egg-shaped" circles, and the specific hooping protocols that prevent the dreaded "greyed-out OK button."

Calm First, Then Tap: What Janome 500E/550E On-Screen Editing Can (and Can’t) Do

Before we press a single button, we need to understand the machine's "brain." The most common frustration for beginners is the machine beeping and refusing to move a design.

The Reality Check: The machine is not being stubborn; it is protecting its physical limits. It has a rigid "stitchable field" defined by the hoop size. When it beeps, stops accepting characters, or greys out the “OK” button, it is telling you: "If I sew this, the needle will hit the plastic frame."

The Strategy: Treat the hoop boundary like an electric fence. To work efficiently, adopt the "Safe Center Zone" method:

1. Build in the Middle: Always create, rotate, and edit your design in the absolute center of the screen/hoop.
2. Move Last: Only move the design to the edges after all transformations (arcing, resizing) are complete.

This simple change in workflow eliminates 90% of the movement errors users encounter.

The Prep Nobody Mentions: Hoop choice, fabric behavior, and why towels love to misbehave

Before touching the screen, you must diagnose your material. Sharon’s tutorial touches on towels and quilt labels—two substrates that are polar opposites in terms of physical risk.

• Towels (Unstable/High Pile): These are compressible, thick, and prone to "creeping." If you hoop a towel tightly in a standard plastic hoop, you often get "hoop burn"—permanent crush marks on the nap. Furthermore, the friction of the towel against the machine bed can drag the hoop, distorting circles into ovals.
• Quilt Labels (Stable Cotton): These are rigid but unforgiving. If your tension isn't perfect, the outline will pucker.

The Physics of Hooping

For geometric borders (circles/squares), hoop tension must be uniform. If you pull the fabric tighter on the left side than the right ("corkscrewing"), your perfect on-screen circle will stitch out as an oval. When you unhoop it, the fabric relaxes, and the stitching distorts.

The Sensory Check: When hooped, cotton should feel taut, like a drum skin. If you tap it, you should hear a dull thump. However, you cannot do this with towels.

The Tool Upgrade: This is the specific scenario where many users switch to magnetic embroidery hoops for janome 500e. Unlike traditional screw-tightened hoops that require significant hand strength and can crush fabric unevenly, magnetic hoops slap down with consistent, vertical pressure. They secure thick towels without crushing the pile and without the wrist strain of wrestling a thumbscrew. If you are struggling with "hoop burn" or uneven tension, this hardware change is often the cure.

Prep Checklist (Do this BEFORE touching the screen)

• Safety Audit: Ensure the needle is a fresh 75/11 or 90/14 (depending on fabric) and not a dull needle from a previous project.
• Hoop Selection: Confirm your design goal (Circle/Oval vs. Square) and pick the hoop first (RE36b for long layouts; SQ20b for square frames).
• Hidden Consumable Check: Do you have water-soluble topping (Solvy) for the towel? Without it, your stitches will sink into the loops and vanish.
• Substrate Strategy:
  • Towel: Float with adhesive spray or use a magnetic hoop; Top with water-soluble film.
  • Cotton Label: Hoop tight with medium tear-away or cut-away.
• Test Scrap: Keep a scrap of similar fabric nearby. Border motifs often look different in thread than pixels.

Warning: Physical Safety. When test-stitching, keep fingers well clear of the needle bar and presser foot. Machines move on the X/Y axis unexpectedly during jump stitches. Never attempt to trim a thread while the machine is running.

Make the RE36b Hoop Work for You: Horizontal vs Vertical lettering limits on Janome 500E/550E

In the tutorial, Sharon selects the large RE36b hoop (200×360 mm) and demonstrates a critical constraint of the machine's operating system.

When in Horizontal Orientation, the machine limits how many characters you can type. Sharon types until the machine beeps and stops at the letter "H." Why? Because even though the hoop is huge, the machine's "brain" is calculating the width relative to the narrow side of the hoop in this mode.

The Fix: She clears the screen, switches to Vertical Orientation, and is immediately able to type A through N.

Expert Insight: This isn't just a "font trick"; it is a layout necessity. By rotating the canvas (orientation), you align the long string of text with the long physical axis of the hoop.

The "Throat" Hazard: There is a catch. Vertical layouts on the RE36b hoop often force the bulk of your project (like a bath towel) into the "throat" or "harp" of the machine (the space between the needle and the upright body).

• Risk: As the hoop moves right, the towel bunches up against the machine body. This resistance causes the hoop to drag, leading to registration errors (gaps in your design).
• Solution: Roll the excess towel tightly and clip it, or support it with your hands (gently!) so it doesn't drag.
• Production Tip: If you are doing this daily, investigate hooping stations. In professional shops, we use these not just for speed, but to ensure the placement is identical on every shirt or towel. A station holds the hoop components static, allowing you to focus solely on alignment.




The “Hidden Tab” That Unlocks Border & Normal Sew on Janome 550E/500E

Here is the feature that 80% of owners miss. Sharon navigates into the standard Fonts/Lettering menu. Most people stop here, assuming it's only for A-B-C text.

However, she taps the far-right tab (identified by a music note icon or a flower icon depending on firmware version). This unlocks the "Border" and "Normal Sew" libraries.

• Contents: Ducks, chickens, musical notes, geometric chevrons, heirlooms, and leaves.
• The Secret Power: Because you accessed these motifs through the Lettering engine, the machine treats a row of ducks exactly like a row of text. This means you can use the Arcing Tool and Spacing Tool on them—features that are usually disabled for standard embroidery designs.

If you have owned your machine for months and never clicked that tab, you are not alone. It is the most under-utilized library in the Janome system.

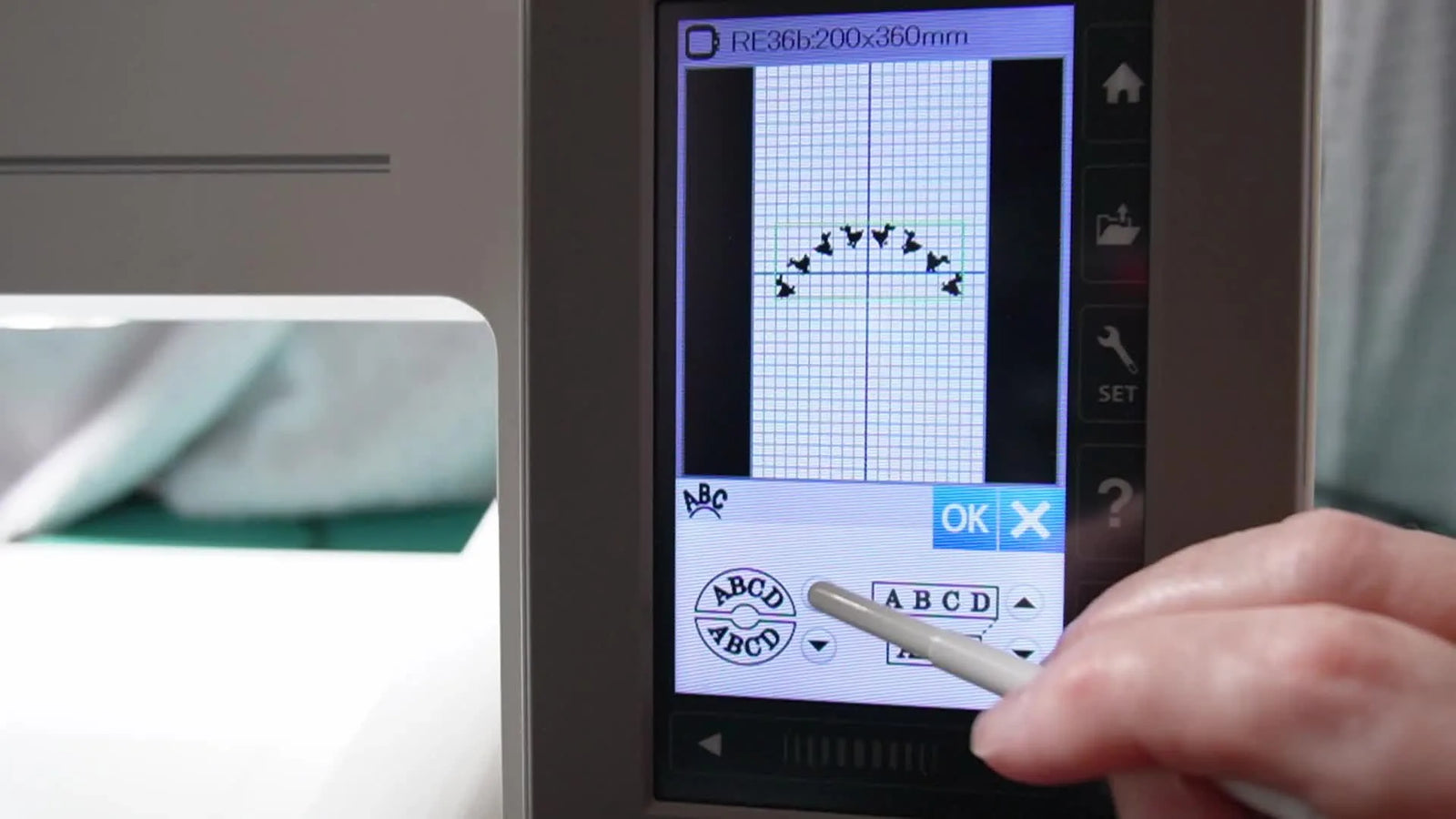

Turn Ducks into a Perfect Circle: Janome Arcing tool workflow that actually aligns

Sharon’s demonstration of creating a circle of ducks is the perfect way to learn the Arcing Tool. Because ducks have a beak and a tail, you can instantly see if they are aligned correctly or flipping upside down.

The Algorithm for a Perfect Circle

Follow this sequence exactly to avoid the "spiral" effect:

1. Select Motif: Choose a directional motif (e.g., the duck) from the Border menu.
2. Input Repeats: Enter 8 ducks (or enough to form a visible line).
3. Activate Arc: Tap the Arcing Button (Icon: A-B-C on a curve).
4. Bend the Line: Adjust the curvature slider (usually the bottom spacing knob) until the straight line bends into a tight semi-circle (half-moon).
   • Sensory Cue: Watch the gap between the first and last duck. You want it to look consistent with the gaps between the other ducks.
5. Center It: Use the on-screen grid. Nudge the arc so the green centerline sits perfectly on the grid's Y-axis.
6. Duplicate: Press Copy. You now have two identical semi-circles on top of each other.
7. Flip & Move:
   • Flip the copy Vertically.
   • Drag it down to close the circle.
8. The "Ah-Ha" Moment: Flip the bottom copy Horizontally.
   • Why? If you don't flip horizontally, the bottom ducks will be swimming backwards relative to the top ducks. Flipping both axes ensures the "chase" direction is continuous clockwise or counter-clockwise.

Expert Note: When adjusting the arc, if you go "one click too far," the ducks will overlap or look crushed. Back off one click. It is better to have a slightly looser circle than a crowded one.

Setup Checklist (Pre-Stitch Verification)

• Hoop Check: Is the RE36b selected in the Edit screen?
• Centering: Is the arc centered? (Check the green guideline against the grid background).
• Constraint Check: Did the machine beep? If so, your arc is too wide for the hoop. Decrease the curve slightly.
• Visual Audit: Zoom in (using the magnifier glass) on the "joins" (3 o'clock and 9 o'clock) where the two semi-circles meet.
  • Pass: The gap matches the rest of the design.
  • Fail: There is a wide gap or an overlap. Nudge the bottom half up or down by 0.5mm.
• Path Clearance: Check the machine throat. Is there a pile of towel fabric waiting to jam the movement?

Want a Bigger Oval? Vertical orientation is the cheat code on Janome hoop layouts

Sharon answers the inevitable follow-up: "That circle is cute, but I need a big frame for a wedding quilt label."

Her method leverages the Vertical Orientation hack we learned earlier:

1. Go back to Lettering.
2. Switch to Vertical.
3. Choose a geometric line design (e.g., a vine).
4. Type it out. Because you are in Vertical mode, you can type a much longer string before hitting the limit.
5. Apply Arcing. The machine will curve this long string into a wide, shallow "C" shape rather than a tight circle.
6. Copy, Flip (Vertical), Flip (Horizontal), and align.

Result: You now have a massive oval that fills the RE36b hoop, created entirely without external software.

If you are currently researching janome memory craft 500e hoops, understanding this relationship between orientation and design scale is vital. You cannot buy a hoop that is wider than the machine's arm (200mm), but you can use software orientation to maximize the length (360mm).

The stabilizer decision tree that keeps circles round (towels) and labels crisp (cotton)

The screen is perfect, but the fabric is chaotic. Sharon mentions using "tear-away," but for a high-quality finish, we need to be more specific. Here is a decision tree for stabilizing these specific border frames.

Decision Tree: Fabric → Stabilizer → Hooping Strategy

Scenario A: The Plush Towel (High Risk of Distortion)

• Risk: Loops poke through stitches; fabric shifts under drag.
• Stabilizer: Wash-Away Topping on top (crucial!) + Adhesive Tear-Away or Cut-Away on bottom.
• Hooping: Do not hoop the towel if it is very thick. Hoop the stabilizer, spray it with temporary adhesive, and "float" the towel on top.
• The Upgrade: Use a Magnetic Hoop. This allows you to clamp the towel firmly without "floating," giving you better registration than floating but with the ease of magnets.

Scenario B: The Quilt Label (Medium Risk of Puckering)

• Risk: The high stitch count of a border can pucker the cotton.
• Stabilizer: Fusible No-Show Mesh (Cut-Away) or a crisp Medium Tear-Away bonded to the fabric.
• Hooping: Standard hoop, tightened to "drum skin" tension.

Scenario C: T-Shirt / Knit (High Stretch Risk)

• Risk: The fabric stretches as the circle closes, leaving a gap at the end.
• Stabilizer: Cut-Away is mandatory. Never use only tear-away on knits.
• Hooping: Do not stretch the fabric; lay it neutral.

Warning: Magnetic Safety. Magnetic hoops use industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers away from the contact zone when snapping them shut.
* Medical Risk: Users with pacemakers or ICDs should maintain a safe distance (consult your device manual) as strong magnetic fields can interfere with medical electronics.

Build a Square Frame in the SQ20b Hoop—and beat the greyed-out OK button

For the square frame, Sharon switches to the SQ20b hoop (200×200 mm). This requires a different mental model because you are building straight lines, not arcs.

The Construction Site

1. Select Hoop: Change screen to SQ20b.
2. Build Side 1: Select a chevron motif. Place one vertical strip on the far left.
3. Mirror Side 2: Copy, mirror horizontally (so pattern faces inward), move to far right.
4. Build Top/Bottom: Copy again, move to center, rotate 90 degrees. move to top. Repeat for bottom.

Troubleshooting the "Greyed-Out OK"

This is the moment beginners panic. You try to rotate a piece near the edge, and the OK button turns grey. You cannot finalize the rotation.

The Fix:

• Move the design element back to the Center of the Screen.
• Perform the rotation (90 degrees) there.
• Then drag it to the edge.

Why? When you rotate a long rectangular strip near the edge of the hoop, the corners of the strip momentarily swing outside the hoop boundary during the turn. The machine prevents this. By rotating in the safe center zone, you have clearance for the swing.

If you are doing this repeatedly for product tags or patches, hooping becomes the bottleneck. This is where hooping station for embroidery systems help. They allow you to pre-measure and hoop your square fabric exactly perpendicular, so when you load it into the machine, your square frame aligns perfectly with the fabric grain.

“Why doesn’t it look great on the screen?”—trust the stitch-out, not the preview

Sharon makes a vital observation: The LCD screen is low-resolution. Complex "Normal Sew" motifs often look like jagged pixel blobs on the screen.

The Pro Rule: Never judge a design by the LCD preview.

• The screen cannot show thread sheen or texture.
• The screen often simplifies the view speed up processing.

Actionable Advice: Before abandoning a design because it looks "ugly" on screen, sew a sample. Keep a "Stitch Journal"—a binder with physical stitch-outs of the built-in motifs. You will be surprised to find that the "pixel blob" is actually a delicate heirloom rose or a crisp geometric chain.

Comment questions, answered like a tech: PC designs, JEF files, stitch length, and hoop limits

We analyzed the user comments to clarify some technical confusion regarding the Janome ecosystem.

“If I make a design on PC, can I insert it into the machine?”

Yes. The Janome 500E/550E reads .JEF format files via USB. You can use software (like Wilcom, Hatch, or Embird) to create custom files. However, Sharon rightly notes that digitizing is a distinct skill set. For beginners, mastering the built-in tools (as shown here) yields faster results than fighting with complex software.

“Can you change stitch length on the 550E?”

Not exactly. Unlike a sewing machine where you turn a dial to lengthen a stitch, an embroidery machine follows a map. The stitch length is "baked in" to the design.

• Exception: If you use the Resize Tool to enlarge the entire design to 120%, the stitches will elongate proportionally. But you cannot tell the machine "make all stitches 3mm long" arbitrarily.

“Can I buy a bigger hoop than the SQ20b/RE36b?”

Clarification: The machine has physical limits. The distance between the needle and the body arm is fixed. You cannot fit a hoop wider than ~200mm (8 inches) because it physically won't fit.

• Shopping Tip: When browsing janome embroidery machine hoops, ensure the listing explicitly states "Compatible with 500E/550E." Hoops for the larger MC15000 or CM17 may look similar but often have completely different connection brackets or widths.

The upgrade path that doesn’t feel like “buy more stuff”: when hooping becomes the bottleneck

Most people click on Sharon's tutorial to learn software tricks. But as your skills improve, you will find that designing isn't the slow part—hooping is.

Here is the natural progression of a home embroiderer turning pro:

Level 1: The Software Master. You learn the orientation, arc, and center-zone tricks in this guide. Your designs look professional.

Level 2: The Hardware Optimizer. You start making 10 or 20 towels for Christmas gifts. You realize that screwing and unscrewing the hoop is hurting your wrist and causing "hoop burn."

• Solution: You upgrade to a janome 550e magnetic hoop. This cuts your loading time in half and saves your hands.

Level 3: The Production Leader. You are receiving orders for 50 branded polo shirts. Your single-needle Janome is a workhorse, but stopping to change thread colors manually is killing your profit margin.

• Solution: This is the trigger point to look at Multi-Needle Machines. These machines hold 10-15 colors at once and automatically switch threads, allowing you to walk away while the machine works.

Operation Checklist (The “Don’t Waste a Hooping” Final Pass)

1. Selection: Correct Hoop selected on screen? (RE36b vs SQ20b).
2. Orientation: Did you flip the bottom arc horizontally to match the direction flow?
3. Clearance: Is the design rotated in the center before moving to the edge?
4. Join Check: Zoom in on the connection points—are they touching without overlapping?
5. Stabilizer: Is the topping (water-soluble) present for towels?
6. Mechanics: Is the hoop attached securely with a solid "click"?

By mastering these on-screen tools, you stop fighting the machine and start partnering with it. The Border & Normal Sew menu is already there, waiting for you to click that music note tab. Go make something beautiful.

FAQ

• Q: Why does the Janome Memory Craft 500E/550E “OK” button turn grey when rotating a border piece in the SQ20b hoop?
  A: Rotate the motif in the center of the edit screen first, then move it to the edge—this is the fastest way to avoid the hoop-boundary lockout.
  • Move: Drag the selected strip back into the absolute center (“safe center zone”).
  • Rotate: Apply the 90° rotation while centered.
  • Place: Drag the rotated strip to the top/bottom/side position near the hoop edge.
  • Success check: The “OK” button stays active during rotation, and the piece never triggers a boundary beep.
  • If it still fails: Reduce the motif size slightly or re-center again before each transformation (rotate/resize/arc).
• Q: Why does the Janome Memory Craft 500E/550E beep or refuse to accept more lettering when using the RE36b hoop in Horizontal Orientation?
  A: Switch the Janome 500E/550E layout to Vertical Orientation so the lettering runs along the long axis of the RE36b hoop.
  • Clear: Delete the current lettering line if the machine has already hit the limit.
  • Switch: Change orientation to Vertical in the lettering/edit workflow.
  • Rebuild: Type the lettering again, then apply spacing/arcing after the full line is created.
  • Success check: The machine allows a longer text string without beeping, and the design remains inside the stitchable field.
  • If it still fails: Keep all resizing/arcing in the center first, then move the finished layout toward the edges last.
• Q: How do I stop Janome Memory Craft 500E/550E towel projects from getting hoop burn and “egg-shaped” circles during border frames?
  A: Use a towel-specific stabilization plan and reduce drag—towels commonly distort circles unless the fabric is controlled.
  • Add: Place water-soluble topping on top so stitches don’t sink into the pile.
  • Stabilize: Use adhesive tear-away or cut-away on the bottom; often hoop the stabilizer and float the towel if the towel is very thick.
  • Control: Roll and clip excess towel so it does not bunch in the machine throat and pull the hoop during movement.
  • Success check: The stitched circle stays round after unhooping (not oval), and the towel surface shows minimal or no permanent hoop marks.
  • If it still fails: Consider switching to a magnetic hoop for more even vertical pressure and less pile crushing, and re-check that the towel is not dragging against the machine bed.
• Q: Where is the “Border” and “Normal Sew” library on the Janome Memory Craft 500E/550E, and why can those motifs be arced like lettering?
  A: Open the Lettering area and tap the far-right tab (music note/flower icon depending on firmware) to access Border/Normal Sew motifs that behave like text.
  • Enter: Go into the Fonts/Lettering menu first (not the standard embroidery design screen).
  • Tap: Select the far-right tab to reveal Border and Normal Sew motif options.
  • Use: Apply the Arcing and Spacing tools because the machine treats repeated motifs like a lettering string.
  • Success check: The arcing icon becomes available and the motif row bends smoothly instead of staying locked as a fixed embroidery design.
  • If it still fails: Confirm the motifs were selected from the Lettering engine (not imported as a normal embroidery file).
• Q: What is the most reliable Janome Memory Craft 500E/550E on-screen workflow to make a perfect circle of motifs using the Arcing Tool (without spirals or backward-facing motifs)?
  A: Build two matching semi-circles, then flip the copy vertically and horizontally before aligning—this prevents spirals and direction mismatches.
  • Create: Select a directional border motif (like a duck) and enter repeats to form a line.
  • Arc: Bend the line into a clean semi-circle, then center it on the grid.
  • Duplicate: Copy the semi-circle to make a second identical half.
  • Flip & align: Flip the copy vertically, move it to close the circle, then flip horizontally so the direction flow matches.
  • Success check: The join gaps at 3 o’clock and 9 o’clock match the spacing between all other motifs (no overlap, no wide gap).
  • If it still fails: Zoom in and nudge the bottom half in very small steps; if the machine beeps, reduce the arc width so it stays inside the hoop boundary.
• Q: What is a quick pre-stitch checklist for Janome Memory Craft 500E/550E border frames to avoid wasting a hooping (especially on towels and quilt labels)?
  A: Do a fast “hardware + hoop + stabilizer” audit before pressing stitch—most failures come from skipping one of these basics.
  • Replace: Start with a fresh needle (75/11 or 90/14 depending on fabric) rather than a worn needle from a previous project.
  • Confirm: Select the correct hoop on screen (RE36b vs SQ20b) before editing or stitching.
  • Add: Use water-soluble topping for towels; use appropriate tear-away/cut-away for stable cotton labels.
  • Verify: Click the hoop in securely and ensure the project bulk will not jam in the throat during X/Y movement.
  • Success check: The machine does not beep/lock out edits, the hoop attaches with a solid click, and the fabric plan matches the substrate (towel vs cotton).
  • If it still fails: Sew a small test on a similar scrap and adjust the stabilizer/hooping method before committing to the final item.
• Q: What safety rules should Janome Memory Craft 500E/550E users follow during test-stitching and when using magnetic embroidery hoops?
  A: Keep hands clear during motion, and treat magnetic hoops as pinch hazards—these two precautions prevent most injuries.
  • Avoid: Never try to trim threads while the machine is running; the X/Y carriage can jump unexpectedly during stitches.
  • Watch: Keep fingers away from the needle bar and presser-foot area during test runs.
  • Handle: When closing a magnetic hoop, keep fingers out of the magnet contact zone to prevent pinching.
  • Respect: Maintain safe distance if the user has a pacemaker or ICD and follow the medical device guidance regarding strong magnets.
  • Success check: The hoop closes without finger contact, and hands remain away from moving parts throughout the stitch cycle.
  • If it still fails: Stop the machine completely before any adjustment, then re-hoop or reposition only when all motion has ceased.
