Stop Fighting Your Hoop: A Mighty Hoop 8x13 & 5.5 Setup That Saves Your Wrists (and Your Towels)

If you’ve ever cranked down a traditional screw hoop on a thick plush towel and felt that sharp strain in your wrist, you aren’t being dramatic—you are performing a repetitive motion injury waiting to happen. More importantly, you are using a tool that fights against the physics of the fabric. Shayna’s demonstration is short, but it addresses the two psychological barriers every beginner faces: fear of the equipment and confusion about orientation.

What follows is an "Industry Whitepaper" reconstruction of her process for the 8x13 and 5.5 frames. We are stripping away the guesswork and adding the "Old Technician" sensory checks—the sounds, feelings, and visual benchmarks—that keep you from wasting expensive towels or cracking frames.

Magnetic Embroidery Hoops vs. Traditional Screw Hoops: The Wrist-Saving Swap That Also Speeds Up Production

Shayna physically nests the white 8x13 magnetic hoop inside the grey 8x14 traditional hoop to demonstrate a crucial production reality: while the stitch field is similar, the physical workflow is entirely different.

When you use a traditional hoop on a towel, you are fighting friction. You have to loosen the screw, shove the thick fabric in, tighten, pull, tighten again, and hope you didn't distort the weave (also known as "hoop burn").

The Sensory Difference:

• Traditional Hoop: A struggle. You feel resistance. You hear the creak of plastic.
• Magnetic Hoop: A satisfying snap. The fabric is held by vertical pressure, not friction.

If you are a hobbyist doing one towel a month, this is a luxury. If you are a small business owner doing 50 towels for a swim team, this is the difference between profit and Carpal Tunnel Syndrome.

If you are currently researching magnetic embroidery hoops, stop looking at magnet strength numbers and focus on Cycle Time Reduction. Specifically, does the hoop allow you to:

1. Clamp without "Un-Hoop/Re-Hoop" cycles: (Getting it right the first time).
2. Eliminate the "Hoop Burn": No ironing out crush marks on delicate velour or polyester.
3. Protect your wrists: Magnetic force does the heavy lifting.


The “Fat Belly” Rule on Mighty Hoop Frames: Identify Top/Bottom and Stop Second-Guessing Yourself

Shayna’s most useful teaching point addresses the #1 cause of "why is my design 5mm to the left?" It comes down to Orientation Blindness. Mighty Hoops are not symmetrical. The bottom frame has a lip (bracket) that varies in thickness.

The Cognitive Anchor: "The Fat Belly Rule"

• Visual Check: Look at the metal brackets on the bottom frame. One is thick (Fat), one is thin.
• Body Position: The Thick Bracket ("Fat Part") faces your body (Your Belly).
• Machine Position: The Thinner Bracket faces the machine.

Why Physics Matters: If you rotate the hoop 180 degrees, the magnet polarity will still snap, but the frame will be physically offset by several millimeters relative to the machine's pantograph. This means your perfectly centered software design will stitch off-center on the actual towel.

The “Hidden” Prep Ritual

Before you even touch stabilizer or fabric, build this mental habit to reduce cognitive load:

1. Isolate the bottom frame.
2. Place it on your worktable.
3. Rotate it until the "Fat Belly" is touching your waistband.

Do this before you layer your sandwich. It prevents the panic moment of holding a heavy towel and realizing you don't know which way is up.

The Warning-Label Alignment Trick: Use the Orange Sticker as Your Built-In “North Arrow”

Shayna provides a second safety check for the top frame, creating a fail-safe system.

The Visual Rule:

• Locate: The bright orange "Warning/Caution" sticker on the top frame.
• Action: Keep that sticker farthest away from your body.

The Logic: In real life, if you see a warning sign (danger), you back away from it. In embroidery, keep the warning label away from you.

By combining the Fat Belly (Bottom Frame) and Warning Away (Top Frame) rules, you create a "North Arrow" for your production line. If you are learning how to use mighty hoop frames, this dual-check system eliminates 99% of user-error alignment issues.

Hooping a Towel with the Mighty Hoop 8x13: The Exact Sandwich + “Wave” Clamp That Prevents Pinched Fingers

We are now moving into the "Danger Zone." Magnetic hoops store kinetic energy. If releases incorrectly, they snap shut with significant force. Shayna’s method is the safest for both your fingers and the fabric.

The "Hidden" Consumable

• Spray Adhesive (Optional but Recommended): For thick towels, a light mist of temporary adhesive (like KK100 or 505) on the stabilizer helps prevent the towel from shifting during the "snap."

Prep Checklist: The "Pre-Flight"

• Inventory: Top Frame + Bottom Frame + Stabilizer + Towel.
• Orientation: Bottom frame is on table, "Fat Belly" bracket toward you.
• Surface: Table is clear of metal tools (scissors, snippers, tweezers) that could jump to the magnets.
• Fabric: Towel center is marked (using water-soluble pen or chalk).

The 8x13 Sandwich (Bottom to Top)

1. Base: Place the bottom magnetic frame on the table.
2. Foundation: Lay the stabilizer directly over the bottom frame. Smooth it out. (For towels, use Tear-Away for light usage or Cut-Away for heavy wash/wear).
3. Fabric: Place the towel on top, centering your mark over the frame.
4. Confirm: Check the top frame orientation (Orange Warning Label = Away).


The “Wave” Clamp Technique

Do not drop the hoop straight down. That traps air and pushes fabric.

1. Hover: Hold the top frame at a 45-degree angle, hovering the back edge (the edge with the warning label) near the machine side of the bottom frame.
2. Float: Gently lower the front edge (near your belly).
3. Snap: Let the magnets pull the frame together in a rolling "wave" motion.

This "Wave" allows you to keep your fingers on the outside of the frame handles, never between the layers.

Warning: CRUSH HAZARD.
Keep fingers, scissors, and loose jewelry away from the gap between frames. The snapping force of an 8x13 Mighty Hoop is strong enough to cause severe bruising or blood blisters. Never let children handle these frames.

Sensory Success Metric

• Sound: You should hear a sharp, clean CLACK. If you hear a dull thud, fabric might be bunched in the magnet path.
• Sight: The towel should look flat.
• Touch: The stabilizer on the back should not have wrinkles.

The “Tight Like a Drum” Test: Your Stabilizer Tension Check Before You Ever Stitch

Shayna flips the hoop over and taps the stabilizer. This is the most critical quality control step in machine embroidery.

The Sensory Anchor: Tap the stabilizer with your fingernail.

• Pass: It sounds like a drum (tight, resonant). It feels smooth and taut.
• Fail: It sounds dull. It feels "spongy" or loose.

The Physics of Failure: If the stabilizer is loose (known as "flagging"), the needle will push the fabric down into the throat plate hole before it penetrates. This causes:

1. Birdnesting (thread loops on the bottom).
2. Loss of Registration (outlines don't match fills).
3. Needle Breaks.

If you are using mighty hoop 8x13 frames on thick items, you cannot rely on friction to tighten it later. You must lay it flat before the magnets snap.

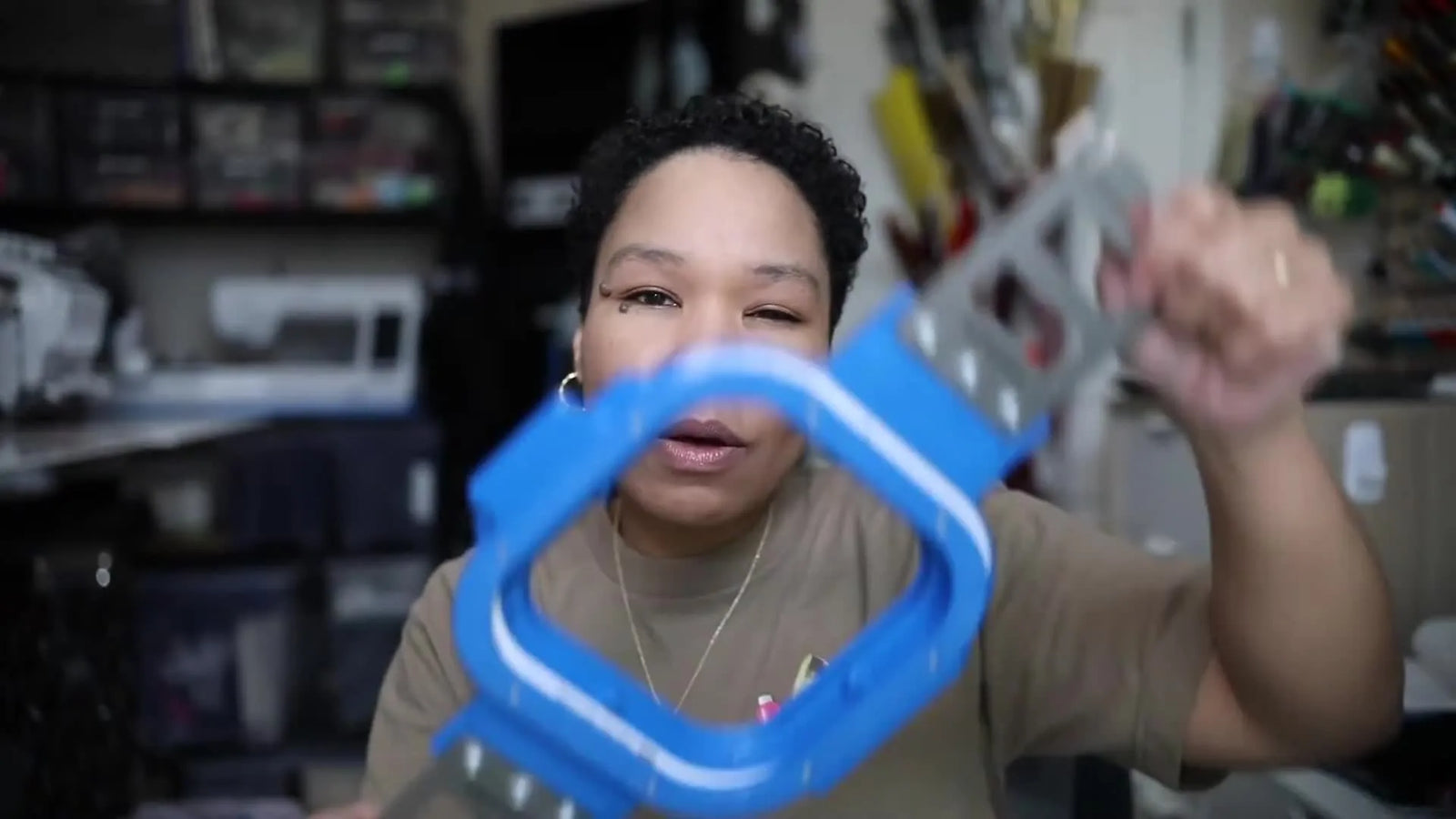

Switching to the 5.5 Mighty Hoop: Same Rules, Smaller Frame, Less Guesswork

The 5.5 inch (approx 13cm) frame is the workhorse for left-chest logos. Shayna applies the same logic here, but with a specific visual cue for the smaller fixture.

Orientation Update:

• Bottom Frame: The white plastic side faces down (against the table).
• Brackets: Thin bracket = Machine side. Fat bracket = Body side.


Expert Note: Smaller frames have less surface area for grip. Precision is non-negotiable here. A 2-degree rotation error on a small chest logo is visually obvious. If you are working with the 5.5 mighty hoop, take an extra second to align the "Fat Belly" perfectly parallel to your table edge.

Hooping the 5.5 Frame on a Towel: Don’t Skip the Topper (It’s What Keeps Loops from Poking Through)

Here we introduce a critical material component: Water Soluble Topping (Solvy).

The Problem: Towels are made of loops (terry cloth). If you stitch directly onto them, the threads sink into the pile, and loops poke through your satin stitches. It looks messy and unprofessional.

The Solution: The Topper acts as a temporary suspension bridge for your stitches.

The Process:

1. Sandwich: Bottom Frame -> Stabilizer -> Dry Towel.
2. Wave Clamp: Allow the magnets to engage.
3. Topper: Lay the water-soluble film on TOP of the hooped towel.
   • Pro Tip: You don't necessarily need to hoop the topper. You can float it on top and wet your finger to stick it to the corners, or use a magnetic window. However, Shayna's method implies hooping it for security.


If you are setting up the mighty hoop 5.5, treat the Topper as a mandatory ingredient, not a garnish.

Setup Checklist: The "Go/No-Go" Decision

• Orientation: Fat Belly to you? Warning Label away?
• Tension: Stabilizer passes the "Drum Tap" test?
• Surface: Towel loops are smoothed down?
• Topper: Is the water-soluble film present?
• Clearance: Is the hoop fully cleared of the table before attaching to the machine pantograph?

Safe Un-Hooping with Strong Magnets: Use the Table, Anchor the Fat Bracket, Then Lift the Handle

New users often try to pull the hoops apart in mid-air. Do not do this. It creates strain on your rotator cuff and risks the hoop snapping back onto your fingers.

The Lever Technique:

1. Anchor: Place the hoop flat on the table.
2. Hold: Place palms firmly on the Fat Belly (bottom) bracket tabs to pin the bottom frame to the table.
3. Leverage: Grasp the handle of the top frame and peel up like opening a heavy cooler.


Warning: MAGNET SAFETY.
1. Medical Devices: Mighty Hoops contain Neodymium magnets. Do not use if you have a pacemaker or ICD. High magnetic fields can disrupt these devices.
2. Electronics: Keep at least 6 inches away from credit cards, phones, and computerized sewing cards.

Placement That’s “A Bit Off” with Mighty Hoops: The Real Causes (and the Fixes That Don’t Waste Towels)

If your design isn't centered where you marked it, do not blame the machine yet. We troubleshoot from "Physical" to "Digital."

Troubleshooting Matrix

The Commercial Solution for Polos: A viewer asked about hooping the back of polos. Polos are tricky due to seams. While the table method works, if you are doing 50+ shirts, this is the "Trigger Point" to upgrade your tooling. Consistently aligning tubular garments is faster with a Hooping Station (a fixture that holds the hoop for you).

If you struggle with hoop burn on delicate knits, upgrading to magnetic hoops for babylock embroidery machines or specific frames for your brand (Brother, Janome, Ricoma) is the industry standard solution.

Stabilizer Decision Tree for Towels, Minky, and “Fluffy Problems” (Back + Topper)

Stop guessing. Follow this logic path for any plush fabric.

Decision Tree: Fabric Profile Analysis

1. Is the fabric unstable/stretchy? (e.g., Minky, Knit Towel)
   • YES: Use Cut-Away Stabilizer. It provides permanent structure preventing the design from warping over time.
   • NO: Use Tear-Away Stabilizer. (Standard Cotton Terries).
2. Does the fabric have a pile/nap? (e.g., Velvet, Towel, Fleece)
   • YES: You MUST use a Water-Soluble Topper.
   • NO: No topper needed.

The "Fluffy" Formula:

Plush Fabric = Cut-Away (Bottom) + Solvy (Top) + Ballpoint Needle (75/11)

Watch Out: Spray Adhesive, Cleaning, and the “Cracking Hoop” Comment

A crucial maintenance note appeared in the comments regarding cracking hoops.

The Chemistry of Plastics: Mighty Hoops are durable, but acrylics and plastics react poorly to certain solvents.

• Avoid: Acetone, harsh paint thinners, or soaking the hoops in "Orange" oil cleaners. These can cause micro-fractures (crazing) in the plastic housing over time.
• Use: Isopropyl Alcohol (IPA) or mild soapy water to clean off adhesive residue.
• Adhesive: Use spray adhesive sparingly. A light mist is enough. Heavy coating builds up gunk that requires harsh scrubbing.

The Upgrade Path: When a Magnetic Hoop Is Enough—and When You’ve Outgrown Hobby Workflow

You are reading this because you want better results. Let's diagnose your current stage and the tools that unlock the next level.

Level 1: The Hobbyist (1-10 items/week)

• Pain Point: Wrist pain, hoop burn.
• Solution: Magnetic Hoops for your single-needle machine. The "Wave" clamp solves the pain, and the magnets solve the burn.

Level 2: The Side Hustle (20-50 items/week)

• Pain Point: Speed. Changing threads manually takes longer than the stitching. Hooping on a flat table is slow for tubular shirts.
• Solution: Hooping Station. This fixture holds the bottom hoop static, allowing you to slide garments on quickly.

Level 3: The Production Shop (50+ items/week)

• Pain Point: Scale. You can't keep up with orders on a single needle.
• Solution: SEWTECH Multi-Needle Machine.
  • Combined with magnetic frames, a multi-needle machine allows you to load the next hoop while the first one stitches.
  • No manual thread changes.
  • This is where your hobby becomes a scalable business.

And if you’re tempted by accessories like a hooping station for embroidery machine, stick to the basics first: Master the "Fat Belly" orientation and the "Drum Tight" stabilizer test. Once you have those physics mastered, the tools will just make you faster.

Operation Checklist: Final Safety

• Clearance: Hoop moves freely without hitting the machine arm?
• Thread Path: Upper thread is not caught on the magnet handle?
• Un-Hooping Plan: You have a clear table space ready for the "Lever" removal method?
• Result: Did the topper wash away cleanly? (Use a damp cloth or steam).

You have the knowledge. Now, trust your hands, trust the "click," and let the magnets do the work.

FAQ

• Q: How do I orient a Mighty Hoop magnetic embroidery frame correctly to stop off-center embroidery placement on towels?
  A: Use the “Fat Belly” rule on the bottom frame every time to prevent consistent left/right or up/down offset.
  • Rotate the bottom frame on the table until the thicker bracket (“fat” bracket) faces your body.
  • Keep the thinner bracket facing the embroidery machine side.
  • Build the habit: set the bottom frame first, confirm orientation, then add stabilizer and towel.
  • Success check: the bottom frame’s thick bracket is visibly closest to you before any fabric is added.
  • If it still fails: un-hoop and re-check that the frame was not rotated 180° during the fabric “sandwich” step.
• Q: How do I use the orange “Warning/Caution” sticker on a Mighty Hoop top frame to prevent hoop orientation mistakes?
  A: Keep the orange warning label farthest away from your body as a quick “north arrow” for top-frame direction.
  • Locate the orange warning sticker before you bring the top frame near the magnets.
  • Hold the top frame so the warning label is on the far side (machine side) as you clamp.
  • Pair this with the bottom-frame “Fat Belly toward you” rule for a two-step fail-safe.
  • Success check: when you are standing at the table, the warning label is on the opposite side from your waistband.
  • If it still fails: confirm you did not swap which part you’re calling “top” vs “bottom” frame during setup.
• Q: How do I hoop a thick plush towel with a Mighty Hoop 8x13 magnetic hoop without pinching fingers or shifting fabric?
  A: Use the 45-degree “wave clamp” method—never drop the top frame straight down.
  • Clear the table of metal tools (scissors, snips, tweezers) before bringing magnets near the work area.
  • Lay the sandwich in order: bottom frame → stabilizer → towel (center mark aligned).
  • Hover the top frame at ~45°, touch down one edge first, then let it close in a rolling “wave.”
  • Success check: you hear a sharp, clean “CLACK” and the towel surface looks flat (no bunching near the frame edge).
  • If it still fails: un-hoop and re-clamp while avoiding any “pushing” motion that drags the towel during magnet engagement.
• Q: How do I know if stabilizer tension is correct in a Mighty Hoop before stitching to prevent birdnesting and registration loss?
  A: Do the “tight like a drum” stabilizer tap test before the hoop ever goes on the machine.
  • Flip the hooped project and tap the stabilizer with a fingernail.
  • Re-hoop if the stabilizer feels spongy or shows wrinkles on the back (flagging risk).
  • Smooth the stabilizer flat on the bottom frame before clamping—magnetic hoops won’t “tighten later” like screw hoops.
  • Success check: the stabilizer sounds tight and resonant like a drum and looks smooth with no ripples.
  • If it still fails: change the stabilizer approach (often switching from tear-away to cut-away on more unstable/plush items helps).
• Q: What stabilizer and topper combination should I use for towels, minky, and other fluffy fabrics with magnetic embroidery hoops?
  A: Use a bottom stabilizer matched to fabric stability plus a water-soluble topper whenever there is pile/nap.
  • Choose bottom stabilizer: use cut-away for unstable/stretchy plush (often minky/knits), or tear-away for more stable cotton terry towels.
  • Add water-soluble topper on top whenever the fabric has loops or nap to keep stitches from sinking.
  • Smooth loops down and treat topper as mandatory on towels (not optional decoration).
  • Success check: satin stitches sit on top cleanly with minimal loop poke-through after stitching.
  • If it still fails: increase control by securing the topper more firmly (often floating and anchoring corners works) and re-check hooping tension with the drum test.
• Q: How do I safely un-hoop a Mighty Hoop magnetic frame without shoulder strain or the hoop snapping onto fingers?
  A: Use the table as a lever point—don’t pull strong magnets apart in mid-air.
  • Place the hooped item flat on a table.
  • Pin the bottom frame by pressing palms firmly on the thick (“Fat Belly”) bracket tabs.
  • Peel the top frame up by the handle like opening a heavy cooler lid.
  • Success check: the top frame lifts in a controlled “peel” without sudden snapping or finger contact at the seam.
  • If it still fails: reposition hands farther from the magnetic gap and re-anchor the bottom frame more firmly before lifting.
• Q: What magnetic hoop safety rules matter most for Mighty Hoops regarding pacemakers, electronics, and pinch hazards?
  A: Treat Mighty Hoops as crush-hazard magnets and keep them away from medical implants and sensitive electronics.
  • Keep fingers, jewelry, and tools out of the gap between frames during clamping (strong snap force can bruise or blister).
  • Do not use around pacemakers or ICDs due to strong neodymium magnets.
  • Keep magnets away from phones, credit cards, and similar items (a safe starting point is to maintain clear distance and follow device guidance).
  • Success check: clamping and un-clamping can be done with hands staying on handles/outer edges only—never between frames.
  • If it still fails: slow down, reset on a clear table, and use the wave clamp plus table-lever removal method every time.
• Q: When should a towel embroidery workflow upgrade from technique fixes to a hooping station or a SEWTECH multi-needle embroidery machine?
  A: Upgrade based on the bottleneck: fix hooping physics first, add fixtures for speed, then add needles for volume.
  • Level 1 (technique): reduce hoop burn and shifting by mastering orientation checks and the drum-tight stabilizer test.
  • Level 2 (tooling): add a hooping station when flat-table hooping slows down repetitive garment loading (often tubular shirts/polos).
  • Level 3 (capacity): move to a SEWTECH multi-needle embroidery machine when order volume makes manual thread changes the real time sink.
  • Success check: cycle time drops without new placement errors (fewer re-hoops, fewer rejects).
  • If it still fails: document the failure pattern (consistent drift vs random drift vs puckering) and correct the physical cause before investing further.
