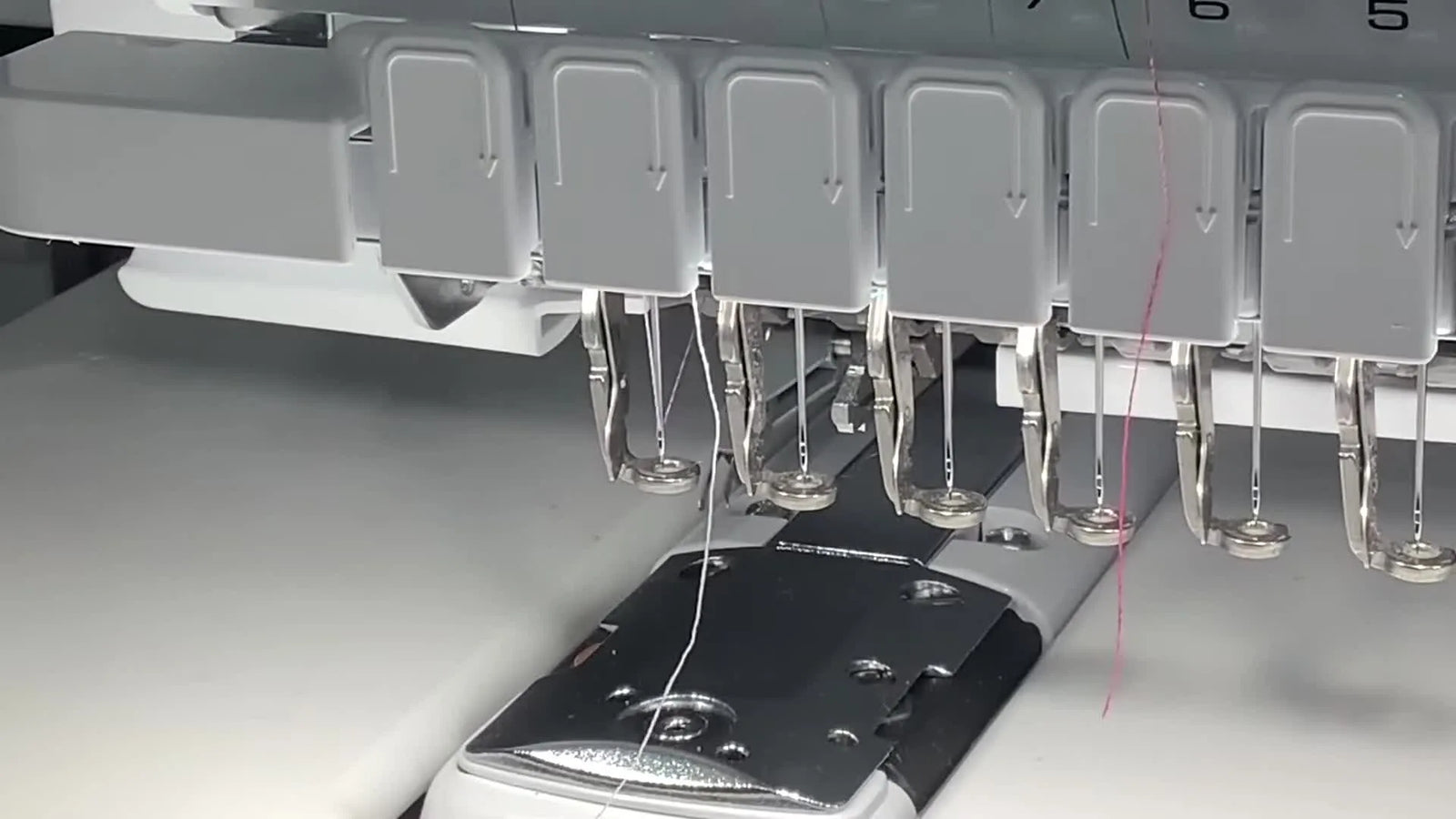

Stop Fighting Your Brother PR1055X: Needle Changes, Auto-Threading, and a Tension Test That Actually Tells the Truth

If you’ve ever changed a needle on a multi-needle machine and thought, “Why is this suddenly harder than it should be?”—you are not alone. The Brother Entrepreneur Pro X PR1055X is a production workhorse, but it is surgically precise about one thing: needle orientation and seating depth.

Machines operate on physics, not luck. A needle that is 1mm too low or rotated 5 degrees to the left will not just fail to stitch; it can shatter the automatic threader hook, costing you hundreds of dollars in repairs and days of downtime.

This guide rebuilds the exact workflow shown in the video—needle change, automatic threading, and the critical 10-color bar test—but filters it through the lens of specific industry experience. We will move beyond "how-to" and focus on "how-to-not-fail," ensuring you can execute this maintenance cleanly, repeatably, and without the micro-mistakes that waste an hour of your production day.

The Calm-Down Check: What “Normal” Looks Like on a Brother PR1055X When You Change Needles

Stop. Take a breath. The first thing I want you to internalize is this: a needle change that takes two tries doesn’t mean you are incompetent—it usually means your tactile feedback loop is off by a hair.

On the brother pr1055x, the needle system is binary. It is either perfect, or it is wrong. The needle must be fully seated against the stopper bar and oriented with the flat side facing directly back. If either variable is off, the automatic threader becomes your "truth detector."

When the threader engages, it follows a pre-programmed path. If the needle eye isn't exactly where the computer expects it to be, the threader hook hits steel instead of air. Conversely, when it threads smoothly and leaves a loop through the eye, you have physical confirmation that your mechanical installation is correct.

Your success metrics for this workflow:

1. Tactile: The needle moves into the bar with a satisfying "stop" and doesn't slide out when you let go (before tightening).
2. Visual: The auto-threader engages cleanly and pulls a distinct loop through the eye.
3. Auditory: The machine runs with a rhythmic "thump-thump," not a sharp "click-clack."
4. Data: The back of the 10-color test shows a white central column occupying 1/3 of the width.


The “Hidden” Prep Pros Do Before Touching the Needle Set Screw (White Tool, Tweezers, and a Test Swatch)

Amateurs rush to loosen the screw. Professionals set up the "operating theater" first. Before you touch a screwdriver, you must have your tools and consumables arranged so you aren't hunting for them with one hand holding a loose needle.

The Essential Tool Kit (Keep within 6 inches of the needle bar):

• The White Needle-Changing Tool: This comes with the machine. It is not optional. It is designed to hold the needle at the correct angle.
• Precision Tweezers: Not the blunt ones from a first aid kit. You need hooked or fine-point tweezers for guiding thread through the wire loops.
• A "Sacrificial" Scrap: White woven cotton or muslin.
• Stabilizer: Medium-weight cutaway or tearaway (depending on the scrap).
• Embroidery Thread: (The video demonstrates with standard 40wt Poly).
• White Bobbin Thread: Specifically 60wt or 90wt bobbin thread.

The "Hidden" Consumables (What you often forget):

• Compressed Air / Dust Brush: While the needle is out, clean the needle bar area.
• Fresh Needles: Don't re-insert a used needle. If you took it out, replace it. (Use system HAx130EBBR or equivalent 75/11 for general use).


A quick note on maintenance intervals: The creator answers a common question—how often to change needles? The rule of thumb in the video is every 6–8 hours of sewing.

• Expert Calibration: If you are stitching through heavy items likestructured caps or canvas, reduce this to 4 hours. Needles are cheap (cents); ruined garments are expensive (dollars). Change them before they burr.

Warning: Physical Safety Hazard. Keep fingers, tweezers, and loose sleeves/jewelry away from the needle bar area when the head is moving or when you press the "Start" button. A multi-needle machine does not stop for fingers. It will puncture bone. Always use the "Lock" mode on the screen when changing needles if you are not using the specific needle-change mode.

Prep Checklist (Do this BEFORE you loosen the screw)

• Inventory: Confirm you have the correct needle system (HAx130EBBR / 130/705H) and size (75/11 is the sweet spot for standard jobs).
• Position: Place the white needle tool and tweezers on the table where you can grab them without taking your eyes off the needle bar.
• Fabric: Hoop your test scrap with backing. Do not "float" it; hoop it properly.
• Bobbin: Ensure a full bobbin of white thread is loaded. A low bobbin affects tension physics.
• Selection: Decide which needle number you are changing (Video uses Needle #10).


The Needle Change That Doesn’t Make You Swear: Using the White Brother Needle Tool Without Hitting the Release Button

This is the heart of the operation, and it is where 90% of user frustration occurs. The tool is designed to help you, but if you hold it wrong, it fights you.

The Physics of the Flat Back

The needle shank is round on the front and flat on the back. This isn't just for grip; it aligns the "scarf" (the indentation above the eye) with the rotary hook in the bobbin area. If that flat side isn't perfectly facing the back of the machine (12 o'clock position), the hook will miss the thread loop, causing skipped stitches.

Step-by-Step Sensory Guide

1. Grip the Tool: Load the new needle into the white tool.
   • CRITICAL: Hold the tool by the sides. Do not rest your thumb on the top button/slider. If you press that button even 5%, the needle unlocks and drops.
2. Loosen: Use the screwdriver to loosen the set screw. You do not need to remove it completely—just give it 2-3 full turns loops so the old needle drops.
3. Insert: With the flat side of the needle facing the back, push the needle up into the needle bar.
   • Sensory Check: You should feel a hard, metallic "stop" when it hits the top of the bar. It should not feel mushy.
4. The "Wiggle" Test: While holding upward pressure, wiggle the tool slightly left/right. The needle should not rotate. This confirms the flat side is mating with the flat back of the holder.
5. Tighten: Tighten the set screw firmly.
   • Expert Note: Tighten it until it stops, then give it a tiny 1/8th turn "snug." Do not over-torque it, or you will strip the threads.

Checkpoint: Remove the white tool. The needle must stay suspended, fully seated. If it drops even 1mm, you must start over.

The Most Common Fail (As seen in the video)

The creator struggles because the needle keeps "not going in."

• Diagnosis: Their thumb is inadvertently pressing the release button on the white tool while pushing up.
• Review: Watch your thumb placement. It is a biomechanical error, not a machine error.


Make the Brother PR1055X Auto Needle Threader Work Every Time: Needle Selection on the LCD and What the Grey Hook Is Doing

Once the needle is physically installed, we move to the digital interface. The machine needs to know which needle bar to address.

On the LCD Screen:

1. Navigate to the needle selection screen.
2. Tap the needle number corresponding to the physical change (Needle #10).
3. Tap the automatic threading icon (Needle with generic thread icon).

The Mechanical Shift: You will hear the machine motor whir as the entire head moves laterally. The grey threading mechanism (the hook assembly) will descend and engage near the needle eye.

• Expert Insight: If you’re running a brother 10 needle embroidery machine, this alignment is the moment of truth. The threader arm is a calibrated robot. It assumes the needle eye is exactly 14.2mm (hypothetically) from the needle plate. If your needle is not fully seated up, the eye is too low, and the hook will bend your needle or break itself.

Setup Checklist (Before you touch the thread)

• Screen Match: Does the screen show #10 selected?
• Mechanism Active: Is the grey hook mechanism down and hovering near the needle?
• Slack: Pull about 12 inches of thread from the spool so you have zero tension fighting you.
• Tool: Have your tweezers in your dominant hand.


The Thread Path That Prevents Missed Threading: Wire Loop Guide → Metal Guide → Side Cutter

Geometry matters here. You are creating a "Z" shape with the thread that allows the hook to grab it.

The "Floss" Technique

1. The Wire Loop: Use tweezers to pass the thread through the small wire loop guide directly above the needle clamp.
2. The Metal Guide (The "7" Shape): Bring the thread under the metal guide on the automatic threader mechanism.
   • Sensory Check: You should feel the thread "seat" under the hook. It shouldn't be floating. It needs to be captured.
3. The Cut: Pull the thread to the right, into the built-in cutter blade.
   • Action: Pull firmly until it cuts. This creates the exact length of thread "tail" needed for the loop. If the tail is too long, it wraps around the needle. If too short, it pulls out.

Checkpoint: The thread should look taut across the guides, like a violin string, not a loose noodle.

The “Second Tap” Moment: Finishing Brother PR Threading and Reading the Thread Loop Like a Pro

In the video, the creator presses the automatic threading button a second time. This is the execution command.

What happens physically: The hook passes through the needle eye (from back to front), grabs the thread you positioned, and pulls it back through the eye (front to back).

The Visual Confirmation: You are looking for a loop. The thread end shouldn't be pulled completely through; there should be a distinct loop of thread sticking out of the back of the eye.

• Pass: You see a loop. Pull the tail gently to clear it.
• Fail: No loop? The thread likely slipped off the metal guide (Step 2 above) or the needle is rotated. Do not force it. Re-seat the thread and try again.

The 10-Color Bar Test Stitch on Brother PR1055X: The Fastest Way to Validate All Needles (and Catch Tension Issues Early)

Never start a production run immediately after maintenance. You need data. The creator selects a built-in test pattern (1.18" x 3.78") that runs a satin bar for every single needle.

How to Run the Test Safely

1. Hoop the Scrap: Use a standard generic tubular hoop.
2. Select Pattern: Load the 10-color bar test.
3. Set Speed: For tests, do not run at max speed. Set the machine to a "Sweet Spot" of 600 - 800 SPM. This is fast enough to test tension physics but slow enough for you to hit "STOP" if you hear a crash.
4. Watch & Listen:
   • Watch: Does the thread fray?
   • Listen: Do you hear a "snap" or "grinding"?


This test is your insurance policy. A 2-minute test prevents a ruined $40 jacket.

The Production Bottleneck: If you find yourself skipping this test because "hooping takes too long," you have identified a workflow flaw. Hooping should not be painful. If you are doing frequent testing or small runs, a dedicated hooping station for embroidery isn't a luxury; it's a consistency tool that ensures your fabric is perpendicular and tensioned identically every time.

Operation Checklist (The "Pre-Flight")

• Fabric: Drum-tight (tap it, it should sound like a drum).
• Clearance: Hoops are clear of the presser foot arms.
• Tails: Thread tails are trimmed or held so they don't get sewn under.
• Ready to abort: Finger hovering over the Stop button.


Reading the Back of the Test Like a Shop Owner: White Bobbin Thread Should Sit in the Center (Not Wrap Around)

The machine stops. You flip the hoop over. This is where you become a diagnostician.

The 1/3 Rule (The Gold Standard): Look at the satin column on the back. You should see three distinct strips:

1. Colored Top Thread (Left side, approx 1/3 width).
2. White Bobbin Thread (Center, approx 1/3 width).
3. Colored Top Thread (Right side, approx 1/3 width).


Tension Physics 101

• If you see ONLY color (No white): The top tension is too loose (floppy), or the bobbin tension is massively too tight. The top thread is "winning" the tug-of-war.
• If you see ONLY white (Cigar shape): The top tension is too tight (or thread path is snagged), pulling the bobbin thread all the way to the top.
• Goal: A balanced tug-of-war where the knot works hides inside the fabric sandwich.

The Hooping Physics That Quietly Controls Your Tension Test (Wrinkles, Drift, and Why Backing Matters)

Here is the variable most tutorials ignore: False Tension Readings. If your fabric is loose in the hoop, it will flag (bounce) up and down with the needle. This lack of resistance makes the tension look loose, even if the knobs are set correctly.

Rule of Thumb: If the stitching looks bad and the fabric is puckering, fix the hooping first, not the tension knobs.

This is where the quality of your embroidery hoops for brother machines defines your output. Standard hoops rely on friction and screw strength. Over time, or with thick fabrics, they slip.

Warning: Magnet Safety. If you choose to upgrade to magnetic frames (discussed below), be aware they use N52 industrial magnets. They can pinch skin severely and damage mechanical watches or credit cards. Keep them away from pacemakers.

Decision Tree: Fabric → Stabilizer Choice for Valid Tests

• Scenario A: Standard Cotton / Muslin Test (The Video)
  • Stabilizer: Medium Tearaway or Cutaway.
  • Why: The fabric is stable. The stabilizer just adds stiffness.
• Scenario B: Stretchy Knit / Performance Wear
  • Stabilizer: No-Show Mesh Cutaway (Must use Cutaway).
  • Why: Knits stretch. If you use tearaway, the stitches will perforate the paper, the fabric will relax, and you will get gaps.
• Scenario C: Thick Jacket / Canvas
  • Stabilizer: Firm Tearaway.
  • Why: The fabric supports itself; the backing is mostly for the bobbin surface.

Troubleshooting the Two Problems Shown (and Implied) in the Video: Needle Slips, Bobbin Breaks

Let's structure the chaos into a logic path.

The Upgrade Path That Actually Saves Time: When Standard Brother PR1055X Hoops Become the Bottleneck

You have mastered the needle change. You understand tension. But you are still spending 5 minutes hooping a shirt for a 2-minute run time.

When your skill exceeds your tools, it is time to upgrade the hardware. If you are struggling with "Hoop Burn" (those crushed rings on fabric) or wrist fatigue from wrestling with screws, standard hoops are your limiting factor.

The Solution: Magnetic Tech Searching for magnetic embroidery hoops for brother leads you to the modern standard for production.

• Why Upgrade? Magnetic hoops (like those from SEWTECH) hold the fabric flat using vertical magnetic force rather than friction rings. This eliminates the "tug and screw" motion that causes hoop burn.
• The Commercial Logic: If a magnetic hoop for brother saves you 60 seconds per garment, and you stitch 50 garments a day, you have just gained nearly an hour of production time. That is pure profit.
• Compatibility: Ensure you look for brother pr1055x hoops specifically designed for the tubular arm of your machine.

The “Last Look” Standard: What a Finished PR1055X Test Swatch Should Tell You in 10 Seconds

The video concludes with a clean swatch. You should aim for the same.

The 10-Second Quality Audit:

1. Front: Do the satin bars have crisp edges? (No "sawtooth" look).
2. Back: Is the white bobbin thread centered? (The 1/3 Rule).
3. Feel: Does the embroidery feel pliable or bulletproof? (If bulletproof, density is too high or tension too tight).

Once you can execute this cycle—Install, Thread, verify with the Loop, and Validate with the Bar Test—you stop hoping for good embroidery and start manufacturing it. Control the variables, and the machine will do the work.

FAQ

• Q: Why does the Brother PR1055X needle keep slipping out of the white Brother needle-changing tool during needle installation?
  A: This is usually thumb placement—hold the white tool by the sides so the release button/slider is not being pressed.
  • Re-grip: Hold the tool on the left/right sides only, keeping the thumb off the top control.
  • Insert: Push the needle up with the flat side facing directly to the back of the Brother PR1055X.
  • Tighten: Snug the needle set screw firmly, then remove the tool.
  • Success check: The needle stays fully suspended after the tool is removed and does not drop even 1 mm.
  • If it still fails: Loosen the screw again and re-seat the needle until a hard “stop” is felt against the stopper bar.
• Q: How do you confirm a Brother PR1055X embroidery needle is fully seated and oriented correctly before using the auto needle threader?
  A: Use a tactile “hard stop” plus a quick threader check—on the Brother PR1055X the needle is either perfectly seated or it will cause problems.
  • Push up: Insert the needle until a firm metallic stop is felt at the top of the needle bar.
  • Align: Keep the needle flat side facing directly to the back of the machine.
  • Wiggle-test: Wiggle slightly left/right while pushing up; the needle should not rotate.
  • Success check: The auto needle threader later pulls a clear loop through the needle eye without clicking or crashing.
  • If it still fails: Reinstall with a fresh needle and recheck orientation before attempting threading again.
• Q: What is the correct Brother PR1055X auto needle threader setup on the LCD when changing Needle #10?
  A: The Brother PR1055X must be told the exact needle number on the screen before pressing the auto-threading icon.
  • Select: Tap Needle #10 on the needle selection screen to match the physical needle bar.
  • Activate: Tap the automatic threading icon and confirm the grey hook mechanism comes down near the needle.
  • Create slack: Pull about 12 inches of thread so the threader is not fighting spool tension.
  • Success check: The mechanism descends and hovers near the needle eye without contacting the needle.
  • If it still fails: Stop and re-seat the needle (not fully seated or rotated needles commonly cause hook contact).
• Q: Why does the Brother PR1055X auto needle threader not pull a loop through the needle eye even after pressing the threading button twice?
  A: Most “no loop” failures come from the thread slipping off the metal guide or the needle being rotated/not fully seated—reset the thread path and try again without forcing it.
  • Re-thread guides: Pass thread through the small wire loop above the needle clamp, then seat it under the metal “7-shape” guide on the threader mechanism.
  • Cut correctly: Pull thread to the right into the built-in cutter to create the correct tail length.
  • Execute: Press the auto-thread button again to pull the loop.
  • Success check: A distinct loop appears at the back of the needle eye; gently pull the tail to clear it.
  • If it still fails: Reinstall the needle (full seat + flat side to the back) and repeat the guide → metal guide → cutter sequence.
• Q: What should the back of the Brother PR1055X 10-color bar test look like for correct tension using white bobbin thread?
  A: Use the “1/3 rule”—white bobbin thread should sit centered on the back of each satin bar, not disappear and not take over.
  • Run test: Stitch the built-in 10-color bar test on hooped scrap with stabilizer and white bobbin thread.
  • Inspect back: Look for three bands—color (left), white bobbin (center), color (right), each about 1/3 width.
  • Interpret: Only color on the back often indicates top tension too loose (or bobbin too tight); only white often indicates top tension too tight (or thread path snagged).
  • Success check: The white bobbin column stays centered and consistent across needles.
  • If it still fails: Fix hooping first (loose fabric can create false “loose tension” symptoms), then re-check thread paths and cleanliness.
• Q: What speed should a Brother PR1055X run for a safe 10-color bar tension test after a needle change?
  A: A safe test range on the Brother PR1055X is 600–800 SPM so issues are detectable without risking a high-speed crash.
  • Set speed: Dial test speed to 600–800 SPM instead of maximum.
  • Monitor: Watch for thread fraying and listen for sharp “click-clack,” snaps, or grinding.
  • Stay ready: Keep a finger ready to hit Stop if sound or stitch formation changes suddenly.
  • Success check: The machine runs with a steady rhythmic sound and completes bars without abnormal noise.
  • If it still fails: Stop immediately and re-check needle seating/orientation and the threading path before continuing.
• Q: What are the key safety risks when changing needles and using magnetic embroidery hoops on a Brother PR1055X?
  A: Protect hands first—multi-needle heads can injure fingers during movement, and N52 magnetic frames can pinch skin and affect sensitive items.
  • Lock out movement: Use the machine’s lock mode (or the appropriate needle-change mode) before working near the needle bar.
  • Keep clear: Keep fingers, tweezers, sleeves, and jewelry away from the needle area before pressing Start.
  • Handle magnets carefully: Keep magnetic hoops away from pacemakers, mechanical watches, and credit cards; keep skin out of pinch points.
  • Success check: Needle changes are performed with the head stationary/locked and no hands are near moving parts when threading or starting.
  • If it still fails: Pause the job and reset the workflow—do not “reach in” while the machine can move.
