Stop Fighting Your Brother PR1055X: Magnetic Hooping + Manual Color Sequence for Stress-Free OESD Tiling Scenes

When you are deep into an OESD tiling scene, the embroidery itself isn’t the hard part. The machine does the stitching. The struggle—and the source of most failures—lies in the re-hooping, the spatial orientation, and those panic-inducing moments when the screen asks for a color you don’t have loaded.

Embroidery is an experience science. It is not just about pressing "Start"; it is about rhythm. Jeannie’s workflow on the "Midnight Delivery" project (a Thomas Kinkade design) demonstrates a solid, production-minded rhythm: pop the magnetic frame off, clean the back, label the tile, and re-hoop the next strip without stretching the bias.

However, watching a pro do it and doing it yourself are different things. Below, we have rebuilt this process into a rigorous, "White Paper" style standard operating procedure (SOP). This guide is designed to remove the cognitive friction from the process, allowing you to achieve consistent results from the first tile to the last.

Don’t Panic When the Hoop Comes Off: The Magnetic Frame “Release” That Saves Your Sanity

Removing a large magnetic frame from a multi-needle machine like the Brother PR series requires a specific physical technique. It is not about brute strength; it is about clearance and control.

Jeannie releases the magnetic frame by lifting the side levers (often called “doohickeys” in casual shop talk) and sliding the hoop forward off the machine arm.

The Action Step:

1. Lift the Levers: Engage the release mechanisms on both sides of the hoop arms simultaneously.
2. Slide and Tilt: Pull the hoop straight toward you.
3. Check Clearance: As the hoop clears the needle bar, slightly angle the frame to the side. The back of the magnet frame is bulky and can easily bump the machine body or the throat plate if you pull straight back aggressively.

Sensory Check:

• Feel: The release should feel smooth, like a drawer sliding on a track. If you feel resistance, do not yank. Check if the pantograph arm is fully retracted.
• Sound: You should hear the metallic click-clack of the arms releasing, but never a grinding sound.

Pro Tip: Consistency is the enemy of error. Perform this exact "unhoop → clean → label → re-hoop" sequence every time. The one tile that ends up rotated is always the one where you broke your own protocol.

Warning: Pinch Point Hazard. When releasing and specifically when re-attaching powerful magnetic frames, keep fingers clear of the locking mechanism and the space between magnets. Always park scissors away from the needle area before moving the hoop to prevent scratching the machine bed or breaking a needle.

The “Hidden” Prep Pros Do First: Hooping Mat, Pre-Cut Stabilizer, and a No-Overlap Rule

Before a single stitch is formed, the battle is won or lost at the prep station. Jeannie drops the hoop onto a non-stick hooping mat (specifically a pink mat labeled “HOOP MAT dime”).

Why use a mat? It provides friction. When you are layering slippery Shape Flex-backed fabric over stabilizer, a slick table surface causes layers to "swim," leading to misalignment. The mat anchors the bottom hoop frame.

The "No-Overlap" Physics: Jeannie uses two layers of heavy tear-away stabilizer. Her golden rule is critical: never let old stabilizer overlap into the next stitching zone.

• The Why: Embroidery machines are calibrated for a specific clearance. If you overlap stabilizer, you create a "ramp" of uneven thickness. This causes the presser foot to tilt, leading to skipped stitches or thread shredding at the transition point.

The Pre-Cut Discipline: Do not cut stabilizer while the hoop is open. Pre-cut your stack.

1. Measure: Cut 15-inch lengths of heavy tear-away.
2. Fold & Trim: Fold in half and trim the width to 11 inches (or whatever fits your specific hoop width).
3. Stack: Have a pile of 20+ sheets ready.

Hidden Consumables Checklist:

• Spray Adhesive (Optional): Many pros use a light dusting of localized temporary spray adhesive (like 505) to tack the stabilizer layers together, preventing them from shifting during the magnetic snap.
• Fresh Needles: Start a tiling scene with fresh needles (Size 75/11 is the standard safe zone for cotton).


Prep Checklist (Do this before touching the screen)

• Data Verification: Confirm you have your tile/orientation sheet printed and visible.
• Stabilizer Inventory: Stack pre-cut stabilizer pieces (15" folded, cut to 11") within arm's reach.
• Marking Tool: Keep a Sharpie uncapped at the hooping station.
• Safety Zone: Verify scissors are handy but not resting on the machine bed or near the magnetic zones.
• Fabric Audit: Verify your fabric strip has the Shape Flex (fusible interfacing) applied correctly to the stitch area.

Tear-Away Stabilizer Without Warping the Tile: The “Hold the Stitches” Technique

Removing tear-away stabilizer is the most dangerous moment for your fabric's geometry. If you pull the paper, the paper pulls the stitches, and the stitches pull the fabric bias.

The Action Step:

1. Anchor: Place your non-dominant hand flat against the embroidered design, pressing it firmly into the table.
2. Tear: With your dominant hand, tear the stabilizer away from your anchored hand.
3. Sensory Check: You should feel the paper giving way, not the fabric stretching. If the fabric ripples under your hand, you are pulling too hard.

Concept: Do not let the stitches become the handle. You are surgically removing the support structure, not ripping open a package.

Label Every Tile Like You’ll Thank Yourself Later: Sharpie Numbers + Orientation Discipline

Tiling scenes are jigsaw puzzles where every piece looks similar. Jeannie admits she has forgotten to label in the past—a mistake that leads to hours of confusion during assembly.

The Protocol:

1. Reference: Look at the Master Orientation Sheet.
2. Verify: Confirm the orientation of the tile you just finished.
3. Mark: Write the tile number (e.g., “11”) on the back of the stabilizer or the fabric margin using a Sharpie.

Why: Once the tile is off the machine, "Top" and "Bottom" become indistinguishable. Labeling immediately locks in the data.

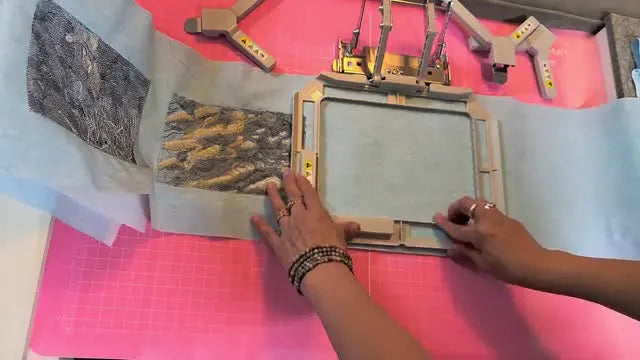

Magnetic Re-Hooping on a Fabric Strip: Center the Stabilizer, Support the Shape Flex, Don’t Over-Tension

This is the core competency of the magnetic system. The goal is to re-hoop quickly without stretching the fabric strip.

The Sequence:

1. Base Layer: Place the folded stabilizer in the center of the bottom magnetic frame.
2. Fabric Placement: Lay the fabric strip on top (Jeannie’s is approx. 9 inches wide).
3. Alignment Check: Ensure the stabilizer isn't drifting high or low. You need a safety margin of about half an inch of stabilizer extending past the stitch field on all sides.
4. The Snap: Place the top magnetic frame. Let the magnets engage naturally; do not force them.
5. Tensioning: Pull the fabric taut, not tight.

The Sensory Anchor: "Taut vs. Tight"

• Correct (Taut): The fabric is flat and smooth. If you tap it, it makes a dull thud. It feels like a neatly made bedsheet.
• Incorrect (Tight): The fabric is stretched like a drum skin. The weave is visibly distorted.
• The Risk: If you stretch the fabric (Tight), the embroidery will stitch into the stretched fibers. When you un-hoop, the fabric relaxes, and your perfectly square tile puckers into a trapezoid.

To achieve this level of stability, professionals rely on what is technically called a machine embroidery hooping station. These stations provide the registration marks and physical stops that allow you to replicate the exact fabric placement 20 or 30 times in a row without variation.

Warning: High-Strength Magnet Safety. Industrial-grade magnetic hoops are extremely powerful. Keep them at least 6 inches away from pacemakers, insulin pumps, and other implanted medical devices. Avoid placing credit cards, phones, or digital calipers directly on the magnets. Never let two magnets snap together without a buffer layer—they can pinch skin severely.

Clicking the Hoop onto the Brother PR1055X Arm: The “Hole to Nub” Alignment That Prevents Wobble

Failure here results in the dreaded "Pattern Shift" or a broken needle striking the hoop.

The Action Step:

1. Visual Alignment: Locate the alignment hole on the hoop bracket. Locate the metal nub on the machine's pantograph arm.
2. Engage: Slide the bracket until the nub sits inside the hole.
3. Lock: Push back until you hear/feel the lock engage.
4. The "Wiggle Test": Before stitching, grab the hoop lightly and try to wiggle it left and right.
   • Pass: The hoop and the machine arm move as one solid unit.
   • Fail: You feel a mechanical "play" or clicking movement. Remove and re-seat.


Turn On Manual Color Sequence on the Brother PR1055X Before You Program Anything

Multi-needle machines like the Brother PR1055X try to be smart by automatically assigning colors. For complex projects, you need to be smarter. You need Manual Color Sequence.

The Setting:

• Navigate to the settings menu.
• Set Manual Color Sequence to ON.

Why? If this is off, the specific UI button Jeannie uses (the icon showing three spools unsuspecting "staircasing down") may not be visible or active. You need absolute control over which needle fires when. If you own a brother pr1055x, this is the first setting you should master for professional workflow.

Load OESD “Midnight Delivery” Tile 12, Then Rotate 90° So It Actually Fits the Hoop

Standard tiling scenes often come in a portrait orientation, but your fabric strip might be running landscape (or vice versa).

The Data Check:

• File: Tile 12.
• Original Dimensions: 6.83" x 4.56".
• Stitch Count: 43,266.

The Action Step:

1. Load the design.
2. Check the screen visualization against your physical hoop.
3. Rotate: Jeannie rotates 90 degrees (one click to the right).
4. Confirm: Ensure the design stays within the red safety boundary on the screen.




The Needle-Mapping Screen That Makes Multi-Needle Feel Easy: Assign Colors to the Needles You Already Loaded

This is the "Efficiency Hack." Instead of stripping your machine and re-threading to match the digital file, you tell the digital file where the threads are physically located.

Jeannie's Method:

1. Audit the Rack: Look at your machine. "Okay, Black is on Needle 1. White is on Needle 2."
2. Open Mapping Screen: Go to the manual sequence screen.
3. Assign:
   • Select color Step 1 (e.g., Black).
   • Press Keypad Number 1.
   • Select color Step 2 (e.g., Blue).
   • Press Keypad Number (e.g., 6) where Blue is loaded.

Pro Tip: Write the needle numbers on a sticky note or whiteboard next to the machine. Visual memory fails under stress. Many users searching for brother pr1055x hoops are actually struggling with workflow efficiency—mastering this needle mapping is far more valuable than buying more hoops.

Setup Checklist (Before you press “Start”)

• Mode Check: Manual Color Sequence is confirmed ON.
• Geometry Check: Design is rotated to match the physical hoop (90° check).
• Thread Audit: Every color step in the software is mapped to the physical needle holding that thread.
• Exception Handling: You have identified any "missing colors" and allocated a "sacrifice needle."
• Bobbin Check: You know exactly where the programmed pause is for your bobbin swap.

Missing a Thread Color on the Rack? The “Sacrifice Needle” Strategy + Tie-On Thread Change

Real-world production means sometimes you need 11 colors but you only have 10 needles. Or, you just don't want to re-thread Needle 5 because it has a perfectly good gold thread heavily used in the next tile.

The Solution: Identify a "Sacrifice Needle"—a needle currently holding a color not used in this specific tile. Jeannie uses Needle 6.

The Tie-On Method (The fastest way to change thread):

1. Cut: Snip the old thread at the spool pin (top), NOT at the needle.
2. Replace: Swap the spool.
3. Knot: Tie the new thread to the end of the old thread using a small, tight square knot.
4. Pull: Grab the old thread at the needle bar (above the needle eye) and pull.
5. Sensory Check: You should feel the knot pass through the tension disks. If it gets stuck, help it gently. Do not yank.
6. Thread: Once the knot reaches the sewing head, cut the knot off. Do not pull the knot through the needle eye (unless using a large needle and very thin thread, but it is safer to cut and uses the auto-threader).
7. Auto-Thread: Use the machine's automatic threader.

Users of the dime snap hoop or similar systems often use this method to keep the rapid pace of the magnetic hoop matched by the rapid pace of thread management.

Program a Pause (Hand Icon) *Before* the Final Outline So You Can Swap Bobbins at the Right Time

Tiling scenes usually have a final satin stitch outline that requires a matching bobbin color (to prevent white bobbin thread from showing on the back/edges).

The Rule: You cannot insert a stop command on the "Drive Mode" (final stitch-out) screen. It must be done in the Edit/Sequence screen.

The programming sequence:

1. Scroll to the final color block (the outline).
2. Select the step before it.
3. Press the Hand Icon (Stop).
4. Verify: A small hand symbol should appear next to the color block. The machine will now hard-stop and beep at this point, allowing you to swap to a red bobbin (or whatever matches your border).

Listings for magnetic hoops for brother pr1055x often mention speed, but without this programmed pause, speed is dangerous. The pause gives you control.

Choose 800 SPM Unattended and 1000 SPM Attended: A Realistic Speed Habit for Long Stitch-Outs

Speed kills quality if unsupervised. Jeannie provides a rare honest look at production speeds.

• 1000 SPM (Stitches Per Minute): Use this only when you are in the room, listening to the machine. You can hear a thread fraying or a bobbin rattling before it fails.
• 800 SPM (The Sweet Spot): Use this when leaving the room.

Why 800? At 800 SPM, the thread tension is more forgiving, friction heat on the needle is lower, and if a bird's nest (thread jam) occurs, it forms slower, doing less damage before the sensors stop the machine.

Operation Checklist (The last 60 seconds before walking away)

• Stop Verification: Confirm the programmed pause (hand icon) is visible in the sequence.
• Physical Lock: Confirm the hoop is clicked onto the arm (perform the Wiggle Test).
• Support: Confirm the fabric strip overhang is supported by an extension table and not dragging the hoop down.
• Speed Dial: Set max speed to 800 SPM (unattended) or 1000 SPM (attended).
• Launch: Start the run and watch the first 200 stitches to ensure the bobbin thread is catching and top tension is balanced.

Quick Decision Tree: Fabric + Stabilizer Choices for Tiling Scenes

Use this logic flow to prevent "Bulletproof Vest" tiles (tiles that are too thick and stiff).

START: What is your base fabric?

• A) Quilting Cotton (Standard)
  • Goal: Crisp definition, easy tearing.
  • Stabilizer: 2 Layers Heavy Tear-Away.
  • Interfacing: Shape Flex (Fusible) applied to the back of the cotton.
  • Result: Stable stitching, clean edges.
• B) Lightweight Cotton / Batiste
  • Goal: Prevent puckering.
  • Stabilizer: 1 Layer Cut-Away (Mesh) + 1 Layer Tear-Away.
  • Interfacing: Essential. Consider a heavier weight fusible.
  • Result: The cut-away stays in forever, providing permanent support.
• C) Fabric is shifting/rippling?
  • Diagnosis: Cut-Away stabilizer is preferred for anything stretchy, but for tiling scenes, we usually want tear-away for clean backs.
  • Solution: Use Sticky Back Tear-Away OR use the Spray Adhesive method on standard tear-away to bond the fabric completely to the stabilizer.

Troubleshooting the Top 3 "Panic Mechanics"

When things go wrong, do not guess. Follow this diagnostic path.

The Upgrade Path: When to Switch from "Hobby Mode" to "Production Mode"

Once you master the manual workflow, you may hit physical limits. Here is how to judge if it is time to upgrade your tools.

Scenario 1: You are losing 5+ minutes per tile just on re-hooping.

• The Pain: Screwing and unscrewing traditional hoops, dealing with "hoop burn" marks on delicate borders.
• The Solution: A magnetic hoop for brother machines (or your specific brand).
• The ROI: Magnetic hoops turn a 5-minute struggle into a 30-second "snap." If you charge for your work, this pays for itself in two quilts.

Scenario 2: Your wrists hurt.

• The Pain: Repetitive Strain Injury (RSI) from tightening hoop screws.
• The Solution: Magnetic Frames. The clamping force is provided by physics, not your tendons.

Scenario 3: You are constantly re-threading for every project.

• The Pain: You have 4 needles but 12 colors.
• The Solution: Capacity. This is where upgrading to a higher needle-count machine (like the 10-needle Brother PR or high-value SEWTECH multi-needle machines) transforms your day. Creating a "Standard Rack" where your top 10 colors never leave the machine is the secret to high-profit embroidery.

If you are currently managing a tiling scene with a single-needle machine or a traditional screw hoop, you are playing the game on "Hard Mode." Tools like the magnetic embroidery hoop are not just unparalleled for speed; they are essential for the geometric precision that tiling scenes demand.

By following Jeannie's rhythm—Clean, Label, Center, Snap, Map, Pause—you stop fighting the machine. The embroidery becomes what it should be: a quiet, rhythmic production of art.

FAQ

• Q: How do I safely remove a powerful magnetic embroidery frame from a Brother PR series multi-needle machine without bumping the needle bar?
  A: Use a controlled “lift levers → slide forward → slight tilt” release instead of pulling straight back.
  • Lift: Engage both side release levers at the same time.
  • Slide: Pull the hoop straight toward the operator to clear the arm.
  • Tilt: Angle the frame slightly as it clears the needle bar to avoid the bulky back hitting the machine body/throat area.
  • Success check: The release feels smooth like a drawer on rails and sounds like a clean click-clack—never grinding.
  • If it still fails: Stop and check whether the pantograph arm is fully retracted before trying again.
• Q: What prep items should be ready before hooping OESD tiling scene fabric strips with a magnetic frame to prevent misalignment and panic mistakes?
  A: Set up a repeatable prep station: hooping mat, pre-cut stabilizer stack, marking tool, and a clean/safe work zone.
  • Place: Put the bottom frame on a non-stick hooping mat so layers don’t “swim” on a slick table.
  • Stack: Pre-cut heavy tear-away pieces (15-inch lengths, folded and trimmed to about 11 inches or to fit the hoop) and keep 20+ sheets within reach.
  • Stage: Keep a Sharpie at the hooping station and keep scissors nearby but off the machine bed and away from magnetic zones.
  • Success check: The stabilizer and fabric stay put during the magnetic snap with no creeping or drift.
  • If it still fails: Add a light, localized temporary spray adhesive to tack stabilizer layers (and/or fabric) so nothing shifts during clamping.
• Q: How do I prevent stabilizer overlap causing skipped stitches or thread shredding when re-hooping tiling scenes with heavy tear-away stabilizer?
  A: Never allow old stabilizer to overlap into the next stitch zone; keep every tile area flat and even in thickness.
  • Remove: Tear away the previous tile’s stabilizer cleanly so no “ramp” remains.
  • Reset: Place two fresh layers of heavy tear-away centered in the bottom frame for each new hooping.
  • Verify: Check the next stitch zone has uniform thickness before snapping the top frame on.
  • Success check: The presser foot rides smoothly with no tilt at the tile boundary and no sudden stitch quality change at transitions.
  • If it still fails: Re-hoop with freshly centered stabilizer and confirm no leftover stabilizer edge is sitting under the next design field.
• Q: How do I keep tiling scene tiles from warping into a trapezoid shape when tearing away tear-away stabilizer after stitching?
  A: Hold the stitches down and tear the paper away from the anchored area—do not let the stitches become a handle.
  • Anchor: Press the embroidered area flat to the table with the non-dominant hand.
  • Tear: Pull stabilizer away from the anchored hand in controlled sections.
  • Slow down: Stop immediately if the fabric starts to ripple under the palm.
  • Success check: You feel the paper giving way, not the fabric stretching, and the tile stays square/true.
  • If it still fails: Tear smaller sections and increase anchoring pressure; if distortion is already present, re-check hooping tension (taut, not tight) on the next tile.
• Q: How do I correctly attach a magnetic hoop to the Brother PR1055X pantograph arm to prevent pattern shift and broken needles?
  A: Use “hole to nub” alignment and pass the wiggle test before pressing Start.
  • Align: Find the alignment hole on the hoop bracket and the metal nub on the PR1055X arm.
  • Seat: Slide until the nub sits inside the hole, then push back until it locks.
  • Test: Lightly wiggle the hoop left-right before stitching.
  • Success check: The hoop and pantograph arm move as one solid unit with no clicking or mechanical play.
  • If it still fails: Remove and re-seat the bracket; do not stitch until the wobble is gone.
• Q: How do I turn on Manual Color Sequence on a Brother PR1055X so needle mapping works for complex tiling scenes?
  A: Enable Manual Color Sequence in settings first; otherwise the mapping workflow may not be available or controllable.
  • Navigate: Open the machine settings menu on the Brother PR1055X.
  • Switch: Set Manual Color Sequence to ON.
  • Map: Assign each color step to the needle that already has that thread loaded instead of re-threading the whole rack.
  • Success check: The manual sequence/mapping controls are visible and you can assign each step to a specific needle number.
  • If it still fails: Re-check that Manual Color Sequence is still ON before loading/programming the design sequence.
• Q: What is the safest way to handle high-strength magnetic embroidery hoops to avoid finger injuries and device interference during re-hooping?
  A: Treat magnetic hoops like industrial clamps: keep fingers and sensitive devices clear and control every snap.
  • Clear hands: Keep fingers away from the locking mechanism and magnet faces during re-attach to avoid pinch points.
  • Control snap: Let magnets engage naturally—do not force or let magnets slam together without a buffer layer.
  • Keep distance: Maintain at least 6 inches from pacemakers, insulin pumps, and implanted medical devices; keep cards/phones off the magnets.
  • Success check: The frame closes without a violent snap and no fingers are ever in the closing path.
  • If it still fails: Slow the process down and reposition the fabric/stabilizer first so the top frame can be lowered evenly and predictably.
