The Ultimate Field Guide to BAI Workflow: From USB Panic to Production Flow

If you have ever stood in front of your BAI machine with a USB drive in your hand, heart racing, thinking, "Why is this black box so intimidating?", you are not alone. This is the "Threshold of Anxiety"—that specific moment where digital design meets physical steel, and where most beginners freeze.

Here is the truth based on 20 years of floor experience: The machine is not judging you. It is simply waiting for a very specific set of instructions.

The good news? Once you lock in a repeatable "Data Hygiene" routine, you stop losing production hours to missing files, ghost previews, and corrupted thumb drives. You move from "hoping it works" to "knowing it will stitch."

This white paper rebuilds the beginner workflow for transferring designs to bai embroidery machine platforms. We will cover both the modern Mirror touchscreen system and the legacy 1201/1501 button-panel architecture. More importantly, we will install the "Old School" safety protocols that prevent file corruption before it ruins your garment.

DST Isn’t Optional on BAI Machines—It’s the Language Your Machine Actually Speaks

Beginners often ask, "Can I just use the JPG or the EMB file?" The answer is a hard No.

Your machine does not see "images." It reads XY coordinates. On industrial-style systems like the BAI, DST (Data Stitch Tajima) is the universal language. It is the raw navigational data that tells the pantograph exactly where to move and when to trim.

In software like Embrilliance, your primary objective is exporting the stitch file as DST. This strips away the "creative" data (colors, vector shapes) and leaves only the "execution" data. This is crucial when working with designs downloaded from Etsy or marketplaces that include a confusing zip file full of formats (PES, JEF, XXX) you will never use.

When you are running a production floor, the goal isn't just "having files"—it is having the cleanest possible instruction set named so you can find it in 3 seconds on a low-resolution screen.

Pro Tip: The Quality Trap (The Scaling Illusion)

A common question in the comment section is: "Can I make the design bigger after importing it to the machine?"

The Expert Reality: Technically? Yes. Professionally? Never. Resizing a DST file on the machine by more than 10% is a gamble. The machine pulls the stitches apart (reducing density) or shoves them together (bulletproof stiffness), because it cannot recalculate the stitch count.

• The Rule: If you need a size change >10%, resize it on your computer software (Embrilliance/Hatch) so it recalculates the density, then re-export. Do not let the machine guess your stitch intervals.

The “Hidden” Prep Before You Touch Embrilliance: File Hygiene That Saves You Later

The video demonstrates a habit that separates hobbyists from professionals: Digital Decluttering.

When you buy a design bundle, it is often bloated with 15 different machine formats. If you drag that entire mess onto your USB, you risk loading a .PES file that your BAI might try to read but will glitch out on mid-stitch.

The Protocol:

1. Isolate: Extract only the DST file.
2. Rename: Name designs like a human who will be tired and frustrated later.
   • Bad Name: Design_Final_v3_copy.dst
   • Good Name: Logo_Chest_3in.dst (Project + Location + Size)

The example in the video uses a recognizable name tied to the project (“Stripe” for a striped outfit). That isn’t just cute—it’s operational safety.

Phase 1: Preparation Checklist (Do this BEFORE Exporting)

• [ ] Visual Check: Open the design in software. Zoom in to 100%. Do you see jump stitches longer than 7mm that aren't tied off? (Fix them now).
• [ ] Naming Standard: Rename file to max 8 characters if possible (older screens cut off long names).
• [ ] Format Hygiene: Delete or archive non-DST formats from your transfer folder.
• [ ] Hardware Integrity: inspect your USB drive. Is the metal connector bent? Is it older than 5 years? If yes, replace it.
• [ ] Hidden Consumable Check: Do you have your Temporary Spray Adhesive (KK100) and Water Soluble Pen ready for the physical marking phase?

Save Stitch As in Embrilliance: The Exact Click Path That Prevents “Wrong Format” Headaches

In the video, the workflow is surgical. Follow this exact sequence to ensure the data packet is clean:

1. Open the design in Embrilliance.
2. Go to File > Save Stitch As.
3. In the format dropdown, select DST.
4. Rename the file to your standard (e.g., “A_Stripe”).
5. Save it to a distinctive location (Start with the Desktop so you can visually verify it).

This method strips out proprietary metadata that sometimes confuses industrial controllers.

Warning: Mechanical Safety Protocol.
When transitioning from "File Prep" (Computer) to "Machine Setup" (Physical), keep hands clear of the needle case. A machine that is powered on is "live." Accidentally bumping the "Start" button or the "100 Degree" key while loading a USB can cause the head to move rapidly. Always keep your fingers outside the presser foot zone.

Drag-and-Drop to USB on a Mac: The 30-Second Transfer That Most People Still Mess Up

The host inserts the USB into the side port of the laptop. On a Mac, the drive appears (often as “No Name” or “Untitled”). The action is simple: Drag the DST file onto the USB icon.

Critical Hardware Note: BAI machines (and most industrial clones) prefer USB drives formatted to FAT32 and capacities under 16GB. If you use a massive 64GB drive formatted to NTFS or APFS (Mac), the machine will likely treat it as an alien object and refuse to read it.

The Eject Ritual: How USB Drives “Die” (and How to Stop Paying the Price)

The video emphasizes a crucial step: Do not rip the USB out.

Flash memory uses "Write Caching." Even if the file looks like it moved, the computer might still be finishing the code in the background. Ripping the stick out cuts that connection, resulting in a "Corrupted Header." The machine sees the file name, but when you press start, it crashes.

The Protocol:

• Right-click the USB icon > Eject.
• Wait 3–5 seconds after the icon disappears.
• Physical Pull: Listen for the tactile release.


Why this matters (Expert Reality Check)

USB corruption isn't just "computer drama." In a shop setting, a corrupted file can cause the needle to drift, slamming into the hoop and throwing off your timing. That is a $200 repair bill caused by saving 2 seconds on ejecting a drive.

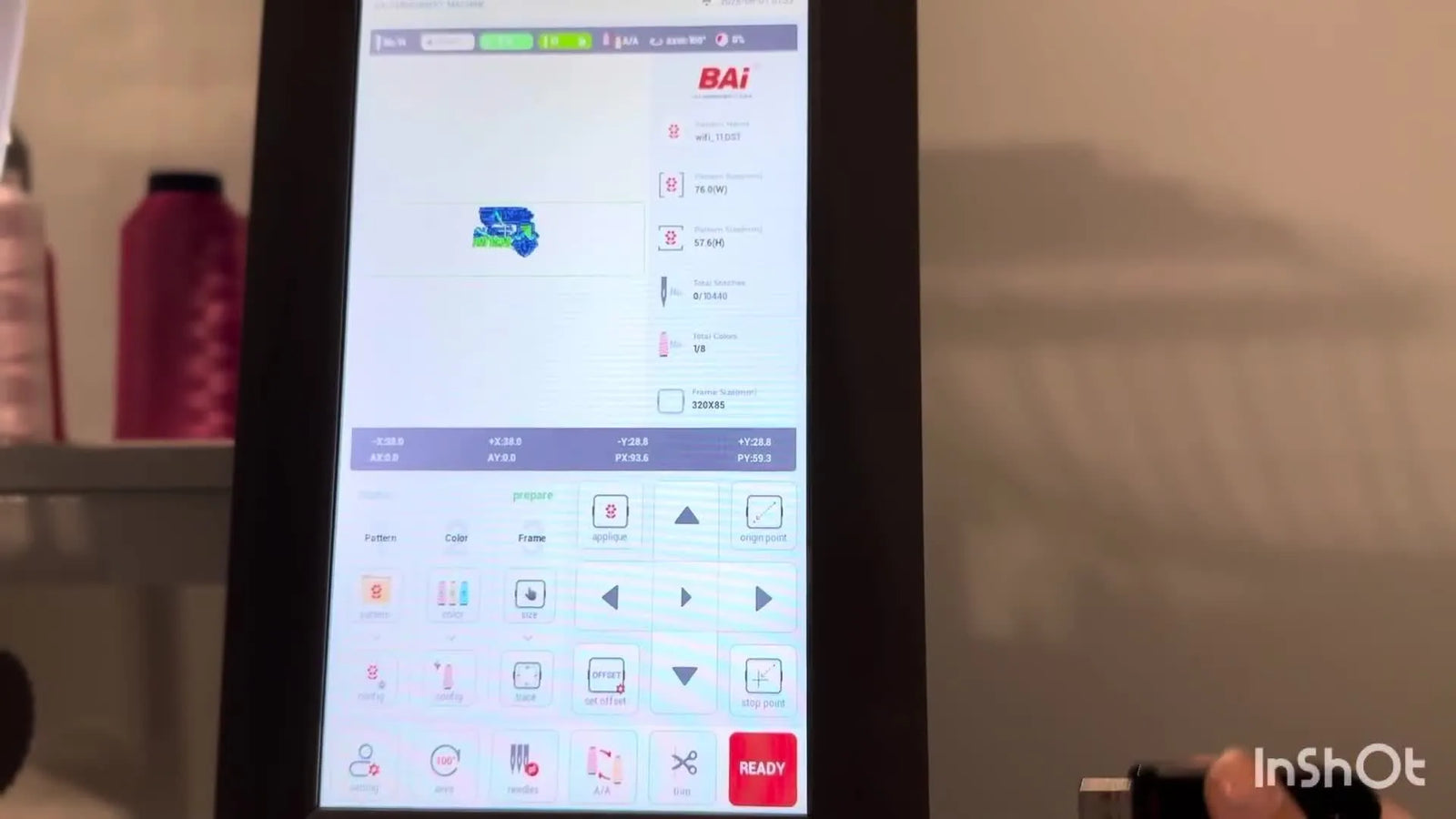

Importing Designs on the BAI Mirror Touchscreen: Patterns → Input → Import (and the Hat-Mode Surprise)

The "Mirror" is the modern, tablet-like interface. It relies on visual touch confirmation.

The Sequence:

1. Insert USB into the side port.
2. Tap Patterns (First column icon).
3. Look for the Input/Output icons (Mini USB symbol) at the top.
4. Tap Input.
5. Select your file (Look for the name).
6. Press the Red Import Button.
7. Sensory Check: Listen for the sharp "Beep." No beep = No transfer.








Watch Out: The "Upside Down" Panic

The host notes designed appearing upside down. Stop. Do not panic. This is likely because the machine is in Cap Mode (Hat Mode). In Cap Mode, the machine automatically flips the view 180 degrees because the hat is hooped upside down.

• Diagnostic: Check your screen status. Do you see a Hat icon?
• Action: If you are stitching a flat shirt, switch to T-Shirt/Flat Mode. If you are stitching a hat, the flip is correct. This is where understanding bai hat frame logic is vital—the software and the hardware must agree on orientation.

Importing Designs on BAI 1201/1501 Button Panels: The Flower Icon, the USB Icon, and the “Ghost Duplicate” Files

The legacy panel (1201/1501) runs on an older OS. It is less visual but incredibly robust if you know the buttons.

The Sequence:

1. Insert USB.
2. Press the Flower Icon (This means "Design Management").
3. Press the USB Icon.
4. Navigate the list.
5. The Ghost File Glitch: You may see the same file listed twice.
   • File A: Shows a preview of the design.
   • File B: Shows a blank square.
   • Action: Always select the one with the visual preview. The blank one is a Mac OS hidden metadata file (._filename.dst) that limits the older processor.
6. Press OK.
7. Sensory Check: Listen for the rhythmic "Beep-Beep" (Double beep usually means success).












Comment-Driven Reality Check: “What are the three little flowers?”

A viewer asked about the icons near "Esc." The creator admits ignorance. This is fine.

• Lesson: Industrial machines have 50 features you will never use. Do not "button mash" to find out what they do. Stick to the Import > Set > Color > Stitch path until you have mastered the basics.

The Resizing Question: Why Scaling on the Machine Can Make Stitches Look ‘Off’

We touched on this, but let's look at the physics. Stitches have "Pull Compensation." A column stitch is digitized slightly wider because the thread pulls the fabric in.

• Shrink on Machine: The pull compensation remains huge, stitches pile up, needles break.
• Enlarge on Machine: The pull compensation becomes too small, gaps appear, fabric shows through.

The Verdict: If the customer changes the size requirement, you change the file in Embrilliance.

Troubleshooting the Three USB Problems That Waste the Most Time on BAI

This table converts common frustration into instant action.

The Setup Discipline That Makes USB Transfer Feel “Easy” (Even When You’re Busy)

Amateurs practice until they get it right. Professionals practice until they cannot get it wrong. Your goal is Flow State.

The Golden Rules of Setup:

1. Dedication: Keep one USB drive strictly for active embroidery files. Do not mix it with kid's photos or music.
2. Cleanliness: Wipe the USB regularly. A drive with 500 files loads slowly on the machine CPU.
3. Hoop Prep: Visualizing the hoop size during the file naming (e.g., Logo_100mm_HoopC) prevents the deadly mistake of hitting the plastic frame.

Phase 2: Setup Checklist (Before you press Start)

• [ ] File Format: Confirm file ends in .dst.
• [ ] Orientation: Is the standard "F" icon right-side up? (Or correct for your hat cap layout?).
• [ ] Hoop Clearance: Perform a Trace (the button that moves the hoop around the design border). Does the presser foot stay at least 1cm away from the plastic rim?
• [ ] Bobbin Check: Open the bobbin case. Is the bobbin at least 50% full? (Running out mid-logo is a pain).

Decision Tree: Choosing Stabilizer + Hooping Strategy Before You Even Import

The file is on the machine. Great. But if you hoop it wrong, the perfect file will look terrible. The #1 Cause of "Bad Digitizing" is actually "Bad Stabilization."

Use this decision logic to determine your setup:

A) Is the fabric Stable (Denim, Canvas, Twill)?

• Yes: Use Tearaway Stabilizer.
  • Hooping: Standard hoop often works well.
• No (T-shirt, Hoodie, Knit): MUST use Cutaway Stabilizer.
  • Why: Knits stretch. Stitches pull. Without Cutaway, you get holes and puckering.

B) Is the item distinctively difficult to hold (Slippery Performance Wear, Thick Jackets)?

• The Problem: Traditional plastic hoops rely on friction. Slippery/Thick fabrics pop out or get "Hoop Burn" (permanent rings from tightening the screw too hard).
• The Upgrade: This is where professionals search for how to use magnetic embroidery hoop videos.
• The Solution: A magnetic embroidery hoop uses vertical magnetic force rather than friction. It clamps thick jackets instantly without wrestling the screw, and it holds slippery silk without leaving burn marks.

The Upgrade Path: When Tools Start Paying You Back

Once you have mastered the USB workflow, your bottleneck will shift. You will realize that "Loading the file" takes 10 seconds, but "Hooping the shirt" takes 5 minutes.

If you are fighting with:

1. Hoop Burn: Ruining delicate garments with ring marks.
2. Wrist Pain: From tightening hoop screws 50 times a day.
3. Slippage: Designs going crooked on bulky items.

Then it is time to look at the bai embroidery frame options available to you. Specifically, a bai magnetic embroidery frame system (like the MaggieFrame or SEWTECH types) can reduce hooping time by 40%. It turns a physical wrestling match into a simple "Click."

Warning: Magnetic Hazard.
Magnetic hoops contain industrial-grade Neodymium magnets.
1. Pinch Hazard: They snap together with enough force to bruise or break fingers. Handle with extreme control.
2. Medical Safety: Keep at least 6 inches away from Pacemakers and insulin pumps.
3. Electronics: Do not place them directly on top of your laptop or credit cards.

If you are comparing third-party options and searching for mighty hoops for bai, ensure you verify the "Arm Width" compatibility. Not all magnetic hoops fit all bracket sizes, so check your machine's connection specs first.

Operation: A Repeatable “Computer → USB → Machine” Routine You Can Run on Autopilot

Here is your "Pilot's Checklist" for a perfect launch, every single time.

1. Sanitize: Open in Embrilliance, Save Stitch As DST.
2. Stage: Save to Desktop with a clean name (e.g., Job1_Chest.dst).
3. Transfer: Drag to FAT32 USB drive.
4. Eject: Right-click Eject, wait for icon to vanish, pull drive.
5. Load: Insert to BAI, Import via "Input" (Mirror) or "USB" (Panel).
6. Verify: Check orientation and run a Trace.
7. Hoop: Apply correct stabilizer (Cutaway for knits!) and secure fabric.

Phase 3: Operation Checklist (The Final Go/No-Go)

• [ ] Trace Complete: You physically watched the needle map the area without hitting the hoop.
• [ ] Thread Path: Check for tangles at the cone or the tension knob.
• [ ] Speed Set: For the first run of a new file, lower speed to 600 SPM (Stitches Per Minute). Once you see it runs smooth, you can ramp up to 800-1000.
• [ ] Emergency Ready: Keep one hand near the Stop button for the first 100 stitches.

One Last Note on “Skipping USB”: Network Transfer Is Great—But USB Skills Still Matter

Some users prefer networked transfer (Wi-Fi/LAN) to skip the USB step. That is excellent for efficiency. However, knowing the physical USB workflow is your safety net.

When the Wi-Fi goes down, or the IP address conflicts, or you are doing a pop-up market event without internet, the USB drive is your lifeline. Master this manual process, and you will never be dead in the water.

Furthermore, as you expand into difficult placements—like pocket flaps or bags—you will start exploring specialty fixtures like a bai pocket hoop. These tight-tolerance jobs require precise file management. The cleaner your digital workflow, the more confident you will be when trying physically difficult stitch-outs.

Stop fighting the machine. Respect the data hygiene, hoop with the right tools, and let the machine do what it was built to do: Stitch perfectly.

FAQ

• Q: Why does a BAI embroidery machine refuse to read a USB drive or show “USB not detected” during design import?
  A: Use a small FAT32 USB drive and follow a safe eject routine—most BAI USB detection failures are format/capacity or corruption-related.
  • Format the USB drive to FAT32 (a common requirement on industrial-style controllers).
  • Use a USB capacity under 16GB and avoid NTFS/APFS formatting.
  • Eject the USB properly on the computer (Eject → wait 3–5 seconds → then remove).
  • Success check: The design list appears on the BAI screen after insertion, and import gives the expected confirmation sound (beep/double-beep depending on panel).
  • If it still fails: Try a different (newer) USB drive and remove extra/unused files so the stick is not overloaded.
• Q: How do I export the correct DST file in Embrilliance for a BAI embroidery machine without getting “wrong format” problems?
  A: Always export using File > Save Stitch As > DST and save a cleanly named DST to an easy-to-verify location.
  • Open the design in Embrilliance, then click File > Save Stitch As.
  • Select DST in the format dropdown, then rename using a simple production name (example: Logo_Chest_3in.dst).
  • Save to a visible location first (like the Desktop) so the DST file can be verified before copying to USB.
  • Success check: The file on the USB ends with .dst and the BAI machine imports it and shows a usable preview.
  • If it still fails: Rename the file to simple letters/numbers and shorten the name (older controllers may cut off long names or choke on special characters).
• Q: Why does a BAI 1201/1501 button-panel embroidery machine show duplicate “ghost” DST files on USB, and which one should be imported?
  A: Choose the duplicate entry that shows the actual design preview—blank-square duplicates are usually hidden metadata files.
  • Press the Flower (Design Management) icon, then the USB icon, then locate the duplicated names.
  • Select the file entry that displays a visual preview pattern (not the blank/empty square).
  • Keep the USB folder clean by transferring only the needed DST files (avoid dumping entire design bundles).
  • Success check: After pressing OK, the machine confirms import with the expected beep-beep and the design opens normally.
  • If it still fails: Re-copy only the DST file to the USB (no extra formats) and re-eject the USB safely before inserting into the machine.
• Q: Why does a design appear upside down on a BAI Mirror touchscreen embroidery machine after importing a DST file?
  A: The BAI Mirror system is often in Cap/Hat Mode, which flips the view—switch to the correct mode for flat garments.
  • Check the screen status for a Hat/Cap icon indicating hat mode is active.
  • If stitching a flat item (shirt/jacket back), switch to T-Shirt/Flat Mode before running the design.
  • If stitching a cap on a cap frame, the flipped orientation may be correct—verify placement before sewing.
  • Success check: The on-screen orientation matches the intended hooping orientation for the chosen fixture (flat vs cap).
  • If it still fails: Stop and re-check the selected mode before stitching; do not “trial stitch” a flipped design on a real garment.
• Q: Is it safe to resize a DST design on a BAI embroidery machine, and what is the maximum recommended resize percentage?
  A: Keep BAI on-machine resizing within 10%—for anything bigger, resize in software and re-export DST so stitch density recalculates correctly.
  • If the size change is more than 10%, resize in Embrilliance (or similar software) and then export a new DST.
  • Use clear naming that includes size (for example, Logo_Chest_3in.dst) to avoid last-minute resizing on the machine.
  • Run a trace after import to confirm the resized design still clears the hoop boundary.
  • Success check: Satin columns are filled without gaps, and the design does not look overly stiff or overly open after the size change.
  • If it still fails: Undo the on-machine scaling and use a properly digitized size variant from the computer.
• Q: What is the mechanical safety rule when loading a USB drive or switching from computer file prep to setup on a BAI embroidery machine?
  A: Treat a powered-on BAI embroidery machine as “live” and keep hands completely out of the needle/presser-foot zone during USB loading and screen navigation.
  • Keep fingers away from the needle case and presser foot area before inserting USB or tapping buttons.
  • Avoid accidental presses of Start or motion keys (for example, keys that can move the head suddenly).
  • Pause and confirm the machine is idle before reaching near the head.
  • Success check: No unexpected head movement occurs while hands are near the machine; setup actions happen with hands clear.
  • If it still fails: Power down before making close-in adjustments, and follow the machine manual’s safety procedures for your exact controller.
• Q: What are the magnetic hoop safety hazards when using a magnetic embroidery hoop with a BAI multi-needle embroidery machine?
  A: Magnetic hoops can snap together with serious force—control the clamp, protect fingers, and keep magnets away from medical devices and sensitive electronics.
  • Handle the hoop halves slowly and deliberately to prevent pinch injuries when the magnets “snap.”
  • Keep magnetic hoops at least 6 inches away from pacemakers and insulin pumps.
  • Do not place magnetic hoops directly on laptops, phones, or credit cards.
  • Success check: The hoop closes in a controlled way without finger pinch, and fabric is held firmly without screw over-tightening.
  • If it still fails: Stop using the hoop until safe handling is consistent, and verify the hoop setup procedure recommended for the specific hoop model.
• Q: If hooping on a BAI embroidery machine is slow or causes hoop burn and fabric slippage, what is the best step-by-step upgrade path?
  A: Start with technique fixes, then upgrade to a magnetic hoop for faster, gentler clamping, and consider a multi-needle productivity upgrade only when hooping becomes the bottleneck.
  • Improve Level 1 technique: Match stabilizer to fabric (knits typically need cutaway), use a trace, and avoid over-tightening traditional hoops that causes hoop burn.
  • Upgrade Level 2 tooling: Switch to a magnetic hoop to reduce hoop burn, speed hooping, and improve hold on thick or slippery items.
  • Upgrade Level 3 capacity: If “file loading is fast but hooping/stitching volume is limiting,” consider moving to higher-throughput equipment suited for production flow.
  • Success check: Hooping time drops (less re-hooping), fabric stays seated during stitching, and ring marks are reduced on delicate garments.
  • If it still fails: Re-check stabilizer choice and run a trace for clearance—many “digitizing problems” are actually stabilization/hooping problems.
