Stop Fighting Vinyl: A Clean ITH Sanitizer Bottle Holder on a Melco (Plus the Trimming Trick That Saves Your Loop)

If you’ve ever finished an In-The-Hoop (ITH) project, reached for your scissors with shaky hands, snipped a thread… and felt your stomach drop because you realized you just cut the functional loop off your sanitizer holder, you are not alone. It is a rite of passage.

Juliette, the creator behind this workflow, openly admits this sanitizer holder took multiple tries. First, the loop placement was off center. Then, the loop got trimmed off during the final cleanup. Only after refining her "order of operations" did the final version land where it needed to be: sturdy, clean, and functionally perfect.

This post rebuilds her specific Melco workflow into a repeatable, “no-surprises” engineering process. We are moving beyond "hoping it works" to "knowing it will work." Whether you are making one for your gym bag or batching a stack of 50 for a craft fair, this guide provides the safety rails you need.

The Panic-Stop Primer: Why This Melco ITH Vinyl Holder Fails on Try #1 (and How to Skip the Heartbreak)

Juliette’s early attempts highlight the two classic failure points in vinyl ITH manufacturing. Understanding the physics of why these fail is the first step to preventing them.

1. The Loop Position Error: If the loop isn't captured deeply enough by the reinforcement stitches, the vinyl will eventually tear under the weight of a full sanitizer bottle.
2. The Trimming Catastrophe: This is the "it looked perfect until the very end" moment. Because vinyl creates a thick sandwich, it is dangerously easy to slice through the loop while trimming the stabilizer, rendering the product useless.

The good news? None of this is mysterious. It is purely a Sequence Problem (knowing exactly when to tape) and a Control Problem (keeping slippery vinyl from shifting).

In professional embroidery, we don't just "hoop" things; we engineer stability. If you are using a floating embroidery hoop technique—where the material sits on top of the hoop rather than clamped inside it—you must treat it like a controlled clamp system. Your placement line is the map, your tape (or magnetic hold) is the clamp, and your machine stops are the checkpoints that prevent your layers from drifting into the danger zone.

The “Hidden” Prep That Makes Vinyl Behave: Stabilizer, Needle, Snaps, and a Layout You Won’t Regret

Juliette’s supply list is simple, but the order in which you stage your workspace matters more than the brands you buy. When you are flipping the hoop upside down to tape pieces to the back, you cannot be hunting for your scissors.

The Physics of Vinyl and Needles

Vinyl is non-fibrous. Unlike cotton, which "heals" around a needle puncture, vinyl holes are permanent. Every needle penetration removes material. Therefore, your setup must prioritize clean penetration and reduced friction.

Core Machine Settings (The "Sweet Spot"):

• Needle: 75/11 Sharp Needle. Why? A ballpoint needle (often used for knits) can stretch vinyl before popping through, creating ugly, cratered holes. A sharp needle slices cleanly.
• Presser Foot Height: Up 3 Clicks (or ~1.5mm - 2mm above material). Why? Vinyl is "sticky." If your presser foot is too low, it will drag the vinyl up as the needle rises (this is called "flagging"), causing birdnesting or skipped stitches. Raising the foot reduces this drag.
• Speed (SPM): While not explicitly mentioned in the video, empirical experience dictates slowing down. For multi-layer vinyl, cap your speed at 600–700 SPM. High speeds generate heat, which can cause the vinyl to grip the needle and shred thread.

Hidden Consumables (What beginners often forget):

• Adhesive Remover (or rubbing alcohol): You will be taping heavily. Needle gumming causes thread breaks. Keep a cleaner nearby.
• Curved Appliqué Scissors: Standard shears are dangerous for the final trim. Double-curved scissors act as a safety guard.

Warning: Scissors + tight curves + layered vinyl is where injuries and ruined projects happen. Keep your non-cutting hand behind the scissor path, slow down on corners, and never trim while the loop is lying flat under the blade. One slip on vinyl is permanent.

Prep Checklist (do this before you hoop)

• Cut Stabilizer: Use 3.1 oz cut-away stabilizer (tear-away is too weak for the snap tension) sized for a 7-inch hoop.
• Pre-Cut Vinyl Scraps:
  • Top Panel: 5" x 7" (approx)
  • Back Panel: 5" x 7" (approx)
  • Loop Strip: .75" x 3" (approx)
• Check Needle: Install a fresh 75/11 Sharp. Even a slightly dull needle can ruin vinyl.
• Adjust Foot: Raise presser foot height (3 clicks up on Melco/Index up on others).
• Stage Hardware: Load snaps, pliers, and awl on the table within arm's reach.
• Thread Check: Bobbin should have at least 50% remaining (running out mid-sandwich is a nightmare).

The “Don’t Break Your Machine” Ritual: Bullseye/Trace on a Melco Before the First Stitch

Before a single stitch is formed, Juliette performs the most critical safety step in machine embroidery: The Trace. On Melco machines, this is often the Bullseye/Trace function; on home machines, it is the "Trace Design" button.

She centers the hoop and watches the machine pantograph move the needle over the outer boundaries of the design.

Why is this non-negotiable? Juliette mentions a near-miss where the wrong hoop size was selected in the software. Without tracing, the needle bar would have slammed into the plastic hoop frame at 1000 stitches per minute. This can shatter the hoop, bend the needle bar, and throw the machine's timing out of alignment—a repair bill costing hundreds of dollars.

If you are working with melco embroidery hoops, tracing is your last line of defense against a hoop strike—especially on ITH files where outlines typically sit dangerously close to the plastic edge to maximize material usage.

Sensory Check: As the machine traces, listen for any clicking sounds (hoop hitting arm) and visually confirm at least a 5mm gap between the needle bar and the hoop edge at all times.

The Placement-Line Trick: Stitch the Map First, Then Float the Vinyl Like a Pro

The first stitch-out is not decorative; it is structural. The machine stitches a single placement line directly onto the naked stabilizer.

Think of this line as your architectural blueprint. It tells you exactly where the material must go, eliminating the guesswork of "eyeballing it."

The "Floating" Technique

Once the outline is stitched:

1. Spray or Tape: Juliette uses tape. If you use spray adhesive, use it sparingly on the back of the vinyl, not the hoop.
2. Alignment: Place the vinyl so it covers the outline completely by at least 1/4 inch on all sides.
3. Secure: Tape the corners.




Pro Tip from the Workflow: Tape is performing two distinct jobs here:

1. XY Axis Stability: Preventing the vinyl from sliding left or right.
2. Z Axis Stability: Keeping the vinyl flat so the foot doesn't catch a curled edge.

However, tape has limits. It loses stickiness, leaves residue on needles, and takes time to apply. If you find yourself making these holders in batches of 20 or 50, you will quickly hit the "tape bottleneck." This is where a tool upgrade becomes obvious: magnetic embroidery hoops can reduce the constant tape-and-reposition cycle. By clamping the material magnetically, you get a stronger hold than tape without the sticky residue, speeding up your cycle time significantly.

The 3 Holds That Make This ITH File Work: Top Vinyl, Loop, Back Panel (in That Order)

An "ITH file" is simply a standard embroidery file with programmed pauses (stops). Juliette programmed 3 specific stops/holds into the design. Understanding why the machine stops helps you stay calm.

• Hold #1 (After Placement): Your cue to add the Top Vinyl.
• Hold #2 (After Design): Your cue to flip the hoop and add the Loop Strip (underside).
• Hold #3 (After Loop Tack): Your cue to add the Back Panel (underside).

This is the heart of the project: you aren't just embroidering; you are building a layered sandwich in a controlled sequence.

Setup Checklist (right before you hit Start)

• Sequence Verify: Does your machine screen show color stops? (If it shows one continuous run, your machine won't stop, and you will ruin the project).
• Clearance: Is the area behind the machine clear? (Floated vinyl can get snagged on wall cables).
• Tape Safety: Check that no tape is crossing into the stitch path. Adhesive on the needle causes thread shredding instantly.

The Underside Flip Move: Taping the Vinyl Loop to the Back of the Hoop (and Why the 0.5" Overlap Matters)

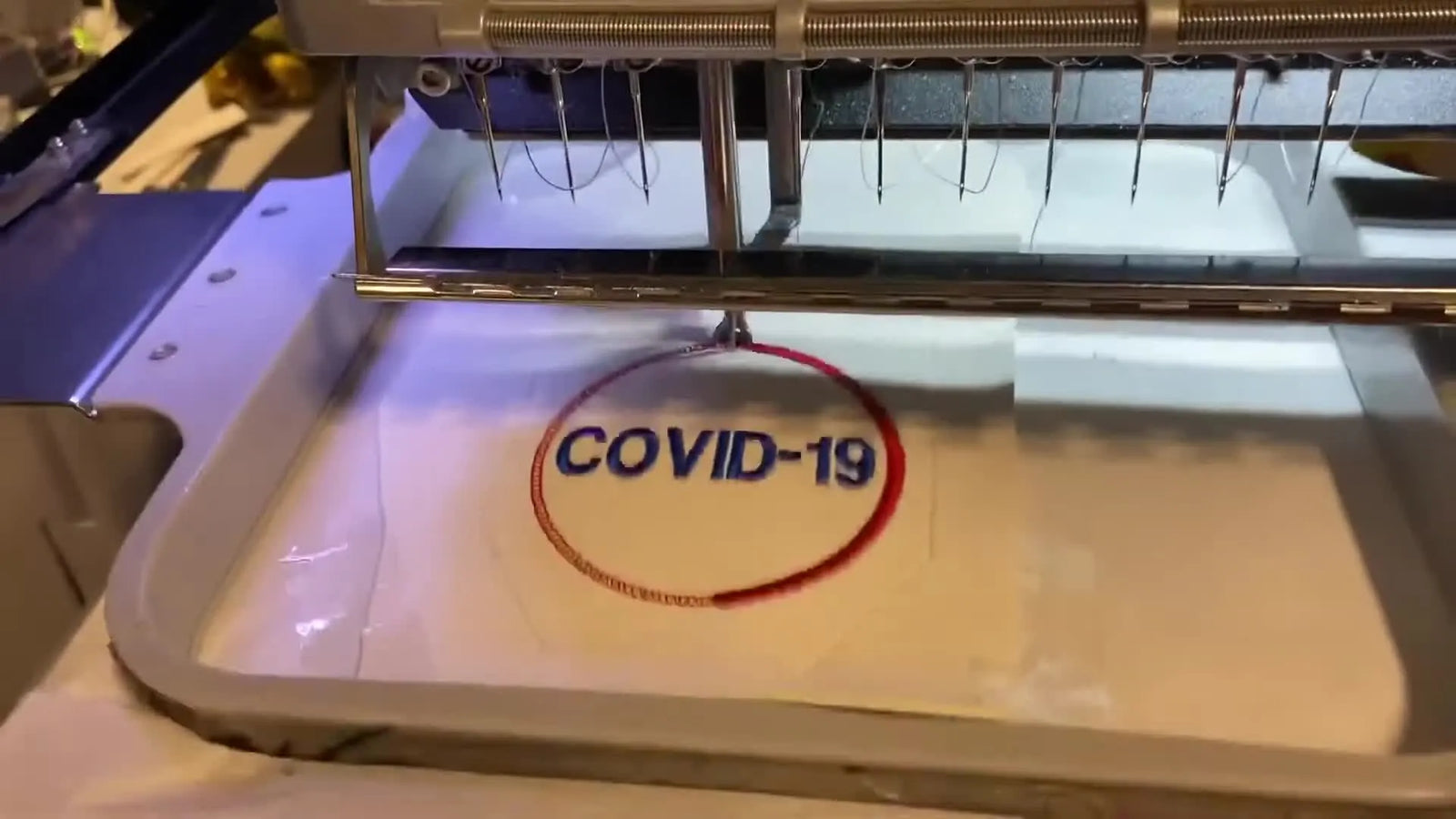

After the top design (the "COVID-19" text and circle) is finished, the machine stops. This is the critical juncture.

Juliette removes the hoop from the machine, flips it over, and tapes the small vinyl loop strip to the backside of the stabilizer.

The 0.5-Inch Rule: Juliette notes specifically that she overlaps the design line by about 0.5 inch.

• Too little overlap: The detailed satin stitching won't catch the loop, and it will rip out.
• Too much overlap: The loop gets caught in the main design field, creating a bulky lump.


She also implies adding reinforcement stitching (a triple stitch or back-and-forth run) over the spot where the loop attaches. This is smart engineering. The loop is a high-stress point that takes the weight of the bottle and the torque of movement. Security here is paramount.

Common Question: "Do I need to change settings for this thicker section?"

• Answer: Usually, no. The 75/11 sharp needle + raised presser foot combo you set up earlier is designed to handle this transition. However, listen to your machine. If you hear a rhythmic "thumping" sound, the needle is struggling to penetrate. Slow the speed down to 500 SPM for these dense sections.

The Back Panel Placement: “Close Enough Is Fine” (Because It’s Inside)

Next hold: Juliette flips the hoop upside down again. Now she tapes the back vinyl piece to the underside, covering the entire design area—including the bottom of the loop strip she just attached.

The "Close Enough" Mindset: She aligns the top edge with the stitched placement line but notes that close enough is fine.

Why is this okay? Because this is the lining. As long as it covers the stitches (so the rough stabilizer doesn't scratch your hand) and gets caught by the final border stitch, perfect alignment down to the millimeter is unnecessary. This mindset shift saves you time. Focus your precision on the front; be efficient on the back.

The Big Stitch-Out: Running the Final Design Through Four Layers Without Shifting

Juliette re-attaches the hoop and initiates the final run. The machine is now driving the needle through:

1. Top Vinyl
2. Stabilizer
3. Loop Vinyl (in some spots)
4. Back Vinyl

Sensory Monitoring:

• Sound: A sharp "snap" sound indicates a thread break. A grinding noise indicates the heavy hoop is dragging on the pantograph.
• Sight: Watch the edges. If the vinyl starts to create a "wave" or bubble in front of the foot, pause immediately. This means your tape has failed or the layers are shifting.

The "Hoop Burn" Variable: With this many layers, traditional screwing hoops often leave permanent "hoop burn" or ring marks on vinyl. Because you are floating the material (using the stabilizer as the carrier), you minimize this risk. However, if you were clamping the vinyl directly, hoop burn would be inevitable. This is another scenario where professionals searching for terms like magnetic embroidery hoops find relief—magnetic frames hold the stabilizer firmly without crushing the delicate vinyl texture.

The Trimming Trick That Saves the Loop: Cut 1/4"… Then Separate Layers Before You Finish the Edge

This is the moment of truth. You have a finished block of vinyl. Now you must sculpt it.

Juliette trims around the stitched border leaving about a 1/4 inch margin. This margin is aesthetic but also functional—cut too close, and the vinyl stitches might unravel.

The Surgical Procedure:

1. Trim the bottom and sides first.
2. STOP when you reach the top where the loop is.
3. Fold the loop layer back away from the scissors.
4. Slide the scissors between the layers. You want the blade to sit between the loop and the top vinyl.
5. Cut only the top vinyl/stabilizer layer.




If you cut through all layers indiscriminately (like cutting paper), you will sever the loop. By separating them physically, you create a safety buffer.

Snap Hardware Without Drama: Pilot Hole, Cap Placement, Then Test Fit With the Bottle

Juliette finishes by installing plastic KAM snaps. Do not “eyeball” this.

1. Pilot Hole: Use an awl to poke a pre-hole. Vinyl is tough; forcing the snap prong through without a pilot hole can stretch the vinyl or crack the plastic component.
2. Cap Placement: Insert the smooth cap on the "public" side.
3. Compression: Use the handheld pliers to squeeze deeply. You should feel a distinct "crunch" as the central prong flattens.






Pro Tip (The Bottle Test): Before you punch the second hole for the socket, insert your actual sanitizer bottle. Wrap the loop over the bottle neck. Mark the spot with a water-soluble pen where the snap naturally falls. Why? Bottles vary in neck circumference. If you place the snap too loose, the bottle falls out. Too tight, and the vinyl puckers. Custom fitting guarantees a professional feel.

Troubleshooting the Two Most Expensive Mistakes (and the Fast Fixes)

Here are the specific failures Juliette encountered, restructured into a rapid-response diagnostic table.

Stabilizer Decision Tree for ITH Vinyl Holders (So You Don’t Guess)

Adjusting your consumables based on the project type is the mark of an expert.

Decision Tree:

• Is this a standalone item (Sanitizer Holder/Keyfob)?
  • YES: Use Cut-Away Stabilizer (3.0 oz+).
  • Why? Vinyl is heavy. Tear-away is too weak and will result in the snaps pulling right out of the material after a week of use. Cut-away provides the internal skeleton the vinyl needs.
• Is the design extremely dense (20,000+ stitches)?
  • YES: Use Poly-Mesh Cut-Away (two layers).
  • Why? It is thinner but stronger, preventing the "bulletproof vest" stiffness while supporting high stitch counts.
• Are you stitching on a stretch vinyl?
  • YES: Float a layer of water-soluble topping on top.
  • Why? This prevents the stitches from sinking deep into the squishy vinyl, keeping the text crisp.

The Upgrade Path: When Tape Becomes the Bottleneck (and What to Do About It)

If you are making one holder as a gift, tape is perfectly fine. But if you are filling an order for 50 custom holders for a wedding or corporate event, tape becomes your enemy. It is slow, inconsistent, and ruins needles.

The Commercial Upgrade Logic:

• Scenario Variable: You are spending 3 minutes taping and 4 minutes stitching. Your "prep time" is killing your profit margin.
• Assessment: If your hands hurt from peeling tape, or your vinyl keeps slipping, you have outgrown the tape method.
• The Solution:
  • Level 1 (Technique): Use "spray adhesive" (faster than tape, but messier).
  • Level 2 (Tool): snap hoops or magnetic frames. These hold thick sandwich layers (stabilizer + vinyl + back vinyl) securely without the need for adhesive. They allow you to "float" materials in seconds, not minutes.
  • Level 3 (Capacity): If you are running these files all day, a multi-needle machine (like SEWTECH models) lets you queue up colors and handle the "stops" more programmably, reducing your babysitting time.

Warning: Magnetic frames are powerful industrial tools. Keep strong magnets away from pacemakers and implanted medical devices. Avoid pinching fingers between the magnets—they snap shut with significant force. Always store them away from credit cards and phone screens.

The “Make It Sellable” Finish: Clean Edges, Consistent Snaps, and Repeatable Hooping

Juliette’s final reveal shows a clean, functional holder with the bottle inside—exactly what you want for gifting or selling.

To achieve this "Etsy-ready" look consistently, you need discipline in three areas: Edge Quality (smooth scissor work), Functional Strength (using the right cut-away stabilizer), and Hardware Security (snaps that don't pop off).

If you are running a Melco and experimenting with different clamping options like mighty hoop melco, the fundamentals remain: Trace your design, control your float, and treat the trimming phase as a delicate surgery, not a race.

Operation Checklist (End-of-Run Quality Control)

• Visual Scan: Is the placement line fully covered by the top vinyl? (No peeking stabilizer).
• Structure Check: Tug firmly on the loop. Does it feel integrated, or does the stitching gap?
• Backside Check: Is the back panel flat? (Minor wrinkles are okay on the inside, but folds are not).
• Trim Margin: Is the vinyl border consistent (approx 1/4") all around?
• Snap Test: Does the snap close with a satisfying "click"? If it's mushy, re-compress with pliers.
• Needle Check: Inspect needle tip for adhesive gum—clean before the next run.

FAQ

• Q: What needle and presser foot height should a Melco use for an ITH vinyl sanitizer holder to prevent skipped stitches and birdnesting?
  A: Use a fresh 75/11 sharp needle and raise the presser foot about 3 clicks (~1.5–2 mm) as the baseline for vinyl.
  • Install: Replace the needle even if it “looks fine” (slightly dull needles crater vinyl holes).
  • Adjust: Raise presser foot height before starting to reduce vinyl “flagging” and drag.
  • Slow down: Cap speed around 600–700 SPM for multi-layer vinyl; drop to ~500 SPM if the needle sounds strained in dense spots.
  • Success check: Stitches form cleanly without the vinyl lifting with the needle and without a growing thread nest under the design.
  • If it still fails… Clean adhesive residue off the needle with rubbing alcohol and re-check that no tape is crossing into the stitch path.
• Q: How does the Melco Bullseye/Trace (Trace Design) prevent a hoop strike when running an ITH file close to the hoop edge?
  A: Run Bullseye/Trace every time to confirm the design boundary clears the hoop before stitching at speed.
  • Select: Confirm the correct hoop size is chosen before tracing.
  • Trace: Watch the needle path over the outer boundary of the design, not just the center point.
  • Listen/Look: Stop if any clicking occurs or if clearance looks tight.
  • Success check: There is at least ~5 mm visual gap between the needle bar path and the hoop edge throughout the trace.
  • If it still fails… Do not stitch—reselect hoop size/design placement and re-trace to avoid breaking a hoop or knocking timing out.
• Q: How do you stop floated vinyl from shifting on a Melco during an ITH sanitizer holder stitch-out when tape keeps failing?
  A: Treat floating as a clamp system: stitch the placement line first, then secure vinyl beyond the outline and keep it flat.
  • Stitch: Run the single placement line on bare cut-away stabilizer to create the “map.”
  • Align: Cover the outline by at least 1/4" on all sides before taping.
  • Secure: Tape corners for XY stability and keep edges flat for Z stability so the presser foot can’t catch a curl.
  • Success check: The vinyl edge does not “wave” or bubble in front of the foot during the run.
  • If it still fails… Upgrade the holding method: a magnetic hoop/frame often provides more consistent all-around grip than repeated taping (and avoids sticky residue on needles).
• Q: How do you attach the vinyl loop on an ITH sanitizer holder so the loop does not rip out after the snaps are installed?
  A: Overlap the loop into the tack area by about 0.5" so the reinforcement stitches capture it securely.
  • Flip: After the top design finishes, remove the hoop and flip it to access the underside.
  • Tape: Position the loop strip on the backside with ~0.5" overlap into the stitch zone.
  • Reinforce: Let the programmed tack/reinforcement stitching run fully before adding the back panel.
  • Success check: A firm tug on the loop feels integrated with no visible stitch gaps or creeping tear at the attachment line.
  • If it still fails… Reduce speed for that dense section (down to ~500 SPM) and verify the loop overlap was not too shallow.
• Q: How do you trim an ITH vinyl sanitizer holder without accidentally cutting off the functional loop at the top?
  A: Trim to about a 1/4" margin, then physically separate layers near the loop so scissors only cut the intended layer.
  • Trim: Cut bottom and sides first, staying around a 1/4" border.
  • Stop: Pause before the top loop area—do not “paper cut” through the whole sandwich.
  • Shield: Fold the loop layer back and slide scissors between layers before finishing the top edge.
  • Success check: The loop remains fully intact and the border margin stays consistent without nicking the loop strip.
  • If it still fails… Switch to curved appliqué scissors to reduce the chance of the blade diving into the loop layer.
• Q: What stabilizer should be used for an ITH vinyl sanitizer holder so snap tension does not tear the project apart after a week of use?
  A: Use 3.0 oz+ cut-away stabilizer as the default internal “skeleton” for standalone vinyl keyfobs/holders.
  • Choose: Avoid tear-away for this application because snap stress can pull through.
  • Size: Cut stabilizer to match the hoop (example used: sized for a 7" hoop).
  • Upgrade: If the design is extremely dense (20,000+ stitches), use poly-mesh cut-away in two layers to support stitches without excessive stiffness.
  • Success check: After snapping and tugging, the snap area stays firm without stretching, tearing, or deforming around the hardware.
  • If it still fails… Verify the bobbin did not run low mid-sandwich and confirm the back panel fully covers the stitch area so layers stay stable.
• Q: What safety precautions are required when using magnetic embroidery hoops/frames for ITH vinyl batching to replace tape?
  A: Use magnetic hoops carefully—magnets can pinch hard and must be kept away from implanted medical devices and sensitive items.
  • Protect: Keep fingers clear when closing magnets; they can snap shut with significant force.
  • Separate: Store magnets away from pacemakers/implanted medical devices and away from credit cards and phone screens.
  • Operate: Use magnetic holding to reduce repetitive tape handling when production volume makes taping the bottleneck.
  • Success check: Material/stabilizer remains evenly clamped without shifting, and cycle time drops because repeated taping/repositioning is minimized.
  • If it still fails… Re-check that the material still covers the placement outline fully and run a trace/bullseye before stitching to avoid a hoop strike.
