Stop Fighting Tiny Polos: A Janome 230E Floating Method That Stays Put, Stitches Clean, and Doesn’t Itch

Here is the calibrated, "White Paper" grade guide, optimized for clarity, safety, and operational logic.

The Ultimate Guide to Hooping Small Polos: Mastering the "Float" Technique on Flatbed Machines

If you’ve ever tried to hoop a child-size polo and thought, “There has to be a better way,” you’re not alone. Small tubular shirts fight back: the placket is bulky, the knit fabric stretches unpredictably, and the flatbed motion of single-needle machines can drag the whole garment until your logo creeps toward the armpit.

This technical guide deconstructs the "Floating" workflow demonstrated on a Janome 230E, but elevates it with industry-standard parameters. The core concept is simple physics: stop fighting to force a small shirt into a rigid frame. Instead, hoop a "carrier" stabilizer, float the garment on top, and secure it mechanically.

Below is your step-by-step roadmap to professional results without the frustration.

The “Don’t Panic” Moment: Why a Janome 230E Polo Shirt Setup Feels Hard (and Why Floating Works)

A polo shirt is a knit structure, meaning it is designed to stretch. When you force a stretchy tube (the shirt) into a standard friction hoop, you often stretch the fabric out of shape before you even stitch. Once the shirt is released from the hoop, the fabric rebounds, and your perfect circle logo becomes an oval.

For users of a flatbed janome embroidery machine or similar single-needle models, the challenge is doubled. Unlike free-arm multi-needle machines, a flatbed requires the hoop to slide around while the rest of the shirt provides friction against the table. If you don't control this weight, gravity will ruin your placement.

Why Professional Shops Use "Floating":

• Zero Hoop Burn: The hoop ring never touches the visible fabric, eliminating those shiny pressure marks that are hard to remove.
• Structure Security: You build a stable foundation first, then attach the unstable fabric to it.
• Ergonomics: It saves your wrists from wrestling small garments onto rigid plastic frames.


The “Hidden” Prep Pros First: Stabilizers, Thread, and a Clean Work Zone

Before you touch the machine, you must assemble your "manufacturing sandwich." Missing one ingredient here leads to failure later.

The Professional Bill of Materials:

• Base Layer: Tearaway stabilizer (this acts as the carrier).
• Structural Layer: Fusible or Sew-in Cutaway (e.g., Sulky Soft ’n Sheer or industry-standard 2.5oz Cutaway). Note: Knits MUST utilize Cutaway to prevent distortion over time.
• Adhesion: Temporary Adhesive Spray (like Odif 505).
• Surface Control: Water-soluble topping (Solvy) to prevent stitches from sinking in.
• Tools: T-pins (or fine glass-head pins), appliqué scissors.
• Needle Selection: Ballpoint 75/11. Critical: Sharp needles cut knit fibers; ballpoints push them aside.

Expert Reality Check:

• Adhesion is not enough: Spray adhesive provides shear resistance (stops sliding), but it does not provide mechanical lock. You absolutely need pins or a basting stitch on a flatbed machine.
• Environment: Clear your table. Static from the stabilizer will attract pet hair and lint instantly.

Warning: Project Safety Hazard. Pins are effective but dangerous. If a pin is placed inside the travel path of the embroidery foot, the needle will strike it, potentially shattering the needle into your eyes or destroying the machine's timing. Always account for every pin used.

Prep Checklist (Do this before hooping)

• Stabilizer Cut: Pre-cut tearaway for the hoop and two sheets of cutaway for the patch.
• Needle Check: Install a fresh Ballpoint 75/11 needle.
• Bobbin Check: Ensure you have enough bobbin thread for the full dense design (don't start on "red").
• Adhesion Test: Shake the spray can well; test spray on scrap to ensure it mists rather than globs.
• Zone Clear: Remove scissors and stray tools from the sewing table surface.


The Base Hoop Trick: Hooping Tearaway Drum-Tight Without Wrinkles

The foundation of floating is a perfectly hooped piece of tearaway stabilizer. This is the only thing that goes between the rings of your hoop.

The Sensory Check:

1. Loosen the outer ring significantly.
2. Press the inner ring into the tearaway.
3. Tighten the screw partially.
4. Pull the corners gently to remove slack.
5. The "Tambourine" Test: Tap the stabilizer with your finger. It should make a resonant "thump" sound, like a drum. If it sounds dull or loose, tighten the screw and pull again.

If this base layer is loose, your registration (alignment of outlines) will fail.

The 30-Second Move That Saves Your Sanity: Trim Tearaway Flush to the Hoop

This step separates the novices from the pros. Once your tearaway is hooped tight, take your scissors and trim the excess stabilizer flush to the outside edge of the hoop.

Why this matters: When you slide this hoop into the small torso of a child's polo, any overhanging paper will catch, crumple, and drag against the inside of the shirt. By making the hoop aerodynamic, you reduce friction.

Build the “Stabilizer Sandwich”: Double Cutaway + Odif 505 for Stretchy Polos

Now you create the actual stabilization for the embroidery. You are essentially gluing the "real" stabilizer to the "carrier" stabilizer.

1. Lightly Mist the center of your hooped tearaway with Odif 505 (spray from 8-10 inches away—don't soak it).
2. Apply Layer 1: Smooth down your first piece of Cutaway stabilizer.
3. Mist Again.
4. Apply Layer 2: Smooth down the second piece of Cutaway.

The "Why" behind the "Double": Polos are notoriously unstable. A standard pique knit stretches in 4 directions. A single layer of stabilizer might allow the fabric to push and pull (flagging). The creator doubles the cutaway to create a rigid "plate" that forces the fabric to behave. This is common practice when using a floating embroidery hoop technique on high-stretch items.

Insert the Hoop Into a Small Polo Shirt Without Distorting the Placket

This is the physical maneuver. Slide the prepared hoop (with the sticky stabilizer sandwich facing up) inside the shirt.

Critical Orientation: Ensure the hoop's attachment bracket is pointing toward the hem (bottom) of the shirt. This ensures the neck of the shirt remains open at the sewing head.

The "Poof" Technique: Do not drag the shirt. Put your hand inside the shirt to "poof" or tent the fabric, creating airspace, then slide the hoop underneath. This prevents the sticky stabilizer from grabbing the fabric prematurely in the wrong spot.

Placement That Actually Repeats: Use the Second Button + Hoop Edge as Your Polo Logo Map

Placement anxiety is the #1 fear for beginners. Stop guessing and use "Anchor Points" that exist on every shirt.

The Industry Standard Coordinate System:

• X-Axis (Horizontal): The center of the design should align with the point where the shoulder seam meets the collar, OR roughly 3.5 to 4 inches from the center placket line (for adult sizes). For kids, centering between the placket and side seam is often sufficient.
• Y-Axis (Vertical): The top of the design should sit 7-9 inches down from the high shoulder point, or lined up with the bottom button hole (approx 2nd button).

The Creator's Shortcut: She aligns the top of the design area roughly 1 inch below the collar seam and uses the visual distance from the hoop edge to the placket to keep it straight.

To verify alignment visually: Stand back. Does the center mark of your hoop look parallel to the placket? The human eye is excellent at spotting crooked lines—trust it.

The Flatbed Reality: Pin the Perimeter So the Shirt Can’t Walk While the Hoop Moves

Once the shirt is pressed onto the sticky stabilizer, you must mechanically lock it.

The Pinning Strategy: Place 4-6 pins around the far perimeter of the hoop—completely outside the sewing field.

• The Action: Pin through the shirt, through the cutaway, and through the tearaway base.
• The Physics: On a flatbed machine, the weight of the shirt hangs off the edge. As the hoop moves left, the heavy skirt of the shirt wants to stay put. Without pins, the shirt will peel off the adhesive, and your design will drift.

If you find yourself constantly battling fabric drift, researching proper hooping for embroidery machine techniques limits is essential—but pinning is the "cheat code" for flatbeds.

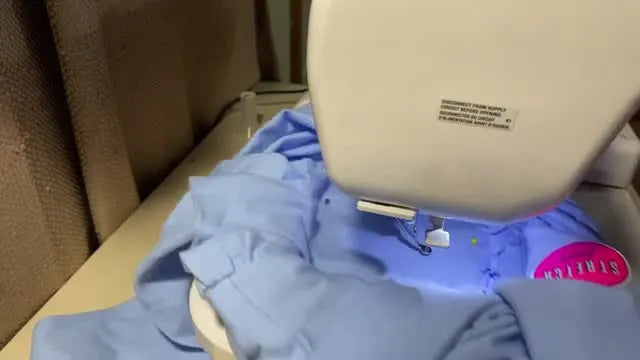

Mount, “Foof,” and Trace on the Janome 230E: Prevent Collar/Button Strikes Before They Happen

Attach the hoop to the carriage. Listen for the distinct "Click" of the locking mechanism. If it doesn't click, it will pop off mid-stitch.

The Safety Sweep:

1. "Foof" the Fabric: Ensure the back of the shirt is not tucked under the hoop. Tuck the rest of the shirt up and around the machine body (like a nest) so it flows freely.
2. The Trace Test: Run the machine's Trace / Outline function.
   • Watch for: Does the needle bar come dangerously close to the plastic buttons?
   • Watch for: Does the presser foot hit your perimeter pins?
   • Watch for: Is the fabric bunching up against the machine arm?

Expert Habit: Never hit "Start" without a successful Trace. It is your last line of defense.

Setup Checklist (Before you press Start)

• Hoop Locked: Verified auditory "click" on carriage attachment.
• Obstruction Check: No shirt fabric tucked under the needle plate.
• Pin Clearance: All pins are visibly inches away from the needle path.
• Trace Complete: The design area sits logically on the chest.
• Speed Set: Machine speed lowered to a "Beginner Sweet Spot" (e.g., 400-600 SPM).


Crisp Letters on Knit: Add Sulky Solvy Topper (and Use Scraps to Save Money)

Pique knit has a "hills and valleys" texture. Without a topper, your column stitches will sink into the valleys, making text look ragged.

Application: Place a piece of Water Soluble Topper (Solvy) lightly over the sewing area. You don't need to hoop this. You can tape the corners or lightly moisten your finger and touch the corners to "tack" it to the shirt.

Pro Tip: Save your scraps. A 3x3 inch scrap is perfect for a left-chest logo.

Stitching the School Logo: Aim for Quality, Not Full-Blast Speed

Press the green button.

Speed Management: While your machine might be rated for 650 or 800 SPM (Stitches Per Minute), high speed introduces vibration and thread whip. For detailed lettering on stretchy knits, slow down.

• Recommended Speed: 500-600 SPM.
• Sensory Check: The machine should hum rhythmically. If it sounds like it's hammering or struggling, reduce speed.

Jump Stitch Management: Pause the machine after the first few stitches of a new color to trim the "tail." If the machine creates a long jump stitch across the design, pause and trim it immediately so the foot doesn't snag it on the next pass.

Clean Removal Without Stressing Stitches: Pins First, Then Topper, Then Tearaway

When the machine plays its "Finished" tune, do not rip the hoop out aggressively.

1. Remove Pins FIRST: Count them. If you put 4 in, take 4 out.
2. Remove Topper: Tear away the excess Solvy. Small bits remaining within letters can be dissolved with water or a steam iron later.
3. Release the Shirt: Gently peel the shirt (and the cutaway backing) off the sticky tearaway base.
4. Trim Backing: Turn the shirt inside out. Use appliqué scissors to trim the Cutaway stabilizer around the design. Leave about 1/4 inch margin. Do not cut flush to the stitches (you risk cutting the bobbin thread).


The “No Itch” Upgrade: Apply Sulky Tender Touch to Seal the Back

Kids hate scratchy embroidery. To professionalize your work, apply a fusible tricot interfacing (like Sulky Tender Touch or Cloud Cover) over the back of the embroidery.

1. Cut a patch relative to the design size (with rounded corners to prevent peeling).
2. Iron it on using the manufacturer's temperature settings.
3. This seals the knots and stabilizer edges, providing a permanently soft interior.


Decision Tree: Pick the Right Stabilizer Stack for Polo Shirts

Confused about what to use? Follow this logic path.

START: Assessment of Fabric

1. Is the fabric stretchy? (e.g., Pique, Jersey)

• YES: You MUST use Cutaway.
  • Heavy Design (>10k stitches)? → Use 2 layers of Cutaway.
  • Light Design (Open line work)? → Use 1 layer of Mesh Cutaway.
• NO: (e.g., Denim, Woven Shirt) → You can use Tearaway.

2. Does the fabric have texture/nap? (e.g., Towel, Pique, Fleece)

• YES: Add Water Soluble Topper on top.
• NO: No topper needed.

3. Is it worn against sensitive skin? (e.g., Baby onesie, Uniform)

• YES: Apply Fusible Cover (Tender Touch) on the back after stitching.
• NO: Trim and finish.


Troubleshooting the Three Problems That Ruin Polo Logos

Symptom 1: A "Bird's Nest" of thread underneath.

• Likely Cause: The top thread was not in the tension discs correctly during threading.
• The Fix: Raise the presser foot (this opens the discs), re-thread completely, ensuring you feel resistance "like flossing teeth" when pulling the thread.

Symptom 2: White bobbin thread is showing on top.

• Or: The design looks loose and looping.
• Likely Cause: Top tension is too tight, or hoop was obstructed.
• The Fix: Clean the bobbin case (lint prevents tension). If persistent, lower the top tension dial slightly.

Symptom 3: The design is slanted or crooked.

• Likely Cause: The shirt "walked" during stitching because the adhesive failed.
• The Fix: You must use pins on the perimeter or upgrade to a magnetic hoop system that clamps the material firmly.


The Upgrade Path: When "Good Enough" Beats You Down

The method above (Floating + Pinning) is the standard workaround for single-needle flatbed machines. It works, but it is slow. It requires high skill to repeat consistently.

The "Production Pain" Trigger: If you get an order for 20 team shirts, the pinning method will hurt your wrists and take hours just in prep time.

The Solution Hierarchy:

• Level 1 (Tool Upgrade): If you struggle with hoop burn or hand strength, a magnetic embroidery hoops system is the first major upgrade. These hoops use powerful magnets to clamp fabric instantly without tightening screws. This solves the "hooping pain" and "hoop burn" issues immediately.
• Level 2 (Compatibility Check): Not all magnets fit all machines. For a flatbed, you would look for specific magnetic embroidery hoops for janome (or your brand) that fit the specific arm width of your unit.
• Level 3 (Workflow Upgrade): If consistent placement is your nightmare, standardizing with an embroidery hooping station allows you to pre-mark and hoop garments off the machine identically every time.

Warning: Magnetic Safety. Magnetic hoops usually contain Neodymium magnets. They are incredibly strong.
1. Pinch Hazard: They can snap together instantly, causing blood blisters or crushed fingers. Handle with extreme care.
2. Medical Device: Keep at least 6 inches away from pacemakers.

Quick Notes on Accessories & Machine Limits

Specific questions regarding the Janome 230E setup often arise:

• Software: While the machine reads designs via USB, you may need software (like Embrilliance Essentials) to merge letters with logos before saving to the stick.
• Hoop Size Limits: You cannot simply buy a larger hoop for a small machine. The carriage arm has a physical travel limit (usually 5.5" x 5.5" for this class). If you need to sew huge jacket backs, you are looking at a machine upgrade, not an accessory purchase.
• Aftermarket Hoops: If you choose to explore a 5.5 mighty hoop or similar magnetic frame, ensure your machine's clearance can handle the thicker frame height.

Operation Checklist (While stitching)

• First 20 Seconds: Watch the machine like a hawk. If the sound changes, STOP immediately.
• Fabric "Foof": Constantly ensure the rest of the shirt isn't bunching under the needle bar.
• Color Changes: Be ready to trim jump stitches before the next color sews over them.


By shifting your mindset from "forcing the hoop" to "floating the fabric," you gain control over difficult garments. Start slow, respect the checklist, and your results will improve with every shirt.

FAQ

• Q: On a Janome 230E flatbed embroidery machine, how do I hoop a child-size polo shirt using the floating method without stretching the knit?
  A: Hoop only tearaway stabilizer drum-tight, then float the polo on top and lock it down with pins so the knit never gets forced into the hoop.
  • Hoop: Tighten hooped tearaway first, then build the cutaway “sandwich” on top before the shirt touches anything sticky.
  • Insert: Slide the hoop inside the small polo with a “poof” (tent the fabric) so the adhesive does not grab in the wrong spot.
  • Secure: Pin 4–6 pins around the far perimeter (outside the sewing field) so the shirt cannot walk as the hoop moves.
  • Success check: The polo fabric looks relaxed (not rippled or stretched) and does not shift when you gently tug the shirt body.
  • If it still fails: Add mechanical holding with a basting stitch (if available) or move to a magnetic hoop system for stronger clamping.
• Q: For floating embroidery on a Janome 230E polo shirt, how do I know the tearaway stabilizer is hooped tight enough?
  A: Use the “tambourine test”—the hooped tearaway should sound like a drum and show no wrinkles.
  • Loosen: Open the outer ring wide before inserting the inner ring into the tearaway.
  • Tighten: Partially tighten the screw, then pull corners gently to remove slack, then tighten again.
  • Tap: Tap the hooped stabilizer with a finger.
  • Success check: The stabilizer makes a resonant “thump” (not a dull sound) and the surface stays flat without sagging.
  • If it still fails: Re-hoop from scratch—loose carrier stabilizer often causes outline registration to drift later.
• Q: When embroidering a stretchy pique polo on a Janome 230E, should the stabilizer stack be tearaway or cutaway for the floating method?
  A: Use cutaway on knits (often doubled for heavier designs) and treat tearaway as the hooped carrier only.
  • Build: Hoop tearaway as the base carrier, then apply 1–2 layers of cutaway on top with a light mist of temporary adhesive.
  • Choose: Use 2 layers of cutaway for heavier, denser designs; use 1 layer of mesh cutaway for lighter designs.
  • Add: Place water-soluble topper on the front if the polo texture makes lettering sink.
  • Success check: Stitches look crisp and the knit does not pucker or distort after the hoop is removed.
  • If it still fails: Reduce stitch speed and re-check that the shirt is pinned so it cannot peel off the adhesive during hoop travel.
• Q: On a Janome 230E polo embroidery setup, what is the safest way to pin a floated polo shirt without hitting pins with the needle?
  A: Pin only on the far perimeter, completely outside the trace/outline area, and always run the Trace function before stitching.
  • Place: Insert 4–6 pins through shirt + cutaway + tearaway, but keep pins inches away from the design field.
  • Trace: Run Trace/Outline and watch for presser-foot clearance near every pin.
  • Count: Count pins in and count pins out so none are left in the garment or work area.
  • Success check: The Trace runs with no near-misses, and the presser foot never approaches a pin head.
  • If it still fails: Remove perimeter pins and re-pin farther out, or switch to a non-pin holding method (basting stitch) where supported by the machine.
• Q: On a Janome 230E, how can I prevent button or collar strikes before stitching a left-chest logo on a polo?
  A: Always “foof” (manage garment bulk) and run Trace/Outline to confirm clearance from buttons, placket thickness, and the hoop path.
  • Tuck: Gather the rest of the polo up and around the machine body so fabric cannot bunch under the needle area.
  • Orient: Insert the hoop so the attachment bracket points toward the hem to keep the neck area open at the sewing head.
  • Trace: Run Trace/Outline and watch the needle bar path near buttons and the placket.
  • Success check: The entire trace completes with visible clearance—no contact with buttons, pins, or bulky folds.
  • If it still fails: Reposition the design lower/away from the placket area and repeat Trace before pressing Start.
• Q: On a Janome 230E, what causes a bird’s nest of thread underneath when embroidering a polo, and how do I fix it?
  A: Re-thread with the presser foot raised so the top thread seats in the tension discs; this is the most common cause of underside nesting.
  • Lift: Raise the presser foot to open the tension discs.
  • Re-thread: Thread the machine completely from the spool path to the needle, then pull the thread to feel consistent resistance.
  • Restart: Stitch a short test or restart the design after confirming proper threading.
  • Success check: The underside shows tidy bobbin lines rather than a tangled mass, and the top thread no longer loops freely.
  • If it still fails: Stop and check for lint in the bobbin area and confirm a fresh ballpoint 75/11 needle is installed.
• Q: If a Janome 230E polo logo keeps stitching crooked because the fabric “walks” during floating, when should I upgrade to magnetic embroidery hoops or a multi-needle machine?
  A: Upgrade when correct pinning and adhesive still cannot stop drift, or when order volume makes pinning too slow and hard on hands.
  • Level 1: Improve technique—pin the perimeter and manage garment weight so the shirt cannot peel as the hoop moves.
  • Level 2: Upgrade the clamping tool—use magnetic hoops to reduce hooping strain and improve hold (confirm clearance and fit for the machine).
  • Level 3: Upgrade the workflow—use a hooping station for repeatable placement, and consider a production machine if volume demands it.
  • Success check: Placement becomes repeatable across multiple shirts with no progressive drift from start to finish.
  • If it still fails: Re-check trace clearance and garment “foof” management—bulk drag on flatbeds can mimic stabilizer failure even with good holding.
