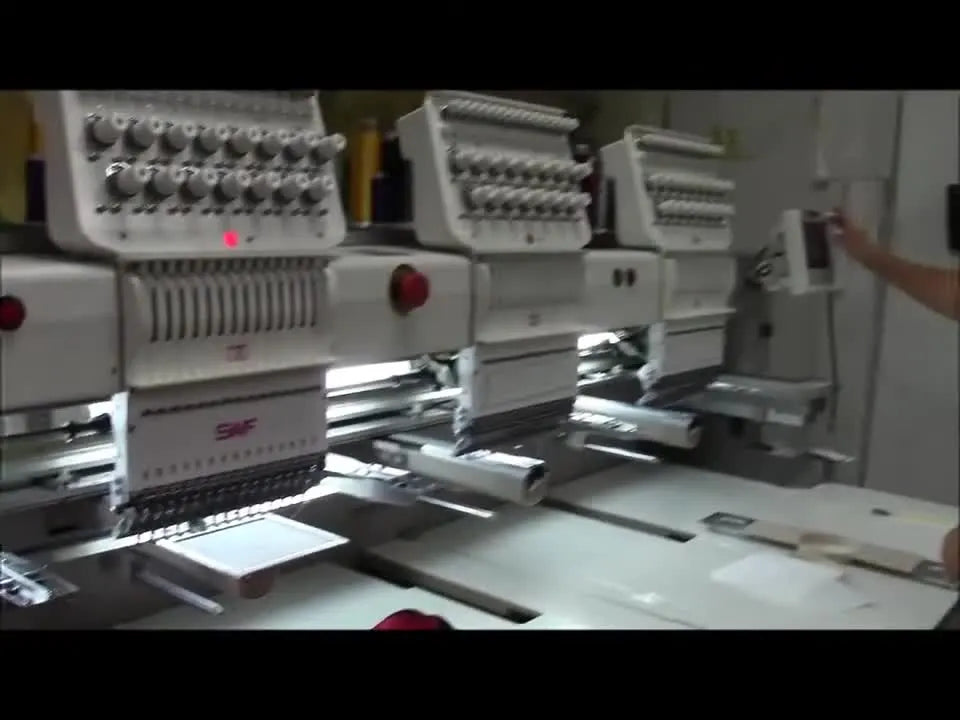

Stop Fighting Thick Tote Bags: Flat Hoop (Fast Frames) Setup on an SWF Multi-Needle Machine—Clean Stitching, No Hoop Burn

If you have ever tried to force a heavy, canvas-lined tote bag into a standard round hoop, you know the sound of failure. It starts with the screw grinding as you tighten it, followed by the "crunch" of the tote’s lining bunching up against the inner ring. You’re pushing harder than you should, and you can almost feel the fibers screaming for mercy.

Here is the truth: You aren’t “bad at hooping.” You are simply applying the wrong physics to the wrong material.

In this "white paper" style guide, we aren’t just looking at how to stitch a bag; we are engineering a workflow. We will break down the exact method shown in the video—embroidering totes using a flat frame system (Fast Frames) on an SWF multi-needle machine—and add the shop-floor constants that protect your equipment and your sanity. We will cover how to eliminate hoop burn, how to prevent heavy bags from dragging your registration off-center, and when it is legally time to upgrade your tooling for profit.

Round Hoop + Thick Lined Tote Bag = Pinch Pressure, Hoop Burn, and a Real Risk of Tearing

The physics of a standard round hoop rely on friction through compression. You place the inner ring inside the bag, the outer ring on top, and tighten the screw to sandwich the fabric. On a t-shirt, this creates a "nice tight drum."

However, when you introduce a thick tote—especially one with a PVC lining or heavy canvas seams—that compression becomes destructive.

The Anatomy of Failure:

1. The Bulge: The inner ring cannot compress the thick seams, causing the fabric to "tent" or bulge near the edges.
2. The Burn: The outer ring leaves a permanent crushed circle (hoop burn) on the fabric, effectively ruining the merchandise before you sew a single stitch.
3. The Tear: In the video, you can see the hoop visibly pinching the lining. If you force the hoop closed, the tension can tear the inner lining or the stabilization backing.

The Business Trigger: If you are running customer-supplied bags (where you cannot replace the inventory), using a round hoop is a high-stakes gamble. One ruined bag wipes out the profit of the entire order.

The Flat Hoop System (Fast Frames) That Makes “Un-hoopable” Tote Bags Finally Behave

To solve the compression problem, we must change the holding method. A flat hoop system (like Fast Frames or the Seven-in-One system) does not "squeeze" the fabric. Instead, it creates a stable, adhesive "window."

Here, the bag sits on top of the Sticky Backing. There is no outer ring to crush the fibers. The fabric stays flat, relying on chemical adhesion (glue) rather than mechanical compression (hoop).

The Upgrade Path (Speed & Safety): While adhesive frames work, they require constant re-taping and can leave residue. In high-volume production, many professionals prefer magnetic embroidery hoops. These use high-power magnets to hold the bag firmly without crushing it, eliminating the need for sticky backing application on every single frame. If you find yourself spending more time peeling paper than stitching, this is your signal to upgrade tooling.

The “Hidden” Prep That Prevents 80% of Flat-Frame Failures (Tape, Sticky Backing, and a Tension Reality Check)

Before you touch the machine, you must prepare the frame. The video highlights a non-negotiable rule: The adhesive backing must be drum-tight.

If the backing is loose, it acts like a trampoline. As the needle impacts, the backing bounces, causing loop-outs, bird nests, and poor registration.

The "Invisible" Tool Kit (Gather these first)

• Double-sided tape: Standard 3/4" width.
• Adhesive Tearaway Stabilizer (Sticky Backing): Filmoplast or similar.
• Chalk Marker: For marking the bag center (disappears with heat/water).
• Fresh Needle: Size 75/11 Sharp (Ballpoint needles may struggle to penetrate thick canvas without deflecting).
• Lighter/Heat Gun: To melt nylon coating fuzz if needed (use with caution).

Prep Checklist: The "Go/No-Go" Inspection

• Bag Inspection: Check the interior for loose pockets or zippers that could slide under the needle plate.
• Tape Application: Is the double-sided tape applied to the entire perimeter of the frame window?
• Tension Check: Once backing is applied, flick it with your finger. Hear: A sharp "thwack" sound. Feel: High resistance. If it sounds dull or dull, peel it off and redo it.
• Thread Color: Ensure bobbin thread (usually white) and top thread match the project specs.

Warning: Mechanical Hazard. Needles and presser feet are unforgiving against metal frames. Unlike plastic hoops, striking a metal frame will shatter the needle and potentially damage the machine's timing. You typically need 2-3mm of clearance between the design edge and the metal frame.

Build a Tight “Sticky Window” on the Fast Frames Metal Frame (No Sag Allowed)

This process mimics stretching a canvas for painting.

1. Tape the Rim: Apply double-sided tape to the underside of the flat frame edges.
2. Apply Backing: Place your adhesive backing (paper side down) on a flat table. Press the frame down onto it.
3. The "Pre-Load" Technique: Don't just stick it. Anchor one side, then pull the backing taut as you press down the opposite side.
4. Score and Peel: Use a pin or scissor tip to score the paper release liner inside the window. Peel it away to reveal the sticky surface.

The Consumable Reality: If you execute 50 bags a day, this taping process costs you about 2 minutes per bag. That is nearly 2 hours of lost production daily. This overhead is why high-volume shops standardize on a sticky hoop for embroidery machine setup only for odd shapes, but move to magnetic frames for everything else to reclaim that lost time.

Mount the Flat Frame on the SWF Hoop Holder/Bracket Without Fighting the Machine

The interface between the frame and the machine is critical. The video shows attaching the brackets to the Fast Frame arm.

Sensory Check:

• Feel: The screws should turn freely until they seat. If you feel gritty resistance, back out—you might be cross-threading.
• Sight: Ensure the arm is perfectly parallel to the machine bed. A bent arm means a slanted design.

If you are sourcing swf embroidery frames, always verify that the bracket width matches your machine's arm spacing (e.g., 360mm vs. 500mm spacing). Loose brackets cause vibration, which leads to "jagged" satin stitches.

The Needle 1 Alignment Trick on an SWF Multi-Needle Machine That Saves Rework

On multi-needle machines, the "center" isn't always where the laser points if you haven't set it. The host demonstrates a "Shop Standard" technique: Indexing off Needle 1.

The Protocol:

1. Select Needle 1: Manually toggle the machine to the first needle bar (usually the far left or right, depending on machine setup).
2. Mark the Bag: Use your chalk to draw a crosshair on the bag's intended center.
3. Physical Alignment: Manually move the pantograph so Needle 1 hovers directly over your chalk mark.

Why Needle 1? It gives every operator in the shop a consistent physical reference point that is easier to sight-line than a needle tucked in the middle of the head.

Pro Tip: If your shop has multiple swf embroidery machines, teach this "Needle 1 Zeroing" method to all staff. It reduces the "It looked centered to me!" excuses when shifts change.

Press the Tote Bag Onto the Sticky Stabilizer—But Only Where It’s Meant to Land

The Physics of Distortion: Thick bags have structural memory. If you stretch the bag while sticking it to the stabilizer, the bag will fight back. As you stitch, the fabric will try to retract to its original shape, causing the design to pucker.

The "Soft Hand" Technique:

1. Hover: Position the bag over the frame using your Needle 1 reference.
2. Drop: Lower the bag gently onto the adhesive.
3. Press, Don't Push: Rub the fabric down firmly to activate the adhesive bond. Do not pull the fabric outward.
4. Clearance Check: Ensure the bag handles fall outside the sewing field and are taped or clipped back.


The Design Trace Isn’t Optional—It’s Your Insurance Policy Against Metal Strikes

You are sewing on a metal frame. A collision here costs $200 in parts (needle plate, presser foot, needle bar driver) effectively instantly.

The Trace Routine:

• Run the machine's "Trace" or "Border Check" function.
• Visual Check: Watch the presser foot (not just the needle). Is the edge of the foot staying at least 3mm away from the metal bracket at all times?
• Obstruction Check: Does the presser foot hit the bag's thick hem or zipper during the trace? If so, move the design up.

Rule of Thumb: If it looks too close, it is too close. Move the design or shrink it by 5%.

Heavy Tote Bag Drag: The Quiet Cause of Distortion, Pulling, and Random “Why Did It Shift?” Moments

Gravity is your enemy here. A heavy canvas tote hanging off the front of the machine acts like a weight, pulling the hoop downward.

The Symptoms of Drag:

• Registration loss (outlines don't match the fill).
• Flagging (bouncing fabric).
• Needle deflection (hitting the plate).

The Solution:

Support the weight. Use a small specialized table, a cardboard box, or even hold the bag gently (keep hands clear of the needle!) to negate gravity. The bag should "float" at the needle plate level, not hang from it.

Stitch the Design (and Don’t Panic When a Thread Break Happens)

Speed Settings: For thick canvas bags on a flat frame, do not run at max speed. The vibration is too high.

• Safe Zone: 600 - 750 SPM (Stitches Per Minute).
• Danger Zone: 900+ SPM.


Handling Breaks: Thread breaks are common with canvas because the dense fabric creates high friction on the thread.

• If it snaps: Re-thread. Back up the machine 5-10 stitches to overlap the break point.
• Prevention: Use a larger eye needle (75/11 or 80/12) to reduce friction.

Clean Removal: Lift the Frame Safely, Slide It Out, Then Peel the Bag Off the Adhesive

Do not rip the bag off the machine like a Band-Aid. The stitches are warm and the stabilizer is strained.

1. Unlock: Loosen the hoop screws.
2. Slide: Gently pull the frame toward you, ensuring the bag handles don't catch on the presser foot.
3. Peel: Support the stitches with your thumb while peeling the stabilizer away from the back of the bag. This prevents distorting your fresh embroidery.




Finishing Standards That Make Bag Orders Look Professional (Even When the Customer Inspects the Inside)

A "Sticky Window" leaves a hole in the stabilizer.

• Patching: If the bag is unlined, you will see the sticky residue on the back. You may need to apply a piece of soft "Cover-The-Back" fuselage to prevent the bag from sticking to its own contents.
• Trimming: Use curved snips to trim jump stitches flush.
• Lighter Trick: Quickly pass a lighter flame over the design to remove any fuzz (careful with polyester thread!).






Setup Checklist (Do Not Press Start Until Checked)

• Frame is mounted square; screws are tight.
• Stabilizer window is drum-tight (thwack sound confirmed).
• Bobbin thread is sufficient for the job.
• Needle 1 alignment confirmed against bag center mark.
• TRACE COMPLETE: Validated 3mm clearance from metal frame.
• Bag handles are clipped or taped out of the way.
• Bag body is supported to prevent drag.

Operation Checklist (During the Run)

• Watch the first 100 stitches – this is when adhesion failure usually happens.
• Listen for "clicking" (needle hitting plate) or "thumping" (hoop hitting arm).
• Maintain speed below 800 SPM.

A Simple Decision Tree: Choosing Stabilizer Strategy for Tote Bags

Use this logic to decide your tooling:

Scenario A: The 99¢ Poly-Tote

• Condition: Thin, flimsy, no lining.
• Tool: Standard Round Hoop + Tearaway.
• Why: It fits directly in the hoop without burning.

Scenario B: The Premium Canvas Boat Bag

• Condition: Thick canvas, waterproof lining, rigid seams.
• Tool: Flat Frame (Fast Frame) + Sticky Backing.
• Why: Prevents hoop burn and crushing.

Scenario C: The 500-Piece Corporate Order

• Condition: High volume, medium thickness, speed is critical.
• Tool: Magnetic Hoop (Magnetic Embroidery Hoop to SewTech Magnetic Frame).
• Why: hooping for embroidery machine efficiency is key here. Sticky backing takes too long to prep. Magnetic frames load in 5 seconds with zero residue.

Warning: Magnetic Safety.
Magnetic hoops use Neodymium industrial magnets. They snap together with enough force to crush fingers.
* Keep away from pacemakers and sensitive electronics.
* Grip firmly and slide magnets apart; do not try to pry them directly up.

Troubleshooting Tote Bag Embroidery on Flat Frames

The Upgrade Path: When Flat Frames Are Great—and When You Need More Power

Flat frames with adhesive are the "Swiss Army Knife" of embroidery—versatile, but slow. They allow you to say "Yes" to profitable bag jobs you used to turn down.

However, as your shop scales, identify your bottlenecks:

1. The "Sticky" Bottleneck: If you are wasting hours cutting tape and backing, look into hooping station for embroidery machine setups paired with magnetic frames to standardize placement and speed up loading.
2. The Compatibility Bottleneck: If you are struggling to find frames that fit, remember that sourcing correct swf hoops implies checking arm spacing, not just brand name.
3. The Capacity Bottleneck: If doing 50 bags takes you 3 days on a single-head machine, the labor cost is eating your margin. This is the calculated moment to look at SEWTECH multi-needle solutions to run 4, 6, or 12 bags simultaneously.

One Last Pro Reminder

Embroidery on finished bags is high-stakes because the item itself has value. Start slow. Trace twice. Support the weight. And if the bag feels like it is fighting the machine, stop—it's usually a sign you need to change your holding method, not your tension dial.

Master the "Window Method" shown here, and you will never fear a heavy tote bag again.

FAQ

• Q: How can an SWF multi-needle embroidery machine prevent hoop burn and lining tears when hooping a thick, PVC-lined canvas tote bag with a standard round hoop?
  A: Stop forcing a round hoop—switch to a flat frame with sticky backing (or a magnetic hoop) to avoid crush pressure on thick seams and linings.
  • Use a flat frame “sticky window” so the tote sits on adhesive instead of being squeezed by an outer ring.
  • Inspect the tote first for thick seams/lining bulges that would “tent” inside a round hoop.
  • Run a test placement and avoid pressing the tote while stretched.
  • Success check: No shiny ring marks before stitching, and the tote lies flat without edge bulging.
  • If it still fails: Move to a magnetic hoop when repetitive taping/re-sticking slows production or adhesive residue becomes a recurring issue.
• Q: How do operators make sticky backing drum-tight on Fast Frames flat metal frames for SWF multi-needle tote bag embroidery?
  A: Rebuild the sticky window and do not accept sag—drum-tight backing is the non-negotiable standard for preventing bounce, nests, and mis-registration.
  • Apply double-sided tape around the full perimeter of the frame window (underside rim).
  • Anchor one side of the stabilizer, then pull the stabilizer taut while pressing the opposite side down (pre-load technique).
  • Score and peel the paper liner cleanly to expose the sticky surface without stretching the backing loose.
  • Success check: Flick the backing—hear a sharp “thwack” and feel high resistance (not a dull, soft bounce).
  • If it still fails: Peel it off and redo the window; loose backing will keep causing loop-outs and bird nests.
• Q: What is the safe TRACE (border check) clearance rule on an SWF multi-needle embroidery machine when running Fast Frames metal frames on tote bags to avoid needle strikes?
  A: Always run TRACE and keep at least 3mm clearance between the presser foot path/design edge and any metal frame parts.
  • Run the machine’s Trace/Border Check before pressing start.
  • Watch the presser foot (not only the needle) as it travels the boundary.
  • Reposition or shrink the design if anything looks close—especially near thick hems, zippers, or brackets.
  • Success check: The presser foot stays visibly clear of the metal frame/bracket at all points, with ≥3mm margin.
  • If it still fails: Move the design up/away or reduce the design size (a small reduction is safer than risking a collision).
• Q: How can an SWF multi-needle embroidery machine operator align tote bag center accurately using the Needle 1 alignment method on a flat frame?
  A: Index off Needle 1 every time—use Needle 1 as the physical reference to align the tote’s marked center before stitching.
  • Select Needle 1 manually on the machine.
  • Mark a clear center crosshair on the tote with a chalk marker.
  • Jog the pantograph so Needle 1 hovers directly over the crosshair before pressing the tote onto the sticky stabilizer.
  • Success check: Needle 1 visually sits exactly over the crosshair with no “guessing” from a laser or mid-needle position.
  • If it still fails: Re-mark the center and repeat the hover-and-align step before sticking the tote down (do not reposition by stretching).
• Q: Why does an SWF multi-needle embroidery machine design shift or look “squished” vertically on a heavy canvas tote bag when using a flat frame, and how do operators fix tote bag drag?
  A: Support the tote’s weight so the bag “floats” at needle plate level—gravity drag is a common cause of distortion and registration loss.
  • Place a small table, box, or support directly under the hanging portion of the tote.
  • Keep handles and excess bag material clipped/taped outside the sewing field.
  • Run at a controlled speed (avoid max speed on thick canvas to reduce vibration).
  • Success check: During stitching, the tote does not pull downward, and outlines stay aligned with fills (no progressive drift).
  • If it still fails: Stop and re-support the bag; once a design is distorted from drag, the reliable fix is redoing the sew-out.
• Q: What should an SWF multi-needle embroidery machine operator do when thread breaks keep happening on thick canvas tote bags on a flat frame, and what needle choice helps?
  A: Slow the run and reduce friction—use a fresh 75/11 sharp needle (or move up to 80/12 if needed) and restart with a short overlap.
  • Set a conservative speed range (about 600–750 SPM for thick canvas work on a flat frame).
  • Re-thread carefully and back up 5–10 stitches to overlap the break point.
  • Swap to a fresh needle; a too-small eye often increases friction and break frequency.
  • Success check: The machine runs several hundred stitches without repeated snapping, and the overlap area is visually clean.
  • If it still fails: Check the full thread path and top tension; persistent breaks often indicate mis-threading or excessive tension rather than “bad thread.”
• Q: What are the key safety risks when using Fast Frames metal frames and magnetic embroidery hoops on an SWF multi-needle embroidery machine for tote bags?
  A: Prevent needle-to-metal strikes with tracing, and handle magnetic hoops as pinch hazards—both risks are common and avoidable with standard checks.
  • Run TRACE every time and maintain at least 3mm clearance from metal frame/bracket zones.
  • Stop immediately if clicking/thumping sounds appear (often indicates contact or near-contact).
  • Handle magnetic hoops by gripping firmly and sliding magnets apart—do not pry upward, and keep away from pacemakers/electronics.
  • Success check: No needle break events, no unusual impact sounds, and operators can load/unload frames without finger pinch incidents.
  • If it still fails: Pause the job and re-evaluate design placement/tooling choice; repeated close calls usually mean the holding method needs to change, not the tension dial.
