Stop Fighting Thick Hoodies: Appliqué on the Ricoma EM1010 with an 8x13 Magnetic Hoop (Clean Satin Edges, No Shifting)

If you have ever attempted to hoop a thick, premium heavyweight hoodie and felt your patience evaporate—wrinkles, shifting fabric, crooked placement, and that dreaded creeping anxiety that you are about to ruin a $30 garment—you are not alone. Hoodies are the "final boss" for many embroiderers. They are bulky (hard to clamp), elastic (prone to distortion), and unforgiving.

Patrice’s workflow on the Ricoma EM1010 demonstrates a solid, production-minded approach: using a magnetic hoop for speed, a hooping station for repeatability, cutaway stabilizer for structural integrity, and manual machine control to manage appliqué stops.

However, watching a video is different from executing the process in your shop. Below, we have rebuilt this workflow into a white-paper level standard operating procedure. We have added sensory checks (what it should feel/sound like), safety protocols, and the specific "sweet spot" data ranges that turn a gamble into a guarantee.

The calm-before-the-stitch: Mighty Hoops magnets and Ricoma EM1010 reality checks (so you don’t panic mid-run)

Magnetic hoops alleviate the physical strain of traditional hooping. They feel like a cheat code—until you pinch a finger or assume the full hoop dimensions equal your sewable area.

Patrice uses an 8x13 magnetic hoop, but she highlights a critical limitation on the Ricoma EM1010/EM-series machines: the mechanical clearance refers to the pantograph arm limits, not just the inner hoop size.

The "Safe Zone" Mathematics: Even if a hoop is labeled 8x13 inches, the actual safe embroidery field is approximately 12" x 6.9".

• Why? The presser foot needs clearance near the bracket arms.
• The Fix: In your digitizing software or machine panel, ensure your design width does not exceed 11.8" safely. That single calculation prevents the terrifying "frame limit" error or, worse, the needle striking the hoop frame.

One more mindset shift is required: Appliqué is not just "embroidery with fabric." It is a sequence of Stop Commands. Your machine must be instructed to pause exactly when you need to place fabric or trim edges.

If you are specifically searching for ricoma em 1010 embroidery machine setup details, the key takeaway is that appliqué success is 80% preparation and only 20% stitching. Success relies on control (programming manual stops) and stability (proper stabilization), not raw speed.

The “hidden” prep Patrice does first: HoopMaster fixture centering, cutaway choice, and magnet handling that saves your hands

Patrice begins at the hooping station. The "magic" here isn't just the magnet; it's the fixture optimization. She adjusts the station so the hoop is perfectly centered relative to the neck placement functionality. This step is the difference between "eyeballing it" and true commercial repeatability.

She also separates the magnetic top ring from the bottom ring. This requires respect for the physics involved.

Warning: Magnet Safety & Pinch Hazards
Industrial magnetic hoops generate over 30 lbs of clamping force instantly.
* The Risk: They can snap together hard enough to crush fingers or shatter plastic tools.
The Protocol: Keep fingers strictly on the outside* handling tabs. Never place your hand between the rings.
* The Environment: Keep scissors, tweezers, and especially phones/pacemakers away from the immediate magnetic field. Do not leave rings "loose" on a metal table where they might jump unexpectedly.

Why cutaway stabilizer is the right call here (and when it isn’t)

Patrice uses cutaway stabilizer (likely 2.5oz or 3.0oz). This is the non-negotiable standard for hoodies.

The Material Science: A hoodie is a knit fabric; it behaves like a soft spring. It wants to stretch and distort under the tension of thousands of stitches.

• Tearaway: If you use tearaway, the perforation of the needle turns the stabilizer into a perforated stamp. It tears during stitching, leaving your perfectly digitized satin border to "float" on the stretchy fabric. The result is gaps and puckering.
• Cutaway: It remains solid. It creates a permanent "suspension bridge" inside the garment that holds the stitches in place for the life of the hoodie.

Tool-upgrade path (when hooping is your bottleneck)

If hooping thick garments is where you lose 10 minutes per shirt, a hooping station plus magnetic hoops is your first productivity jump. For single-needle home users, this reduces "hoop burn" (the shiny ring left by tight plastic frames). For production shops, it saves wrists.

If you’re comparing options like hoopmaster station, focus on two criteria:

1. Repeatability: Can you load 50 hoodies and have the logo land on the exact same chest location every time?
2. Viscosity Handling: Can you load a thick Carhartt-style jacket without fighting the thumbscrews?


Prep Checklist (do this before the hoodie ever touches the machine)

• Design Hygiene: Confirm design fits the actual safe stitch field (approx. 12" x 6.9" for this setup).
• Stabilizer Prep: Cut a sheet of 2.5oz+ Cutaway stabilizer, ensuring it extends 1 inch beyond the hoop edges on all sides.
• Appliqué Pre-Cuts: Pre-cut fabric squares to 3.5" x 3.5" (Patrice’s size) to ensure complete coverage.
• Needle Check: Ensure a Ballpoint Needle (75/11) is installed. Sharp needles can cut knit fibers, leading to holes; ballpoints slide between them.
• Adhesive Management: Keep parchment paper ready for pressing Heat n Bond.
• Safety Sweep: Clear the table of metal tools (scissors/screwdrivers) before handling magnetic rings.

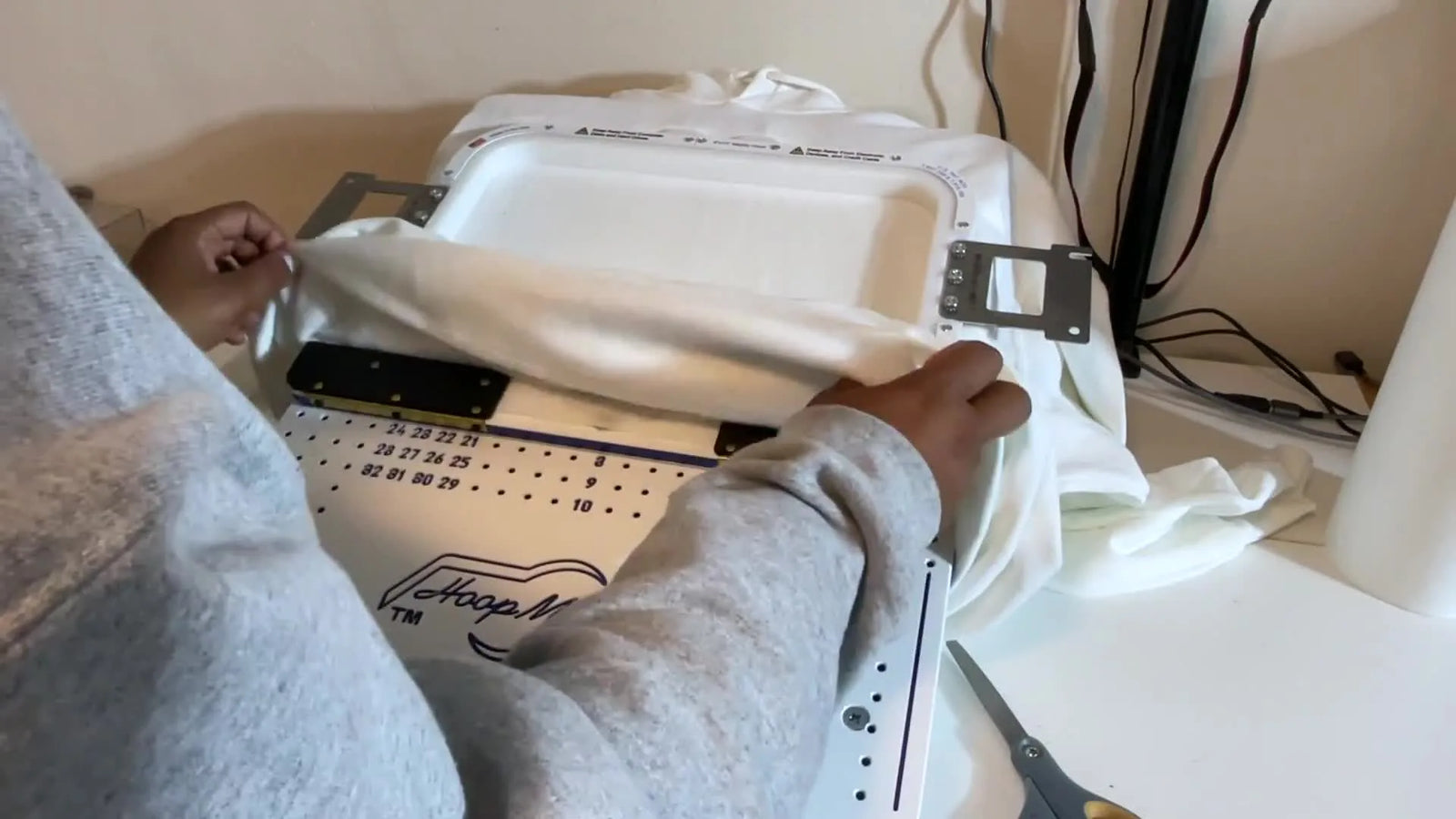

Fast, clean hooping on a thick hoodie: loading stabilizer, sliding the garment on “like a mannequin,” and avoiding the pocket

Patrice clips the cutaway backing over the bottom ring on the station. She then loads the hoodie using the "Mannequin Method"—sliding it over the station neck-first.

The Sensory Anchor: When loading the garment, it should flow over the station. You should not be fighting the fabric. If you have to yank the hoodie down, your station size might be set too wide.

She aligns the chest area, ensuring the kangaroo pocket is clear of the bottom magnetic ring. This is a critical check—sewing a pocket shut is a rite of passage we want to avoid.

The physics that prevents shifting (and why magnetic hoops help)

Hooping problems on thick garments usually stem from Differential Tension: The outer hoop pulls the top fabric tight, while the inside layer remains loose. When the needle strikes, the layers shift, causing registration errors.

Magnetic hoops apply vertical clamping pressure rather than horizontal stretching force. This drastically reduces localized "hoop burn."

The Tactile Check: Once the magnet snaps shut (Listen for the solid CLACK sound), run your hand over the hooped area.

• Correct: It should feel flat, neutral, and supported.
• Incorrect: It should not feel "drum tight." If you stretch a hoodie tight like a drum, it will retract when you un-hoop it, and your design will pucker.

If you’re building a repeatable workflow with a hooping station for embroidery, treat the station as your alignment tool (where X/Y coordinates live) and the hoop simply as your clamp. They are two distinct jobs.

Ricoma EM1010 panel setup that makes appliqué possible: DST import, Needle 1 centering, and switching to Manual so stops don’t get skipped

Patrice loads the hooped hoodie onto the Ricoma EM1010. She checks that Needle 1 is centered. She imports the design (DST format) and notes a crucial setting change.

The "Manual Mode" Necessity: Commercial machines like the Ricoma are designed for speed; they want to run all colors without stopping. However, appliqué requires a physical pause to place fabric.

• The Setting: Change the machine from Automatic to Manual color change mode.
• The Effect: The machine will sew the placement line and then stop dead. It will wait for you to press start again. This control is vital.

Another frequent question concerns hoop selection on the screen. The video shows direct mounting. If your firmware requires a hoop selection, choose the one closest to your frame size, but always trust your Trace.

The Pre-Flight Trace: Never skip the trace. Watch the presser foot travel the perimeter.

1. Does it hit the plastic arms?
2. Does the hoodie pocket bunch up near the needle bar?

If you are specifically trying to replicate Patrice’s setup with mighty hoops for ricoma em 1010, your two "don't skip" checks are: (1) Needle 1 centered physically, and (2) Manual mode enabled in the software.

Setup Checklist (panel + trace checks before the first stitch)

• Physical Lock: Hoop arms are fully seated and locked into the pantograph bracket.
• Clearance: Hoodie sleeves and hood strings are clipped or taped back, away from the moving sewing arm.
• File Logic: Machine set to Manual Mode (or programmed with "Frame Out/Stop" commands).
• Speed Limiter: Reduce machine speed. For appliqué on hoodies, 600-750 SPM (Stitches Per Minute) is the "Safe Sweet Spot." running at 1000 SPM increases the risk of fabric shifting.
• The Trace: Run a full design trace. Ensure the presser foot does not come within 5mm of the hoop edge.


The placement stitch that saves your appliqué: outline first, then fabric (not the other way around)

Patrice runs the first stop: the Placement Line. This is a simple running stitch (low density) that outlines the letters (e.g., "GOD").

Expected Outcome: A clean, visible outline stitched directly onto the hoodie fleece.

• Quality Check: If this outline is distorted or oval-shaped instead of round, your hooping is too loose or the garment is dragging. Stop now. Fixing it at this stage costs $0.50 in thread. Fixing it later costs a $30 hoodie.


Heat n Bond appliqué fabric prep: 3.5" squares, parchment protection, and getting text direction right

Patrice prepares the appliqué fabric using Heat n Bond Lite (purple package is common for sewing). She cuts the material into 3.5" squares—generous enough to cover the letters but small enough to manage.

The Thermal Process: She uses a Cricut Mini Press and parchment paper to fuse the adhesive to the back of the appliqué fabric.

• Crucial Step: Peel the paper backing after it cools. This reveals a shiny, glossy adhesive surface.

The Directionality Trap: If you are using patterned fabric (e.g., plaid, stripes, or text), verify the orientation before ironing. Once the tack-down stitch fires, upside-down words are permanent.

If you are stocking supplies, investing in mighty hoops magnetic embroidery hoops handles the exterior stability, but the chemical stability of Heat n Bond handles the interior fabric behavior. You need both.

Why adhesive helps (and what it can’t fix)

Why use Heat n Bond instead of just spray adhesive?

1. Shear Resistance: It prevents the fabric from "rippling" or "snowplowing" as the presser foot drives over it.
2. Edge Crispness: It keeps raw edges stiff, making trimming significantly easier and cleaner.

The Limitation: It cannot fix a bad digitizing file. If your satin border is too narrow (under 3.5mm) or has insufficient density, you will still see raw edges. For hoodies, ensure your file has specific underlay (zigzag or edge run) to lift the satin stitches above the hoodie pile.

Tack-down without terror: keeping fabric from shifting *without* putting your fingers near the needle

Patrice places the prepared squares over the stitched outlines. Now comes the Tack-Down Stitch (usually a zigzag or double run). This is the moment of highest anxiety for beginners because the machine moves fast, and the fabric wants to curl up.

In the video, Patrice uses her fingers. We recommend a safer tiered approach for your shop.

Warning: Needle Safety & Reaction Time
Never place fingers inside the hoop perimeter while the machine is "Active" (Green light).
* The Danger: A 1000 SPM machine moves the needle bar 16 times per second. Human reaction time is too slow to avoid a strike.
* The Rule: Keep hands at least 6 inches away from the needle bar.

Safer Alternatives (The "Chopstick Method")

1. The Tape Method: Use painter's tape or embroidery tape on the corners of the fabric square (outside the stitch zone) to hold it down.
2. The Extension Tool: Use a designated tool—a chopstick, the eraser end of a pencil, or a "That Purple Thang"—to hold the fabric flat. If the needle hits the chopstick, you break a $0.05 wood stick, not your finger.


The trim Patrice skipped on camera: how close is “close enough” before the satin stitch seals the edge

This is the skill gap step. After tack-down, you remove the hoop (or slide the frame out) to trim the excess fabric.

The Tool: Use Double Curved Appliqué Scissors (Duckbill scissors). The "bill" pushes the fabric down while keeping the blade safely above the stitches.

The Tolerance:

• Target: Trim approximately 1mm to 2mm from the tack-down stitch line.
• Too Close: You might clip the tack-down knots, causing the appliqué to fall off.
• Too Far: You leave "whiskers" of fabric poking out of the satin stitch.


The satin stitch payoff: thick borders, clean letters, and the quick “don’t stitch the hoodie together” check

Patrice runs the final Satin Stitch. This is the heavy, dense cover stitch.

Sensory Feedback - The "Thump": Listen to your machine.

• Good Sound: A rhythmic, steady hum.
• Bad Sound: A deep "Thud-Thud-Thud" usually means the needle is struggling to penetrate layers, or you have stitched through a pocket/seam excessively.
• Checking Layers: Before hitting start on the final satin run, reach under the hoop (safely) to ensure the hoodie back or sleeves haven't folded under the needle plate.


Pro finishing on the inside: trimming jump threads, cutting stabilizer safely, and pressing Tender Touch at 250°F for 7–10 seconds

The job isn't done when the machine stops. Professional finishing separates "homemade" from "handmade." Patrice removes the hoodie, turns it inside out, and trims the messy jump threads.

Stabilizer Removal: She trims the cutaway stabilizer.

• Technique: Lift the stabilizer up and away from the hoodie fleece before snipping. Nicking the hoodie fabric here is the most common "heartbreak moment" in embroidery. Leave about 0.5" of stabilizer around the design; do not try to cut flush to the stitches.

The Soft Touch: She applies Tender Touch (a fusible tricot mesh) to the back of the embroidery.

• Purpose: It seals the scratchy bobbin threads and stabilizer edges, protecting the wearer's skin.
• Application: Rough side down.
• Heat Setting: 250°F (approx. 120°C) for 7–10 seconds. (Note: Synthetic hoodies can melt at high heat; always use a pressing cloth or parchment paper buffer).

If you are trying to build a consistent finishing standard, magnetic embroidery hoops provide the structural foundation, but Tender Touch is the "comfort finishes" that gets you repeat customers.

Operation Checklist (End-of-Job Quality Control)

• Coverage: Satin borders fully encapsulate the raw edges (no whiskers).
• Registration: No gaps between the appliqué fabric and satin border.
• Flatness: No severe puckering around the design (indicates hoop was too tight).
• Interior Hygiene: Jump threads trimmed close; bobbin tension looks balanced (1/3 white strip in center).
• Skin Feel: Tender Touch is fused securely with no peeling edges.
• Wait Time: Allow the adhesive to cool completely before folding to prevent bonding the hoodie to itself.


Troubleshooting the two problems that ruin hoodies: fabric shifting during tack-down and accidental holes during cutaway removal

Trouble Matrix: Symptom, Cause, & Fix

The upgrade that actually matters: when to switch tools for speed, consistency, and less wrist pain

Patrice’s result looks clean and "rich." But keep in mind: if you are doing one hoodie a month, you can muscle through with standard hoops. If you are doing 50 for a team order, your wrists—and your profit margin—will suffer without the right tools.

Use this decision tree to decide if you are ready to upgrade your shop infrastructure.

Decision Tree: Optimization Strategy for Hoodie Appliqué

• Variable 1: The Fabric
  • Is it thick/spongy? YES -> Use Cutaway Stabilizer & Ballpoint Needles.
  • Is it thin/stable? NO -> You might get away with Tearaway, but Cutaway is safer.
• Variable 2: The Bottleneck
  • Is hooping taking >5 minutes per shirt? YES -> Investment Trigger: Get a Hooping Station + Magnetic Loop.
  • Is the machine sitting idle while you trim appliqué? YES -> Scale Trigger: This is where a multi-head machine or a faster commercial single-head (like the SEWTECH series) pays off.
• Variable 3: The Volume
  • Are you sewing for profit (Batch orders)? YES -> Move to a Multi-Needle platform. The ability to queue colors and faster trim speeds drastically lowers "Cost Per Garment."
  • Are you a hobbyist? NO -> Focus on technique (Manual Mode mastery) with your current setup.

A natural tool-upgrade path (The "Profit" Logic)

1. Level 1 (Technique): Use Heat n Bond and Manual Mode to stop ruining garments.
2. Level 2 (Efficiency): If your wrist hurts or alignment varies, a Magnetic Hoop system solves the physical strain and hoop burn issues.
3. Level 3 (Scale): When your order volume exceeds your available hours, upgrading to a SEWTECH Multi-Needle Machine allows for higher speeds (safely) and massive time savings on color changes, turning a hobby into a viable production business.

Final Warning: Magnetic hoops are powerful tools. Keep them away from sensitive electronics and handle them with deliberate spacing.

By building your process around repeatable centering (HoopMaster), manual control (Ricoma/SEWTECH panel), and sensory awareness (Sound/Touch), you will achieve the same crisp result Patrice demonstrates—without the stress.

FAQ

• Q: Why does a Ricoma EM1010 show a frame limit risk when using an 8x13 magnetic hoop, and what is the safe embroidery field?
  A: The Ricoma EM1010 pantograph clearance is smaller than the hoop label, so keep designs within the safe field to prevent a frame limit/strike.
  • Set design width to 11.8" or less as a safe cap for this setup.
  • Confirm the practical safe field is about 12" x 6.9" (clearance near bracket arms is the limiting factor).
  • Run a full Trace before stitching and watch the presser foot near the hoop arms.
  • Success check: During Trace, the presser foot stays at least ~5 mm away from the hoop edge and never approaches the bracket arms.
  • If it still fails: Re-center to Needle 1 and reduce the design size in software rather than “forcing” the hoop selection on the panel.
• Q: How do I hoop a thick hoodie with a magnetic hoop without puckering or “drum-tight” stretch?
  A: Clamp with vertical pressure and keep the hoodie neutral—magnetic hooping should feel supported, not stretched.
  • Load the hoodie using the “mannequin method” (slide it on smoothly; do not yank it down).
  • Keep the kangaroo pocket completely clear of the bottom ring before the magnet closes.
  • After the magnet closes, smooth the surface by hand instead of pulling the knit tight.
  • Success check: The hooped area feels flat, neutral, and supported, and the magnet closure gives a solid “CLACK” (not a weak, uneven close).
  • If it still fails: Re-hoop with less stretch and switch to 2.5 oz+ cutaway stabilizer if the hoodie is still shifting.
• Q: What stabilizer and needle should be used for hoodie appliqué on a Ricoma EM1010 to avoid gaps and holes?
  A: Use 2.5 oz+ cutaway stabilizer and a 75/11 ballpoint needle as the baseline for knit hoodies.
  • Cut stabilizer so it extends at least 1 inch beyond the hoop on all sides.
  • Install a 75/11 ballpoint (sharp needles can cut knit fibers and create holes).
  • Avoid tearaway on hoodies because it can perforate and tear during stitching, leading to puckering and gaps.
  • Success check: The placement outline stitches cleanly without distortion, and the fabric shows no new pinholes around dense areas.
  • If it still fails: Slow the machine to the hoodie appliqué sweet spot (600–750 SPM) and re-check hooping tension (too tight often puckers after unhooping).
• Q: Why does a Ricoma EM1010 skip appliqué pauses, and how do I force the machine to stop for fabric placement?
  A: Appliqué needs controlled pauses—set the Ricoma EM1010 to Manual color-change mode (or use programmed stops) so the machine waits for you.
  • Switch from Automatic to Manual so the machine stops after the placement line instead of running through.
  • Confirm Needle 1 is centered before starting the job.
  • Run Trace every time, especially after importing a DST, to confirm real clearance.
  • Success check: After the placement line, the machine stops and waits for Start/Confirm before continuing.
  • If it still fails: Verify the file contains the intended stop sequence (appliqué is a series of stops) and do not rely on hoop label size—re-check the safe field and trace again.
• Q: How do I stop appliqué fabric from shifting during the tack-down stitch on a Ricoma EM1010 hoodie job?
  A: Control movement first—use Heat n Bond and slow the machine to reduce curling and “snowplowing.”
  • Fuse Heat n Bond Lite to the appliqué fabric using parchment protection, then peel after cooling.
  • Use the tape method (secure corners outside the stitch zone) or an extension tool (chopstick/pencil/“That Purple Thang”) instead of fingers.
  • Reduce speed to 600–750 SPM for hoodie appliqué stability.
  • Success check: The tack-down completes with the fabric staying flat—no ripples, no edge lift, no offset from the placement outline.
  • If it still fails: Stop immediately, re-secure the fabric, and re-check that the hooped hoodie is not dragging (too loose hooping can cause registration shift).
• Q: What are the safest ways to handle powerful magnetic embroidery hoops to avoid pinch injuries and tool damage?
  A: Treat industrial magnetic hoops as a pinch hazard—separate and close rings only by the outside tabs and keep metal/electronics clear.
  • Keep fingers strictly on the outside handling tabs; never place a hand between rings.
  • Clear the work surface of scissors, tweezers, screwdrivers, and phones, and avoid leaving rings loose on metal tables.
  • Separate rings deliberately and control the snap—do not let them “jump” together.
  • Success check: The rings close in a controlled way with no sudden slam into tools and no fingers ever entering the ring gap.
  • If it still fails: Change the handling setup (use a stable station surface and consistent ring staging) before continuing production.
• Q: When should an embroidery shop upgrade from technique fixes to magnetic hoops or a multi-needle SEWTECH machine for hoodie appliqué production?
  A: Use a tiered approach: fix technique first, upgrade hooping when hooping is the bottleneck, and upgrade machines when time—not skill—is limiting output.
  • Level 1 (Technique): Use Manual Mode stops, Heat n Bond, 600–750 SPM, and correct hooping/stabilizer basics to stop ruining garments.
  • Level 2 (Tool): If hooping takes more than 5 minutes per hoodie, add a hooping station + magnetic hoops to improve repeatability and reduce wrist strain/hoop burn.
  • Level 3 (Capacity): If trimming and color handling keep the machine idle during batch orders, consider moving to a multi-needle platform (such as SEWTECH) for production scaling.
  • Success check: Placement becomes repeatable across a run (logos land consistently), and the machine spends more time stitching than waiting on setup/redo work.
  • If it still fails: Track where minutes are lost (hooping vs. stops vs. rework) and upgrade the specific bottleneck rather than changing everything at once.
