Stop Fighting the Smartstitch Doodle Screen: Which USB Drawing Tablet Actually Works on the Smartstitch 1501/1201/1001

If you’ve ever tried to “sign” a name or sketch a quick motif on the Smartstitch screen and thought, Why does this feel harder than it should?—you’re not alone. The built-in Doodle feature is genuinely useful, but the standard input method can make it feel less like professional design and more like finger-painting in the dark.

In this comprehensive field test, Michelle from Sew Unique Designz answers a critical question for production efficiency: can you plug a drawing tablet into Smartstitch machines to bypass the clunky touchscreen interface? She tests three common devices on the Smartstitch platform, revealing not just what works, but the specific "physics" of why some devices fail in a production environment.

Take a Breath: The Smartstitch Doodle Function Is Basic—but It’s Still a Real Tool

The first thing I tell shop owners who feel “behind” because they’re not digitizing complex logos directly on the machine is: relax. The Doodle function is not meant to replace full desktop digitizing software like Wilcom or Hatch. It is a rapid-response tool designed for simple tasks: signatures, handwritten notes, and basic outlines.

A viewer comment captures the correct mindset: the Doodle function is “basically a simple digitizer.” It interprets your screen touches as vector lines and assigns stitch properties to them. It’s perfect for the high-margin "while you wait" personalization market.

However, if you are running a smart stitch embroidery machine 1501 in a commercial setting, time is money. This feature can save you 15 minutes of computer work on small custom add-ons—provided your input device doesn’t slow you down more than it helps. If you are fighting the screen, you are losing profit.

The “Hidden” Prep Pros Do First: USB, Screen Control, and a Clean Test Canvas

Before you plug any peripheral into your expensive machine, set yourself up for a fair and safe test. Michelle’s workflow demonstrates a "Safety First" approach: she starts inside the Doodle canvas before connecting devices. This prevents the operating system from freezing if a device is incompatible.

A subtle but vital pro tip: she uses a USB extender when plugging devices into the machine.

• The Why: Constant plugging and unplugging wears down the gold-plated contacts in your machine's mainboard ports. A $5 extender takes the damage so your $8,000+ machine doesn't have to.
• The Hidden Consumable: Keep a microfiber cloth handy. Tablets and screens require oil-free surfaces for accurate tracking.


Prep Checklist (Do This Before You Blame the Tablet)

• Protect the Port: Install a USB extender to prevent mechanical wear on the machine's main board.
• Isolate the Variable: Confirm you are testing inside the Doodle canvas (drawing mode), not the main file menu.
• Clear the "Landing Zone": Ensure the area around the machine is clear. A bumped elbow can cause a stylus slip that ruins a design.
• Define Success: You are looking for three things: Smooth cursor tracking, a distinct "click" registration, and lines that don't look "shaky" (jittery).

Warning: Mechanical Safety. Keep fingers, loose sleeves, hoodie strings, and lanyards away from the needle bar and moving arms. When you transition from "drawing mode" to "stitch mode," the machine can move instantly. Never lean over the needle area while holding a tablet.

Open the Smartstitch Doodle Canvas (Flower Folder → Pen/Ruler) Without Guessing

Navigating the interface requires muscle memory. Michelle shows the exact icon path, which is critical because "guessing" often leads to changing machine parameters by accident.

1. From the main menu, tap the Folder Icon (Flower).
2. Tap the Pen/Ruler Icon to launch the Doodle setup.
3. Canvas Setup: Enter your canvas width and height. Crucial Rule: This must match your physical hoop size. If you set a 300x300 canvas but use a 100x100 hoop, you risk a needle strike on the hoop frame.
4. She leaves the detailed settings alone: Pin strike = 400 and Density = 4, then presses Enter.
5. Visual Confirmation: You will see the grid “box” representing your sewing field.
6. Optimization: Tap the Magnifying Glass Icon (with a square inside) to maximize the canvas. This gives you the highest possible resolution for your stylus input.


What Those Default Doodle Settings Really Mean (So You Don’t Overthink It)

Michelle calls the defaults “about industry standard,” but let's decode what they mean for your actual thread and fabric.

• Density (4): This usually refers to a 0.4mm spacing between stitch lines (or 4.0 points).
  • The Sweet Spot: For standard 40wt polyester thread, 0.4mm is ideal.
  • The Risk: If you lower this number (e.g., to 2 or 3), you are packing stitches tighter. On a t-shirt, this will cut a hole in the fabric (the "cookie cutter" effect). On a cap, it creates a bulletproof patch that breaks needles.
• Pin strike (400): This controls the sampling rate or stitch length conversion. Changing this arbitrarily can lead to "ropey" satins or bizarrely long jump stitches.

Generally, if your goal is a clean signature or simple outline, leave defaults alone. Your best tool for quality control is not these numbers—it is your choice of stabilizer and hoop.

Test #1: The Lychee Wireless Mouse Pen Works—But It’s “Touchy” for Real Drawing

Michelle initiates the hardware test with the Lychee wireless optical pocket pen mouse. This device is a hybrid—shaped like a pen, but with an optical sensor on the bottom like a mouse.

• Setup: Insert the USB receiver dongle into the extender. Turn on the pen.
• Result: A cursor appears instantly.
• Mechanism: To draw, she must depress the tip (or hold the button) while dragging.

It technically works, but her verdict is the one that matters for business: it’s “very touchy.” The lines come out jittery, looking more like an electrocardiogram than a smooth signature.

Why the Mouse Pen Feels Jittery (The Practical Physics)

An optical mouse sensor is designed to track relative movement across a flat, consistent surface. When you hold a pen mouse, your hand naturally floats or tilts.

• The Micro-Tremor Effect: Optical sensors pick up the tiny, subconscious movements of your wrist (tremors). On a computer screen, software smoothing hides this. On an embroidery machine's raw input, these micro-movements are converted into actual zigzag stitches.
• The Production Consequence: A "jittery" line isn't just ugly; it's a thread-break risk. The machine has to make rapid, short movements to stitch that jitter, causing heat buildup and frantic tension changes.
• Verdict: If you are already skilled at drawing with a mouse, you can make it work. But for most embroidery operators, it adds stress rather than removing it.

Test #2: Wacom Intuos Powers On… and Still Won’t Move the Cursor (Here’s the Real Reason)

Next, Michelle tests a Wacom Intuos—a premium graphic tablet standard in the design world.

• The Observation: She plugs it in via USB. The tablet’s LED lights up, confirming it is receiving 5V power from the machine.
• The Failure: She moves the stylus, but the cursor remains frozen.




Her conclusion identifies the root cause: Wacom tablets rely on complex HID (Human Interface Device) drivers. While a Windows PC or Mac can download these drivers instantly, an embroidery machine runs on a closed, embedded operating system (often a customized version of Android or Linux). It simply does not speak the "Wacom language."

This is a classic "Prosumer Trap": people assume “premium brand” equals “better compatibility.” In the industrial embroidery world, generic class-compliant devices often outperform proprietary tech because they use standard protocols.

If you are shopping for accessories for your smartstitch s1501, the compatibility question isn’t “Is it a good tablet?”—it’s “Is it driver-less and plug-and-play?”

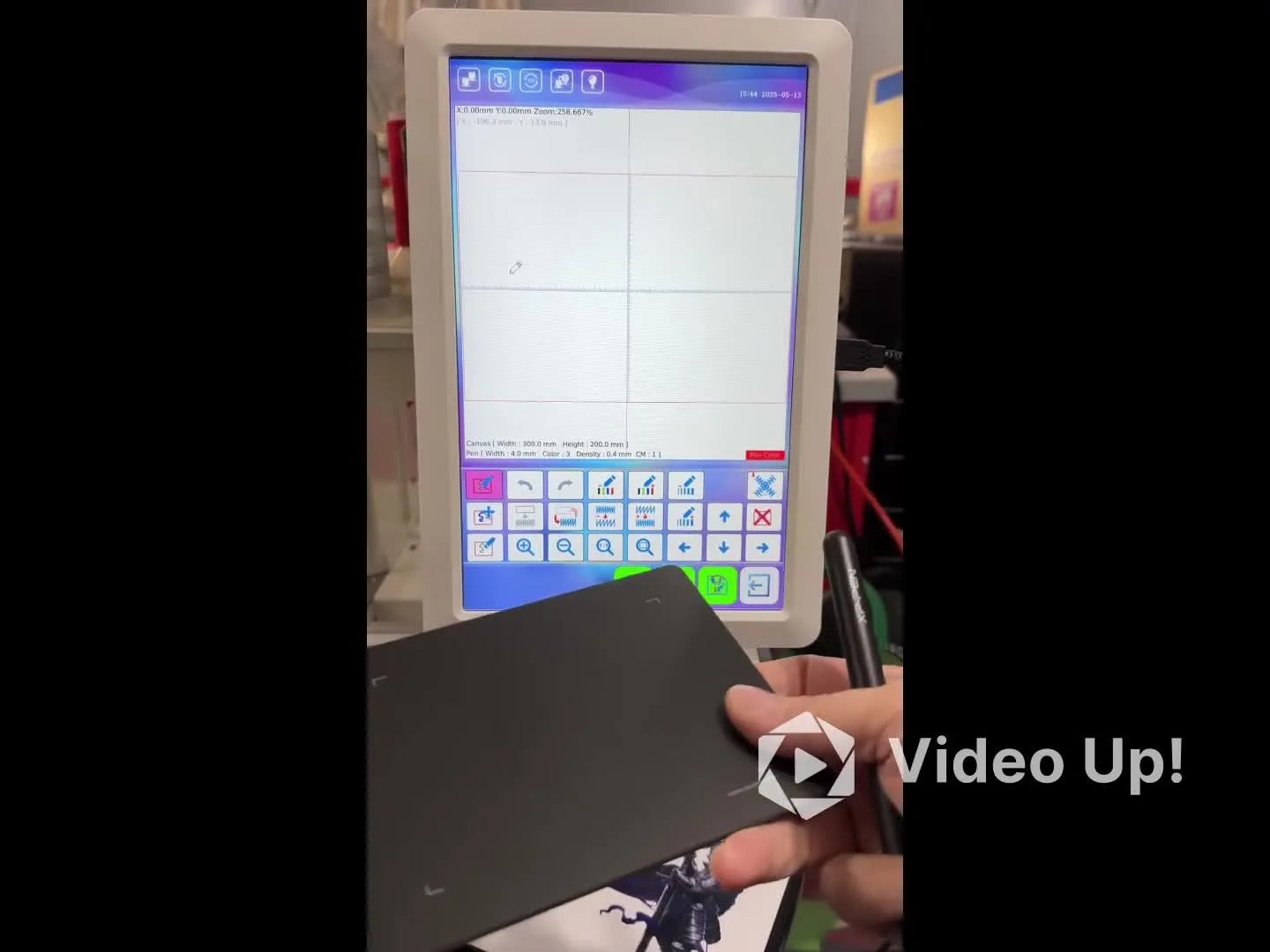

Test #3: XP-PEN Star G430S Is the Plug-and-Play Winner—With a Mapping Learning Curve

Michelle’s third test is the XP-PEN Star G430S, a budget-friendly tablet often used for rhythm games like osu!.

• The Setup: Plug into the USB extender. No batteries required.
• The Action: She demonstrates the critical technique of hovering. The cursor tracks the pen tip even when it is not touching the tablet surface.
• The Result: Smooth tracking, clear left/right clicks (via stylus buttons), and successful line drawing.




The “Hover” Technique Is Your Secret Weapon

Many beginners strip usage of tablets because they treat the plastic surface like paper, keeping the pen down constantly. This causes accidental "ink" (stitches) everywhere.

Michelle’s method is exactly what professional digitizers use:

1. Hover: Move your hand to position the cursor (floating 5mm above surface).
2. Verify: Look at the screen cursor, not your hand.
3. Strike: Tap down deliberately to start the line.
4. Lift: Pull up sharply to stop.

This "Tap-Drag-Lift" cadence prevents the dreaded "jump stitch spaghetti" that ruins designs.

Setup Checklist (So the Tablet Feels Predictable, Not Wild)

• Power Check: Does the tablet light up immediately?
• Hover Check: Move the pen 1 inch above the surface. Does the cursor follow? If yes, it's compatible.
• Button ID: Click the stylus buttons to identify which is "Enter" (Left Click) and which is "Back/Context" (Right Click).
• Corner Drill: Practice moving to the 4 extreme corners of the screen without drawing. This calibrates your brain to the tablet's boundaries.

Warning: Magnetic Field Safety. If your workflow involves Magnetic Hoops (commonly used alongside these machines), treat them with respect. Industrial magnets are powerful enough to damage electronic tablets if placed directly on top of them. Keep your tablet and your magnetic hoops on separate work surfaces. Also, users with pacemakers should maintain a 6-inch safety distance from high-strength magnetic hoops.

The Annoying Part: XP-PEN Mapping on a Small 4×6 Tablet Can Make the Cursor “Run Away”

Michelle’s XP-PEN tablet is small—active area about 4×6 inches—and she calls out the significant usability hurdle: Absolute Mapping.

• The Symptom: She feels like her hand is at the bottom of the tablet, but the screen cursor is trying to jump to the top.
• The Cause: The aspect ratio of the tablet (wide rectangle) does not perfectly match the aspect ratio of the Smartstitch vertical screen.
• The Result: Small hand movements create massive cursor jumps. Precision requires the steady hand of a surgeon.


What “Absolute Mapping” Means in Plain English

Unlike a mouse, which uses Relative Mapping (pick it up and move it, and the cursor stays put), tablets use Absolute Mapping. The top-left corner of the tablet is always the top-left corner of the screen.

On a large 15-inch machine screen, a tiny 4-inch tablet compresses your control range. Moving your pen 1 millimeter might move the cursor 10 millimeters. This explains why users struggle to close shapes or dot the letter 'i'.

The Pro Fix: A physically larger tablet (e.g., medium size) often provides better control, not because it has more pixels, but because your hand has more physical distance to travel, smoothing out errors.

If you are doing intricate personalization work on a smartstitch 1501, consider testing a tablet size that more closely mimics your screen's physical dimensions.

Cross-Model Reality Check: XP-PEN Works on Smartstitch 1201 (and the OS Is Shared)

Michelle validates the findings on a Smartstitch 1201.

• Consistency: The 1201 and 1001 share the same operating system architecture (R01/R02 series) as the 1501.
• Verification: The XP-PEN behaves identically: plug, hover, draw.






This consistency is vital for scaling. Once you validate a plug-and-play device on one Smartstitch model, you can standardize that accessory across your shop floor. This reduces operator training time—everyone uses the same tool in the same way.

Decision Tree: Choose the Right Input Device for Smartstitch Doodle (Without Wasting Money)

Use this logical filter before buying hardware:

1. Does the tablet require driver installation (Mac/PC software)?
   • Yes: Avoid. (e.g., most Wacom Intuos models).
   • No / "OTG Support": Proceed. (e.g., XP-PEN G-series, Huion generic).
2. What is your primary task?
   • Simple Menu Clicking: Use a standard USB Mouse. It’s cheap, reliable, and familiar.
   • Signatures & Handwriting: Use a Drawing Tablet.
   • Rough Shapes: A Mouse Pen is a passable middle ground but prone to jitter.
3. What is the size of the drawing area?
   • Small (4x6): High portability, but high sensitivity (harder control).
   • Medium (8x5+): Better 1:1 feel with the screen, smoother curves.
4. Are you in a Production Environment?
   • Yes: Buy one unit, test for 3 days, then standardize. Don't let operators bring their own random devices.

The “Why” That Prevents Repeat Headaches: Doodle Is Only Half the Job—Stitching Still Depends on Hooping

Here is the harsh reality of embroidery: A perfect doodle on-screen will look like a disaster on fabric if your physical prep is weak. The input device only controls the digital file; it cannot fix physical instability.

Generally, the more "hand-drawn" and organic your line is (like a signature), the more it reveals shifting fabric. A rigid block font can hide a crooked hoop, but a flowing script line cannot.

• Fabric Shifting: If the fabric moves 1mm while the machine is stitching a 0.4mm satin column, the stitches will fall off the edge.
• Hoop Burn: Tightening a traditional plastic hoop enough to secure a slippery performance polo often leaves permanent rings ("hoop burn").

That’s why I treat Doodle as a front-end tool—and hooping as the real quality gate.

If you find yourself struggling with hooping for embroidery machine tasks—especially when trying to center these quick doodles—your bottlenecks are physical, not digital.

A Practical Upgrade Path (The Commercial Workflow)

You need to match your tools to your volume.

• Trigger: You are doing 50+ personalized names and your wrists hurt, or the alignment drifts.
• Criteria: If you spend more time hooping than stitching, you are losing money.
• Option A (Stability): Use a high-quality "Cutaway" backing for knits. Tearaway is not enough for the variable density of a doodle.
• Option B (Tool Upgrade): Switch to Magnetic Hoops.
  • Unlike screw-tightened hoops, magnetic frames snap fabric in place instantly without friction burn.
  • They automatically adjust for thickness (sweatshirt vs. t-shirt).
  • Many shops using smartstitch embroidery hoops transition to third-party magnetic systems (like MaggieFrame or Sewtech) explicitly for this speed advantage.

Comment-Driven Pro Tips (The Stuff People Don’t Say Until They’re Stuck)

Michelle’s video surfaced invaluable community knowledge. Here are the "hidden" tips that prevent failure:

• The "Driver" Trap: If a device “powers on” (LED lit) but doesn’t move the cursor, stop troubleshooting. It is a language barrier between the device and the OS. You cannot "force" it to work.
• The "Button" Mistake: If you keep accidentally opening menus while drawing, you are likely gripping the stylus buttons. Rotate the pen so the buttons face away from your thumb, or tape them over if you don't need the click function.
• Expectation Management: Treat the Doodle function as a "digital Sharpie," not a graphic design suite. If you need a complex company logo, do not doodle it. Digitizing software exists for a reason.

Operation Checklist (Before You Stitch a Customer Piece)

Perform this "Pre-Flight Check" every time you switch from drawing to stitching:

• The Path Test: Draw a simple "S" curve. Can you do it without the line looking jagged?
• The Reach Test: Move the cursor to all four corners of the canvas. Ensure you don't run out of tablet space before reaching the screen edge.
• The "Lift" Rehearsal: Practice lifting the pen up before moving to the next letter. Dragging the pen creates connecting stitches that you will have to trim manually later.
• The Fabric Anchor: Is your shirt hooped tight (drum-skin feel)? A doodle has less structure than a standard design, so loose fabric will pucker immediately.
• The Preview: Stitch a test on scrap felt or denim. Doodles often have varying densities; ensure the machine doesn't knot up (birdnest) on sharp corners.

The Upgrade Result: When Doodle Becomes a Money-Maker (Not a Time Sink)

If you want the cleanest takeaway from this test:

• The Mouse Pen: Functional but requires a very steady hand (high fatigue).
• The Wacom: Avoid for embedded systems (compatibility failure).
• The XP-PEN (or generic driverless tablets): The clear winner for usability, provided you master the "hover" technique.

For a shop owner, the goal isn't just "making it work." It is repeatable process. If you are scaling up personalization, your productivity stack should look like this:

1. Input: A reliable, driverless tablet for quick edits.
2. Stabilization: Proper backing (Cutaway for knits, Tearaway for woven) + temporary spray adhesive.
3. Holding: A hooping system that removes human error.

Many production shops pair Smartstitch machines with faster hooping alignment tools. If you are evaluating a hooping station for embroidery to go with your new tablet, you are thinking correctly: streamline the input and the setup.

And if you are already considering mighty hoops for smartstitch embroidery machine, use the same buying logic Michelle used here: verify the specific bracket compatibility for your machine model (1501 vs 1201), prioritize speed, and ensure the tool solves a specific pain point in your daily workflow.

FAQ

• Q: How do I test whether a USB drawing tablet is compatible with the Smartstitch Doodle function before I waste money?
  A: Use a “driver-less hover test” inside the Smartstitch Doodle canvas—if the cursor tracks the pen while hovering, the tablet is usually compatible.
  • Open Doodle first (Folder/Flower → Pen/Ruler) and stay on the drawing canvas before plugging anything in.
  • Plug the tablet receiver/cable into a USB extender, then into the Smartstitch USB port.
  • Hover the pen about 1 inch (2–3 cm) above the tablet surface and watch the screen cursor.
  • Success check: the cursor moves smoothly while hovering and you can register a deliberate click/tap to start a line.
  • If it still fails: if the tablet lights up but the cursor never moves, treat it as a driver/protocol mismatch and switch to a plug-and-play tablet model.
• Q: Why does a Wacom Intuos power on but not move the cursor on a Smartstitch embroidery machine Doodle screen?
  A: Power is not compatibility—many Wacom Intuos tablets require HID drivers that a closed Smartstitch operating system does not install.
  • Confirm the symptom: LED turns on (receives 5V power) but cursor stays frozen when moving the stylus.
  • Stop “tweaking settings” on the machine; this is not a calibration problem.
  • Choose a driver-less, plug-and-play tablet that works without Mac/PC driver installation.
  • Success check: the replacement tablet produces immediate cursor movement and hover tracking as soon as it is plugged in.
  • If it still fails: test with a basic USB mouse to confirm the Smartstitch USB port and Doodle mode are functioning.
• Q: How do I stop jittery, shaky signature lines when using a Lychee wireless mouse pen on the Smartstitch Doodle feature?
  A: Jitter is common with optical mouse-pen sensors—use it only for rough work or switch to a drawing tablet for smooth signatures.
  • Stabilize your hand position and avoid tilting “floating” strokes that trigger micro-movements.
  • Draw slower and simplify the signature path (fewer tiny direction changes reduces stitch stress).
  • If signature quality matters, change to a tablet that supports hover-and-tap drawing (more controllable for curves).
  • Success check: the on-screen line looks smooth (not ECG-like) before you ever stitch the test.
  • If it still fails: treat jitter as an input-device limitation and standardize on a compatible drawing tablet instead of the mouse pen.
• Q: What Smartstitch Doodle setup steps prevent hoop strikes when setting canvas size on Smartstitch embroidery machines?
  A: Match the Smartstitch Doodle canvas width/height to the physical hoop size—oversizing the canvas can drive stitches into the hoop frame.
  • Navigate exactly: Folder/Flower icon → Pen/Ruler icon → enter canvas width/height.
  • Keep the default Doodle settings as-is for simple signatures (avoid random changes to density/pin strike unless you have a reason).
  • Use the magnifying glass icon (square inside) to maximize the canvas for better drawing control.
  • Success check: the grid “box” on-screen matches the real sewing field area of the hoop you installed.
  • If it still fails: re-check that the hoop installed is the same size you entered, and do a quick corner-reach test in Doodle before stitching.
• Q: How do I prevent accidental “jump stitch spaghetti” when drawing letters with an XP-PEN Star G430S on Smartstitch Doodle?
  A: Use the hover → tap-drag → lift cadence—don’t keep the pen down like paper drawing.
  • Hover to position the cursor before starting each stroke, watching the screen cursor (not your hand).
  • Tap down deliberately to begin a stroke, then lift sharply to end the stroke before moving to the next letter.
  • Practice a “corner drill” by reaching all four corners without drawing to learn the tablet boundaries.
  • Success check: separate letters stay separate on-screen (no unintended connecting lines between strokes).
  • If it still fails: rotate the stylus so you don’t press its buttons accidentally, or cover the buttons if you don’t need clicks.
• Q: Why does the XP-PEN Star G430S feel like the cursor “runs away” on the Smartstitch Doodle screen, and what is the safest fix?
  A: This is normal absolute mapping behavior—small 4×6 tablets can feel overly sensitive versus a tall Smartstitch screen, so use training drills or a physically larger tablet.
  • Expect absolute mapping: tablet corners always map to screen corners (unlike a mouse).
  • Slow down and do short, deliberate strokes until your hand-to-screen mapping feels predictable.
  • Consider a larger tablet size for more physical travel distance and smoother control (often easier for signatures).
  • Success check: you can place the cursor on a specific point (like dotting an “i”) without overshooting repeatedly.
  • If it still fails: switch to a standard USB mouse for basic clicking tasks and reserve the tablet for signatures only.
• Q: What Smartstitch embroidery machine safety rules should operators follow when switching from Doodle drawing mode to stitching mode?
  A: Treat the transition as a live-motion hazard—keep hands, sleeves, lanyards, and hoodie strings away from the needle bar and moving arms.
  • Clear the area around the Smartstitch head before pressing anything that starts motion.
  • Never lean over the needle area while holding a tablet or stylus.
  • Do a quick “pre-flight” on scrap material before a customer item.
  • Success check: the operator can start stitching without any body part or loose item entering the needle/arm travel zone.
  • If it still fails: pause the job immediately and reset the workstation layout so the tablet work area is physically separated from the needle zone.
• Q: What magnetic hoop safety precautions should be used around drawing tablets when running Smartstitch embroidery machine personalization workflows?
  A: Keep magnetic hoops and electronic tablets on separate work surfaces—strong magnets may damage tablets, and pacemaker users should keep a safe distance.
  • Store magnetic hoops away from the tablet and screen area (no stacking magnets near electronics).
  • Set up a dedicated “digital input” zone and a separate “hooping” zone to avoid accidental contact.
  • Enforce a minimum 6-inch distance for users with pacemakers around high-strength magnetic hoops.
  • Success check: the tablet never touches or rests on magnetic hoops during normal workflow.
  • If it still fails: redesign the bench layout so magnets cannot be placed near the tablet by habit.
