Stop Fighting the Brother SE1900 Sleeve: The Float, Pin, and Painter’s Tape Method That Keeps Your T-Shirt Tubes Open

Sleeve embroidery on a flatbed single-needle machine can feel like a mechanical trap: the hoop captures a tiny surface area, the sleeve itself is a closed tube, and one lazy second of fabric control can turn a clean name into a stitched-shut armhole.

If you are working on a Brother SE1900 (or similar flatbed machine) and you want to place crisp text plus a small motif on a T-shirt sleeve, the method in this tutorial is solid—specifically the combination of floating + pins + painter’s tape. I am rewriting this guide not just as a recap, but as a "shop-floor" standard operating procedure. We will cover the specific data points, the sensory checks you need to perform, and the upgrade paths available when you are ready to stop fighting the machine and start producing volume.

Make Embrilliance Essentials behave: kerning small sleeve names so they stitch clean, not wobbly

The video demonstrates building a simple sleeve layout in Embrilliance Essentials: three names stacked vertically, with a small butterfly motif. However, simply typing the text isn't enough. Small text on knit fabric is prone to "sinking," where loop stitches swallow the letters.

Here is the professional workflow to ensure legibility and structural integrity.

1) Start a New Page and Create Multi-line Text

• Action: Go to File → New Page. Click the font icon (A) and choose Multi-line text.
• Input: Type the names on separate lines (e.g., Naomi, Tamara, Josue), then click Set.
• Expert Note: For sleeve text, avoid thin serifs. Block fonts or substantial scripts withstand the stretch of a sleeve better.

2) Choose the Font and Size

• Action: In the properties panel, click Letters. Select a font like “Paris Emily”.
• Sizing: Set the size to 1 inch.
• Data Check: Ensure your column width on the letters is at least 1mm. Anything thinner than 1mm on a knit sleeve can disappear into the fabric grain.

3) The "Kerning" Fix: Manual Letter Spacing The host doesn’t retype specific letters; she adjusts the kerning (spacing between letters).

• Action: Click the green node (center dot) of a specific letter that looks too far away.
• Control: Use the keyboard arrow keys to nudge it closer.
• Visual Anchor: Look for visual balance, not mathematical center. The distance between an 'A' and a 'T' should look the same as between an 'M' and an 'I'.
• Why this matters: On a sleeve, the fabric stretches around the arm. If gaps are too wide on the screen, they will look like canyons when worn.

4) Center the Text Block (The Zero Point)

• Action: Select the entire text object. Click the Center tool.
• Benefit: This aligns your design's coordinate system with the hoop center (0,0), which is critical for the alignment steps later.

5) Merge and Resize the Butterfly Motif

• Action: Click Merge Designs and import a butterfly (even if it was originally an appliqué file).
• Risk Alert: When you resize a design down significantly (more than 20%), stitch density increases. A butterfly meant for a 5x7 hoop specific to appliqué might become a bulletproof knot at 1 inch.
• Correction: In Embrilliance, ensure "Recalculate Stitches" is active so the software removes density as you shrink the size.

6) Duplicate and Align

• Action: Copy and Paste the butterfly twice. align one next to each name.

7) Color Discipline: The "Production Mindset" This is a hidden pro tip. Hobbies create unnecessary thread changes; production requires efficiency.

• Action: Change all names to one color (e.g., Pink). Change all butterflies to one exact color (e.g., Yellow).
• Result: The machine will stitch all pink elements first, stop once for a thread change, and finish all yellow elements. You save 3-4 minutes of stop-start time per shirt.


8) Set the Hoop Size and Format

• Action: Click the Preferences/Hoop icon. Select PES format (for Brother).
• Select: Choose the 100mm x 100mm (4x4) hoop.
• Why: If you are using a standard brother 4x4 embroidery hoop, setting this boundary in software prevents the "Design is too large" error at the machine.


The “hidden prep” that keeps sleeves from shifting: stabilizer choice, spray discipline, and clean machine habits

Sleeves are not flat panels; they are dynamic, stretchy tubes. Treating them like a tote bag guarantees distortion. The method used here is floating, which relies on chemical friction (spray) rather than mechanical pressure (hooping the fabric).

The Stabilizer Decision: Cutaway or Tearaway?

The Verdict: You must use Cutaway stabilizer.

• Physics: Knit fabrics have mechanical stretch. Tearaway stabilizer breaks down after needle penetrations, leaving the stretchy fabric unsupported. Cutaway remains permanent, acting as a "skeleton" for the embroidery for the life of the garment.

What the video does:

• Hoops one layer of medium-weight cutaway stabilizer tightly in the 4x4 hoop.
• Sensory Check: Tap the stabilizer. It should sound like a tight drum skin (thump-thump). If it ripples, re-hoop.

The Spray Technique:

• Action: Lightly mist temporary adhesive spray (like ODIF 505) only in the center of the stabilizer.
• Avoid: Do not spray the plastic hoop frame.


Warning: The "Gummed Needle" Risk
Temporary adhesive spray is airborne glue. Over-spraying creates two hazards:
1. It attracts lint, creating "sludge" in your bobbin case.
2. It coats the needle bar, leading to skipped stitches.
Rule: Spray inside a box or away from the machine. Use a light mist—you want "tacky like a post-it note," not "wet like duct tape."

**Hidden Consumables for this Step:**

• Temporary Adhesive Spray (KK100 or 505)
• Replacement Needles (Ballpoint 75/11 for knits)
• Lint Roller (To clean the hoop afterwards)

Prep Checklist (Do this before touching the sleeve)

• File is saved as PES and fits within the 100mm x 100mm boundary.
• Stabilizer is hooped "drum-tight" (Cutaway type).
• Adhesive spray applied lightly to the center only.
• Blue Painter's Tape strips are torn and ready on the table.
• Straight Pins are within reach (Glass head pins are preferred for visibility).

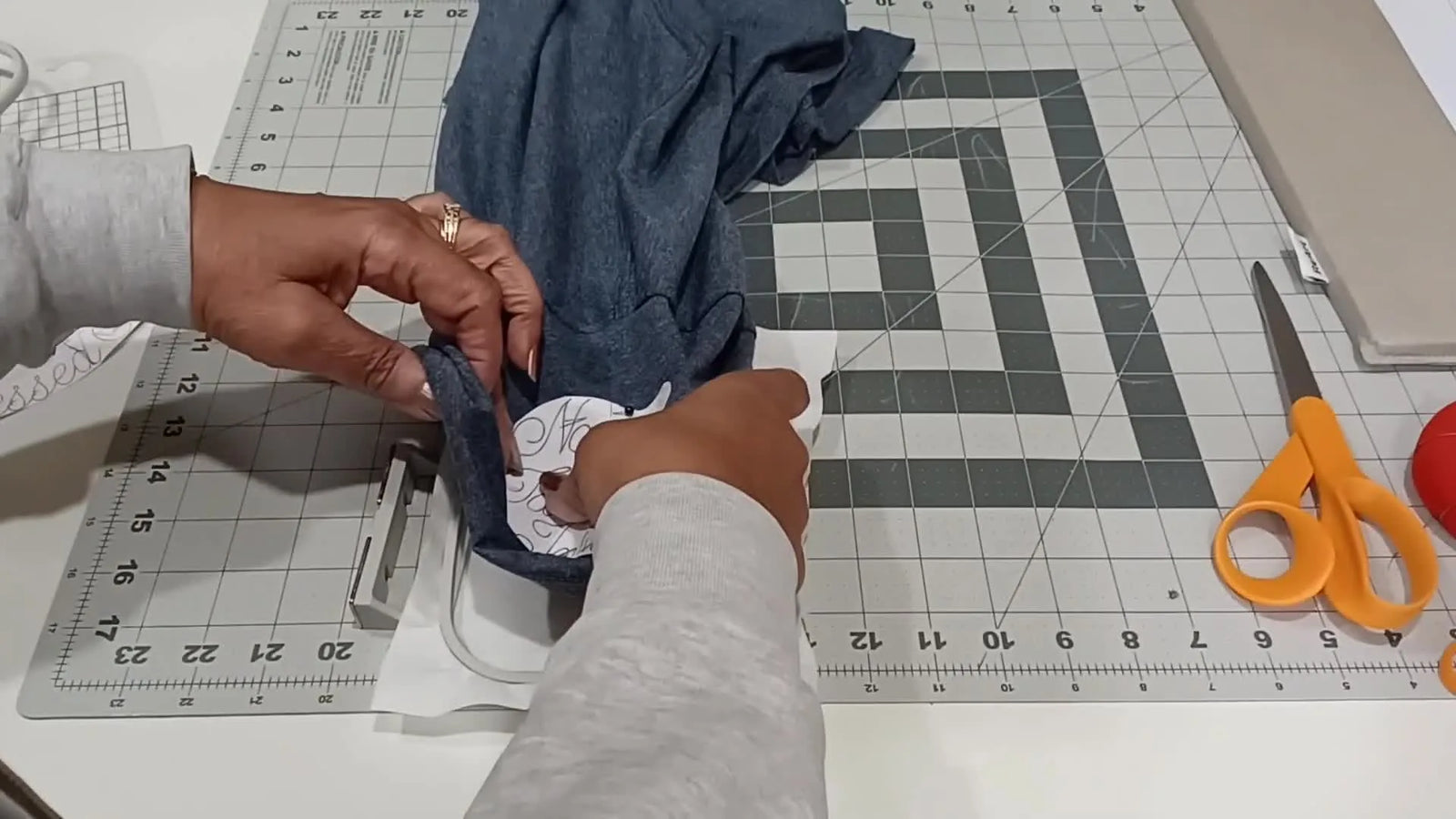

Centering a T-shirt sleeve on Brother SE1900 hoops without opening the seam

Can you embroider a sleeve without ripping the seam open? Yes. You use the hoop as a platform and "float" the sleeve on top.

The Alignment Process:

1) Expose the Target Area

• Turn the bottom cuff up or roll the sleeve to expose the area where the shoulder seam meets the bicep.

2) Establish a Center Line

• Fold the sleeve in half lengthwise to create a light crease. This crease represents the grainline of the arm.
• Visual Anchor: The crease should run parallel to the side seams of the hoop.

3) Float and Press

• Place the sleeve onto the sticky stabilizer.
• Tactile Check: Smooth the fabric from the center outward. Do not stretch it! If you stretch a knit while sticking it down, it will snap back later, causing puckers around the letters.

4) The Notch Verification

• Brother hoops have varying raised notches depending on the model (Top, Bottom, Left, Right).
• Use these notches to visually align your sleeve crease.
• Expert Tip: Look at the hoop from directly overhead (bird's eye view) to avoid parallax error.




Lock the sleeve down like a pro: pins for registration, tape for “don’t sew it shut” insurance

Adhesive spray resists lifting, but it is poor at resisting shearing (side-to-side movement). As the hoop jerks at 600 stitches per minute, the heavy sleeve will try to slide.

A) Pins: Mechanical Registration

• Action: Insert straight pins through the sleeve fabric and the stabilizer near the inner edges of the hoop.
• Placement Strategy: Keep pins as close to the frame edge as possible, far away from the center where the needle will strike.
• Why: This creates a physical anchor point that glue cannot provide.


Warning: The Needle Strike Zone
A machine needle hitting a straight pin at 600 SPM can shatter the needle, sending metal shards into your eye or damaging the hook timing.
Rule: Never place pins within the embroidery field. Use the "Trace" function to verify clearance before stitching.

B) Painter’s Tape: The "Anti-Tube" Defense

The biggest risk on a flatbed machine is the "under-sleeve" bunching up and getting sewn to the top layer.

• Action: Roll the excess sleeve fabric (the back of the arm) away from the center.
• Secure: Use Blue Painter's Tape to tape this excess fabric to the hard plastic of the hoop frame.
• Logic: You are mechanically forcing the tube to stay open.


This combination of techniques is the essence of floating embroidery hoop mastery: you isolate the stitch area while managing the chaos of the surrounding fabric.

Setup Checklist (Right before mounting the hoop)

• Sleeve is floated flat; no ripples, no stretching.
• Center crease aligns with hoop notches.
• 4-6 Pins secure the perimeter (outside the stitch zone).
• Excess fabric is taped back tightly; the "throat" of the sleeve is open.
• Finger Test: Run your finger under the hoop area to ensure no fabric is bunched underneath.

Run the trace on the Brother SE1900, then stitch—while actively holding the sleeve open

You are now the "Safety Officer." You cannot walk away to get coffee during a sleeve stitch-out.

1) Mount and Trace

• Load the hoop.
• Run the Trace/Trial function. Watch the presser foot. Does it come dangerously close to a pin? Does it brush against the taped bunched fabric?
• Listen: If the machine strains or makes a grinding sound during the trace, the fabric is dragging. Re-tape.

2) Start Embroidery (Hands-On)

• Press Start.
• Your Job: Use your fingers to gently hold the sleeve tube open, keeping it away from the moving needle bar. Do not pull the hoop; just guard the fabric.




3) The "Pin Pull" Maneuver

• Timing: Once the first few letters are stitched, the fabric is now "tacked down" by the thread.
• Action: Pause the machine. Remove the pins.
• Why: As the design expands, it might push fabric toward the pins. Removing them now prevents puckering and collision.


4) Thread Change and Finish

• Change to your yellow thread for the butterfly.
• Re-Check: Before resuming, check underneath one last time. Tape can come loose.




Operation Checklist (During stitch-out)

• Trace confirmed no collision with pins or tape.
• Operator hands remain near the machine to guard the fabric tube.
• Pins removed after the initial "tack-down" phase.
• Tape checked during thread changes.

Why sleeves shift (and how to stop it without over-gluing everything)

If you followed the steps but your outline is still off by 1mm, here is the physics of why:

1. Hoop Drag: The weight of the rest of the shirt hanging off the machine drags the hoop. Solution: Support the heavy part of the shirt on a table or your lap seamlessly so the hoop moves freely.
2. Flagging: The fabric bounces up and down with the needle. Solution: Your cutaway stabilizer wasn't hooped tightly enough.
3. Shear Force: The weave of the knit shifts diagonally. Solution: This is why we use pins.

If you find yourself constantly battling these issues on team orders, you may need to evaluate if your current hooping for embroidery machine technique is slowing your business growth.

The “don’t sew the sleeve shut” troubleshooting table (Symptom → Cause → Fix)

Stabilizer decision tree for sleeve embroidery on jersey knit

Use this logic to stop guessing which backing to use.

Start: Is the sleeve Knit (Stretchy) or Woven (Stiff)?

• IF WOVEN (Dress shirt/Denim):
  • Option A: Tearaway (Standard).
  • Option B: Magnetic Hoop + Cutaway (For high density).
• IF KNIT (T-shirt/Performance Wear) - Most Common:
  • Rule: YOU MUST USE CUTAWAY.
  • Decision: Float or Hoop?
    • Is the sleeve tiny (Kids/Ladies Small)? -> FLOAT with Adhesive + Pins (The method in this guide).
    • Is the sleeve Large (XXL)? -> HOOP normally if it fits, or FLOAT if faster.
    • Is the fabric slippery (Dri-fit)? -> Use Fusible Cutaway (Iron-on) to stop the slippery slide.

Finishing the sleeve like a shop would: clean reveal, stable feel, and no scratchy surprises

A messy back ruins a great front.

1. Remove Tape/Pins: Peel tape gently to avoid pulling loops.
2. Trim, Don't Cut: Lift the stabilizer and trim around the design. Leave about 1/4 inch (5-6mm) of stabilizer border.
   • Why: Creating a rounded edge prevents sharp corners from scratching the wearer's arm.
3. Thread Snipping: Cut jump stitches specifically flush to the fabric.


The upgrade path when sleeves become paid work: faster hooping, fewer rejects, less wrist strain

The method described above (Float + Spray + Pin + Tape) works perfectly for 1 to 5 shirts. It is low cost but high labor.

The Breaking Point: If you start getting orders for 20+ team jerseys, the "Floating" method reveals its flaws:

• Hoop Burn: Standard hoops can leave permanent crushing rings on polyester.
• Wrist Strain: Tightening screws 50 times a day causes RSI.
• Residue: Spray adhesive builds up, requiring constant cleaning.

The Solution Hierarchy:

1. Level 1: The Tool Upgrade (Magnetic Hoops)
   If you want to keep your current machine but speed up the process, professionals switch to Magnetic Hoops.
   • Why: They clamp fabric instantly without screws. They reduce "hoop burn" because they hold fabric flat with magnetic force rather than friction rings.
   • Search Intent: When researching how to use magnetic embroidery hoop, verify that the magnet strength is rated for the thickness of your specific garments (e.g., sweatshirts vs. tees).
   • Compatibility: For SE1900 users, look specifically for a magnetic hoop for brother compatible with the 5x7 or 4x4 attachment arm.

Warning: Magnetic Force
Industrial-grade magnetic hoops are powerful. They can pinch fingers severely. Keep them away from pacemakers and magnetic storage media.

1. Level 2: The Workflow Upgrade (Hooping Stations)
   Consistency is king. A hooping station for embroidery allows you to place the hoop in the exact same spot on every shirt, removing the need for manual measuring and folding every single time.
2. Level 3: The Machine Upgrade (Multi-Needle / Cylindrical Arm)
   If you are fighting the "sleeve tube" daily, your business has outgrown the flatbed machine.
   • The Fix: Machines like the SEWTECH multi-needle series have a "Free Arm" (Cylindrical bed).
   • Benefit: You slide the sleeve onto the arm. No taping back fabric. No "sewing it shut" risk. No stopping to change thread colors.
   • Result: You can embroider huge volumes of sleeve hoops for embroidery projects in half the time with zero risk of ruining the garment.

Final Thought: Master the manual "float and pin" method first. It teaches you respect for fabric tension. But when the orders pile up, know that tools exists to turn that struggle into profit.

FAQ

• Q: What stabilizer should be used for sleeve embroidery on a Brother SE1900 T-shirt (jersey knit): cutaway or tearaway?
  A: Use cutaway stabilizer for knit T-shirt sleeves, because it keeps supporting the stretch fabric after the needle penetrations.
  • Hoop: Hoop one layer of medium-weight cutaway stabilizer “drum-tight” in the 4x4 hoop.
  • Spray: Lightly mist temporary adhesive spray only in the center of the hooped stabilizer (not on the plastic hoop).
  • Needle: Install a ballpoint 75/11 needle for knits.
  • Success check: Tap the hooped stabilizer—if it sounds like a tight drum and shows no ripples, the hooping is correct.
  • If it still fails: If the sleeve still shifts (especially on slippery performance knits), switch to fusible cutaway to reduce sliding.
• Q: How can Embrilliance Essentials kerning be fixed for small 1-inch sleeve names so letters do not look wobbly on a Brother SE1900 sleeve embroidery?
  A: Manually adjust kerning by nudging individual letters so spacing looks visually even, not mathematically centered.
  • Set: Create multi-line text, choose a sturdy font, and keep the text size at 1 inch as planned.
  • Nudge: Click the green node (center dot) of the letter that looks too far and use arrow keys to move it closer.
  • Center: Center the entire text block so the design zero point aligns to hoop center for easier placement later.
  • Success check: On-screen, gaps between letters (like A–T vs. M–I) look equally “balanced” at a glance.
  • If it still fails: If small letters still sink into knit, avoid very thin fonts and confirm the letter columns are not overly thin for the fabric.
• Q: How do you center and float a closed T-shirt sleeve on a Brother SE1900 4x4 hoop without opening the seam?
  A: Float the sleeve onto sticky hooped cutaway, align a folded crease to the hoop notches, and press without stretching the knit.
  • Crease: Fold the sleeve lengthwise to make a light crease that represents the center/grainline.
  • Place: Lay the sleeve on the tacky stabilizer and smooth from the center outward without pulling.
  • Align: Use the hoop’s raised notches as visual references, viewing straight overhead to avoid parallax.
  • Success check: The sleeve lies flat with no ripples, and the crease runs parallel to the hoop alignment cues.
  • If it still fails: If the design stitches slanted, remove and retry—stretching the knit during sticking-down is the most common cause.
• Q: How can a Brother SE1900 prevent sewing a sleeve shut during flatbed sleeve embroidery using painter’s tape and pins?
  A: Pin for side-to-side registration and tape the under-sleeve fabric to the hoop frame so the sleeve tube stays open.
  • Pin: Insert straight pins near the inner hoop edges, as close to the frame as possible and outside the stitch field.
  • Tape: Roll the excess under-layer fabric away and secure it to the hard plastic hoop frame using blue painter’s tape.
  • Verify: Run a finger under the hoop area to confirm no fabric is bunched underneath before mounting.
  • Success check: The “throat” of the sleeve stays visibly open and nothing can drift under the needle path.
  • If it still fails: If fabric still creeps, add more tape to control the under-layer and support the rest of the shirt so it is not dragging the hoop.
• Q: What safety steps prevent needle strikes on pins when running Trace/Trial on a Brother SE1900 sleeve embroidery setup?
  A: Always run Trace/Trial and keep pins out of the embroidery field—needle-to-pin impacts can break needles and damage the machine.
  • Place: Keep pins near the hoop frame edge, never near the design area.
  • Trace: Run the Trace/Trial function and watch whether the presser foot approaches pins or taped fabric.
  • Listen: Stop if the machine strains or grinds during trace—dragging fabric needs re-taping/support.
  • Success check: The trace completes smoothly with clear clearance from pins and no rubbing against taped bulk.
  • If it still fails: If clearance cannot be achieved, remove/reposition pins farther from the stitch zone and re-tape the sleeve tube more aggressively.
• Q: How do you stop bird’s nest thread jams underneath when embroidering a sleeve on a Brother SE1900?
  A: Re-thread the upper thread with the presser foot UP, then confirm the stabilizer is hooped drum-tight to reduce bouncing.
  • Rethread: Lift the presser foot fully and re-thread the top path so the thread seats in the tension discs.
  • Check hooping: Re-hoop the cutaway stabilizer tight; loose hooping increases flagging and tangles.
  • Restart: Stitch again after confirming smooth thread delivery.
  • Success check: The underside shows controlled bobbin lines (not a wad of loops), and the machine runs without sudden thread buildup.
  • If it still fails: Inspect for hoop bounce/drag from the hanging garment and support the shirt so the hoop can move freely.
• Q: When should a flatbed Brother SE1900 sleeve embroidery workflow upgrade to magnetic hoops or a SEWTECH multi-needle free-arm machine for higher volume?
  A: If sleeve orders reach volume where floating becomes slow or causes rejects (hoop burn, wrist strain, adhesive residue), upgrade in levels based on the bottleneck.
  • Level 1 (Technique): Keep floating + pins + tape, and improve consistency by supporting garment weight to reduce hoop drag.
  • Level 2 (Tool): Use magnetic hoops to clamp faster, reduce screw-tightening fatigue, and help reduce hoop-burn risk on sensitive fabrics.
  • Level 3 (Machine): Move to a SEWTECH multi-needle free-arm/cylindrical-bed machine to slide sleeves onto the arm and avoid sewing the tube shut while eliminating frequent thread changes.
  • Success check: Hooping time drops, alignment becomes repeatable, and rejects from shifting/hoop burn decrease across multiple garments.
  • If it still fails: If consistency is still operator-dependent, add a hooping station to standardize placement from piece to piece.
• Q: What magnetic hoop safety rules should be followed when using industrial-strength magnetic embroidery hoops for garment sleeves?
  A: Treat magnetic hoops as pinch hazards and keep them away from pacemakers and magnetic-sensitive items.
  • Handle: Separate and close magnets slowly and deliberately to avoid finger pinches.
  • Control: Keep magnets away from children and unclutter the work surface before hooping.
  • Isolate: Store magnetic hoops away from pacemakers and magnetic storage media.
  • Success check: Fingers never enter the closing gap, and the hoop closes under control without snapping shut.
  • If it still fails: If the magnet force feels unsafe for the operator, switch to a lower-force option or use a different hooping method per the machine and garment thickness.
