Stop Fighting the Brother SE-400: Place Text Cleanly Inside the 4x4 Hoop (Without Wasting Shirts)

Mastering Lettering on the Brother SE-400: A Field Guide to Precision & Placement

If you have ever stared at your Brother SE-400 screen thinking, “The preview looks crisp… so why did my stitched letters turn into illegible blobs?”, you are not alone. Text and lettering are the "final boss" of embroidery for beginners. Unlike a large floral pattern where a millimeter of shift goes unnoticed, lettering is unforgiving. It exposes every weakness in your hooping technique, stabilizer choice, and machine setup.

In the referenced Burley Sew tutorial, the host addresses the burning question every owner asks: how to position text accurately, and what the machine physically cannot do.

As an embroidery educator, I see the SE-400 as a capable workhorse, but it has strict boundaries. What follows is a reconstruction of that tutorial, elevated with industrial-grade "best practices." We will move beyond simple instructions into the physics of stitch formation, ensuring that when you press "Start," you do so with confidence, not hope.

The 4x4 Reality Check: Understanding the Hard Limits of the Carriage

The Brother SE-400 is mechanically governed by a specific physical limit: the 4-inch by 4-inch (100mm x 100mm) embroidery field. This is not a software suggestion; it is a physical boundary of the carriage arm.

The Physics of the Limit: No matter how much you shrink a design in software, the pantograph (the arm moving the hoop) hits hard stops. Understanding this prevents the "Resize Trap" where beginners shrink a 5-inch name to 4 inches, causing the stitch density to skyrocket and the needle to hammer the fabric into a hole.

Strategic Implication: If you are working inside a standard brother 4x4 embroidery hoop, you must treat that square like a stage. Your job is not just to "fit" the design, but to place it where the fabric is most stable—usually the center.

The "Sweet Spot" Rule: While the field is 4x4, experienced operators know the distinctive "safe zone" is actually about 3.5 x 3.5 inches. Pushing right to the plastic edge often causes hoop deflection (bouncing), which ruins text alignment.

Warning: Mechanical Safety. Keep fingers, scissors, and loose sleeves (like hoodies) at least 6 inches away from the needle area when the machine is running. The embroidery foot moves rapidly and unpredictably. A finger caught under a descending needle running at 400 stitches per minute is a guaranteed trip to the emergency room.

The "Visual Anchor" Technique: Mastering the Plastic Grid

The video begins with a step that separates amateurs from pros: utilizing the clear plastic grid template (positioning sheet).

Many beginners throw this sheet away. Do not do that.

In professional shops, we use laser alignment systems. On a home machine, this plastic grid is your laser. It allows you to visualize the "X" and "Y" axes before the hoop ever touches the machine.

The Sensory Check:

1. Visual: Align the grid’s crosshair with a chalk mark on your fabric.
2. Tactile: Press the grid down. If the fabric billows underneath it, your hooping is too loose.
3. Action: Use this template to verify that your text is not just centered, but straight.

If you are still learning hooping for embroidery machine technique, this template acts as your truing tool. It confirms whether you have hooped the fabric straight or on a bias.

LCD Typography: Font Choice and the Danger of "Screen vs. Reality"

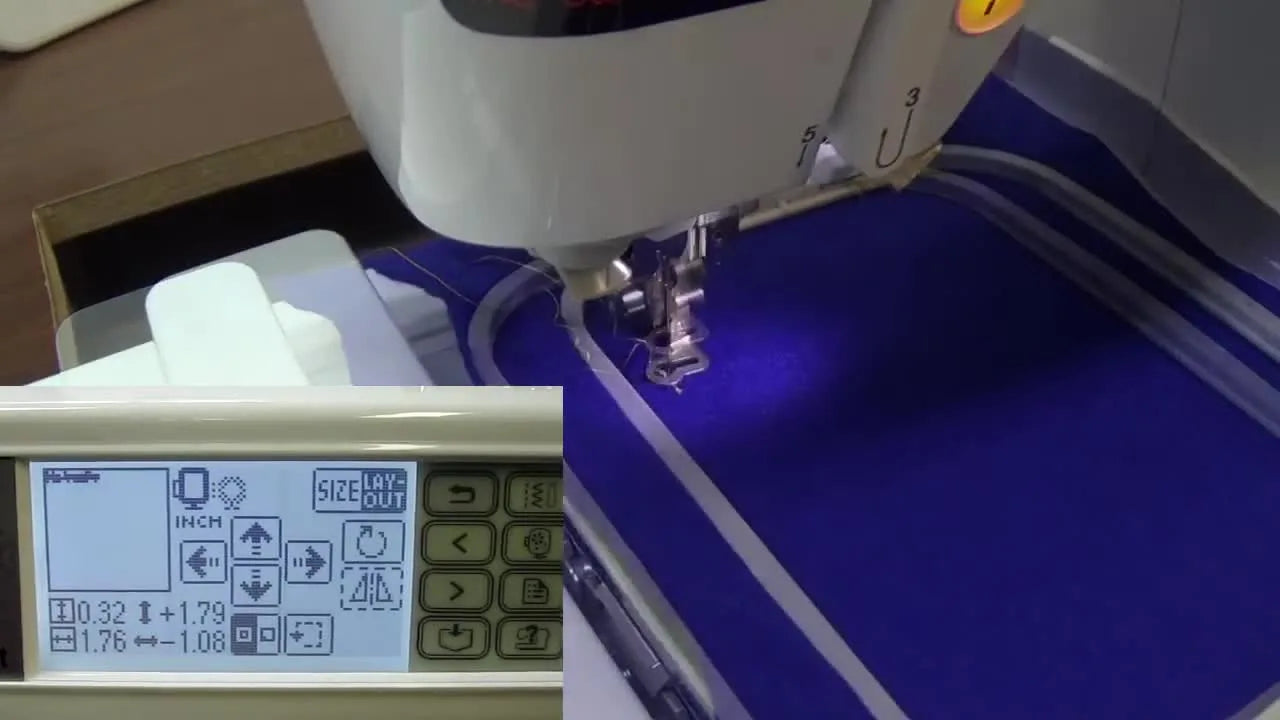

The host uses the SE-400’s on-board LCD to type letters. He selects the font "Tim" and notes the size dimensions (0.75" height).

The Cognitive Trap: The LCD screen is low-resolution. It shows a blocky approximation of your letters. Real thread has dimension, texture, and "pull."

The "Pull Compensation" Factor: When the machine stitches a vertical column (like the letter 'I'), the thread tension pulls the fabric inward. This makes the column narrower than it looks on screen.

• The Problem: If you shrink a font by 20%, you aren't just changing height; you are reducing the column width. If a column gets thinner than 1mm, the thread may not hold, causing thread breaks or messy "bird nests."
• The Solution: Trust the numerical size readout, not the visuals. If a letter is under 0.25" tall, standard needles (75/11) and 40wt thread may typically produce illegible results. Use 60wt thread and a smaller needle (65/9) for micro-text.

Note on File Formats: If you download free PES files that treat every letter as a separate file, the SE-400 cannot inherently "kerne" (space) them automatically. You must combine them in software first.

The "Move It" Routine: Coordinating Hand and Machine

The tutorial demonstrates moving the design to the upper-left corner using the arrow keys. This prompts a critical mental shift: The screen is a map, not the territory.

Action-First Workflow:

1. Hoop and Template: Confirm physical placement with the grid.
2. Load: Lock the hoop into the carriage.
3. Navigate: Tap the arrow keys on the LCD.
4. Listen: You will hear the stepper motors whining as they reposition the arm. This is the sound of coordinates updating.
5. Trace (Optional but Recommended): Most machines allow a "Trace" function. Watch the presser foot draw a box around your text area to ensure it doesn't hit the plastic frame.

Expected Outcome: By manually moving the design, you ensure the needle starts exactly where you chalked your fabric, preventing the text from running off the edge of your shirt pocket.

The "Pre-Flight" Prep: Mechanics, Materials, and Hidden Consumables

The host emphasizes practice on scrap felt. This is valid, but let's break down the physics of why this works, and what often goes wrong during the setup phase.

The "Hooping Station" Concept: In a factory, operators use a dedicated embroidery hooping station to ensure every shirt is hooped at the exact same tension. At home, you can replicate this by using a flat, hard table with a non-slip mat. Attempting to hoop on your lap or a soft bed sheet guarantees uneven tension ("Hoop Burn" or puckering).

Hidden Consumables Checklist: You need more than just thread and fabric. Ensure you have:

• New Needles: A size 75/11 Embroidery Needle (Ballpoint for knits, Sharp for wovens). A dull needle stabs fabric instead of sliding between fibers, ruining text definition.
• Curved Snips: For trimming jump stitches close to the fabric without snipping the knot.
• Bobbin Thread: specifically 60wt or 90wt bobbin thread. Do not use standard sewing thread in the bobbin; it is too heavy and will pull top thread down.

Prep Checklist (The "Do or Die" List)

• Needle Check: Run your fingernail down the needle tip. If it catches or feels rough, throw it away. A burred needle shreds thread.
• Bobbin Path: clear out any lint from the bobbin case. Even a speck of dust can alter tension.
• Hoop Tension: Tighten the hoop screw until the fabric feels like a tight drum skin. Tapping it should produce a dull thump.
• Clearance: Ensure the hoop arm has full range of motion behind the machine (no walls or coffee cups blocking it).

Warning: Magnet Safety. If you choose to upgrade to a magnetic embroidery hoop, be aware of the intense pinching force. Keep these magnets away from pacemakers, ICDs, and magnetic storage media. Do not let children play with them; they can snap together with bone-crushing force.

The Running Stance: Sensory Monitoring During Stitch-out

In the video, the machine stitches "Nintendo" on felt. We see the needle moving rapidly. As an operator, you must tune your senses to the machine's "normal."

Auditory Anchors:

• Good: A rhythmic, hum-like chug-chug-chug.
• Warning: A slapping sound (thread too loose) or a high-pitched grinding (needle hitting something).
• Danger: A sharp SNAP followed by silence (thread break).

Visual Anchors:

• Watch the thread cone. It should unspool smoothly. If it jerks, your text will have uneven columns.
• Watch the fabric. If it is "flagging" (bouncing up and down with the needle), your hoop is too loose. Stop immediately and tighten. Flagging is the #1 killer of small text precision.


The "Messy i" Forensics: Why Small Text Fails

The video points out that the lowercase "i" stitched poorly. This is a classic example of resolution failure.

The Physics of the Blob: A serif font (like Times New Roman) has tiny "feet" at the bottom of letters. When you shrink that font to 0.5 inches, those feet become just 2 or 3 tiny stitches. The machine cannot physically place stitches that close together without them merging into a knot.

The Fix:

1. Font Selection: For small text (under 0.5"), use Sans-Serif or "Block" fonts. They have clean lines and no tiny feet.
2. Density Management: If your machine/software allows, reduce density by 10-15% when shrinking text. This gives the thread room to breathe.

This is where the quality of your equipment surfaces. Users often blame the specialized embroidery hoops for brother machines, but often the issue is simply asking the machine to do something physically impossible with standard thread.

Recovering from Thread Breaks: A Structural Approach

Running out of thread is not a disaster; it is a routine maintenance event. The creator’s advice to "re-thread and continue" is correct, but let's add safety steps.

The "Safe Resume" Protocol:

1. Do NOT move the hoop. If you pop the hoop off to look at it, you will never get it aligned perfectly again.
2. Backtrack: Use the screen controls to reverse 5-10 stitches before the break point.
3. Trim: Snip the broken thread tail on the fabric surface so it doesn't get sewn over.
4. Overlap: Start the machine. The new stitches should overlap the old ones, locking the seam.


The "No Memory" Ceiling: Understanding Data Limits

The SE-400 is an older architecture. It has very limited onboard memory.

If you encounter "No Memory" errors:

1. Delete: Clear out old designs stored on the machine.
2. Simplify: Avoid loading 50 files at once on a USB/Cable connection.
3. Reset: Occasionally, a machine reset (check manual) helps clear fragmented data.

If you are consistently hitting this wall, it is a sign you are moving from "hobby" into "production volume," which is the natural trigger to look at upgraded hardware.

The Stabilizer Decision Tree: Matching Chemistry to Fabric

Stabilizer isn't just "backing"; it is the foundation of your building. Using the wrong one guarantees distorted text.

Decision Tree: Stabilizer Selection for Text

1. Is the fabric stretchable? (T-Shirts, Polos, Knits)
   • YES: You MUST use Cutaway Stabilizer. Tearaway will eventually disintegrate, and the stretchy fabric will distort the letters during the wash.
     • Action: Hoop the Cutaway, float the shirt, or hoop both.
   • NO: Proceed to step 2.
2. Is the fabric stable? (Denim, Canvas, Felt)
   • YES: Use Tearaway Stabilizer. It supports the stitch but removes easily for a clean back.
3. Is the fabric fluffy/textured? (Towels, Fleece, Pique)
   • YES: You need a Water Soluble Topping so the stitches don't sink into the loops. Without topping, text looks like it is drowning.

Using the correct stabilizer often fixes issues users blame on their hoop for brother embroidery machine.

Diagnosing "Hoop Burn" & The Safety of Upgrade Paths

The host emphasizes hooping, but ignores a major pain point: Hoop Burn. This is the permanent white ring left on dark fabrics (especially delicate pique polos) when a plastic hoop creates friction damage.

The Trigger:

• You are tightening the screw with a screwdriver to get that "drum skin" tension.
• You see a crushed ring on the fabric after unhooping that steam won’t remove.
• Your wrists ache from repetitive twisting.

The Solution Ladder:

• Level 1 (Technique): Wrap your plastic inner hoop with bias binding tape for a softer grip.
• Level 2 (Tool Upgrade): This is the precise scenario where professionals switch to magnetic hoops for embroidery machines.
  • Why? The magnetic force clamps the fabric vertically without the "twist and drag" friction of plastic hoops.
  • Result: Zero hoop burn, faster loading times, and less easier adjustments for thick fabrics like towels.


Operation Checklist: The "In-Flight" Rules

Once the green button is lit, follow this sequence to ensure success.

Operation Checklist

• Zone Defense: Stand within arm's reach. Do not walk away to make coffee.
• Sound Check: Listen for the "click" of the bobbin thread catching. A quiet start is usually good.
• Stop & Trim: (Optional) Pause after the first 3-4 stitches to trim the starting tail. This prevents it from being stitched into the design.
• Watch the Feed: Ensure the excess fabric of the shirt isn't bunching up under the hoop or getting caught on the presser foot levers.
• Post-Check: When finished, hold the work up to the light. Can you see pinholes of light around the letters? If so, your needle is too big.


Knowing When to Upgrade: The Commercial Reality

The SE-400 is a fantastic learning platform, but it is a single-needle, flat-bed machine.

The Evaluation Logic:

• The Hobbyist: If you embroider 1-2 items a week, focus on mastering stabilizer and maybe upgrading to a magnetic hoop for ease of use.
• The Side Hustle: If you are doing orders of 20+ shirts, the single-needle color change process (stop, cut, re-thread, start) will destroy your profit margin. This is the criteria for moving to a Multi-Needle machine.


Final Setup Checklist: The 60-Second Quality Assurance

Before you ruin a garment, run this mental script.

Setup Checklist

• Design fits? (Confirmed via Grid Template).
• Stabilizer matches fabric? (Cutaway for knits, Tearaway for wovens).
• Needle is fresh? (75/11 Ballpoint installed).
• Bobbin full? (Don't start a dense text block with a near-empty bobbin).
• Threading verification? Pull the top thread near the needle. You should feel resistance similar to flossing your teeth. No resistance means the thread missed the tension discs—fix it immediately.

By strictly adhering to these checks and understanding the mechanical realities of the Brother SE-400, you transform embroidery from a game of chance into a repeatable science.

FAQ

• Q: How can Brother SE-400 owners prevent small lettering from turning into blobs when stitching names under 0.5 inches tall?
  A: Use a simple block/sans-serif font and avoid shrinking delicate serif letters too far—this is a common limitation, not a personal mistake.
  • Switch: Choose a sans-serif/block font for text under 0.5" tall.
  • Adjust: If shrinking text, reduce stitch density by about 10–15% when the machine/software allows.
  • Upgrade (optional): For micro-text, try 60wt top thread with a smaller needle (65/9) instead of standard 40wt with 75/11.
  • Success check: Letters look separated (no “filled-in” counters like inside an “e”), and columns don’t merge into knots.
  • If it still fails: Enlarge the lettering or keep the design inside the safer ~3.5" x 3.5" zone instead of pushing to the hoop edge.
• Q: What is the correct way to hoop fabric on a Brother SE-400 to stop flagging and crooked lettering during stitch-out?
  A: Hoop to “tight drum” tension and verify straightness with the Brother plastic grid template before loading the hoop.
  • Align: Mark the fabric centerline, then line up the grid crosshair to the mark before the hoop ever goes on the machine.
  • Tighten: Turn the hoop screw until the fabric feels like a tight drum skin (firm, not spongy).
  • Stabilize: Hoop on a hard flat table (not on a lap/bed) to avoid uneven tension and hoop distortion.
  • Success check: Tapping the hooped fabric gives a dull “thump,” and the fabric does not bounce up and down (no flagging) while stitching.
  • If it still fails: Stop immediately, re-hoop tighter, and keep the lettering away from the hoop’s plastic edge where deflection is more likely.
• Q: What pre-flight checklist should Brother SE-400 owners run before stitching lettering to avoid thread breaks and messy columns?
  A: Treat lettering like precision work: start with a fresh needle, correct bobbin thread, and a clean bobbin area.
  • Replace: Install a new 75/11 embroidery needle (ballpoint for knits, sharp for wovens); discard any needle that feels rough or catches a fingernail.
  • Clean: Remove lint from the bobbin case area—small debris can change tension.
  • Load: Use proper lightweight bobbin thread (typically 60wt or 90wt), not standard sewing thread in the bobbin.
  • Success check: Pull the top thread near the needle—resistance should feel like flossing your teeth (missing tension discs often feels like “no resistance”).
  • If it still fails: Re-thread the top path completely and confirm the thread cone feeds smoothly without jerking.
• Q: How should Brother SE-400 users recover from a top thread break without misalignment in lettering?
  A: Do not move or remove the hoop; back up a few stitches and overlap to lock the repair.
  • Stop: Leave the hoop locked in the carriage (do not pop it out to inspect).
  • Backtrack: Use the screen controls to reverse about 5–10 stitches before the break point.
  • Trim: Snip the broken thread tail on the fabric surface so it won’t get sewn into a lump.
  • Success check: The restart stitches overlap cleanly with no visible gap or step in the satin columns.
  • If it still fails: Look for causes of repeated breaks—burr/dull needle, wrong thread path, or fabric flagging from loose hooping.
• Q: What stabilizer should Brother SE-400 owners use for clean lettering on knits, wovens, and towels?
  A: Match stabilizer to fabric behavior: cutaway for stretch, tearaway for stable wovens, and add water-soluble topping for texture.
  • Choose: Use cutaway stabilizer for T-shirts, polos, and any stretchy knit.
  • Choose: Use tearaway stabilizer for stable fabrics like denim, canvas, and felt.
  • Add: Use a water-soluble topping on towels, fleece, pique, or other textured surfaces to prevent stitches sinking.
  • Success check: Letters stay the same shape after unhooping (no waviness/puckering), and stitches sit on top of towel loops instead of disappearing.
  • If it still fails: Re-check hoop tension and keep small text away from the hoop edge where movement increases distortion.
• Q: What safety rules should Brother SE-400 owners follow around the needle area during embroidery lettering?
  A: Keep hands and tools well away while stitching—home machines move fast and unpredictably.
  • Keep clear: Maintain at least 6 inches between fingers/scissors/sleeves and the needle area when running.
  • Secure: Remove loose sleeves (hoodies) and keep excess garment fabric from wandering into moving parts.
  • Monitor: Stay within arm’s reach; do not walk away once the machine starts.
  • Success check: Nothing enters the needle zone during stitching, and there is no unexpected contact or snagging as the hoop moves.
  • If it still fails: Stop the machine immediately and re-position fabric and tools before resuming.
• Q: How can Brother SE-400 owners prevent hoop burn on dark polos, and when is a magnetic hoop a better tool?
  A: Start by reducing friction with a wrapped inner hoop; if hoop burn and wrist strain continue, a magnetic hoop is often the next step.
  • Soften: Wrap the inner plastic hoop with bias binding tape to reduce drag and pressure marks.
  • Avoid over-tightening: Do not crank the screw with a screwdriver just to reach “drum tight.”
  • Upgrade (tool): Consider a magnetic hoop when hoop burn is frequent, adjustments are slow, or thick items (like towels) are hard to clamp evenly.
  • Success check: After unhooping, there is no permanent white ring/crush mark and fabric recovers without aggressive steaming.
  • If it still fails: Re-check stabilizer choice and hooping surface; if production volume is rising, consider whether a multi-needle machine is the more efficient next step.
