The Heavyweight Guide to Towel Embroidery: How to Stop Fighting the Fabric and Start Scaling Production

Terry towels are one of those "looks easy, ruins your day" products. They deceive you. They look thick and sturdy, but the moment the needle starts moving, the loops grab the thread, the placement drifts 5mm to the left, and traditional hooping leaves "hoop burn" (crushed rings) that no amount of steam can fully fix.

The good news? The frustration isn't your fault—it’s a physics problem. And the workflow below, based on the SmartStitch method, is exactly how high-volume shops solve it.

We aren't just going to clamp a towel and hope. We are going to build a stitch-based jig directly on the stabilizer. This creates a repeatable mechanical alignment system that removes "eyeballing" from the equation.

The “Don’t Panic” Primer: Why SmartStitch Towels Go Wrong (and Why This Method Works)

If you’ve ever watched a towel design start perfectly but finish slightly crooked, you’ve experienced "Terry Drift."

Terry cloth is a living surface. It is springy, tall, and compresses unevenly. When you force a thick towel into a standard round hoop, you are fighting two battles:

1. Hoop Burn: The pressure required to hold the heavy fabric damages the pile.
2. distortion: Pulling the towel tight enough to hoop often stretches the weave. When you release it, the design puckers.

This guide uses the Floating Method combined with a machined guide. Instead of hooping the towel, we hoop the stabilizer. We then stitch a physical "fence" (an L-shaped guide) onto the stabilizer. You slide the towel up to this fence, tap it down, and hit start.

This method works because it relies on the stability of the backing rather than the tension of the towel.

If you’re building a towel workflow around a smartstitch embroidery frame or similar clamping system, this is the setup that turns a headache into a profitable, repeatable product line.

The Hidden Prep Pros Don’t Skip: Stabilizer Tension, Frame Locking Bars, and Clean Cutting

Before you touch the touchscreen, you need to stabilize the foundation. In embroidery, stabilizer is the road; the fabric is just the scenery. If the road has potholes, the car (your needle) will crash.

The video utilizes an aluminum clamping frame (sash frame style) with locking bars. Here is the empirical breakdown of how to set this up correctly.

1. The Stabilizer Choice: The "Cutaway" Rule

For towels, Tearaway is risky beginners' bait. Yes, it cleans up fast, but heavy towels pull against stitches. Tearaway can perforate and fail mid-design.

• The Pro Standard: Use one layer of medium-weight Cutaway (2.5oz) or two layers of No-Show Mesh. This provides a permanent skeleton for the towel.
• The Hybrid: If you insist on Tearaway for the back-of-towel feel, use one layer of Cutaway plus one layer of Tearaway.

2. The "Drum Skin" Tension Test

When you clamp your stabilizer under the locking bars:

• Audit (Touch): Tap the stabilizer in the center. It should feel taut, like a drum skin.
• Audit (Sound): It should make a dull thud, not a paper-bag crinkle.
• Audit (Sight): Look at the edges near the clamps. If you see "ripples" or waves, unclamp and tighten.

Beginner Safety Speed Limitation: While experts run machines at 1000 SPM (Stitches Per Minute), high speed on a heavy, floating towel causes vibration. Vibration kills accuracy.

• Sweet Spot: Set your machine to 600-750 SPM for your first dozen towels. Quality beats speed every time.

Warning: Keep scissors and hands clear of the needle area and moving carriage. On multi-needle machines, the pantograph moves faster than your reflexes. A small "reach-in" to fix stabilizer can result in a serious puncture or pinch injury.

Prep Checklist (Do not proceed until all boxes are checked)

• Needle Check: Fresh 75/11 or 80/12 Ball Point needle installed (Sharps can cut terry loops).
• Bobbin Check: Full bobbin loaded (towels consume thread fast; running out mid-fill is a nightmare).
• Stabilizer: Two layers (or 1 heavy cutaway) clamped drum-tight with no ripples.
• Towel Prep: Pre-washed (if possible) and lint-rolled. Folded center-line marked with a pin or chalk.
• Adhesion: Can of temporary spray adhesive (e.g., 505) or double-sided embroidery tape ready.
• Topping: Water-soluble film (Solvy) cut to size.

Stitch a Placement Box on SmartStitch: “Generate New Design Along Design Border” Done Right

On the SmartStitch interface, select your aluminum frame. The goal here is to use the machine to draw a map on the stabilizer.

The operator uses the shortcut menu to generate a new design along the design border. In the video, the stitch length is set to 3 mm for the border box.

Why not just use a pen?

Because humans are crooked; machines are precise.

1. The Reality Check: When the machine stitches this box, watch the needle. Does it hit the metal frame? If it’s too close, stop immediately.
2. The Tension Check: Look at the stitched rectangle. Is it a perfect rectangle? If the long sides are "bowing" inward like an hourglass, your stabilizer is too loose. Stop and re-hoop. Do not waste a towel on loose stabilizer.




Build the Towel-Edge L-Guide: Using SmartStitch Shift/Save Stitch Points for Repeatable Placement

This step separates the hobbyists from the production shops. We aren't just stitching the design; we are stitching a physical fence for the towel to butt against.

The operator uses the shortcut menu to shift the frame, measuring the distance between the border and where the design need to land.

• Example: If you want the embroidery 150mm up from the bottom hem, you shift the frame 150mm.

The machine stitches an L-shape (or a simple line) at that exact coordinate.

The "Physical Fence" Concept

Once this L-guide is stitched on your stabilizer, you can throw away your measuring tape.

• Visual Check: Is the L-guide square to the border box?
• Tactile Check: Run your finger over the stitched line. It creates a slight ridge. You will use this ridge to align the towel hem by feel.






Decision Tree: Fabric vs. Stabilizer Strategy

Not all towels are created equal. Use this logic gate to choose your consumables.

• Scenario A: Plush Bath Towel (Thick Loops)
  • Stabilizer: 1 Layer Cutaway + 1 Layer Tearaway (for firmness).
  • Topping: Heavyweight Water Soluble (20 micron or doubled-up standard).
  • Needle: 80/12 Ball Point.
• Scenario B: Waffle Weave / Kitchen Towel
  • Stabilizer: 2 Layers PolyMesh (No Show) to keep it soft.
  • Topping: Standard Water Soluble.
  • Needle: 75/11 Ball Point.
• Scenario C: Velour / Golf Towel
  • Stabilizer: 1 Layer Medium Tearaway (usually sufficient as pile is low).
  • Topping: Light Water Soluble (to prevent sinking).

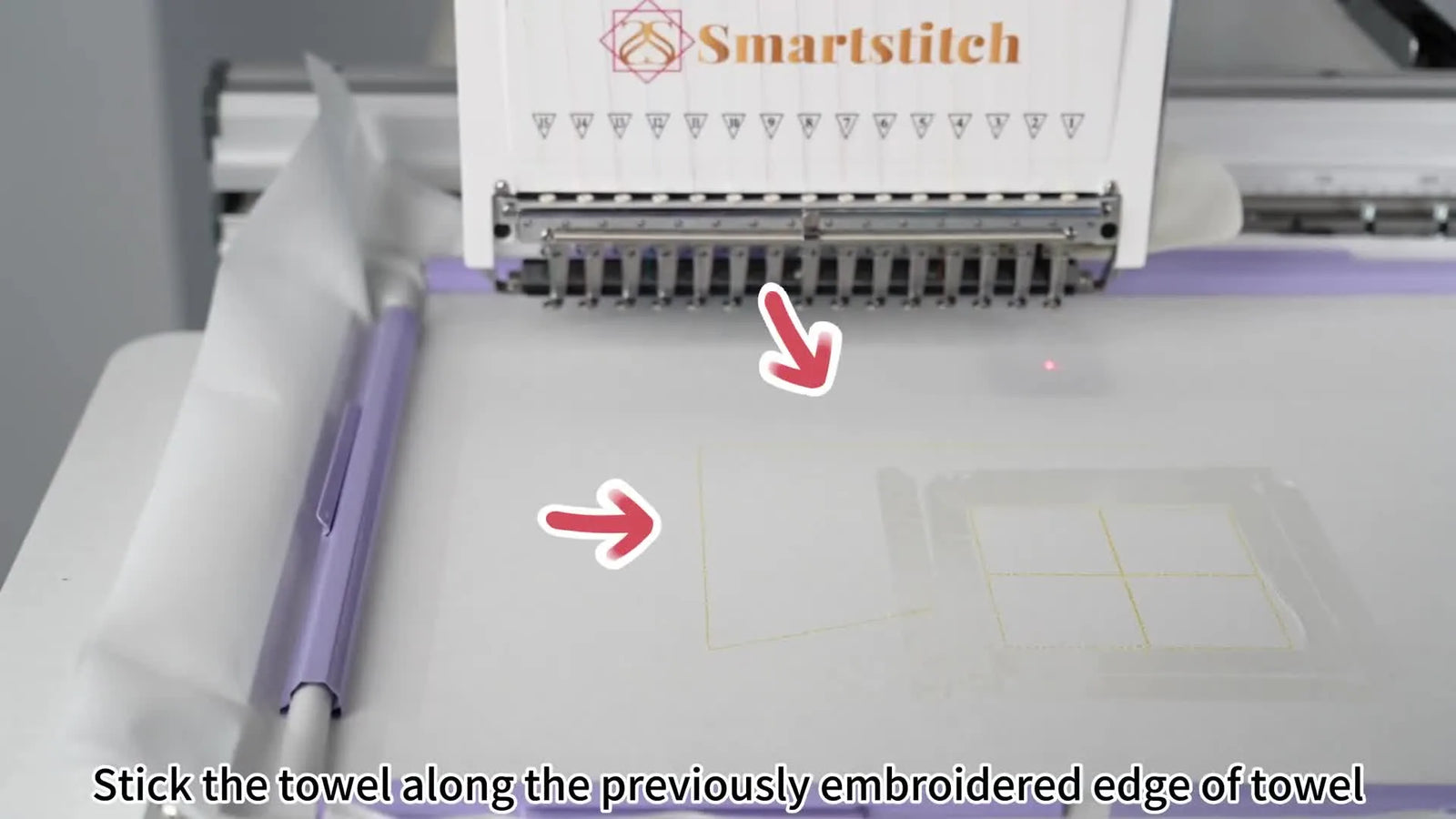

Float the Towel on Tape (Hoopless): Align to the L-Guide, Not Your Eyes

Now we switch from programming to production. This is the Floating Technique.

1. Apply Adhesion: Place strips of double-sided tape (or a light mist of 505 spray) inside the stitched border on the stabilizer.
2. The Docking Maneuver: Fold your towel so you can see the hem. Align the bottom edge of the towel exactly against the stitched L-guide line.
3. The Press: Smooth the towel down onto the specific area.

This is the heart of the floating embroidery hoop approach: the frame holds the stabilizer, and the stabilizer holds the towel. There is zero ring-burn on the towel because the towel is never clamped.

The Golden Rule: Press, Don't Stretch

Beginners often pull on the towel to force it straight. Do not do this.

• If you stretch it: The towel is under tension. When you take it off the machine, it snaps back, and your beautiful circle design turns into an oval.
• Correct Action: Lay it flat. Pat it down gently. Let the towel relax.


Warning: If you upgrade to a magnetic clamp or sash system, be aware of the "Pinch Zone." Industrial magnets are powerful enough to bruise blood vessels. Keep magnets away from pacemakers and implanted medical devices.

Water-Soluble Film on Terry Cloth: The Clean-Top Secret for Crisp Satin and Text

You cannot embroider terry cloth without topping. Period.

The video places a sheet of water-soluble film (Solvy) over the embroidery area.

• The Physics: Terry loops are like tall grass. Without a cover, stitches sink into the grass and disappear. Topping acts like snowshoes—it keeps the thread sitting on top of the pile.
• The Result: Crisp lettering and satin columns that don't look "eaten" by the fabric.

Pro Tip: The "Moisture Method"

If the plastic film keeps sliding around, lick your finger (or use a damp sponge) and touch the corner of the film to the towel. It will tack down instantly.

Setup Checklist (The "Pre-Flight" Check)

• L-Guide Verification: Is the guide stitched and visible?
• No Stretch: Is the towel laying flat and relaxed (not pulled tight)?
• Topping Secure: Is the water-soluble film covering the entire design area?
• Clearance: Is the excess towel material folded back so it won't get caught under the needle bar? (Use clips if necessary).
• Speed Set: Machine speed reduced to 700 SPM for the first run?

The “Why” Behind the Border + L-Guide: Physics of Hooping, Tension, and Fabric Creep

Why go through all this trouble? Why not just eyeball it?

Embroidery is violent. The needle enters the fabric thousands of times, creating "Push and Pull" forces.

1. Drag: The presser foot creates friction against the tall loops of the towel, trying to push it forward.
2. Creep: Without a hard reference, the heavy towel can micro-shift 0.5mm with every color change. By the end, you are 5mm off.

The Double-Sided Tape + L-Guide combination acts as an anchor. The L-guide ensures you start in the right place, and the adhesive ensures you stay there.

This setup highlights why many shops eventually move to a magnetic embroidery frame. While aluminum clamps work, magnetic frames allow for even faster "float" setups because they automatically adjust to the thickness of the towel without needing manual screw adjustments.

Continuous Production on SmartStitch: Patch the Stabilizer Window Instead of Re-Hooping

You have finished the first towel. It looks great. Now, do you unclamp everything and start over? No. That kills your profit margin.

The video demonstrates the "Patch Method":

1. Cut: Use a razor or scissors to cut the stabilizer inside the border box you stitched earlier. Remove the finished towel.
2. Patch: Take a scrap piece of stabilizer (slightly larger than the hole). Spray the edges with adhesive or use masking tape.
3. Apply: Stick the patch over the hole from the top (or slide it underneath if you prefer).
4. Repeat: Align the next towel to the same L-guide that is still on the frame.




This keeps your L-Guide registration perfectly intact. You can run 50 towels without ever removing the frame from the machine.

If you are scaling production, this is where a dedicated magnetic hooping station pays dividends. It allows you to prep the next frame while the machine is running, but the "Patch Method" is the best way to maximize a single-head machine.

Operation Checklist (Reset Protocol)

• Clean Cut: Old stabilizer removed without cutting the L-guide stitches.
• Patch Flat: New patch stabilizer applied flat with no wrinkles.
• Adhesion Refresh: New tape or spray applied for the next towel.
• Bobbin Check: Do you have enough thread for towel #2?

Common Towel Embroidery Failures (and the Fixes That Actually Hold Up in Production)

Even with this method, things can go wrong. Here is your troubleshooting matrix based on 20 years of floor experience.

Symptom: Stitches are sinking / White towel loops are poking through the design

Likely Cause: Topping failure. The Fix:

• Immediate: Use a heavier micron water-soluble topping.
• Upgrade: Increase the Stitch Density in your digitizing software by 10-15%. Towels need solid coverage.

Symptom: The Design "Walks" (Outlines don't match the fill)

Likely Cause: The towel shifted during stitching. The Fix:

• Check: Did you "stretch" the towel when sticking it down?
• Check: Is the adhesive strong enough? (Re-apply spray/tape).
• Technique: Slow the machine down. Heavy towels have momentum; high speed makes them slide.

Symptom: Thread Breaks / Shredding

Likely Cause: Needle deflection or heat. The Fix:

• Hardware: Change to a fresh Ball Point 80/12 needle.
• Lubrication: Use a specialized silicone thread lubricant if the thread is snapping repeatedly.
• Path: Check that the thread isn't catching on the rough texture of the towel itself.

Symptom: The "L-Guide" isn't straight

Likely Cause: Stabilizer tension was uneven before stitching the guide. The Fix: You cannot fix this. Strip the frame and re-clamp the stabilizer. If the foundation is crooked, the house will be crooked.

The Upgrade Path: When to Stick with the Aluminum Clamp—and When to Level Up Your Tooling

If you are doing towels for family or small Etsy batches (1-10 units), the aluminum clamping frame + floating method described here is perfect. It is low cost and high quality.

However, if you land a contract for 50+ gym towels or hotel robes, you will hit a wall:

1. Ergonomics: Screwing and unscrewing clamps manually 50 times hurts the wrist.
2. Consistency: It is hard to get identical tension manually every time.

The Level 2 Upgrade: This is when seasoned embroiderers switch to a magnetic frame for embroidery machine. The magnets self-adjust to the towel thickness, clamping instantly without screws. This reduces loading time from 3 minutes to 30 seconds per towel.

The Level 3 Upgrade: If you are constantly fighting thread breaks due to thickness, or if single-needle color changes are eating your day, it's time to look at the machinery itself. A multi-needle platform (like the SEWTECH series) provides the rigidity and needle-bar strength that domestic machines struggle to match on heavy canvas and terry cloth.

Final Thought: Towel embroidery is not about luck; it is about variables control. Use cutaway stabilizer. Use a ballpoint needle. Build your L-guide. If you control the setup, the machine will give you the same perfect result, towel after towel.

FAQ

• Q: On a SmartStitch aluminum clamping frame (sash frame with locking bars), how do I set stabilizer tension correctly before towel embroidery?
  A: Clamp the stabilizer “drum-tight” before stitching anything; loose stabilizer is the #1 reason towels drift and guides turn crooked.
  • Tap-test the center of the stabilizer and re-clamp until it feels taut like a drum skin.
  • Listen for a dull “thud” (not a crinkly paper sound) and check edges near clamps for ripples/waves.
  • Stitch the border box first and stop immediately if the rectangle bows inward (hourglass shape).
  • Success check: the stitched border is a clean, straight rectangle with no inward bowing and the stabilizer surface shows no ripples.
  • If it still fails: strip the frame and re-clamp from scratch; do not continue with a loose foundation.
• Q: On a SmartStitch towel workflow, what stabilizer should be used for terry towels to avoid puckering and mid-design stabilizer failure?
  A: Use cutaway as the safe default for towels; tearaway alone often perforates and can fail under heavy pull.
  • Start with 1 layer medium-weight cutaway (2.5oz) or 2 layers of no-show mesh for a permanent “skeleton.”
  • If a cleaner back feel is required, combine 1 layer cutaway + 1 layer tearaway (hybrid approach).
  • Match towel type to strategy (plush towels typically need firmer support than low-pile options).
  • Success check: the towel stays flat after stitching with minimal puckering and the backing remains intact (no tearing along stitch lines).
  • If it still fails: increase support (more stable backing) and slow the machine speed to reduce vibration-driven shifting.
• Q: On the SmartStitch “Generate New Design Along Design Border” step, how can I tell if the border box is safe and accurate before placing a towel?
  A: Use the stitched border box as a mechanical accuracy test; do not proceed if clearance or shape looks wrong.
  • Watch the needle path during the border stitch and stop immediately if the needle is too close to the metal frame.
  • Inspect the stitched rectangle for true straight lines and square corners before any fabric is floated.
  • Re-clamp stabilizer if the long sides bow inward like an hourglass (tension is too loose).
  • Success check: the border stitches form a true rectangle and maintain safe clearance from the frame with no contact risk.
  • If it still fails: re-select the correct frame setting on the interface and re-hoop the stabilizer tighter before retrying.
• Q: On a SmartStitch floating towel setup, how do I align the towel correctly using the stitched L-guide without stretching the towel?
  A: Align the towel hem to the stitched L-guide and press down—never pull the towel tight to “force” straightness.
  • Apply double-sided embroidery tape (or a light mist of temporary spray adhesive) inside the stitched border area on the stabilizer.
  • Dock the towel by placing the bottom edge/hem exactly against the stitched L-guide line, then pat/press the towel down.
  • Fold back excess towel material and secure it so it cannot ride into the needle area.
  • Success check: the towel edge sits flush to the L-guide by sight and feel (you can feel the stitched ridge) with no visible tension or stretch lines.
  • If it still fails: refresh adhesive and reduce speed (a safe starting point is 600–750 SPM for early runs) to reduce momentum-driven sliding.
• Q: On terry towel embroidery, why is water-soluble topping (Solvy-style film) required, and how do I stop the topping film from sliding during stitching?
  A: Always use water-soluble film topping on terry; it prevents stitches and lettering from sinking into loops.
  • Cover the entire design area with water-soluble film before starting the design.
  • Use the “moisture method” to tack the film: lightly dampen a fingertip/sponge and touch a corner so it grips the towel.
  • Choose heavier topping (or double standard film) for plush towels with tall loops.
  • Success check: satin columns and text stay crisp on top of the pile with minimal loop show-through.
  • If it still fails: switch to heavier micron topping and consider increasing stitch density in digitizing by about 10–15% (often needed for towels).
• Q: On towel embroidery troubleshooting, how do I fix a design that “walks” (outlines don’t match fill) when using a floating method on a SmartStitch clamping frame?
  A: Treat “walking” as towel movement; increase hold and reduce motion forces rather than re-digitizing first.
  • Re-check that the towel was pressed down flat (not stretched) when aligned to the L-guide.
  • Re-apply adhesive (fresh tape or spray) because heavy towels can micro-shift over long runs and color changes.
  • Slow the machine speed to reduce vibration and towel momentum (a safe starting point is 600–750 SPM for thick towels).
  • Success check: subsequent runs keep outlines registering cleanly over fills without progressive drift across colors.
  • If it still fails: verify stabilizer is drum-tight and the L-guide itself is straight; a crooked guide requires re-clamping and re-stitching the guide.
• Q: What needle choice and safety steps should be used for towel embroidery on a multi-needle embroidery machine to reduce thread breaks and prevent injuries?
  A: Use a fresh ballpoint needle and follow strict “hands out” habits—towels increase deflection risk and multi-needle pantographs move fast.
  • Install a fresh 75/11 or 80/12 ballpoint needle (sharps can cut terry loops and worsen shredding).
  • Keep hands, tools, and loose towel edges clear of the needle area and moving carriage before pressing start.
  • Reduce speed for early runs to limit vibration and deflection-driven breaks (a safe starting point is 600–750 SPM).
  • Success check: thread runs smoothly with fewer breaks and no contact occurs between hands/tools and moving parts.
  • If it still fails: change to a fresh 80/12 ballpoint and check thread path for snag points; consider silicone thread lubricant if snapping repeats.
• Q: What magnetic embroidery frame safety precautions should be followed when upgrading from an aluminum clamping frame to a magnetic clamp system for towel production?
  A: Treat industrial magnets as a pinch hazard and a medical-device hazard; load magnets deliberately and keep them controlled.
  • Keep fingers out of the “pinch zone” and set magnets down with a controlled, flat motion (never let magnets snap together).
  • Keep magnets away from pacemakers and implanted medical devices and follow the machine/manual safety guidance.
  • Organize the workstation so magnets cannot jump to tools or metal surfaces unexpectedly.
  • Success check: magnets seat securely without sudden snapping and no pinching/bruising occurs during loading/unloading.
  • If it still fails: slow down the loading routine and consider using a consistent two-hand placement method to control magnet attraction.
