Stop Fighting Ribbed Socks: A Shop-Pro Workflow for Romaker Sock Clamp Frames, Clean Registration, and Zero-Waste Setup

Embroidering socks is often the rite of passage that separates the hobbyist from the professional shop owner. It looks deceptively “simple” because a sock is small, but the physics are hostile: it is a flexible cylinder that wants to twist, torque, and distort. You ruin a few pairs, the ribs skew, the design lands crooked, and suddenly you are eating the cost of the blanks and questioning your machine settings.

The good news is that socks become predictable when you stop treating them like a flat t-shirt and start respecting the geometry of the cylinder. Successful sock embroidery relies on a specific "Jig + Clamp" workflow. Below is the exact process shown on a Romaker multi-needle machine—a setup that parallels the efficiency of SEWTECH industrial solutions—using a dedicated sock hooping station and a narrow green clamp frame. We will cover not just the "how," but the sensory cues (what it feels and sounds like) that guarantee a sellable product.

Know Your Sock Embroidery Jig + Clamp Parts Before You Touch the Machine (Romaker sock hooping station)

The video starts with a full parts layout: a metal mounting bracket that grabs the table edge, a green receiver/jig holder, and the narrow sock clamp frame system (bottom insert + top clamp). This is the core concept: you do the "hard work"—the stretching, aligning, and stabilizing—on a stationary table, not while fighting gravity under the needle bar.

If you have ever tried improvising with a standard hoop on a sock, you know the frustration. Standard hoops leave "hoop burn" on delicate knits and struggle to hold the tension evenly. The jig system eliminates this variable.

The "Why" Behind the Metal: Notice the rigidity of the components. In embroidery, rigidity equals registration. If your station flexes, your design shifts. Even if you are currently running a mixed fleet and searching for a specific machine embroidery hooping station compatible with other brands, the physics remain constant: cylinder items require a solid internal skeleton (the insert) to hold the fabric shape before the clamp locks it down.

Lock the Metal L-Bracket to the Table Edge So the Jig Doesn’t “Walk” Mid-Shift

Video action (00:05–00:22): Align the metal L-bracket to the table edge and tighten the two black thumb screws until the bracket is rigid.

This step is often rushed, but it is the foundation of your accuracy. If this bracket moves even 2mm, every sock you hoop subsequent to that shift will be off-center.

Sensory Check (The "Handshake" Test): Once tightened, grab the bracket and give it a firm handshake. Shake it. The table should move, but the bracket should not. If you feel any "play" or sliding, tighten it further.

Pro Tip: If your table surface is slippery (glossy laminate), place a small strip of rubber shelf liner between the clamp and the table. This increases friction and prevents the "walking jig" phenomenon without requiring pliers-level force that might strip the screws.

Seat the Green Receiver Correctly—It’s Your Registration Reference, Not Just a Holder

Video action (00:23–00:43): Place the green plastic receiver onto the metal bracket and secure it with the two top thumb screws.

Treat the receiver like a “registration fixture” or a zero-point. If this component is not seated flat, your frame insert will inherently sit at an angle. This manifests later as uneven clamp pressure—one side of the sock will be tight, the other loose, leading to fabric flagging and needle deflection.

Visual Alignment: Crouch down slightly and look along the top plane of the receiver. It must be perfectly parallel to the bracket base.

Hidden Consumable Alert: Keep a small level or a simple ruler handy during initial setup to verify flatness. A visual check is good; a measured check is better.

The Stabilizer Strip Trick: Use a Narrow Tear-Away Strip to Control Knit Stretch Without Bulking the Toe

Video action (00:44–00:55): Slide the long metal sock frame insert into the jig. Place a strip of tear-away stabilizer over the hoop window area so it covers the embroidery field. The strip shown is approximately 3–4 inches wide.

The Material Science: Socks are typically knitted tubes. If you use a heavy Cutaway stabilizer, you leave a bulky, scratchy square inside the sock that irritates the wearer's ankle. For most standard athletic socks, a Medium Weight (1.8 - 2.0 oz) Tear-Away is the industry standard. It provides stability during stitching but removes cleanly.

Expert Insight (The "Spine" Effect): Ribbed knit stretches horizontally (around the leg) much more than vertically. The stabilizer strip acts as a temporary "spine" under the stitch field. It prevents the ribs from collapsing inward under the tension of the thread.

If you are setting up a repeatable embroidery hooping station, pre-cutting these strips is a massive time-saver. Do not tear them off a roll one by one while the machine is waiting. Cut 50 at a time.

Prep Checklist (Do this BEFORE you load the sock)

• Stabilizer: 3–4 inch strips of Medium Weight Tear-Away pre-cut and stacked.
• Consumables: 75/11 Ballpoint Needles installed (crucial for penetrating knit without cutting fibers).
• Adhesion: (Optional but recommended) A very light mist of temporary adhesive spray on the stabilizer strip to prevent it from sliding as you pull the sock on.
• Thread: Colors staged and bobbin checked. A low bobbin ruins a sock run instantly.
• Tools: Flathead screwdriver and tweezers/pliers within arm's reach.

Stretch the Sock Over the Metal Insert Without Warping the Ribs (the “straight rib lines” test)

Video action (00:56–01:11): Pull the sock over the metal insert tongue and stretch it down until the embroidery area (typically ankle/shin) is centered over the stabilizer and window.

This is the most critical skill to master. You are looking for the "Goldilocks Zone" of tension.

The Physics of Hooping Tension:

• Too Loose: The fabric will "flag" (bounce up and down with the needle), causing birdnesting and poor registration.
• Too Tight: You pre-stretch the ribbing. When you un-hoop, the sock relaxes, and your perfect circle logo turns into a vertical oval.

Sensory Anchor (Visual & Tactile):

1. Visual: Use the ribs as grid lines. They must run perfectly parallel to the metal insert edges. If they spiral or dialogue, the sock is twisted.
2. Tactile: Tap the stretched fabric in the window. It should feel like a "firm handshake"—supported, but not tight like a drum skin. If it rings like a drum, it's too tight.

If you are struggling with consistent tension on thicker items or finding that standard clamps leave marks, this is where professional shops often pivot to magnetic framing solutions. Searching for a dedicated hooping station often leads users to realize that while clamps are great for socks, magnetic hoops are superior for anything with zippers or thick seams.

Snap the Green Top Clamp Down Like You Mean It—Uneven Pressure Is the Silent Sock-Killer

Video action (01:12–01:29): Place the top green clamping frame over the sock and press down firmly to snap/lock it into place, sandwiching sock + stabilizer between the frame parts.

The Auditory Cue: Listen for a sharp, definitive "CLICK". A mushy or soft clunk means the clamp hasn't engaged the detents fully. If it's not locked, the vibration of the machine running at 800 stitches per minute (SPM) will cause the clamp to pop open mid-design.

Checkpoint: Once clamped, lightly tug the toe of the sock. It should be immovable within the frame. If it slips, your clamp pressure is too low, or your sock is too thin for this specific frame gap.

Warning (Pinch Hazard): Keep your fingers strictly on the outer rim of the green clamp. Do not place fingers inside the frame window to smooth fabric while snapping it down. The snap action is forceful and can easily pinch skin.

Mount the Narrow Sock Frame to the Pantograph Driver Without Introducing Twist (Romaker frame knobs)

Video action (01:30–01:36): Slide the frame arms into the machine’s pantograph driver and tighten the two large black knobs.

This is a common point of failure. The sock is hanging from the frame, and gravity wants to twist it.

The "Square" Technique: Do not tighten one knob fully and then the other.

1. Slide the frame in.
2. Tighten the left knob to 50%.
3. Tighten the right knob to 50%.
4. Visually check specifically that the frame is "Square" (perpendicular) to the machine arm.
5. Tighten both fully.

Expected Outcome: The frame is suspended cleanly. When you touch it, it should feel like a solid extension of the machine, not a dangling attachment.

Fix the “Upside-Down Sock” Problem in the Control Panel: Select CUBA.dst and Rotate 180°

Video action (01:37–02:37): On the Romaker/Dahao-style control panel: 1) Select the design file “CUBA” (CUBA.dst) from memory. 2) Enter the edit menu. 3) Rotate the design 180° / inverse.

Why This Step Exists: Socks are hooped "Cuff Down" (the cuff is at the bottom of the hoop, toward the user). However, standard embroidery designs are digitized "Head Up." If you don't rotate, the logo will be upside down when the customer wears the sock.

Software Logic: Never rely on your memory. Make this a visible step on your screen. Most modern interfaces, including those on SEWTECH multi-needle machines, give you a visual thumbnail. Look at the thumbnail—is the text upside down relative to the screen? If yes, it will sew correctly on the sock.

If you are setting up a repeatable hooping station for machine embroidery workflow, print a physical "ROTATE 180" sticker and paste it on the machine head as a reminder.

Run a Boundary Trace Every Time—It’s Cheaper Than One Ruined Pair of Socks

Video action (02:35): Use the trace/boundary check function to verify the needle path before stitching.

What to Watch (The "Needle clearance" Check): Do not just watch the screen trace box. Watch the physical Presser Foot (Needle Bar 1). As it traces the perimeter, does it hit the green clamp? Does it get dangerously close to the thick cuff fold?

Safety Margin: You want at least 3-5mm of clearance between the needle drop point and the plastic clamp. Hitting a clamp at speed will not just break a needle; it can knock your machine's timing out, requiring a technician visit.

Setup Checklist (Right before you press Start)

• Mechanical: Frame knobs are tight; frame is square.
• Digital: Design is Rotated 180°.
• Clearance: Boundary trace completed; no clamp collisions detected.
• Thread: Correct path, no tangles at the cones.
• Speed: Machine speed limited to 600-700 SPM for the first run (do not run socks at 1000 SPM until you are sure).

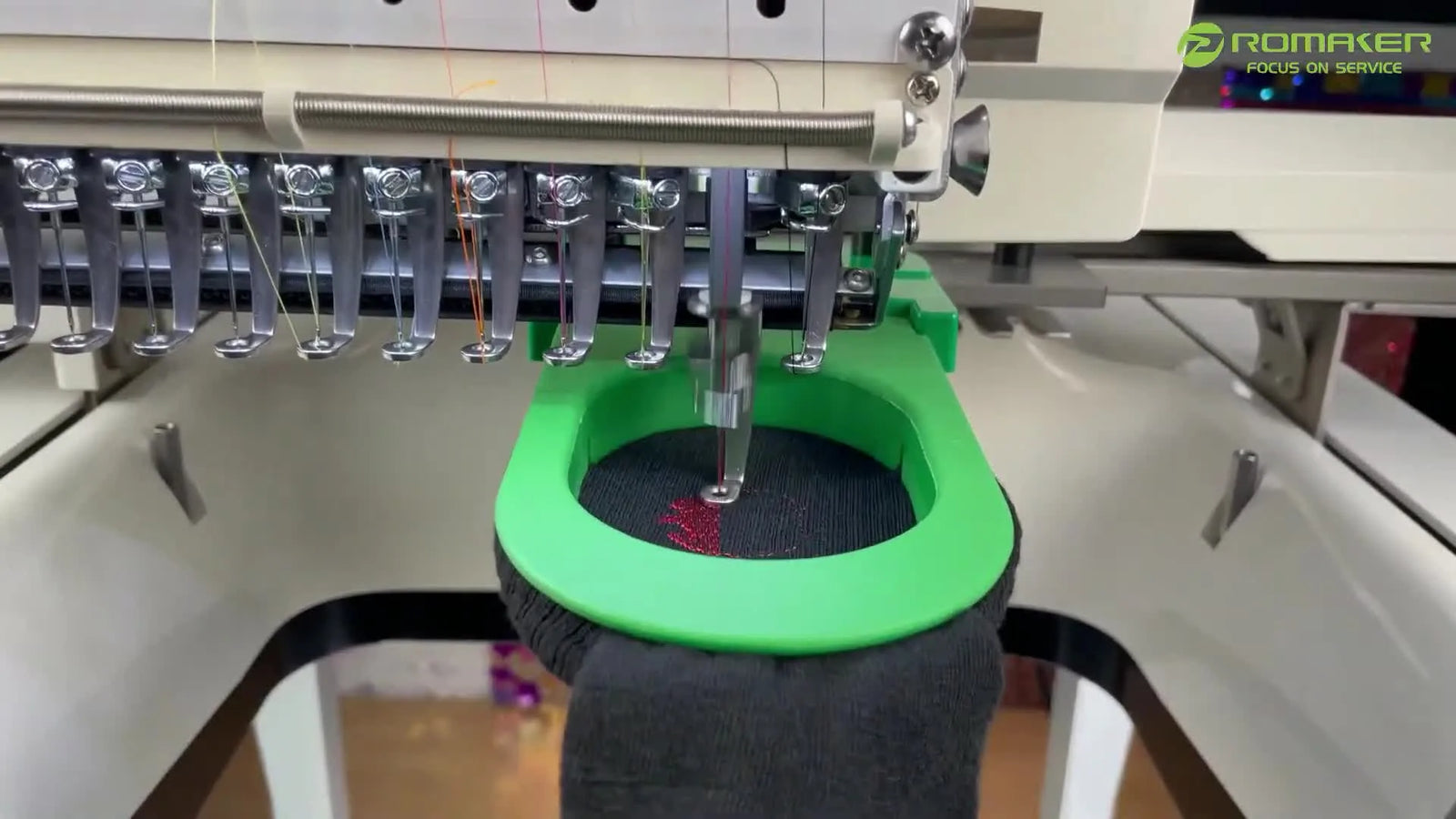

Stitch the Logo While Watching the First 30 Seconds Like a Hawk (Romaker multi-needle sock run)

Video action (02:38–03:00): The machine stitches the basketball logo and handles color changes automatically.

The "Walk-Away" Rule: You can only walk away from the machine after the underlay and the first 100 stitches of fill are complete.

• Why? If the sock is going to slip, it will happen now.
• What to look for: "Flagging." If the sock lifts up with the needle more than 2-3mm, your hooping was too loose.

Sound Check: A happy embroidery machine on socks makes a rhythmic, thumping hum. A sharp "TICK-TICK-TICK" sound usually indicates the needle is deflecting and hitting the needle plate or hook assembly—often caused by the fabric being too tight (drum-tight) or too many layers of stabilizer.

Operation Checklist (During the run)

• Movement: Watch the fabric edge at the clamp. Is it creeping inward? (Stop immediately if yes).
• Sound: Listen for the "Tick of Death" (needle deflection).
• Flow: Ensure thread is feeding smoothly.
• Safety: Keep hands away. The pantograph moves fast and unpredictably.

The Finished Sock Reveal: What “Good” Looks Like on Ribbed Knit (and what to reject)

Video action (03:04): The finished sock is shown on a mannequin leg with the completed logo.

Quality Control - The "Stretch Test": Remove the tear-away stabilizer. Now, stretch the sock with your hands as if putting it on a foot.

• Pass: The stitches stretch slightly with the gaps but return to shape. The design covers the ribs without exposing bare fabric gaps.
• Fail: You see white gaps between stitches (density too low), or the stitches pop/break (density too high or wrong underlay).

Common Reject Signals:

• Leaning Tower: The logo leans left/right (Twisted hooping).
• Wavy Fill: The solid fill looks like a Ruffles potato chip (Fabric was over-stretched).
• Bullet Holes: Large holes around the needle penetrations (Wrong needle type used—switch to Ballpoint).

For shops producing for teams, this consistency is vital. A consistent jig workflow turns a novelty item into a repeatable contract.

Needle Change on an Industrial Embroidery Head: Screwdriver + Pliers, Fully Seated Needle, No Guesswork

Video action (03:08–03:57):

• Loosen the needle clamp screw.
• Remove old needle.
• Insert new needle (Flat side to the back).
• Push fully up.
• Tighten.

The "Flat Side" Rule: On almost all industrial and commercial machines (like Romaker, SEWTECH, Tajima), the needles have a round shank with one grooved/flat side. The orientation of this scarf is critical for the rotary hook to catch the thread. Typically, the long groove faces the front, and the scarf (indentation) faces the back.

Needle Selection for Socks: Do not use a Sharp point. Use a 75/11 Ballpoint (BP) needle. The ballpoint slides between the knit fibers rather than cutting them, preventing "runs" in the sock.

Warning (Safety First): Always power down the machine or engage the Emergency Stop before changing needles. An accidental tap of the start button while your fingers are near the needle bar can result in a severe puncture injury.

The seating rule that prevents 80% of repeat needle issues

The video emphasizes this: ensure the needle is fully inserted to the stop. Since you cannot see inside the needle bar, you must use tactile feedback. Push the needle up until you feel a hard metal-on-metal stop. Hold it there firmly while tightening the screw. If the needle drops even 1mm, your timing is off, and you will get skipped stitches.

Checkpoint: After tightening, use your pliers to give a gentle downward tug on the needle. It should not move.

A Stabilizer Decision Tree for Socks: Pick Backing by Knit Behavior, Not by Habit

The video shows tear-away, but socks vary. Use this logic gate to determine your stabilizer strategy to ensure safety and quality.

Decision Tree (Sock Fabric → Stabilizer Choice)

1. Is the sock a standard athletic cotton/poly rib?
   • Yes: Use Medium Weight Tear-Away (1.8 oz).
   • Why: Good stability, easy removal, comfortable wear.
2. Is the sock a thin, high-stretch dress sock or performance slick knit?
   • Yes: Use Cutaway (Mesh or Light).
   • Why: Tear-away may disintegrate under the high stitch count, causing alignment loss. Cutaway remains forever to support the delicate fabric.
3. Is the sock a heavy wool or chunky knit?
   • Yes: Use Tear-Away + Water Soluble Topping (Solvy).
   • Why: The Topping prevents the stitches from sinking into the deep pile of the wool.

Note: Always minimize bulk. Nobody wants a stiff cardboard feeling in their shoe.

When a “Hooping Station” Upgrade Actually Pays Off: Speed, Consistency, and Less Operator Fatigue

You are currently looking at this workflow because you want better results. The jig shown is a massive step up from improvising. But when does it make sense to upgrade further?

The Three Tiers of Production:

1. The Jig User (Current State): Perfect for socks and small cylinders. The limitation is manual effort and physical clamping force.
2. The Magnetic User (Efficiency Upgrade): For flat garments (shirts, jackets) where standard hoops leave marks or cause wrist strain, shifting to Magnetic Hoops is the logical next step. While not for socks, they solve the "Hoop Burn" issue on the rest of your inventory. Terms like hooping stations often lead users to discover that magnetic systems are the ultimate partner to a good table jig.
3. The Multi-Needle Operator (Capacity Upgrade): If you are tired of stopping to change threads on a single-needle machine, or if you need to run 50 pairs of socks a week, moving to a robust platform like a SEWTECH 15-needle machine is the game changer. It allows you to queue colors, run at higher speeds sustainably, and utilize heavier industrial clamping systems without fear of motor burnout.

Warning (Magnet Safety): If you decide to upgrade to magnetic hoops, treat them with extreme caution. The industrial magnets are powerful enough to pinch skin severely and can interfere with pacemakers. Keep them separated when not in use.

The “Don’t Get Burned” Troubleshooting Table: Symptoms → Likely Cause → Fix

Socks are unforgiving. Use this table for rapid diagnosis.

The Upgrade Result You’re Really After: Fewer Rejects, Faster Hooping, and a Sock Product You Can Sell Confidently

The workflow detailed here—rigid jig assembly, calculated stabilizer usage, neutral tension stretching, and disciplined needle tracing—creates repeatability.

If you are building a business, repeatability is your only metric for success. It reduces your "cost of goods sold" by eliminating wasted blanks. Whether you are using a hooping station for embroidery machine setups, comparing a hoop master embroidery hooping station, or even looking at a totally tubular hooping station concept, the principle remains: Control the cylinder, control the profit.

When you are ready to stop fighting your equipment and start producing volume, remember that tools like dedicated jigs, magnetic hoops, and industrial multi-needle machines (like SEWTECH) are not just expenses—they are the leverage you need to scale.

FAQ

• Q: Why does a Romaker/Dahao-style embroidery control panel stitch an upside-down sock logo unless the design file (example: CUBA.dst) is rotated 180°?
  A: Socks are commonly hooped cuff-down, so a normal “head-up” design must be rotated 180° (inverse) to sew upright when worn.
  • Open the design on the control panel (for example, select CUBA.dst).
  • Enter the edit menu and apply Rotate 180° / Inverse.
  • Run a boundary trace after rotation to confirm the sewn orientation and clearance.
  • Success check: The on-screen thumbnail shows the text/logo appearing upside down relative to the screen, which means it will sew correctly on the sock.
  • If it still fails: Add a physical “ROTATE 180°” reminder on the machine head and verify rotation before every run.
• Q: How do I stop birdnesting on embroidered socks when using a Romaker sock hooping station and green sock clamp frame?
  A: Birdnesting on socks is most often caused by fabric flagging from hooping/clamping that is slightly too loose.
  • Re-hoop the sock so the fabric is taut but not drum-tight, and keep rib lines straight/parallel to the insert edges.
  • Snap the green top clamp down firmly until a sharp, definite “CLICK” confirms full engagement.
  • Lightly tug the sock toe after clamping to confirm the sock cannot slip inside the frame.
  • Success check: During the first 30 seconds, the sock should not lift more than about 2–3 mm with needle movement (minimal flagging).
  • If it still fails: Stop and re-check that the clamp is fully locked and the stabilizer strip fully covers the stitch field.
• Q: What stabilizer should be used for sock embroidery to prevent knit stretch without leaving a bulky patch inside the sock?
  A: For most standard athletic rib socks, a narrow strip of medium-weight tear-away stabilizer is the go-to because it stabilizes stitches and removes cleanly.
  • Cut 3–4 inch wide tear-away strips ahead of time and place the strip over the hoop window area.
  • Use only the strip width you need to avoid toe/ankle bulk and discomfort.
  • Consider a very light mist of temporary adhesive on the stabilizer strip to reduce shifting while pulling the sock onto the insert.
  • Success check: After tearing away, the inside feels smooth (not stiff/scratchy), and the design holds shape when the sock is stretched by hand.
  • If it still fails: For very thin/high-stretch dress or performance socks, cutaway (mesh/light) may be needed; for heavy wool, add water-soluble topping to prevent stitch sink.
• Q: How can I tell if sock hooping tension is correct on a metal sock insert before snapping the green clamp frame shut?
  A: Correct sock hooping tension is “firm support” (not loose and not drum-tight) with ribs running straight—this prevents twisting and distortion.
  • Pull the sock over the metal insert until the embroidery area is centered over the stabilizer and window.
  • Align using rib lines like grid lines; keep ribs parallel to the insert edges to avoid a twisted logo.
  • Tap the fabric in the window and aim for a “firm handshake” feel—supported, not tight like a drum.
  • Success check: Rib lines stay straight (no spiraling), and the fabric doesn’t “ring” like a drum when tapped.
  • If it still fails: If circles become vertical ovals after unhooping, reduce pre-stretch; if you get flagging/birdnesting, increase tension slightly and confirm the clamp fully clicks.
• Q: What is the safest way to change a 75/11 ballpoint needle on an industrial embroidery head (Romaker/SEWTECH/Tajima style) without causing repeat skipped stitches?
  A: Power down first, then fully seat the needle to the stop with correct orientation—most repeat stitch problems come from a needle that is 1 mm too low.
  • Power off the machine or engage Emergency Stop before touching the needle area.
  • Insert the new needle with the flat/scarf orientation correct (commonly long groove to the front and scarf/indentation to the back—confirm with the machine manual).
  • Push the needle fully up until a hard metal-on-metal stop is felt, then tighten while holding it up.
  • Success check: After tightening, give a gentle downward tug with pliers; the needle must not move.
  • If it still fails: Re-seat the needle again (don’t guess), and if skipped stitches continue, stop the run to prevent damage and consult the machine timing guidance/service.
• Q: How do I prevent a broken needle from a clamp collision when embroidering socks on a Romaker multi-needle machine pantograph?
  A: Always run a boundary trace and watch the physical presser foot path—clamp strikes happen when clearance is not verified.
  • Rotate the design 180° first (if needed), then use the trace/boundary function.
  • Watch Needle Bar 1/presser foot during tracing, not just the screen box.
  • Confirm 3–5 mm clearance from the needle drop path to the green clamp and thick cuff folds.
  • Success check: The trace completes with visible safe clearance and no near-contacts with the clamp.
  • If it still fails: Reposition the sock on the insert/clamp, reduce the design size/placement, and do another boundary trace before pressing Start.
• Q: When does upgrading from a sock jig + clamp workflow to magnetic hoops or a SEWTECH 15-needle embroidery machine make sense for production?
  A: Upgrade when the main pain point shifts from “can I make it work” to “can I make it repeatable at volume” and operator fatigue/rejects are costing more than tools.
  • Level 1 (Technique): Standardize setup—rigid L-bracket, straight rib alignment, stabilizer strip prep, mandatory boundary trace, and first-run speed around 600–700 SPM.
  • Level 2 (Tool): Use magnetic hoops for flat garments to reduce hoop burn and wrist strain (socks still typically use the jig + clamp method).
  • Level 3 (Capacity): Move to a multi-needle platform like a SEWTECH 15-needle when frequent thread changes and weekly volume (for example, dozens of pairs) are the bottleneck.
  • Success check: Reject rate drops, hooping time becomes consistent, and operators can repeat results across shifts without “mystery” distortion.
  • If it still fails: Track which failure repeats (twist, flagging, clamp strike, needle issues) and correct that root cause before investing—process fixes often pay back first.
