Stop Fighting Knit Hats: A Clean Floating Beanie Stitch-Out on a Smartstitch Multi-Needle with a 5.5" Magnetic Hoop

Beanie embroidery is the ultimate test of patience. One minute, you have a perfect design on screen; the next, you’re watching a stretched, distorted mess stitch out on a hat that refuses to sit still. The knit fabric wants to roll, the thickness fights your hoop, and the fear of "hoop burn" (permanent ring marks) is paralyzing.

If you have ever stared at a knit hat and thought, "I can stitch this, but I’m terrified to frame it," this guide is your safety net. We are breaking down the "Floating Protocol" used by industry pros on multi-needle machines. We will use a specific combination of stabilizers to freeze the stretch, a magnetic hoop to bypass clamping struggles, and a rigorous checklist system to ensure your first beanie looks as good as your fiftieth.

Phase 1: The "Anti-Stretch" Arsenal (Supplies & Consumables)

Before we touch the machine, we must gather the right physics package. Success on knits isn't about luck; it's about controlling tension. The video demonstrates a "Floating" method, which means we hoop the stabilizer, not the hat.

The Essential Kit:

• The Substrate: Child’s black knit beanie (acrylic/wool blend).
• The Anchor: Magnetic Hoop (5.5" size is ideal for beanies).
• Stabilizer A (The Foundation): Tearaway Stabilizer (2 sheets).
• Stabilizer B (The Structure): No-Show Mesh / Poly Mesh (1 sheet).
• Stabilizer C (The Surface): Water-Soluble Topper (Solvy/Film).
• The Bond: Temporary Spray Adhesive (e.g., Odif 505 or SpraynBond).
• The Pointer: Green target placement sticker.

The "Hidden" Consumables (Don't start without these):

• Needles: Size 75/11 Ballpoint. Crucial: Standard sharp needles can cut knit fibers, causing runs in the fabric. Ballpoints slide between fibers.
• Painter’s Tape: For securing the edges.
• Sewing Pins: Long quilting pins (glass head preferred for visibility).


Expert Insight: Why three different stabilizers?
* Tearaway provides the rigidity the magnetic hoop needs to grip.
* No-Show Mesh provides the permanent structure inside the hat so the embroidery doesn't distort when worn.
* Topper prevents the stitches from sinking into the fuzz of the knit.

Phase 2: Design Physics & Digital Prep

The video uses a simple block font, "TUCK," digitized in Embrilliance. On stretchy knits, simpler is safer. Complex serifs or tiny script fonts often get swallowed by the fabric texture.

Step-by-Step Digitizing Workflow:

1. Open Embrilliance (Essentials or StitchArtist).
2. Input text using a block font.
3. Resize to exactly 1 inch height. Note: For beanies, 1 to 1.25 inches is the "Goldilocks zone"—readable but doesn't wrap too far around the curve.
4. Adjust Kerning (Letter Spacing):
   • Click the green handles on individual letters.
   • Nudge them closer/further using arrow keys.
   • Visual Check: On knits, slightly wider spacing is better than tight spacing to prevent letters from merging.
5. Center the Design: Use the Center in Hoop button.


The "Floating" Advantage: When you learn floating embroidery hoop techniques, centering the design digitally is critical. Since you aren't hooping the garment, you rely on the machine's center matching your manual placement. If your file is off-center, your hat will be too.

Phase 3: The "Skeleton" Setup (Hooping the Stabilizer)

Here is where we build the platform. We are not touching the hat yet. We are preparing the magnetic hoop to act as a rigorous, flat stage.

The Arrow Rule: Place your green target sticker on the beanie where you want the center of the design. Ensure the arrow points UP toward the crown. This is your "North Star" to prevent sewing a name upside down—a mistake even 20-year veterans make.

Hooping Procedure:

1. Separate your magnetic hoop rings.
2. Lay two sheets of Tearaway stabilizer over the bottom ring. One sheet is rarely enough for the torque of a multi-needle machine.
3. Place the top ring. Listen for the Snap: You want a solid, decisive click. The stabilizer should be taught.
4. Sensory Check: Tap the stabilizer. It should sound like a drum skin. If it ripples or sounds loose, re-hoop.

If you are comparing equipment, the rigidity of a 5.5 mighty hoop or similar strong magnetic frame provides the consistency needed here. The stabilizer must not slip.

Phase 4: The Core Stabilization (Bonding the Mesh)

This is the step 90% of beginners skip, leading to distorted text. The knit fabric is stretchy; the stabilizer is not. We must marry them before stitching.

The Bonding Sequence:

1. Cut a piece of No-Show Mesh larger than your design.
2. Take it tight to a cardboard box (to catch overspray) and apply a light mist of Basting Spray.
3. Turn the beanie inside out (or reach inside).
4. Press the sticky side of the mesh onto the inside of the beanie, directly behind the target area.
5. The "Hand-Iron" Technique: Press firmly with your warm hand for 10 seconds. The heat helps the adhesive set.

Physics Check: Try to gently stretch the fabric where the mesh is. It should resist. You have now converted that section of the beanie from "stretchy knit" to "stable woven." This is crucial when using magnetic embroidery hoops, as the hoop holds the tearaway, but the mesh holds the fabric.

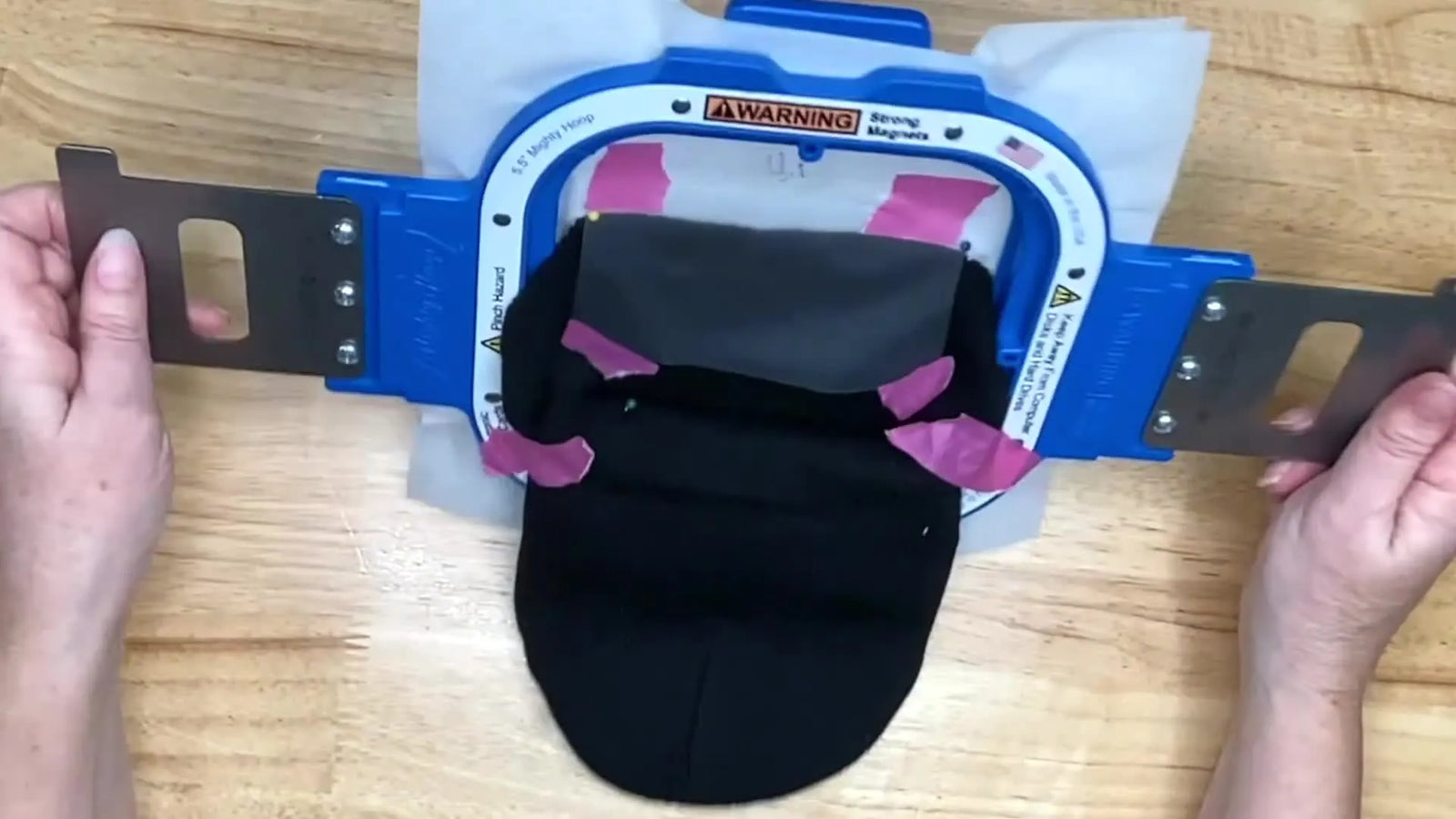

Phase 5: The Float & Pin (The Beanie Sandwich)

Now, we marry the hat to the hooped tearaway. This is "Floating."

Execution:

1. Spray a light mist of adhesive onto the center of the hooped tearaway (or the back of the beanie).
2. Press the beanie onto the hoop, aligning your green sticker with the center of the hoop.
3. Smooth, Don't Stretch: Pat it down gently. Do not pull the knit, or your design will pucker later.
4. Pinning: Place 4 pins through the beanie, the mesh, and the tearaway.
   • Placement: Keep pins at the far corners, well outside the stitch zone.
   • Difficulty: This requires force. The layers are thick.

Warning: Mechanical Safety
Never place pins inside the potential travel path of the presser foot. A collision between a machine moving at 800 stitches per minute and a steel pin can shatter the needle only inches from your eyes. Always leave a 1.5-inch safety buffer around the design.

Expert Alternative: If pinning hurts your fingers (common with thick winter hats), many pros use strong craft magnets (like SewTites) to clamp the floating beanie to the stabilizer. This reduces physical strain and is faster for production runs.

Warning: Magnetic Safety
Strong magnets (Neodymium) used in embroidery hoops can snap together with over 30 lbs of force. This is a severe pinch hazard.
* Do not let them snap onto your skin.
* Pacemakers: Keep strong magnets at least 6 inches away from medical implants.
* Slide magnets apart; do not try to pull them directly apart.

If you are looking to professionalize this workflow, a magnetic hooping station can help hold the hoop in a fixed position while you arrange the beanie, significantly reducing wrist fatigue.

Phase 6: Surface Tension (Topper & Tape)

Finally, prevent the stitches from sinking.

1. Tape: Use blue painter's tape to secure the edges of the beanie to the hoop. This prevents the heavy knit from flopping around and lifting off the adhesive.
2. Topper: Place a square of Water-Soluble Topper over the text area. Tape the corners down.


Prep Checklist (Pre-Flight):

• Needle: 75/11 Ballpoint installed?
• Bobbin: Full (white bobbin thread)?
• Mesh: Bonded securely inside the beanie?
• Center: Green arrow points to the crown?
• Clearance: Pins/Magnets are visible and outside the stitch zone?
• Hoop: Stabilizer is "drum tight"?

Reliable results with smartstitch embroidery hoops depend on this prep. If the sandwich is loose, the registration will fail.

Phase 7: Framing & Stitching

Mount the hoop to the machine.

The "Ghost" Run (Trace): Lower the presser foot height if your machine allows (to account for the beanie thickness). Run a Trace/Frame operation.

• Watch: Does the foot graze the pins?
• Watch: Is the text centered visually?
• Tip: Trust your eye over the ruler. Beanies are often sewn crookedly. Align the text perpendicular to the knit's vertical ribbing lines, not necessarily the folded brim.


Speed Settings: While your commercial machine can do 1000 SPM (Stitches Per Minute), dial it down to 600-700 SPM for beanies.

• Why: The lower speed reduces the "flagging" (bouncing) of the heavy fabric, resulting in cleaner satin columns.


Stitch Out Sensory Checks:

• Listen: You should hear a rhythmic "thump-thump." A sharp "slap" usually means the fabric is bouncing too much (slow down). A "grinding" noise often indicates the needle is struggling to penetrate layers (change needle).

Phase 8: Cleanup & Finish

Post-Process:

1. Remove the hoop from the machine.
2. Remove Pins First: Do this immediately to avoid accidental pricks.
3. Tear Away Topper: Gently rip off the excess film. Use a damp Q-tip or a wet paper towel to dissolve the tiny remnants inside the letters. Do not scrub aggressively, or you will fuzz up the satin stitches.
4. Remove Tearaway: Tear the stabilizer off the back of the hoop.
5. Trim Mesh: Use curved embroidery scissors to trim the No-Show Mesh inside the hat. Leave about 1/4 inch around the text. Round the corners so they don't itch the child's forehead.


Operation Checklist (QC):

• Back: No bird nests (thread tangles)?
• Front: No stabilizer poking out from under the satin stitches?
• Texture: Run your finger over the text. Is it smooth (good tension) or loopy (loose tension)?
• Topper: All plastic film dissolved/removed?

Troubleshooting Guide: The "Why Did It Fail?" Matrix

Decision Tree: Customizing Your Stabilizer Stack

Not all hats are created equal. Use this logic flow to adapt:

• Is the knit thick and stable (e.g., Carhartt style)?
  • Yes: 1 Layer Tearaway (Hooped) + Float. No-show mesh optional.
  • No (Loose/Floppy Knit): 2 Layers Tearaway (Hooped) + Bonded No-Show Mesh (Essential) + Topper.
• Is the design heavy (Dense Fill)?
  • Yes: Must use Cutaway stabilizer instead of Tearaway to prevent bulletproof-vest effect and holes.
  • No (Open Text): Standard Tearaway/No-Show combo works.

Commercial Scaling: When to Upgrade?

The method above works for 1 to 10 hats. But what if you get an order for 50?

Struggling with manual pinning and re-taping is the bottleneck that kills profit margins.

• Level 1 (Technique): Use the floating method described here. Low cost, high skill.
• Level 2 (Tooling - Magnetic Hoops): If you struggle with alignment or hoop burn, upgrading to magnetic hoop systems (like the SEWTECH or Mighty Hoop series) is the first step. They self-level the fabric and eliminate the physical force required to "snap" a plastic hoop shut.
• Level 3 (Production - Machine): If you are consistently turning away orders because your single-needle machine takes too long to change threads or re-hoop, look into multi-needle machines like smartstitch mighty hoop compatible platforms. They allow you to prep the next hoop while the current one stitches.


If you plan to scale, investing in a specific hoop master embroidery hooping station can standardize your placement, ensuring that every logo hits exactly 2.5 inches from the brim, every single time, without measuring tapes.

Final Note: Embrace the Float

The "Floating" technique combined with the right stabilizer "sandwich" turns the chaotic variable of knit fabric into a controlled constant. By bonding the mesh and using a magnetic frame, you aren't just sewing on a beanie; you are sewing on a stable composite material.

Trust the friction of the stabilizer, respect the stretch of the knit, and let the magnet do the heavy lifting. Now, go stitch a hat that doesn't wobble.

FAQ

• Q: Which needle should be used for embroidery on a knit beanie to avoid holes and runs?
  A: Use a 75/11 ballpoint needle; sharp needles can cut knit loops and cause runs.
  • Install: Put in a fresh 75/11 Ballpoint (BP) needle before hooping.
  • Confirm: Re-thread and run a short trace/frame to ensure smooth penetration through the beanie “sandwich.”
  • Success check: The knit around the stitches stays intact with no sliced fibers or new holes forming.
  • If it still fails: Slow the machine down and re-check the stabilizer stack so the knit is not stretching while the needle punches.
• Q: How can a magnetic embroidery hoop hold a knit beanie securely without leaving hoop burn ring marks?
  A: Float the beanie and hoop only the stabilizer, then bond the beanie internally with no-show mesh so the hoop never crushes the knit.
  • Hoop: Snap two sheets of tearaway stabilizer in the magnetic hoop (not the beanie).
  • Bond: Spray-baste no-show mesh and press it onto the inside of the beanie behind the design area.
  • Secure: Float the beanie onto the hooped tearaway with light adhesive, then add tape and/or pins well outside the stitch zone.
  • Success check: The hooped stabilizer feels “drum tight,” and the beanie surface shows no shiny ring marks after stitching.
  • If it still fails: Increase edge control with painter’s tape and verify the beanie is being patted down (not stretched) during placement.
• Q: What is the success standard for “drum tight” hooping when hooping tearaway stabilizer for floating beanie embroidery?
  A: The hooped tearaway must be tight enough to tap like a drum skin; ripples mean re-hoop.
  • Layer: Use two sheets of tearaway because one sheet often lacks rigidity for multi-needle torque.
  • Listen/feel: Snap the magnetic rings closed with a decisive click and tap the surface.
  • Re-hoop: If the stabilizer ripples, sags, or sounds dull, separate the rings and hoop again.
  • Success check: A clean, tight “drum” sound with no visual waves across the stabilizer.
• Q: How can the green target placement sticker arrow prevent upside-down beanie embroidery on a multi-needle machine?
  A: Point the target sticker arrow up toward the crown so the design orientation stays consistent during framing and mounting.
  • Place: Stick the target marker at the intended design center on the beanie.
  • Orient: Aim the arrow toward the crown (up) before aligning to the hoop center.
  • Verify: Run a trace/frame and visually confirm the text reads correctly relative to the beanie’s brim and rib lines.
  • Success check: The traced stitch field surrounds the target center and the design reads upright when the beanie is worn.
  • If it still fails: Trust visual alignment over measuring—some beanies are sewn slightly crooked; re-align to the knit’s vertical ribbing.
• Q: How can bird nests on the back of a beanie embroidery be checked during QC after stitching?
  A: Inspect the back immediately after unhooping; bird nests indicate a thread control issue that must be corrected before the next beanie.
  • Remove: Pull pins out first to safely handle and flip the beanie.
  • Check: Look for thread tangles/loops behind the design before trimming mesh.
  • Correct: Re-check the thread path for snags and confirm the bobbin is properly installed and not running low.
  • Success check: The back shows clean, controlled stitch lines without tangled thread clumps.
  • If it still fails: Stop and re-run the setup checklist (needle type, full bobbin, bonded mesh, and drum-tight hooping) before stitching again.
• Q: What should be changed when gaps appear in satin stitches on knit beanie embroidery?
  A: Prevent the knit from stretching during stitching by using bonded no-show mesh (or cutaway for heavier designs) instead of relying only on tearaway.
  • Bond: Apply spray adhesive to no-show mesh and press it firmly onto the inside of the beanie behind the design.
  • Float: Keep hooping to the tearaway only, then attach the beanie to the hooped stabilizer without stretching.
  • Support: Add water-soluble topper to stop stitches from sinking into knit fuzz.
  • Success check: Satin columns look solid with no visible “railroad track” gaps when the beanie relaxes after stitching.
  • If it still fails: For dense designs, switch to cutaway support and reduce stitch speed to limit fabric bounce.
• Q: How can needle collisions with pins be prevented when floating a beanie on a multi-needle embroidery machine?
  A: Keep pins completely outside the presser foot travel path and maintain a 1.5-inch safety buffer around the design area.
  • Place: Pin only at far corners, well away from the traced design boundary.
  • Trace: Always run a trace/frame and watch the presser foot clearance before starting.
  • Remove risk: If pinning is difficult, use craft magnets to clamp layers (still outside the stitch zone).
  • Success check: The trace/frame completes without the presser foot grazing any pin or magnet.
  • If it still fails: Re-position pins/magnets farther out and re-run trace/frame at the correct presser foot height for the beanie thickness.
• Q: When beanie embroidery orders scale from 10 pieces to 50 pieces, what is a practical upgrade path from technique to tooling to production?
  A: Use a three-level approach: refine floating technique first, add magnetic hoop tooling for consistency next, then consider a multi-needle machine when re-hooping and thread changes become the bottleneck.
  • Level 1 (Technique): Standardize the stabilizer “sandwich” (hooped tearaway + bonded no-show mesh + topper) and follow a pre-flight checklist every time.
  • Level 2 (Tooling): Use magnetic hoops and, if needed, a hooping station to reduce alignment time and wrist fatigue from repeated setup.
  • Level 3 (Production): Move to a multi-needle platform when frequent color changes and re-hooping limit daily output.
  • Success check: Placement becomes repeatable, stitch quality stays consistent, and setup time per beanie drops without increasing rework.
  • If it still fails: Identify the true bottleneck (alignment drift, hooping strain, or slow color changes) and upgrade only the step that is costing the most time.
