Stop Fighting Knit Beanies: A Single-Needle Brother PE770 Method That Won’t Sew the Hat Shut

The Ultimate Field Guide to Embroidering Beanies on a Single-Needle Machine

Mastering the "Floating" Technique, Conquering Stretch, and Scaling Your Workflow

Beanies (toboggans, ski caps, knit caps) are the ultimate deceptive entry level project. They look soft and forgiving, but they are technically hostile territory. They stretch, they rebound, and they possess a unique ability to destroy a design by "swallowing" stitches.

If you are working on a flatbed home machine like the Brother PE770, you can achieve retail-quality results. However, you must abandon the idea of hooping the hat like a t-shirt. To hoop a thick knit is to invite "hoop burn" (permanent crushing of the fibers) and distortion. Instead, we use a method used by veterans for decades: Floating.

This guide deconstructs the workflow into a granular, zero-fail process. We will cover the specific physics of knits, the sensory checks you need to perform, and the exact moment when you should stop fighting with pins and upgrade your tooling for profit.

The Physics of Failure: Why Beanies Ruin Designs

Before we touch the machine, you need to understand the enemy: Elasticity.

When a needle penetrates fabric, it creates drag. On a stable woven shirt, the fabric stays put. On a knit beanie, the fabric pulls toward the needle and then snaps back. This causes:

1. Registration errors: Outlines don't match the fill.
2. Distortion: Circles become ovals.
3. Sinking: The loft of the yarn hides your lettering.

To win, we must mechanically lock the fibers in place without crushing them.

Phase 1: Preparation & The "Hidden" Consumables

Preparation is 90% of the battle. If you get this wrong, no amount of machine tuning will save you.

The "True Front" Protocol

Never trust your eyes on a knit item. Lined beanies often have "ghost seams" that look like the side but aren't.

1. Invert: Turn the beanie inside out.
2. Locate: Find the manufacturer’s tag or the ugly back seam. This is your absolute anchor for the "Back."
3. Revert: Flip it right side out.
4. Fold: Establish your cuff. A standard cuff is usually rolled up about 2.5 to 3 inches.

The Toolkit (Hidden Consumables)

Most tutorials leave out the "invisible helpers" that make the job easy. You need:

• Needles: Size 75/11 Ballpoint. Expert Note: While the source video mentions sharps, my recommendation is rigid: use Ballpoints for knits. They slide between the yarn fibers rather than cutting them, preventing holes that appear after washing.
• Stabilizer: 2.5oz or 3.0oz Cutaway. Never Tearaway.
• Topper: Water-Soluble Film (Sulky Solvy).
• Adhesive: Temporary Spray Adhesive (like Odif 505) or strong Painters Tape.
• Marking: Air-erasable pen or tailors chalk.

Warning: Mechanical Safety. When working with thick items, standard needles can deflect and hit the needle plate, shattering the needle. Always wear eye protection and ensure your needle is not bent before starting a thick project.

Prep Checklist: The "Go/No-Go" Test

• Needle Check: Is a fresh 75/11 Ballpoint installed? (Old needles cause thread shreds).
• Bobbin Check: Is the bobbin at least 50% full? (Stopping mid-beanie is a nightmare).
• Orientation: Have you physically marked the "Up" direction on the cuff with chalk?
• Consumables: Do you have Cutaway (Base) and Solvy (Topper) ready?


Phase 2: Stabilizer Engineering

Why Cutaway is Non-Negotiable

The video correctly identifies Cutaway Stabilizer as the only option. Here is the sensory "Why":

• Tearaway behaves like paper. If you pull it, it snaps.
• Cutaway behaves like fabric suspension. It holds the stitches forever, even when the hat is stretched over a human head 500 times.

If you use Tearaway, the stitches will break when the wearer puts the hat on.

Expert Modification: If you want to speed up production later, you can use Sticky Stabilizer (Peel and Stick), but only if you float a piece of Cutaway underneath it. Sticky alone is rarely strong enough for a heavy ribbed knit.

The Geometry of the Cuff: Marking for center

Precision is key. We are working with a limited "canvas" height on the cuff.

1. Measure Cuff Height: Usually 2.5 inches.
2. Calculate Center: The vertical center is 1.25 inches from the bottom fold.
3. The "Landing Zone" Mark:
   • Take your Cutaway Stabilizer (cut to 8x8" or larger).
   • Draw a crosshair in the center.
   • Draw a horizontal line 1.5 inches BELOW the horizontal crosshair line.
   • Why? When you place the folded beanie cuff onto the stabilizer, the fold will align with this line, ensuring the embroidery lands exactly in the center of the cuff.

This "offset marking" technique prevents you from guessing where the center of the hoop is once the opaque fabric covers everything.

If you are researching hooping for embroidery machine techniques, you will find that marking the stabilizer—not the item—is the secret to consistent placement on difficult garments.

Phase 3: Hooping the Logic (The Drum Skin)

We are not putting the beanie in the hoop. We are hooping the stabilizer only.

Steps:

1. Loosen the outer hoop screw significantly.
2. Lay the marked Cutaway stabilizer over the outer hoop.
3. Press the inner hoop in.
4. The Tactile Check: Tighten the screw. Pull on the edges of the stabilizer gently to remove wrinkles.
5. The Auditory Check: Tap the stabilizer with your fingernail. It should make a distinct "Thump Thump" sound, like a snare drum. If it sounds floppy or dull, re-hoop. Loose stabilizer = Pucker city.

Depending on your equipment, using a standard brother 4x4 embroidery hoop works well here because the smaller surface area naturally keeps tension better than larger hoops.

Bulk Management: Trim the "Ears"

Once hooping is done, trim the excess stabilizer corners ("ears") around the hoop.

Why?

• Physics: Excess stabilizer catches on the machine bed, creating drag. Drag = Shifted Design.
• Ergonomics: It removes visual clutter so you can see if the beanie is bunching up under the needle.

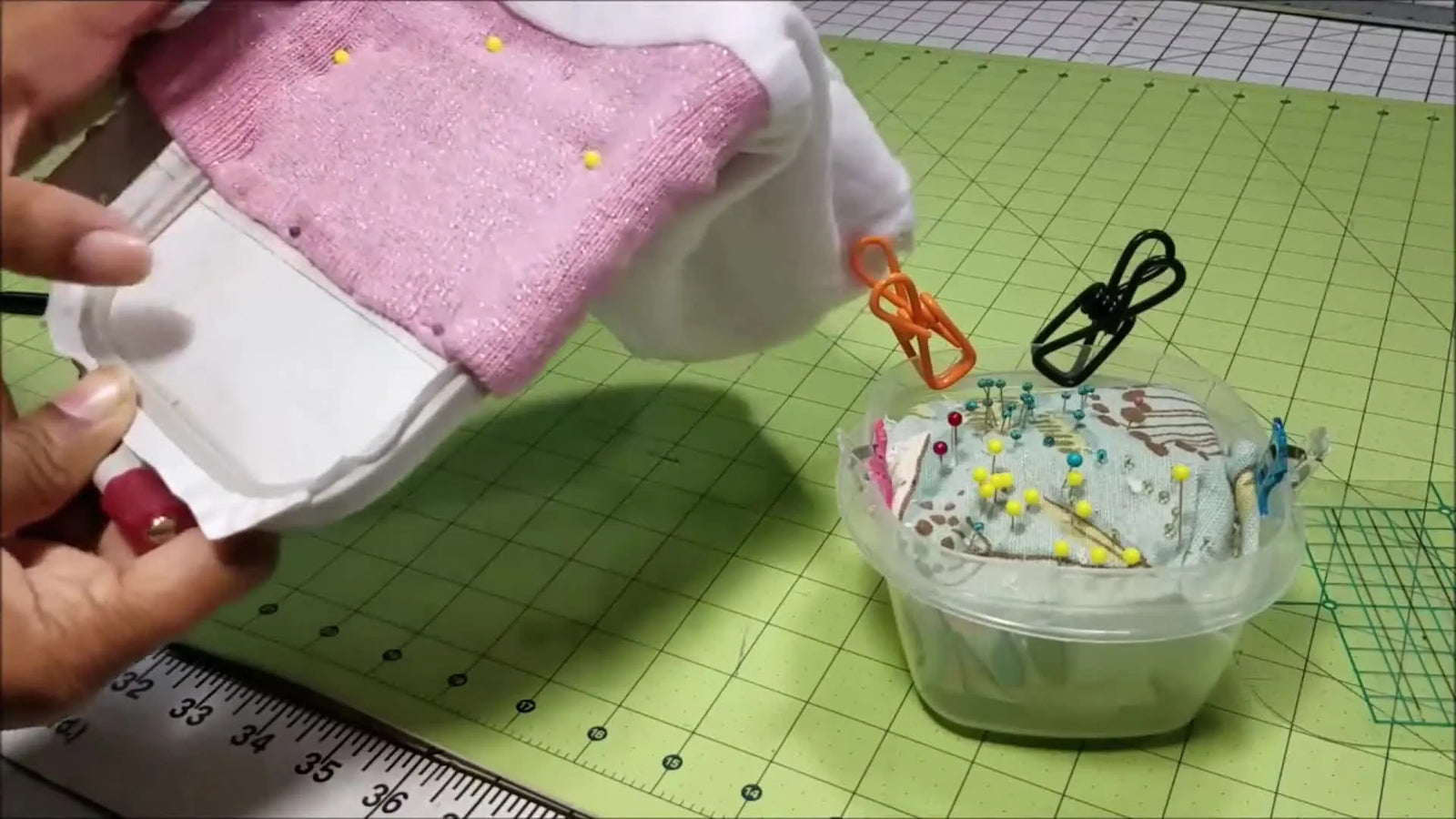

Phase 4: The Floating Technique (Pinning Protocol)

This is the most critical skill for a single-needle user. You are marrying the unstable knit to the stable drum-tight backing.

1. Spray (Optional but Recommended): A light mist of temporary adhesive spray on the center of the stabilizer provides an extra hand.
2. Placement: Align the bottom fold of the beanie cuff with your "Landing Zone" line drawn on the stabilizer.
3. Center: Ensure the horizontal center of the cuff aligns with the vertical center line of the stabilizer.
4. Pinning (The Difficult Part):
   • Use long quilting pins with glass heads (easier to see).
   • Pin the four corners of the cuff, outside the embroidery area.
   • The Tactile Warning: When pinning, you must feel the pin enter the knit, pass through the stabilizer, come back up through the stabilizer, and exit the knit.
   • CRITICAL: Do not pin the beanie shut! Keep your hand inside the beanie to separate the front cuff from the back of the hat.

Standard hoops are functional, but difficult. This pinning step is the primary frustration for beginners using a standard floating embroidery hoop method. It works, but it causes finger prick injuries and takes 3-5 minutes per hat.

The "Sewn Shut" Hazard: Clipping the Bulk

The embroidery arm moves rapidly. The back of the beanie will try to slide under the needle plate.

The Fix:

• Roll the body of the beanie backward, away from the hoop.
• Use a medium Binder Clip to clamp the excess fabric to the back of the hoop/stabilizer.
• Safety Zone: Ensure the binder clip is at the very top, well away from where the needle bar travels.


Machine Setup: The Rotation Check

Your beanie is upside down on the hoop (cuff facing you, top of hat facing machine). Therefore, your design must be Rotated 180 Degrees.

• Visual Check: Look at the screen. Is the text upside down? If yes, you are good.
• Horror Story Prevention: Every pro has embroidered a name upside down once. Don't be that person today.


Phase 5: The Topper (The Quality Secret)

Knit fabric is like a sponge; it absorbs thin stitches. To keep text crisp, you need a "stage" for the thread to dance on.

Application:

1. Cut a piece of water-soluble topping (Solvy) slightly larger than the design.
2. Place it over the stitch area.
3. Secure it: Use masking tape on the corners, or just dampen the corners slightly to stick it to the beanie.

Many advanced users eventually transition to magnetic embroidery hoops because they clamp the topping, the beanie, and the stabilizer all in one "snap," eliminating the need for tape or pins.

Phase 6: The Stitch-Out (Operational Discipline)

You are now ready to stitch. But first, you must adjust your speed.

The "Beginner Sweet Spot" for Speed:

• Expert: 800+ SPM (Stitches Per Minute).
• You (Right Now): 400 - 600 SPM.

Why? The sheer weight of the beanie flopping around causes the hoop to vibrate. Slowing down reduces vibration, improving registration clarity.

During Stitching:

• Do not walk away. This is a "Babysit" project.
• Watch the Bill: Ensure the thick brim of the hat doesn't catch on the presser foot lift bar.

Setup Checklist (Pre-Flight)

• Rotation: Design is rotated 180° on screen?
• Path Clear: Is the back of the hat clipped back? Run your hand under the hoop to verify simply stabilizer and one layer of cuff are there.
• Speed: Machine speed limited to 600 SPM max?
• Topper: Is the water-soluble film in place?


Phase 7: Cleanup & Finish

1. Remove Topper: Tear away the large chunks. Use a damp Q-tip or a wet paper towel to dissolve the tiny remnants inside letters.
2. Remove Pins: Do this before taking the hoop off the machine to avoid stabbing yourself.
3. Un-hoop: Loosen screw, pop it out.
4. Trim: Turn the hat inside out. Use curved embroidery scissors to trim the Cutaway stabilizer. Leave about 1/4" to 1/2" around the design. Do not cut the knit fabric. Round the corners of the stabilizer so they don't itch the wearer's forehead.

Needle Note: If you used a Ballpoint needle, your design should look clean with no "pockmarks" or holes around the stitching.

Sizing Strategy: The "Golden Ratio"

A standard beanie cuff is roughly 2.5 to 3 inches tall.

• Safe Design Height: 1.5 inches to 1.75 inches max.
• Reason: You need "breathing room" (margin) above and below the design so it doesn't roll into the fold or off the edge.

If you are accustomed to using a hoopmaster hooping station for shirts, remember that beanies are a different beast. You cannot rely on standard chest placement logic here; visual centering on the cuff is the only metric that matters.

The Decision Tree: Tooling & Method Selection

How do you know when to stick with the video method or upgrade?

Scenario A: 1-5 Custom Hats (Hobbyist)

• Method: Floating with Pins & Spray.
• Tools: Standard 4x4 Hoop + Cutaway.
• Standard: High Skill, Low Cost.

Scenario B: 20+ Team Hats (Side Hustle)

• The Pain: Fingers hurt from pinning. "Hoop Burn" risks increase with speed.
• The Upgrade: Magnetic Hoops (e.g., SEWTECH for Brother).
• Why: You lay the stabilizer, lay the hat, put the top magnet on. Snap. Done. No adhesive spray gunk, no pins, 10x faster.
• Trigger: If you spend more than 3 minutes hooping one hat, you are losing money. A magnetic hoop for brother pays for itself in one batch of 20 hats by saving 60 minutes of labor.

Scenario C: 100+ Corporate Order (Business)

• The Pain: Moving the hat bulk on a flatbed machine is slow and risky.
• The Upgrade: Multi-Needle Machine (Free Arm).
• Why: The "Free Arm" allows the hat to hang naturally without clips.
• Recommendation: Look into SEWTECH multi-needle solutions or compatible commercial gear. This separates the pros from the hobbyists.


Troubleshooting Guide: Symptoms & Cures

If it went wrong, don't panic. Use this diagnostic table.

The Path Forward: From Fear to Factory

Stitching a beanie on a single-needle machine is a rite of passage. It teaches you bulk management, stabilizer appreciation, and patience.

When you inevitably grow tired of the pinning struggle, remember that the industry has solved this problem. Magnetic hoops are not "cheating"; they are the standard for maximizing grip without damaging delicate knits. And when your volume exceeds your patience, dedicated multi-needle machines await.

Warning: Magnet Safety. If you upgrade to magnetic hoops, be aware they use Neodymium industrial magnets. They are incredibly strong. Keep them away from pacemakers, credit cards, and keep your fingers clear of the "pinch zone" when they snap together.

Final Checklist: The Quality Control Audit

• Cleanup: All stabilizer trimmed cleanly with rounded corners?
• Solubility: All topper traces removed (check inside "O"s and "A"s)?
• Integrity: Turn inside out—did you accidentally catch any loops of the back fabric?
• Stretch Test: Gently stretch the cuff. Did stitches pop? (If yes, density was too high or wrong underlay used).

Start slow. Master the float. Respect the knit. Happy stitching.

FAQ

• Q: What needle and stabilizer should a Brother PE770 single-needle machine use for embroidering knit beanies with the floating method?
  A: Use a fresh 75/11 Ballpoint needle with 2.5oz–3.0oz cutaway stabilizer (never tearaway) to prevent holes, stretch distortion, and stitch breakage.
  • Install: Replace the needle before starting; old needles commonly shred thread on thick knits.
  • Pair: Add a water-soluble topper on top of the beanie to keep lettering from sinking.
  • Avoid: Do not use tearaway on beanies; it can fail when the hat stretches during wear.
  • Success check: After stitching, gently stretch the cuff; stitches should not pop or crack.
  • If it still fails… Reduce stitch density in the design and slow the machine speed to the recommended range for beanies.
• Q: How do I know the cutaway stabilizer is hooped correctly on a Brother PE770 4x4 hoop before floating a beanie?
  A: Hoop only the stabilizer drum-tight; loose stabilizer is the fastest path to puckers and shifted registration on knit beanies.
  • Loosen: Back off the outer hoop screw more than you think, then seat the inner hoop cleanly.
  • Tighten: Pull the stabilizer edges to remove wrinkles, then snug the screw so tension holds evenly.
  • Trim: Cut off stabilizer “ears” around the hoop to reduce drag on the machine bed.
  • Success check: Tap the hooped stabilizer with a fingernail; it should sound like a clear “thump thump” (snare-drum tight), not dull or floppy.
  • If it still fails… Re-hoop and check that the stabilizer is not slipping as you tighten the screw.
• Q: How do I prevent a Brother PE770 single-needle machine from sewing a beanie shut during floating embroidery on the cuff?
  A: Control the bulk so only one cuff layer is under the needle; clip the rest of the hat safely out of the stitching path.
  • Roll: Roll the body of the beanie backward away from the hoop.
  • Clip: Use a medium binder clip at the very top of the hoop area, far from the needle bar travel zone.
  • Verify: Slide a hand under the hoop area to confirm only stabilizer + one cuff layer are in the stitch field.
  • Success check: Mid-stitch, the beanie should still open freely; the back layer must not be caught under the hoop area.
  • If it still fails… Stop immediately, unpick the first few stitches, re-clip more aggressively, and babysit the stitch-out.
• Q: Why does Brother PE770 beanie embroidery show white gaps and misaligned outlines when using the floating method, and what is the quickest fix?
  A: White gaps usually come from knit stretch or poor stabilization; switch to cutaway, slow down, and stabilize the fabric-to-backing connection.
  • Switch: Use 2.5oz–3.0oz cutaway (not tearaway) as the hooped base.
  • Slow: Limit speed to 400–600 SPM to reduce vibration and registration drift from the beanie weight.
  • Secure: Use a light mist of temporary spray on the stabilizer and pin outside the design area to prevent shifting.
  • Success check: Outlines should land cleanly on top of fills with no “shadow” offset as the design progresses.
  • If it still fails… Re-check that the stabilizer is drum-tight and that excess stabilizer bulk is trimmed to reduce drag.
• Q: How do I stop fuzzy, buried lettering when embroidering beanies on a Brother PE770 single-needle machine?
  A: Add a water-soluble topper over the knit so stitches don’t sink into the yarn loft.
  • Place: Cut topper slightly larger than the design and lay it flat over the stitch area.
  • Secure: Tape the topper corners or lightly dampen corners to keep it from shifting.
  • Choose: Prefer block fonts or bold script when working on lofty knit cuffs.
  • Success check: After removing topper, letter edges should look crisp and readable instead of “hairy” or swallowed.
  • If it still fails… Confirm the topper was used for the entire stitch-out and consider slowing to the lower end of the recommended speed range.
• Q: What mechanical safety steps should be followed to avoid broken needles when embroidering thick beanies on a Brother PE770 single-needle machine?
  A: Prevent needle deflection and collisions: keep pins/clips out of the needle path, use a fresh needle, and confirm clearance before stitching.
  • Wear: Use eye protection, especially on thick projects where deflection can cause a needle strike.
  • Position: Pin only well outside the embroidery area; never let pins drift into the design field.
  • Check: Confirm the needle is straight (not bent) before starting and after any strike or loud “snap.”
  • Success check: The machine should stitch without grinding sounds, loud snaps, or needle plate contact.
  • If it still fails… Stop immediately, remove any pin/clip near the travel area, replace the needle, and re-check the beanie bulk is clipped away from the arm path.
• Q: When should a Brother PE770 beanie workflow upgrade from floating with pins to magnetic embroidery hoops, and when does a multi-needle free-arm machine make more sense?
  A: Upgrade when time loss and handling risk become the bottleneck: optimize technique first, then magnetic hoops for speed, then a free-arm multi-needle machine for volume.
  • Level 1 (Technique): If hooping/pinning takes under ~3 minutes per beanie and results are clean, keep floating with pins + spray.
  • Level 2 (Tooling): If pinning is slow, painful, or inconsistent, magnetic hoops can clamp stabilizer + beanie + topper faster with less fuss.
  • Level 3 (Production): If large orders make flatbed bulk management the main problem, a multi-needle free-arm machine reduces clipping/rolling and improves workflow.
  • Success check: Setup time becomes predictable and designs stop shifting due to handling shortcuts.
  • If it still fails… Re-audit the basics first (cutaway + topper + drum-tight hoop + clipped bulk + 400–600 SPM) before changing equipment.
• Q: What magnet safety rules should be followed when using magnetic embroidery hoops for beanies?
  A: Treat magnetic hoops as industrial pinch hazards and keep them away from sensitive items and medical devices.
  • Keep clear: Keep fingers out of the pinch zone when the magnets snap together.
  • Separate: Keep magnets away from pacemakers and away from credit cards.
  • Control: Set the hoop down on a stable surface before closing magnets to avoid sudden jumps.
  • Success check: The hoop closes without finger pinches and stays firmly clamped without shifting during stitching.
  • If it still fails… Re-seat the layers (stabilizer, beanie cuff, topper) so nothing is folded or trapped unevenly before snapping the magnets closed.
