Stop Fighting Janome Lettering: Use the Edit Screen to Fit Bigger Text, Fix Spacing, and Control Color Stops

The "Why Won't It Fit?" Guide: Mastering Janome Lettering & Edit Workflow

If you’ve ever stared at your Janome screen thinking, “Why won’t this fit in the hoop I know it should fit in?”—you’re not alone. Lettering is one of those features that looks simple until you try to make it look professional: clean spacing, predictable stops, and a layout that actually lands where you intended.

This masterclass breaks down the on-board lettering workflow on a Janome-style interface (specifically the MC500E/550E family architecture), focusing on the one move that changes everything: doing your lettering in Edit instead of living inside the basic Lettering screen.

1. Calm the Panic: Understanding Machine Logic vs. Human Logic

When your janome embroidery machine greys out hoop options or refuses to enlarge text past a limit, it feels like the machine is blocking you for no reason. In reality, it is performing a rigorous safety calculation to prevent needle strikes.

The machine follows three strict rules:

1. The Box Rule: It checks whether the current design footprint (including invisible jump stitches) fits inside the current hoop boundary.
2. The Center Reference: It calculates fit based on where the design sits in the virtual hoop—if you are 1mm off-center, you might lose the ability to use a smaller hoop.
3. Density Safety: It applies limits to built-in lettering sizing so stitches don’t become so long they snag, or so short they pile up and break needles.

Once you understand these behaviors, the “mystery” problems—greyed-out hoops and scrunched arcs—become predictable physics problems we can solve.

2. The Setup: Prep Like a Pro to Prevent Failure

Before you touch a screen, you must align your physical tools. A perfect digital file will still fail if the physical setup is wrong.

The "Sweet Spot" Settings (Empirical Data)

• Speed (SPM): While your machine might go up to 860 SPM, lettering requires precision. Slow down.
  • Beginner Safe Zone: 400–600 SPM.
  • Why: Slower speeds reduce vibration, making small satin columns crisp and readable.
• Tension: Start with Auto, but perform the "H Check." Sew a capital 'H'. Look at the back. You should see 1/3 bobbin thread in the center bordered by top thread.
  • Sensory Check: If the back feels rough or "loopy," your top tension is too loose. If the fabric puckers, it's too tight.

Hoop Strategy

Sharyn’s workflow starts with a "Staging Area" mindset: pick a larger hoop first (like the RE28b, 200×280mm) to give yourself room to design, then group and shrink the boundary later.

Pre-Flight Checklist (Do NOT Skip)

1. Needle Check: Run your fingernail down the needle tip. If you feel a "catch" or scratch, change the needle instantly. A burred needle ruins lettering definition.
2. Hoop Selection: Confirm your target hoop size (e.g., SQ20b vs RE28b).
3. Font Strategy:
   • Gothic/Block: Best for clarity and durability (uniforms, tags).
   • Script: Elegant, but unforgiving on textured fabrics (towel loops poke through).
   • Serif (Cheltenham): Classic, but watch the tiny "feet" of the letters; they can sink into deep pile.


3. The Lettering Screen: The Hidden Spacing Tool

On the Lettering screen, you have access to basics like Gothic, Script, and Cheltenham. Most users understand typing, but they fail at spacing because the interface is subtle.

The Spacing Secret: To adjust the gap between two specific letters (kerning), you cannot just tap the arrow keys randomly.

1. Move the cursor using the arrow keys.
2. Stop exactly on the "Space" character (the gap) between words or letters.
3. Only then will the Space-Width Adjustment Tool light up/activate.

Sensory Cue: If the icon is greyed out, you are active on a letter, not a space. Tap the arrow key one more time.

4. Ready to Sew: Your Quality Control Dashboard

After confirming text, the Ready to Sew screen is your final safety net. Do not just hit "Start." Scan these data points:

• Hoop Size: (e.g., SQ20b) - Ensure this matches the physical hoop in your hand.
• Dimensions: (e.g., 24x171mm) - Visualization check.
• Speed: Drop this to 600 spm or lower for text.




Warning: Mechanical Safety. The movement of the embroidery arm is strong enough to bruise fingers or break bones. When the machine is calibrating or stitching, keep hands at least 6 inches away from the moving hoop. Listen for the machine logic: a rhythmic "thump-thump" is good; a sharp "clack" or "grinding" noise means Hit Stop Immediately.

5. The "Birdnest" Prevention: Jump Stitch Settings

Nothing ruins a project faster than messy jump stitches or a machine that cuts so often the thread pulls out of the needle eye.

Navigate to the Scissors/Cut settings. You will see Minimum Jump Stitch Length.

• The Risk: If set too low (e.g., 2mm), the machine cuts constantly. This increases the risk of the needle unthreading and leaves "tails" that can poke through to the front.
• The Sweet Spot: Set this to 3mm - 5mm.
  • Why: It allows tiny jumps (like between the dots of an 'i' or 'j') to stitch over, which locks them in securely. You can trim these manually later for a cleaner finish.


Setup Checklist (Physical confirmation)

1. Stabilizer Check:
   • Wovens: Tearaway needs to feel stiff, like cardstock.
   • Knits (Stretchy): using Tearaway is a fatal error. You must use Cutaway stabilizer, or the letters will distort into an oval shape.
2. Bobbin Check: Open the bobbin case. Blow out any lint. A single piece of lint can alter tension and cause looping on top of your letters.
3. Thread Path: Floss the thread through the tension disks. You should feel resistance—like pulling a shoelace tight. No resistance = No tension = Birdnest.

6. The Power Move: Switching to "Edit Mode"

Sharyn advises leaving the basic Lettering screen and working in Edit.

• Why? In Edit mode, you treat text as "Objects."
• The Gain: You can mix fonts, rotate phrases independently, and most importantly, use the grid for alignment.


7. Strategy: The "Staging Area" Workflow

In Edit mode, select a large hoop like the RE28b (200×280mm). This is your "Whiteboard." Create three separate objects:

1. “Small” in Gothic (for detail).
2. “Medium Script” (for style).
3. “Large” in Cheltenham (for impact).

Keeping them separate allows you to drag/drop them into a perfect stack. If you put them all in one text line, you are trapped by the machine's linear spacing.

If you are planning layouts, the re28b hoop offers the real estate needed to visualize the final look before you commit to a smaller production hoop.

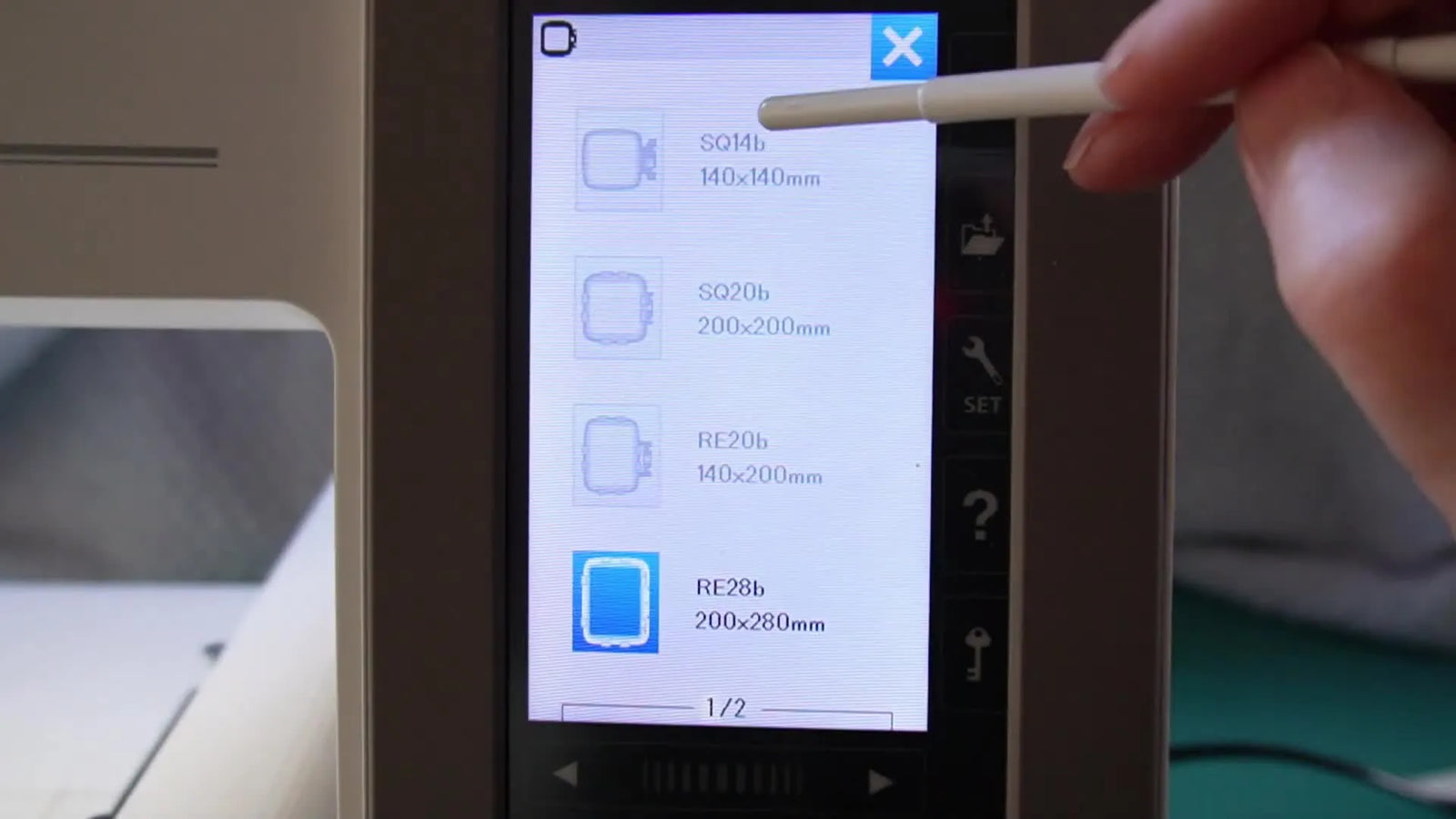

8. The "Greyed Out" Hoop Trick: Group & Center

This is the most common frustration: "My design is tiny, why is the SQ20b hoop greyed out?"

The Physics of the Machine: The machine does not see the design; it sees the coordinate boundaries. If you have a small word located in the top-left corner of the RE28b layout, the machine calculates those coordinates as "Outside the SQ20b zone."

The Fix:

1. Group all elements (Concept: Weld them into one block).
2. Center the entire group to the absolute middle of the grid.
3. Re-check Hoop List: Suddenly, the smaller hoops unlock.

Commercial Context: If you find yourself constantly fighting to center difficult garments (like pockets or bags) to satisfy the machine, the standard hoop is your enemy. This is where Magnetic Hoops shine. They allow you to slide the fabric to match the machine's center, rather than fighting to center the fabric in the ring.

9. Resizing: The Safety Limit (120% Rule)

When you enlarge a design in Edit mode, the machine performs a calculation called "Resizing," not "Digitizing."

• The Limit: You generally have a hard ceiling of ±20% (80% to 120%).
• The Visual Defect: When you scale up to 120%, the machine spaces the existing stitch points further apart. It does not always add new satin columns.
• Sensory Check: Look closely at the screen preview or a test stitch. If the satin stitches look like a picket fence with gaps between the pickets, you have gone too far. The fabric will show through.

For scaling beyond 20%, you must use digitizing software, not the machine screen.

10. Arcing without Crunching

When you use the Arc tool to curve text downward, the letter tops pinch together.

• The Fix: Apply the Arc -> Look for "bunching" at the top -> Use the Widen (Spacing) tool immediately.
• Troubleshooting: If the text looks perfect on screen but distorts on fabric, the issue is likely Hoop Burn or fabric shifting. Terms like hooping for embroidery machine refer to the skill of drum-tight tension. If you struggle with this, standard hoops might be slipping.




11. Color Stops for Production Control

Even if you are sewing in one color (e.g., white text on black fabric), assign different colors to each line of text in the software.

• Why? The machine interprets "New Color" as "STOP."
• The Benefit: This forces a pause, allowing you to snip jump stitches or re-smooth the fabric before the needle moves to the next word.


12. Decision Tree: The "Right Way" to Start

Follow this logic flow to avoid wasted consumables.

1) Is the text for a T-shirt or Stretchy Material?

• YES: Use Cutaway Stabilizer + Ballpoint Needle. Do not guess. Tearaway will fail.
• NO (Towels/Denim): Tearaway is acceptable. Use water-soluble topper for towels.

2) Do you need to combine multiple fonts?

• YES: Use Edit Mode. Create separate objects.
• NO: Standard Lettering mode is sufficient.

3) Is this a bulk order (50+ items)?

• YES: Do not rely on standard plastic hoops. The "Hoop Burn" (shiny ring marks) will ruin delicate fabrics, and the screwing/unscrewing action will cause Repetitive Strain Injury (RSI).
  • Upgrade 1: Magnetic Hoops (Clamp fast, no burn).
  • Upgrade 2: If time is money, consider a Multi-Needle Machine (like SEWTECH). Single-needle machines require manual thread changes for every color. A 15-needle machine does the work while you prep the next garment.

13. The Hidden Production Upgrade: Solving the "Hoop Burn" & Fatigue

If you are doing names on school uniforms or branding for small businesses, your bottleneck is not the stitching speed—it's the hooping time.

• The Problem: Standard hoops require force to lock. They leave marks that must be steamed out.
• The Solution: Many professionals search for janome magnetic embroidery hoops or creating a generic setup with SEWTECH Magnetic Frames.
  • Benefit: They "snap" onto the fabric without friction. Zero hoop burn. 5x faster hooping.
  • Workflow Fit: If you invest in magnetic hoops (widely compatible with Janome 500E/550E series), you eliminate the variable of "did I tighten the screw enough?"

Warning: Magnetic Safety. Magnetic hoops use industrial-grade magnets. They are incredibly strong.
* Pinch Hazard: They can snap together instantly—keep fingers clear of the mating surface.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place directly on top of credit cards or phones.

Final Operation Checklist

Run this mental check before pressing the green button:

• Center Check: Did I group and center the design to unlock the correct hoop?
• Physics Check: Is the stabilizer correct for this fabric type? (Cutaway for stretch!)
• Clearance: Is the embroidery arm path clear of walls/coffee mugs?
• Speed: Is machine speed reduced to ~600 SPM for clean text?
• Safety: Are my hands clear of the needle zone?

Use the Lettering screen to generate text, but live in the Edit screen to control your layout. That is the difference between an "amateur craft" look and professional-grade embroidery.

FAQ

• Q: Why does a Janome MC500E/MC550E grey out the SQ20b hoop option even when the lettering design looks small?
  A: This is common—the Janome MC500E/MC550E hoop list locks based on the design’s coordinate boundary, not just the visible letters, so off-center objects can “fail” the smaller hoop.
  • Group all lettering objects into one block in Edit mode.
  • Center the grouped block to the exact middle of the grid.
  • Re-open the hoop list and re-check availability for SQ20b.
  • Success check: The SQ20b hoop option becomes selectable immediately after grouping + centering.
  • If it still fails: Look for any stray elements/jump-stitch extensions at the edges and center again before trying to shrink.
• Q: How can a Janome MC500E/MC550E adjust kerning between two specific letters using the built-in Lettering screen?
  A: Move the cursor onto the actual space/gap character first—only then will the space-width tool activate on a Janome MC500E/MC550E.
  • Tap the arrow keys to move the cursor between the two letters (onto the gap).
  • Adjust the space-width/spacing control only after the tool lights up.
  • Repeat for each problem pair instead of changing global spacing.
  • Success check: The spacing icon/tool is no longer greyed out when the cursor is on the gap.
  • If it still fails: Tap one more cursor step—being on a letter (not the gap) keeps the spacing tool disabled.
• Q: What Janome MC500E/MC550E speed and tension checks help prevent messy lettering and thread looping?
  A: For clean Janome MC500E/MC550E lettering, slow the machine down and confirm balanced tension with a quick “H test.”
  • Set embroidery speed to a beginner-safe 400–600 SPM (and keep it ≤600 SPM for text).
  • Start tension on Auto, then stitch a capital “H” as a test.
  • Inspect thread balance before stitching the real garment.
  • Success check: The back of the “H” shows about 1/3 bobbin thread centered with top thread on both sides (not loopy, not puckered).
  • If it still fails: Re-check thread path for resistance through the tension area and clean bobbin-area lint before adjusting anything further.
• Q: What Janome MC500E/MC550E Minimum Jump Stitch Length setting helps prevent birdnesting and constant trimming?
  A: Set Janome MC500E/MC550E Minimum Jump Stitch Length to about 3–5 mm to reduce over-cutting and needle unthreading risk.
  • Open the scissors/cut settings and find Minimum Jump Stitch Length.
  • Avoid very low values (e.g., 2 mm) that cause constant cuts and loose tails.
  • Let tiny jumps stitch over, then trim manually for a cleaner finish.
  • Success check: Fewer thread tails and fewer mid-design unthreads, with no thread wad forming under the hoop.
  • If it still fails: Verify proper top-thread tension and confirm the thread is flossed correctly through the tension path (no resistance often leads to nesting).
• Q: What stabilizer choice prevents Janome MC500E/MC550E lettering from warping on T-shirts and other stretchy fabric?
  A: Do not use tearaway on knits—use cutaway stabilizer for Janome MC500E/MC550E lettering on stretchy fabric to prevent oval/distorted text.
  • Identify the fabric: knit/stretch = cutaway; woven/non-stretch = tearaway can be acceptable.
  • Hoop with the stabilizer matched to the fabric before adjusting lettering size/arc.
  • Add topper for textured fabrics (like towels) when needed for clarity.
  • Success check: Letters stay square/straight after stitching instead of pulling into an oval or rippling.
  • If it still fails: Re-check hooping stability (fabric shift) and reduce speed toward the 400–600 SPM range for small satin lettering.
• Q: Why does Janome MC500E/MC550E resizing look worse after enlarging lettering in Edit mode, and what is the safe limit?
  A: Janome MC500E/MC550E screen resizing is not true digitizing—stay within roughly 80%–120% to avoid gaps and “picket fence” satin.
  • Keep scaling changes within ±20% whenever possible.
  • Preview closely after resizing, especially satin columns in small fonts.
  • Sew a quick test sample if readability matters (names, tags, uniforms).
  • Success check: Satin stitches still look filled (no visible gaps where fabric shows through).
  • If it still fails: Do not push beyond 120% on-screen—use digitizing software for larger size changes.
• Q: What safety steps should operators follow around a Janome MC500E/MC550E embroidery arm and around industrial magnetic hoops?
  A: Treat both as pinch/crush hazards—keep hands at least 6 inches from the moving Janome MC500E/MC550E hoop, and keep fingers clear when magnetic hoops snap together.
  • Keep hands and tools away during calibration and stitching; never “guide” the hoop.
  • Stop immediately if a sharp clack/grinding sound appears (do not ignore it).
  • Handle magnetic hoops by the frame edges; separate and mate them slowly to avoid finger pinch.
  • Success check: Normal stitching sounds are rhythmic and steady (no sudden clacks), and hoop handling never pinches skin.
  • If it still fails: Pause the job, re-check clearance around the embroidery arm path, and keep magnets away from pacemakers and sensitive electronics per safety guidance.
