Stop Fighting Cap Sides & Backs: A Brother Embroidery Machine Workflow Using the Hoop Tech Clamping System (Without Needle Strikes)

Cap side and back embroidery is one of those distinct disciplines in the trade that looks deceptively easy—right up until you hear that sickening tick of a needle kissing metal, followed by the sound of a shattering titanium point.

If you’re customizing hats for customers, you aren't just sewing; you are managing a three-dimensional physics problem. You are managing structure, curvature, and the relentless pressure of a metal clamp against a precision machine. The video guide you provided outlines a solid, production-minded workflow using a Brother multi-needle machine and the Hoop Tech Clamping System. It is a "Points" tracing masterclass.

However, as someone who has trained hundreds of operators, I know that watching a video and feeling the machine are two different things. This guide will decode the sensory cues, the hidden safety margins, and the commercial logic that turns a frustration-filled afternoon into a profitable production run.

The Calm-Down Primer: What the Hoop Tech Clamping System Actually Solves on a Brother Embroidery Machine

To understand why we use this specific clamp, you must understand the enemy: The Bill and the Curve.

Standard flat hoops rely on friction between an inner and outer ring. A finished cap, however, fights this. The bill pushes against the machine head, and the sweatband creates a thick, uneven ridge. The Hoop Tech Clamping System in the video solves this by ignoring friction and using mechanical pressure. It provides a rigid, repeatable way to isolate awkward areas (sides and backs) so the fabric stays flat where the needle is working, regardless of what the rest of the hat is doing.

In the tutorial, the workflow involves swapping specific "window" clamps onto a master chassis:

• Right Side Window: For the side panel (Left side uses the same window, flipped 180°).
• 5 ½ Inch Round Window: For the back arch / keyhole area.

The "Why" vs. The "How": If you have been wrestling cap sides into a standard 4x4 hoop, you know the frustration of "Hoop Burn"—those shiny rings left on dark fabric. Clamps reduce this, but they introduce a new risk: zero flexibility. A standard plastic hoop might flex if a needle hits it; a metal clamp will not. This is why precision is non-negotiable here.

Commercial Reality Check: When operators search for a cap hoop for brother embroidery machine, they are usually looking for stability. While clamping systems are excellent for challenging placements, many high-volume shops are now transitioning to Magnetic Hoops for standard sides and backs, as they offer the speed of a clamp with the gentleness of a flat hoop—a crucial upgrade to consider if you start noticing wrist fatigue from manual clamping.

The “Hidden” Prep Pros Never Skip: Backing, Cap Anatomy, and a 10-Second Clamp Inspection

Before you even touch a hat, you must prep the environment. A machine stitch is only as good as the stability of the foundation.

The Stabilizer Strategy (Empirical Evidence)

The video implies stabilizer usage, but let's make it a rule. Cap sides and backs—especially "Unstructured" or "Dad Hat" styles—are unstable.

• Structured Caps (Stiff Mesh/Fabric): Use Tearaway backing (usually 2.5oz - 3oz). You need just enough to create a smooth surface for the thread to lay on.
• Unstructured/Floppy Caps: You must use Cutaway (2.0oz - 2.5oz) or a heavy Tearaway. If you don't, the fabric will push and pull with every needle penetration, leading to distorted text.

The "Hidden Consumables" List

Don't start without these within arm's reach:

1. 3oz Tearaway Cap Backing: Pre-cut into strips.
2. 60/8 or 70/10 Sharp Needles: Caps are dense; ballpoints often deflect. Use sharps for crisp text.
3. Adhesive Spray (e.g., KK100): To tack the backing to the cap before clamping.

Prep Checklist (The "Pre-Flight" Safety Check)

• Window Inspection: Run your fingernail along the inside edge of the metal window. If you feel a "catch" or burr, file it smooth. A burr here will shred your thread instantly.
• Backing Sizing: Cut backing 1 inch wider than the window on all sides.
• Cap Prep: Unbuckle the strap. Remove cardboard inserts. Lint roll the stitch area.
• Visual Alignment: Locate the center seam or the natural crease where the panels meet. This is your "North Star."

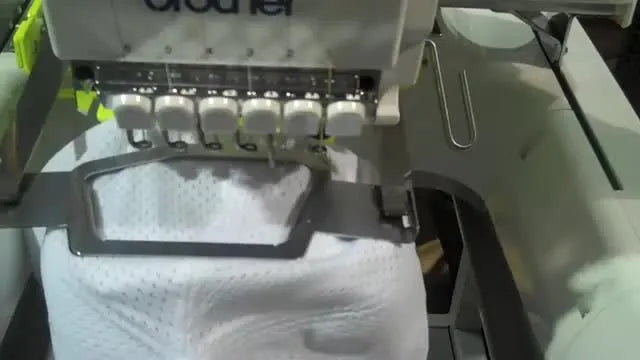

Side Panel Success: Loading the Cap into the Right Side Window Clamp Without Wrinkles or “Hoop Burn”

Loading a side panel is tactile. It requires a specific hand motion to ensure the fabric is taut (like a drum skin) without being stretched (like a rubber band).

The "Third Hand" Technique

1. Mount the Window: Secure the Right Side Window to the chassis. Listen for the click or feel the solid stop.
2. Insert Backing: Place your pre-cut backing.
3. Slide and Glide: Slide the cap side under the window.
4. The Tension Pull: This is the critical moment shown in the video. Use your fingers to pull the material flat.
   • Sensory Check: Tap the fabric inside the window. It should not sound hollow; it should feel firm. If you can pinch fabric up in the center, it is too loose.
5. Lock: Flip the spring-loaded handle.


The Physics of "Flagging"

Why does tight matter? If the fabric is loose, it moves up and down with the needle (called "Flagging"). This causes loop loops, birdnests, and skipped stitches. Conversely, if you stretch it too much, the cap will shrink back to its original shape after un-clamping, puckering your beautiful design.

Ergonomics Note: If you are doing a run of 50+ caps, the repeated squeezing of spring clamps can lead to repetitive strain injury (RSI). This is the "Trigger Point" for business owners to look at Magnetic Hoops. They use magnets to hold the fabric, requiring zero grip strength to lock, which can double your production speed simply by reducing operator fatigue.

The Needle-Strike Insurance Policy: Using Brother “Points” to Trace Corners on a Metal Clamp Window

This is the most critical section of this guide. In the video, the instructor does not use the standard "Trace" button. Why? Standard tracing is a continuous movement—if the alignment is off, the machine bar hits the clamp before you can hit "Stop."

Instead, he uses the "Points" check. This is your insurance policy.

The "Points" Protocol (Step-by-Step)

1. Load the design.
2. Select the Points icon (usually a square with dots at the corners) on your Brother screen.
3. The machine will move to position 1 (e.g., Bottom Left).
4. The Physical Verification: Manually pull the presser foot bar down.
   • Visual Check: Look from the side—not just the front. Ensure there is at least 2-3mm of air between the needle/presser foot and the metal clamp wall.
5. Repeat for all extremes (Top Left, Top Right, Bottom Right, Center).




Warning: Mechanical Danger
Never skip the manual presser-foot check on metal clamps. A needle striking a metal clamp at 800 stitches per minute can shatter the needle, potentially sending shrapnel toward your eyes, and can knock the machine's timing out, requiring an expensive service call.
Always wear safety glasses when testing new clamp setups.

The "Margin of Error" Rule

When digitizing or sizing for side panels:

• The Trap: Trying to make the logo as big as possible.
• The Fix: Always leave a 10mm safety margin from the clamp edge. Caps shift. Giving yourself a buffer saves broken needles.

For those researching a brother cap hoop upgrade, understand that safety comes from procedure, not just the product. Whether you use a clamp or a frame, this corner-check ritual acts as your safety net.

Running the Side Design: What “Fast Stitching” Really Means on a Brother Multi-Needle

Once clearance is confirmed, you are ready to sew.

Speed: The "Sweet Spot" Data

The video shows the machine running efficiently, but doesn't specify RPM.

• Rookie Mistake: Pinning the throttle to 1000 RPM immediately.
• Expert Range: For cap sides (which are curved and bounce), set your cap speed between 600 and 700 SPM.
  • Why? High speeds on clamps create vibration. Vibration leads to "shaky" satin stitches or thread breaks. Slower is usually faster because you avoid downtime.

Thread Tension Audit

Cap sides often need slightly looser upper tension than flat garments because the backing is stiff.

• Sensory Check: Turn the finished cap over. You should see 1/3 bobbin thread (white) in the center of your satin columns. If you see only top thread, your tension is too tight—dial it down.


The 5.5" Round Window Method: Clean Back-of-Cap Embroidery Without Stretching or Puckering

The back of a cap (the "Keyhole") is notoriously difficult because of the strap, the gap, and the variable material (mesh vs. cotton).

The Setup Logic

1. Swap to the 5.5" Round Window.
2. Open the Strap: Unsnap or unbuckle it entirely. Tuck the excess into the hat or secure it so it doesn't get sewn over.
3. Natural Lie: Place the cap in the window in a "Natural Position."
   • Definition: The cap should look like it does when sitting on a head. Do not pull the keyhole wide open (distortion) and do not squish it closed (puckering).






Stabilizer for Mesh (Crucial Upgrade)

If you are sewing on a mesh back (Trucker Hat), you cannot skip backing. The mesh has holes; without backing, the needle has nothing to lock onto, and your stitches will look "chewed up."

• Pros Use: A piece of water-soluble topping on top of the mesh prevents the thread from sinking in, while tearaway backing underneath provides stability.

When evaluating a cap hoop for embroidery machine, look for systems that allow you to "float" backing easily underneath, as the Hoop Tech system does.

Straight, Centered, and Repeatable: Using Clamp Tabs to Align Hat Back Embroidery

Eyeballing alignment is the enemy of scale. The instructor demonstrates using the clamp's built-in metal tabs as reference points.

The Alignment Algorithm

1. Find the Center: Use the center seam of the cap or the exact center of the strap opening.
2. Match the Tabs: Align the left and right edges of the keyhole opening equidistant from the clamp's side tabs.
3. Check Vertical: Ensure the sweatband line is parallel to the bottom of the window.

Warning: Magnetic Field Safety
As you explore advanced tools, you may encounter Magnetic Hoops. While they are fantastic for productivity, they use powerful Neodymium magnets.
Keep them away from pacemakers, insulin pumps, and magnetic storage media.
Watch your fingers: They snap together with enough force to cause blood blisters.

If you are running a business, consistency is your brand. Tools like SEWTECH Magnetic Hoops are often the "Level 2" upgrade for shops that need to guarantee that the logo on Hat #1 looks exactly like Hat #100, without spending 5 minutes aligning each one.

Lettering That Follows the Cap: Arcing Text for the Back Panel (and When to Keep It Straight)

The video touches on arcing text. This is a subtle art.

The Problem: Optical Illusion

Because the back of a cap is curved (spherical), a straight line of text will often appear to "frown" (curve downward) when worn.

The Solution: Digitizing Compensation

• The Fix: Add a slight Reverse Bridge or Arc (usually 5-10%) to your lettering. This counteracts the curvature of the cap, making the text look straight to the human eye.
• Pull Comp: Increase pull compensation to at least 0.4mm. Cap backs absorb stitches; you need thicker columns to maintain legibility.

A common search intent for brother hat hoop users involves "why is my text crooked?"—90% of the time, the hoop is fine, but the digitizing lacked this geometry compensation.

Troubleshooting the Two Classic Cap Disasters: Needle Strikes and Back-Panel Distortion

When things go wrong, use this diagnostic table first. Do not touch software until you have verified the physics.

Stabilizer Decision Tree for Cap Sides and Cap Backs (So You Don’t Guess Under Pressure)

The comments in the original video debated backing. Let's settle it with a decision matrix based on material density.

START: What material is the cap panel?

1. Stiff Canvas / Wool (Structured Front/Side)?
   • Action: Use 2.5oz Tearaway.
   • Why: The cap supports itself; backing is just for smooth needle penetration.
2. Soft Cotton / Unstructured "Dad Hat"?
   • Action: Use 3.0oz Cutaway OR 2 layers of Tearaway.
   • Why: The fabric is unstable. You need the backing to carry the load of the stitches.
3. Plastic / Nylon Mesh (Trucker Back)?
   • Action: 2.5oz Tearaway (under) + Water Soluble Topping (over).
   • Why: Topping keeps stitches high; Backing prevents distortion. Tearaway is easy to remove from the visible inside.

The Upgrade Path That Actually Saves Money: From One-Off Caps to Real Production

The workflow shown in the video is perfect for custom, low-volume orders. But if you find yourself doing this for 4 hours a day, your body and your bottom line will suffer.

Here is the logical progression for a growing embroidery business:

1. Level 1 (Technique): Master the "Points" tracing and stabilizer matching described above.
2. Level 2 (Tooling): If you are fighting hoop burn or wrist pain, upgrade to a embroidery hooping system that uses magnets (like SEWTECH Magnetic Hoops). They self-adjust to different fabric thicknesses and eliminate the "clamp squeeze."
3. Level 3 (Capacity): If you are limited by color changes (e.g., stopping to swap threads for every hat), it is time to look at dedicated multi-needle machines (6, 10, or 15 needles). The ability to queue up colors saves minutes per hat—which adds up to hours per week.

When you upgrade, you look for a brother embroidery machine or equivalent high-production unit that supports these advanced clamping systems natively.

Operation Checklist (The Final 30 Seconds)

Do not hit the green button until you pass this check:

• Window Security: Drive bar screws are tight? Window locked in chassis?
• Obstruction Check: Hat strap is secured away from the needle path?
• Backing Check: Is backing covering the entire design area?
• Points Check: Visually confirmed needle clearance at all 4 corners?
• Speed Limit: Machine speed set to 600-700 SPM?

Cap embroidery is about respect—respecting the curve, the clearance, and the limitations of the material. Follow this protocol, and you will silence the fear of the "needle strike" and replace it with the rhythmic hum of profitable production.

FAQ

• Q: What stabilizer should be used for structured cap side embroidery versus unstructured “dad hat” side embroidery on a Brother multi-needle embroidery machine with a metal window clamp?
  A: Match stabilizer to cap stiffness: structured caps usually run best on tearaway, while unstructured caps usually need cutaway (or heavier support) to prevent distortion.
  • Use 2.5–3.0 oz tearaway for structured/stiff panels.
  • Use 2.0–2.5 oz cutaway (or heavy tearaway) for floppy/unstructured panels.
  • Add adhesive spray to tack backing to the cap before clamping.
  • Success check: lettering stays square after unclamping (no wavy edges or “pulled” shapes).
  • If it still fails, re-clamp to a firmer “drum skin” feel and reduce design size or density.
• Q: How do you inspect a metal window clamp for burrs before cap embroidery on a Brother embroidery machine to prevent sudden thread shredding?
  A: Always do a 10-second burr check on the inside edge of the metal window before sewing—small catches can shred thread immediately.
  • Run a fingernail along the inside edge of the clamp window and feel for a “catch.”
  • File or smooth any burr you feel before loading a cap.
  • Cut backing at least 1 inch wider than the window on all sides so fabric is supported.
  • Success check: thread runs without fraying, and there is no instant shredding at the start of stitching.
  • If it still fails, check thread path for snags and slow the machine while testing.
• Q: How tight should cap fabric feel inside a right-side window clamp to prevent flagging, loops, and birdnesting during Brother multi-needle cap side embroidery?
  A: Clamp the cap so the fabric is taut like a drum skin—firm, not stretched—because loose fabric “flags” and causes loops/birdnests.
  • Pull material flat during loading, then lock the spring handle only after wrinkles are removed.
  • Avoid over-stretching the panel; let the cap sit in a natural shape while tightening.
  • Add adhesive spray to keep backing from sliding while clamping.
  • Success check: tapping the fabric inside the window feels firm and you cannot pinch fabric up in the center.
  • If it still fails, re-clamp tighter and consider switching unstructured caps to cutaway stabilizer.
• Q: How can Brother “Points” checking prevent a needle strike on a metal cap clamp window when embroidering cap sides and backs?
  A: Use Brother “Points” (not continuous Trace) and manually verify clearance at each extreme point before running—this is the safest way to avoid metal strikes.
  • Select the Points icon and step through bottom-left, top-left, top-right, bottom-right, and center.
  • Manually pull the presser foot bar down and check from the side (not only the front).
  • Confirm at least 2–3 mm of air between needle/presser foot and the clamp wall at every point.
  • Success check: the machine can move to every point with visible clearance and no contact sound or near-miss.
  • If it still fails, resize the design smaller and keep a 10 mm safety margin from the clamp edge.
• Q: What is a safe speed (SPM) for cap side embroidery on a Brother multi-needle machine using a rigid metal clamp to reduce vibration and thread breaks?
  A: A safe production range for cap sides on a rigid clamp is typically 600–700 stitches per minute to reduce vibration-related thread breaks and shaky satin.
  • Set cap speed to 600–700 SPM instead of immediately running 1000 SPM.
  • Watch for vibration effects on satin columns and stop early if stitches look “shaky.”
  • Recheck Points clearance after any re-hooping or design reposition.
  • Success check: satin stitches look smooth (not wavy) and the run completes without frequent thread breaks.
  • If it still fails, reduce speed further during testing and re-check clamp tightness and backing coverage.
• Q: How do you diagnose and fix “white bobbin thread showing on top” during cap embroidery on a Brother multi-needle embroidery machine?
  A: White bobbin thread on top usually means upper tension is too tight—loosen upper tension slightly and confirm the thread is feeding cleanly.
  • Loosen the upper tension (small adjustments) and test again.
  • Inspect for thread catching on the spool pin or along the thread path.
  • Keep cap backing firm and fully covering the design area to stabilize stitch formation.
  • Success check: on the cap underside, satin columns show about 1/3 bobbin thread centered in the column.
  • If it still fails, stop and check for thread path snags or rethread that needle position before changing other settings.
• Q: What magnetic hoop safety rules should be followed when using high-strength neodymium magnetic hoops for embroidery production?
  A: Treat magnetic hoops as a pinch-and-medical-device hazard: keep them away from implants and protect fingers during handling.
  • Keep magnetic hoops away from pacemakers, insulin pumps, and magnetic storage media.
  • Separate and connect magnets carefully to avoid finger pinches and blood blisters.
  • Store hoops so they cannot snap together unexpectedly on a metal surface.
  • Success check: hoops can be opened/closed without finger injuries and without unintended snapping during setup.
  • If it still fails, switch to slower, two-hand handling and improve storage spacing to control magnet contact.
• Q: When cap embroidery causes hoop burn, wrist fatigue from clamping, or slow alignment, what is the upgrade path from technique improvements to magnetic hoops to a multi-needle production machine?
  A: Use a step-up approach: fix process first, then upgrade tooling for speed/comfort, then upgrade machine capacity when color changes or throughput becomes the bottleneck.
  • Level 1 (Technique): standardize Points checking, stabilizer choice, and 10 mm edge safety margin to stop needle strikes and distortion.
  • Level 2 (Tooling): move to magnetic hoops when clamp squeezing causes wrist fatigue or when hoop burn/handling time becomes a daily problem.
  • Level 3 (Capacity): move to a dedicated multi-needle setup when frequent color changes and stops limit output.
  • Success check: hats load faster with less re-hooping, and finished placement looks consistent from Hat #1 to Hat #100.
  • If it still fails, document the exact failure mode (needle strike vs. distortion vs. tension) and standardize one change at a time.
