Stop Faking Tapered Satin Vines: The Hatch 3 “Break Apart” Move That Gives You a Clean Needle-Point End

If you have ever stared at a satin vine tip in Hatch 3 and thought, “Why can’t I just make this end sharp without building a second object?”—you are not alone. This is one of the most common frustration points for digitizers moving from basic autodigitizing to manual control. One viewer put it perfectly: they were “going crazy trying to figure this out,” because the software interface looks like it should allow straightforward tapering, yet it stubbornly refuses.

Fabiola Martinez’s methodology offers a deceptively simple solution that fundamentally changes how you digitize vines, tendrils, Celtic knots, and any satin line requiring a clean taper. The secret lies in a specific workflow: drawing a standard Open Shape satin line, and then using the Break Apart command to convert it into a Stitch Block–style object. This unlocks the geometry, allowing the end nodes to collapse into a true, needle-sharp point.

The Blunt-End Problem in Hatch 3 Open Shape Satin (and Why It Makes You Build Two Objects)

To understand the solution, we must first diagnose the mechanical limitation of the default tool. In the original pumpkin tendril example used in many tutorials, the “perfect” tapered tip wasn’t actually a single cohesive object. In the Sequence Bar, the vine is typically split into two distinct entities:

• An Open Shape satin line (a stroke with a fixed width property) for the main body.
• A separate Closed Shape (a small triangle or satin fill piece) manually placed to "fake" the pointed end.

While this older "patchwork" method can stitch out beautifully if aligned perfectly, it introduces significant risks in a production environment. It requires you to precisely align start/end coordinates so the seam doesn’t show. More importantly, if the fabric shifts even 1mm during the stitching process—a common occurrence with knits or performance wear—a visible gap will appear between the vine and its tip. You end up creating two objects that you must babysit as if they were one.

Pro tip from the comment section (generalized): If you have used high-end industrial software like Wilcom EmbroideryStudio, you will recognize this workflow. This isn’t just a Hatch-only concept; it is a fundamental principle of vector-based digitizing. The underlying idea is converting a simple "stroke" (line) into a "shape" (form), giving you control over the perimeter rather than just the center path.

The “Don’t Touch My Original” Habit: Locking Objects Before You Experiment in Hatch 3

Before you attempt to redraw or reshape any part of a design, you must secure your baseline. Fabiola protects the existing pumpkin design using a protocol that saves countless hours of accidental deletion:

1. Select the original objects you intend to keep safe.
2. Right-click to open the context menu.
3. Choose Lock (or press the keyboard shortcut K).

This is a small move, but it is a professional one. When you are zooming in to 600% to manipulate microscopic nodes, accidental nudges to the background art are inevitable. Locking the file ensures your coordinate system remains absolute.

Prep Checklist (do this before you try the trick)

• Confirm File Integrity: Ensure you are working on a duplicate file (File > Save As...) to preserve the original master.
• Secure the Canvas: Lock all background images and original design elements to prevent accidental "drags."
• Select View Mode: Toggle TrueView (hotkey T) off to see the raw stitches and nodes; you can toggle it back on later to inspect texture.
• Identify the Target: Decide exactly which end of the line must taper (start or end) to avoid reshaping the wrong vector points.

Draw the Base Object: Hatch 3 Digitize Open Shape + Satin Line (Keep It Simple on Purpose)

The process begins with the standard digitizing tools. Fabiola redraws the tendril as a fresh satin line, focusing on flow rather than the tip details initially:

1. Select the Digitize Open Shape tool from the toolbar.
2. Verify the stitch type is set to Satin in the Object Properties.
3. Digitize the curved line. Remember the sensory rule of Hatch: Left-click for straight points (hard corners), Right-click for curve points (round flows).

She explicitly does not “fuss” with spacing and stitch width during this phase. The goal here is to establish the spine of the object. Note on Stitch Density: For specific satin vines, a standard spacing of 0.40mm is the industry "sweet spot." Avoid going lower than 0.35mm for standard 40wt thread, or the resulting satin column will become too stiff.

Setup Checklist (quick sanity checks before you reshape)

• Tool Verification: Confirm you used Digitize Open Shape (creates a center-run path) and not a Closed Shape.
• Stitch Validation: Ensure the object properties show Satin. If it defaults to Tatami or Run, switch it now.
• Node Smoothness: Check that your curve nodes (right-clicks) create a flowing line without sharp "kinks."
• Direction Check: Locate the green diamond (Start) and red cross (End) to orient your reshaping plan.

Why Reshape Won’t Give You a True Taper on a Standard Satin Line (and the Exact Visual Cue)

Here is the limitation that drives beginners to frustration. Fabiola demonstrates what happens when you try to force a taper on a standard line:

• Activate the Reshape tool (hotkey H).
• You will see blue circular nodes (curve info) along the center, and the specific start/end markers.
• The Failure Point: Dragging a width node sideways only changes the satin column width locally—but the end cap remains a blunt, flat edge perpendicular to the path.

This happens because you are editing a path with a constant width attribute. You are not editing the outline of the shape. Without access to the corner geometry, a needle-point finish is mathematically impossible in this mode.

Warning: Mechanical Safety Protocol
When you are testing these designs on your machine, keep your hands clear of the needle bar area. Satin tapers involve high-speed, short-stroke stitching. If you are reshaping files and running test swatches simultaneously, power down or engage the E-Stop before changing needles, clearing thread nests, or reaching near the moving pantograph.

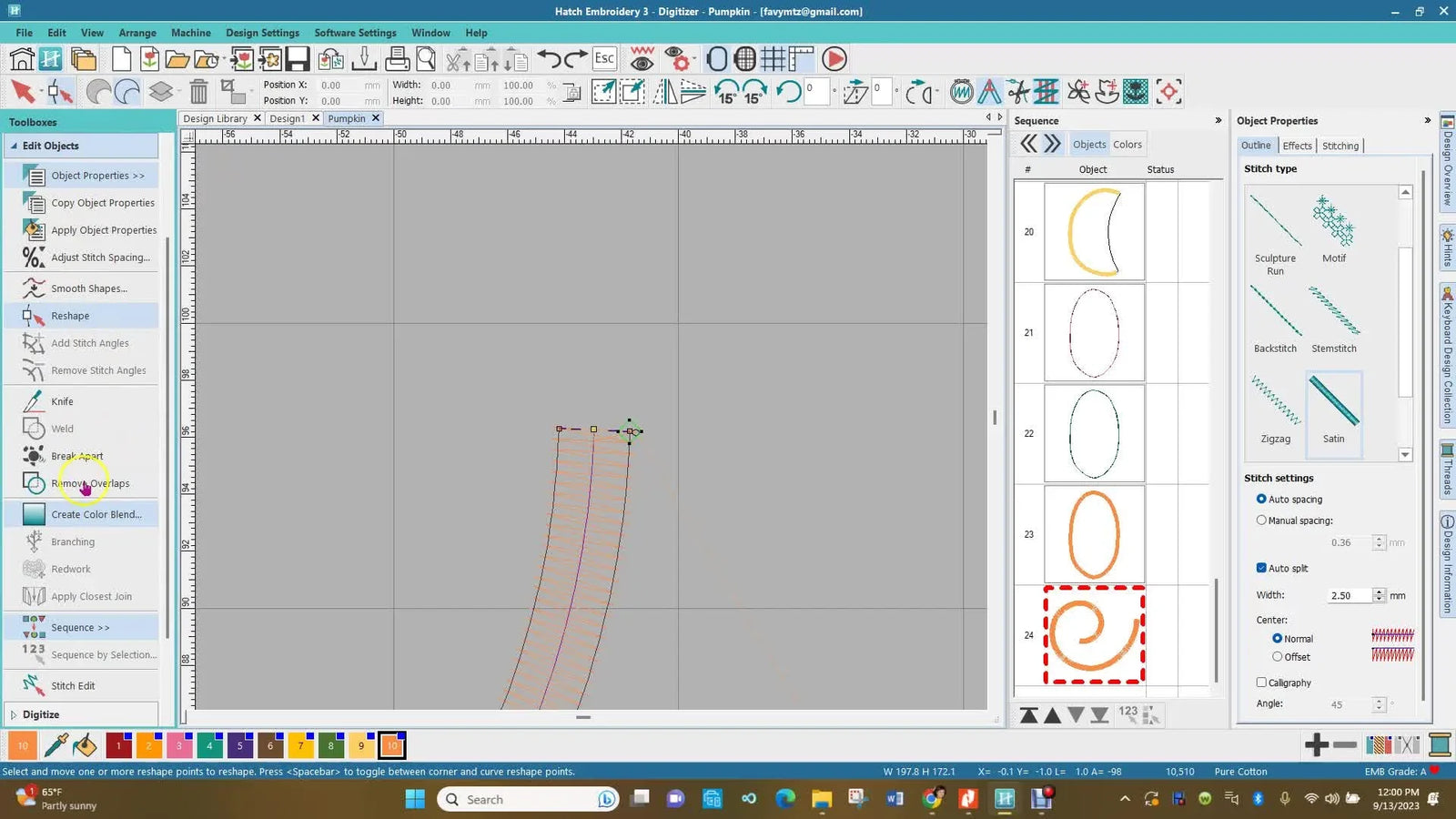

The One Click That Changes Everything: Hatch 3 Break Apart Turns the Line into a Stitch Block–Style Object

This is the catalytic moment in the workflow that separates novies from power users:

1. Select the standard satin line you just drew.
2. Navigate to the Edit Objects toolbox on the left panel.
3. Click Break Apart.

Sensory Change in Interface: Immediately, the control structure transforms. The simple, central curve nodes disappear. In their place, you will see pairs of nodes defining the outer edges of the satin column and stitch angle lines cutting across it. Fabiola describes this as effectively turning the object into a Stitch Block tool behavior—giving you independent control over the left rail, right rail, and angles.

If you are dealing with high-volume hooping for embroidery machine production work, this kind of digitizing efficiency is critical. Cleaner objects mean the machine doesn't have to trim and tie-off between the vine and the tip, resulting in faster run times and fewer thread breaks.

Make the Needle-Point Taper: Pull the Corner Node In Until Both Sides Meet

Once the object behaves like a stitch block (a complex shape), creating the taper is a matter of simple geometry:

1. With Reshape active, zoom in to the open end you want to sharpen.
2. Locate the Corner Node (usually a square node) on one side of the flat end.
3. The Action: Drag it inward and longitudinally until it snaps to or meets the opposite side node.
4. Visual Confirmation: When the gap collapses to zero, the flat edge vanishes, and the software recalculates the stitches to form a sharp triangle.

This is the manipulation that was previously locked out. By manually forcing the left and right rails to intersect, you dictate a "zero width" point.

Expected outcome checkpoint

• Visual: The end changes from a blunt rectangle to a clean, sharp point.
• Structure: You did not need to generate a second object; the Sequence Bar still shows one item.
• Flexibility: The taper remains editable. You can revisit it later to blunt it slightly (often safer for fabric) or sharpen it further.

Stitch Angles Are the Secret Sauce: Fix the “Weird/Messy” Look After Heavy Reshaping

Fabiola moves to the step that most beginners skip, leading to "ugly" embroidery. When you drag nodes heavily, the software's automatic stitch angles often get confused.

She demonstrates removing the old stitch angles, which results in a chaotic, messy fill. Then, she uses the Add Stitch Angles tool to manually draw lines across the column.

The Physics of the Stitch: Satin stitches must run perpendicular to the column walls to reflect light correctly and cover the fabric. If the angles are "fighting" the curve (running parallel to the flow), you will get gaps and the thread will look dull. By defining the angles, you force the thread to wrap around the vine smoothly.

What to look for (Sensory + Visual Feedback)

• Visual Flow (TrueView): The satin should look like liquid flowing around the curve. If you see "steps" or jagged edges, the angles are too far apart.
• Auditory Check: When stitching the tip, listen to your machine. A rhythmic, smooth hum is good. If you hear a hard, thumping sound ("thud-thud-thud") at the tip, the stitches are too dense (piling up on top of each other).
• Tactile Check: The finished embroidery should feel flexible. If the tip feels like a hard pebble, you may need to increase the stitch spacing slightly at the taper.

If you are pairing this clean digitizing with a magnetic hooping station, you will notice an immediate benefit in consistency. Because magnetic stations hold the grain line straight, the precise stitch angles you set in software translate perfectly to the fabric, reducing the twisting that often happens with traditional screw hoops.

The “Why” Behind Break Apart: What Actually Changed (So You Don’t Break Your Design Later)

Let’s translate the software logic into plain English so you can apply this to other designs.

A standard Open Shape satin line is calculated as: Center Path + Width Value. Great for speed, bad for custom shapes.

When you use Break Apart, Hatch converts that object into: Left Rail + Right Rail + Stitch Angles.

This conversion grants you total freedom ("unlocking" the object), but also removes the safety rails.

Watch out (Common Pitfall): After Break Apart, you have gained power but also responsibility. If you accidentally delete a stitch angle line, the software may default to a generic fill pattern that looks terrible. Always ensure your "rail" nodes are smooth.

Troubleshooting the Two Most Common Failures (Straight from the Demo)

When things go wrong, use this quick diagnostic table to find the fix.

Decision Tree: When a Digitizing Fix Is Enough—and When Your Hooping/Production Setup Is the Real Bottleneck

A clean tapered file is only 50% of the equation. If your screen looks perfect but the sew-out is poor, follow this logic path to identify the bottleneck.

Start here: Does the taper look clean in TrueView (software)?

• NO:
  • Action: Fix the file. Rebuild stitch angles, reduce node count, and ensure the rails intersect.
• YES (but the stitch-out is ugly):
  • Scenario A: The fabric is puckering/rippling.
    • Diagnosis: The fabric is shifting under tension.
    • Solution Level 1 (Consumable): ensure you are using Cutaway stabilizer for unstable fabrics and temporary spray adhesive.
    • Solution Level 2 (Tooling): For single-needle machines, hoop burn and shifting are common. Consider upgrading to a magnetic embroidery hoop. These clamp the fabric without forcing it into a recess, eliminating "hoop burn" and maintaining even tension.
  • Scenario B: The tip is buried or crooked.
    • Diagnosis: Visual alignment error during hooping.
    • Solution: If you are doing repeats, a dedicated hooping station for embroidery ensures every shirt is hooped at the exact same angle and tension, matching your digital file's precision.

Production Notes: Why This Trick Pays Off When You Stitch 1 vs 100 Pieces

In "Hobby Mode," using two objects (line + triangle) for a vine tip is acceptable. In "Production Mode," two objects are a liability.

When you scale up to 50 or 100 polos:

1. Fewer Trims: One object means the machine doesn't stop, trim, move 1mm, and start again. This saves seconds per shirt—minutes per run.
2. Centralized Edits: If the client wants the vine thicker, you adjust one object. You don't have to resize a line and then manually move a tiny triangle to match.
3. Registration Safety: If the machine bumps or the shirt stretches, a single object stays cohesive. Two objects might drift apart, leaving a gap.

This is exactly why experienced digitizers rely on "Break Apart." It removes repetitive cleanup. Furthermore, if your bottleneck moves from digitizing to physical setup, pairing clean files with magnetic embroidery hoops drastically reduces operator fatigue and re-hooping time.

Warning: Magnet Safety Protocol
Magnetic frames are powerful industrial tools. They can pinch skin severely if handled carelessly. Safety First: Keep magnetic hoops away from sophisticated electronics and pacemakers/implanted medical devices. Always slide the magnets apart rather than prying them, and follow the manufacturer's specific handling guidance.

Operation Checklist (the repeatable workflow you’ll actually use)

• Lock original artwork to prevent accidental shifts.
• Digitize the vine using Digitize Open Shape -> Satin.
• Break Apart the object (Edit Objects toolbox).
• Reshape the end: Drag the corner node inward until it meets the opposing side (0mm width).
• Angles: Use Add Stitch Angles to guide the thread flow smoothly around curves.
• Simulation: Run the Player (Shift+R) to watch the sew order and ensure no unexpected jumps occur.
• Test Stitch: Run a sample on scrap fabric with your intended stabilizer and hoop.

If you have been building tapered ends using the old "patchwork" method, this Break Apart workflow is the upgrade your skills have been waiting for. It turns a frustrating geometry problem into a fluid, creative process.

FAQ

• Q: In Wilcom Hatch 3, why does a Digitize Open Shape Satin line stay blunt at the end when using Reshape (hotkey H)?
  A: A Wilcom Hatch 3 Open Shape Satin is a center path with a width value, so Reshape cannot create a true needle-point end cap.
  • Activate Reshape (H) and observe that only the width changes locally while the end stays flat.
  • Convert the object using Edit Objects > Break Apart, then reshape the rail corners for a true taper.
  • Success check: the end changes from a flat “cut-off” edge to a sharp triangular point without adding a second object in the Sequence Bar.
  • If it still fails: confirm the object is Satin (not Run/Tatami) and that Break Apart was applied to the correct vine segment.
• Q: In Wilcom Hatch 3, how does Edit Objects > Break Apart help create a sharp satin vine tip without building a second triangle object?
  A: Use Break Apart to turn the satin line into rail-and-angle control so the end nodes can collapse to zero width.
  • Select the satin line, then click Edit Objects > Break Apart.
  • Zoom in, use Reshape (H), and drag the corner node inward until it meets the opposite side node.
  • Success check: the Sequence Bar still shows one object, and the tip visually becomes a clean point instead of a blunt rectangle.
  • If it still fails: verify the interface changes to show outer-edge nodes and stitch angle lines (not just center-path nodes).
• Q: In Wilcom Hatch 3, how can a digitizer protect the original artwork before editing nodes at high zoom (600%)?
  A: Lock the original objects before reshaping so accidental drags do not shift the baseline design.
  • Select the objects to protect, right-click, and choose Lock (or press K).
  • Save a duplicate file using File > Save As before experimenting.
  • Success check: clicking and dragging near the background art does not move the locked elements while editing the new satin object.
  • If it still fails: confirm the correct layer/objects are locked and that edits are being made on the newly redrawn vine, not the original.
• Q: In Wilcom Hatch 3, what stitch spacing is a safe starting point for satin vines, and what density causes thread breaks at the taper tip?
  A: A safe starting point for satin vine spacing is 0.40 mm, and very tight spacing at the tip (often under 0.30 mm) can cause thread breaks.
  • Set the satin spacing around 0.40 mm and avoid pushing below 0.35 mm for standard 40wt thread when possible.
  • If the tip breaks thread, slightly blunt the “perfect zero” point by pulling the tip node out a touch or reduce density in Object Properties.
  • Success check: the machine runs the tip with a smooth rhythm and the tip does not feel like a hard “pebble” after stitching.
  • If it still fails: re-check stitch angles at the tip, because confused angles can stack stitches and create stress.
• Q: In Wilcom Hatch 3, why does a satin column look messy after heavy reshaping, and how does Add Stitch Angles fix the texture?
  A: Heavy reshaping can scramble stitch angles, so re-adding stitch angles restores clean coverage and shine.
  • Remove/replace problematic angles, then use Add Stitch Angles to draw angle lines across the satin column.
  • Keep angles perpendicular to the column walls so the thread wraps smoothly around the curve.
  • Success check: in TrueView the satin looks like liquid flow (not jagged steps), and stitching sounds smooth rather than “thud-thud-thud” at the tip.
  • If it still fails: add more angle guides closer together in the problem area and re-check that no critical angle lines were accidentally deleted.
• Q: What mechanical safety steps should operators follow when test-stitching fast satin tapers on a multi-needle embroidery machine?
  A: Keep hands away from the needle bar area and power down or use the E-Stop before clearing nests or changing needles.
  • Stop the machine fully before reaching near moving parts, especially during high-speed, short-stroke satin tips.
  • Clear thread nests only after the machine is powered down or emergency-stopped.
  • Success check: adjustments are made with zero needle movement and no risk of the pantograph/needle cycling unexpectedly.
  • If it still fails: pause test runs more frequently during tip trials and do not troubleshoot with the machine actively stitching.
• Q: When a Wilcom Hatch 3 taper looks clean in TrueView but the stitch-out puckers on knits, what is the correct fix path (stabilizer vs hooping upgrade)?
  A: If the file simulates clean but fabric puckers, treat it as a stabilization/hooping problem first, then consider a magnetic hoop upgrade for consistency.
  • Use an appropriate stabilizer choice for unstable fabric (cutaway for knits is a common fix) and add temporary spray adhesive as needed.
  • If hoop burn or shifting happens with screw hoops on single-needle setups, switch to a magnetic embroidery hoop to clamp evenly without forcing fabric into a recess.
  • Success check: the vine stitches flat with reduced rippling, and repeated hoopings maintain the same grain line and alignment.
  • If it still fails: use a hooping station for repeat work to control angle/tension, because alignment errors can make a clean taper sew crooked.
