Stop Dragging Appliqué Letters One-by-One: Build a Typeable Keyboard Design Collection Font in Hatch (Without Breaking Your Sizing)

The Ultimate Guide to Keyboard Design Collection in Hatch: From Digital Chaos to Commercial Efficiency

If you have ever built an appliqué alphabet by dragging individual files onto your workspace, aligning them by eye, and praying the spacing is consistent, you know the specific kind of fatigue that sets in around the letter "H." It is not just boring; it is a profit killer.

In the professional embroidery world, we don't drag and drop. We type.

The Keyboard Design Collection (KDC) workflow in Hatch is the bridge between "hobbyist struggle" and "commercial workflow." It transforms loose .ESA or .EMB files into a systemic font that you can type using your keyboard. This guide is not just a software tutorial; it is an operational protocol. We will rebuild the workflow from the ground up, adding the sensory checks, safety parameters, and physical realities that software manuals usually ignore.

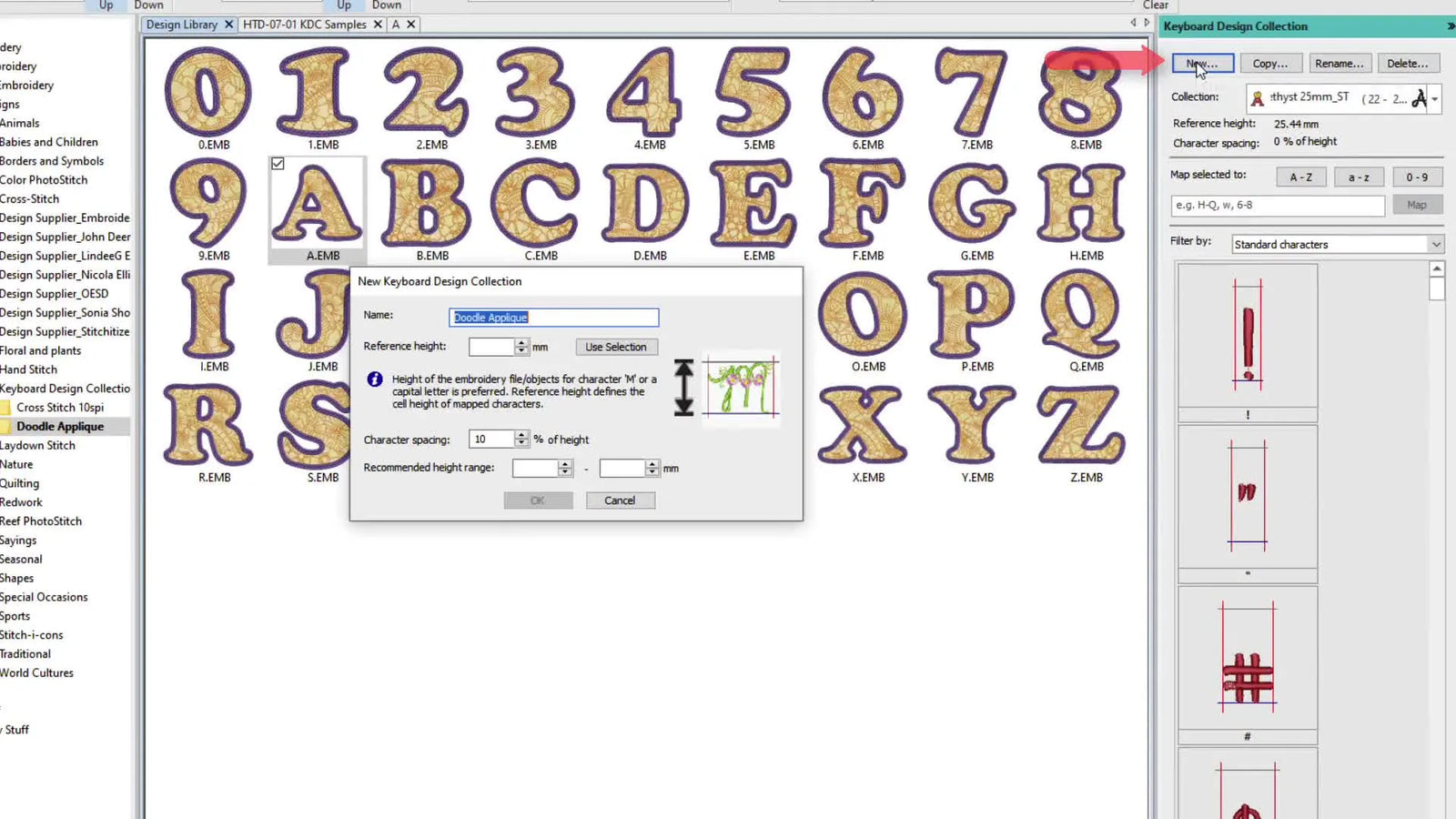

The Keyboard Design Collection docker in Hatch: the “typeable font” shortcut you’ll wish you used sooner

To master this tool, we must first clear up a cognitive ambiguity that trips up 90% of beginners. Hatch offers two distinct environments for mapping, and they are not interchangeable.

The Two Mapping Architectures

1. Batch Mapping (The Production Route):
   • Environment: Design Library.
   • Function: Selects 26 files (A-Z) and maps them instantly to keystrokes.
   • Use Case: Standard alphanumerics. This is 10x faster and eliminates human clicking errors.
2. Individual Mapping (The Custom Route):
   • Environment: Embroidery Workspace.
   • Function: Maps one open file to one keystroke.
   • Use Case: Special punctuation (!, @, #) or unique ligatures that don't fit the standard A-Z naming convention.

If your goal is to fulfill a team jersey order this afternoon, forget the workspace. We are going to the Design Library.

The “Hidden” access path: open Hints Docker → Collections tool → Keyboard Design Collection

The interface can be intimidating because features hide when they aren't in use. Let's create a visual anchor for finding the KDC docker.

The "three-click" protocol:

1. Locate Hints: Look for the Hints docker tab (usually pinned on the right or accessible via the Window menu).
2. Select Collections: Inside Hints, click the Collections tool.
3. Activate KDC: From there, launch the Keyboard Design Collection docker.

Visual Check: You know you have arrived when the docker appears on the right side of your screen (as shown in the demo). If the screen looks cluttered, close your Object Properties purely for this phase to give yourself visual breathing room.

Don’t map first—inspect one “Grade A” letter (like A) so your sizing range won’t sabotage stitch quality

This is the most critical step in this entire white paper. Do not skip this.

Many digitizers will tell you, "Just map it and resize it later." This is dangerous advice. Embroidery designs are not vector graphics; they are physical instructions. If you take a design digitized for 4 inches and shrink it to 2 inches, you are forcing the same number of stitches into half the space. The result? Bulletproof stiffness and broken needles.

The instructor opens the letter A because it contains all the architectural elements we need to audit: legs, crossbars, and enclosed negative space.

The Audit Checklist:

1. Object Identification: Confirm the presence of the Appliqué object (placement/tack-down), the Redwork object (detail), and the Satin covers (finish).
2. Trim Analysis: Turn TrueView OFF. Look for the small triangles and dotted lines.
   • What you are seeing: These triangles are specific machine commands for "Cut Thread" and "Frame Out."
   • Why it matters: If you resize a design too aggressively, these commands can overlap, causing the machine to stutter or miss a trim commands entirely.


The sizing clue that changes everything: Elastic Embossed Fill in the satin cover

In the example video, the instructor highlights a specific property: the satin cover uses an Elastic Embossed Fill.

Let's decode this from a "physics" perspective.

• Standard Satin Stitch: Uses parallel threads. If you enlarge this too much, the threads become long and loose (floats). If a stitch exceeds 7mm to 8mm, it becomes a snag hazard for the wearer.
• Elastic Embossed Fill: This fill type splits the long satin stitch into two or more shorter stitches with a needle penetration in the middle.

The Commercial Implication: Because the fill has those extra needle penetrations, it is mechanically more stable. This grants you a wider "Safety Zone" for resizing. You can enlarge these letters significantly more than standard satin without worrying about customers snagging their embroidery on door handles or washing machine agitators.

Warning: Mechanical Hazard. When testing resized appliqué letters on your machine, keep hands strictly clear of the needle area. Appliqué sequences involve programmed "Stops" for fabric trimming. Beginners often reach in to trim fabric before the machine has fully locked out. Always wait for the green "Start/Stop" button to flash or the screen to prompt you. Never reach under a moving presser foot.

Pro tip from the video (and it’s a big one)

If you shrink an appliqué alphabet too drastically, the satin cover column becomes too narrow. Appliqué relies on the satin column width (usually 3.5mm to 4mm standard) to cover the raw edge of the fabric.

The 3mm Rule: Only shrink until your satin column hits 3mm. Anything narrower than 3mm increases the risk of the raw fabric edge peeping out (often called "whiskering"), which looks amateurish and leads to customer returns.

Create a New Keyboard Design Collection: lock in Reference Height, Character Spacing, and a safe height range

Now that we understand the physical properties of our file, we enter the parameters into the software.

What the video does (exactly)

1. Click New in the Keyboard Design Collection docker.
2. Naming Protocol: Give the collection a descriptive name (e.g., "Varsity_Applique_3inch"). Avoid vague names like "Font1."
3. Reference Height: Select the letter 'A' you analyzed and click Use Selection.


In the demo, the software calculates a precise Reference Height of 83.36 mm. The software uses this baseline to calculate all future scaling relative to the original file quality.

Character spacing: keep the default unless you have a reason

The dialog shows Character spacing = 10%.

• Experience Check: For appliqué, 10-15% is the industry standard. Because appliqué letters are bulky, they need visual breathing room. If you were doing a thin script font, you might drop this to 0-5%.

Height range: use the “±20%” rule as a starting point, then sanity-check it against the design type

The instructor recommends a range of plus or minus 20% for Grade A designs.

The Math (doing it so you don't have to):

• Original Height: 84 mm
• Max (+20%): ~100 mm
• Min (-20%): ~67 mm (Rounded to 70 mm)


Why specific ranges matter for your machine:

• Going too large (>20%): You risk hitting the hoop limits or stitch density becoming too sparse (gaps showing fabric).
• Going too small (<20%): Stitch density clusters. On a home machine, this sounds like a jackhammer (a loud, rapid thud-thud-thud). This is the sound of thread building up, which leads to birdnesting.

Rule of Thumb: If you need a 2-inch letter and a 6-inch letter, do not try to stretch one file to cover both. Buy or digitize two separate sizes.

Warning: Data Permanence. Double-check your Reference Height and Min/Max range before clicking OK. While you can rename a collection, you cannot edit the reference metrics once the collection is created. If you mess this up, you must delete and restart.

Prep Checklist (The "Pre-Flight" Audit)

Before you click that "OK" button, verify the following:

• Satin Column Check: Did you confirm the satin width at the smallest proposed size is >3mm?
• Trims & Stops: Did you view the design with TrueView OFF to confirm trim commands are clean?
• Consumables: Do you have Sharp Duckbill Scissors for the appliqué trimming phase? (Standard scissors often poke through the base fabric).
• Range Calculation: Is your Min/Max range roughly ±20% of the original file size?
• Name Convention: Is the collection name searchable? (Does it encompass style + size?)

Batch map A–Z in the Design Library: the fastest clean build when files are named properly

We are now entering the "Production" phase. This happens in the Design Library.

1. Filter: Use the software filter to show only Upper Case letters. This prevents you from accidentally selecting a symbol or a lowercase 'a'.


2. Select: Click 'A', hold Shift, and click 'Z'. All 26 files should highlight in blue.


3. Map: Click Map selected to A–Z.


The Visual Confirmation: Watch the bottom of the screen. You will see a green progress bar. As it loads, the letters will populate the grid cells in the KDC docker.

Troubleshooting "The Blank Stare": If you click Map and nothing happens, check your file names. Hatch relies on logic. If your files are named "Varsity_01.emb" instead of "A.emb" or "Varsity_A.emb", Hatch may struggle to auto-detect the sequence. Standardize your source file names first.

Batch map 0–9: fill the numeric slots and accept that some cells will stay empty

Embroidery is often about team numbers. Do not forget this step.

1. Select files 0 through 9.


2. Change the mapping destination in the dropdown menu to the Numbers/Standard Characters set.
3. Click Map.


Note on Empty Cells: You will see empty slots for characters like @, &, or $. This is acceptable. Unlike a computer font like Arial, an embroidery font entails thousands of stitches per character. Most digitizers do not create an appliqué version of a semicolon unless requested. Leave them blank.

Test your new KDC font in Lettering: type “ABC” and be patient with complex objects

Now, the moment of truth. We move from data entry to stitching simulation.

1. Open a New Design.
2. Select Lettering.
3. Choose your new Collection from the font list (e.g., "Doodle Applique").
4. Type ABC.


Sensory Feedback: The "Processing Lag" When you type "ABC" in Arial, it appears instantly. When you type "ABC" in an Appliqué KDC, there might be a 1-3 second delay.

• Don't Panic. The software is calculating thousands of vector points, trim commands, and tie-ins for multiple layers.
• The Check: Look for the stitch angles. Does the texture look right? Do the satin stitches flow around the curves naturally?

Fix mapping mistakes without nuking the whole collection: Replace, Skip, or Remove Mapping

If you notice that your 'E' is actually an 'F', you don't need to delete the collection.

The Surgical Fix:

1. Select the correct file in the Library.
2. Highlight the incorrect slot in the KDC docker.
3. Click Map.
4. A prompt will appear: Choose Replace.


The "Skip" Function: If you selected 27 files by accident but only have 26 slots, use Skip to bypass the specific file that doesn't belong, keeping the rest of the sequence intact.

The baseline problem (Q sitting too high): plan for typography reality, not just design centering

Embroidery files are often centered mathematically (center of the design to the center of the hoop). Typography, however, rests on a Baseline.

The instructor points out the letter Q. In a raw file, the center of the 'Q' is the center of the hoop. But in a word, the tail of the 'Q' needs to hang below the other letters.

The Fix: This requires adjusting the Baseline property in the KDC settings (covered in advanced modules). The Workaround: For now, if you are doing a one-off job, break the lettering object apart (Ctrl+K) and manually nudge the 'Q' down until it looks visually correct.

Decision Tree: choose stabilizer + hooping strategy for appliqué lettering (so your stitched font actually sells)

You have mastered the software. Now you face the physical world. Your customer does not care about your KDC mapping; they care if the shirt is puckered.

Use this decision logic to pair your new font with the right production gear.

Start: What functional category is the substrate (fabric)?

A) The "Stable" Group (Canvas, Denim, Heavy Twill)

• Stabilizer: Tearaway (Medium weight) or Cutaway.
• Risk Profile: Low. These fabrics hold stitches well.
• Production Tip: If doing bulk team bags (hard to hoop areas), consider embroidery hoops magnetic. The strong clamping force works excellent on thick canvas seams where screws fail.

B) The "Performance" Group (Polyester Tech Tees, Dri-Fit)

• Stabilizer: Must use Cutaway (No-Show Mesh recommended).
• Risk Profile: High. These fabrics are slippery and stretchy.
• Hooping Strategy: This is where standard hoops cause "hoop burn" (permanent shiny rings).
  • Solution: Terms like magnetic embroidery hoops are your gateways to understanding efficient production on tech gear. They float the fabric between magnets rather than crushing the fibers, significantly reducing burn marks.

C) The "Delicate" Group (Thin Cotton, Bamboo)

• Stabilizer: Fusible No-Show Mesh (prevents shifting).
• Risk Profile: Moderate. Distortion is the enemy.
• Tooling: If you struggle to keep delicate fabric taut without stretching it (which creates waves later), a magnetic embroidery frame allows for gentle, even tensioning that is difficult to achieve with manual screw tightening.

D) The scale problem (50+ Shirts)

• The Bottleneck: It is not the machine speed; it is your hands.
• The Fix: A dedicated hooping station for embroidery ensures that "Team Mom" on shirt #1 is in the exact same spot as on shirt #50.

Warning: Magnetic Safety Field. If you choose to upgrade to Magnetic Hoops, treat them with respect. These use industrial Neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise styling fingers.
* Medical Devices: Keep them at least 6 inches away from pacemakers.
* Electronics: Do not rest them on your laptop or near computerized sewing cards.

The real efficiency win: software speed is nice, but hooping speed pays the bills

We have spent this entire guide optimizing your digital workflow. But remember: Profit = (Price - Cost) / Time.

The KDC saves you digital time. To fully capitalize on this, you must look at your physical workflow.

• Scenario: You have a 12-letter appliqué name.
  • Level 1 (Software): KDC lets you type it in 5 seconds. (You saved 10 minutes of design time).
  • Level 2 (Hardware): Hooping a hoodie with a standard screw hoop takes 2-3 minutes of wrestling. Using a magnetic hoop for brother (or your specific machine brand) takes 15 seconds. (You saved 2 minutes per garment).

If you are running a home business, look for those "Level 2" upgrades. Many professionals search for how to use magnetic embroidery hoop videos precisely because they have solved the software side (via KDC) and are now ready to solve the physical side.

A calm wrap-up: what you should have working now (and what to tackle next)

You have moved from a manual, error-prone process to a streamlined system.

Your New Capability Checklist:

• Access: Open KDC via Hints/Collections.
• Analyze: Inspect Letter 'A' (Ref Height & Fill Type).
• Configure: Create KDC with ~10-15% character spacing.
• Limit: Set a safe scaling range (e.g., 70–100 mm) based on the ±20% rule.
• Map: Batch process A–Z and 0–9.
• Verify: Type "ABC" and check the stitch simulation.
• Correct: Use the Replace/Skip function for errors.

The Next Level: Once you execute your first stitch-out, you will notice subtle baseline shifts (like that high 'Q'). Your next educational milestone is learning Baseline Adjustment. But for today, celebrate the victory: you can now type embroidery as easily as sending an email.

Go forth and stitch.

FAQ

• Q: How do I open the Hatch Keyboard Design Collection (KDC) docker if the feature is “missing” from the screen?
  A: Open the KDC docker through the Hints docker, not from the main toolbar.
  • Click Window (if needed) and show the Hints docker.
  • Select Collections inside Hints, then launch Keyboard Design Collection.
  • Close Object Properties temporarily if the right side feels too crowded.
  • Success check: The KDC docker appears on the right with a grid of character slots ready for mapping.
  • If it still fails: Reset the workspace layout in Hatch (menus vary by version) and re-check that Hints is enabled.
• Q: Why is resizing appliqué letters in Hatch KDC risky, and what is the safe starting range for Hatch KDC font scaling?
  A: Use a conservative sizing range first because embroidery stitches are physical, not vector—±20% is a safe starting point for “Grade A” files.
  • Inspect one strong reference letter (often A) before mapping to confirm object structure (appliqué placement/tack-down, redwork detail, satin cover).
  • Set the KDC Reference Height from that inspected letter, then set Min/Max around ±20% of that height.
  • Keep appliqué satin coverage wide enough when shrinking; do not shrink past a point where coverage becomes unreliable.
  • Success check: After typing “ABC” in Lettering, the satin coverage still cleanly covers edges and the stitch texture looks consistent across letters.
  • If it still fails: Do not force one file to cover extreme sizes—use a separately digitized size for small vs large lettering.
• Q: How do I check Hatch appliqué letters for trim/stop commands before mapping a Keyboard Design Collection in Hatch?
  A: Turn TrueView OFF and visually audit trim/stop markers before committing to KDC settings.
  • Open one letter (like A) and disable TrueView to reveal triangles/dotted indicators.
  • Look for clean, non-overlapping trim and stop commands that won’t collide after resizing.
  • Avoid aggressive shrinking/enlarging if trim markers start to stack too tightly in one area.
  • Success check: The design shows clearly separated trim/stop indicators and the sequence looks orderly (no “crowded” command clusters).
  • If it still fails: Reduce the resize range and re-test, or re-source files that were digitized for the target size.
• Q: Why does Hatch “Map selected to A–Z” do nothing when batch mapping embroidery letters in the Design Library?
  A: Batch mapping usually fails when the letter files are not named in a recognizable A–Z pattern.
  • Confirm the mapping is being done in the Design Library (Batch Mapping environment), not the Embroidery Workspace.
  • Rename files so Hatch can detect order (for example, names that include the actual letter such as “A” through “Z”).
  • Re-select A, hold Shift, select Z, then click Map selected to A–Z again.
  • Success check: A progress bar appears and the KDC grid fills with letters in the correct slots.
  • If it still fails: Use Individual Mapping in the Embroidery Workspace for problematic characters or non-standard naming sets.
• Q: Is it normal for Hatch Lettering to lag 1–3 seconds when typing an appliqué Keyboard Design Collection font?
  A: Yes—appliqué KDC lettering can pause briefly because Hatch is calculating multiple layers, trims, and tie-ins.
  • Type a short test like “ABC” first to confirm the system behavior before building long names.
  • Wait for the lettering object to fully resolve before judging spacing or stitch flow.
  • Visually inspect stitch angles and curve flow once it finishes processing.
  • Success check: After the brief delay, the letters render with consistent stitch texture and correct appliqué layering.
  • If it still fails: Reduce complexity (test fewer letters) and verify the source designs are clean and correctly structured.
• Q: How can I fix a wrong letter mapped in a Hatch Keyboard Design Collection without deleting the entire KDC?
  A: Use Replace mapping to surgically correct a single slot instead of rebuilding the collection.
  • Select the correct letter file in the Design Library.
  • Click the incorrect character slot in the KDC grid.
  • Click Map and choose Replace when prompted.
  • Use Skip if an extra file was accidentally included during a batch operation.
  • Success check: Typing that character in Lettering produces the correct letter shape and stitch sequence.
  • If it still fails: Re-check the selected file (confirm it truly is the intended letter) and confirm you clicked the correct grid slot before replacing.
• Q: What safety steps should be followed when stitching resized appliqué letters with programmed stops for fabric trimming on an embroidery machine?
  A: Keep hands away from the needle area during appliqué stops and only trim when the machine clearly indicates it is safe.
  • Wait for the machine’s Start/Stop indicator to prompt you (for example, a flashing state or on-screen prompt) before reaching in.
  • Keep fingers clear of the presser foot and needle path even if the machine appears “paused.”
  • Use proper appliqué trimming tools (sharp duckbill-style scissors are commonly used) to reduce accidental fabric damage.
  • Success check: Trimming is done with the needle fully stopped and the fabric edge is clean without accidental nicks or pulled base fabric.
  • If it still fails: Stop the job, re-read the machine’s stop prompts, and practice the trim step on a test piece before running customer garments.
• Q: How do I choose stabilizer and hooping strategy for appliqué lettering on tech tees to reduce hoop burn and puckering?
  A: For polyester performance shirts, start with cutaway (often no-show mesh) and avoid over-crushing the fabric during hooping.
  • Choose cutaway stabilizer for slippery/stretch performance knits to control distortion.
  • Hoop carefully to prevent shiny rings (hoop burn); excessive tightening increases risk on tech fabrics.
  • If hoop burn is a repeat problem, consider upgrading hooping method to a magnetic-style clamping approach that applies more even pressure (always follow machine/hoop guidance).
  • Success check: After stitching, the shirt surface rebounds without permanent ring marks and the lettering lies flat without ripples.
  • If it still fails: Treat this as a workflow bottleneck—adjust hooping technique first (Level 1), then consider a hooping upgrade for repeat production (Level 2), and only then consider production-capacity upgrades (Level 3) if volume demands it.
