Stop Cutting Rectangles: Turn PE Design 10 Appliqué Placement Lines into Clean Cut Files for ScanNCut, Cricut, and Silhouette

Appliqué is supposed to feel satisfying: the crisp snap of fabric edges, the rhythmic hum of the satin stitch, and that professional “store-bought” finish that makes you want to run your hand over the design.

But if you’ve ever exported a file from PE Design only to have your expensive cutting machine slice a giant unexpected square instead of your delicate flower petal, you know the specific flavor of panic that follows. Or perhaps you’ve imported an SVG into Cricut, only to find your 5-inch design has inexplicably shrunk to the size of a postage stamp.

Appliqué isn't just about art; it is a rigid engineering workflow. One missing digital setting leads to wasted fabric and physical frustration.

This guide rebuilds the process demonstrated by Sue from OML Embroidery, elevated with field-tested production standards. We will cover the physics of vector cutting, how to force PE Design 10 to recognize cut lines, and how to bridge the gap to ScanNCut, Cricut, or Silhouette without the guesswork.

The SVG vs. Raster Reality Check: Why Your Cutter Is "Blind"

To master appliqué, you must understand how your cutting machine “sees.” It does not see a picture; it feels for a path.

Sue demonstrates this with a simple circle. To the human eye, a JPEG (raster image) and an SVG (vector) might look similar on a small screen. But to a machine, they are worlds apart.

• Raster (JPEG/PNG): These are grids of colored pixels. When you ask a cutter to trace this, it sees the jagged “stair-steps” of the pixel edges.
• Vector (SVG/FCM): These are mathematical coordinates. A vector tells the blade: “Go from Point A to Point B in a perfect arc.”


The Zoom Test (Visual Anchor): Zoom in 400% on your screen.

• If the edge looks like a blurry staircase, it is Raster. Your cutter will stutter, creating ragged edges that fray immediately.
• If the line remains razor-sharp like a wire, it is Vector. Your cutter will glide, producing a clean, sealed edge.


Expert Insight: Even if you digitize a vector in software, taking a screenshot converts it back to raster. Never cut from a screenshot. Always export the data lines.

The "Hidden" Prep Phase: Stability Before Software

Before you click a single button in PE Design, you must stabilize your physical environment. Appliqué quality is 50% file preparation and 50% physical stability.

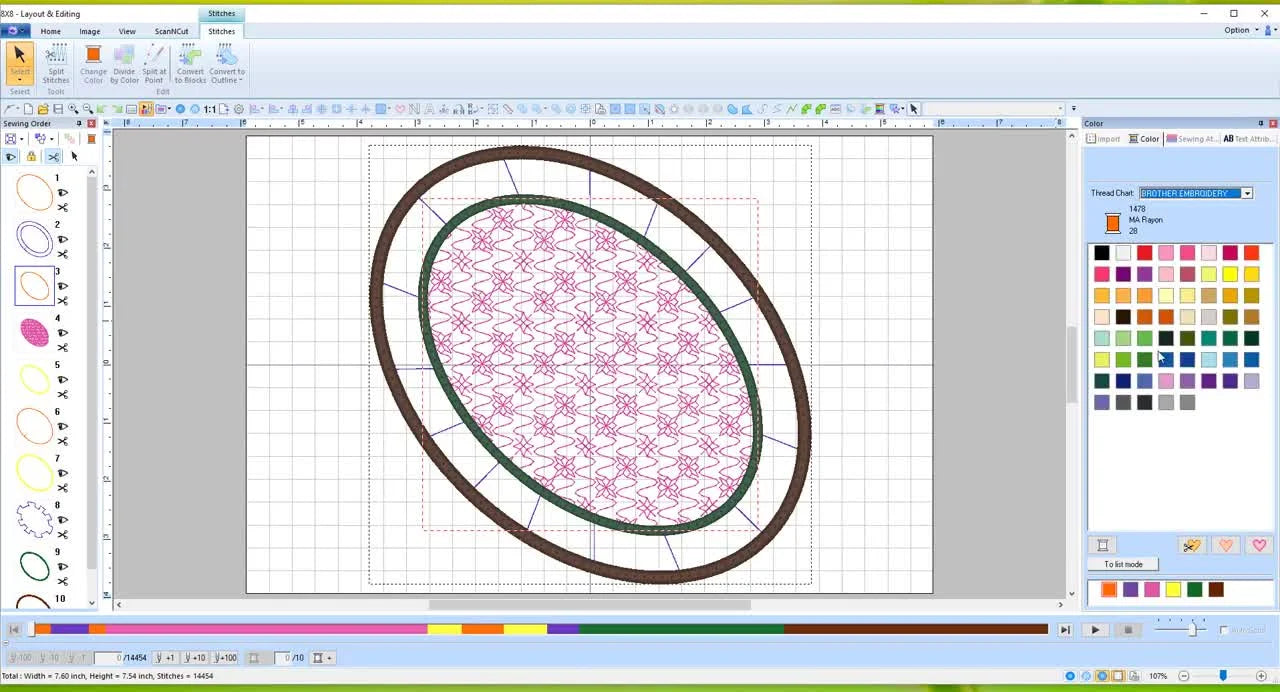

In Sue’s example, she uses a Creative Kiwi 8×8 design with two appliqué layers.

The Physics of "Hoop Burn" and Slippage

Appliqué requires you to hoop, stitch a placement line, remove the hoop (or reach inside), place fabric, and stitch again. This handling often causes the base fabric to slip. If your fabric slips even 1mm, your perfect cut file will miss the stitch line.

Many beginners tighten their hoops with pliers to prevent this, causing "hoop burn"—permanent white friction marks on dark fabric.

The Professional Solution: If you are struggling with fabric slippage or hand fatigue from constant re-hooping, this is the moment to evaluate your tools. A hooping station for machine embroidery allows you to use gravity and magnets to hold fabric taut without distortion. Similarly, upgrading to a magnetic frame eliminates the need to unscrew and tighten outer rings, preserving delicate fabric fibers.

Prep Checklist: The "Pre-Flight" Safety Check

1. Identify the Architecture: Does your design have a Reference Line (Placement) and a Tack-down Line? You need to isolate the Reference Line.
2. Verify the Cutter Ecosystem:
   • Brother ScanNCut: Needs .FCM (Native language).
   • Cricut: Needs .SVG (Requires scaling verification).
   • Silhouette: Needs .SVG (Requires Designer Edition upgrade).
3. Check Your Consumables (The Hidden List):
   • Sharp Blade: Listen for a clean "zip" sound when cutting. A dull blade tears fabric.
   • Standard Grip Mat: Must be sticky enough to hold fabric but not so sticky it warps the fibers upon removal.
   • Appliqué Scissors (Duckbill): Essential for trimming stray threads before the satin stitch.

The “Appliqué Material” Toggle: The Setting That Stops Square Cuts

This is the technical core of the workflow. By default, PE Design 10 treats your design as a block of stitches. If you export without instructions, the software protects the stitches by cutting a bounding box around the entire design.

To cut the shape, you must tag specific lines as “Cut Data.”

Step-by-Step Execution

1. Isolate the Object: Select the specific placement line segment (e.g., the inner ring).
2. Open the Palette: Navigate to the Brother embroidery thread chart.
3. The Magic Icon: Locate the color chip marked “Appliqué Material”. It is often represented by a Scissors or Heart icon, depending on your version.
4. Tag It: Change the thread color of your placement line to this "Appliqué Material" setting.
5. Repeat: Do this for every separate piece of fabric you intend to cut.




Sensory Confirmation: You should visually see the line change color functionality in the software. It communicates to the export engine: "Ignore the stitches; follow this path."

Warning: Mechanical Safety
When working with cutters and embroidery machines simultaneously, keep your workspace zoned. Rotary blades and embroidery needles are unforgiving. Never reach into a moving embroidery machine to smooth an appliqué piece—a piercing injury can happen in a split second. Use a stylus or the eraser end of a pencil to smooth fabric while the machine is paused.

The Cleanup Trick: "Convert to Blocks" to Remove Noise

Once your lines are tagged, you need to strip away the data that confuses the cutter. Cutters are easily confused by stitch directions coverage density.

Sue uses a powerful function: Stitches → Convert to Blocks.

This command explodes the design into editable segments. You can now delete the satin stitches, the underlay, and the decorative elements, leaving only the naked placement line.

Why this is critical: If you leave a satin stitch in your cut file, the cutter may try to cut every single zigzag penetration point. This will shred your fabric and likely snap your blade. You want a single, continuous vector path.

Exporting to Brother ScanNCut: Handling FCM and Offsets

Now, you export. If you own a Brother ScanNCut, this is seamless because you are staying within the ecosystem.

Select the ScanNCut tab and click Export. You will see an option for Offset.

The "Sweet Spot" for Offset: Sue shows 0.04 inches (approx 1.0mm).

• Why apply an offset? Fabric frays. Stitching creates a perforation line. If you cut the fabric exactly on the stitch line, it might pull away.
• Expert Recommendation: An offset of 1.0mm to 1.5mm ensures the fabric extends slightly under the satin stitch, guaranteeing a secure hold without peeking out too much.






Setup Checklist: The Export "Handshake"

1. Preview Check: Does the preview screen show a clean outline (circle/shape) or a square box? If square, go back and re-tag as "Appliqué Material."
2. Offset Verification: Is the offset set between 0.04" - 0.08"?
3. File Type: Confirm you are exporting .FCM for ScanNCut.

Cricut Design Space: The "72 vs 96 DPI" Size Glitch

If you use a Cricut, you face a notorious hurdle: Dimensional Drift. Due to historical differences in how software interprets "dots per inch" (DPI), an 8-inch design from embroidery software often imports into Cricut Design Space as a 2-inch or 20-inch object.

The Fix (The "Hard Number" Method): Do not eyeball it.

1. Note the Dimension: In PE Design, note the exact height/width (e.g., 8.44 inches).
2. Import & Ignore: Import the SVG to Cricut. Ignore the visual size on the canvas.
3. Type the Value: With the aspect ratio lock ON, type 8.44 into the width box.
4. Snap: The design will snap to the mathematically correct size.

Production Tip: If you run a business, write the specific cut dimensions (Height/Width) in the filename of your embroidery design (e.g., Flower_Applique_W8.44.pes). This saves you from reopening the software later to check the size.

The Silhouette Trap: The Edition Paywall

A common point of failure for Silhouette users is the "missing file" syndrome. Silhouette Studio Basic Edition (Free) cannot natively open SVG files.

The Solution: You must upgrade to Designer Edition or Business Edition to unlock SVG import. If upgrading isn't an option, you can use online converters to turn SVGs into DXF files, though this often results in messy node paths that require cleanup.

Decision Tree: Choosing Your Workflow

Follow this logic path to determine your optimal setup:

Q1: What is your cutting machine?

• Brother ScanNCut: Use PE Design → Export FCM. Result: Native sync, no resizing needed.
• Cricut / Silhouette: Use PE Design → Export/Save as SVG (if plugin allows) OR use 3rd party converter. Result: Must manually verify dimensions.

Q2: What is your volume?

• Hobby (1-5 items): Manual hooping and standard resizing is fine.
• Production (50+ items): You cannot afford to resize every file. create a "Master Cut File" library.
• Bottleneck Check: If "hooping" is the slowest part of your day, look into a magnetic embroidery hoop. For Brother users specifically, a magnetic embroidery hoops for brother system can cut your prep time by 40%.

The Physical Workflow: From Screen to Fabric

You have the perfect file. Now you must execute the physical cut and stitch.

The Problem of Fabric Physics

Fabric is fluid. When you place it in a traditional hoop, you stretch it. You stitch the placement line. Then you lay your pre-cut appliqué piece on top.

• The Risk: If you over-stretched the base fabric, it will shrink back when unhooped, puckering around your flat appliqué piece.
• The Sensory Check: Tap your hooped fabric. It should sound like a bongo drum, not a high-pitched snare drum. Drum-tight is too tight for most garments.

The Magnetic Advantage

In high-volume shops, operators rarely use screw-tightened hoops for appliqué. They use magnetic frames. This allows the stabilizer to take the tension while the fabric floats on top, preventing the distortion that ruins appliqué alignment.

Warning: Magnet Safety
magnetic hoop for brother dream machine or similiar industrial magnets have immense clamping force (Pinch Hazard).
* Do not place fingers between the magnets.
* Do not use if you have a pacemaker (consult your doctor).
* Keep away from credit cards and hard drives.

Operation: The Final Execution Checklist

Run this sequence to ensure zero waste.

Phase 1: The Data Check

• Clean Outline: Converted to blocks, all satin stitches deleted.
• Tagged: Lines set to "Appliqué Material" (Scissors icon).
• Export Format: FCM for Brother / SVG for others.

Phase 2: The Physical Check

• Blade Depth: Test cut a small circle in the corner of your fabric. You should be able to peel the fabric off the backing paper (if using HeatnBond) without cutting through the paper.
• Hooping: Fabric is taut but not distorted. Consider using a brother pe800 magnetic hoop or similar if you struggle with consistent tension.

Phase 3: The Assembly

• Placement Stitch: Run the first color stop (Placement).
• Adhesion: Spray the back of your pre-cut fabric with temporary adhesive (like KK100 or 505) or use an iron-on fusible backing.
• Alignment: Place the fabric inside the stitched lines. It should fit with a uniform 1mm overlap margin.
• Tack-down: Run the second color stop.
• Finish: Run the satin/cover stitch.

Troubleshooting: Structured Diagnostics

If it fails, use this table to diagnose the root cause immediately.

The Upgrade Path: Scaling Up

Mastering the "Appliqué Material" setting in PE Design 10 is the first step toward professional embroidery. It removes the randomness from your workflow.

However, as you move from creating gifts to fulfilling orders, your bottlenecks will shift.

• Struggling with alignment? A hooping station for embroidery ensures your design lands in the exact same spot on every shirt 100% of the time.
• Struggling with speed? If you are tired of stopping to change threads for every color change in complex appliqué designs, the jump to a Multi-Needle machine (like the SEWTECH series) allows you to set the entire sequence and walk away while it works.

Appliqué should be satisfying, not stressful. Tag your lines, check your dimensions, and let the machines do the heavy lifting.

FAQ

• Q: Why does Brother PE Design 10 export an appliqué cut file that makes Brother ScanNCut cut a giant square box instead of the appliqué shape?
  A: Set the placement line to the “Appliqué Material” (scissors/heart) thread color so PE Design exports a cut path instead of a bounding box.
  • Select: Click the specific placement/outline line you want the cutter to follow (not the satin stitch).
  • Tag: Change that line’s thread color to Appliqué Material in the thread chart/palette.
  • Preview: Re-open the ScanNCut export preview and confirm it shows the actual outline, not a square.
  • Success check: The export preview displays a clean circle/shape outline and the cutter follows that path.
  • If it still fails: Use Stitches → Convert to Blocks and delete all satin/underlay/decorative stitches so only the outline remains.
• Q: How do I prevent Brother PE Design 10 appliqué cut files from shredding fabric when cutting on Brother ScanNCut, Cricut, or Silhouette?
  A: Export only a single clean outline path and cut with correct blade condition/depth so the cutter doesn’t “chase” stitch points.
  • Convert: Run Stitches → Convert to Blocks, then delete satin stitches, underlay, and decorative stitch data.
  • Inspect: Ensure the cut file contains one continuous outline (not zigzags or multiple tiny segments).
  • Adjust: Reduce blade pressure/depth and replace or clean a dull blade if cuts look torn.
  • Success check: The fabric edge lifts cleanly with a smooth outline (no fuzzing, no chopped micro-cuts).
  • If it still fails: Re-check that no stitch objects were left in the cut file and test-cut a small circle first.
• Q: What offset should be used when exporting appliqué cut data from Brother PE Design 10 to Brother ScanNCut (.FCM) to avoid fraying or gaps?
  A: Use an offset around 0.04 inches (~1.0 mm) as a proven starting point, then adjust within 1.0–1.5 mm if needed.
  • Set: In the ScanNCut export screen, choose an offset near 0.04".
  • Increase: Move toward 1.5 mm if fabric frays or the satin stitch is not fully covering the edge.
  • Validate: Keep the cut piece slightly larger so it tucks under the satin stitch.
  • Success check: After tack-down and satin stitch, the fabric edge is fully covered with an even margin and no raw edge peeks out.
  • If it still fails: Check hooping tension and fabric handling—slippage of even ~1 mm can cause visible misalignment.
• Q: Why does an appliqué SVG exported from Brother PE Design 10 import into Cricut Design Space at the wrong size (DPI 72 vs 96 issue), and how do I fix the size accurately?
  A: Manually type the exact width/height from PE Design into Cricut Design Space with the aspect ratio lock ON.
  • Note: Write down the exact design dimension shown in PE Design (example: 8.44 inches width).
  • Import: Bring the SVG into Cricut Design Space and ignore the on-canvas size at first.
  • Type: Turn lock ON and enter the exact width (or height) number.
  • Success check: The Cricut canvas dimension matches the PE Design dimension exactly (same number, same unit).
  • If it still fails: Reconfirm the value from PE Design and make sure the aspect ratio lock stayed enabled when typing.
• Q: Why can’t Silhouette Studio Basic Edition open an SVG appliqué cut file exported from Brother PE Design 10, and what is the practical workaround?
  A: Silhouette Studio Basic Edition does not support SVG import; upgrade to Designer/Business Edition or convert SVG to DXF (with potential cleanup).
  • Confirm: Check your Silhouette Studio edition—Basic won’t import SVG.
  • Upgrade: Use Designer Edition or Business Edition to import SVG directly.
  • Convert: If not upgrading, convert SVG to DXF and be prepared to clean up messy node paths.
  • Success check: The outline imports as a single clean path you can select and cut (not fragmented or full of extra points).
  • If it still fails: Re-export the outline-only file from PE Design (after deleting stitch data) to reduce node complexity.
• Q: How can I reduce fabric slippage and “hoop burn” during multi-step appliqué stitching when repeatedly handling the hoop?
  A: Stop over-tightening screw hoops; stabilize the process with better hooping technique first, then consider a magnetic hoop/frame if slippage and fatigue continue.
  • Loosen: Hoop fabric taut but not distorted—avoid plier-tightening that causes white friction marks on dark fabrics.
  • Stabilize: Use proper stabilizer support and minimize repeated re-hooping/handling during placement steps.
  • Upgrade: If consistent tension is hard to repeat, a magnetic hoop/frame can clamp without aggressive screw pressure and reduce handling time.
  • Success check: The placement stitch and the pre-cut appliqué piece stay aligned with a consistent overlap and no permanent hoop marks.
  • If it still fails: Add better temporary adhesion (spray or fusible) so the appliqué fabric cannot creep during tack-down.
• Q: What safety rules should be followed when using an embroidery machine and a cutting machine for appliqué, especially when working with strong magnetic embroidery hoops/frames?
  A: Keep hands away from moving needles and blades, and treat magnetic hoops as pinch-hazard tools with strong clamping force.
  • Zone: Separate the cutter area from the embroidery area so hands don’t drift into the wrong machine during operation.
  • Pause: Never reach into a moving embroidery machine to smooth fabric—pause and use a stylus or the eraser end of a pencil.
  • Protect: Keep fingers out of the magnet clamp area; magnets can snap together forcefully.
  • Success check: Fabric adjustments are only done while the machine is paused, and magnets are placed without finger contact between parts.
  • If it still fails: Slow down the workflow—set a fixed habit: stop machine → hands in → hands out → restart.
