Stop Cutting Fabric: Clean, Fully Custom Patches on Madeira E-Zee Badge Film (Without the Usual Blowouts)

If you have ever attempted "floating" patches—stitching directly onto a film stabilizer with no fabric base—you know the specific heartbreak of watching a design disintegrate. You hear a crunch, see the film shred, and realize your density was too high or your hoop wasn't tight enough.

The secret to mastering this technique isn't magic; it is physics. You are asking a piece of plastic to behave like a woven fabric. To do that, you must build a structure (a skeleton) before you add the beauty (the skin).

Below is the definitive, empirical workflow for creating professional badges on Madeira E-Zee Badge Film. We will cover the specific physics of the materials, the "safe zones" for machine speed, and the tooling upgrades—like SEWTECH magnetic hoops—that transform this from a nightmare into a profitable production line.

The Calm-Down Moment: Understanding the "Skeleton" of a Film Patch

The goal here is to create a patch that is 100% thread and binding agent, stitched onto a standard 100-micron film that eventually tears away.

However, film is unstable. Unlike cotton or twill, it has no grain to hold stitches.

• The Problem: If you stitch a heavy Tatami fill directly onto film, the needle perforations act like a postage stamp cutter. The film separates, and the design falls out.
• The Solution: We must stitch a grid first. This acts like rebar in concrete, distributing the stress of the top stitches.

Expert Rule of Thumb: Never stitch a dense design on film without a running stitch underlay (grid) first.

Prep Phase: Orientation, Hidden Consumables, and "Tactile Engineering"

The presenter highlights a nuance often missed by beginners: E-Zee Badge Film has two sides.

• Side A: Textured/Perforated.
• Side B: Flat/Smooth.

In this workflow, we place the flat side facing UP. Why? Because a smooth surface allows the embroidery foot to glide over the material with less friction, reducing the risk of the film rippling (flagging) before the needle penetrates.

Hidden Consumables Checklist (Don't start without these)

• Fresh Needles: Use a 75/11 Sharp (not Ballpoint). You want to puncture the film cleanly, not stretch it.
• Precision Tweezers: For holding the film down if it lifts (keep fingers away!).
• Sharp Snips: For the final clean-up.

Prep Checklist (Pre-Flight)

• Confirm you have Madeira E-Zee Badge Film (100 micron).
• Cut two layers of film large enough to extend 2 inches past the hoop edge on all sides.
• Tactile Check: Rub the film to identify the flat side. Stack both sheets Flat Side UP.
• Machine Check: Clear the needle plate area of lint; film generates static and attracts dust.

Warning: Mechanical Safety. Never put your fingers near the needle bar to hold the film down while the machine is running. At 800 RPM, a needle strike can cause severe injury. Use an eraser stick or tweezers if you must stabilize the material.

The Two-Layer Rule: Combatting Perforation Physics

The video creates a hard rule: Use two layers of film. Beginners often try to save money by using one layer. Do not do this.

The Physics of Failure: A single layer of film creates a "stress concentration" point at every needle hole. Under a 4mm Tatami fill, the film will buckle. Two layers utilize friction between the sheets to absorb the energy of the needle, preventing the "postage stamp" effect.

Hooping Strategy: This is where most battles are lost. The film is slippery. In standard hoops, it tends to slide inward (loosen) as you tighten the screw.

• The Target Sensation: The film must sound like a tight drum when tapped.
• The Reality: Achieving this with standard hoops takes hand strength and practice.

If you are researching hooping for embroidery machine because you struggle with slippery materials, this is the first bottleneck to address. Uneven tension causes oval circles and registration gaps.

Digitizing Logic: The 45° "Rebar" Grid

You cannot skip the digitizing setup. The presenter demonstrates a specific sequence that serves as an engineering foundation.

The Sequence:

1. Foundation: A Run-Stitch Grid at a 45-degree angle.
   • Why: This bonds the two layers of film together and provides a surface for the top stitches to grab.
2. Angle Logic: If your top fill is at 90°, and your underlay is at 45°, you create a "plywood effect," maximizing strength.

If you use Wilcom or Hatch, check your Object Properties. Ensure your underlay stitch length is typically 2.5mm to 3.0mm—long enough to not cut the film, short enough to provide structure.

The "Sweet Spot": Stitching th 18,000-Stitch Fill

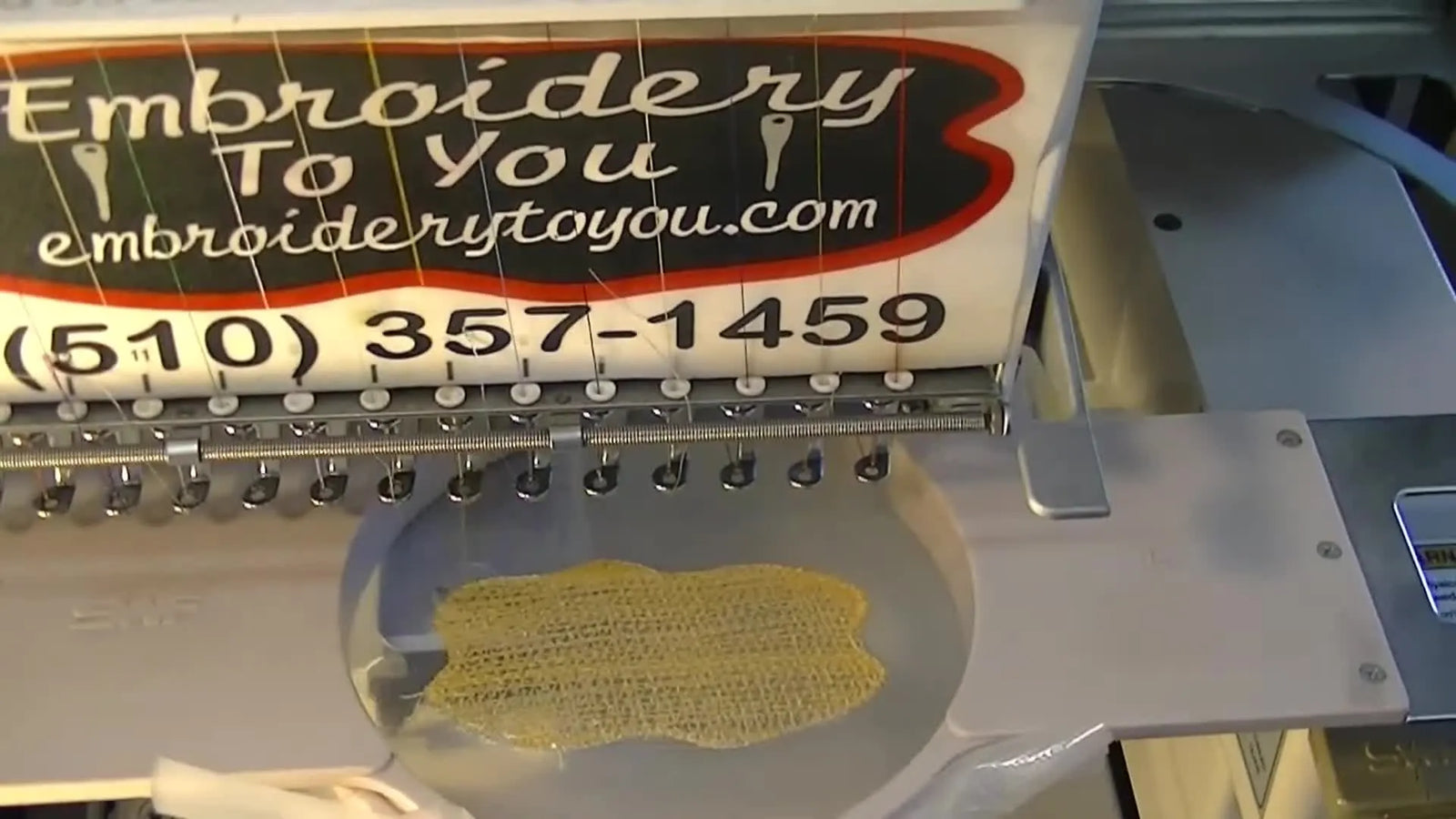

The demo shows a massive yellow background fill using approximately 18,000 stitches. This is the danger zone.

Speed Calibration (Expert Advice): While an industrial SWF can run at 1000 SPM (Stitches Per Minute), running this fast on film increases heat.

• Heat = Stretch. Hot needles soften the plastic film.
• Recommended Speed: For the best results, slow your machine down to 600-700 SPM. It adds a few minutes, but it prevents the film from melting or warping.

Sensory Check:

• Listen: You should hear a consistent, rhythmic thump-thump. A sharp slap sound usually means the film is flagging (lifting up with the needle).
• Look: Watch the edges of the design. If the film starts to "rwrinkle" or pull inward, your hoop tension was insufficient.

If you are evaluating swf embroidery machines for this type of work, remember that a rigid pantograph and stable frame drive are critical to keeping high-stitch-count patches registered correctly.

The Seal of Approval: Red Text and the Satin Border

After the background fill, the machine stitches the red text ("Embroidery To You") and finally the black satin border.

The Border is Functional, Not Just Decorative. The satin border performs two mechanical jobs:

1. Encapsulation: It seals the raw edges of the thread fill.
2. Perforation: The high density of needle penetrations creates a "tear line," allowing you to remove the patch cleanly later.

Troubleshooting Gaps: If you see a gap between your yellow fill and black border (white film showing through), it is rarely a digitizing error. It is usually "Pull Compensation".

• The Fix: Increase your Pull Compensation setting in your software to 0.4mm or 0.5mm for the background fill. This forces the fill to slightly overlap where the border will be.


The Extraction: Tear-Away Technique

Once the border is done, remove the hoop. The removal process needs to be firm but controlled.

The Action: Hold the patch itself with your thumb and index finger to support the stitches. With your other hand, pull the excess film away. It should tear exactly along the perforated line created by the satin border.

• Note: No water, no heat gun. Just a clean mechanical tear.


Finishing: Heat Seal Backing (Optional)

The presenter discusses adhering a backing to make the patch "iron-on" ready.

• Madeira E-Zee Heat Seal 4220 vs. 5256: Both are 5-mil products.
• Application: These require a heat press.
• Temperature Range (General Industry Std): Usually 320°F - 350°F (160°C - 175°C) for 15-20 seconds, but always check the technical data sheet for your specific batch.


The Commercial Reality: Why Hoops Matter More Than You Think

The video uses standard tubular hoops. They work, but they are the number one cause of frustration with film.

• The Pain: Tightening the screw often twists the film.
• The Result: "Hoop Burn" (crimps in the film) or "Trampolining" (soft center).

The Tool Upgrade Path: If you are doing this commercially, hooping film is a bottleneck. This is where Magnetic Hoops change the game.

• Scenario: You have an order for 50 patches.
• The Friction: Re-tightening a manual hoop 50 times fatigues your wrists and leads to inconsistent tension.
• The Fix: magnetic embroidery hoops by brands like SEWTECH clamp down vertically. There is no twisting. The film is held by magnetic force, ensuring it stays "drum tight" instantly.

Commercial Decision Matrix:

• Hobbyist (1-5 patches): Standard hoops + patience.
• Prosumer (Small Etsy runs): Magnetic Frame (5x5 or similar). This removes the "hoop burn" variable.
• Industrial (50+ patches): Industrial Magnetic Hoops. These allow for rapid reloading without un-threading the machine.

Warning: Magnetic Hazard. Modern magnetic hoops utilize Neodymium magnets. They are incredibly strong.
1. Pinch Hazard: They snaps together instantly; ensure fingers are clear.
2. Medical Safety: Keep away from pacemakers.
3. Electronics: Keep away from credit cards and screens.

If you are researching magnetic hoops for embroidery machines, ensure you select the correct bracket type for your specific machine arm (e.g., SWF, Tajima, Brother).

Setup Checklist: The Safe Sequence

Follow this order of operations to prevent wasted film and thread.

Pre-Stitch Verification

• Layering: Two sheets of E-Zee Badge Film, flat side UP.
• Hooping: Film is "drum tight." Tapping it sounds crisp, not dull.
• Needle: Fresh 75/11 Sharp installed.
• Bobbin: Full bobbin loaded (you do not want to run out in the middle of a fill).
• Design Path: Grid -> Fill -> Detail -> Border.
• Speed: Machine restricted to 650-700 SPM.


Decision Tree: One Layer vs. Two Layers?

The presenter notes that occasionally one layer works, but the risk is high. Use this logic to decide.

Layer Step 1: Analyze Stitch Density

• High Density (Tatami Fill, large solid areas): → REQUIRED: 2 Layers.
• Low Density (Open line art, sketches, minimal text): → Option: 1 Layer (Test first).

Layer Step 2: Analyze Production Stakes

• Paid Client Work: → ALWAYS 2 Layers. Consistency is cheaper than film.
• Personal Experiment: → Option: 1 Layer.

Layer Step 3: Troubleshooting Mid-Run

• Symptom: Film looks white/stressed around needle holes. → STOP. Add a layer (float it under the hoop) or restart with 2.


Troubleshooting Guide: Symptoms & Solutions

Moving Forward: Resources and Calibration

The comments in the video highlight a universal truth: Standardization beats guessing. Madeira offers specific webinars and digitizing specs for this film.

• Action: Download the spec sheet.
• Shop Calibration: Once you find the perfect settings (e.g., density 0.40mm, speed 650 SPM), save this as a "Preset" in your software. Do not rely on memory.


Operation Checklist: The "Pilot's Monitor"

Dense patch runs are expensive if they fail. Monitor these zones during the sew-out:

• Zone 1: The Grid. Ensure the film creates a slight indentation but no cuts. If it cuts, your tension is too tight.
• Zone 2: The Fill. Watch for "bunching" in front of the foot. If the film waves, pause and re-hoop.
• Zone 3: The Text. Ensure the small letters sit on top of the fill, not buried in it. Use a water-soluble topper if text looks messy.
• Zone 4: The Border. This needs to be bulletproof. It should look like a solid rope.


Conclusion: Upgrading Your Variables

This video proves that making floating patches is a viable, clean process if you respect the material limits.

• The Technique: Two layers, 45° grid, controlled speed.
• The Tooling: As you scale, moving from manual hoops to Magnetic Frames eliminates the biggest variable—hooping consistency.

If you are currently struggling with loose film or are looking to upgrade your gear, consider checking compatibility for SEWTECH Magnetic Hoops or even researching swf hoops upgrades. The right tool holds the film so you can focus on the art.

FAQ

• Q: When making floating patches on Madeira E-Zee Badge Film (100 micron), which side of the film should face up in the hoop?
  A: Place the flat/smooth side facing UP to reduce friction and help prevent rippling (flagging).
  • Identify both sides by feel: one side is textured/perforated, the other is flat/smooth.
  • Stack two sheets with the flat side up before hooping.
  • Clean lint around the needle plate first because film static attracts dust.
  • Success check: the presser foot glides smoothly and the film does not “wave” ahead of the needle.
  • If it still fails… slow down to 600–700 SPM and re-check hoop tightness.
• Q: What needle should be used for floating patches on Madeira E-Zee Badge Film, and why does a ballpoint needle cause problems?
  A: Use a fresh 75/11 Sharp needle because it punctures film cleanly instead of stretching it.
  • Install a new 75/11 Sharp before starting dense fills.
  • Replace the needle immediately if you suspect it is burred or “sticky” from heat.
  • Keep tweezers ready to manage lift—do not use fingers near the needle bar.
  • Success check: needle penetrations look clean and the film does not look overly white/stressed around holes.
  • If it still fails… reduce stitch density by about 10–15% for heavy fills.
• Q: How do you know embroidery hooping tension is correct for two layers of Madeira E-Zee Badge Film to prevent shifting and oval circles?
  A: Hoop the film “drum tight” because uneven tension is the most common cause of shifting and registration gaps.
  • Cut two layers large enough to extend ~2 inches past the hoop edge on all sides.
  • Tighten evenly so the film does not slide inward as the hoop screw is tightened.
  • Avoid twisting the film during tightening; re-hoop if tension feels uneven.
  • Success check: tap the hooped film and it sounds crisp like a tight drum, not dull or soft.
  • If it still fails… consider switching to a magnetic hoop to eliminate twist and improve grip consistency.
• Q: Why does a floating patch on Madeira E-Zee Badge Film “tear” or “explode” during a dense Tatami fill, and what is the fastest fix?
  A: The film is being perforated like a postage stamp—use two layers and a running-stitch grid underlay before the dense fill.
  • Digitize or confirm a 45° run-stitch grid underlay is stitched first to bond layers and distribute stress.
  • Use two layers of film (do not try to save material on dense designs).
  • Slow machine speed to 600–700 SPM to reduce heat and softening.
  • Success check: the fill stitches build smoothly without the film splitting along needle holes.
  • If it still fails… reduce fill density by 10–15% and re-test the same design.
• Q: What causes gaps between the fill and the satin border on a floating patch made with Madeira E-Zee Badge Film, and which pull compensation setting should be tried?
  A: Most gaps are from pull/shift, so increase Pull Compensation to about 0.4–0.5 mm for the background fill.
  • Re-check hoop tightness first; shifting often starts with uneven tension.
  • Increase pull compensation for the fill so it slightly overlaps under the border.
  • Keep the stitch order consistent: grid → fill → detail → border.
  • Success check: the satin border fully covers the edge with no white film showing through.
  • If it still fails… improve holding power (often a magnetic hoop) and verify the film did not loosen during screw tightening.
• Q: How can you stop birdnesting (thread knots underneath) when stitching floating patches on Madeira E-Zee Badge Film?
  A: Birdnesting usually happens when the film is flagging (lifting)—tighten the hoop and swap to a fresh 75/11 Sharp needle.
  • Re-hoop to restore “drum tight” tension so the film cannot lift with the needle.
  • Replace the needle if it may be burred or heating up during long fills.
  • Listen for changes: a sharp “slap” sound often signals flagging.
  • Success check: the stitch sound stays a steady rhythmic thump and the underside remains neat without loops piling up.
  • If it still fails… slow to 600–700 SPM and inspect for dust/lint buildup near the needle plate (static from film can worsen issues).
• Q: What needle-area safety rule should be followed when holding Madeira E-Zee Badge Film down during a run on an embroidery machine?
  A: Never place fingers near the needle bar while the machine is running—use tweezers or an eraser stick if stabilization is needed.
  • Pause the machine before repositioning film whenever possible.
  • Use precision tweezers to control lifting film and keep hands clear.
  • Keep speed controlled (600–700 SPM is recommended for film) to reduce sudden film lift.
  • Success check: stabilization is done with tools, and hands stay outside the needle strike zone at all times.
  • If it still fails… stop and re-hoop; repeated lifting usually indicates insufficient hoop tension.
• Q: What safety hazards should be considered when using SEWTECH magnetic embroidery hoops for floating patches on Madeira E-Zee Badge Film?
  A: Treat magnetic hoops as a pinch and medical/electronics hazard—handle slowly and keep magnets away from pacemakers and sensitive items.
  • Keep fingers clear as the hoop halves snap together vertically with strong force.
  • Keep magnetic hoops away from pacemakers and medical implants.
  • Keep magnetic hoops away from credit cards and screens.
  • Success check: the film clamps instantly without twisting, and the film feels “drum tight” consistently from hoop to hoop.
  • If it still fails… verify the correct bracket type is installed for the machine arm and re-check the film is stacked flat-side up in two layers.
