Stop Crooked Split Designs: A Pillowcase Multi-Hooping Method That Actually Registers (Even on a 4x4 Hoop)

If you’ve ever finished the center of a beautiful pillowcase design… then held your breath while hooping the left and right panels, you’re not alone. Multi-hooping feels unforgiving because it is—one sloppy mark or one slightly rotated hoop, and the “registration” (how the pieces line up) goes sideways.

In my 20 years of embroidery education, I've seen more frustration caused by "friction-fit" plastic hoops than any other variable. The fabric is slippery, the hoop is tight, and your hands are trying to force a square peg into a round hole without moving it a millimeter.

The good news: the method in this video works because it turns a scary, eyeballed process into a repeatable alignment system—paper templates for truth, hard edges for squareness, and a rigid hoop template so every hooping lands the same way.

And if your machine can’t handle anything bigger than a 4x4 hoop, you can still do this. It just means your marking and hooping discipline matters even more.

Don’t Panic: Split-Design Pillowcase Embroidery Is Hard for a Reason (and That’s Normal)

The moment you commit to a split design, you’re doing three separate “setups” that must agree with each other. It helps to understand the physics of why this fails so you can prevent it:

• The Software Reality: The printed layout must be 100% accurate (no scaling).
• The Transfer Reality: The marks on the fabric must match the layout exactly.
• The Mechanical Reality: The hoop must land on those marks the same way every time.

Most people fail on the third point—not because they’re careless, but because traditional hoops are designed to hold tightness, not to prevent rotational shift. As you tighten the screw, the fabric naturally wants to "corkscrew" or distort. That’s why this tutorial leans so heavily on templates and physical guides.

One viewer said they had to rewatch sections because they “zone out” and then it suddenly clicks why the method works. That’s a real thing: once you understand that you’re building a repeatable alignment system (not just “lining it up”), the whole workflow becomes calmer.

The “Hidden” Prep That Makes Registration Possible: Printed Templates, Dark Lines, and a True 90° Edge

Before you touch the pillowcase, you’re going to build a master paper layout that represents the final stitched result. Think of this as your architectural blueprint.

Print your design templates at true size

The video prints each design section so the templates include center marks.

• Print from the attached PDF, or print directly from embroidery software using File > Print.
• CRITICAL STEP: Ensure your printer settings are set to "Actual Size" or "Scale: 100%".

If you’re doing multi hooping machine embroidery, this “print at 1:1” step is non-negotiable. Even a 2% scaling error translates to a quarter-inch gap when three designs are combined. Sanity Check: Measure the reference scale bar on your printout with a physical ruler before cutting.

Darken the crosshairs (so you don’t “almost” align)

The presenter uses a ruler and a fine-tip pen to darken the printed center lines and also darkens the edges where the outside designs should meet the center.

That sounds small, but it’s huge: faint crosshairs invite “close enough.” Dark crosshairs force precision. When you look through the template later, your eye needs a high-contrast line to lock onto.

Assemble the paper layout using a straight edge and a square

Tape the center template to the desk so it cannot move. Then tape a metal ruler down as a fixed horizontal guide.

Now the clever part: butt a CD jewel case against the ruler to create a reliable 90° vertical edge while you align the side templates.

This is why the method works: you’re not trusting your eyes to keep things straight—you’re using hard edges to lock in geometry.

Prep Checklist (do this before you mark fabric)

• Print Calibration: Templates printed at Actual Size / 1:1 (Measured with ruler).
• Visual Aid: Crosshair lines darkened with a fine-tip pen.
• Hidden Consumables: Fresh masking tape, fine-tip water-soluble pen, and sharp scissors ready.
• Anchoring: Center template taped to the desk (won't slide).
• Geometry Lock: Metal ruler taped down; CD jewel case (or set square) used for side templates.
• Fabric Prep: Pillowcase pre-washed (to shrink) and ironed flat (no steam).

Pillowcase Placement Without Guesswork: Tape the Paper Down, Then Transfer Marks the Smart Way

Once your paper layout is assembled, place it on the pillowcase.

The video uses a standard pillowcase and “eyeballs” the vertical position, with the option to measure if you want to be more precise. Either way, the key is what happens next:

Tape the paper layout to the pillowcase

Tape the paper assembly securely so it cannot shift while you mark.

This is where beginners often rush. If the paper creeps even a little—a millimeter shift—your marks become fiction.

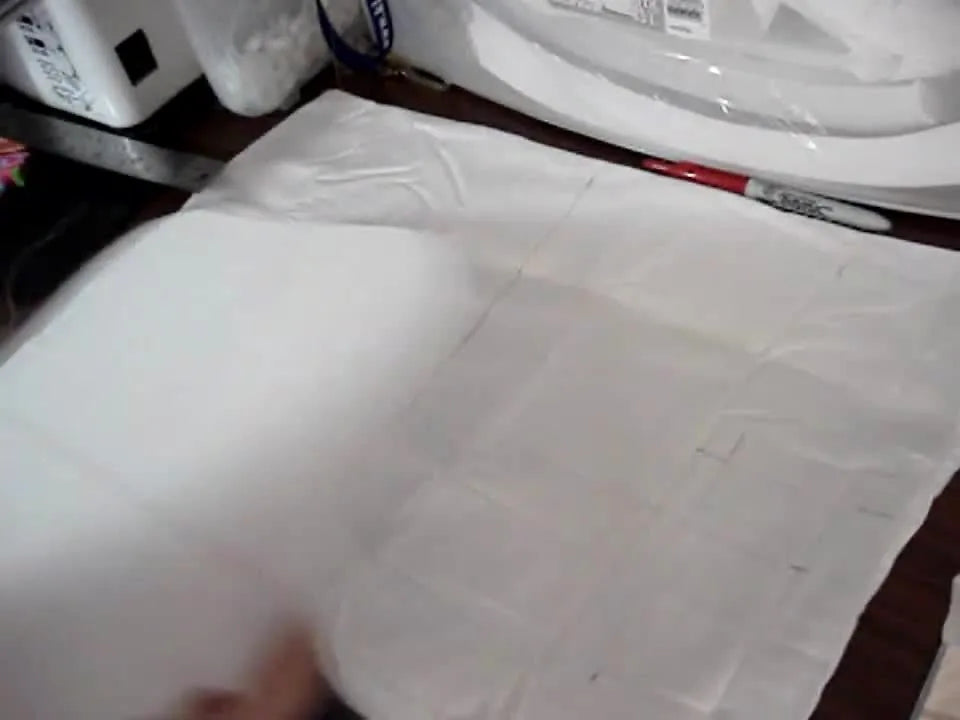

Transfer the center marks to fabric (without smearing your accuracy)

At each crosshair location:

1. Carefully lift or fold back the paper at the crosshair.
2. Use a water-soluble pen or chalk pencil to mark the horizontal/vertical intersection directly on the fabric.
3. Sensory Check: Ensure the fabric is flat; don't drag the pen, use a stippling motion if the fabric pulls.
4. After removing the paper, extend the marks with a ruler so you have usable center lines (at least 3 inches long).


Warning: Sharp Object Safety
Keep scissors, rotary cutters, and craft knives under control when trimming templates or cutting plastic mats. One slip can ruin the pillowcase and your hands. Always cut away from your body, and never cut while the fabric is on your lap.

The classic multi-hooping trap: the side centers are NOT always level with the middle

The presenter calls out the most common mistake: assuming all three designs share the same horizontal center line.

On this pillowcase layout, the side designs are vertically lower than the center design.

If you’ve ever wondered why your left/right panels “look straight” but still don’t meet the center cleanly—this is usually it.

A practical habit: when you finish marking, pause and visually confirm you have three distinct center locations, not one imaginary straight line across the pillowcase.

The $3 Flexible Mat Hack: Build a Rigid Hoop Template That Beats Flimsy Plastic Grids

Most domestic hoops come with a clear plastic grid/template. While useful, they slide around. The video’s workaround is better for repeatability: make a custom template that creates a physical "lip" to align against.

Make the homemade hooping template

• Trace the inside shape of your inner hoop onto a translucent flexible cutting mat.
• Cut it out with scissors. It should fit snugly inside the inner hoop without buckling.

The video uses flexible cutting mats (12 in x 15 in) and notes you can get a multi-pack cheaply.

If you’re in a crunch, the presenter suggests using heavy cutaway stabilizer as template material—but the rigid plastic version is easier to place consistently.

Why this matters (expert perspective): a rigid template reduces “micro-rotation.” Even a tiny twist (1-2 degrees) in hoop orientation becomes obvious when you’re trying to match split designs. The rigid mat forces the hoop to square up.

Hooping a Pillowcase in a Standard Plastic Hoop: The Repeatable Sandwich That Keeps Your Marks Honest

Now you’re ready to hoop. This is the moment of truth where "hoop shift" usually happens.

Use the template to land exactly on your fabric marks

1. Place the homemade template on the pillowcase, aligning the template crosshairs directly over your water-soluble fabric marks.
2. Place the inner hoop ring over the template/fabric “sandwich.”
3. Press the outer ring down until secure.
4. Verification: Look through the template. Do the crosshairs still match?


If you’re searching for hooping for embroidery machine techniques that actually work on slippery or “shifty” projects, this is the core idea: you’re aligning marks to a template first, then locking the hoop around that alignment.

Quick removal tip (so you don’t disturb the fabric)

If the inner hoop is hard to remove because the friction fit is tight, the video shows a gentle trick: use closed scissors to gently pry/slide the hoop clip so it pops out smoothly.

The Masking Tape “Seatbelt”: Stop Fabric Creep Before the First Stitch

Precision isn’t only about where you hoop—it’s also about what happens once the needle starts pulling. The movement of the needle bar (reciprocating 600-800 times a minute) creates a "drumming" effect that pulls fabric inward.

The video adds masking tape around the perimeter of the inner hoop, bridging the fabric inside the hoop to the frame.

This acts like a stabilizing “seatbelt” to reduce fabric pull-in during stitching.

If you’ve ever had a split design start perfectly and then drift by the end, that drift is often fabric creep under stitch tension.

Mark the hoop orientation so you don’t stitch upside down

Before stitching, mark “Top” (or draw an arrow) on the masking tape to match your machine’s feed direction.

This matters even more when the design has to be rotated 90 degrees in software to fit the hoop field (common on 5x7 hoops).

If you’re using hoop for brother embroidery machine setups, don't assume “top of hoop” equals “top of design”—always confirm how your machine feeds the hoop.

Setup Checklist (Right before you stitch)

• Hoop Tension Check: Tap the fabric. It should sound like a tight drum skin, not a dull thud.
• Alignment Audit: Template crosshairs sit exactly on fabric marks (within 1mm).
• Stabilization: Masking tape applied around the inner hoop perimeter (The "Seatbelt").
• Orientation: “TOP” arrow arrow marked on tape to match machine feed.
• Clearance: Checked that the pillowcase bulk is folded away from the needle bar path.
• Machine Prep: Correct needle installed (75/11 Ballpoint for cotton knit, or 75/11 Sharp/Universal for woven cotton) and distinct bobbin thread loaded.

Sewing Order That Saves Your Sanity: Center First, Then Left and Right the Same Way

The video stitches the center section first, confirms it’s right-side up, then repeats the same hooping method for the left and right sections.

This order is smart because the center is your visual anchor. Once it’s correct, you can “register” the side pieces to it using the same marking and hooping discipline.

Operation Checklist (During the run)

• Sequence: Start with the center design section.
• Visual Confirmation: After the first section, confirm orientation is correct (not rotated/upside down).
• Re-Hooping: Follow the exact same template steps for left and right sections.
• Weight Management: Keep the pillowcase supported (hold it lightly or use a table) so its weight doesn’t tug on the hoop.
• Drift Watch: If marks start moving away from the needle position, stop immediately.

Why This Method Works (and How to Avoid the Two Most Expensive Mistakes)

This is the part experienced stitchers feel in their bones: multi-hooping is less about “perfect measuring” and more about controlling variables.

1) Geometry beats eyeballing

Taping the ruler down and using a CD case as a square creates a reliable 90° reference. That prevents gradual skew that you won’t notice until the final stitch-out.

2) Rigid templates reduce repeatability errors

A flimsy grid can flex, shift, or sit differently each time. A cut plastic template behaves the same way every hooping.

3) Tape reduces fabric migration under stitch tension

Masking tape around the hoop edge helps resist the inward pull that can distort registration.

Two expensive mistakes to avoid

• Mistake A: Assuming the side centers are level with the center. The video explicitly shows the side marks are lower. Always trust the printed template.
• Mistake B: Forgetting hoop orientation. If you rotate the design to fit the hoop, you must label “Top” to match feed direction.

A Simple Stabilizer Decision Tree for Pillowcases (so your registration stays crisp)

The video mentions heavy cutaway stabilizer as an emergency template material, but for the actual embroidery, your choice of backing is crucial. Pillowcases are tricky: you want softness (face contact) but need rigidity (registration).

Use this decision tree for best results:

Fabric = Standard Woven Cotton Pillowcase

• Design is light/sketchy: Use Medium Weight Tearaway (x2 layers). It removes cleanly for comfort.
• Design is dense/filled: Use Fusible Poly Mesh (Cutaway). It provides high stability but remains soft against the skin.

Fabric = Soft/Stretchy (Jersey Knit)

• Always: No-Show Mesh (Cutaway) + Temporary Spray Adhesive. Do not use tearaway, or the design will distort (gap) between sections.

Hoop size is small (4x4) and you’re doing multiple hoopings

• Priority = Registration: Choose the stabilizer setup that minimizes distortion (Mesh Cutaway), even if it feels "over-supported." You can trim close to the stitches later.

This is where many hobbyists save time: you’re not trying to make the fabric drum-tight; you’re trying to make it stable under stitch tension.

Troubleshooting Split-Design Pillowcase Embroidery: Symptoms, Likely Causes, Fixes

When things go wrong, pause. Don't rip stitches yet. Diagnose using this table:

When to Upgrade Your Workflow: From “It Works” to “I Can Do This All Day”

This tutorial is a fantastic low-cost way to get perfect registration—people are still calling it useful more than a decade later. But it also reveals where friction hoops cost you time and physical effort.

If you’re constantly fighting the hoop, consider a magnetic hoop upgrade

If you find yourself relying on tape, prying clips, or re-hooping multiple times to get alignment right, that’s a signal—not a personal failure. Traditional hoops rely on friction, which inevitably distorts fabric.

A practical upgrade path:

1. Scenario trigger: You’re doing split designs often, you hate "hoop burn" (shiny marks on fabric), or you lose 15 minutes per item just wrestling tight rings.
2. Judgment standard: If hooping and re-hooping is the slowest part of your process—or if your wrists ache after a session—you’ll benefit from a faster, more consistent clamping method.
3. Option: A quality embroidery magnetic hoop eliminates the need for force. You simply lay the fabric/stabilizer down and snap the magnetic frame on top. The fabric doesn't shift because there is no friction-dragging motion.

If you run a Brother-style domestic machine and want the same “repeatable landing” with less force and fewer marks, many users look specifically for magnetic embroidery hoops for brother or a brother 5x7 magnetic hoop as a significant productivity step-up. The magnets hold the fabric flat without the "corkscrew" distortion of screw-tightened hoops.

Warning: Magnetic Safety
Magnetic hoops use strong industrial magnets. Keep them away from pacemakers and medical implants. Keep fingers clear when snapping the frame shut (pinch hazard), and store them away from children and sensitive electronics.

If you’re scaling beyond hobby pace, build a hooping station workflow

The video’s method is fundamentally a "station" mindset: fixed references, repeatable templates, and consistent orientation.

If you’re doing batches (holiday gifts, team orders, small shop runs), a dedicated embroidery hooping station or hooping station for embroidery machine can reduce setup time and mental fatigue. These tools replace the "tape on desk" method with a permanent, calibrated rig.

And if you ever reach the point where you’re producing the same style of work weekly (e.g., 50+ localized shirts), that’s when multi-needle productivity starts to matter. A high-value multi-needle platform (like SEWTECH’s cost-effective production-focused machines) allows you to leave a standard 5x7 hoop behind for larger fields, turning “three careful hoopings” into a smoother, single-run commercial rhythm.

The Payoff: Perfect Registration Isn’t Luck—It’s a System You Can Repeat

The finished pillowcase in the video shows what you’re aiming for: clean joins, consistent spacing, and a split design that reads like one continuous composition.

If you take only one lesson from this method, make it this: Multi-hooping success comes from controlling alignment variables. Print true size, square your templates, transfer marks carefully, and hoop with a rigid reference.

Once you’ve done it a couple of times, you’ll stop holding your breath on the side panels—and start trusting your process. Happy stitching!

FAQ

• Q: How do I print split-design pillowcase embroidery templates at true size (Actual Size / 100%) to prevent multi-hooping registration gaps?
  A: Print the PDF/software template at “Actual Size / 100%” and verify with a ruler before cutting—this step prevents compounded alignment drift.
  • Set printer options to Actual Size (disable “Fit to Page” or scaling).
  • Measure the printed reference scale bar with a physical ruler before using the template.
  • Reprint immediately if the scale bar is off, even slightly.
  • Success check: The scale bar measurement matches the template exactly, and the three paper sections butt together without forcing.
  • If it still fails: Print from a different program/driver setting (some print dialogs apply hidden scaling).
• Q: How do I avoid misalignment when the left and right pillowcase panels do not share the same centerline as the middle panel in split-design pillowcase embroidery?
  A: Trust the printed template and transfer three separate center locations—do not assume one straight centerline across the pillowcase.
  • Tape the assembled paper layout to the pillowcase so it cannot creep.
  • Mark each crosshair location individually by lifting/folding the paper at the crosshair and marking directly on fabric.
  • Extend each mark with a ruler into usable center lines (about 3 inches) for hoop alignment.
  • Success check: Three distinct center marks are visible on the fabric, and the side centers visibly sit lower/higher as shown by the template (not “forced level” by eyeballing).
  • If it still fails: Rebuild the paper layout using a hard 90° reference (straight edge + square) before remarking fabric.
• Q: How do I build a rigid hoop template from a flexible cutting mat to reduce hoop rotation in multi-hooping pillowcase embroidery with standard plastic hoops?
  A: Cut a snug plastic insert that matches the inner hoop opening—this rigid template makes repeated hoop placement more consistent than a flimsy grid.
  • Trace the inside shape of the inner hoop onto a translucent flexible cutting mat.
  • Cut the shape cleanly so it fits inside the inner hoop without buckling.
  • Align the template crosshairs to the fabric marks first, then clamp the hoop around that alignment.
  • Success check: When the hoop is closed, the template crosshairs still sit exactly on the fabric marks (within about 1 mm) without “twisting” into place.
  • If it still fails: Recut the template for a tighter fit (a loose insert allows micro-rotation).
• Q: How do I know if pillowcase fabric is hooped correctly in a plastic embroidery hoop to prevent drift during split-design stitching?
  A: Hoop with a template-first “sandwich” method and confirm drum-tight tension before stitching—most drift starts with subtle hoop shift.
  • Place the rigid template on the fabric and match crosshairs to the marked center lines.
  • Close the hoop while watching for fabric corkscrewing as the screw tightens.
  • Add masking tape around the inner hoop edge to bridge fabric to hoop (“seatbelt”) before the first stitch.
  • Success check: The fabric sounds like a tight drum when tapped, and the crosshairs still match the fabric marks after hooping.
  • If it still fails: Stop and re-hoop immediately; changing stabilizer to a more stable option (often mesh cutaway) may reduce pull-in on small hoops.
• Q: How do I stop fabric creep and registration drift during split-design pillowcase embroidery using masking tape around the hoop?
  A: Apply masking tape around the perimeter of the inner hoop to limit inward pull from stitch tension—this is a common fix for drift mid-design.
  • Tape around the inner hoop edge, bridging the fabric inside the hoop to the hoop frame.
  • Support the pillowcase bulk during stitching so its weight does not tug on the hoop.
  • Stop immediately if the needle position starts “walking away” from the marked target area.
  • Success check: The stitched section finishes with the end point landing where the template/marks predicted, not drifting inward.
  • If it still fails: Re-evaluate stabilizer choice (tearaway vs mesh cutaway) and reduce opportunities for fabric movement before restarting.
• Q: What stabilizer should I use for a woven cotton pillowcase versus stretchy jersey knit to keep multi-hooping registration crisp in split-design embroidery?
  A: Match stabilizer to fabric and design density—registration improves when the fabric stays stable under stitch tension, not just “tight in the hoop.”
  • Choose medium-weight tearaway (often 2 layers) for light, sketchy designs on standard woven cotton.
  • Choose fusible poly mesh cutaway for dense/filled designs on woven cotton when maximum stability is needed with softness.
  • Choose no-show mesh cutaway plus temporary spray adhesive for stretchy jersey knit (tearaway often distorts knits).
  • Success check: After stitching, the fabric around the design looks flat (no rippling), and the split sections meet without growing gaps.
  • If it still fails: Treat registration as the priority on small hoops and move to a more stable cutaway setup even if it feels “over-supported.”
• Q: What are the key safety precautions for cutting embroidery templates and handling magnetic embroidery hoops during split-design pillowcase embroidery?
  A: Control cutting tools and treat magnetic hoops as pinch- and medical-risk equipment—these risks are real and easy to prevent.
  • Cut templates on a stable surface and cut away from the body (never cut while fabric is on the lap).
  • Keep scissors/rotary cutters/craft knives parked safely when not in use.
  • Keep magnetic hoops away from pacemakers/medical implants and away from children and sensitive electronics.
  • Success check: No slipping while cutting, and fingers stay clear when snapping a magnetic frame shut (no pinch incidents).
  • If it still fails: Switch to safer tools (e.g., scissors instead of a blade for small cuts) and slow the workflow—rushing causes most injuries.
• Q: When should pillowcase multi-hooping workflow move from Level 1 technique fixes to Level 2 magnetic embroidery hoops or Level 3 multi-needle productivity upgrades (SEWTECH multi-needle embroidery machines)?
  A: Upgrade when hooping friction and rework become the bottleneck—start with technique discipline, then reduce variable sources with better clamping, then scale production capacity.
  • Level 1 (Technique): Standardize printing at 100%, hard-square the paper layout, transfer marks carefully, and use a rigid hoop template + masking-tape “seatbelt.”
  • Level 2 (Tool): Choose magnetic hoops when plastic hoop force causes hoop burn, wrist fatigue, repeated re-hooping, or rotational shift during tightening.
  • Level 3 (Capacity): Consider a multi-needle platform when repeated split-hooping is limiting throughput and you need a smoother production rhythm.
  • Success check: Hooping time drops, re-hoops become rare, and split sections consistently register without “holding your breath.”
  • If it still fails: Audit the workflow step-by-step (print scale → template squareness → mark transfer → hoop orientation labeling) to find where repeatability breaks.
