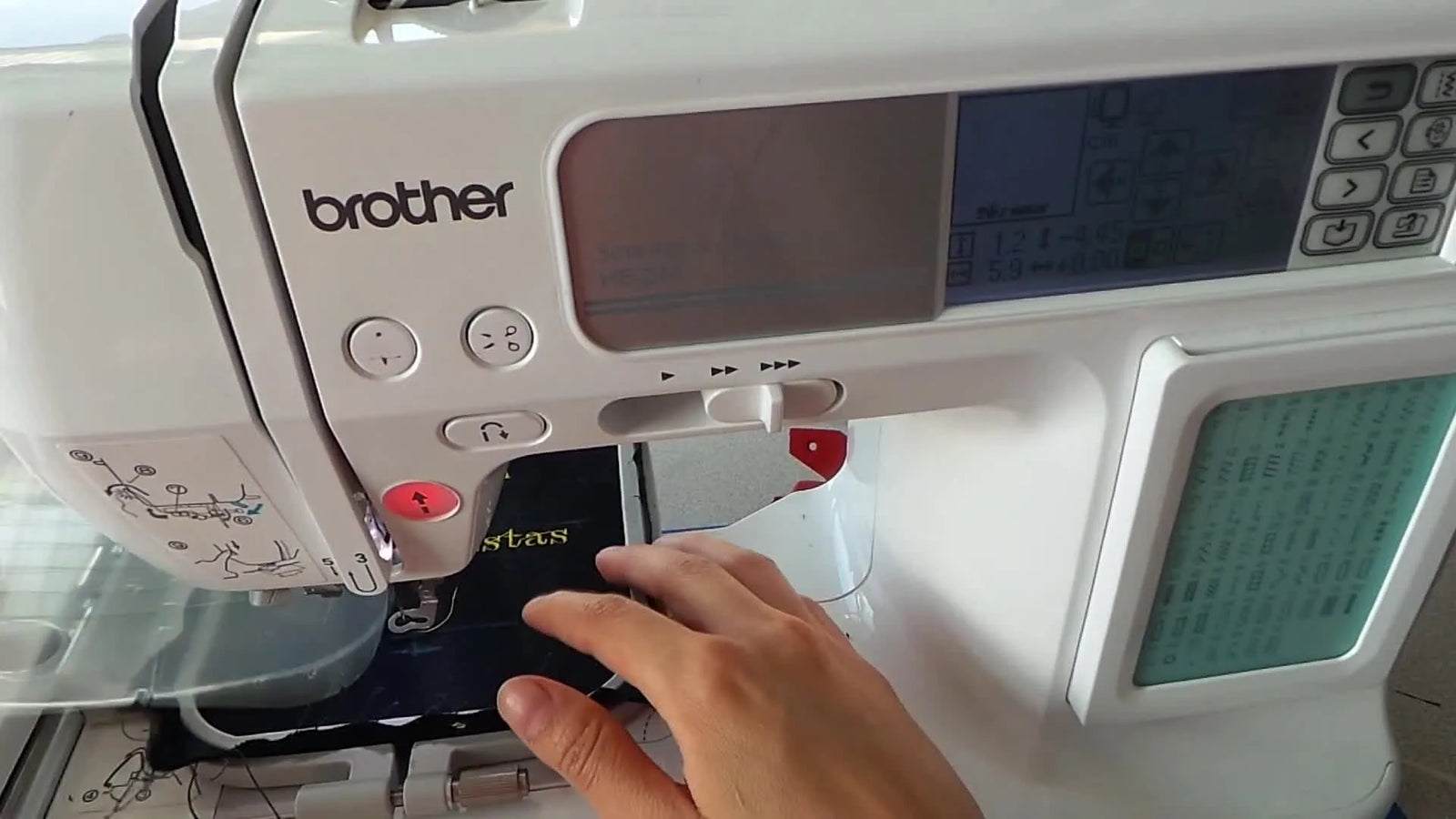

Stop Crooked Lettering on a Brother HE-240: A Grid-and-Marking Routine That Makes Placement Predictable

If you have ever stared at your embroidery machine’s LCD screen, then looked at your hoop, and thought, “I swear I centered it… why is the name climbing uphill like a mountain goat?”—take a deep breath. You are experiencing a cognitive disconnect between the digital preview and physical reality.

Placement is not a talent you are born with; it is a mechanical, repeatable routine. In the commercial embroidery world, we don't guess. We have protocols.

In this "White Paper" style guide—based on a foundational drill using the Brother HE-240 platform—we will dismantle the fear of ruining a garment. You will stitch three lines of text (HOLA, COMO Estas, Nos vemos) to master the two skills that separate "lucky" hobbyists from reliable producers: Physical Referencing and Digital Verification.

The Calm-Down Primer for Brother HE-240 Placement: You’re Not “Bad at Embroidery,” You’re Missing Reference Points

Here is the psychological trap: Most beginners fight the machine. They try to eyeball the center of the hoop, assuming the center of the plastic frame aligns perfectly with the grain of the fabric. It rarely does.

When you don’t have a marked baseline, your brain attempts to "average" the fabric grain, the hoop edge, and the screen design. This cognitive load leads to errors.

This drill forces one simple, non-negotiable habit: You never press the green button until you can prove—mathematically—where the needle will land.

A Note on Speed: Commercial machines run at 1000+ stitches per minute (SPM). For this precision text drill, if your machine allows speed control, throttle down to the Beginner Sweet Spot (400–600 SPM). High speed on small lettering often leads to thread breaks and messy columns. Slow down to gain control.

Cut a Clean Practice Square with a Rotary Cutter + Omnigrid Ruler (Because Wavy Edges Lie)

Garbage in, garbage out. If your practice fabric has jagged, scissor-cut edges, your eye will naturally try to align the text to those crooked edges. You need a "Control Variable."

The Protocol:

1. Material: Use a scrap of thick fabric (canvas, denim, or stiff felt).
2. The Tool: Use a rotary cutter and an Omnigrid (or similar) quilting ruler.
3. The Cut: Square up the fabric. You want perfect 90-degree corners.

Hidden Consumable: Always keep a fresh blade. A dull blade requires more pressure, which leads to slipping. You should hear a crisp shhhhk sound as it slices—if you hear a crunching or tearing sound, change the blade.

Warning: Blade Safety
Rotary cutters are surgical instruments. They do not forgive slips.
* Never cross your arms while cutting.
* Always engage the safety lock immediately after the cut.
* Keep your non-cutting hand flat on the ruler, fingers away from the edge (the "spider hand" technique).

Hooping Thick Fabric in a Standard 4x4 Hoop: Tight Enough to Hold, Not Tight Enough to Distort

This is the number one cause of "puckering" and misalignment. The video demonstrates using thick fabric with no backing.

• Expert Note: In a professional setting, we almost always use backing (stabilizer). However, for this specific placement drill on stiff canvas, going backing-free helps you focus purely on the mechanics of hooping.

The Tactile Test: Slide your fabric into the standard brother 4x4 embroidery hoop. Tighten the screw, then push the inner ring down.

1. Touch: Tap the fabric in the center. It should sound like a dull drum—thump, thump.
2. Sight: Look at the weave of the fabric. Are the vertical threads curving like a banana? If yes, you pulled too hard.
3. The "Hoop Burn" Risk: Standard hoops rely on friction and friction ridges. On delicate items or thick velvet, this pressure leaves permanent "hoop burn" marks.

• Scenario: If you are fighting to close the hoop on a thick Carhartt jacket, or your wrists hurt from tightening the screw, you have reached the limit of standard tools. This is where professionals switch to Magnetic Hoops. They use clamping force rather than friction, preventing hoop burn and saving your wrists.


The “Hidden” Prep: Mark Three 0.5-Inch Rows Using a Plastic Grid Template (This Is the Whole Game)

Stop guessing. We are going to draw the "Truth" directly onto the fabric.

The Setup:

1. Insert the Grid: Place the clear plastic grid template that came with your machine inside the inner hoop ring. It should snap or sit flush.
2. The Consumable: Use a water-soluble pen or tailor’s chalk. (Do not use ballpoint pen; it bleeds and ruins the thread).
3. The Action: Use the template’s holes or side notches to mark three horizontal lines, spaced exactly 0.5 inches (12.7mm) apart.

By doing this, you transfer the coordinate system from the machine to the physical world. If the fabric shifts during hooping, these lines tell you.

Prep Checklist: The "No-Go" Criteria

Do not proceed to the machine until all boxes are checked.

• Fabric Geometry: The square is cut with true 90-degree corners (no jagged scissor cuts).
• Tension Check: Fabric is hooped flat; tapping it produces a drum-like sound, but the fabric weave is not distorted.
• The "Truth" Lines: Three distinct parallel lines are drawn 0.5" apart.
• Visibility: The marking pen contrasts clearly with the fabric color.
• Template: The plastic grid template is removed from the hoop but kept within arm's reach.

Brother HE-240 Text Layout for Line 1 (“HOLA”): Use Top Alignment + Layout Check Before You Stitch

Now, we sync the machine to your marks. On the Brother HE-240 (and most similar LCD screens), the digital representation is an approximation.

Step-by-Step:

1. Input: Select "HOLA."
2. Alignment: In the layout screen, move the text to the TOP of the embroidery field.
3. The Critical Step - Layout Check (Trace): Press the button that looks like a box with arrows (often called "Trace" or "Check").

Sensory Verification: Watch the hoop move. It will trace the outer boaundary of the word "HOLA."

• Visual: Does the needle verify the top-left corner and top-right corner?
• Check: Does that imaginary box align with your first drawn line? If the needle travels 5mm above your line, your text will float. Adjust the starting position on the screen until the trace matches your line.




The Pro Move: Put the Grid Template Back In While the Hoop Is Attached to the Machine

This technique is the specific "secret sauce" of this tutorial.

Most users trust the LCD screen. Do not trust the screen.

1. Attach the hoop to the embroidery arm. Listen for the distinct click of the locking mechanism.
2. Gently place the plastic grid template back into the hoop while it is on the machine.
3. Use the manual needle drop buttons (or handwheel) to lower the needle slightly (do not pierce the plastic!).

The Verification: Look at where the needle point hovers over the grid. Does it match the center crosshair or your starting line? This closes the loop between "Digital Intent" and "Physical Reality."

Line 2 on Brother HE-240 (“COMO Estas”): How the Underscore Icon Creates a Real Space

Novices try to "eyeball" the space between two words by dragging them around the screen. This creates uneven gaps.

The Commercial Standard:

1. Type "COMO".
2. Do not just start a new word. Locate the Underscore/Space Icon (_) in the character menu.
3. Select it constraints a fixed, mathematical space.
4. Type "Estas".

This ensures strict kerning. If your machine treats multiple words as one object, you can center the whole phrase easily. If you drag them separately, you are guessing.

The Size Button Reality Check: When the Brother HE-240 Beeps, You’re Hit the Hoop Limit

You want to make "Estas" bigger. You press the "Size" button. You press "Large."

• The Audio Cue: Beep-beep! (or a refusal icon).
• The Meaning: The machine represents a hard physical limit. A 4x4 (100mm x 100mm) hoop has a safe sewing field of roughly 3.93 inches.

This is a common frustration point described in search queries like "why won't my brother machine size up?"

• The Physics: The carriage cannot physically move the hoop further without hitting the arm.
• The Trap: If you ignore this and try to trick the machine (e.g., by using a larger hoop setting in software than you have physically), you risk Needle Strike—where the needle slams into the plastic frame. This can shatter the needle found inside the machine mechanism. Always respect the beep.




Setup Checklist: The "Pre-Flight" Check

Perform this immediately before pressing the Start/Green button.

• Bobbin Check: visually confirm you have enough bobbin thread for the text (white thread visible in the window).
• Clearance: The grid template has been REMOVED from the hoop (double-check this; stitching through plastic is a disaster).
• Trace Confirmed: You ran the "Layout Check/Trace" and the needle path followed your drawn line exactly.
• Start Point: The needle is positioned at the start of the design (usually center or top-left, depending on your machine settings).
• Speed: Machine speed is reduced to the "Sweet Spot" (if adjustable) for cleaner text.

Line 3 Placement: Use the Bottom Notch on the Grid Template to Respect the Embroidery Field

For the final line, Nos vemos, we risk running out of room at the bottom of the hoop.

The Protocol:

1. Move the design to the bottom of the screen.
2. Place the grid template back in.
3. The Check: Look at the Bottom Notch of the plastic template. This notch indicates the absolute limit of the sewing field.
4. If your third drawn line is below that notch, you cannot stitch there. You must re-hoop or move the line up.

Expert Insight: This bottom margin is where 90% of hoop strikes happen. Users try to squeeze one last name in. Using the template notch is your physical firewall against machine damage.

Why This Marking Method Works (and Why It Fails When You Rush)

Why do we do this? Because Hoop Geometry $\neq$ Fabric Geometry.

Even if you hoop perfectly, the fabric grain might torque slightly (skew). By drawing lines on the fabric, you are aligning the text to the garment, not the plastic ring.

The Upgrade Path: Solving the Hooping Pain The standard standard hoop requires hand strength and perfect alignment. If you are doing production runs (e.g., 50 polo shirts), the standard hoop is slow and causes fatigue.

• The Solution: This is where a magnetic embroidery hoop becomes essential.
• The Mechanism: Instead of screwing an inner ring into an outer ring (friction), you place the bottom frame, lay the fabric, and snap the top frame on magnetically.
• The Benefit: It prevents "active distortion" (pulling the fabric as you tighten the screw) and dramatically speeds up the process. For thick items like the canvas used in this drill, magnetic hoops are often the only way to get a flat surface without hoop burn.

The Most Common “Looks Wrong” Moment: Inconsistent Text Sizing Between Words

In the video drill, "Estas" could not be enlarged to match "COMO".

• The Lesson: In embroidery, you are constrained by Stitch Density.
• The Science: As you scale a font up, the software adds stitches (stitch processing). If you scale down too much, stitches overlap and clump. If you scale up too much on a basic machine, you hit the field limit.
• The Fix: On a PC, you effectively have infinite editing. On the machine screen, you are limited by the built-in processor rules. For exact logo sizing, do your editing on a computer, then transfer the file via USB.

Finishing Like a Pro: Trim Jump Stitches While the Fabric Is Still Supported

Once the machine sings its "Finished" song:

1. Remove the hoop from the machine.
2. Do NOT pop the fabric out yet.
3. Place the hoop clearly on a flat table.
4. Use Curved Embroidery Snips (the ones with the little hook) to trim the "Jump Stitches" (the connecting threads between letters).

Why wait to unhoop? The hoop acts as a tensioner. If you unhoop and the fabric goes floppy, it is much harder to trim closely without accidentally snipping the garment or the knot.

Operation Checklist: Post-Production

• Clean Trims: All jump stitches are removed; no loose tails are visible on the front.
• Back Check: Flip the hoop. The bobbin thread (usually white) should create a neat column occupying the center 1/3 of the satin stitch. This indicates perfect tension.
• Marking Removal: The drawn lines are visible. (Use a water pen or brush off the chalk).
• Stability: The text is straight relative to the lines, even if the lines are crooked in the hoop.

A Simple Stabilizer Decision Tree (Because “No Backing” Is Not a Universal Rule)

The video shows stitching without backing. This is for the specific drill on stiff canvas only. Do not do this on a T-shirt.

Decision Tree: Stabilizer Selection

• Scenario A: Stiff Canvas / Heavy Denim (Practice Drill)
  • Stabilizer: None (Acceptable for practice) or Tear-away.
  • Why: The fabric supports its own weight.
• Scenario B: T-Shirts / Polos / Knits (Stretchy)
  • Stabilizer: Cut-away (Must use).
  • Why: Stretches causes gaps. Cut-away provides a permanent skeleton.
• Scenario C: Towels / Fleece (Fluffy)
  • Stabilizer: Tear-away on back + Water Soluble Topping on top.
  • Why: The topping prevents stitches from sinking into the pile.
• Scenario D: Thick Jackets (Hard to Hoop)
  • Stabilizer: Cut-away or Tear-away.
  • Tool: High risk of hoop pop-off. Use a magnetic embroidery hoop to secure the sandwich layers firmly.

Where to Get the Grid Template—and What to Do If Your Machine “Automatically Measures”

"I lost my plastic sheet!" is a common cry.

1. Replacement: You can buy generic grid sheets and cut them to size.
2. Upgrade: Search for a hooping station for embroidery. These systems often include specific fixtures that hold the hoop and the template in perfect alignment while you just slide the shirt on.

While expensive machines have cameras, the humble plastic grid remains the most reliable "analog verification" tool for the HE-240 class.

When Your Workflow Outgrows Plastic Hoops: The Upgrade Path That Actually Saves Time

The method specifically described above is perfect for onesies and twosies. But what if you get an order for 20 team shirts?

The Bottleneck: The standard screw-tighten hoop takes 2–3 minutes to set up perfectly per shirt. That is 60 minutes of unpaid labor just for setup.

The Logic of Upgrading:

• Level 1 (Technique): Use the grid template (as learned today). Cost: $0.
• Level 2 (Tooling): Implement magnetic embroidery hoops. They snap on in seconds. This reduces setup time to ~30 seconds per shirt and eliminates hoop burn on sensitive fabrics.
• Level 3 (System): Use a hoop master embroidery hooping station or similar embroidery hooping system. These are jigs that ensure every logo lands in the exact same spot on every shirt size, removing the need to measure each one individually.
• Level 4 (Capacity): If you are consistently capping out the 4x4 limit or waiting for color changes, consider a multi-needle machine (like SEWTECH models) which run faster and hold all colors simultaneously.

Warning: Magnetic Field Safety
Magnetic Hoops rely on powerful Neodymium magnets.
* Pinch Hazard: These snap together with extreme force. Keep fingers clear of the mating surfaces.
* Medical Devices: Maintain a safe distance (usually 6 inches+) if you have a pacemaker or insulin pump.
* Electronics: Do not place them directly on laptops or credit cards.

The One Practice Drill That Pays Off Fast: Repeat This on Scrap Until You Can Predict the Stitch-Out

Do not rush to specific garments. Spend an afternoon with a yard of scrap canvas.

The Loop: Mark. Hoop. Trace. Stitch. Mark. Hoop. Trace. Stitch.

When you can predict exactly where the "H" in "HOLA" will land before the needle moves, you have graduated. You are no longer guessing; you are operating.

FAQ

• Q: How can Brother HE-240 embroidery placement be made straight when the LCD preview looks centered but the stitched name “climbs” or tilts?
  A: Stop trusting the LCD preview and align Brother HE-240 text to physical reference lines using Trace/Layout Check before stitching.
  • Mark: Draw three parallel lines 0.5 in (12.7 mm) apart on the fabric using the Brother plastic grid template and a water-soluble pen/chalk.
  • Trace: On the Brother HE-240, use Layout Check/Trace and move the design until the traced boundary matches the drawn line (not the hoop edge).
  • Verify: Reinsert the plastic grid template while the hoop is attached and hover the needle down slightly to confirm the needle aligns with the intended start reference.
  • Success check: The traced top boundary of “HOLA” visually rides exactly on the first drawn line, left-to-right, before the green button is pressed.
  • If it still fails: Re-hoop and repeat the marking step—fabric grain shift during hooping is a common cause of “uphill” text.
• Q: What is the correct hooping tension for thick fabric in a Brother 4x4 embroidery hoop to prevent puckering and misalignment?
  A: Hoop thick fabric “drum tight but not distorted” in the Brother 4x4 embroidery hoop—tight enough to hold, not tight enough to bend the weave.
  • Tap: Tighten the screw, seat the inner ring, then tap the center of the fabric.
  • Inspect: Look closely at the weave; stop tightening if vertical threads curve or skew (a “banana” distortion).
  • Avoid: Don’t overtighten to the point of wrist strain—this increases distortion and hoop burn risk.
  • Success check: The fabric makes a dull drum “thump” sound and the weave stays straight (no visible torque).
  • If it still fails: Consider switching to a magnetic embroidery hoop for clamping-style holding, especially when thick items are hard to close in a screw hoop.
• Q: Why does the Brother HE-240 embroidery machine beep when using the Size button to enlarge text in a 4x4 hoop?
  A: The Brother HE-240 beeps because the enlarged design exceeds the physical sewing field limit of the 4x4 hoop, so the carriage cannot safely move.
  • Reduce: Scale the text down until the machine accepts the size change without refusal.
  • Reposition: Use layout positioning (top/bottom placement) and run Trace to confirm boundary clearance before stitching.
  • Don’t bypass: Do not “trick” the machine by selecting a larger hoop setting than the hoop installed—this can cause a needle strike into the frame.
  • Success check: Trace/Layout Check completes with clear space inside the hoop boundary and no warning beeps.
  • If it still fails: Edit sizing on a computer and re-export the file, or choose a different layout that fits within the 4x4 field.
• Q: How can Brother HE-240 embroidery spacing between “COMO” and “Estas” be made even instead of uneven gaps from dragging words on the screen?
  A: Use the Brother HE-240 underscore/space icon to create a fixed, consistent space instead of manually dragging word positions.
  • Type: Enter “COMO”.
  • Insert: Select the underscore/space character (_) from the character menu to force a consistent gap.
  • Finish: Type “Estas” and align the whole phrase as one object before running Trace.
  • Success check: The on-screen layout keeps a uniform gap and the traced boundary shows a stable, predictable word block.
  • If it still fails: Re-enter the text using the space icon again—manual dragging commonly introduces uneven spacing.
• Q: What is the safest way to use the Brother plastic grid template during Brother HE-240 embroidery placement without stitching through the plastic?
  A: Reinsert the Brother plastic grid template only for needle-position verification, then remove it before pressing Start.
  • Attach: Lock the hoop onto the Brother HE-240 embroidery arm until the hoop clicks in place.
  • Verify: Gently set the grid template into the hoop and lower the needle slightly using manual controls—do not pierce the plastic.
  • Remove: Take the template out immediately after verification and before starting the stitch-out.
  • Success check: The pre-flight check confirms the grid template is removed and Trace matches the drawn reference line.
  • If it still fails: Slow down and repeat the sequence—forgetting the template in the hoop is a common, preventable mistake.
• Q: What pre-flight checklist prevents Brother HE-240 embroidery text from failing mid-design due to setup mistakes?
  A: Run a short Brother HE-240 pre-flight check: bobbin supply, template removed, trace confirmed, start point correct, and speed reduced for small text.
  • Confirm: Visually check enough bobbin thread is available for the full text line.
  • Double-check: Ensure the plastic grid template is removed from the hoop (stitching into plastic can cause damage).
  • Trace: Run Layout Check/Trace and confirm the needle path follows the drawn line exactly.
  • Reduce: Set speed to a controlled range if adjustable (a safe starting point is slower for small lettering).
  • Success check: Trace matches the physical marks and the machine is ready with clear needle path and adequate bobbin thread.
  • If it still fails: Stop immediately and re-run Trace; placement errors are easier to correct before the first stitches land.
• Q: What are the key safety risks when upgrading from a standard screw hoop to a magnetic embroidery hoop for thick jackets or high-volume work?
  A: Magnetic embroidery hoops are faster and reduce hoop burn, but the magnets create a serious pinch hazard and require basic medical/electronics precautions.
  • Keep clear: Keep fingers away from mating surfaces—the frames can snap together with high force.
  • Separate safely: Handle frames with controlled placement rather than “letting them jump” together.
  • Maintain distance: Keep magnetic hoops a safe distance from pacemakers/insulin pumps and avoid placing them on sensitive electronics or cards.
  • Success check: The hoop closes cleanly without finger contact in the clamp zone, and the fabric sits flat without over-tightening.
  • If it still fails: Step back to Level 1 technique—improve marking + Trace verification first—then reintroduce magnetic hoops when the workflow is controlled.
