Stop Crooked Designs and Hoop Burn: A Veteran’s Hooping Method for Bernina & Baby Lock Machine Embroidery Hoops

If you have ever pulled a finished hoop off your machine only to find a “ghost ring” crushed into your velvet, or watched in horror as your perfectly centered monogram drifted 5mm to the left during stitching, you aren’t alone. You are a victim of the “friction trap.”

Embroidery is an engineering discipline disguised as art. Crooked placement and the dreaded “hoop burn” are rarely mysterious curses; they are the mathematical result of cumulative errors in tension, alignment, and pressure.

In this guide, we are going to deconstruct the standard hooping workflow, stripped of guesswork, and rebuilt with veteran-level sensory checkpoints. We will move beyond "try your best" and establish a protocol that protects your fabric, saves your wrists, and prepares you for professional consistency.

1. Anatomy of a Grip: Bernina vs. Baby Lock Hoop Architecture

Before we wrestle with fabric, we must understand the weapon of choice. Not all machine embroidery hoops behave the same way, and treating a Bernina oval hoop like a Brother rectangular hoop is a recipe for slippage.

• The Bernina "Oval" Family: Common on 5/7/8 series machines. These rely on a single-point screw tension. They have a distinct "front" and "back" geometry.
• The Baby Lock / Brother "Rectangular" Family: Often feature broader corners. These provide a different surface area for grip.
• The Multi-Needle "Quick Snap" Style: These are two-piece systems distinct from domestic hoops, often requiring a completely different muscle memory.

The Physics of Failure: A hoop is not just a clamp; it is a suspension bridge. It must hold the fabric taut (tension) without crushing the fibers (compression). If you don't understand the specific locking mechanism of your hoop, you will inevitably over-tighten the screw to compensate, which is the primary cause of hoop burn.

Hidden Consumables Checklist: Before you start, ensure you have:
* 505 Temporary Spray Adhesive: For bonding layers.
* Water-Soluble or Air-Erase Pen: For marking without permanent damage.
* 75/11 Embroidery Needles: A fresh needle prevents drag that distorts fabric.
* Shelf Liner (Non-slip mat): The secret weapon for wrist health.

2. The "North Star" Rule: Aligning Arrows to Zero Your Coordinates

Every hoop manufacturer molds small visual cues into the plastic—usually arrows or triangles—on both the inner and outer rings.

The Amateur Mistake: Ignoring these arrows forces the inner hoop into a shape it wasn't molded for (plastic has a "memory"). This leads to uneven tension gaps where fabric can pucker.

The Professional Protocol:

1. Locate the Arrows: Find them on the bottom edge of both rings.
2. Orient Body-Centric: Place the outer hoop on your table so the tightening screw/arrow is closest to your body (6 o'clock position).
3. Label the Top: As demonstrated in the lesson, take a permanent marker and write "TOP" or "FRONT" on the bracket side of the hoop. This visual anchor prevents you from hooping upside down—a common error that traps bulk fabric in the throat of the machine.


3. The Crosshair Method: Engineering Your Center Point

"Eyeballing it" is not a strategy. If placement defines quality (and for monograms, it does), you need a geometric reference.

The "Rule of 90"

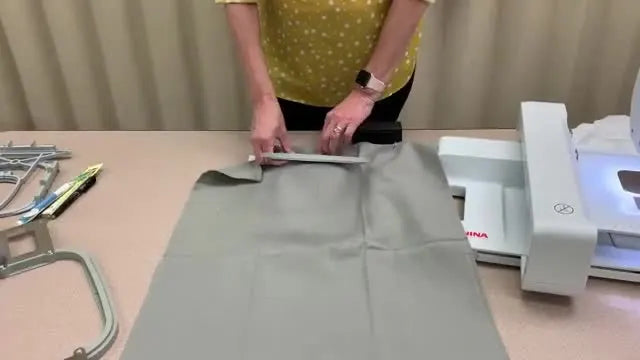

1. Measure the Field: Use a ruler to find the physical center of your garment area.
2. Draw Axis X: Mark your horizontal line.
3. Draw Axis Y: Mark your vertical line perpendicular to X.
4. The Sensory Check: When drawing, the pen should glide. If the fabric drags or bunches under the pen tip, your marking tool is too sharp or the ink is too dry. Use a high-quality water-soluble marker or tailor's chalk.

Why This Matters: If your lines aren't exactly 90 degrees, no amount of re-hooping will fix the tilt. You are giving the machine a crooked map.

4. The "Composite Material" Trick: 505 Spray + Stabilizer Sandwich

Here is the secret to why commercial embroidery looks flatter than home embroidery: Lamination.

The instructor demonstrates using 505 temporary spray adhesive to bond the fabric to the stabilizer before hooping.

The Physics:

• Without Spray: Fabric and stabilizer are two separate sheets held together only by the hoop's edge friction. The needle can push the fabric layer around (flagging) while the stabilizer stays put.
• With Spray: You create a single composite material. The fabric has no choice but to move with the stiff stabilizer.

Decision Tree: Stabilizer Strategy

• Scenario A: Stretchy Knits (T-Shirts)
  • Stabilizer: Cutaway (2.5oz or 3.0oz).
  • Adhesion: Moderate spray.
• Scenario B: Stable Wovens (Quilting Cotton)
  • Stabilizer: Tearaway (Medium weight).
  • Adhesion: Light spray.
• Scenario C: High Pile (Towels)
  • Stabilizer: Tearaway (bottom) + Water Soluble Topping (top).
  • Adhesion: Basting stitch (spray ruins loops).

For correct hooping for embroidery machine workflows, this bonding step is the single most effective way to eliminate puckering.

Warning: Chemical Safety
Temporary adhesive sprays serve a great purpose but are airborne glues.
* Ventilation: Always spray in a ventilated area or inside a cardboard "spray box."
* Machine Safety: NEVER spray near your embroidery machine. The mist settles on hook assemblies and sensors, causing sticky jams that void warranties.

5. The "Rattle Test": Pre-Setting the Screw to Prevent Burn

This is the counter-intuitive step that separates pros from beginners.

The Action: Before the hoop touches the fabric, loosen the outer screw until the inner hoop feels surprisingly loose inside it. The Sensory Anchor: Shake the nested hoops. You should hear them rattle. If they fit snugly without fabric, they are too tight.

Why Hoop Burn Happens: Hoop burn isn't just pressure; it's friction. If you have to shove the inner hoop effectively "sanding" the fabric fibers as it slides down, you break the fibers. By loosening the screw drastically, you allow the hoop to seat with zero friction, applying pressure only when you tighten the screw at the end.

PREP CHECKLIST: The "No-Go" Criteria

• Arrows Aligned: Inner and outer hoop arrows point to 6 o'clock.
• Marking Integrity: Crosshairs are visible and chemically removable.
• Composite Bond: Fabric is sprayed and smoothed onto stabilizer (no wrinkles).
• The Rattle Test: Outer screw is loose enough that inner hoop drops in freely.

6. The "Shelf Liner Hack": Ergonomics for Production

Hooping is hard on the carpals. The instructor uses a piece of rubberized shelf liner (grip mat) under the hoop.

Why:

1. Stability: It creates high static friction on the table, stopping the outer hoop from spinning like a record while you tighten.
2. Safety: It prevents the metal hoop hardware from scratching your dining room table or workbench.


7. The "Gravity Drop": Seating the Hoop Without Force

Now, the moment of truth.

1. Place the outer hoop on the shelf liner.
2. Drape your fabric/stabilizer sandwich over it.
3. Align your drawn crosshair visually with the side indentations of the hoop.
4. The Action: Press the inner hoop straight down.
5. The Sensory Check: It should drop in with the resistance of a closing drawer, not a stuck jar lid. If you have to stand up and put your weight on it, STOP. Loosen the screw. You are crushing the fabric.


8. The Template Verification: "Trust, but Verify"

Machines don't guess. Neither should you.

Place the plastic grid template inside the inner hoop.

• Visual Check: Are your drawn lines parallel to the grid lines?
• The Drift Tolerance: If the center point is off by 5mm, that’s fine—you can adjust that on the machine screen. But if the lines are rotated (crooked), no machine button can fix that. You must pop it out and re-hoop.


9. The "Finger-Trap" Technique: Tightening Without Slippage

As you tighten the screw, the outer ring wants to shrink, which often ejects the inner ring upwards (the "pop-out" effect).

The Protocol:

1. Pin it: Use your thumb and index finger to forcefully hold the inner hoop DOWN against the table.
2. Tighten: Use your other hand to turn the screw.
3. The Limit: Tighten until "finger tight." Then, if you have a screwdriver slot, give it one half-turn more. Do not crank it like a car tire lug nut.


SETUP CHECKLIST: The "Pre-Flight"

• Template Match: Fabric lines are parallel to the plastic grid.
• Surface Tension: Fabric is taut but not stretched (knits aren't distorted).
• Hardware Check: Screw is tightened, inner hoop hasn't popped up.

11. The "Bed Clearance" Push: Saving Your Machine

This is a master-level tip often skipped in manuals.

Once tightened, flip the hoop over. Push the inner hoop 1-2mm deeper than the outer hoop effectively pushing it "through" the bottom.

Why:

• Machine Protection: This ensures that the soft fabric/stabilizer sits on the machine bed, not the hard plastic rim of the inner hoop. This prevents the "screeching" sound of plastic dragging on metal and protects your machine's needle plate area from scratches.
• Stability: It puts the fabric closer to the needle plate, reducing "flagging" (bouncing) and improving stitch registration.


Warning: The Pinch Hazard
Hooping involves force and mechanical parts.
* Fingers: Keep fingers clear of the gap between rings when pressing down.
* Pop-Outs: If a hoop slips while you are applying weight, your hand can slam into the table/screw. Use the shelf liner to prevent slippage.

12. The "Tambourine" Test: Final Sensory Validation

You are done hooping. How do you know it’s good?

The Sound Check: Tap the fabric with your finger. It should make a dull thump sound, like a loose drum. The Touch Check: Run your fingernail lightly across the fabric. It should not ripple or create a "wave" in front of your finger. The "Skin" Check: The fabric should look smooth, like skin over a muscle. If it looks "strangled" or warped, you are too tight.

13. Troubleshooting: The "Why Did That Happen?" Matrix

14. Scaling Up: When Manual Hooping Becomes the Bottleneck

If you are hooping one gift a month, the method above is perfect. However, if you are running a small business or tackling a 50-shirt order, manual screw-tightening is a productivity killer and a health risk (Repetitive Strain Injury is real).

This is where you diagnose your pain point and apply the right tool.

Scenario A: "My wrists hurt, and I leave marks on delicate fabrics."

• The Upgrade: Magnetic Hoops (e.g., SEWTECH Magnetic Frames).
• The Logic: Instead of forcing two rings together with friction, magnetic hoops use vertical clamping force. This eliminates the "drag" that causes hoop burn. You simply lay the top frame on the bottom frame—Click.
• The Benefit: Zero screw twisting. Drastically reduced hoop burn on velvets and performance wear.

Scenario B: "I can't get the logo in the exact same spot on 20 shirts."

• The Upgrade: A dedicated embroidery hooping station.
• The Logic: A station holds the hoop for you and provides a static shirt board (like a palate).
• The Benefit: Reduces "guesswork" time by 50%. Essential for uniformity.

Scenario C: "I'm turning away orders because I'm too slow."

• The Upgrade: SEWTECH Multi-Needle Machines.
• The Logic: Single-needle machines require frequent thread changes and slower hooping. A multi-needle machine allows you to "rack" the next garment while the current one stitches.
• The Benefit: A dedicated hooping station for embroidery machine often pairs with these larger machines to create a true production line workflow.

Warning: Magnetic Field Safety
If you upgrade to magnetic hoops, be aware they use industrial-strength magnets (Neodymium).
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place phones or credit cards directly on the magnets.
* Pinch Risk: These magnets snap together with immense force. Handle with care to avoid pinching fingertips.

OPERATION CHECKLIST: Final "Go/No-Go"

• Orientation: "TOP" marker is at the bracket.
• Tambourine Test: Fabric sounds uniform when tapped.
• Bed Clearance: Inner hoop pushed through 1mm to protect machine.
• Obstruction Check: No excess fabric is bunched under the hoop area.

Mastering the hoop is 90% of the battle in embroidery. By respecting the arrow alignment, using the "composite" spray technique, and upgrading your tools when volume demands it, you move from "hoping it works" to "knowing it will." Now, press start.

FAQ

• Q: How do I stop Bernina oval embroidery hoops from leaving hoop burn on velvet and other delicate fabrics?
  A: Loosen the outer screw first and let the inner ring “drop in” with almost no friction, then tighten only at the end.
  • Loosen: Back the screw off until the nested hoops rattle before any fabric touches the hoop.
  • Seat: Press the inner hoop straight down using a “gravity drop” feel (like closing a drawer), not body weight.
  • Tighten: Hold the inner hoop down while tightening to finger-tight, then add only a half-turn if a screwdriver slot exists.
  • Success check: The fabric looks smooth (not “strangled”), and tapping sounds like a dull thump—not a tight drum.
  • If it still fails… Add shelf liner under the hoop to prevent twisting, and consider a magnetic hoop upgrade for fabrics that mark easily.
• Q: How do I correctly align the arrows on Brother/Baby Lock rectangular embroidery hoops to prevent uneven tension and puckering?
  A: Align the molded arrows/triangles on the inner and outer rings to the same orientation before hooping—do not ignore them.
  • Find: Locate the small arrows/triangles on both rings (usually on the bottom edge).
  • Orient: Place the outer hoop so the screw/arrow is closest to your body (6 o’clock position).
  • Label: Write “TOP” or “FRONT” on the bracket side so the hoop is not accidentally flipped during setup.
  • Success check: The hoop seats evenly with no visible tension gaps, and the fabric does not pucker around one side.
  • If it still fails… Re-hoop and verify with the plastic grid template; don’t trust the hoop edge shape for alignment.
• Q: How do I use the crosshair method to stop a monogram from stitching crooked or drifting 5mm on a domestic embroidery machine hoop?
  A: Draw true 90° crosshairs and verify them against the hoop grid template before stitching.
  • Measure: Find the physical center of the garment area with a ruler.
  • Mark: Draw Axis X, then Axis Y exactly perpendicular (use a water-soluble or air-erase pen).
  • Verify: Insert the plastic grid template and confirm the drawn lines are parallel to the grid lines.
  • Success check: The crosshairs look square to the template grid (rotation is corrected); a small center offset can be adjusted on-screen, but rotation cannot.
  • If it still fails… Pop it out and re-hoop—crooked reference lines will keep producing crooked designs.
• Q: How do I bond fabric to stabilizer with 505 temporary spray adhesive to reduce flagging and puckering when hooping for machine embroidery?
  A: Lightly laminate fabric to stabilizer before hooping so the needle cannot push the fabric layer around independently.
  • Spray: Apply 505 to stabilizer (not near the machine), then smooth fabric onto it to create one “composite” layer.
  • Match: Use cutaway for stretchy knits with moderate spray; tearaway for stable wovens with light spray.
  • Avoid: For towels/high pile, skip spray and use basting + water-soluble topping instead.
  • Success check: The fabric-stabilizer sandwich stays flat with no wrinkles, and outlines stitch without gaps from bouncing.
  • If it still fails… Push the inner hoop 1–2mm deeper after tightening to reduce flagging and improve stitch registration.
• Q: What is the safest way to use 505 temporary spray adhesive for embroidery stabilizer without contaminating an embroidery machine hook assembly or sensors?
  A: Never spray near the embroidery machine—spray in a ventilated area or inside a cardboard spray box.
  • Move: Take stabilizer away from the machine before spraying to prevent airborne mist settling on parts.
  • Ventilate: Spray where airflow can clear overspray (sprays are airborne glue).
  • Wait: Let the adhesive tack up briefly, then bond and smooth the layers before hooping.
  • Success check: No sticky residue is found on machine surfaces, and the fabric/stabilizer bonds evenly without shifting.
  • If it still fails… Stop spraying in the sewing room area and switch to basting for projects where overspray is hard to control.
• Q: How do I prevent an embroidery hoop inner ring from “popping out” while tightening the screw on a domestic embroidery hoop?
  A: Pin the inner ring down with your fingers while tightening so the shrinking outer ring cannot lift it.
  • Pin: Hold the inner hoop firmly DOWN against the table with thumb and index finger.
  • Tighten: Turn the screw with the other hand to finger-tight, then only a half-turn more if needed.
  • Stabilize: Put shelf liner under the hoop so the outer ring cannot spin while you tighten.
  • Success check: The inner hoop stays seated flat with no lift, and the fabric remains taut but not stretched.
  • If it still fails… Loosen the screw more before seating (rattle test), then reseat using a straight-down press.
• Q: When should a small embroidery business upgrade from manual screw hoops to SEWTECH magnetic hoops or a SEWTECH multi-needle machine for production work?
  A: Upgrade when manual hooping becomes the bottleneck—wrist pain, hoop marks on delicate fabrics, or inconsistent placement across batches.
  • Level 1 (Technique): Use the rattle test, shelf liner, composite bonding, and grid verification to reduce re-hoops and drift.
  • Level 2 (Tool): Choose magnetic hoops when hoop burn and wrist strain persist, because magnetic clamping reduces drag and screw twisting.
  • Level 3 (Capacity): Consider a multi-needle machine when thread changes and slow hooping limit throughput on multi-color orders.
  • Success check: Re-hooping frequency drops, placement becomes repeatable across a run, and hooping no longer causes pain or fabric damage.
  • If it still fails… Add a hooping station to standardize loading and reduce guesswork time on repeated garments.
• Q: What safety precautions are required when using SEWTECH magnetic embroidery hoops with neodymium magnets around pacemakers and electronics?
  A: Treat magnetic hoops as industrial magnets—keep them away from medical devices and handle them to avoid pinch injuries.
  • Distance: Keep magnets at least 6 inches away from pacemakers and similar medical devices.
  • Protect: Do not place phones or credit cards directly on the magnets.
  • Handle: Separate and close frames carefully; magnets can snap together with enough force to pinch fingertips.
  • Success check: Frames close in a controlled way without finger pinches, and no electronics are stored or set on the magnet surfaces.
  • If it still fails… Switch to a screw hoop for operators who cannot safely work around strong magnets, and follow the machine/workplace safety policy.
