Stop Copy-Pasting in Wilcom Hatch: The Right-Click Clone Move That Saves Your Design (and Your Sanity)

If you have ever duplicated a design in Wilcom Hatch and thought, “There has to be a faster, safer way than hunting for copy/paste,” you are not alone. In my twenty years on the production floor, I have seen seasoned digitizers lose hours of work because of a simple “Ctrl+C / Ctrl+V” error that overwrote a master file.

When you are digitizing under time pressure—or testing a risky tweak like reducing pull compensation on a stretchy piqué knit—speed exercises a lot of influence. However, integrity matters more. You need a workflow that protects your original asset while allowing you to experiment freely.

Sue from OML Embroidery demonstrates one of Hatch’s most practical workflow shortcuts: Cloning. It is not just a shortcut; it is a safety protocol. It is a simple right-click gesture that creates an exact positive duplicate instantly, and it can even clone a design into a different file tab while retaining the exact X/Y ruler coordinates.

The “Don’t Panic” Primer: Why Wilcom Hatch Cloning Is Safer Than Copy/Paste When You’re Experimenting

Cloning is often mistaken for a mere convenience feature, a “party trick” to populate a screen quickly. However, from a cognitive psychology perspective, it is actually a risk-management tool.

When you duplicate via menus (or standard keyboard shortcuts like Ctrl+D), you introduce "cognitive load." You have to remember which file is active, where the paste will land, and whether you are altering the source data. It is easy to:

1. Lose your “Flow State”: Breaking focus to navigate dropdown menus disrupts your visual attention.
2. Corrupt the Master: Accidentally editing the original object because the visual feedback of a "paste" can be subtle (often pasting directly on top of the original).
3. Clutter the Workspace: Creating a messy canvas of half-tested versions without a clear hierarchy.

With cloning, the physical action (Right-Click + Drag) creates a spatial separation immediately. You can keep your original design as the “Master Config,” then push experimental clones to the “Sandbox” area of your screen. If the experiment fails—say, your density reduction causes gapping—you delete the clone guilt-free. The Master remains pure.

If you are building a repeatable digitizing routine, this is the kind of micro-skill that compounds. In a production environment where you might be stitching the same logo on 50 shirts, file consistency is the only thing standing between profit and a bin full of ruined garments.

The “Hidden” Prep Pros Do First: Pick a Clean EMB Design in Hatch’s Library Before You Clone Anything

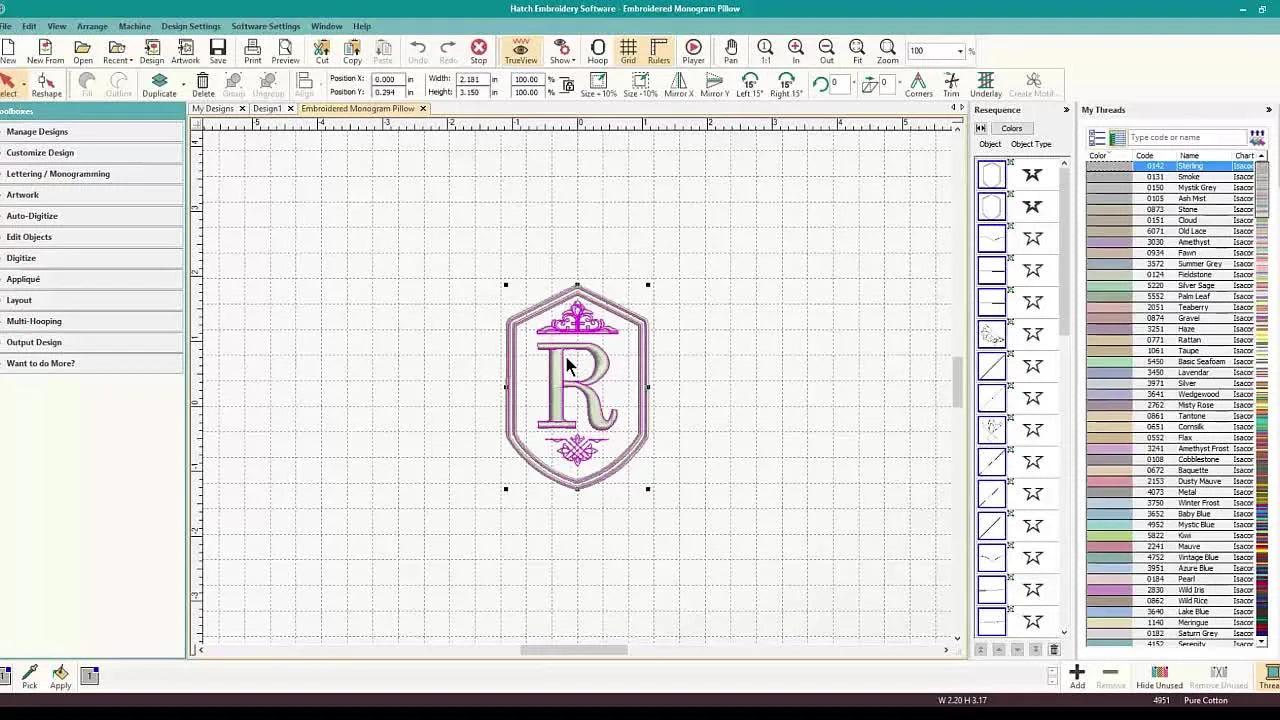

Sue begins by choosing a simple built-in design (an “Embroidered Monogram Pillow” style crest) from Hatch’s design library. She highlights a critical technical detail: the built-in designs are native .EMB files.

Why does this matter? In plain shop language, file formats determine your editing safety net.

• Stitch Files (.DST, .PES): These are "dumb" files. They only know XY coordinates and "Stop" commands. They do not know that a circle is a circle; they just know it is a collection of stitches. If you clone and resize these, the density will not recalculate, leading to bulletproof density or gaps.
• Object Files (.EMB): These are "smart" files. They retain the mathematical logic of the shape. When you clone an .EMB object, you are cloning the properties (Underlay settings, Pull Compensation, Stitch Angle), not just the stitch data.

Pro Tip: Always do your cloning and editing in .EMB format. Only compile to machine formats (.DST/.JEF) when you are ready to put the file on a USB drive for the machine.

Prep Checklist (do this before you start cloning)

Before you even touch the mouse, ensure your digital and physical environment is ready for precision work.

• File Integrity Check: Confirm you are working in Wilcom Hatch Embroidery with a native .EMB file (look for the object properties icon being active).
• Visual Grid Calibration: Turn on your grid (usually set to 10mm squares). This gives you a visual anchor for size and placement.
• Group Simplicity: If you are learning this gesture, ensure your design is "Grouped" (Ctrl+G). A single click should select the entire crest.
• The "Save As" Safety Net: Save your file as ProjectName_Master_v1.EMB before experimenting. Never work on the only copy of a file.
• Hidden Consumables Check: Ensure you have your "thinking tools" ready—a notepad for recording density changes and a physical ruler to verify screen-to-reality scaling.

The 2-Second Setup That Prevents “Why Didn’t It Copy?”: Select the Whole Group in Hatch’s Object List

Before cloning, Sue clicks the design to ensure the entire grouped object is selected. She verifies the selection by watching the highlight in the right-side Resequence List (Object List) and ensuring the design outline changes color (usually to magenta or blue depending on settings).

This is the failure point for 90% of beginners. They click the fill of a letter but miss the border, or they select the satin column but miss the underlay. When they drag, they clone a fragment, creating a file that looks right but stitches apart.

Setup Checklist (your selection is correct if…)

Perform this visual scan every time you select an object.

• The Bounding Box: The full design shows a clear selection box with black handle nodes around the entire perimeter.
• The Object List Highlight: Glancing at the right panel, the top-level "Group" is highlighted in blue, not just individual sub-layers.
• The Color Change: The wireframe outline of the design on the canvas has changed color to indicate "Active" status.

The Right-Click Drag Secret in Hatch Digitizer: Clone a Design Without Touching CTRL+C/CTRL+V

Here is the exact gesture Sue demonstrates. It utilizes "muscle memory" to bypass the brain's decision fatigue.

1. Select the design (verify the group selection).
2. Right-click on the colored fill of the design (do not click the background).
3. Hold the right mouse button down firmly.
4. Drag the cursor to an empty area of the work canvas.
5. Release the right mouse button.

Expected Outcome: A duplicate appears instantly at the drop location—an exact positive clone of the active settings. There is no dialog box, no lag, just an immediate result.

Sue also shows how quickly you can repeat this to create multiple duplicates in a row, which is essential for gang-sheet production (e.g., setting up multiple patches on one large hoop).

Warning: Physical Safety in the Creative Zone
Keep your fingers and tools disciplined at the workstation. Real production mistakes often start as “just a quick test” while distracted.
* Needle Safety: If you are digitizing near your machine, never leave spare needles (especially 75/11 sharps) loose on the table. They can vibrate under the machine or into the hook assembly.
* Scissor Discipline: Do not leave snips near the hoop travel path. A collision at 800 stitches per minute (SPM) can shatter the needle bar.

Operation Checklist (so cloning stays clean, not chaotic)

• The "Click-Off" Reset: After dropping a clone, click carefully on the new object to confirm it is the active selection before making edits.
• Spatial Buffer: Space your clones at least 20mm apart visually so you don't accidentally "lasso select" parts of the original.
• Garbage Collection: If you made too many clones, delete the extras immediately. Sue demonstrates deleting a middle duplicate to keep the workspace clean. Clutter leads to stitching the wrong version.

The “Sandbox” Habit: Use a Clone as Your Test Copy So the Original EMB Never Gets Messed Up

Sue calls out the most valuable use case: risk-free editing. This is the core of the "Sandbox" methodology.

The Workflow:

1. Clone the essential element to the side.
2. Modify the clone. For example, change the Stitch Density from standard 0.40mm to 0.35mm to see if it handles fine detail better. Or, increase Pull Compensation to 0.45mm for a fleece hoodie.
3. Evaluate: Look at the visual simulation.
4. Commit or Trash: If it looks bad, hit Delete. Your original (with the proven 0.40mm density) remains untouched.

In real shops, the most expensive mistakes aren't thread breaks; they are file mistakes that get stitched 50 times before someone notices the underlay is missing. If you are building files for customers or repeating orders, treat your original as the Master Record and treat clones as disposable prototypes.

The Power Move: Clone a Hatch Design Into a New File Tab and Keep the Same Ruler Coordinates

Sue demonstrates a secondary trick that differentiates intermediate users from experts: Cross-Tab Cloning.

1. Select the design.
2. Right-click and hold (start the clone gesture).
3. Drag the cursor up to the file tabs bar at the top of the screen (where it says "Design 1", "Design 2").
4. Hover over a different design tab (or the "New Design" icon) until it switches view.
5. Release into the workspace.

Expected Outcome: Hatch places the cloned object into the new file tab.

The Critical Detail: Sue warns that it clones so perfectly that it places the design in the exact same X/Y coordinates as the original.

Why this is useful (The Nesting Strategy): If you are designing a multi-hoop split design (for a jacket back), you need the segments to align perfectly. By cloning to a new tab, you ensure the "Part B" file creates stitches in the exact mathematical relation to "Part A" without manual realignment.

Why it can surprise you: If your new tab is zoomed in on the center (0,0), but your original design was located at (100, 50), the clone will land off-screen. If you think "Nothing happened," zoom out (Press '0' for Fit to Screen). It is there, hiding in its original coordinate position.

The “Why” Behind Cloning: What Hatch Is Really Preserving (and How That Helps Your Stitch Results)

Cloning isn't just duplicating pixels. It preserves the Object Properties. In digitizing, small property changes ripple into massive physical defects.

Here is a breakdown of the properties retained during a clone, and safe ranges for beginners:

1. Stitch Density: The clone keeps the spacing between stitch lines.
   • Safe Range: 0.38mm - 0.42mm for standard 40wt thread.
   • Risk: Going below 0.30mm often causes bulletproof stiffness and needle breaks.
2. Pull Compensation: The intentional distortion to combat fabric shrink.
   • Safe Range: 0.20mm (stable cotton) to 0.40mm (knits/fleece).
   • Risk: Accidentally removing this on a copy makes the stitch-out look distinctively "gapped" or skinny.
3. Underlay: The foundation stitches.
   • Rule: Never disable underlay on a design larger than 5mm.

Cloning gives you a controlled “A/B Test” environment. You are not guessing what you changed—you can keep the original right next to the experiment and compare the settings side-by-side.

Troubleshooting the Two Scariest Moments: “Did I Break My Original?” and “Why Is My Clone Missing?”

Even though this is a quick tip, specific panic points occur constantly. Use this logic table to resolve them quickly.

When Digitizing Meets Production Reality: The Upgrade Path That Actually Saves Time

This guide focuses on software efficiency, but we must address the elephant in the room: Throughput. You can save 5 minutes digitizing by using cloning, but if you lose 10 minutes fighting your hoop or fixing "hoop burn," your net productivity is negative.

As you move from hobbyist to production mindset (the "Pro-sumer" shift), the bottleneck usually moves from the computer to the physical machine.

The "Hooping" Bottleneck

Once you have cloned your design 12 times for a batch order of polo shirts, you face the reality of loading those shirts. Standard plastic hoops are notorious for two issues:

1. Hoop Burn: The friction ring leaves crushed marks on delicate piqué knits.
2. Wrist Strain: The repetitive "unscrew, position, force inner ring, tighten" motion is an ergonomic nightmare.

This is where terms like magnetic embroidery hoop become relevant. For production runs, switching to magnetic frames creates a "Set and Snap" workflow. The magnets hold fabric firmly without the friction-twist motion that destroys detailed fibers.

The "Placement" Variable

Consistently placing that cloned design in the exact same spot on 50 shirts is difficult by eye. Many professionals search for a machine embroidery hooping station to solve this. These physical docking stations ensure that every shirt is loaded at the exact same geometry.

Combining a hooping station for machine embroidery with industrial-grade embroidery magnetic hoops (like the MaggieFrame series) effectively standardizes your physical workflow to match the precision of your digital cloning workflow.

Warning: Magnetic Safety Protocol
Magnetic frames use industrial-strength neodymium magnets. They are not fridge magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers or break skin. Handle with deliberate grip.
* Medical Devices: Keep strong magnets at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place magnetic hoops directly on top of your laptop or hard drive.

A Decision Tree: When to Upgrade Your Workflow?

Use this logic to decide where to invest your time and money next.

• Problem: "I ruin original files constantly."
  • Solution: Software Fix. Adopt the Cloning/New Tab workflow immediately. Cost: $0.
• Problem: "I spend too long digitizing variations."
  • Solution: Skill Fix. Master the Right-Click Drag gesture. Cost: $0.
• Problem: "My designs are ready, but loading shirts takes forever."
  • Solution: Hardware Fix. Consider a hooping station for embroidery to standardize placement.
• Problem: "I have hoop marks or my hands hurt from clamping."
  • Solution: Hardware Fix. Evaluate if a embroidery magnetic hoop fits your specific machine model.
• Problem: "I can't stitch fast enough to fill orders."
  • Solution: Capacity Fix. If hooping dominates your time, a magnetic hooping station combined with a move to a multi-needle machine (like a high-value SEWTECH platform) allows you to prep the next hoop while the current one runs.

The Takeaway: Clone First, Edit Second—Then Decide What’s Worth Keeping

Sue’s method is refreshingly mechanical: Select Group → Right-Click Hold → Drag → Release.

It bypasses the fragile "Clipboard" of the computer and gives you an instant, safe copy. Build one habit from this: Clone before you experiment. It keeps your originals clean, your tests organized, and your digitizing workflow calm.

Embroidery is a game of managing variables. By locking down your digital variables with cloning, you free up your mental energy to focus on the physical variables—tension, stabilizer, and hooping—where the real magic happens.

FAQ

• Q: How do I clone a grouped design in Wilcom Hatch Embroidery without using Ctrl+C/Ctrl+V?
  A: Use the Right-Click + Drag gesture to create an instant duplicate without touching the clipboard.
  • Select the full design first (make sure the whole Group is selected, not a single segment).
  • Right-click on the design (on the colored object, not the background), hold, drag to an empty area, then release.
  • Click the new clone to make sure the clone (not the master) is the active selection before editing.
  • Success check: a second copy appears immediately where you released the mouse, and it stays fully editable as objects.
  • If it still fails: re-check the Resequence List (Object List) and re-select the top-level Group before trying again.
• Q: In Wilcom Hatch Embroidery, how do I confirm I selected the entire design group before cloning (so the clone is not missing parts)?
  A: Verify selection using the bounding box + Object List highlight before you clone.
  • Look for a single bounding box that surrounds the entire design with handle nodes around the full perimeter.
  • Confirm the top-level Group is highlighted in the Resequence List, not just one sub-object (like a border or underlay).
  • Watch for the design outline/wireframe color change that indicates the selection is active.
  • Success check: one click selects everything, and the clone stitches as a complete crest (not separated elements).
  • If it still fails: delete the partial clone, return to the master, then use Ctrl+A (or click the Group header) and clone again.
• Q: Why does a Wilcom Hatch Embroidery clone look “missing” after cloning a design into a new file tab (cross-tab cloning)?
  A: The clone usually kept the exact same X/Y ruler coordinates and landed off-screen in the new tab.
  • After releasing the clone into the new tab, press 0 (Fit to Screen / Zoom All) to reveal the object.
  • Zoom out and scan the workspace edges, because the object may be far from the center (0,0).
  • Keep in mind cross-tab cloning preserves absolute placement, not “paste to center.”
  • Success check: the design becomes visible after Zoom All and appears at the expected coordinate position.
  • If it still fails: confirm you actually dragged onto the tab bar until the tab switched views before releasing.
• Q: In Wilcom Hatch Embroidery, should I clone and edit a .DST/.PES stitch file or a .EMB object file for safe resizing and testing density?
  A: Do cloning and editing in native .EMB whenever possible, then export to .DST/.JEF only at the end.
  • Start from a clean .EMB design (built-in library designs are typically native .EMB) so object properties stay “smart.”
  • Avoid heavy edits/resizing on stitch files (.DST/.PES) because density and properties may not recalculate the way you expect.
  • Save a master version first (for example, ProjectName_Master_v1.EMB) and run tests only on clones.
  • Success check: object property tools stay active and edits (like density changes) remain controllable on the clone.
  • If it still fails: obtain the original object-based source file (or re-digitize as objects) before doing major changes.
• Q: What stitch settings should beginners A/B test on a clone in Wilcom Hatch Embroidery without risking the master file?
  A: Clone first, then change only one property at a time (density, pull compensation, or underlay) so you can compare safely.
  • Adjust Stitch Density in small steps; a common safe range mentioned is 0.38–0.42 mm for standard 40wt thread.
  • Adjust Pull Compensation within the mentioned safe range (about 0.20 mm for stable cotton up to 0.40 mm for knits/fleece).
  • Avoid disabling underlay on designs larger than 5 mm; test underlay changes on the clone, not the master.
  • Success check: the master and the clone sit side-by-side and you can clearly see which change caused improvement or defects.
  • If it still fails: undo immediately (Ctrl+Z) and repeat the test with a fresh clone to avoid stacked variables.
• Q: In Wilcom Hatch Embroidery, what should I do if I accidentally edited the master instead of the clone?
  A: Don’t panic—use Ctrl+Z (Undo) immediately, then physically separate the clone before editing again.
  • Press Ctrl+Z repeatedly until the master returns to the last known-good state.
  • Re-clone the master and drag the clone at least ~20 mm away to prevent editing overlap.
  • Click-off and re-click the clone to confirm the clone is the active selection before making changes.
  • Success check: the master’s properties and appearance return exactly, and only the clone shows the experimental edits.
  • If it still fails: stop editing, reopen the last saved master version (this is why “Save As” master versions matter).
• Q: What workstation safety rules matter when digitizing near an embroidery machine (needle and scissors hazards) during Wilcom Hatch Embroidery testing?
  A: Keep the workstation clear—real production accidents often start during “quick tests” when tools are left in the wrong place.
  • Remove loose spare needles from the table; store them so they can’t vibrate into the machine area.
  • Keep snips/scissors out of any hoop travel path to prevent collisions at high stitch speeds.
  • Pause and reset the workspace before switching from screen tests to actual stitch-outs.
  • Success check: the area around the machine and hoop path is clear, and no tools are within reach of moving parts.
  • If it still fails: stop the machine and do a full tabletop sweep before resuming any test run.
• Q: When “hooping” becomes the bottleneck after cloning multiple designs for production, how do I decide between technique fixes, magnetic embroidery hoops, or upgrading to a SEWTECH multi-needle embroidery machine?
  A: Diagnose the bottleneck first, then move from Level 1 technique to Level 2 tooling to Level 3 capacity only if needed.
  • Level 1 (Technique): If files get corrupted or versions get mixed up, adopt the clone-first “Sandbox” habit and keep a master file.
  • Level 2 (Tooling): If standard hoops cause hoop burn or wrist strain, consider magnetic hoops to reduce friction clamping and speed loading.
  • Level 2 (Tooling): If placement consistency is the issue across many garments, add a hooping station to standardize geometry.
  • Level 3 (Capacity): If you still cannot stitch fast enough to meet orders, consider moving to a multi-needle platform such as SEWTECH so prep and running can overlap.
  • Success check: cycle time drops where the true bottleneck was (digitizing time, hooping time, or machine runtime).
  • If it still fails: time each step (digitizing vs hooping vs stitching) and upgrade only the step that dominates your total minutes per item.
