Stop Copy-Pasting in Hatch: Circle Layout, Mirror Alternates, and Copy Array Patterns That Stitch Clean in a Large Hoop

If you’ve ever duplicated a motif a dozen times only to watch your machine bounce erratically around the hoop—wasting time and testing your patience—you have encountered the friction point between "digital design" and "mechanized production."

Layout tools are the bridge. When used correctly, they transform a single artistic element into a cohesive, production-ready file. When used incorrectly, they create a bird's nest of jump stitches and alignment errors.

In this industry-grade guide, we will reconstruct the workflows from the Hatch Embroidery Create Layouts toolbox—specifically Circle Layout, Mirror Alternates, Mirror Copy, and Copy Array. But we won't stop at the "how-to." We will overlay the shop-floor logic required to keep these complex files running smoothly on your machine, ensuring your results are profitable, consistent, and safe.

The Create Layouts Toolbox in Hatch Embroidery: the fastest way to turn one motif into a sellable composition

Hatch’s Create Layouts tools are deceptively simple: select an object, choose a tool, and let the software generate the geometry. However, seasoned operators know that every layout decision impacts stitch physics.

To master this, you need a new mental model:

1. Geometry (The Look): Where the designs sit on the screen.
2. Sequence (The Efficiency): How the machine travels between them (influencing thread breaks and production time).
3. Physics (The Reality): How the push-and-pull of the needle affects your specific fabric.

If you are building files for team logos, patches, or uniform badges, you must stop thinking "one design" and start thinking "one full hoop." This is where owning a large hoop embroidery machine shifts from being a luxury to a massive production advantage—providing you understand how to fill that extra space without introducing registration errors.

The “Hidden” Prep Before You Click Circle Layout: selection discipline and a stitch-out mindset

Before you click a single layout button, you must prepare your "digital canvas." In a production studio, skipping this step is the #1 cause of "ghost" stitches and alignment failures.

1. Isolate the Object (The Clean Select) In demos, you often see a quick Ctrl + A (Select All) used to grab an elephant motif.

• The Trap: In real-world editing, Ctrl + A selects everything—including invisible basting lines, hidden vector art, or tiny stray stitches you forgot to delete.
• The Fix: Manually rubber-band select your motif. Visually confirm the bounding box (the black squares around the design) hug the design tightly. If the box looks too big, you have a stray object selected.

2. The Sequence Decision (Speed vs. Quality) You must make a strategic choice before starting:

• Option A: Speed (Color Optimization). All purple stitches run first, then all yellow. Best for: Stable fabrics (denim, canvas) and gap-tolerant designs.
• Option B: Registration (Grouped). Each elephant stitches completely (purple, then yellow) before the machine moves to the next. Best for: Stretchy fabrics (knits, performance wear) or high-precision outlines.

Prep Checklist (do this before any layout tool)

• Sanity Check: Zoom out to 100%. Are there any stray stitches floating outside your main design? Delete them.
• Hidden Consumables: Do you have enough bobbin thread? Multi-design layouts consume bobbins rapidly. Check that you have temporary spray adhesive (like KK100) on hand if you aren't using sticky stabilizer.
• Grouping: If you chose "Option B" above, select your motif and press Ctrl + G (Group) now. This forces Hatch to treat the motif as a single unit during layout.
• Hoop Visualization: turn on your hoop visualizer (Show Hoop) to ensure your intended layout will actually fit your physical frame.

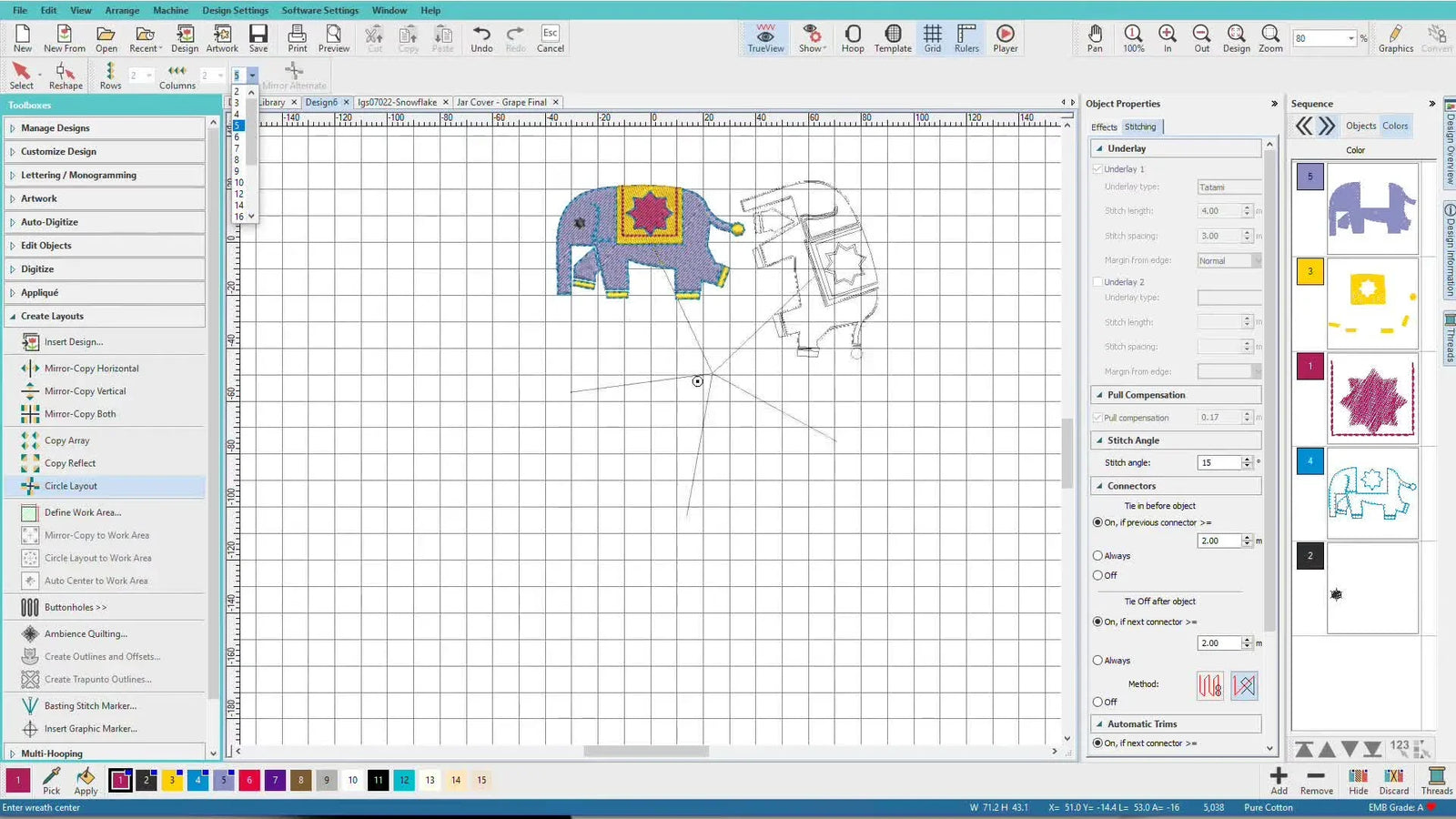

Circle Layout Tool in Hatch Embroidery: place the center point like you’re placing stress on fabric

In the workflow, you select the elephant, open Create Layouts, choose Circle Layout, and set the number to 5.

Here is the sensory detail that matters: The Center Point Anchor. When you move your mouse, you are moving the radius.

• Visual Anchor: Look at the "ghost" elephants. Are they touching? Overlapping?
• Physical Reality: The closer the designs are, the more your fabric is perforated in a tight circle. This creates a "cookie cutter" effect where the fabric center can pop up or distort (pucker/dome).


In the example, Linda spaces them so the trunks just barely touch the feet. This is the "Sweet Spot"—it reads as a continuous ring but leaves enough fabric integrity to maintain stability.

Pro Tip: The "Donut" Rule

If stitching on unstable manufacturing (like T-shirt cotton), leave a larger gap in the center. The fabric needs a "bridge" of unstitched material to hold the tension. If your circle is too tight, the fabric in the middle will bubble up, no matter how much stabilizer you use.

Sequence Docker color grouping in Hatch: when “optimized” is good—and when it ruins registration

After generating the circle, check the Sequence Docker.

• Default Behavior: Hatch groups by color (e.g., all 5 purple bodies stitch, then all 5 yellow heads).
• The Risk: By the time the machine returns to the first elephant to stitch the head, the fabric may have shifted slightly due to the "push-and-pull" of the previous stitching.
• The Result: The yellow head doesn't line up with the purple body.


When to keep it Default (Optimized):

• You are using firm setup (e.g., machine embroidery hooping station ensures tight hooping + Cutaway stabilizer).
• The design is forgiving (organic shapes vs. strict outlines).

When to Override (Grouped):

• You are doing patches or badges where outlines must be perfect.
• Solution: As mentioned in the Prep Checklist, Group (Ctrl + G) the single motif before applying the layout.

Mirror Alternates in Hatch Circle Layout: why it’s grayed out, and how to use it without overlap headaches

You cannot alternate a pattern in a circle with an Odd number (5). The geometry doesn't resolve (you end up with two facing the same way). You must switch to an Even number (e.g., 6) to unlock the Mirror Alternates checkbox.

When you enable Mirror Alternates, every second elephant flips. This creates a beautiful symmetrical flow, but it introduces a new risk: Stitch Direction Conflict.

• The Physics: When two satin stitches meet, if they are angled toward each other, they can "crash" and create a hard ridge.
• Sensory Check: Look closely at the connection points on screen. Is there clear air between the mirrored designs?
• The Fix: Give mirrored designs 1mm to 2mm more space than standard repeats.


The "Merge" Pop-up Trap

Hatch will ask: "Merge overlapping polygons?" The Professional Answer is almost always: NO. Merging welds the vector shapes. While efficient for data, it destroys your ability to edit the designs individually later. It can also create massive, dense fill areas that are bulletproof-stiff. Click No and manage the overlap by moving the objects apart manually.

Mirror Copy Horizontal, Vertical, and Both in Hatch: the cursor decides the axis (and that’s the trap)

The Mirror Copy tools are dynamic—the axis of reflection moves with your mouse cursor.

• Mirror Horizontal: Flips left/right.
• Mirror Vertical: Flips up/down.
• Mirror Both: Creates a 4-way reflection.

The Fatigue Factor: When you are tired, it is easy to nudge the mouse slightly and misalign the mirror axis.

• Action: Do not rely on your eye balling it. Zoom in.
• Anchor: Use the grid lines in Hatch (Press P to toggle grid) as a strict reference. Ensure your cursor creates the mirror line exactly on a grid intersection.


Copy Array in Hatch Embroidery: the badge-grid move that saves you from 60 color changes

Copy Array is the engine room of profitability. It turns one badge into a sheet of 12 (3 rows x 4 columns).

Why this pays the bills: If you duplicate manually (Copy-Paste), the machine might create 60 color changes (Purple, Yellow, Red, Purple, Yellow, Red...). Copy Array intelligently optimizes this to 5 color changes (All Purples, then All Yellows...).

The Commercial Reality Check: Running an array requires machine uptime. If you are running a single-needle machine, you still have to change the thread 5 times. This efficiency really shines when paired with a hooping station for machine embroidery to load hoops quickly, and a multi-needle machine (like SEWTECH) that handles the color swaps automatically.

Setup Checklist (Array Production)

• Safe Margins: Are your designs at least 15mm away from the hoop edge? (Prevents the presser foot from hitting the frame).
• Cutting Channels: If making patches, is there at least 3mm-5mm between designs for you to cut them out with scissors or a hot knife?
• Bobbin Check: A full array uses a lot of thread. Start with a fresh bobbin.
• Optimization: Ensure "Color Sort" is checked in the docker to minimize travel time.

Advanced pattern building in Hatch: Mirror Copy + Copy Array + Delete row + Mirror Y for “feet-to-feet” repeats

You can combine tools to build complex repeating textiles. The video creates a "Feet-to-Feet" pattern.

The Workflow:

1. Mirror Horizontal (Create a back-to-back Elephant pair).
2. Copy Array (Create a 2x2 grid of pairs).
3. Delete the bottom row.
4. Mirror Y the remaining row to flip it vertically.






Why do this? This is how you create "Endless Border" designs for tablecloths or curtain hems. By building a "Master Unit" (the 4 elephants) and then repeating that, you ensure perfect symmetry without manually measuring every gap.

The overlap warning in Hatch (“Merge overlapping polygons?”): when to click No, and when to rethink spacing

We touched on this, but it bears repeating. If you trigger the overlap warning, take it as a diagnostic signal: "You are crowding the layout."

• Symptoms of Crowding: Thread breaks, needle deflection (hitting the previous stitch), and hard/stiff embroidery.
• The Fix: Instead of merging, Cancel the tool. Increase your spacing by 2mm. Try again.

Warning: Never force-fit a layout. If fits "too perfectly" on screen, fit will likely fail in the hoop due to fabric draw-in. Always leave safety margins.

Decision tree: choosing stabilizer and hoop strategy for multi-design layouts (circle vs array) that actually stitch flat

Your software layout is only as good as your physical setup. Use this logic flow to determine your needs.

Scenario A: High-Speed Batch Production (Patches/Badges)

• Layout: Copy Array (Optimized Colors).
• Stabilizer: 2 layers of Medium Cutaway (Mesh).
• Hooping: A mechanical aid like a hoop master embroidery hooping station is crucial here to ensure the fabric grain is perfectly straight.
• Reasoning: Speed is king. You need stability to run fast without registration loss.

Scenario B: Delicate Garment (Polo Shirt / T-Shirt)

• Layout: Circle Layout (Grouped Objects - Complete one at a time).
• Stabilizer: 1 layer No-Show Mesh (fusible) + 1 layer Tearaway.
• Hooping: A magnetic hoop removes the need to force the sensitive fabric into a ring, preventing "hoop burn" (shiny marks) and friction damage.
• Reasoning: Fabric protection is king. Grouped stitching prevents Pucker.

Scenario C: Continuous Border

• Layout: Advanced Mirror Array.
• Stabilizer: Sticky Tearaway or Adhesive Spray + Hoop.
• Hooping: Mark your fabric with water-soluble pen. Use the hoop's grid templates.

The finishing mindset: your layout is only “done” when the stitch-out is easy to trim, press, and deliver

The demo concludes with a jar lid cover. This is a "Freestanding Appliqué."

For these projects, Layout IS Structure. If your circle is too wide, the cover falls off the jar. If too narrow, it won't fit.

• The Test: Always stitch one prototype on scrap felt/fabric before committing to a full array of 12.
• The Measurement: Measure your object in the software using the "M" key (Measure tool) and match it against your physical jar/object.

Warning: Mechanical Safety. When stitching large arrays, the embroidery arm travels to the extreme limits of the hoop. Ensure your machine is on a stable table and there is clear clearance behind it so the pantograph doesn't hit a wall.

Warning: Magnet Safety. If you upgrade to a magnetic hooping station or frames, be aware they use powerful Neodymium magnets. Keep away from pacemakers. Watch your fingers—they can snap together with significant force (Pinch Hazard).

Operation Checklist (The Final "Go" Flight Check)

• Clearance: Is the wall behind the machine clear? (Array stitching moves the arm far back).
• Needle: Is it a fresh needle? (75/11 Sharp is standard for woven production; 75/11 Ballpoint for knits).
• Thread Path: Check for lint. Arrays run for a long time; lint buildup causes tension issues.
• Testing: Run a tracer (Trace Design) on the machine to ensure the presser foot won't hit the plastic hoop frame.

The upgrade path: when layout tools are working, your bottleneck becomes hooping speed and machine uptime

Once you master Hatch's tools, you will find your bottleneck shifts. You can create a file for 20 badges in 2 minutes, but it might take you 20 minutes to hoop the fabric and 40 minutes to stitch it.

When to Level Up:

1. If hooping hurts your wrists or takes too long: It is time to look at a magnetic hooping station. The alignment is instant, and the magnets hold thick or thin material without adjustment screws.
2. If you are waiting for color changes: If you are running arrays on a single-needle machine, you are the bottleneck. A multi-needle machine (like the SEWTECH series) automates the process, allowing you to walk away while the machine produces profit.

Master the software first. Then, let the hardware carry the load.

FAQ

• Q: Why does Hatch Embroidery Circle Layout cause misalignment when Sequence Docker is set to “Optimize by Color” on stretchy T-shirts?
  A: Switch from color-optimized sequencing to grouped motifs so each repeat finishes completely before the machine travels away (this is common on knits).
  • Group the original motif first (Ctrl + G), then run Circle Layout so Hatch treats each repeat as one unit.
  • Choose a stabilizer setup meant for garments (for example: No-Show Mesh fusible + Tearaway as described) and avoid over-tight spacing in the circle.
  • Success check: the second-color details (like a head/outline) land cleanly on the first-color base on every repeat, not just the last one.
  • If it still fails: increase spacing (the “Donut” rule) and re-run the layout rather than trying to “force-fit” the circle.
• Q: What is the safest way to use Hatch Embroidery Circle Layout center point spacing to prevent puckering or a “cookie cutter” bubble in the middle of the ring?
  A: Increase the circle radius so the center area stays more open; tight circles often dome the fabric even with stabilizer.
  • Drag the Circle Layout center point outward until repeats are close visually but not crowding the same small area of fabric.
  • Leave extra gap in the center on unstable garments (the “Donut” rule) instead of aiming for a perfectly tight ring.
  • Success check: after stitching, the center of the circle lies flat (no raised dome) and the fabric does not feel perforated or weakened.
  • If it still fails: cancel, add about 2 mm more spacing, and generate the layout again instead of merging overlaps.
• Q: Why is “Mirror Alternates” grayed out in Hatch Embroidery Circle Layout, and what spacing prevents mirrored satin stitches from forming a ridge?
  A: Mirror Alternates only unlocks with an even repeat count, and mirrored neighbors usually need extra clearance to avoid stitch-direction conflicts.
  • Change the circle repeat count from an odd number (like 5) to an even number (like 6) to enable Mirror Alternates.
  • Add 1–2 mm more space than standard repeats when mirrored designs meet at satin edges.
  • Success check: connection points show visible “air” between mirrored elements on screen, and the stitched join does not form a hard raised ridge.
  • If it still fails: increase spacing again before editing stitch directions or density.
• Q: In Hatch Embroidery, should you click “Merge overlapping polygons?” during Mirror Alternates or other Create Layouts tools?
  A: Usually click “No”; the overlap warning is a spacing problem signal, and merging can remove edit control and create overly dense areas.
  • Click “No” to keep motifs editable and avoid creating stiff, dense welded regions.
  • Cancel the tool if needed, then re-run the layout with more spacing (a safe starting point is +2 mm as suggested).
  • Success check: the design previews without overlap warnings, and stitched areas remain flexible instead of “bulletproof-stiff.”
  • If it still fails: rethink the layout fit—leave safety margins rather than packing designs tight to the hoop boundary.
• Q: How do you prevent “ghost stitches” and unexpected travel in Hatch Embroidery Create Layouts when using Ctrl + A (Select All)?
  A: Do not use Ctrl + A for production files; manually select only the motif so hidden basting lines or stray stitches don’t get replicated.
  • Rubber-band select the motif and verify the bounding box hugs the design tightly.
  • Zoom out to 100% and delete any stray stitches floating outside the main design before running any layout tool.
  • Success check: after applying Circle Layout or Copy Array, only the intended motif repeats—no tiny stray stitches appear between repeats.
  • If it still fails: inspect for hidden objects/vectors and re-select carefully before re-applying the layout.
• Q: What are the minimum safe setup checks for Hatch Embroidery Copy Array production to avoid presser foot hits and trimming problems?
  A: Build the array with physical clearance in mind—leave edge margins and cutting channels, and start with a fresh bobbin for long runs.
  • Keep designs at least 15 mm away from the hoop edge to reduce the risk of the presser foot contacting the frame.
  • Leave 3–5 mm between designs if patches will be cut apart with scissors or a hot knife.
  • Start with a fresh bobbin and enable Color Sort in the docker to reduce unnecessary travel.
  • Success check: the machine traces the full array without contacting the frame, and finished pieces can be cut out cleanly without nicking stitches.
  • If it still fails: reduce array size or increase spacing rather than forcing the layout to “just fit.”
• Q: What mechanical safety steps should be taken before stitching large Copy Array layouts on an embroidery machine to prevent hoop strikes and workspace collisions?
  A: Always run a trace and verify clearance around the machine, because large arrays drive the arm to the extreme limits of the hoop.
  • Clear the wall/space behind the machine so the pantograph can travel fully without hitting anything.
  • Run Trace Design (or the equivalent) to confirm the presser foot will not strike the hoop frame.
  • Install a fresh needle suited to the fabric (the blog’s examples: 75/11 Sharp for wovens, 75/11 Ballpoint for knits) and clean lint from the thread path for long runs.
  • Success check: tracing completes without contact and stitching runs without sudden knocks, frame hits, or abnormal vibration.
  • If it still fails: stop immediately and increase safe margins in the layout before trying again.
• Q: What magnet safety rules apply when using a magnetic embroidery hoop or magnetic hooping station for garment hooping to reduce hoop burn?
  A: Magnetic frames can reduce hoop burn by avoiding over-tight clamping, but neodymium magnets are a pinch hazard and must be kept away from pacemakers.
  • Keep magnetic hoops and stations away from pacemakers and sensitive medical devices.
  • Keep fingers clear when closing the frame; magnets can snap together with significant force.
  • Use magnetic hooping as the Level 2 upgrade when hoop burn or fabric friction damage is the recurring trigger on delicate garments.
  • Success check: the garment shows fewer shiny hoop marks after stitching, and the frame closes securely without fabric distortion.
  • If it still fails: reassess stabilizer choice and sequencing (grouped motifs for knits) before increasing clamp force.
