Stop Color Chaos on a Brother Multi-Needle: Custom Thread Table, Reserved Needles, Anchor, and Per-Needle Speed (Done Right)

If you have ever loaded a design onto your Brother multi-needle machine and felt that sudden spike of panic because the screen colors don’t match the physical spools you just painstakingly threaded, stop. Take a breath. You are not alone, and your machine is not broken.

This is a classic "translation error" between the digital brain of the machine and the physical reality of your thread stand.

What we are about to do is not just "change settings." We are going to build a Custom Thread Table—a reliable color-to-needle system that forces the machine to recognize your specific inventory. Once you dial this in, you stop reassigning colors for every single job. It transforms your workflow from "constant anxiety" to "press start and walk away."

Calm the Chaos: Why the Custom Thread Table Is Your Production Backbone

A Brother multi-needle machine is powerful, but out of the box, it is blind. It doesn't know if you bought Madeira, Sulky, or generic poly. It defaults to factory assumptions that rarely match your actual rack.

When you ignore this, you are forced to mentally juggle: "Okay, the screen says Blue, but I threaded Red on Needle 3, so I need to ignore the screen..." That is a recipe for ruining expensive garments.

Here is the operational payoff of setting this up correctly:

1. Truth in Data: Your machine utilizes the specific color numbers you own (e.g., Madeira 1990 vs. generic "Pink").
2. Visual Safety: The screen preview matches the physical garment.
3. Speed Control: You can throttle down specifically for difficult threads (like metallics) without slowing the whole production line.
4. Anchoring: You can lock your "money maker" inputs (like White or Black) to specific needles forever.

If you run a small shop or batch-produce gifts, this system is the difference between a hobbyist guessing game and professional manufacturing.

The "Hidden" Prep Pros Do First: Physical Audit & Safety Protocols

Before you touch the digital touchscreen, we must audit the physical world. A computer is only as smart as the data you feed it.

The Physical Spool Audit

Rotate your thread spools. Look at the top or bottom label. You will see a Brand Name (e.g., Madeira Poly) and a Color Number (e.g., 1801).

• The Trap: Color numbers are not universal. A "1990" in Madeira is a vibrant deep pink. A "1990" in another brand might be a muddy brown. You must identify both Brand and Number.
• The Clean-Up: Check for lint around the thread path. A dusty sensor can misread thread tension even if the color is programmed correctly.

Warning: Mechanical Safety Zone.
Keep fingers, loose sleeves, jewelry, and magnetic tools away from the needle bar area when the machine is powered on. Even during "setup" modes, accidentally hitting the "Trace" or "Needle Down" button can cause the head to move instantly with enough force to pierce bone. Treat the needle zone as "live" ammunition at all times.

Prep Checklist (Pre-Flight Protocol)

• Visually Verify: physically remove spools to read the label if necessary. Write down the Brand + Number for every needle (1 through 6 or 10).
• Dust Check: Blow out the bobbin case area with canned air; lint accumulation leads to false tension readings.
• Consumable Check: Ensure you have the correct needle type installed. A 75/11 sharp is standard, but if you are programming for a thick sweatshirt, swap to a ballpoint now.
• Clear the Deck: If previous colors are assigned to the "Reserved Needle" screen, acknowledge that they are likely wrong. We will overwrite them shortly.


Build Your Brother Custom Thread Table (The Database of Truth)

This step creates a library of your inventory inside the machine. You are not assigning needles yet; you are simply teaching the machine what threads exist in your shop.

The Navigation Path:

1. Tap the Settings icon.
2. Navigate to Page 3 (use the arrow keys).
3. Select the Custom Thread Table icon (looks like a grid/chart).

You will land on a blank grid. Think of this as an empty spreadsheet waiting for your data.

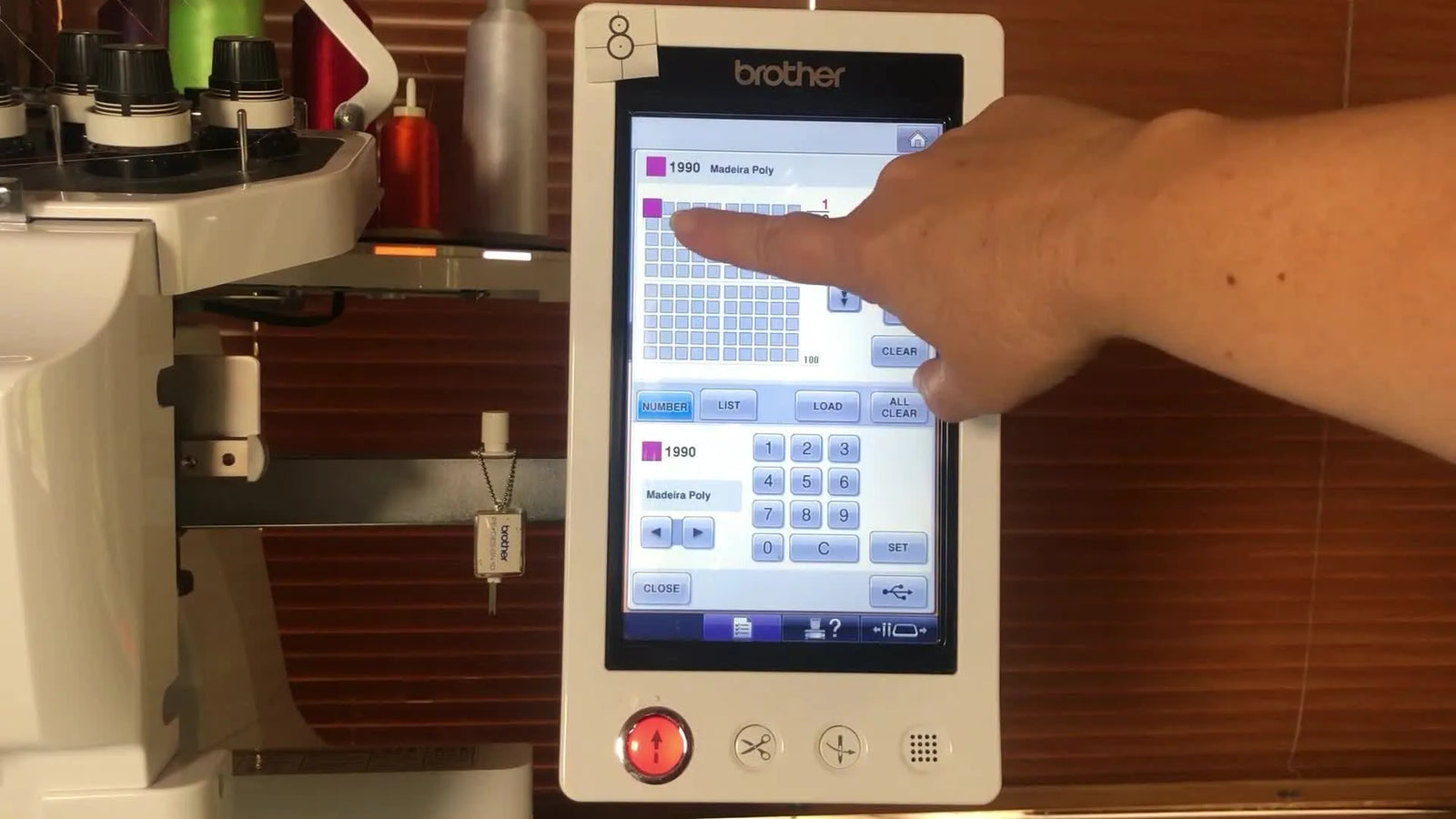

Method A: Direct Number Entry (Faster for Pros)

This is the standard method for efficiency.

1. Look at your physical spool (e.g., Pink Madeira).
2. On the screen, press Number.
3. Type the code: 1990.
4. Crucial Step: Use the arrow keys to cycle the Brand until it matches (e.g., Madeira Poly).
5. Sensory Check: Look at the color block on the screen. Does it visually match the spool in your hand? If yes, press Set.

When effective, the blank box populates with a specific color generated by Brother's internal database for that manufacturer.

Method B: The List Scroll (Better for Visual Matching)

If a label is worn off or readable, use the list view.

1. Select the Brand first.
2. Scroll through the list until the display color matches your thread.
3. Press Set.


Why Brand Selection is Non-Negotiable

In professional embroidery, "Red" does not exist. Only "Madeira Poly 1838" or "Isacord 1902" exists. If you skip the brand selection, the machine may assign a generic RGB value. This leads to "Screen Drift," where the screen shows a bright red, but the stitches come out maroon. This can cause you to scrap garments because the client approved the screen proof, not the physical result.

Reserved Needle Screen: Mapping the Virtual to the Physical

Now that the machine knows your threads exist, we must tell it where they are hanging. This is the Mapping Phase.

Default State: The Reserved Needle screen usually shows random colors from the last job. Target State: The screen perfectly mirrors your thread stand.

The Mapping Protocol

1. Go to the Reserved Needle screen.
2. Tap Needle 1.
3. Tap the Grid/List Icon (this opens your Custom Thread Table we just built).
4. Select your White thread (e.g., Madeira Poly 1801).
5. Press Set.

Sensory Feedback: Watch the main UI. The spool icon for Needle 1 should instantly change to White. If it doesn't, you missed the "Set" confirmation.

This mapping prevents the "Logo Disaster"—where a design calls for a black outline, but because Needle 1 was left as "Yellow" in the brain of the machine, it stitches a yellow outline on a yellow shirt, making the logo invisible.

For owners of the brother multi needle embroidery machine, this discipline is the primary separator between amateur frustration and commercial consistency.

The Anchor: Your "Always On" Contract

The Anchor (a small lock icon or anchor symbol) tells the machine: "No matter what the design file says, Needle 1 is ALWAYS White."

When to use Anchor

• The Essentials: You likely use White and Black on almost every design. Put them on Needle 1 and 6 (or 10), and Anchor them.
• The Workflow: This allows you to load 50 different design files without ever having to re-thread those two needles. The machine will automatically route any "White" data to Needle 1.


When NOT to use Anchor

Do not anchor specialty colors like "Neon Green" unless you use it daily. If you anchor too many needles, the machine runs out of "free" needles to assign variable colors, forcing you to stop and re-thread mid-design.

How to Release: IF you need to change an anchored needle, simply tap the needle number and press Reset. The anchor symbol will vanish, freeing the needle.

The "Sweet Spot" for Speed: Per-Needle SPM Control

Most beginners stitch everything at 600 SPM (Stitches Per Minute) out of fear, or 1000 SPM out of impatience. The Per-Needle Speed setting allows you to run robust threads fast and delicate threads slow within the same design.

The Physics of Thread Breakage: Thread breaks are often caused by friction heat (melting polyester) or tension shock (snapping rayon).

• Needle 1 (Standard Poly): Can handle high heat/friction.
• Needle 2 (Metallic/Rayon): Needs lower friction to prevent shredding.


How to Program Speed Caps

1. Select the needle (e.g., Needle 2).
2. Use the (+ / -) keys to adjust the Max Speed.
3. Auditory Check: When running, listen to the machine.
   • Happy Sound: A rhythmic, consistent hum (thrum-thrum-thrum).
   • Unhappy Sound: A sharp, struggling pounding or high-pitched whining.




Empirical Data: The Speed "Sweet Spots"

• Standard Polyester: 800 - 1000 SPM (Safe production speed).
• Rayon: 700 - 800 SPM (Rayon is weaker than poly).
• Metallic / Glow-in-the-Dark: 500 - 600 SPM. Do not rush this.
• Beginner Safety Zone: If you are new, set all needles to 600-700 SPM. You will trade 2 minutes of run time for zero thread breaks, which is a net gain in efficiency.

If you optimize these speeds, you reduce the stress on the thread path. This is vital when using the brother pr 680w, as optimizing per-needle speed allows the variable carriage to move efficiently without shredding specialty fibers.

Visual Verification: The "Light Check"

Brother machines offer a beautiful sensory confirmation tool: The LED Spool Lights. Look at the embroidery head. There is an LED light above each needle bar.

• The Check: If Needle 1 is programmed as White, the light above Needle 1 should glow White (or clear). If Needle 2 is Red, the light should be Red.
• The Fix: If the light color contradicts the thread spool, you have mapped it wrong. Stop immediately and re-check the Reserved Needle screen.


Decision Tree: Fabric vs. Stabilizer vs. Speed

You can program the machine perfectly, but if your physics are wrong, the embroidery will fail. Use this logic gate before every job.

Decision Tree (Fabric Behavior → Strategy)

1. Is the fabric stretchy (T-shirts/Polos)?
   • Yes: YOU MUST use Cutaway stabilizer. Tearaway will fail, causing the design to distort.
   • Action: If fabric "bounces" in the hoop, reduce SPM to 600 to lower impact force.
2. Is the fabric textured (Towels/Fleece)?
   • Yes: You need a Water Soluble Topping (Solvy) to stop stitches from sinking.
   • Action: Increase "Pull Compensation" in your software, or the stitches will look thin.
3. Is it a "Slippery" material (Satin/Silk)?
   • Yes: Hoop burn is a major risk.
   • Action: Do NOT over-tighten standard hoops. Consider magnetic options to hold without crushing fibers.

Commercial Reality: When to Upgrade Your Tools

If you have dialed in your Custom Thread Table and your Speed Limits, but you still face:

1. Hoop Burn: Shiny rings left on dark shirts.
2. Wrist Pain: From repetitive screwing/unscrewing of hoops.
3. Crooked Logos: Because manual hooping is hard to align perfectly.

This is the "Trigger Point" for hardware evolution. Standard hoops rely on friction and muscle power. Professional shops transition to Magnetic Hoops.

Why Upgrade to Sewtech Magnetic Hoops?

• The Physics: Magnets apply vertical pressure, holding fabric flat without the "tug-of-war" that causes distortion.
• The Efficiency: You eliminate the "unscrew-hoop-screw-tighten" cycle. You just Click-and-Go.
• The Application:
  • For One-Offs: A magnetic hoop for brother prevents hoop burn on delicate customer items.
  • For Production: Heavy-duty magnetic embroidery hoops for brother allow you to hoist thick Carhartt jackets or layered quilts that standard hoops physically cannot clamp.

Warning: Magnetic Safety.
These are not refrigerator magnets. Industrial magnetic hoops generate massive clamping force.
* Pinch Hazard: Never place fingers between the top and bottom frame. They will snap together instantly.
* Medical Safety: Keep at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not rest them on laptops or tablets.

If you are using magnetic embroidery hoops properly, you should find that you can actually increase your machine speed slightly (e.g., from 600 back to 800 SPM) because the fabric is held more securely than in a standard plastic hoop.

Setup Checklist (The "Go/No-Go" Sequence)

Do not press the green button until you pass this list.

• Physical Match: Spool color matches the Reserved Needle screen assignment.
• Anchor Logic: Only vital needles (White/Black) are Anchored.
• Speed Safety: Metallics/Delicates are capped at 600 SPM; Poly is at 900 SPM.
• Light Check: LED lights on the head match the thread colors.
• Hoop Clearance: The hoop size selected on screen matches the physical hoop attached. (Collision = Broken Machine).
• Consumables: Bobbin is full enough to finish the run.
• Emergency Stop: You know exactly where the Stop button is.

Final Thought

Programming the Custom Thread Table feels like homework the first time you do it. But the second time? It feels like relief. By teaching your machine the truth about your thread inventory, you remove the biggest variable in embroidery: Human Error.

Lock your colors. Stabilize your fabric. Upgrade your hoops when production demands it. Now, press start.

FAQ

• Q: Why do Brother multi-needle embroidery machine screen colors not match the physical thread spools on the thread stand?
  A: This is common and usually means the Brother machine is using factory thread assumptions instead of a shop-specific Custom Thread Table.
  • Build: Open Settings → Page 3 → Custom Thread Table, then add each thread by correct Brand + Number.
  • Map: Go to the Reserved Needle screen and assign each needle from the Custom Thread Table (don’t leave “last job” colors).
  • Anchor: Lock only the “always used” needles (often White/Black) so designs stop re-routing them.
  • Success check: The Reserved Needle screen and the physical spools match needle-by-needle, and the on-head LED spool lights match those assignments.
  • If it still fails… Re-enter the same number with the correct Brand selected; brand mismatch is a frequent cause of wrong on-screen colors.
• Q: How do Brother Custom Thread Table entries get created correctly when the same thread number exists in different brands (example: “1990”)?
  A: Always select the correct thread Brand before confirming the thread Number, because numbers are not universal across brands.
  • Audit: Read the spool label for both Brand name and color Number (write it down needle 1 through 6/10).
  • Enter: In the Custom Thread Table, type the Number, then cycle Brand until it matches the spool, then press Set.
  • Verify: Compare the on-screen color block to the spool in hand before pressing Set.
  • Success check: The grid box populates with a color that visually matches the actual spool you are holding.
  • If it still fails… Use the List Scroll method (select Brand first, then scroll visually) when labels are worn or unclear.
• Q: How do Brother multi-needle embroidery machines map the Custom Thread Table to the Reserved Needle screen so designs stitch the intended colors?
  A: Use the Reserved Needle screen to “tell the machine where threads are hanging” by assigning each needle from the Custom Thread Table.
  • Open: Go to the Reserved Needle screen and tap a specific needle number (Needle 1, Needle 2, etc.).
  • Select: Tap the grid/list icon to open the Custom Thread Table and choose the exact thread entry.
  • Confirm: Press Set every time; skipping Set is a common reason assignments don’t change.
  • Success check: The main UI spool icon changes immediately to the selected color for that needle.
  • If it still fails… Re-check that the Custom Thread Table entry was saved (not just previewed) and that the Reserved Needle screen is not showing leftover colors from a previous job.
• Q: When should Brother Reserved Needle “Anchor/Lock” be used, and when should Brother Reserved Needle “Anchor/Lock” be avoided?
  A: Anchor only the needles that must stay constant (often White and Black) so Brother machines stop reassigning those colors between design files.
  • Anchor: Lock essential, high-frequency colors to specific needles to reduce re-threading between jobs.
  • Avoid: Do not anchor many specialty colors, because it reduces free needles and may force re-threading mid-design.
  • Release: Tap the anchored needle and press Reset to remove the anchor when a change is needed.
  • Success check: Loading different designs does not “steal” the anchored needle, and the anchor symbol remains on the intended needles only.
  • If it still fails… Remove extra anchors and re-map the Reserved Needle screen so the machine has enough unanchored needles for variable colors.
• Q: What per-needle SPM settings are safe on Brother multi-needle embroidery machines for polyester, rayon, and metallic threads?
  A: Cap speed per needle based on thread type to prevent breaks—poly can run faster, metallic needs the slowest range.
  • Set: Program per-needle max speed instead of running one global speed for every thread.
  • Use: Standard polyester at 800–1000 SPM, rayon at 700–800 SPM, metallic/glow at 500–600 SPM.
  • Start: If new to multi-needle production, set all needles to 600–700 SPM as a safe starting point.
  • Success check: The machine sound is a steady, rhythmic hum (not pounding or high-pitched struggling), and thread breaks decrease.
  • If it still fails… Slow the needle carrying metallic/rayon further and re-check fabric support (stabilizer choice and hoop security) because motion and impact can amplify shredding.
• Q: How can Brother multi-needle embroidery machine LED spool lights be used to verify Reserved Needle color mapping before pressing Start?
  A: Use the LED spool lights as a quick visual verification that each needle assignment matches the real spool on the stand.
  • Look: Compare each needle’s LED color to the physical spool mounted for that needle.
  • Stop: If any LED contradicts the spool, return to the Reserved Needle screen and re-map that needle.
  • Check: Confirm the hoop size selected on-screen matches the hoop attached to prevent collisions before running.
  • Success check: Needle-by-needle, LED lights, Reserved Needle screen colors, and physical spools all agree.
  • If it still fails… Re-confirm that Set was pressed during mapping; missing confirmation is a common reason the display does not update.
• Q: What safety precautions are required around the Brother multi-needle embroidery machine needle bar area during setup and thread table programming?
  A: Treat the needle bar area as “live” any time the Brother machine is powered on—unexpected head movement can happen even during setup.
  • Keep clear: Remove fingers, loose sleeves, jewelry, and any magnetic tools from the needle bar/head area.
  • Avoid triggers: Do not bump Trace or Needle Down while hands are near the needle zone.
  • Prepare: Perform thread/spool auditing and cleaning with deliberate hand placement away from moving parts.
  • Success check: Setup actions are completed without hands entering the needle sweep zone, and the operator can identify the Stop button instantly.
  • If it still fails… Power down before working close to the needle bar area, and follow the specific Brother machine manual for safe service steps.
• Q: When do Sewtech magnetic embroidery hoops make sense for Brother embroidery machines if hoop burn, wrist pain, or crooked logos keep happening?
  A: If standard hoops keep causing hoop burn, repetitive strain, or alignment inconsistency, magnetic hoops are the next practical upgrade after technique optimization.
  • Level 1: Reduce over-tightening on delicate materials and verify stabilizer choices (stretchy fabric needs cutaway; textured fabric often needs water-soluble topping).
  • Level 2: Switch to Sewtech magnetic hoops to apply vertical holding pressure and reduce fabric distortion and hooping effort.
  • Level 3: If production volume still demands more consistency and throughput, consider upgrading to a multi-needle workflow solution (machine capacity depends on the shop’s needs and manual guidance).
  • Success check: Hoop burn reduces, hooping becomes faster (no screw-tighten cycle), and stitch placement stays straighter between repeats.
  • If it still fails… Re-check magnetic hoop placement and fabric support, and lower speed again on difficult materials until stability is confirmed.
• Q: What magnetic safety rules must be followed when using Sewtech magnetic embroidery hoops on Brother embroidery machines?
  A: Sewtech magnetic hoops clamp with high force—prevent pinching injuries and keep magnets away from sensitive medical devices and electronics.
  • Avoid pinches: Never place fingers between the top and bottom frames; let frames mate under control.
  • Keep distance: Maintain at least 6 inches from pacemakers or insulin pumps.
  • Protect devices: Do not rest magnetic hoops on laptops, tablets, or similar electronics.
  • Success check: Frames are handled without snap-impact on fingers, and the hoop closes cleanly with controlled alignment.
  • If it still fails… Slow down the handling process and reposition the fabric before bringing frames together; rushing is the main cause of pinch incidents.
