Stop Changing Thread 50 Times: Color Sort a 9.5" x 14" PE-Design 11 Hoop Layout Without Ruining Stitch Order

If you run a small embroidery business, you already know the real enemy isn’t the stitching—it’s the stops. It’s the silence. Every time your machine stops for a thread change, you aren’t making money. Every time you un-hoop and re-hoop a single item, you are paying a "time tax."

In the world of commercial embroidery, we have a saying: "Keep the needle moving."

In this masterclass on PE-Design 11 workflow, we aren’t just making a file; we are building a production engine. You will learn how to create a one-hoop batch file (nine snowman faces in a large 9.5" x 14" hoop), use Optimize Sewing Order to slash your thread changes from 54 down to just 6, and deploy a "Red Thread" safety protocol to prevent the software from ruining your design layering.

Whether you are running a single-needle workhorse or looking to scale up to a professional multi-needle setup, this guide is your blueprint for efficiency.

The “One-Hoop” Mindset in PE-Design 11: Fewer Stops, Cleaner Batches, More Profit

When you stitch one item at a time, the default sewing order is acceptable. But let’s look at the math of scaling. If one snowman face has 6 color changes, and you stitch 9 of them individually:

• 9 faces × 6 changes = 54 interruptions.
• That is 54 times you cut the thread, change the spool, and re-thread the needle (on a single-needle machine).

By adopting the "One-Hoop" mindset and color sorting, we group the logic:

1. Stitch all registration marks first (9 locations).
2. Stitch all Orange Noses (9 locations).
3. Stitch all Black Eyes, etc.

The result? 6 interruptions total. You just bought yourself 45 minutes of freedom.

However, batching adds physical stress. A filled 9.5" x 14" hoop is heavy. If you are struggling to clamp thick fleece tightly without causing "hoop burn" (those shiny, crushed rings left on the fabric), this is the moment your equipment needs to match your ambition. Many pros switch to a hooping station combined with sturdy frames to ensure that the ninth hoop takes exactly as long to load as the first, saving your wrists from fatigue.

The “Hidden” Prep Pros Never Skip: Crosshair Alignment + Panel Discipline Before You Duplicate Anything

Amateurs guess; professionals measure. This workflow relies on a technique called "Floating with Alignment."

Instead of hooping the thick fleece directly (which is difficult and causes distortion), we hoop the stabilizer only. We stitch a "crosshair" (a simple plus sign) onto the stabilizer, spray it with temporary adhesive, and then place our fleece panel on top, aligning it perfectly with the stitched mark.

The Workflow in PE-Design 11 Layout & Editing:

1. Set the Stage: Select your 9.5" x 14" hoop.
2. The Anchor: Import your crosshair alignment file first. Center it.
3. The Art: Import the snowman face design. Center it so it sits directly on top of the crosshair.

Why do this? Because when you are stitching 9 items at once, you cannot afford to "eyeball" the placement of 9 separate pieces of fabric. The stitched crosshair is your physical guide. By "floating" the material, you also eliminate the struggle of jamming thick seams into a standard hoop inner ring.

Prep Checklist (Pre-Flight Safety Check):

• Needle Check: Run your fingernail down the needle tip. Use a fresh 75/11 or 80/12 Ballpoint (for fleece). Any burr here will shred your thread 9 times over.
• Hoop Selection: Confirm software is set to 9.5" x 14".
• Sequence check: The Crosshair file must be the very first layer in the list.
• Bobbin Status: Do not start a jumbo batch with a half-empty bobbin. Wind a fresh one.
• Consumables: Have your temporary spray adhesive (like Odif 505) and sharp appliqué scissors ready.

Warning: Mechanical Safety. Keep your fingers clear of the needle bar and moving pantograph during test runs. When floating fabric, ensure no excess fabric is hanging underneath the hoop where it could get caught in the feed dogs or Y-carriage. A caught sleeve can throw the machine out of timing instantly.

Lock the Crosshair + Face Together: Grouping in PE-Design 11 So Nothing Drifts Mid-Layout

Once your crosshair and snowman face are perfectly aligned in the center, you must legally bind them together in the eyes of the software.

If you don't do this, you might drag the "Face" to the top left corner, leaving the "Crosshair" behind in the center. Your machine will stitch a placement mark in one spot and a face in another.

The Fix:

1. Use the Select tool (Arrow).
2. Draw a box around both the crosshair and the face design.
3. Right-click > Group (or press Ctrl+G).
4. Move this combined unit to the top-left corner of the hoop area.


Fill a 9.5" x 14" Hoop with 9 Copies (3x3) Without Creating a Cutting Nightmare

Now we duplicate for production.

• Copy (Ctrl+C)
• Paste (Ctrl+V)

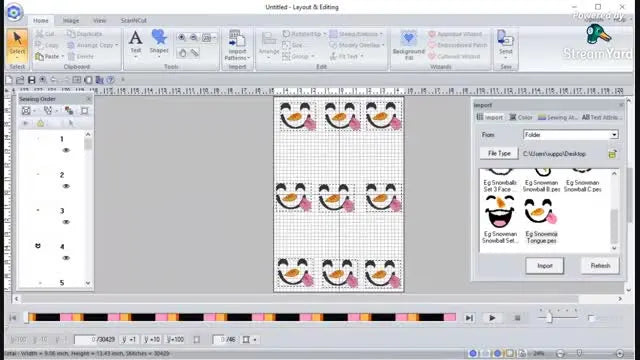

Drag your copies to create a 3x3 grid (9 faces total).

The "Real World" Spacing Rule: In the software, it looks tempting to cram them close together to save stabilizer. Don't. You are working with physical fabric that needs to be cut apart later.

• Leave at least 0.75" to 1" (2cm) between designs.
• Give yourself room for your rotary cutter or scissors.
• Give yourself room for seam allowance if you are sewing these into pillows or pouches later.

Sensory Check: Visualize the path. If your machine does not have automatic jump-stitch trimming, a chaotic layout will leave "spiderwebs" of thread traveling across the hoop. Try to lay them out so the machine flows logically: Row 1 (Left to Right), Row 2 (Right to Left).

The “Optimize Sewing Order” Button in PE-Design 11: The Click That Saves Your Whole Afternoon

This is the moment of magic. Look at your "Sewing Order" pane on the left. Right now, it shows:

• Group 1 (Crosshair, White, Orange, Black...)
• Group 2 (Crosshair, White, Orange, Black...)
• ...repeating 9 times.

If you hit "Start" now, you will be changing threads all day.

The Action:

1. Go to the Home tab.
2. Locate the Optimize Sewing Order icon (it looks like a thread spool with a curved arrow).
3. Click it.

The Result: Watch the Sewing Order pane collapse. PE-Design 11 instantly reshuffles the data directly from the Color Sort logic.

1. Stop 1: All 9 Crosshairs (Placement). Machine stops.
2. [You place your 9 fabric squares].
3. Stop 2: All 9 White backgrounds.
4. Stop 3: All 9 Orange noses.

This is the core concept behind efficient multi hooping machine embroidery workflows—even on a single needle machine, you are thinking like a factory. You are maximizing the "Run Time" and minimizing the "Down Time."

Setup Checklist (Post-Optimization):

• Timeline Verification: Scroll through the sewing order. Do you see all the "Oranges" grouped together? Good.
• Physical Match: Does your screen match your thread rack? Line up your cones in the physical order they will be used.
• Travel Check: Look for long distinct lines connecting the designs. Are they passing over areas stitched previously? (Ideally, they should travel through the whitespace).

The “Red Thread” Trick: Prevent PE-Design 11 from Merging Repeated Colors and Ruining Layering

Here is the "Expert Trap" that beginners stumble into.

Imagine your snowman has:

1. Black Mouth (Background layer).
2. Orange Nose (Middle layer).
3. Black Eyes (Top layer).

When you click "Optimize Sewing Order," the software thinks: "Great! I'll do ALL the Black at once!" It merges the Mouth and the Eyes into one giant "Black" step that happens before the Orange nose. The Tragedy: Your Orange nose stitches over the Black eyes. The eyes disappear or look messy.

The "Red Thread" Solution: We must force the software to see the Eyes as a different color, so it keeps them separated in the timeline.

1. In the Sewing Order pane, select the Black Eyes group (the layer that implies detail/top stitch).
2. Right-click > Change Color.
3. Select a scream-color like RED.
4. The eyes on your screen turn Red. The sequence is now: Black (Mouth) -> Orange (Nose) -> Red (Eyes).

At the Machine: When the machine stops and asks for "Red," you thread it with Black. The machine doesn't have eyes; it only knows "Stop #4." You are smarter than the machine. This trick preserves your artistic layering while still reaping the benefits of batching.

Jump Stitches Across a Large Hoop: How Layout Choices Can Make or Break Cleanup Time

When working with a maximized 9.5" x 14" hoop, the physics of embroidery change. The pantograph arm is extending fully. If you have a long "Jump Stitch" from the top-left corner to the bottom-right corner, the thread can droop, get caught under the foot, or snag on the fabric.

For Machines WITHOUT Auto-Trimmers: You must pause the machine after the first few stitches of a new color group, trim the tail, and then resume. Do not let clean-up pile up until the end.

For Machines WITH Auto-Trimmers: Ensure your "Trim Distance" setting (in the machine's settings menu) is low enough to catch these jumps.

Stability Warning: On a hoop this large, if you are using standard hoops, the fabric in the center tends to "bounce" (flagging). This causes registration errors (outlines not matching fill). This is where magnetic embroidery hoops shine—they clamp even thick items like towels or fleece with even, drum-like tension across the entire surface area, reducing the flagging effect that ruins large batches.

A Simple Decision Tree: Stabilizer + Hooping Choices for Fleece Panels in Batch Runs

You are stitching dense faces on soft, stretchy fleece. One wrong choice here, and your circles become ovals. Use this logic path to choose your consumables.

Decision Tree: The "Safe Zone" for Batching

• Scenario A: The fabric stretches (Polar Fleece, Minky, Jersey).
  • Stabilizer: Cutaway (2.5oz or mesh). No exceptions. Tearaway will rip during a 9-face run, causing the designs to shift.
  • Adhesive: Light mist of 505 Temporary Spray on the stabilizer to hold the "floated" square.
  • Hooping: Hoop the stabilizer tight (drum sound). Float the fabric.
• Scenario B: The fabric is stable (Felt, Denim, Canvas).
  • Stabilizer: Tearaway is acceptable, but Cutaway is always safer for density.
  • Hooping: You can hoop the fabric directly if it fits.
• The "Hoop Burn" Variable:
  • If you see "rings" crushed into your fleece after un-hooping:
  • Option 1: Steam it out (risky, takes time).
  • Option 2 (The Pro Fix): Switch to a magnetic embroidery frame. The flat magnets hold fabric without the "crushing" force of an inner ring, eliminating hoop burn mostly entirely.

Warning: Magnet Safety. High-quality magnetic frames use industrial-strength neodymium magnets. They are strong.
* Pinch Hazard: Do not let two magnets snap together without a separator; they can pinch skin severely.
* Medical: Keep them at least 6 inches away from pacemakers.
* Electronics: Keep them away from credit cards and the actual LCD screen of your embroidery machine.

The “Save It and Stitch” Moment: What to Verify Before You Commit a Full Hoop to Production

You are about to instruct a machine to punch thousands of holes in your material. Take 30 seconds to verify the mission data.

Operation Checklist (The "Do Not Fail" List):

1. The "Dummy Color" Check: Did you use the Red Thread Trick? If yes, put a sticky note on your machine screen: "RED = BLACK THREAD". You will forget in the heat of the moment.
2. Bobbin Volume: Check it again. A bobbin run-out in the middle of a 9-up batch is a headache you don't need.
3. Hoop Clearance: Attach the hoop. heavy visuals check—rotate the handwheel or trace the area to ensure the hoop does not hit the presser foot arm.
4. Hidden Consumable: Do you have water-soluble topping? If your fleece is deep/fluffy, lay a sheet of Solvy on top after the placement step. This prevents the stitches from sinking into the fur (the "shark in the water" effect).

The Upgrade Path That Actually Makes Sense: Fix the File First, Then Upgrade the Tools

Embroidery is a journey from "Making it work" to "Making it profitable."

• Level 1 (Software): Mastering Optimize Sewing Order and the Red Thread Trick costs you nothing but time, yet it triples your efficiency.
• Level 2 (Workflow): If you are fighting with thick fabrics or struggle with hoop burn, investing in embroidery magnetic hoop sets is the most cost-effective hardware upgrade to reduce prep time and spoilage.
• Level 3 (Scale): If this batch file runs perfectly, but your single-needle machine is still too slow for your order volume, you have hit the ceiling. This is when upgrading to a multi-needle machine (like the SEWTECH commercial lines) makes financial sense. You load all 6 colors once, press start, and walk away while the machine handles the swaps.

The video tutorial above gives you the software foundation. Your discipline in prep and your choice of tools will determine your profit margin. Now, go load that hoop.

FAQ

• Q: In Brother PE-Design 11 Layout & Editing, how does the Optimize Sewing Order button reduce thread changes when stitching a 9-up batch in a 9.5" x 14" hoop?
  A: Use Optimize Sewing Order after duplicating the grouped designs so PE-Design 11 stitches the same colors across all 9 copies in one run.
  • Click Home > Optimize Sewing Order after the 3x3 layout is finished.
  • Verify the Sewing Order pane shows all like-colors grouped (all crosshairs, then all whites, then all oranges, etc.).
  • Line up physical thread cones/spools in the same order as the new on-screen sequence.
  • Success check: The sewing order no longer repeats “Crosshair > White > Orange > Black…” nine times; it collapses into color blocks.
  • If it still fails: Re-check that each snowman unit was Grouped (Ctrl+G) before copying, so elements don’t separate and reorder unpredictably.
• Q: In Brother PE-Design 11, how do you prevent Optimize Sewing Order from merging repeated colors and ruining layering (the “Red Thread” trick for black eyes vs black mouth)?
  A: Change the top-detail layer to a dummy color (often Red) so PE-Design 11 keeps the layers separated in the timeline, then stitch that stop using the real thread color at the machine.
  • Select the Black Eyes step in the Sewing Order pane, then Right-click > Change Color and set it to Red (or another obvious color).
  • Keep the intended layering as Black (mouth) → Orange (nose) → Red (eyes) in the sewing order.
  • At the machine, thread Black when the machine requests Red.
  • Success check: The Orange nose no longer stitches over the eyes; the eyes remain crisp on top.
  • If it still fails: Confirm the “eyes” are truly a separate step/layer in the sewing order before optimizing.
• Q: For a Brother PE-Design 11 batch run using the “Floating with Alignment” method, what exact pre-flight prep checklist prevents misalignment and mid-run failures on fleece panels?
  A: Hoop stabilizer only, stitch a crosshair first, and verify needle/bobbin/sequence before committing to a full 9-up run—this is common and saves wasted hoops.
  • Install a fresh 75/11 or 80/12 ballpoint needle for fleece and avoid starting with a questionable needle tip.
  • Stitch the crosshair alignment file first, then place panels using temporary spray adhesive on the stabilizer.
  • Start with a fresh bobbin, not a half-empty one, before a jumbo batch.
  • Success check: The fleece panel aligns cleanly to the stitched crosshair and does not drift when lightly tugged at the edge.
  • If it still fails: Re-check that the crosshair is the first layer in the design list and that the hoop size is set to 9.5" x 14" in software.
• Q: When hooping a full 9.5" x 14" embroidery hoop for a 9-up layout, what spacing prevents a cutting nightmare and excessive jump-stitch “spiderwebs” on single-needle machines?
  A: Leave enough real-world cutting space and plan travel paths so cleanup doesn’t explode at the end.
  • Keep 0.75" to 1" (about 2 cm) between designs for scissors/rotary cutter and seam allowance.
  • Arrange copies so the stitch path flows logically (for example, one row left-to-right, the next row right-to-left) to reduce long jumps.
  • For machines without auto-trimmers, pause early in a new color group to trim tails instead of letting thread build up.
  • Success check: After stitching, each panel can be cut apart without cutting into satin edges or wrestling dense thread bridges.
  • If it still fails: Increase spacing slightly and re-check the sewing order for long travel lines crossing stitched areas.
• Q: What stabilizer and hooping combination is the safest starting point for stitching dense faces on polar fleece/minky/jersey in a Brother PE-Design 11 9-up batch run?
  A: Use cutaway stabilizer and float the fabric—tearaway commonly fails on stretchy fleece during long batch runs.
  • Choose cutaway stabilizer (2.5 oz or mesh) for stretchy fleece; avoid relying on tearaway for a 9-face run.
  • Hoop the stabilizer tight (drum-like) and use a light mist of temporary spray adhesive to hold each floated square.
  • Add water-soluble topping after placement if the fleece is deep/fluffy to prevent stitches from sinking.
  • Success check: Circles stay round (not oval) and outlines stay registered to fills across the full hoop.
  • If it still fails: Reduce fabric “bounce/flagging” by improving clamping consistency (often better hooping tools or a more rigid frame).
• Q: What mechanical safety steps prevent finger injury or machine timing damage when “floating” fabric under a large 9.5" x 14" hoop during test runs?
  A: Keep hands and loose fabric controlled during motion checks, because caught fabric can throw timing quickly.
  • Keep fingers away from the needle bar and moving carriage during any test trace or initial stitches.
  • Ensure no excess fabric hangs underneath the hoop where it can get caught by moving parts.
  • Do a clearance/motion check before production by tracing the design area to confirm nothing strikes the hoop.
  • Success check: The hoop moves freely through the full design area without snagging fabric or contacting hardware.
  • If it still fails: Stop immediately, remove the hoop, and re-secure or trim excess material before restarting.
• Q: What magnet safety rules should be followed when using industrial-strength magnetic embroidery frames for thick towels or fleece to reduce hoop burn in batch production?
  A: Treat magnetic frames as pinch hazards and keep them away from medical devices and sensitive items.
  • Separate magnets carefully and do not let magnets snap together uncontrolled (pinch risk).
  • Keep magnetic frames at least 6 inches away from pacemakers.
  • Keep magnets away from credit cards and the embroidery machine’s LCD area.
  • Success check: Fabric is held flat with even tension and releases without crushed “hoop burn” rings.
  • If it still fails: Slow down loading/unloading and use controlled placement so magnets do not shift or slam together.
