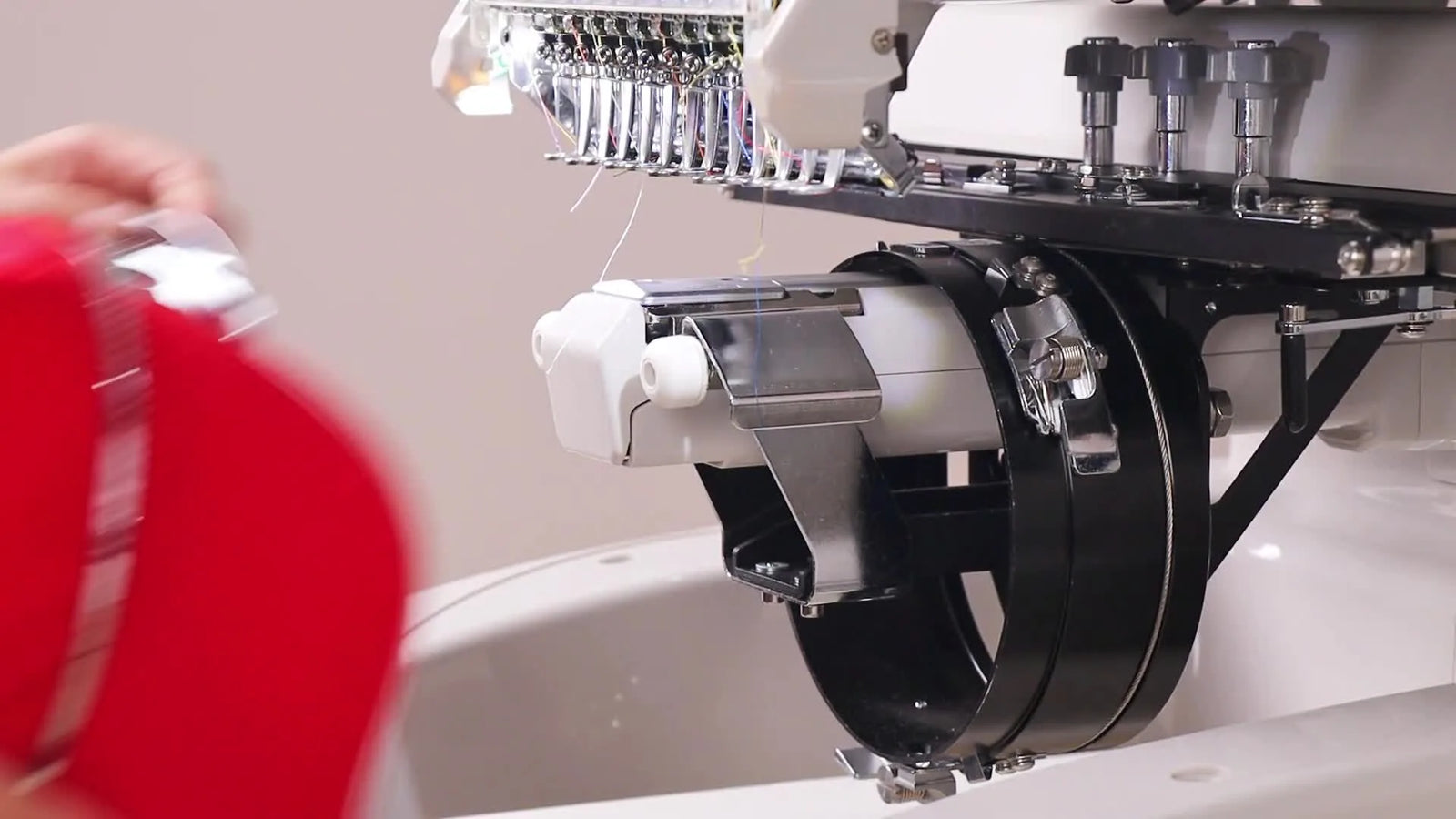

Stop Cap Crashes and Fake Thread Breaks: 4 Smartstitch Cap-Driver Habits That Save Every Hat

Master Class: The Absolute Beginner’s Guide to Cap Embroidery on Smartstitch Machines

Cap embroidery is the "final boss" for many machine owners. It feels brutal the first time you attempt it: the workpiece is curved, the driver hardware sits dangerously close to the needle path, and the physics of sewing through a stiff buckram front are completely different from a flat polo shirt.

If you are feeling anxious because you’ve already seen a "Frame Limit" warning, heard a terrifying metal-on-metal "clack," or watched the screen scream “Thread Break” when the thread is clearly still there—congratulations. That anxiety is a survival mechanism. It keeps your machine alive.

Drawing from two years of shop-floor diagnostics and the latest Smartstitch education protocols, this guide rebuilds the essential cap embroidery workflow into a fail-safe routine. Whether you are stitching a single snapback for a friend or a 50-piece team order on a SEWTECH multi-needle setup, these are the non-negotiable laws of the cap game.

Lock in Smartstitch “Frame #5 Cap Embroidery Frame” Before You Touch the Driver

The most common cap-embroidery panic is a "near-miss": you mount the heavy cap driver, hit start, and the machine behaves like it’s still in a flat frame setup. That is how you get needle clearance problems, frame limit errors, or a catastrophic driver strike that throws off your machine’s timing.

On the Smartstitch ecosystem, the first habit is absolute: choose the cap frame mode digitally before you install anything physically.

In the touchscreen frame selection menu, select Option “5” (Cap embroidery frame) and confirm.

When you tap confirm, the machine will prompt you to switch to the embroidery frame and then moves automatically to find the “mechanical origin.” That movement is not cosmetic—it is the machine re-establishing a safe spatial reference so the pantograph and needle bar clear the bulky cap driver hardware.

What you should see (Checkpoint + Expected Outcome)

• Checkpoint: Select Frame Type 5. A prompt appears asking to switch frame modes.
• The Sensory Check: When you tap “Yes,” Listen for the servo motors engaging. You should see the head physically travel to a new, higher origin position.
• Success Metric: The pantograph arm is now positioned to accept the driver without obstruction.

If you don’t see that movement, stop. Do not install the driver. Cap embroidery is an operation where "close enough" results in bent needles and broken hooks.

Warning (Mechanical Safety): If the machine is NOT in Cap Frame mode and you run a cap driver anyway, you risk a Driver Collision. The needle bar will descend into the metal driver ring instead of the cap. This can shatter the needle, scar the driver, and damage the reciprocating mechanism. Always look at the screen icon—it must show a Cap symbol, not a Square Hoop.

Treat the Mechanical Origin Reset Like a Safety Interlock

The software calls it a "reset," but you should view it as a safety interlock. Selecting the cap frame forces the machine to acknowledge the new "kill zones"—the areas where the needle cannot go because the rotating driver is in the way.

Pro Tip: The Daily Reset Rule

If you swap back and forth between flat hoops (for shirts) and cap drivers in the same day, build a hard habit: Every time you change the physical hardware, re-confirm the frame type on-screen.

Never assume yesterday’s setting is still active after a power cycle. Many operators search for a smartstitch embroidery frame setup guide only after they have scratched their needle plate. Be proactive: Match the digital mode to the physical reality every single time.

The “Hidden” Prep: Bobbin Verification Protocol

Caps are unforgiving because you cannot easily "hide" a mid-design stop. Unlike a flat towel where you can flip it over to check the bobbin, a cap is locked onto a cylinder. A bobbin run-out halfway through a dense 3D puff logo is how you end up with a visible gap, a restart mark, or a reject pile.

The Rule: Check your fuel gauge before you drive.

Open the hook cover, remove the bobbin case, and visually inspect the bobbin thread volume. If it is less than 30% full, replace it with a fresh pre-wound bobbin.

The "White Column" Check

• Visual Anchor: Look at the bobbin through the slot in the case. You should see a solid "white column" of thread.
• Tactile Check: Pull the bobbin thread tail. It should feed smoothly with slight resistance (like pulling floss), not jerkily.

Prep Checklist (Do this BEFORE Setup)

1. [ ] Digital Handshake: Confirm touchscreen is set to Frame #5.
2. [ ] Fuel Check: Inspect bobbin level. If in doubt, swap it out.
3. [ ] Tool Staging: Have a stylus and tweezers ready for thread path corrections.
4. [ ] Hardware Inspection: Check the cap driver cables and clips for damage.
5. [ ] Consumable Check: Ensure you have the correct needle (Titanium needles are recommended for thick buckram) and proper tearing stabilizer.

Mount the Cap Ring: The "Three Click" Rule

The third critical step is installing the cap frame (the ring) onto the driver cylinder. This is where physical technique matters most.

Slide the cap ring onto the driver cylinder. The specific Smartstitch geometry requires a "Twist-to-Lock" motion. Rotate the cap ring right and left to find the groove, then rotate fully to the left to engage the locking pins.

The Sensory Anchors for Success

• The Feel: The ring should slide onto the cylinder without forcing. If you have to muscle it, something is misaligned.
• The Sound: You aren't done until you hear the metal latches engage.
• The Visual: Look at the three metal latches/clips. All three must be seated over the rim.

If one latch is floating or half-seated, you will get "Micro-Shifts." On a cap, a micro-shift manifests as shaky vertical columns, outlines that don’t register with the fill, or a design that looks slightly "drunk."

Logic Criteria: When to Upgrade Your Tools

Hooping caps on a standard station is physically demanding. You are fighting the natural curve of the bill and the stiffness of the buckram.

• Scenario A: You are struggling to get the fabric tight, resulting in "flagging" (bouncing fabric) and needle breaks.
• Scenario B: You are doing production runs of 20+ hats and your wrists hurt from the clamping force.

The Solution: This is where professional shops upgrade to specialized workstations. A dedicated hooping station for embroidery isn't just a stand; it holds the cap mechanically taut, allowing you to smooth the sweatband and clip it without fighting the fabric. If you are serious about clean lettering, stable hooping is 80% of the battle.

Setup Checklist (Do this AFTER Prep)

1. [ ] Mount: Ring slides fully onto the driver cylinder.
2. [ ] Lock: Rotate fully left.
3. [ ] Verify: Visual check of 3 latches engaged.
4. [ ] Clearance: Manually rotate the driver (if machine permits) or visually confirm the bill clears the needle bar head.
5. [ ] Centering: Ensure the red center seam of the cap aligns with the red mark on the driver.

The "False Positive" Fix: Needle Position 3 Thread Break

This is the moment that kills production momentum: The machine stops, the red light flashes, and the screen yells “Thread breakage needle position 3.”

You look at the needle. The thread is intact. You look at the fabric. The thread is attached.

The Diagnosis: This is a "Sensor Blind Spot." The machine uses a check spring wheel (that little wheel near the tension knob) to detect thread movement. If the thread is just gliding over it without turning it, the machine thinks the thread is broken.

The Fix: The thread likely only has a "half wrap" (180°) on the wheel. You must increase the surface contact.

The 360° Wrap Technique

1. Stop: Don't re-thread the whole needle.
2. Inspect: Look at the tension wheel/check spring assembly.
3. Action: Use your stylus or tweezers to grab the thread slack.
4. Execute: Manually loop the thread around the wheel so it completes a full 360-degree revolution.
5. Result: The thread now physically grips the wheel. When the needle pulls, the wheel spins, and the sensor is happy.

Note for Researchers: If you notice this issue frequents specific needles, checking the smartstitch hat hoop alignment is wise, but usually, it's just this thread path geometry issue.

Tension Architecture: The 90° Take-Up Spring Rule

Caps are bouncy. The fabric moves up and down (flagging) more than flat shirts. This creates "slack" in the thread. If that slack isn't snapped back up quickly, you get loops on top of your design.

The Adjustment: Pull up the take-up spring (the thin wire spring near the tension knob) to approximately 90 degrees (viewed from the side profile) before running caps.

Why this works (The Physics)

The take-up spring acts like the shock absorber in your car. By setting it to ~90°, you are pre-loading it to handle the aggressive "jerkiness" of cap embroidery. It ensures that the moment the needle lifts out of the tough buckram, the excess thread is snatched tight immediately.

• Standard Setting: Often lower (for gentle flats).
• Cap Setting: High tension, high angle (~90°).

Decision Tree: Stabilizer & Workflow

The video covers the machine, but your result depends on the "Sandwich" (Fabric + Stabilizer). Use this logic flow to prevent puckering.

Decision Tree: Stabilizer Choice

1. Is the cap "Structured" (Stiff buckram front)?
   • YES: Use a standard Tearaway (2.5oz - 3oz). The cap supports itself; the backing just adds friction.
   • NO (Dad Hat/Unstructured): You MUST use Cutaway Cap Backing (2.0oz - 3.0oz). The fabric cannot support the stitches alone. If you use tearaway here, the design will distort.
2. Are you stitching small text (<5mm)?
   • YES: Use a fresh 75/11 Titanium Needle and slow the machine down to 600 SPM (Stitches Per Minute). Speed kills small text clarity.
   • NO: Standard 75/11 needle, 750-850 SPM is the sweet spot for Smartstitch caps.
3. Is your hooping leaving "Burn Marks" or rings?
   • YES: This is the "Trigger Moment" for an upgrade. Traditional clamps rely on crushing force.
   • The Solution: Investigate Magnetic Frames.
   • Context: Professionals often switch to systems like the Mighty Hoop (check compatibility for Smartstitch). A search for mighty hoops for smartstitch embroidery machine or generic cap hoop for embroidery machine magnetic alternatives will reveal frames that hold fabric firmly without the mechanical crushing action, reducing "hoop burn" significantly.

Warning (Magnet Safety): If you upgrade to Magnetic Hoops, be aware they use high-power Neodymium magnets.
* Pinch Hazard: They can snap together with enough force to break a finger. Keep fingers clear of the mating surfaces.
* Pacemakers: Keep these magnets at least 6-12 inches away from implanted medical devices.

Troubleshooting: The "Quick Fix" Table

If things go wrong, do not change every setting at once. Follow this low-cost to high-cost diagnostic path.

The Production Mindset: Scaling Up

Once you master the technicals—Frame 5, Bobbin Check, 360 Wrap—you will hit a new ceiling: Capacity.

If you are running a single-head Smartstitch like the smartstitch 1501 and finding that you cannot keep up with team orders, or if the constant changing of threads is slowing you down, this is the natural trigger to look at your shop's infrastructure.

• For Speed: Magnetic hoops reduce the "load and unload" time by 15-20 seconds per hat. On a 100-hat order, that is 30 minutes of labor saved.
• For Scale: Moving to a multi-head setup or adding a second SEWTECH machine allows you to run concurrent jobs.

Operation Checklist (Run this for EVERY Hat)

1. [ ] Mode Confirmed: Screen shows Frame #5 (Cap).
2. [ ] Bobbin Load: Full bobbin installed.
3. [ ] Physical Lock: Cap driver rotated left, 3 clicks heard/felt.
4. [ ] Sensor Algebra: Thread on active needle has 360° wrap on the wheel.
5. [ ] Tension Geometry: Take-up spring set to 90°.
6. [ ] Speed Limit: Set max speed to 650-700 SPM for the first run to ensure stability.

Cap embroidery doesn't have to be a gamble. By respecting the physics, verifying the mechanical locks, and trusting your eyes over the sensors, you turn a scary process into your shop's most profitable service. Stick to the protocol, and watch your stitch quality soar.

FAQ

• Q: How do I select Smartstitch “Frame #5 Cap Embroidery Frame” correctly before installing the cap driver to avoid a driver collision?
  A: Set Smartstitch to Frame Type 5 (Cap) on the touchscreen before mounting any cap driver hardware.
  • Select: Open the frame selection menu and choose Option “5” (Cap embroidery frame), then confirm.
  • Wait: Tap “Yes” when prompted and let the machine move to the new mechanical origin.
  • Stop: Do not install the driver if the head does not physically travel to a higher/safe origin position.
  • Success check: The screen shows a cap symbol (not a square hoop) and the head/arm physically repositions with servo movement.
  • If it still fails: Power-cycle and reselect Frame #5; do not run the driver until the origin reset movement is visible.
• Q: What is the Smartstitch cap embroidery bobbin verification protocol to prevent mid-design stops on hats?
  A: Check the bobbin before hooping the cap, and replace it if it is under about 30% full.
  • Open: Remove the hook cover and pull out the bobbin case for a visual check.
  • Replace: Install a fresh pre-wound bobbin if thread volume looks low or questionable.
  • Test: Pull the bobbin thread tail to confirm smooth feed with slight resistance.
  • Success check: A solid “white column” of thread is visible through the bobbin case slot and the thread pulls smoothly (not jerky).
  • If it still fails: Re-seat the bobbin case and recheck thread routing before starting the design.
• Q: How do I mount and lock the Smartstitch cap ring on the driver using the “three click” rule to prevent cap design misalignment?
  A: Slide the cap ring on, then twist-to-lock fully left until all three latches are seated.
  • Slide: Fit the ring onto the driver cylinder without forcing; wiggle slightly to find the groove.
  • Lock: Rotate fully to the left to engage the locking pins.
  • Verify: Inspect all three metal latches/clips—none should be floating or half-seated.
  • Success check: You hear/feel the latch engagement and visually confirm all 3 clips are fully seated over the rim.
  • If it still fails: Remove and remount the ring; do not stitch with a partially latched ring because micro-shifts will show up as “wobbly” registration.
• Q: How do I fix Smartstitch “Thread breakage needle position 3” when the needle thread is not actually broken?
  A: Do the 360° wrap on the tension/check wheel so the sensor can detect real thread movement.
  • Stop: Pause and avoid fully re-threading the needle unless necessary.
  • Inspect: Look at the small wheel near the tension area that detects thread motion.
  • Loop: Use a stylus or tweezers to wrap the thread so it makes a full 360° revolution around the wheel.
  • Success check: The wheel spins when the thread is pulled and the machine stops flagging a false break on needle position 3.
  • If it still fails: Recheck the thread path at the wheel for a “half wrap” and correct it again before changing other settings.
• Q: What is the Smartstitch take-up spring “90° rule” for cap embroidery when loops appear on top of the design?
  A: Set the take-up spring to approximately 90° (side view) and only then make small top-tension increases if needed.
  • Adjust: Pull the take-up spring up to roughly a 90-degree angle before running caps.
  • Test: Stitch a short section and watch for slack control as the needle exits the buckram.
  • Fine-tune: If loops persist, turn the top tension knob slightly to the right (1–2 clicks).
  • Success check: The top surface shows clean stitches with no visible looping, especially right after needle lift.
  • If it still fails: Slow the cap run and recheck hooping stability and driver latch seating to reduce flagging.
• Q: How do I choose Smartstitch cap stabilizer correctly for structured caps vs unstructured “dad hats” to prevent puckering and distortion?
  A: Match stabilizer to cap structure: structured caps can use tearaway; unstructured caps need cutaway cap backing.
  • Identify: Confirm whether the cap front is structured (stiff buckram) or unstructured.
  • Use: For structured caps, use standard tearaway (2.5oz–3oz); for unstructured caps, use cutaway cap backing (2.0oz–3.0oz).
  • Control: For small text under 5 mm, use a fresh 75/11 Titanium needle and slow to about 600 SPM.
  • Success check: The stitched area stays flat with no rippling, and outlines register cleanly to fills after sewing.
  • If it still fails: Recheck hooping/driver locking and reduce speed for the first run to stabilize the cap.
• Q: When cap hooping causes hoop burn or clamp marks during cap embroidery, when should I upgrade to magnetic hoops or upgrade production capacity to a SEWTECH multi-needle setup?
  A: Start with technique fixes, then consider magnetic hoops to reduce crushing force, and consider a SEWTECH multi-needle machine when volume becomes the bottleneck.
  • Level 1 (Technique): Recheck cap ring seating (3 latches locked), confirm Frame #5 mode, and stabilize tension (90° spring rule) to reduce re-hooping and over-clamping.
  • Level 2 (Tooling): If hoop burn persists, magnetic hoops can hold firmly with less clamp pressure and speed up loading/unloading by seconds per hat.
  • Level 3 (Capacity): If single-head throughput cannot keep up with team orders or constant thread changes slow production, adding capacity with a SEWTECH multi-needle setup is the next step.
  • Success check: Hoop marks reduce, loading time drops, and first-pass sew-outs finish without repeated stops/re-hoops.
  • If it still fails: Audit the full cap workflow (Frame #5 → bobbin check → ring lock → 360° wrap → speed limit) before investing further.
• Q: What are the key safety rules for Smartstitch cap driver operation and magnetic hoop handling to prevent needle strikes and pinch injuries?
  A: Treat cap mode selection and magnets as safety-critical: wrong frame mode can cause a driver collision, and magnetic hoops can pinch hard.
  • Prevent collisions: Confirm Smartstitch is in Frame #5 Cap mode and that the machine performs the mechanical origin reset movement before installing/running the cap driver.
  • Stay clear: Never run the cap driver if the screen shows a square hoop icon; stop immediately to avoid needle bar striking the driver ring.
  • Handle magnets safely: Keep fingers out of the mating surfaces because magnets can snap together with high force; keep magnets away from implanted medical devices.
  • Success check: No metal-on-metal “clack,” the driver clears the needle path, and magnetic frames close in a controlled way without finger contact.
  • If it still fails: Stop operation and re-verify digital frame selection and hardware seating before attempting another run.
