Stop “Bulletproof” Satin: Dialing In Floriani Digitizing Pro III Density (and Getting Clean Coverage on Towels & Fleece)

If you have ever stared at a satin column that looks solid on your computer screen but stitches out with the fabric color peeking through—or worse, you tried to "fix" it by cranking the density until the design turned stiff, bulletproof, and practically noisy—you are not alone. Density is one of those embroidery terms that gets people in trouble because it sounds simple, but the measurement system acts in reverse of what your brain expects.

As someone who has spent two decades standing in front of embroidery machines, listening to the rhythmic thump-thump-thump of a needle struggling through over-dense designs, I can tell you that "more stitches" is rarely the answer. In fact, on difficult fabrics like terry cloth or polar fleece, adding density often makes the problem worse by cutting the fibers and creating a hard, uncomfortable patch.

This guide acts as an "experience filter" for the workflow shown in Floriani Digitizing Pro III. We will decode how density is defined, how to measure it in millimeters (the industry standard), and how to achieve perfect coverage on textured fabrics without turning your embroidery into cardboard.

Calm the Panic: “My Design Needs to Be Thicker” Usually Means Density (Not Column Width)

The most common misunderstanding I hear—especially from newer digitizers taking their first paid jobs—is the word thicker. When a client says, "Make the letterning thicker," they are using a vague word that triggers a dangerous guess.

In the video, the instructor explains that “thicker” often refers to column width (side-to-side size) or pull compensation. However, density is strictly about how close the stitch rows are to each other.

Before you touch any settings, stop and perform this mental diagnostic:

1. The "Vision" Test: Do I need the satin line to appear bolder and take up more horizontal space? (This is Column Width).
2. The "Peekaboo" Test: Is the column the right size, but I can see the garment color showing between the threads? (This is Density).

If your customer says “I can see the towel loops poking through the white thread,” that is almost always a density, underlay, or topping conversation—not a “make the column wider” conversation. Treating a density problem with a width solution will just give you a wider, confusingly see-through design.

The “Hidden” Prep Pros Do First: Turn Density Into a Measurable Number (Not a Guess)

Modern digitizing software often measures density as the distance between needle penetrations in millimeters. That is why the instructor calls it “backwards” compared to the old “stitches per inch” mindset found in consumer machines.

Here is the Golden Rule of Density: A smaller millimeter number means the stitches are closer together, resulting in higher density.

• 0.50mm = Loose spacing (Low Density)
• 0.30mm = Tight spacing (High Density)

Before you change anything, you must prep your digital workspace to verify what you are doing. Do not rely on your monitor's rendering, which can be deceptive depending on zoom level.

Pro Tip: If you are digitizing for production, you want a number you can repeat across jobs, staff, and machines. "It looks dark enough on screen" is not a strategy; "0.38mm density" is a strategy.

Prep Checklist (before you touch density):

• Verify the Complaint: Is it width (thickness) or coverage (density)?
• Select a Control Object: Highlight a single satin object you can measure cleanly (a simple column or letter "I" is ideal).
• Locate the Metric: Open the Properties panel and find the Fill density field. Ensure it is set to "mm" (millimeters).
• Visual Aid: Turn on/confirm "needle penetration points" in your view settings (the video shows them as small white dots).
• Fabric Audit: Decide what fabric you are digitizing for. Standard cotton requires different math than terry/fleece.


Read Floriani Digitizing Pro III Density Like a Technician: 0.50 mm Is Lighter Than It Sounds

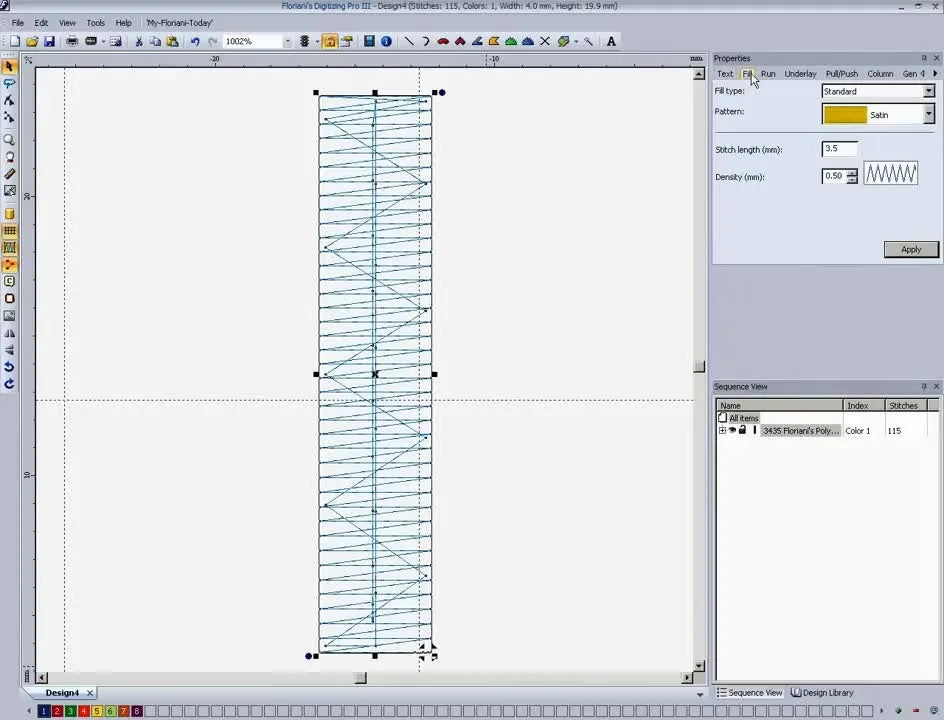

In the video, the default density shown in Floriani is 0.50 mm. The instructor notes that this default feels too light for most embroidery he would sew.

From an industry perspective, he is correct. A 0.50 mm density is often referred to as "sketch style" or "light fill." If you stitch this on a high-contrast fabric (like white thread on black canvas), you will absolutely see the black fabric grinning through.

Here is the key definition you should lock in:

• Density (mm) = The physical gap between one needle drop and the next on the same side of the column.
• Lower Number = Higher Density (Stitches are packed tighter).

The Danger Zone: This is where beginners accidentally create “bulletproof” embroidery. They think, "Turn it down to 0.20!" Doing so packs stitches so tightly that they overlap, causing thread breaks, needle deflection (that sharp snap sound), and eventually holes in the fabric.

The Ruler Tool Reality Check: Measure 0.5 mm, Then Prove 0.4 mm Is Denser

Do not trust the "3D View" blindly. The video demonstrates a simple, repeatable measurement method that acts as your safety net:

1. Select the satin object (the “I” shape).
2. Open the Fill properties where density is listed.
3. The Verification: Use the on-screen ruler tool to measure the distance between two needle points in the zigzag pattern.
4. Confirm the measurement matches the density value.

At the default setting, the ruler shows 0.5 mm between penetrations. This confirms your software is speaking the language of reality.

Then the instructor changes density to 0.4 mm and shows two important outcomes:

• Visually: The stitch lines move closer together.
• Empirically: The ruler measurement confirms the new spacing is exactly 0.4 mm.

That is the “proof” step many digitizers skip—and it is why they can't reproduce good results later. When you troubleshoot, you need to know: "Did I stitch this at 0.40 or 0.35?" Guessing is expensive.

The Starting Point That Saves You Rework: 0.38 mm for “Average Embroidery”

After demonstrating 0.50 and 0.40, the instructor gives a practical baseline: 0.38 mm as a good starting point for average embroidery. He also mentions 0.36 mm as a tighter option if you still need more coverage.

Two guardrails I want you to adopt immediately to save your garments:

1. Establish a Shop Standard: Start with 0.38 mm - 0.40 mm for standard satin text. This is your "Control."
2. The "Diminishing Returns" Rule: Don’t “go crazy” piling on density (e.g., going down to 0.30 mm) just to hide fabric.

If you are running a small shop, this is where profit leaks happen. Overly dense satin increases stitch count (run time), leads to friction-based thread breaks, and makes trimming slower. Even if the design “looks” better, it may cost you more than it earns.

To keep your workflow consistent, I treat density as just one part of a balanced ecosystem: Fabric + Stabilization + Hooping + Underlay + Top Density.

If you are using hooping stations to speed up garment loading, having a consistent density baseline matters even more. Your production rhythm depends on repeatable sew-outs, not constant test-and-fix cycles where you tweak density for every shirt.

The Setup Move Most People Miss: Underlay Is “Low-Density Satin” and It’s Doing Heavy Lifting

The video makes a point that is easy to overlook but vital for physics: Underlay is not magic—it is essentially the same column structure, just with much wider spacing.

The instructor measures underlay spacing at roughly 4.6 mm, which is dramatically larger than 0.5 or 0.4. That is why underlay alone doesn’t “cover” fabric; it acts like the framing of a house. It stabilizes and prevents the fabric from distorting so the "drywall" (top stitches) can look smooth.

Here is the practical takeaway for textured fabrics:

• If your fabric has a "loft" or "pile" (like terry cloth loops or fleece fuzz), your top stitches will sink into it.
• If your underlay doesn't mash that texture down first, you will chase coverage by increasing top density endlessly.
• Result: You end up with a stiff, bulletproof patch that still looks messy because the foundation was weak.

Setup Checklist (before you run a textured-fabric design):

• Baseline Check: Confirm top density is reasonable (start at 0.38 mm).
• Texture Audit: Does the fabric have pile/nap (terry cloth, polar fleece, velvet)?
• Consumable Check: Have your water-soluble topping (e.g., Solvy) ready. This is non-negotiable for towels.
• Underlay Strategy: Check that your underlay type includes a center run (to anchor) and a zigzag (to flatten).
• Edge Plan: Decide if contour underlay is needed to "wall off" the edges.

Warning: Mechanical Hazard. Do not test ultra-dense satin on thick fabrics at full machine speed (e.g., 1000 SPM). If the density is too high, the needle can heat up, bend, and strike the throat plate. A shattered needle can become a projectile. Slow down for the first run (600-700 SPM) and ensure you are using a sharp needle suited for the thickness (e.g., size 75/11 or 90/14 topstitch).

The Fix That Actually Works on Terry Cloth & Polar Fleece: Tighten Underlay to 2.00 mm, Then Add Contour

When the instructor talks about polar fleece and towels, he does not recommend endlessly lowering top density. Instead, he gives a three-part strategy that pros use:

1. Chemical/Physical Barrier: Use a water-soluble topping (Solvy / water soluble topping film).
2. Structural Flattening: Tighten the underlay density.
3. Edge Containment: Add contour underlay to clean up edges.

In Floriani Digitizing Pro III (and applicable to Wilcom/Hatch), the workflow is:

1. Select the object.
2. Go to the Underlay tab.
3. Choose Zig Zag underlay.
4. Change underlay density from the loose default (4.00 mm) down to 2.00 mm.
5. Check Contour to add edge runs.










What you should expect to see (Verification)

The video shows two clear “expected outcomes” that you should look for on your screen:

• The Grid Effect: The underlay wireframe becomes visible as a tighter "net" or grid. It looks denser.
• The Rails: Pulse/Contour underlay adds running stitches traveling along the absolute edges of the column.

These edge runs do a quiet but critical job: they act like a fence, keeping the messy loops of the towel from creeping inside the satin column. If you are digitizing for towels, this is the difference between specific "home-made" look and "store-bought" quality.

The “Why” Behind It (So You Don’t Relapse Into Over-Density)

Textured fabrics fight you in two ways. Understanding the physics helps you defeat them:

1. Vertical Push: Pile/nap pushes up between stitches. Even if your top density is tighter, the texture acts like grass growing through concrete—it will find a way.
2. Compression Instability: The surface compresses unevenly. Satin stitches can sink or slide.

That is why the video’s approach works: Underlay acts as a foundation layer that presses, traps, and organizes the surface before the visible and expensive top stitches are applied.

In practice, this avoids the "false fix" of lowering density until the design becomes stiff. Overly dense satin can:

• Increase thread breaks (friction).
• Create puckering on nearby areas.
• Make the embroidery feel harsh (scratchy on skin).
• Waste thread and time (money).

If you are running jobs back-to-back, the fastest shop is the one that avoids rework. Treat underlay tuning as a production skill—it is your insurance policy.

Coverage Problems on Towels & Fleece: Symptom → Likely Cause → Fix

When people comment “I can’t get coverage,” they often describe three different distinct failures. Use this diagnostic table to stop guessing.

A Simple Decision Tree: Fabric Type → Stabilization & Surface Control Choices

Use this decision tree when setting up your file. It stops the "density panic" before it starts.

1) Is the fabric textured (terry cloth towel / polar fleece / lofty sweater knit)?

• Yes:
  • Consumable: REQUIRED Water-Soluble Topping (Solvy).
  • Underlay: Tighten ZigZag to 2.00 mm.
  • Edge: Activate Contour/Edge Run.
• No (Standard Cotton/Poly):
  • Consumable: Standard backing only.
  • Underlay: Standard defaults (approx 4.00 mm).
  • Edge: Standard Center utility run.

2) After topping + underlay tuning, is coverage still light?

• Yes: Lower top density slightly (from 0.38 mm toward 0.36 mm) and re-test.
• No: Stop. Keep density where it is. Do not add stitches you do not need.

3) Are you seeing hoop marks, fabric shifting, or unaligned outlines?

• Yes: This is not a density issue; this is a hooping issue. Improve your hooping tension or upgrade your holding method before touching density again.

Comment-Driven Pro Tips: Why Clear, Slower Teaching Matters in Real Shops

Several comments on the initial video praise how clear and paced the explanation is. In a real shop environment, rushing often looks like skipping the "why."

Pro Tip for SOPs: When you are building your own shop Standard Operating Procedures, write down the measurement method (ruler tool verification) and the starting numbers (0.38 top / 2.00 underlay) so anyone on your team can reproduce results.

Regarding Wilcom vs. Floriani: The video is Floriani-focused, but physics is universal. Whether you use expensive industrial software or mid-range tools, the concept of "spacing in millimeters" is the Rosetta Stone. The fastest path to better sew-outs is not switching software—it’s learning to measure and verify what your current settings actually mean.

The Upgrade Path (When You’re Ready): Faster Hooping, Fewer Do-Overs, Cleaner Output

Once your density and underlay are under control, you may find that your bottleneck shifts. You have the perfect file, but it takes you 10 minutes to wrestle a thick towel into a standard plastic hoop, or you are fighting "hoop burn" (those crushed rings left on the fabric).

This is a physical limit, not a digital one. Here is the natural "tool upgrade" ladder for studios ready to scale:

• If you are fighting hoop burn or thick seams: Standard hoops rely on friction and friction damages velvet/fleece. Terms like magnetic embroidery hoops are your gateway to understanding efficient production. These use strong magnetic force rather than friction to hold fabric, eliminating burn marks and making it infinitely easier to hoop thick towels without popping the inner ring.
• If hooping is slow or Crooked: Struggling to line up a chest logo perfectly every time? Investing in a dedicated hooping station for machine embroidery can standardize your alignment. It turns "eyeballing it" into a repeatable mechanical process.
• If you need workflow speed: A complete embroidery hooping system allows you to prep the next garment while the machine is running the current one, keeping your spindle time high.
• If you do multi-location branding: A repositionable embroidery hoop allows you to create continuous border designs or re-seat a garment without unhooping the fabric entirely.

Warning: Magnet Safety. If you choose to upgrade to any magnetic hoop, be aware they are powerful industrial tools. Keep them away from pacemakers or sensitive electronics. Watch for pinch hazards—these magnets can snap together with enough force to injure fingers. Always slide them apart; do not pry them.

Operation Checklist (the “Don’t Waste a Towel” final pass)

Before you press the green button on that expensive customer item, run this final "flight check."

• [ ] Top Density Check: Is it set intentionally? (Baseline 0.38 mm is your safe harbor).
• [ ] Underlay Check: Did I tighten the underlay to 2.00 mm for this textured fabric?
• [ ] Consumable Check: Is the Water-Soluble Topping (Solvy) actually on the fabric? (Do not forget this!).
• [ ] Needle Check: Is the needle sharp and free of burrs? (Run your fingernail down the tip; if it catches, change it).
• [ ] Hooping Check: Is the fabric "drum tight" but not stretched? Tap it—you should hear a dull thump.
• [ ] Simulation: Did I run the screen simulation to see the edge runs (Contour) happening before the satin fill?

If you can check these six boxes, you have moved from "guessing and hoping" to "engineering and executing." That is the difference between a hobbyist and a master.

FAQ

• Q: In Floriani Digitizing Pro III satin columns, why does lowering the density value from 0.50 mm to 0.40 mm make the design denser?
  A: Because Floriani density is measured as spacing in millimeters, so a smaller mm number means stitches are closer together (higher density).
  • Set: Open the satin object Properties and confirm the density unit is mm.
  • Verify: Turn on needle penetration points so the spacing is visible as dots.
  • Measure: Use the on-screen ruler tool between two needle points to confirm the spacing matches the density value (0.50 mm vs 0.40 mm).
  • Success check: The ruler reads the new value and the stitch rows visibly move closer together without the design becoming stiff.
  • If it still fails… Stop guessing and re-check you are measuring the satin object (not underlay) and that you changed the correct density field.
• Q: In Floriani Digitizing Pro III, what satin density in mm is a safe starting point for “average embroidery” so the fabric does not grin through?
  A: A safe starting point is 0.38 mm for average satin coverage, with 0.36 mm as a tighter option if needed.
  • Start: Set top satin density to 0.38 mm as the shop “control” setting.
  • Test: Stitch a sample at normal settings before lowering density further.
  • Adjust: If coverage is still light, move slightly tighter toward 0.36 mm (not a big jump).
  • Success check: The satin looks solid with minimal fabric color peeking through, and the embroidery stays flexible (not “bulletproof”).
  • If it still fails… Treat it as an underlay/topping/fabric issue (especially on towels/fleece) instead of forcing density lower.
• Q: On terry cloth towels and polar fleece, how do I improve satin coverage without making the embroidery “bulletproof” by over-densifying?
  A: Use the three-part fix: water-soluble topping + tighter underlay (2.00 mm) + contour/edge underlay, then only fine-tune top density.
  • Apply: Add water-soluble topping (Solvy) on the fabric surface (non-negotiable for towels).
  • Tighten: Set ZigZag underlay density from the loose default (around 4.00 mm) down to 2.00 mm.
  • Contain: Enable Contour/edge underlay to “fence” the edges.
  • Success check: Edges look cleaner (less fuzzy/saw-tooth) and the center coverage improves without the design feeling hard or noisy.
  • If it still fails… Lower top density slightly from 0.38 mm toward 0.36 mm and re-test; avoid extreme values that cause stiffness and thread breaks.
• Q: In Floriani Digitizing Pro III, how can I confirm underlay is actually working (instead of chasing coverage by lowering top density)?
  A: Treat underlay like a measurable structure: you should see a tighter underlay “grid” and edge rails before the satin stitches.
  • Check: Open the Underlay tab and confirm ZigZag underlay is enabled.
  • Set: Tighten underlay density to 2.00 mm for textured fabrics.
  • Enable: Turn on Contour/edge underlay so running stitches travel along the column edges.
  • Success check: On-screen, the underlay wireframe looks like a tighter net/grid, and the contour runs appear as “rails” right on the edges.
  • If it still fails… Re-check the object selection (edit the correct satin object) and confirm topping is being used on towels/fleece.
• Q: What are the most common towel/fleece coverage symptoms and the correct fix order (Solvy topping vs underlay vs top density)?
  A: Follow the fix order that matches the symptom—most failures are underlay/topping first, density second.
  • Diagnose: Fabric grin-through in the center usually means topping + underlay first, not width changes.
  • Fix: Use Solvy topping, then tighten ZigZag underlay to 2.00 mm, then (only if needed) tighten top density to a maximum around 0.36 mm.
  • Fix: Rough/fuzzy edges usually mean add contour/edge underlay and use Solvy topping.
  • Success check: The towel loops stop poking through the column center and the edges look straighter/cleaner.
  • If it still fails… Stop lowering top density toward extreme tight values; rebuild the foundation (underlay) and re-test at slower machine speed on the first run.
• Q: What needle and speed safety steps should be used when test-stitching dense satin on thick fabrics to avoid needle strike hazards?
  A: Do the first test run slower (about 600–700 SPM) with a sharp needle, because over-dense satin on thick fabric can overheat/bend the needle and cause a strike.
  • Reduce: Slow the machine for the first sew-out instead of running full speed (e.g., not 1000 SPM).
  • Inspect: Use a sharp, appropriate needle for thickness (the blog examples mention size 75/11 or 90/14 topstitch) and replace any needle with burrs.
  • Listen: Watch for the sharp “snap” sound and frequent thread breaks—common signs density is too tight.
  • Success check: The machine runs smoothly without repeated thread breaks, needle heating signs, or harsh striking sounds.
  • If it still fails… Back off extreme top density settings and improve underlay/topping first; then re-test at controlled speed.
• Q: When satin coverage problems are actually hooping problems, how can hooping be diagnosed before changing Floriani density settings?
  A: If outlines shift, alignment drifts, or hoop marks appear, treat it as hooping/holding first—not a density problem.
  • Check: Look for hoop marks (crushed rings), fabric shifting, or unaligned outlines during the sew-out.
  • Set: Hoop “drum tight” but not stretched; tap the hooped area and listen for a dull thump.
  • Decide: If hooping is the bottleneck, improve holding method before touching density again (technique first, then consider hooping tools).
  • Success check: Registration stays consistent and outlines land where expected without fabric creeping.
  • If it still fails… Move up the ladder: Level 1 adjust hooping technique, Level 2 consider a magnetic hoop to reduce hoop burn and improve holding, Level 3 consider a multi-needle setup for production scaling.
• Q: What are the magnetic hoop safety rules when upgrading to a magnetic embroidery hoop to reduce hoop burn on towels or fleece?
  A: Magnetic embroidery hoops are powerful—keep them away from pacemakers/electronics and prevent pinch injuries by sliding magnets apart.
  • Keep clear: Maintain distance from pacemakers and sensitive electronics.
  • Handle: Expect strong snap force; keep fingers out of the closing path to avoid pinch hazards.
  • Separate: Slide magnets apart instead of prying them.
  • Success check: Hooping becomes faster with fewer hoop burn marks and less struggle on thick seams—without any unsafe handling incidents.
  • If it still fails… If fabric still shifts, revisit stabilization and hooping technique; magnetic force helps holding, but it does not replace correct stabilizer and setup.
