Stop “Bulletproof” Hearts in Wilcom Hatch: Digitize a Clean 3-Color Design (and Make It Stitch Like a Pro)

If you’ve ever stitched a cute heart or a simple logo and it came out stiff, raised, and oddly “armored”—feeling more like a cardboard coaster than a textile design—you’re not alone. This is the "Bulletproof Patch Effect," and it kills the drape of a garment. Most of the time it’s not your machine tension, and it’s not your stabilizer; it’s the file architecture.

In this guide, we will walk through a Wilcom Hatch workflow to digitize a 3-color heart. But we aren't just clicking buttons; we are simulating the mindset of a Master Digitizer. We will focus on the one edit that separates hobby files from production-ready embroidery: Removing Overlaps so you don’t stack three layers of density on top of each other.

The Panic-to-Plan Reset: What This Wilcom Hatch Heart Digitizing Session Actually Solves

A three-color heart looks deceptively simple. However, it is the perfect "embroidery gym" because it forces you to manage the four pillars of digitization: Curves, Straight Points, Layering, and Density Control. These are the exact same friction points you will face when branding a $50 Nike polo or a bulky Carhartt jacket.

Here’s the core win: You will build three closed shapes (Base + Highlight + Shadow), assign thread colors, and then—critically—use the Remove Overlaps function. This creates intentional "voids" in the base layer where the top layers sit, like puzzle pieces snapping together, rather than stacking like pancakes.

The "Hidden" Consumables List for Beginners: Before we start, ensure you have these physical essentials ready for the test run. Digitizing implies a physical result, and you need:

• 75/11 Ballpoint Needles: For knits/tees (prevents cutting fabric).
• 75/11 Sharp Needles: For wovens/caps.
• Cutaway Stabilizer (2.5oz): The industry standard for stability.
• Tempoary Adhesive Spray (e.g., KK100): To adhere fabric to backing without shifting.


The “Hidden” Prep Pros Do First: Artwork, Hoop Boundary, and a Clean Workspace in Wilcom Hatch

Before you click a single node, you must set your "Physical Reality" in the software. A common rookie mistake is digitizing at 200% zoom and realizing later the design is barely 1 inch wide, resulting in a cluttered mess of thread.

What the video does

You import the purchased heart graphic, place it on the grid, and resize it by dragging the corner handles until it fits comfortably inside the visible hoop boundary.

Why this matters in real stitch-outs (expert insight)

• The "Sweet Spot" Strategy: For a left-chest logo, aim for 3.0 to 3.5 inches (75mm - 90mm) wide. Going smaller than 10mm text or 1mm line width invites needle breakage.
• Density Scaling: If you shrink a design after digitizing, the stitch count often stays high, causing the density to skyrocket. This jams machines. Always size the artwork first.
• Hoop Constraints: The hoop boundary on your screen isn't a suggestion; it's a safety zone. Hitting a hoop frame with a needle moving at 800 stitches per minute (SPM) can destroy your timing or shatter the bobbin case.

Prep Checklist (do this before digitizing)

• Center Artwork: Confirm graphic is imported and centered (Press '0' on keyboard in Hatch).
• Physical Sizing: Resize artwork to your target output (e.g., 3.5" width). using the ruler tool to verify.
• Hoop Check: Select the specific machine hoop you will likely use (e.g., 100x100mm) to visualize spacing.
• Layer Plan: Mentally map the sequence: Base (Pink) → Highlight (Pale) → Shadow (Dark).
• Correction: If the artwork is blurry, scale it down in an image editor before importing for cleaner tracing.


Clean Curves, Sharp Tips: Using “Digitize Closed Shape” with Right-Click Curves vs Left-Click Straights

This is where you develop your "Digitizer's Hand." The software inputs correspond to machine movement. Smooth nodes mean smooth stepper motor movements; erratic nodes mean a noisy, jerky machine.

What the video does

In Wilcom Hatch, select the Digitize Closed Shape tool. You will trace the heart using a specific input rhythm:

• Right-Click (Red Node): Creates a Curve. Use this for the rounded lobes of the heart.
• Left-Click (Square Node): Creates a Straight corner. Use this for the sharp bottom tip and the dip at the top.
• Enter: Closes the shape/generates stitches.


The “why” behind the clicks (expert insight)

Think of nodes as instructions for the pantograph (the arm moving the hoop).

• Too many nodes: The machine stutters. You'll hear a "grinding" noise rather than a smooth hum.
• Wrong node type: Using a straight node on a curve makes the edge look like a hexagon (faceted). Using a curve on a tip makes the heart look dull and round.

Pro Tip: Use the absolute minimum number of nodes possible. A perfect heart wave can often be achieved with just 3 points: Start, Peak of curve, End.

Warning: Mechanical Safety. When your machine is running high-speed fills, never place your hands near the needle bar or moving pantograph. If you need to trim a loose thread, STOP the machine completely. A needle at 800 SPM is invisible to the naked eye and can cause severe injury.

Thread Palette Discipline: Assigning Carnation Pink, Crystal Pink, and Rose Bloom Without Confusing Your Color Order

Once the base heart is created, the video assigns Carnation Pink from the thread palette.

Why Color Discipline = Profit

In a hobby setting, color selection is fun. In a business setting (using multi-needle machines like SEWTECH or Ricoma), color assignment is coding.

• Stop Command: The machine uses color changes to trigger a "Trim and Stop" or "Trim and Move to Needle X."
• Visual Confirmation: If you send a file to a client, standardizing colors (e.g., using Isacord or Madeira codes provided in software) ensures they see exactly what you intend.

Action: Assign the color immediately after creating the object. Do not wait until the end.

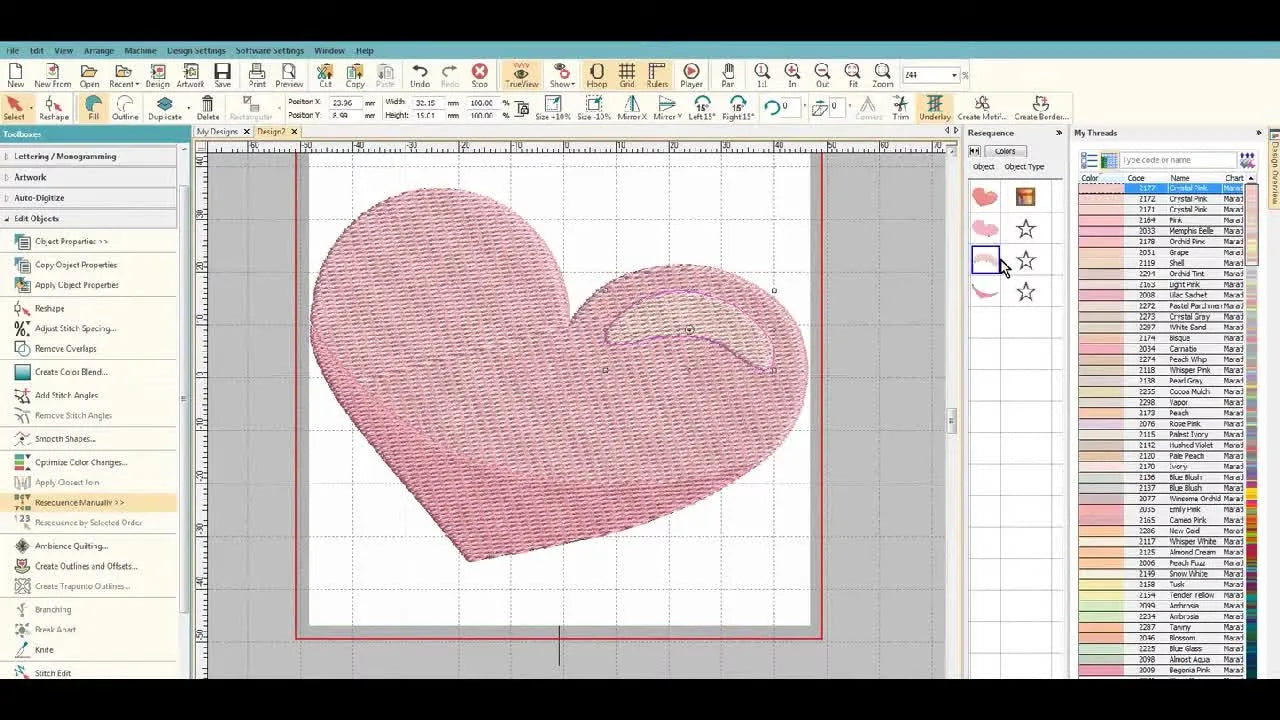

The Layering Trick That Creates Depth: Hiding Objects to Digitize the Highlight and Shadow Cleanly

To trace the details on top of the heart, you must see the artwork underneath the stitches you just made.

Highlight layer (upper right)

• Action: Right-click the base heart object in the "Resequence" docker and select Hide.
• Trace: Digitize the highlight shape using mostly Right-Clicks (Curves).
• Assign: Crystal Pink.




Shadow layer (lower right)

• Action: Keep the base hidden.
• Trace: Digitize the shadow crescent. Mix clicks: Left-click for the sharp straight ends, Right-click for the outer curve.
• Assign: Rose Bloom.




Expert note: layering is not just “stacking”

Beginners adhere to the "Stacking" philosophy. Experts adhere to the "Jigsaw" philosophy. While we are drawing these shapes on top now, our goal is to merge them into a single logic later.

The Make-or-Break Move: Using “Remove Overlaps” in Wilcom Hatch to Prevent Thick, Stiff Embroidery

This is the most critical section of this guide. If you skip this, your machine may struggle to penetrate the fabric, leading to thread breaks and a broken needle.

What the video does

• Select: Hold Ctrl and select both the Highlight and Shadow objects.
• Execute: Right-click and choose Remove Overlaps.
• Verify: Unhide the Base Layer. You should now see accurate holes cut out of the pink base heart.




Why this prevents “bulletproof” embroidery (expert insight)

Embroidery thread has physical mass.

• The Math of Disaster: A standard Tatami fill is ~0.4mm spacing. If you stack 3 layers (Base + Shadow + Highlight), you are forcing the needle to penetrate a 1.2mm solid wall of polyester. Constant friction builds heat, snaps thread, and creates a stiff "patch."
• The Fix: By removing overlaps, you ensure the needle only ever penetrates one layer of thread + stabilizer.
• Sensory Check: A properly digitized file creates a patch that bends easily with the fabric (like a soft T-shirt label). A bad file feels like a credit card.

If you are using high-performance gear like magnetic embroidery hoops, you might notice that improved stability makes registration (alignment) tighter. This allows you to trust the software's overlap cutouts without fearing gaps between colors.

The “Flow” Upgrade: Reshape Tool, Stitch Angle Lines, and Start/End Points That Run Cleaner on Real Fabric

After overlaps are handled, the file is technically correct, but artistically flat. We fix this with stitch angles.

What the video does

• Reshape: Click the object and drag the long line with orange squares (Angle Line).
• Refine: Move the Green Diamond (Start) and Red Cross (Stop).




What this changes in production (expert insight)

• Light reflection: Thread is shiny. Stitches running horizontal reflect light differently than vertical ones. Changing the highlight angle to oppose the base angle creates visual pop without changing thread colors.
• Push/Pull Compensation: Stitches pull the fabric in the direction the thread runs. If all layers run the same angle, the heart will distort into a potato shape. Rule of thumb: Vary angles between layers (e.g., Base at 45°, Shadow at 135°).
• Efficiency: Moving the Red Cross (End point) closer to where the next object Starts (Green Diamond) creates a shorter jump, reducing machine trim time.


A Quick Decision Tree: Stabilizer + Hooping Choices That Keep Your 3-Color Heart Registered

The software work is done. Now, you must transfer this digital perfection to analog reality. The number one cause of "gaps" in embroidery is not the file—it's shifting fabric.

Use this decision logic to choose your tools:

Decision Tree (Fabric → Solution):

1. Is the fabric Stretchy (T-shirt/Polo/Performance Knit)?
   • Yes: YOU MUST use Cutaway Stabilizer. Tearaway will fail over time.
   • Hooping: Do not stretch the shirt. It should be "neutral"—taught like a drum skin, but not distorted.
   • Tool Tip: Magnetic hoops are excellent here to prevent "hoop burn" (shiny rings) on delicate knits.
2. Is the fabric Stable/Thick (Denim/Canvas/Cap)?
   • Yes: Tearaway Stabilizer is usually sufficient.
   • Hooping: Requires strong grip.
3. Are you stitching 50+ items (Production Run)?
   • Yes: Speed and consistency are your metrics.
   • Tool Upgrade: Standard screw hoops are slow and cause wrist strain. Professionals switch to a magnetic embroidery hoop, which snaps on instantly and holds thick garments without fight.

Warning: Magnet Safety. If you upgrade to magnetic hoops, handle them with extreme care. The magnets are industrial grade. Pinch Hazard: They can snap together with crushing force. Medical Safety: Keep them away from pacemakers and sensitive electronics.

Troubleshooting the One Problem Everyone Hits: “Why Is My Embroidery So Thick?”

Even with "Remove Overlaps," things can go wrong. Here is your field guide to troubleshooting density issues.

Symptom → Cause → Fix

Setup Checklist (right before you export or test stitch)

Do not hit "Start" until you tick these boxes. This is your Pre-Flight safety check.

• Visual Gap Check: Hide the top layers. Does the base layer have clean cutouts?
• Color Order: Base (Pink) → Highlight (Pale) → Shadow (Dark).
• Tie-ins/Tie-offs: Ensure "Tie-in" (start knot) and "Tie-off" (end knot) are activated in object properties to prevent unraveling.
• Machine format: Export to the correct language (e.g., .DST for Tajima/SWF/Commercial, .PES for Brother, .EXP for Bernina).
• Bobbin Check: Is your bobbin full? Running out mid-heart leaves a visible seam.

The Upgrade Path That Actually Makes Sense: From “Nice File” to Faster, Cleaner Production

You have mastered the file. Now, let’s talk about the physical workflow. If you are doing this for fun, the standard tools are fine. But if you have customers waiting, friction kills profit.

Here is the "Tool Upgrade" logic skilled shop owners use:

• The Pain Point: "My wrists hurt from tightening screws," or "I can't hoop thick hoodies."
  • The Upgrade: This is the trigger to invest in magnetic embroidery hoops. They utilize magnetic force to clamp fabric automatically, removing the physical strain and handling thick seams that screw hoops can't grip.
• The Pain Point: "I spend more time changing threads than stitching."
  • The Upgrade: If you are running 3-color logos on a single-needle machine, you are losing money on downtime. This is when you look at a multi-needle platform (like SEWTECH). Combined with a hooping station for machine embroidery, you can hoop the next shirt while the machine stitches the current one, doubling your output.

Terms like hooping stations or searching for a magnetic hooping station are your gateways to understanding efficient production. It’s not just about gear; it’s about flow.

Operation Checklist (during the first real stitch-out test)

• Start Slow: Run the first layer at 600 SPM (Stitches Per Minute). Listen for smooth rhythm. If it bangs, stop.
• Watch the Trim: Ensure the machine trims cleanly between the Base and the Highlight.
• Feel the Result: After finish, rub the embroidery. It should be smooth. If it feels rough/scratchy, check your "Underlay" settings next time.
• Registration Check: Are there gaps between the pink base and the shadow?
  • Yes: Your stabilizer was too loose OR you need to add "Pull Compensation" (start at +0.2mm) in the software.

By mastering the "Remove Overlaps" tool and pairing it with disciplined hooping, you move from "hoping it works" to "knowing it will work." Happy stitching.

FAQ

• Q: In Wilcom Hatch, how do I stop the “Bulletproof Patch Effect” when digitizing a 3-color heart with Tatami fills?
  A: Use Wilcom Hatch Remove Overlaps so the base layer is not stitching underneath the highlight and shadow.
  • Select: Hold Ctrl and select the Highlight and Shadow objects together.
  • Execute: Right-click → Remove Overlaps, then unhide the Base layer to confirm the cutouts.
  • Adjust: If the design still feels stiff, set a safer starting point by reducing fill density to 0.45mm (then test stitch).
  • Success check: The finished embroidery should bend with the fabric (not feel like a credit card), and the base layer should show clean “holes” where top layers sit.
  • If it still fails: Re-check in TrueView/3D for stacked areas and confirm the design was sized before digitizing (shrinking after can spike density).
• Q: In Wilcom Hatch, what is the correct click method for clean heart edges using Digitize Closed Shape (right-click curves vs left-click straights)?
  A: Right-click for curves and left-click for sharp points, using the fewest nodes possible.
  • Trace: Use Right-click (curve nodes) on rounded lobes and outer arcs.
  • Define: Use Left-click (straight nodes) on the top dip and the bottom tip so points stay crisp.
  • Finish: Press Enter to close the shape and generate stitches.
  • Success check: The outline looks smooth (not faceted like a hexagon), and the machine motion sounds steady instead of “stuttering.”
  • If it still fails: Delete extra nodes and re-trace with fewer, correctly typed nodes—too many nodes often causes jerky stitching.
• Q: In Wilcom Hatch, what size should a left-chest embroidery design be set to before digitizing to avoid density problems and tiny details?
  A: Size the artwork first; for a left-chest logo, a practical target is 3.0–3.5 inches (75–90mm) wide before any stitching objects are created.
  • Set: Import artwork, then resize with corner handles and verify with the ruler tool.
  • Check: Select the intended hoop size (for example 100×100mm) so the boundary is visible while sizing.
  • Avoid: Do not digitize first and then shrink—stitch count often stays high and density can “skyrocket.”
  • Success check: The design fits comfortably inside the hoop boundary and small elements are not forced below about 10mm text / 1mm line width (risk zone mentioned in the guide).
  • If it still fails: If artwork looks blurry after resizing, correct the image in an editor first (often scaling down before importing traces cleaner).
• Q: What needles and stabilizer are a safe starting setup for test-stitching the Wilcom Hatch 3-color heart on knits vs wovens?
  A: Use the guide’s “hidden consumables” as the baseline: match needle type to fabric, and use 2.5oz cutaway for stability.
  • Choose needle: Use 75/11 Ballpoint for knits/tees; use 75/11 Sharp for wovens/caps.
  • Choose stabilizer: Start with 2.5oz Cutaway Stabilizer (especially for stretchy garments).
  • Secure: Apply temporary adhesive spray (e.g., KK100) to prevent fabric shift on the backing.
  • Success check: The design stays registered (no drifting/gaps between layers), and the fabric does not ripple into puckers after stitching.
  • If it still fails: Re-evaluate hooping tension (fabric should be taut but not stretched/distorted) and confirm the backing is not moving during stitching.
• Q: What are the correct hooping and stabilizer choices to prevent registration gaps when stitching a 3-color fill design on T-shirts and polos?
  A: For stretchy knits, use cutaway stabilizer and hoop the garment in a neutral state to prevent shifting that causes color gaps.
  • Stabilize: Use Cutaway on T-shirts/polos; the guide warns tearaway can fail over time on stretch fabrics.
  • Hoop: Keep the shirt “neutral”—taut like a drum skin, but not stretched out of shape.
  • Improve: Consider magnetic hoops to reduce hoop burn on delicate knits and improve consistent holding.
  • Success check: After stitching, the highlight and shadow align tightly with the base with no visible separation lines.
  • If it still fails: Add pull compensation as a starting point of +0.2mm (then retest) and confirm the fabric/backing did not slip in the hoop.
• Q: What machine safety steps prevent needle injury during high-speed fill stitching around 800 SPM on multi-needle embroidery machines?
  A: Keep hands away from the needle bar and pantograph during stitching, and stop the machine completely before trimming threads or intervening.
  • Stop: Press stop before touching thread tails, fabric, or the hoop area.
  • Wait: Let all motion fully stop—at high speed the needle is effectively invisible.
  • Inspect: If something sounds wrong (banging/grinding), stop and check for bent needles or hoop contact before restarting.
  • Success check: The machine runs with a smooth, even rhythm without sudden impacts, and no one needs to reach near moving parts.
  • If it still fails: Slow the first run to 600 SPM as suggested and troubleshoot the file density/hoop boundary before returning to higher speed.
• Q: What magnetic embroidery hoop safety rules prevent pinch injuries and medical/electronics hazards when using industrial-strength magnetic frames?
  A: Treat magnetic hoops as industrial clamps: control the snap force and keep them away from pacemakers and sensitive electronics.
  • Handle: Bring hoop parts together slowly and deliberately to avoid sudden snap closure.
  • Protect: Keep fingers out of the closing path—pinch hazard can crush.
  • Separate: Store and transport magnets so they cannot jump together unexpectedly.
  • Success check: Hooping feels controlled (no violent snapping), and operators can hoop repeatedly without finger injuries or dropped frames.
  • If it still fails: Pause magnetic hoop use for that station and switch to a safer handling routine or standard hooping method until staff are trained and comfortable.
• Q: When “my wrists hurt from tightening screws” and “I can’t hoop thick hoodies,” what is the best upgrade path: technique changes, magnetic hoops, or a multi-needle embroidery machine?
  A: Use a layered approach: optimize technique first, upgrade to magnetic hoops for hooping friction next, and consider multi-needle only when thread-change downtime becomes the bottleneck.
  • Level 1 (Technique): Improve hooping neutrality and stabilization so fabric stops shifting; run first tests at 600 SPM to confirm stability.
  • Level 2 (Tool): Move to magnetic hoops when screw hooping causes strain or thick seams fight the hoop grip (faster, more consistent clamping).
  • Level 3 (Capacity): Move to a multi-needle machine when the main loss is repeated thread changes on multi-color work, especially with production batches.
  • Success check: Output increases with fewer restarts—less time spent tightening hoops or swapping thread, and registration stays consistent across multiple garments.
  • If it still fails: Re-check whether the root cause is actually file density/overlaps (stiff designs) versus fabric shift (gaps)—fix the correct bottleneck first.
