The "Bulletproof" Patch: Mastering Density in Hatch Embroidery (And Why Software Is Only Half the Battle)

You know the sound. It’s that heavy, rhythmic thump-thump-thump of a needle hammering into the same square inch of fabric over and over again. You watch the embroidery machine struggle, you hear the thread shredding, and when you finally unhoop the garment, the design stands up on its own like a piece of cardboard.

We call this "bulletproof embroidery." It is the enemy of drape, comfort, and clean design.

In Hatch Embroidery (Composer and Digitizer levels), the Adjust Stitch Spacing tool is your emergency brake. It allows you to rescue a design that is too heavy (or too light) without having to re-digitize it object by object. But here is the hard truth I have learned over 20 years on the shop floor: software density controls are only effective if your physical stabilization is solid.

This guide will walk you through the essential density adjustments in Hatch, using a controlled experiment to show you exactly what happens to your stitch count. Then, we will go beyond the screen to discuss the physical realities—hooping, stabilization, and commercial tools—that ensure your softer density settings actually result in a softer stitch-out.

Don’t Panic: “Bulletproof” Embroidery Density Is Fixable in Hatch (and You’re Not the First)

If you have ever stitched a logo on a polo shirt that felt like a plastic shield against the wearer’s chest, you have dealt with excessive density.

The Consequences of "Bulletproof" Density:

• Fabric Damage: The needle perforates the fabric so many times it cuts the fibers, leading to holes.
• Puckering: Displaced fabric tries to escape the pressure, creating waves around the design.
• Broken Needles: Heat buidlup from friction can snap needles or melt synthetic threads.

Here is the calming truth: You usually do not need to delete the file. You simply need to rebalance the stitch spacing. This allows the fabric to "breathe" between needle penetrations while still maintaining full coverage.

However, a warning before we click any buttons: If your fabric is moving in the hoop, lowering density won't save you. If you are serious about production, consistent results usually require upgrading your holding method—often moving from standard friction hoops to advanced systems like a hooping station for machine embroidery to ensure the fabric is neutral (neither stretched nor loose) before the first stitch lands.

The Baseline Reality Check: Sequence Docker Stitch Count (2,175) Before You Touch Anything

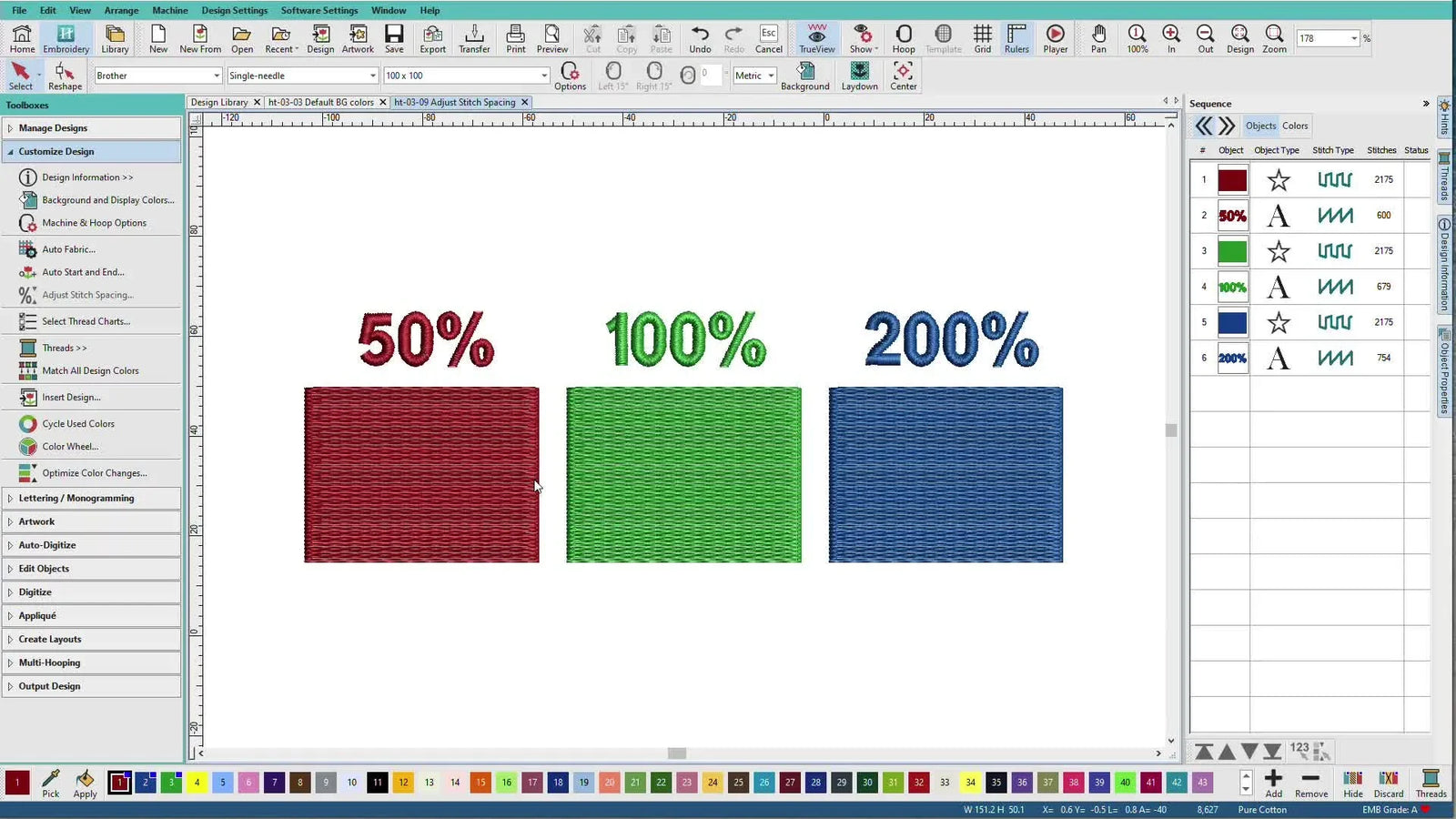

In this lesson, we perform a controlled experiment using three identical rectangles. Before we change anything, we must establish a baseline.

Navigate to the Sequence Docker. Click on your objects. In our example, all three start with identical properties:

• Stitch Count: 2,175
• Underlay: None (turned off for this demo)
• Stitch Angle: Horizontal


Why Baseline Checks Matter: If you don't know your starting stitch count, you are flying blind. Experienced digitizers always do a "Sensory Check" of the numbers. Only 2,000 stitches for a large back piece? That’s too light (gaps). 50,000 stitches for a left chest logo? That is a bulletproof disaster waiting to happen.

The “Greyed-Out Tool” Moment: Finding Adjust Stitch Spacing in the Customize Toolbox

In Hatch, the Adjust Stitch Spacing tool is located in the Customize toolbox on the left-hand side.

The Frustration Point: A common panic moment for beginners occurs when they open the toolbox and see the icon is greyed out. They click furiously, but nothing happens.

The Logic Behind the Lock: Hatch protects you from making invalid edits. The tool only becomes active when two conditions are met:

1. Selection: You have actually clicked on and selected an object.
2. Object Property: The selected object must have stitch spacing properties (e.g., Tatami, Satin, or Embossed fills).

If you have opened a raw machine file (like a .DST or .PES) that Hatch interprets only as "stitches" rather than "objects," this tool cannot calculate the spacing. You must first convert the raw stitches to Hatch objects.

The Hidden Prep That Prevents Rework: Confirm Object Type, Spacing Cap (0.65 mm), and a Safe Test Plan

Before we manipulate the density, we need to run a "Pre-Flight Check." In aviation, skipping the checklist causes crashes. In embroidery, it causes bird nests and ruined garments.

This specific tool in Hatch has a mathematical limit: it applies to objects where the current stitch spacing is 0.65 mm or less. If your fill is already very open (looser than 0.65 mm), this tool is not the correct method for adjustment.

Prep Checklist: The "Zero-Scrap" Protocol

Perform these checks before applying any global changes.

• Selection State: Confirm the object is selected in the Sequence Docker (box is highlighted).
• Object Type: Verify the object is a Tatami or Satin fill (not a running stitch or motif).
• Baseline Record: Write down the starting stitch count (e.g., 2,175).
• Visual Baseline: Press T on your keyboard to toggle TrueView OFF. Look at the density of the black lines.
• Hidden Consumables Stock: ensure you have temporary spray adhesive (if floating fabric) and fresh needles (size 75/11 is a standard starting point).

The 50% Experiment in Hatch: Why Stitch Count Jumps to 4,437 (and Why It’s a Trap)

Let's simulate a disaster so we can learn to avoid it. The instructor selects the Red Rectangle, opens the Adjust Stitch Spacing dialog, and enters 50%.

Decoding the Math:

• 100% = The current state (No change).
• Lower Percentage (<100%) = Reduces the space between lines.
• Result: Higher Density.

When the spacing between stitches is cut in half (50%), twice as many stitches are required to fill the same area. The Sequence Docker reveals the consequence: The stitch count rockets from 2,175 to 4,437.

The "Trap" of High Density: Novices often think, "More stitches means better quality, right?" Wrong. Doubling the density on a standard t-shirt or polo will likely Result in:

1. The Cookie-Cutter Effect: The design creates a perforation line, and the center may pop out.
2. Stiffness: The logo will not bend when the wearer moves.
3. Jamming: The bobbin thread has nowhere to go, causing bird-nesting underneath the throat plate.

Warning: Physical Safety Hazard
Extremely dense designs (like this 50% example) can deflect needles. If a needle hits a dense wall of thread, it can shatter. Always wear protective eyewear when testing new, high-density files, as needle fragments can fly at high velocity.

The 200% Experiment in Hatch: How Stitch Count Drops to 754 (and When That’s Actually Useful)

Now, let's look at the opposite extreme. The instructor selects the Blue Rectangle and enters 200%.

Decoding the Math:

• Higher Percentage (>100%) = Generally doubles the space between lines.
• Result: Lower Density.

The stitch count plummets to 754.

The Visual Result: This will look like a screen door. You will see the fabric color clearly through the design. On a white shirt with blue thread, this looks "cheap" or unfinished.

However, this setting has a professional use case: Professional digitizers use low density (high spacing) for:

• Fancy Fills/Relief Work: Creating background shading that isn't meant to be solid.
• Underlay: Manually creating a support structure.
• Lofty Fabrics: When stitching on fake fur or terry cloth, sometimes a lighter density prevents the pile from being matted down (though typically you need a solid underlay and topping here).

TrueView Off = Truth Serum: Reading Raw Stitch Lines Before You Waste a Test Stitch-Out

Hatch has a "pretty mode" called TrueView that simulates thread texture. It is beautiful, but it lies to you about density.

The lesson’s critical takeaway is to turn off TrueView (Keyboard Shortcut: T) to inspect the raw stitch data.

The Visual Inspection:

• Red Block (50%): Looks like a solid block of black ink. Danger signal.
• Blue Block (200%): Looks like a loose ladder. You can see wide white spaces between the lines.
• Green Block (100%): The Goldilocks zone.

Sensory Anchor: When looking at raw stitches, imagine them as physical wires. If the wires are touching or overlapping heavily on screen, they will bind and pile up on the machine. You want to see distinct, clean separation.

The 10% Rule That Saves Designs: Small Spacing Changes Beat Big Swings

The recap offers the golden rule of density adjustment: Nudge, don't shove.

If a design is slightly too stiff or slightly see-through, adjust by +/- 10%.

• To tighten: Try 90%.
• To loosen: Try 110% or 120%.


Embroidery is a game of millimeters. A 10% reduction in stitch count can be the difference between a soft, wearable garment and a pucker-fest.

The “Why” Behind Puckering: Density, Fabric Stress, and Hooping Tension Work Together

You can have the perfect 110% density setting in Hatch, but your sew-out can still look terrible. Why? Because digitizing is theory; embroidery is physics.

Puckering is rarely just a density issue. It is usually a tug-of-war between the thread tension (pulling in) and the fabric stability (resisting).

The Equation for Flat Embroidery: Correct Density + Correct Stabilization + Correct Hooping = Flat Result

If you are fighting puckering despite adjusting spacing, your issue is likely Hoop Stress.

1. Friction Hoops (The Standard): You have to pull the fabric to tighten the screw. This stretches the fabric fibers. You stitch the design (locking the fibers in a stretched state). You unhoop. The fabric relaxes back to its original shape. Result: Pucks.
2. Hoop Burn: Tightening traditional hoops on delicate items (velvet, performance wear) crushes the fibers, leaving a permanent ring known as "hoop burn."

The Commercial Solution: This is why professional shops move away from standard plastic hoops for difficult garments. They utilize magnetic embroidery hoops. These frames clamp the fabric flat without forcing you to tug or stretch it. The magnetic force holds without "crushing" the fibers as violently as a screw-tightened hoop.

If you are running production—say, 50 left-chest logos—and you are struggling with hoop marks, learning how to use magnetic embroidery hoop systems can drastically reduce your reject rate. They allow the fabric to rest naturally, meaning your "10% density adjustment" actually works because the fabric isn't fighting back.

Stabilizer Decision Tree: When to Fix Density in Hatch vs. When to Fix Support Under the Fabric

Don't touch the software until you confirm your "Ingredients" are correct.

Decision Tree: Diagnose Before You Digitized

1. Is the fabric unstable (T-shirt, Polar Fleece, Pique Knit)?
   • Yes: You MUST use Cutaway stabilizer. Tearaway will fail over time, causing distortion.
   • Action: If using Cutaway and it's still stiff, increase spacing to 110-115%.
2. Is the fabric stable (Denim, Canvas, Twill)?
   • Yes: You can use Tearaway.
   • Action: If you see gaps, decrease spacing to 90-95%.
3. Are you stitching on "slinky" performance wear?
   • Yes: This is high risk for puckering.
   • Action: Use a fusible mesh stabilizer (No-Show Mesh) and a magnetic embroidery hoop to prevent stretching during hooping. Set spacing to 115% to reduce stress.
4. Are you doing high-volume production?
   • Yes: Time is money.
   • Action: If your single-needle machine is the bottleneck, consider the ROI of multi-needle machines (like SEWTECH ecosystem options). They isolate the fabric movement better than flat-bed domestic machines, handling dense files with fewer flag-waving issues.

Setup in Hatch: The Exact Click Path and What “Success” Looks Like

Let’s lock in the procedure so you can do it with your eyes closed.

1. Select the Object: standard Click or box-select.
2. Open Tool: Go to Customize Toolbox > Adjust Stitch Spacing.
3. Input Value:
   • Type 110 (to reduce density slightly/safely).
   • Type 90 (to tighten gaps slightly).
4. Verify: Look at the Sequence Docker. Did the number change?
   • Success Metric: Stitch count changed by roughly 10%.
5. Visual Check: Turn TrueView OFF. Ensure lines are distinct.

Setup Checklist (The "Go/No-Go" Confirmation)

• Tool Activity: Is the "Adjust Stitch Spacing" icon colorful (active)?
• Spacing Reality: Is the object meant to be a solid fill? (Don't adjust motif fills this way).
• Direction Check: Did I enter >100% to loosen or <100% to tighten? (Don't mix this up!)
• Sequence Check: Did the stitch count change in the direction I expected?
• Physical Check: Do I have the correct needle (Ballpoint for knits, Sharp for wovens)?

Troubleshooting Hatch Adjust Stitch Spacing: Symptoms → Causes → Fixes That Actually Stick

Production Reality: When a “Tool Fix” Becomes a Workflow Fix (Speed, Consistency, and ROI)

Adjusting stitch spacing in Hatch is a powerful skill, but it is a micro-adjustment. If your macro-workflow is flawed, 10% density changes won't save you.

As you advance from hobbyist to commercial embroiderer, you will find that "software problems" are often "hardware limitations" in disguise.

The Production Upgrade Path:

1. Level 1 (Technique): Use the 10% Spacing Rule in Hatch. Use correct stabilizers.
2. Level 2 (Consistency): Upgrade to a hooping station. This ensures every shirt is hooped at the exact same tension and placement, making your density settings repeatable across sizes S to XL.
3. Level 3 (Efficiency): If hoops are leaving marks or slowing you down, the magnetic embroidery hoop is the industry standard for speed. It allows you to hoop thick items (Carhartt jackets) or delicate items (silk) that standard hoops struggle to contain.
4. Level 4 (Scale): When you are running 8 hours a day, a single-needle machine hits a thermal limit. Purpose-built multi-needle machines (which SEWTECH supports with specialized frames) are designed to handle the heat and speed of optimized commercial files.

Warning: Magnetic Field Safety
Product Safety Notice: Magnetic embroidery hoops typically utilize Neodymium magnets, which are incredibly strong.
* Pinch Hazard: They can snap together with enough force to bruise fingers. Handle with care.
* Medical Devices: keep these magnets away from pacemakers and insulin pumps (minimum 6-inch distance is standard advice).

The Clean Operating Routine: A Repeatable Density Check Before Every Stitch-Out

You are now equipped to stop guessing. Stop hoping the design comes out right, and start knowing it will.

Your Final Operation Routine:

1. Analyze: Check baseline stitch count. "Does this feel right for the size?"
2. Adjust: Use Adjust Stitch Spacing to nudge density (start with 110% for wearables).
3. Inspect: Turn TrueView OFF. Look for the "screen door" or the "solid wall."
4. Support: Match your stabilizer to your fabric's stretch—not its thickness.
5. Secure: Hoop neutrally using the best frame for the job.

Operation Checklist (Pre-Press Start)

• Adjustment Applied: Spacing changed +/- 10-15%.
• Visual Confirmation: No solid black blocks in raw view.
• Bobbin Check: Do I have enough bobbin thread to finish this dense fill?
• Hoop Check: Inner ring is slightly recessed (standard hoop) or magnets are fully seated.
• Clearance: Nothing blocking the embroidery arm movement.

Embroidery is a mix of art, digital logic, and brute force physics. You have mastered the digital logic in Hatch—now go respect the physics, and your machine will reward you with perfection.

FAQ

• Q: Why is the Hatch Embroidery “Adjust Stitch Spacing” tool greyed out in the Customize toolbox when editing a design?
  A: The Hatch Embroidery Adjust Stitch Spacing tool only activates when a valid object with stitch spacing is selected (not just raw stitches).
  • Select: Click the target object in the Sequence Docker so it highlights.
  • Confirm: Verify the object is a Tatami, Satin, or Embossed fill (objects that have spacing).
  • Convert: If the file is a raw machine stitch file (for example DST/PES opened as stitches), convert stitches to objects before expecting spacing edits to work.
  • Success check: The Adjust Stitch Spacing icon becomes active (colored), and the stitch count changes after applying a value.
  • If it still fails: Work from an editable native design file format (keep the original editable project file rather than only a stitch-only export).
• Q: In Hatch Embroidery Adjust Stitch Spacing, why does entering 50% make a design “bulletproof” and increase stitch count (for example from 2,175 to 4,437)?
  A: In Hatch Embroidery, 50% reduces the space between stitch lines, which increases density and can quickly create a stiff, overbuilt sew-out.
  • Set: Use 100% as “no change,” then make small moves instead of big swings.
  • Avoid: Treat 50% as a high-risk test value because it can double stitch count and heat/friction.
  • Inspect: Turn TrueView OFF (press T) to judge raw line spacing before stitching.
  • Success check: In raw stitch view, lines are clearly separated (not a solid black block), and the design feels flexible after stitching.
  • If it still fails: Loosen density using 110–120% and confirm the fabric is stable in the hoop (fabric movement can make dense designs fail faster).
• Q: In Hatch Embroidery Adjust Stitch Spacing, what does 200% mean, and why can stitch count drop dramatically (for example down to 754)?
  A: In Hatch Embroidery, 200% increases the space between stitch lines, lowering density—useful for effects, but it can look see-through on solid fills.
  • Use: Apply higher-than-100% values when a design is too stiff or when a lighter fill is intentionally desired.
  • Check: Preview with TrueView OFF to see if gaps become “screen door” wide.
  • Decide: Keep 200% for specialty looks (light coverage), not for solid logos that must fully cover fabric.
  • Success check: The fabric does not show through more than intended, and the stitch lines still look evenly distributed in raw view.
  • If it still fails: Move back toward smaller changes (110–120%) instead of jumping to 200% for a solid-fill logo.
• Q: What is the safest starting method to adjust fill density in Hatch Embroidery without ruining a garment (the “10% rule”)?
  A: Use small spacing changes first—Hatch Embroidery density adjustments are usually safest at about ±10% rather than extreme values.
  • Start: Enter 110% to loosen slightly (reduce density/stress) for wearables.
  • Tighten: Enter 90% if the fill shows gaps and needs slightly more coverage.
  • Verify: Watch the Sequence Docker stitch count change roughly in the direction you expect (about a 10% shift, not a massive jump).
  • Success check: With TrueView OFF, stitches look evenly spaced (neither a solid wall nor a loose ladder).
  • If it still fails: Stop adjusting software and check stabilization and hooping first—fabric shifting can mimic “bad density.”
• Q: What prep consumables and quick checks should be ready before running Hatch Embroidery density tests to avoid bird nests and scrap?
  A: Prepare the same basics every time—fresh needles and the right temporary hold-down prevent many “density” problems that are actually setup problems.
  • Stock: Keep temporary spray adhesive available for floating fabric when needed, and keep fresh needles ready.
  • Set: Use a common safe starting needle size like 75/11 (then adjust per fabric and thread as needed, per machine manual).
  • Inspect: Record the baseline stitch count before changes so you can undo bad moves fast.
  • Success check: The test sew-out runs without sudden looping/bird-nesting under the throat plate and without repeated thread shredding.
  • If it still fails: Clean and re-check the bobbin area and confirm the fabric is not moving in the hoop during stitching.
• Q: How can Hatch Embroidery users prevent puckering when the design density looks correct on screen but the stitch-out still waves or shrinks?
  A: Puckering is often a hooping-and-stabilization problem, not a Hatch Embroidery spacing problem—fix fabric stress first, then fine-tune density.
  • Hoop: Hoop fabric “neutral” (not stretched, not loose); over-tightening friction hoops can lock in stretch and pucker after unhooping.
  • Support: Match stabilizer to fabric stability (cutaway for unstable knits; tearaway for stable wovens, as a general rule described in the decision tree).
  • Reduce: If using correct support but still stiff, increase spacing slightly (often 110–115%) to reduce stitch stress.
  • Success check: After unhooping, the garment lies flat and the design edge does not ripple around the fill.
  • If it still fails: Upgrade the holding method (for example, use a magnetic hoop system) to reduce hoop stress and improve repeatability.
• Q: What safety precautions should be used when testing very dense Hatch Embroidery designs that can deflect or break needles, and what magnetic hoop safety rules matter in production?
  A: Treat dense tests as a real mechanical hazard—needle deflection and magnetic pinch injuries are common, preventable shop accidents.
  • Wear: Use protective eyewear when testing unusually dense files (needle fragments can fly if a needle shatters).
  • Slow down: Test on scrap first and avoid extreme density jumps like 50% unless there is a controlled reason.
  • Handle: Keep fingers clear when seating magnetic hoops because strong magnets can snap together and pinch.
  • Success check: The test run completes without repeated needle strikes, needle bending, or sudden “thunking” from hitting a dense thread wall.
  • If it still fails: Back off density (increase spacing), re-check hoop stability, and keep magnets away from medical devices per standard magnet safety guidance.
