Stop “Brain-Itch” Lettering: Perfect Vertical Spacing on a Janome Horizon Embroidery Machine (Without Guesswork)

Badly spaced lettering makes my brain itch—because it is the single "small" detail that instantly signals "amateur hour." You can have the most expensive machine in the world, but if your text lines create an awkward visual rhythm, the perceived value of your work drops to zero.

If you own a Janome Horizon-style machine, the good news is you don’t need expensive digitizing software to fix this. You need a repeatable, on-screen Standard Operating Procedure (SOP).

This guide upgrades a proven workflow (demonstrated by industry expert Sharyn) into a shop-ready protocol. We will cover when to use Edit Mode, how to leverage the 1 cm Grid, and the exact spacing formulas for the "Big Three" lettering scenarios.

The Core Concept: Why Edit Mode Wins

When users complain, "My Janome makes lines crash into each other," it is rarely a mechanical fault. It is a workflow error: composing multiple lines inside the Lettering screen.

On a janome embroidery machine, the professional habit is effectively mandatory: Build multi-line text in Edit Mode, where you can position and refine elements before you commit to stitching.

Why Edit Mode is non-negotiable:

• The Grid: It provides a calibrated background ruler (1 cm squares).
• Isolation: You can copy/paste specific lines without disturbing the whole layout.
• Precision: It solves the "fat finger" drift that happens when dragging text manually.

The Golden Rule: Compose first, verify on the grid, stitch second.

Phase 1: Preparation & "Flight Deck" Setup

Before touching the screen, we must eliminate variable friction. Professional results require a professional setup.

Hidden Consumables & Tools

• Touch Screen Stylus: Essential. Fingers create oil smudges and lack the pixel-level precision needed for text alignment.
• Fresh Needle: A size 75/11 Sharp (or Embroidery) needle is recommended for crisp text.
• Stabilizer: Ensure your stabilizer matches your fabric weight (more on this in the Decision Tree).

Prep Checklist (Do NOT skip)

• Mode Check: Confirm you are in Edit Mode, not the basic Lettering screen.
• Stylus Check: Stylus is in hand (fingers off the screen).
• Mental Partitioning: Separate Vertical Spacing (gap between lines) from Horizontal Centering. Tackle them one at a time.
• Visual Goal: Decide: "Tight & Logo-like" OR "Readable at a Distance"? For 90% of projects, readability wins.

Warning: Mechanical Safety. When setting up your machine, keep hands clear of the needle bar area. Accidental activation while threading or changing presser feet is a common cause of finger injuries. Always use the "Lockout" key if available when changing needles.

A business reality check: If you are doing bulk team names, your bottleneck is often the physical hooping, not the screen work. When you start dreading the setup process, that is the trigger to investigate magnetic hoops/frames. They eliminate the "screw-tightening" fatigue and reduce hoop burn.

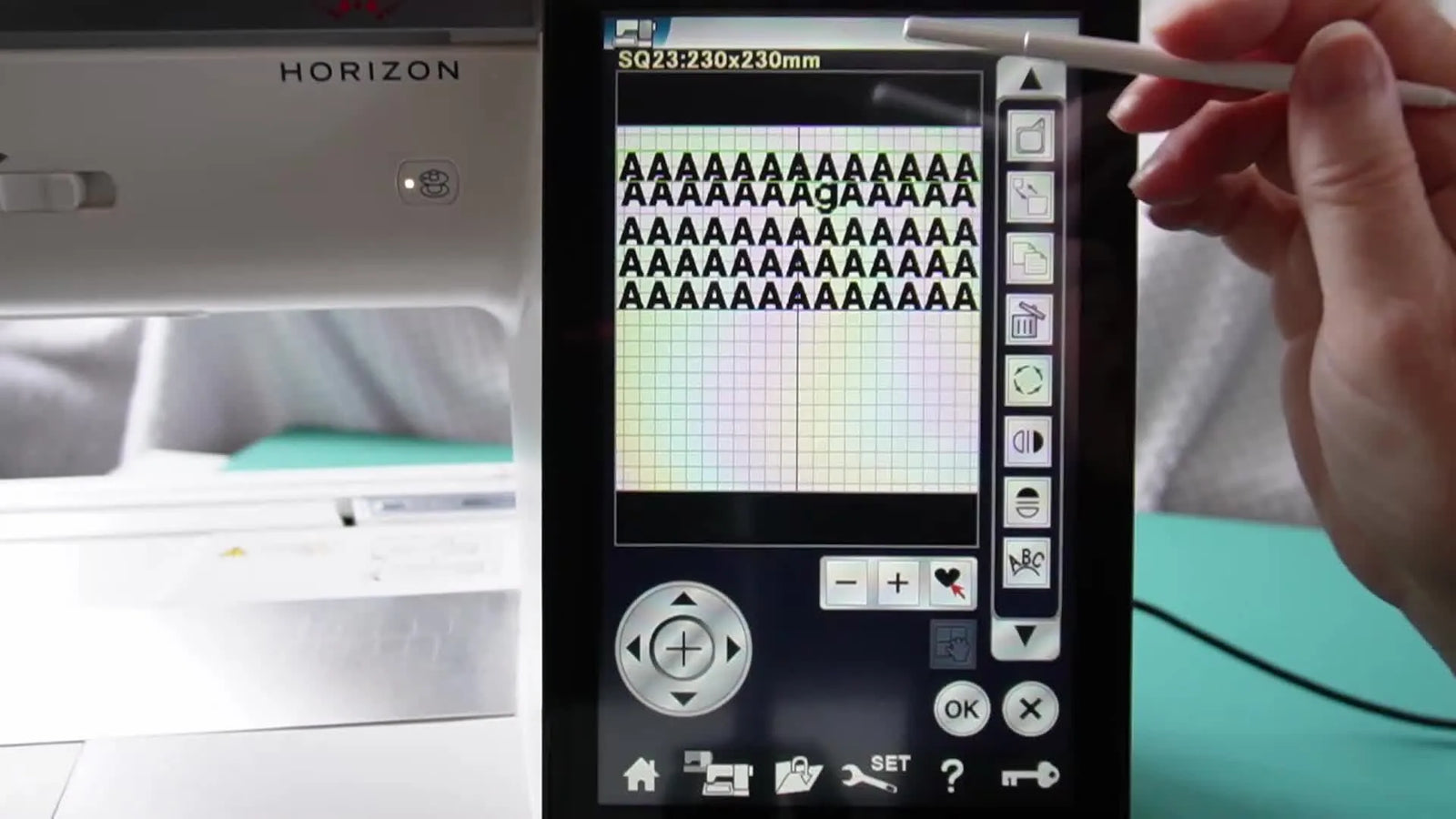

Phase 2: The Grid System (The 10mm Standard)

Stop eyeballing. Start measuring. Sharyn’s method relies on the background grid of the Edit screen.

The Metric:

• 1 Square = 1 cm (10 mm).

The Translation:

• 2 Squares (20 mm): The standard gap for Medium Block Capitals.
• 3 Squares (30 mm): The safety gap for Lowercase with Descenders.
• 4 Squares (40 mm): The clarity gap for Large Fonts.


Scenario A: Block Capitals (The 2-Square Rule)

For standard uppercase text (e.g., TEAM NAMES), the 2-square gap is your baseline.

The Execution Sequence

1. Type: Enter Lettering, type Line 1 (e.g., "AAAAAA").
2. Center: Place it on the machine’s center crosshair.
3. Duplicate: Use the Copy/Paste function to create Line 2.
4. Move: Use the Down Arrow Key (not your finger) to move Line 2.
5. Count: Move it exactly two squares below the baseline of Line 1.

Sensory Check: As you tap the arrow key, listen for the rhythmic beep. Do not rush. Watch the gap open up grid line by grid line.

This creates a clean, "typeset" look for block letters.

Scenario B: The Descender Trap (The 3-Square Rule)

This is where beginners fail. Lowercase letters like g, j, p, q, y have "tails" (descenders) that hang below the baseline.

If you use the standard 2-square rule here, the tail of a 'g' on Line 1 will crash into the top of Line 2.

The Fix

• Identify: Scan your text. If any letter breaks the baseline, you must increase spacing.
• Adjust: Move Line 2 down three squares (30 mm) instead of two.


Pro Insight: Fabric "moves" during stitching. A gap that looks "just enough" on screen often disappears on fabric due to Pull Compensation (the thread pulling the fabric inward). The 3-square rule provides a safety margin so your letters don't tangle.

Scenario C: Large Fonts (The 4-Square Rule)

Large fonts have thicker satin columns, which generate more pull and require more visual "white space" to remain readable.

The Fix

• Visual Test: A 20mm gap looks tiny next to a 50mm letter.
• Adjust: Set the gap to 4 squares (40 mm).


Why this matters: On a quilt label or tote bag viewed from 5 feet away, cramped large text looks unreadable. Generous spacing signals luxury.

Scenario D: Mixed Sizes (Visual Centering)

When combining a Large Name with a Small Title (e.g., "QUILTED" vs "by Sharyn"), grid math isn't enough. You need Optometric Balancing.

The Technique: Nudge, Don't Drag

1. Align your primary lines using the Grid Rules above.
2. Select the smaller line.
3. Use the Arrow Keys to nudge it up/down until it sits visually in the "optical center."


Why Arrow Keys? dragging with a stylus often introduces accidental Left/Right drift. Arrow keys guarantee that your horizontal centering remains locked while you adjust vertical spacing.

Commercial Interlude: When Tools Outpace Talent

Even with perfect screen spacing, physical variables can ruin the result. If you struggle with Hoop Burn (shiny rings left on fabric) or Puckering (fabric wiggling loose), your toolset may be the bottleneck.

Many professionals search for terms like how to use magnetic embroidery hoop specifically to solve these texture issues. Magnetic systems clamp fabric without forcing it into a ring, preserving the fiber structure.

Decision Tree: Fabric & Stabilizer Pairing

• Fabric: Stretchy Knit (T-Shirt)
  • Risk: Text distortion.
  • Solution: Cutaway Stabilizer + Ballpoint Needle.
• Fabric: Stable Woven (Cotton/Quilt)
  • Risk: Pucker around satin columns.
  • Solution: Tearaway (2 layers) or Medium Cutaway.
• Fabric: High Pile (Towel/Fleece)
  • Risk: Text sinks and disappears.
  • Solution: Water Soluble Topping (on top) + Tearaway (on bottom).

Warning: Magnet Safety. If you upgrade to magnetic hoops, treat them with respect. They are incredibly powerful pinch hazards. Keep them away from pacemakers, ICDs, and magnetic storage media. Never place your fingers between the snapping magnets.

Setup Checklist (The "Pre-Flight" Check)

Before you finalize your mixed-size layout:

• Selection Check: Confirm you have selected the correct line before nudging.
• Drift Check: Did you accidentaly shift a line left or right? (Look at the center vertical grid line).
• Descender Clearance: Check the lowest point of the top line (e.g., the tail of a 'y'). Does it have clearance?
• Visual Mass: Does the small text feel centered relative to the weight of the large text?

Troubleshooting: From Symptom to Cure

The "Why" of Failure: Physics & Production

Text fails because embroidery is a physical act of distortion. Thousands of stitches pull the fabric inward. If your hooping is weak, the fabric moves, and your perfectly spaced text turns into a collision.

The Upgrade Path:

1. Level 1 (Technique): Use the Grid System described here.
2. Level 2 (Consistency): Use machine embroidery hoops with magnetic clamping to ensure the fabric is drum-tight without burn marks.
3. Level 3 (Scale): If you are running 50+ shirts and the single-needle changes are killing your profit, look into hooping stations or upgrading to a multi-needle machine (like SEWTECH models) to automate the color changes.

Operation Checklist: The Final 60 Seconds

Do not hit "Start" until you pass this gate:

• Grid Verification: Can you clearly see the grid behind your text?
• Spacing Audit:
  • Block Caps = 2 Squares?
  • Descenders = 3 Squares?
  • Large Font = 4 Squares?
• Tension Check: Tap the fabric in the hoop. It should sound like a drum (thump-thump), not loose paper.
• Path Clearance: Ensure nothing (scissors, spare thread) is obstructing the hoop's travel path.
• Test Stitch: If this is a client garment, run a test on a scrap piece first.

By following this SOP, you move from "guessing and hoping" to "measuring and knowing." That is the difference between a hobbyist and a master.

FAQ

• Q: On a Janome Horizon embroidery machine, why do multi-line letters overlap when the text is created in the Lettering screen instead of Edit Mode?
  A: Use Janome Horizon Edit Mode to build multi-line text, because Edit Mode gives a grid and precise positioning that prevents line collisions.
  • Switch: Enter Lettering to type Line 1, then return to Edit Mode to position it.
  • Duplicate: Copy/Paste the first line to create additional lines so alignment stays consistent.
  • Move: Use the on-screen Arrow Keys (not dragging) to set spacing line-by-line on the grid.
  • Success check: Each line sits on the 1 cm grid with a clean, even gap and no “drift” left/right.
  • If it still fails: Re-check that you are not nudging in the basic Lettering screen and confirm the grid is visible behind the text.
• Q: What is the correct Janome Horizon Edit Mode grid spacing for two lines of block capital letters (TEAM NAME style)?
  A: Start with the Janome Horizon “2-square rule”: set a 2-square (20 mm) vertical gap for medium block capitals.
  • Center: Place Line 1 on the center crosshair first.
  • Copy: Create Line 2 using Copy/Paste (avoid retyping for consistency).
  • Step down: Tap the Down Arrow Key until Line 2 is exactly two 1 cm squares below Line 1.
  • Success check: The gap looks “typeset” and uniform when you count grid squares, not by eye.
  • If it still fails: Add one extra grid square if the stitch-out crowds due to pull during sewing.
• Q: On a Janome Horizon embroidery machine, how much vertical spacing is needed when lowercase descenders (g, j, p, q, y) are in the top line?
  A: Use the Janome Horizon “3-square rule”: increase the vertical gap to 3 squares (30 mm) when any descender is present.
  • Scan: Look for any letter tail dropping below the baseline (g, y, p, q, j).
  • Move: Nudge the lower line down using Arrow Keys until you reach three full 1 cm squares.
  • Keep margin: Treat “just barely clearing” on-screen as risky because fabric can shift during stitching.
  • Success check: The lowest tail on the top line has visible clearance above the next line on the grid.
  • If it still fails: Increase spacing by one more square as a safe starting point and test stitch on scrap fabric.
• Q: On a Janome Horizon embroidery machine, what vertical spacing should be used for large fonts so the text stays readable?
  A: Use the Janome Horizon “4-square rule”: set a 4-square (40 mm) vertical gap for large fonts to keep clear white space.
  • Compare: Don’t judge spacing by the number alone—judge it next to the letter height on the grid.
  • Adjust: Move the second line down to four 1 cm squares using Arrow Keys.
  • Prioritize: Choose readability over “tight” spacing for items viewed at a distance (labels, totes).
  • Success check: The large text remains easy to read and does not look cramped when viewed from farther away.
  • If it still fails: Run a test stitch; if the stitch-out still feels crowded, add one extra grid square.
• Q: On a Janome Horizon embroidery machine, how do you vertically “center” mixed-size lettering (large name plus small subtitle) without shifting the text sideways?
  A: Align with grid rules first, then use Janome Horizon Arrow Keys to nudge the smaller line into the optical center—do not drag it.
  • Set base: Apply 2/3/4-square spacing rules to establish a clean starting layout.
  • Select: Tap to select only the smaller subtitle line before making adjustments.
  • Nudge: Use Up/Down Arrow Keys in small steps to balance the visual weight (avoid stylus dragging).
  • Success check: The small line looks visually centered under/over the large line and stays on the same vertical center grid line.
  • If it still fails: Do a “drift check” against the center vertical grid line and re-center before nudging again.
• Q: What needle and tool setup helps Janome Horizon embroidery lettering look crisp and aligned on-screen before stitching?
  A: Use a stylus for screen accuracy and start with a fresh 75/11 Sharp (or Embroidery) needle for cleaner lettering.
  • Grab: Use a touch-screen stylus (fingers can smear and reduce placement precision).
  • Replace: Install a new 75/11 Sharp (or Embroidery) needle before detailed text work.
  • Separate tasks: Adjust vertical spacing first, then confirm horizontal centering—one variable at a time.
  • Success check: On-screen elements move in controlled steps with Arrow Keys, and the final layout holds its centerline.
  • If it still fails: Verify you are in Edit Mode (not the basic Lettering screen) and re-do spacing using the grid instead of freehand dragging.
• Q: What safety steps should be followed on a Janome Horizon embroidery machine when changing needles or setting up near the needle bar?
  A: Keep hands clear of the needle bar area and use the machine’s Lockout key (if available) during needle changes to prevent accidental activation.
  • Stop: Power down motion/engage Lockout before threading or swapping needles (follow the machine manual).
  • Clear: Keep fingers away from the needle path and presser-foot area during setup.
  • Slow down: Treat needle changes as a “no distractions” step.
  • Success check: The machine cannot start stitching while hands are in the needle area, and the needle change is completed without any unplanned movement.
  • If it still fails: Pause and follow the Janome Horizon manual’s safety procedure exactly before continuing.
• Q: What magnet safety rules should be followed when using magnetic embroidery hoops/frames to reduce hoop burn and hooping fatigue?
  A: Magnetic embroidery hoops/frames can pinch hard—keep fingers out of the closing gap and keep magnets away from pacemakers/ICDs and magnetic storage media.
  • Handle: Bring magnetic parts together slowly and deliberately—never let them snap onto your fingers.
  • Protect: Keep magnetic hoops away from pacemakers, ICDs, and magnetic storage devices.
  • Store: Separate and secure magnetic components so they cannot slam together unexpectedly.
  • Success check: Fabric is clamped firmly without a “snap shut” moment near your fingertips, and there are no pinch incidents.
  • If it still fails: Stop immediately, reposition your grip, and only close magnets when hands are fully clear of the pinch zone.
