Stop Bobbin Thread From Showing on Top: The Brother Drop-In Bobbin “Cross-Thread” Check That Saves Projects

When the bobbin thread starts “bleeding” onto the top of your embroidery, it feels personal—because it usually shows up after you’ve already committed to a real project.

I’ve watched beginners lose days to this exact issue: the machine stitches, the design runs, but the top looks washed out because the bobbin color is sticking its head through the satin stitches. The good news is that on many Brother drop-in systems, the most reliable fix is a repeatable loading ritual—one that includes a visual cue most manuals never emphasize.

The Most Common Brother Drop-In Bobbin Mistake (and Why It Ruins Tension Fast)

Brother machines with a top-loading (drop-in) bobbin are convenient, but they’re also unforgiving: if the bobbin thread doesn’t seat into the tension spring groove correctly, the bobbin can feed too freely. Physics dictates that if the bottom wire (bobbin) has zero drag, the top wire will pull it straight to the surface.

The video’s key takeaway is simple: don’t trust “I dropped it in” as proof it’s threaded. Trust the path.

A lot of frustrated comments boil down to the same pattern:

• “I followed the manual and it still shows.”
• “I changed tension numbers for two days.”
• “Sometimes it works, mostly it doesn’t.”

That inconsistency is a classic sign that the bobbin thread is occasionally missing the groove/tension spring during loading.

If you’re running a standard brother embroidery machine at home, this one detail can be the difference between a clean satin column and a top surface that looks like it’s been dusted with bobbin fuzz ("pokies").

The “Hidden” Prep Before You Touch the Bobbin: Scrap Fabric, Thread Pairing, and a Calm Reset

Before you re-thread anything, do what the creator does: treat tension like a pre-flight check, not a post-crash investigation.

She keeps a dedicated scrap fabric piece and runs a quick stitch test before starting a real project. That habit alone prevents a lot of wasted stabilizer, thread, and time.

Prep Checklist (do this before every new project)

• Materials Ready: Confirm you have a scrap fabric piece hooped specifically for testing.
• Thread Contrast: Use a pre-wound bobbin thread (white or the purple shown in the video) and a contrasting top thread (e.g., bright rayon). If the colors match, you can't diagnose the problem.
• Consumables Check: Ensure your needle is fresh (change every 8 hours of stitching) and appropriate for the fabric (Ballpoint for knits, Sharp for wovens).
• Visual Orientation: Open the bobbin area and visually locate the bobbin direction diagram stamped into the plastic cover plate.
• Slack Check: Pull enough bobbin tail (about 4-5 inches) so you can route it smoothly without yanking.
• Mental Reset: Take a breath. If you are frustrated, your hands will be shaky, and you will rush the precise mechanical step that follows.

Warning: Keep fingers clear of the needle area during any test run, and never reach into the stitch field while the machine is moving. Needle strikes happen faster than human reaction time and can cause serious injury or shatter the needle into the machine's hook assembly.

Match the Bobbin to the Brother Diagram: The “P-Shape” Orientation Check That Prevents Instant Bleed-Through

The video starts with the most basic—but most skipped—step: match the bobbin’s unwind direction to the diagram printed on the bobbin cover plate.

She compares the physical bobbin to the diagram and aligns it so the thread unwinds counter-clockwise. An easy heuristic (mental shortcut) is to hold the bobbin up; the thread dangling off the left side should form the letter “P”.

This matters because the drop-in system is engineered to expect the thread to enter the slit and tension path from a specific angle. If you reverse it (making a "q" shape), you can still “get thread,” but you won’t get consistent tension engagement.

Pro tip from the comment section: If your machine’s printed diagram looks worn or different from what you see online, don’t panic. Manufacturers update plastic molds occasionally. Always use the diagram physically stamped on your machine as the primary source of truth.

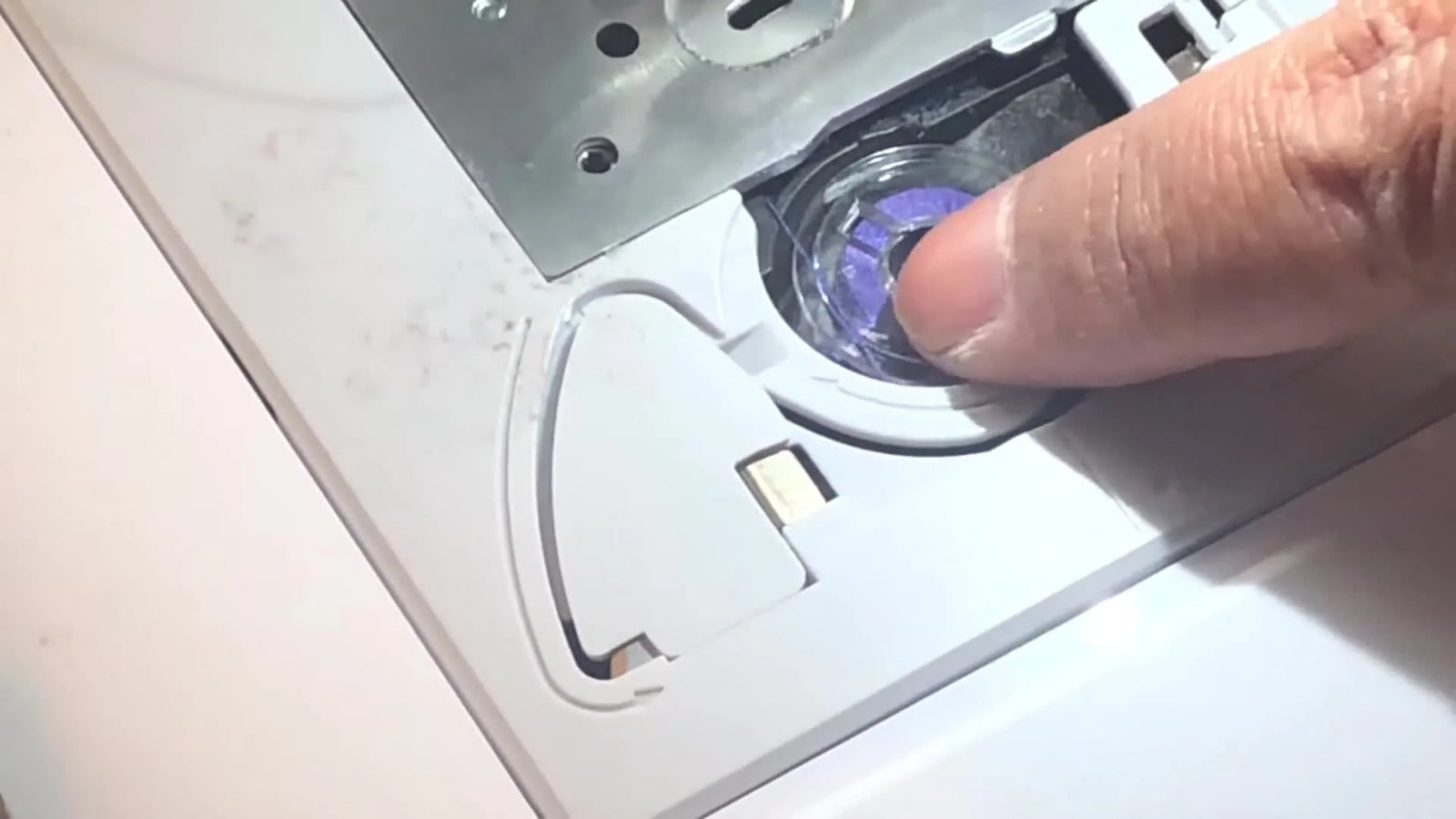

The Hold-Down Threading Move: How to Seat the Bobbin Thread Into the Tension Spring (Without Guessing)

Here’s the technique nuance that makes this tutorial worth bookmarking. Mechanics call this "engaging the tension spring."

1. Drop & Align: Drop the bobbin in, ensuring the "P-shape" orientation.
2. The Finger Brake: Hold the bobbin down firmly with your right index finger. It should not spin at all during the next step.
3. The Routing: With your left hand, pull the thread tail through the slit/guide. You should feel a slight resistance—like flossing teeth—as the thread snaps into the metal leaf spring.
4. The Cut: Follow the curved channel toward the built-in cutter. Let the cutter trim the tail, then pull away the extra thread.

That “hold it down” step is not optional. If the bobbin spins while you’re routing the thread, the thread basically floats over the tension spring rather than sliding under it.

Watch out: If your bobbin “jumps” or rattles loudly in the case during sewing, it often points back to loading technique—either the bobbin wasn’t held down during threading, or the thread didn’t land in the groove consistently.

If you’re doing repeated hooping for embroidery machine projects back-to-back, muscle memory is key. This loading motion needs to be identical every time to keep your results stable from one shirt to the next.

The One Visual Proof That Your Brother Bobbin Is Truly Threaded: The “Cross-Thread” Line

This is the signature check from the video, and it acts as your final "Go/No-Go" gauge.

Before you put the plastic cover back on, look straight down at the bobbin case area. When the bobbin is threaded correctly, you should see a thin strand of thread cutting diagonally across the top of the bobbin spool.

The creator explains that when she loads the bobbin incorrectly, that thin diagonal line is missing—and that’s when she sees bobbin bleed-through on top.

If you don’t see that diagonal “cross-thread” indicator, treat it as a failed loading attempt:

1. Remove the bobbin.
2. Re-check orientation (P-shape).
3. Re-thread while holding the bobbin down (The Finger Brake).
4. Look again for the diagonal line.

This is especially helpful for beginners because it replaces the vague feeling of “I think it’s right” with a binary visual confirmation.

The Fastest Tension Test on a Brother SE/PE Screen: Stitch a Letter “I” (or Number “1”) Before You Risk a Design

Once the bobbin is loaded, the video demonstrates a quick, low-stakes test stitch. Never test on your final garment.

• Hoop a Scrap: Use a scrap that mimics your final project (same fabric + same stabilizer).
• Select: On the Brother on-board interface, select a simple character like the letter “I” or the number “1”. A sans-serif font works best for seeing stitch columns.
• Stitch & Inspect: Run the design. It takes about 10 seconds.

This is smart because a simple satin column shows tension problems immediately—without wasting time on a full design.

If you’re using a standard brother 4x4 embroidery hoop (like the PE535 or SE600 stock hoop), this small test fits easily in the corner, allowing you to reuse the stabilizer for multiple tests until the tension is perfect.

Setup Checklist (Right before you press start)

• Scrap fabric is hooped "drum-tight" and mounted on the embroidery arm.
• A simple test character (“I”/“1”) is selected on-screen.
• CRITICAL: Bobbin is loaded, and you can visibly see the diagonal cross-thread indicator.
• Top thread path is clear (no tangles at the spool pin).
• You are ready to inspect the back immediately after stitching.

The On-Screen Tension Adjustment She Uses: Dropping Upper Thread Tension to 2.4 (and What to Look For)

In the video, she navigates to the tension adjustment on the touch screen and reduces the upper thread tension down to 2.4.

Start Point vs. Sweet Spot: Most Brother machines default to a tension setting of 4.0.

• If you see bobbin thread on top, your top tension is too tight relative to the bobbin.
• She drops it to 2.4 to loosen the top thread, allowing the knot to be pulled to the bottom.

What to look for:

• Top Side: You should see solid color. If you see white/bobbin dots ("railroad tracks"), the top is still too tight or bobbin is too loose.
• Back Side: You should see the "1/3 Rule"—1/3 top color on the left, 1/3 bobbin (white) in the center, 1/3 top color on the right.

A lot of viewers ask, “How do I know the absolute right number?” Here’s the practical answer: There isn't one. Different threads (Rayon vs Polyester) and fabrics (Denim vs Knit) behave differently. A range of 2.0 to 3.4 is a common "sweet spot" for many users, but always judge by the test stitch, not the number.

If you’re running a brother se600 hoop setup and you keep seeing bobbin on top even after correct loading, don’t keep chasing numbers blindly—go back and confirm physical bobbin seating first.

Why This Works (and Why It Fails): The Real Physics Behind Drop-In Bobbin Seating and “Bleed Through”

Let’s translate the “cross-thread” trick into mechanical reality.

In a drop-in bobbin system, the bobbin thread needs drag (friction) to create tension. This drag is created by sandwiching the thread between a metal leaf spring and the plastic case. When the thread is seated correctly, the system applies controlled resistance (usually 20g–25g of pull force).

When the thread misses that groove:

1. Resistance drops to near zero.
2. The top thread (which still has tension) overpowers the bottom thread.
3. The knot is pulled straight up to the top of the fabric.

Two expert-level notes for repeated success:

1. Consistency beats force. Pulling harder doesn’t “fix” seating; it can actually warp the spring. The "Finger Brake" technique ensures the thread slides under the spring, rather than snapping over it.
2. Hooping stability dramatically affects tension. Even with perfect threading, fabric that "flags" (bounces up and down) in a loose hoop will cause stitches to loop and distort. If your hands hurt from fighting tight hoops, or you see hoop marks, the mechanics of your hoop might be the bottleneck.

If you’re currently using a basic hoop for brother embroidery machine and find yourself dreading the hooping process because it disrupts your workflow, that’s a strong signal strictly from a physics standpoint to consider better clamping tools (like magnetic frames).

Troubleshooting: Symptom → Likely Cause → Fix (Prioritized by Effort)

Don't guess. Follow this logic path to fix issues with the lowest effort first.

A Simple Decision Tree: Fabric Behavior → Stabilizer Choice → Cleaner Tension Results

Even though the video focuses on bobbin loading, if your foundation (stabilizer) is weak, your tension will look bad regardless of machine settings.

1. Is the fabric stable (e.g., Denim, Canvas, Twill)?

• Stabilizer: Tearaway is usually sufficient.
• Tension: Standard (Start at 3.0-4.0).
• Hooping: easy to hoop in standard frames.

2. Is the fabric "squishy" or stretchy (e.g., T-shirts, Hoodies, Minky)?

• Stabilizer: Cutaway is mandatory to prevent design distortion.
• Tension: Slightly lower (2.0-3.0) to prevent puckering.
• Hooping: Difficult. Without perfect technique, the fabric stretches. Recommended: Magnetic Hoops to clamp without pulling.

3. Is the fabric prone to crushing (e.g., Velvet, Towels)?

• Stabilizer: Tearaway/Cutaway (Bottom) + Water Soluble Topping (Top).
• Tension: Standard. Topping keeps stitches from sinking.
• Hooping: Standard hoops leave permanent "burn" marks. Strongly Recommended: Magnetic Hoops to avoid hoop burn.

The Upgrade Path: When Better Hooping Tools Beat Endless Re-Threading

If you’re only stitching one item a month, the standard plastic hoop is fine—just be disciplined about the bobbin loading check.

However, if you are doing batches (e.g., 50 company polos) or selling your work, time involves cost.

Here is the professional logic for upgrading your toolkit:

• The Trigger: You are spending more time hooping/re-hooping than stitching, OR you are ruining garments with hoop marks.
• The Solution:
  • For Home Machines: Magnetic Hoops (specifically designed for single-needle machines like SEWTECH magnetic frames) allow you to slide fabric in and snap a magnet shut. No screwing, no pulling. It keeps tension even across the fabric, which helps thread tension consistency.
  • For Production Scaling: If a single needle is too slow, upgrading to a Multi-needle Machine (like the SEWTECH commercial series) separates the hooping station from the sewing station, doubling output.

If you find yourself searching for terms like embroidery hoops for brother machines because the stock hoop is hurting your hands or your productivity, recognize that as a valid business pain point, not just a hobby complaint.

Warning: Magnetic hoops utilize powerful industrial magnets. Pinch Hazard: Keep fingers clear of the snapping zone. Medical Safety: Keep magnets away from pacemakers and sensitive electronics.

Operation Checklist: The 60-Second Routine That Prevents “I Ruined Another Project”

Make this your religion before pressing the green button.

• Bobbin Direction: Counter-clockwise ("P" shape).
• The Finger Brake: Held bobbin down while threading.
• Visual Lock: Diagonal cross-thread line is visible.
• Test Stitch: Ran an "I" or "1" on scrap; confirmed no bleed-through.
• Hoop Check: Fabric is flat, no ripples, inner hoop slightly recessed (for standard hoops) or magnets fully seated.

If you build this habit, you’ll stop living in fear of that moment when you pull the hoop off and see bobbin color on the face of your design. Reliability isn't magic; it's just a consistent checklist.

FAQ

• Q: Why does bobbin thread show on top on a Brother drop-in bobbin embroidery machine even after changing tension settings?
  A: Re-load the Brother drop-in bobbin so the thread seats under the bobbin tension spring before touching tension numbers—this is the most common cause.
  • Reinsert the bobbin in the correct direction (counter-clockwise “P-shape” orientation that matches the diagram on the machine).
  • Hold the bobbin down firmly with an index finger while pulling the thread through the slit/channel to engage the spring (“Finger Brake”).
  • Re-route the thread to the built-in cutter path so it fully follows the designed groove.
  • Success check: Look straight down and confirm a thin diagonal “cross-thread” line across the top of the bobbin before closing the cover.
  • If it still fails: Stitch a quick test column and then adjust upper tension only after confirming the diagonal line appears every time.
• Q: How can a Brother top-loading (drop-in) bobbin be oriented correctly to prevent instant tension problems?
  A: Match the bobbin unwind direction to the diagram on the Brother bobbin cover plate; a practical cue is the counter-clockwise “P-shape.”
  • Open the bobbin area and use the diagram physically stamped on the machine as the reference.
  • Place the bobbin so the thread unwinds counter-clockwise (the dangling thread on the left resembles a “P,” not a “q”).
  • Pull out 4–5 inches of tail so routing is smooth and not jerky.
  • Success check: The thread feeds smoothly into the slit without twisting, and the diagonal “cross-thread” line is visible before you close the cover.
  • If it still fails: Remove the bobbin and start over—forcing the path often creates inconsistent seating.
• Q: What is the fastest tension test stitch on a Brother SE/PE embroidery screen to confirm bobbin thread will not bleed through on a real project?
  A: Stitch a simple letter “I” (or number “1”) on hooped scrap fabric that matches the real project before running the full design.
  • Hoop scrap fabric with the same stabilizer you will use on the final item.
  • Select a simple “I”/“1” character on the Brother screen and stitch it (about 10 seconds).
  • Inspect both sides immediately after the stitch finishes.
  • Success check: The top looks solid (no bobbin “pokies”), and the back follows the “1/3 rule” (top color / bobbin / top color).
  • If it still fails: Confirm the bobbin diagonal cross-thread indicator first, then adjust upper tension within a practical range based on the test result.
• Q: What upper thread tension setting should be used on a Brother embroidery machine when bobbin thread is showing on top?
  A: Use a test stitch to tune upper tension; many Brother machines start around 4.0, and lowering to about 2.4 is one demonstrated fix when bobbin shows on top.
  • Load the bobbin correctly first (Finger Brake + diagonal cross-thread indicator).
  • Stitch an “I”/“1” test on scrap, then reduce upper tension if bobbin thread appears on the top surface.
  • Re-test after each change instead of chasing the number.
  • Success check: Top side shows solid top-thread color, and the back shows the “1/3 rule.”
  • If it still fails: Stop adjusting and clean possible lint under the bobbin tension spring (gentle business card/dental floss pass), then re-test.
• Q: What should be done if a Brother drop-in bobbin does not show the diagonal “cross-thread” line after loading?
  A: Treat a missing diagonal cross-thread line as a failed bobbin loading attempt and re-thread immediately.
  • Remove the bobbin and re-check counter-clockwise “P-shape” orientation.
  • Hold the bobbin down so it cannot spin, then pull the thread through the slit/channel until you feel slight resistance as it seats.
  • Route fully to the built-in cutter path so the thread follows the groove completely.
  • Success check: A thin strand visibly runs diagonally across the top of the bobbin before you install the cover.
  • If it still fails: Do not force it—restart slowly and verify you are following the machine’s stamped diagram (not a photo from another model).
• Q: What does it mean when a Brother drop-in bobbin rattles or “jumps” loudly during embroidery?
  A: Loud bobbin rattling usually points to a mis-seated bobbin or a bobbin that is near empty—re-seat or replace it before continuing.
  • Stop the machine and open the bobbin area to inspect seating.
  • Re-load using the Finger Brake method so the thread engages the tension spring consistently.
  • Replace the bobbin if it is very low on thread.
  • Success check: The bobbin runs quietly and evenly during the next short test stitch, with no visible bobbin thread on top.
  • If it still fails: Check for lint/debris under the bobbin tension spring and clear it gently, then re-test.
• Q: What safety precautions should be followed when test-stitching or troubleshooting on a Brother embroidery machine needle area?
  A: Keep hands out of the stitch field during any motion—needle strikes happen faster than reaction time and can cause injury or hook damage.
  • Keep fingers clear of the needle and embroidery field while the machine is running.
  • Never reach into the stitch area to grab thread tails while the needle is moving.
  • Stop the machine fully before adjusting fabric, thread, or the bobbin cover.
  • Success check: Hands remain outside the moving zone for the entire test, and there are no sudden needle hits or thread snags.
  • If it still fails: Pause, reset, and restart the checklist—rushing troubleshooting is when most accidents and needle breaks occur.
• Q: When should a Brother home embroidery user upgrade from a standard hoop to a magnetic hoop or to a multi-needle machine for productivity and fewer ruined garments?
  A: Upgrade when hooping time, hoop marks, or re-hooping waste more time than stitching—start with technique, then magnetic hoops, then consider a multi-needle machine for scaling.
  • Level 1 (Technique): Standardize the 60-second routine (bobbin orientation, Finger Brake, diagonal line, quick “I” test) to eliminate avoidable rework.
  • Level 2 (Tool): Consider a magnetic hoop when hooping causes hand pain, fabric gets stretched while hooping, or hoop burn keeps ruining garments.
  • Level 3 (Capacity): Consider a multi-needle machine when batch jobs (e.g., polos) are limited by single-needle speed and constant re-threading/hooping cycles.
  • Success check: Hooping becomes repeatable with fewer marks, and test stitches match production results without repeated tension rescues.
  • If it still fails: Re-evaluate stabilizer choice and fabric behavior first—foundation issues can mimic “tension problems” even on perfectly loaded bobbins.
