Stop Babysitting Your Brother PR1055X: How to Stitch 20 Colors on a 10-Needle Machine (Without Losing Your Place)

The 10-Needle Wall on the Brother PR1055X: How 20 Colors Turns Into a Stress Test (and How to Calm It Down)

You are not alone if a 20-color design on a 10-needle machine makes your stomach drop. In my 20 years of running embroidery floors and training new shop owners, I have watched experienced operators avoid "high-color" designs simply because they fear the Sequence Gap. They don't want to hover over the machine for 45 minutes, waiting to catch the exact moment to hit "Stop" before the machine mistakenly sews a green leaf with red thread.

This post rebuilds Shirley’s specific brother pr1055x workflow into a repeatable, industrial-grade production habit. We are moving away from "guessing" and toward "programming." You will learn to program a clean, automatic pause after the first 10 colors, swap to the next 10 spools, and continue without the machine repeating the wrong colors.

The goal here is Zero Cognitive Friction. By the end of this guide, you won't just hope the machine stops—you will know it will.

A 10-needle head can only hold 10 thread colors at once, but your design can absolutely use more than 10 colors. The trick is controlling when the machine pauses so you can reload threads without losing sequence.

Shirley’s key discovery is a setting many owners miss on day one: Manual Color Sequence. On her PR1055X it lives in the settings pages and defaults to OFF, which blocks you from inserting a planned stop in the color list.

If you’re running a busy workflow on a brother pr1055x, this is one of those “small toggle, huge sanity” settings—because it replaces babysitting with a predictable pause.

The “Hidden” Prep Before You Touch the LCD: Thread Planning, Stabilizer Choices, and Hoop Discipline

Before you program anything, treat this like a two-phase job. In professional embroidery, we call this "Batching the Swap."

• Phase A: Colors 1–10 (The Primary Spool Set)
• Phase B: Colors 11–20 (The Secondary Spool Set)

That sounds obvious, but the real win is reducing decision-making while the machine is waiting. Precision reduces anxiety. When the machine stops, you want your next 10 spools sitting in a tray, arranged in order (11 through 20) left-to-right. No rummaging, no guessing, no reading color charts with a flashlight.

Stabilizer and fabric reality check (so your pause doesn’t create registration drift)

The video shows white fabric with white backing/stabilizer. Here is the physics of what happens during a thread swap: Fabric Relaxation.

When you pause mid-design to swap threads, the fabric is sitting under tension in the hoop for 5 to 10 minutes longer than usual. In real shops, that’s where you can see subtle shifting—especially if the fabric is soft, stretchy, or loosely hooped. If the fabric relaxes even 1 millimeter, your outline (Color #20) won't match your fill (Color #10).

Generally, the more stops you introduce (planned or unplanned), the more you must prioritize:

1. Hydraulic-level Hoop Tension: It should sound like a drum skin when tapped.
2. Stable Backing: Use a Cutaway for knits, even if you hate trimming it. It is the anchor.
3. Hoop Mechanics: Avoiding "over-stretching" the fabric in the hoop (it relaxes while you’re swapping spools).

The Commercial Upgrade Path: If you find yourself constantly fighting "hoop burn" (ring marks) or fabric slippage during these long pauses, this is the classic trigger to upgrade your tools. Professionals often switch to a magnetic embroidery hoop. Unlike traditional screw-tightened hoops that apply uneven pressure, magnetic frames apply consistent vertical clamping force around the entire perimeter. This keeps the fabric from "creeping" while you are busy tying on new threads.

Hidden Consumables (What you need on the table)

• Curved Snips: For trimming tails at the needle eye.
• Tweezers: To grab the thread loop behind the needle.
• Empty Cup: For the trash threads (keep the floor clean to protect machine casters).
• Temporary Spray Adhesive (505): Essential if you aren't using a magnetic hoop, to bond the fabric to the stabilizer.

Prep Checklist (Do this once, then you can work fast)

• Plan Validation: Confirm the design truly has more than 10 color steps (Shirley’s example is 20).
• Spool Staging: Lay out two labeled sets of 10 spools (Set A = 1–10 loaded; Set B = 11–20 ready in a tray).
• Sensory Hooping Check: Tap the hooped fabric. Does it sound like a dull thud (too loose) or a crisp drum (correct)?
• Stabilizer Match: If the fabric stretches at all, ensure you are using Cutaway, not Tearaway.
• The Pause Point: Locate the transition. You are stopping between the two sets, not “somewhere around color 10.”


Flip the Switch That Unlocks Control: Turning ON Manual Color Sequence (PR1055X Settings Page 7)

This is the mechanical "permission slip" required to interrupt the machine's logic. Without this, the machine assumes it knows best and will just beep at you when it runs out of needle assignments.

On Shirley’s Brother PR1055X, she taps the pages/settings icon and navigates to Page 7, where she finds Manual Color Sequence.

1. The machine default is OFF.
2. She physically taps the toggle to turn it ON.
3. Then she confirms with OK.

This matters because if Manual Color Sequence is OFF, you can’t reliably pre-program the stop hand into the sequence. You would be forced to watch the screen and hit stop manually—which is a recipe for human error.

Warning: Mechanical Safety Hazard. Keep fingers, hair, jewelry, and loose sleeves away from the needle area and moving carriage—especially when you’re leaning in to watch the LCD screen. The PR1055X carriage moves forcefully. If you need to reach into the stitching zone to trim a thread, press the physical Stop button first to disengage the motors.

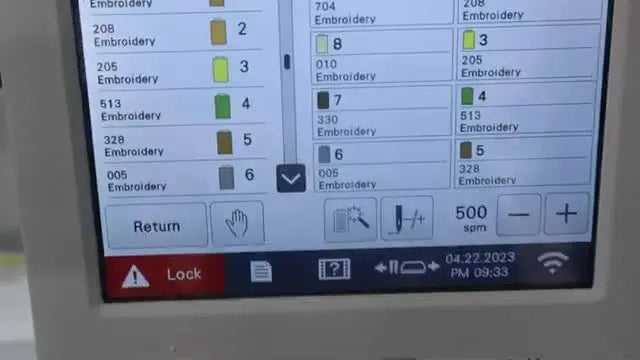

Read the Color Sequence Screen Like a Pro: The Stop Hand vs. No Stitch Icons (and What They Really Do)

Once you return to the main screen and open the color management/sequence view, you’ll see two critical icons that often confuse beginners:

• The Stop Hand (Red Hand Icon): This commands a hard pause. The machine stops, trims (usually), and waits for you to press Start again.
• The No Stitch (Circle with Slash): This effectively deletes a step. The machine skips that color entirely.

Shirley points out the No Stitch icon but removes it because she wants all colors to sew. The star of this workflow is the Stop Hand.

The Expert's Mental Model: Think of No Stitch as "Editing the Design" (removing parts). Think of Stop Hand as "Controlling the Workflow" (pausing time). If your goal is “pause so I can reload spools,” you want the Stop Hand.

The Stop Hand Placement That Actually Works: Why It Must Go on Step #11 (Not #10)

This is the specific logic gate where 90% of beginners fail. It feels intuitive to put the stop sign on the thing you want to stop after. But machine logic is binary.

What she first tried (The Common Error)

She initially places the Stop Hand next to color step #10. If you do this, the machine will sew Color #9, and then Stop BEFORE sewing Color #10. This leaves you with one color left to sew in the first batch, creating a confused workflow.

The correction that makes the machine stop at the right moment

She later explains the Stop Hand must be placed on the first color of the next set—which is Step #11 (and on the screen it may display as the new cycle’s “#1”).

Her wording is key: the machine stops anchored to the step WITH the hand. It stops before executing that step. So if you want the machine to finish #10 completely, trim, and then wait for you—the Stop Hand belongs on #11.

This is the difference between:

• A Clean Pause: You approach the machine, silence, all 10 colors done. You reload threads calmly.
• A Confusing Pause: The machine stops, but you still have one color left on the old needles. Panic sets in.


Setup Checklist (Your screen must match these checkpoints)

• Setting Active: Manual Color Sequence is toggled ON in settings.
• Full Visibility: You are viewing the full sequence list (Example: 1-20).
• Hand Placement: The Stop Hand icon is attached specifically to Step #11 (or the first color of your second batch).
• Sanity Check: No Stitch (Skip) is NOT applied to any color you intend to sew.
• Double Verify: Scroll through the list. Is the hand the only modifier present?

The Thread Swap Moment: Fast Spool Changes Without Full Rethreading (Tie-On Method + Tension Check)

After the machine completes the first 10 colors, it stops automatically. Now, do not cut the threads at the needle eye!

Shirley uses the "Tie-On Method" (also known as the Weaver's Knot method), which is standard practice in industrial factories:

1. Cut the old thread up near the spool (leave a 3-inch tail).
2. Remove the old spool and place the new spool.
3. Tie the new thread to the old thread tail using a square knot.
4. Pull the thread from the needle side until the knot comes through the eye (use tweezers) or cut the knot just before the eye and thread manually.

The "Floss Check" (Crucial for Tension): The most common point of failure in the Tie-On method is the thread jumping out of the tension disks. Sensory Check: After threading, hold the thread near the needle and pull gently. Similarly to flossing teeth, you should feel a distinct, waxy resistance.

• If it pulls freely with zero drag? It has popped out of the tension disk. Rethread.
• If it feels tight and consistent? You are good to go.

If you are evaluating tools for speed, this is where a well-organized thread inventory matters. Consistency matters. Detailed operators often pair reliable thread brands with consistent cones so the pull-through feels the same across colors; Shirley mentions she uses Floriani and Metro EMB.

Resume the Second Set Cleanly: Stitching Colors 11–20 at 500 SPM (and Watching for Drift)

With the second set of spools loaded, you resume stitching. Shirley’s machine speed is shown at 500 spm.

The Beginner Sweet Spot: While experienced operators run these machines at 800-1000 SPM, strictly limit your speed to 500-600 SPM for the first 2 minutes after a thread swap.

• Why? If you made a threading error (missed a guide), a lower speed gives you a chance to hit STOP before the thread shreds or creates a "bird's nest" in the bobbin case.

At this stage, your job is mostly observation—especially on the first few stitches after the pause.

• Visual: Look for the white bobbin thread on the back. It should be 1/3 width in the center.
• Auditory: Listen for the rhythmic "thump-thump." A slapping or grinding noise means a thread path error.

If you see a slight misalignment (registration drift) right after the restart, it’s often a hooping/tension stability issue rather than a “bad design.” Generally, long pauses plus uneven hoop tension can let fabric relax and shift.

This is one reason many production shops invest in magnetic embroidery hoop systems: the clamping pressure is mechanically consistent, and unlike screw hoops, you aren't tempted to "re-tighten" the fabric (which distorts it) after an interruption.

Operation Checklist (The first 60 seconds after restart)

• Correct Color: Confirm the machine begins sewing with the correct new color (First color of Set B).
• Path Check: Watch the first 50 stitches. Any looping? Is the thread shredding?
• Flagging Check: Is the fabric lifting up and down with the needle (Flagging)? If yes, your hoop is too loose.
• Drift Watch: Check the borders. Is the new stitching aligning perfectly with the previous 10 colors?
• Emergency Hand: Keep your hand near the Stop button for the first minute.

“Why Didn’t My PR1055X Stop?” Two Common Failure Modes (and the Fix That Saves Your Day)

Shirley calls out two problems that show up again and again.

Symptom 1: The machine keeps stitching past color #10 without stopping

• Likely Cause: Manual Color Sequence was never turned ON in the settings. The machine ignored your icons because the master switch was Off.
• Quick Fix: Stop machine. Go to Settings (Page 7). Turn ON. Re-designate the Stop Hand.

Symptom 2: The machine stops too late or too early

• Likely Cause: Stop Hand placement error. You put it on Step 10 (stops before 10) instead of Step 11 (stops after 10).
• Quick Fix: Advance to the correct stitch point using the +/- stitch keys, then re-assign the Stop Hand to Step #11 / New Cycle #1.

Note: One commenter mentioned their PR1055X stops automatically at the 10th color and flashes for thread changes. Firmware varies. Always treat your specific machine’s manual (and current firmware version) as the final authority.

The Hooping Question Everyone Asks: Centering, Tape, and Keeping the Design Where You Intended

A viewer asked two classic questions: what tape is used on a sweatshirt, and how to know where to place hoops when centering is hard.

The video itself doesn’t demonstrate sweatshirt taping, but the underlying principle is universal: your hoop placement is a measurement problem, not a “good eye” problem. In production, “eyeballing” is what creates inconsistent results.

Refined Prep for Garments:

1. Marking: Use a water-soluble pen or chalk to mark the Crosshairs (+) on the garment itself.
2. Alignment: Align the hoop’s plastic grid (template) or the inner ring marks to your garment marks.
3. Validation: confirm the design preview position on the machine screen using the "Trace" feature before stitching.

If you’re doing a lot of garment work, a hooping station for embroidery can reduce centering errors and speed up repeatability. It holds the garment static while you apply the hoop, ensuring the grain line stays straight.

Decision Tree: Stabilizer/Backing Choices When You’re Pausing Mid-Design for a Thread Reload

When you introduce a 15-minute pause for thread changing, you need a stabilizer that resists "Time-Based Relaxation." Use this logic guide:

• IF Fabric = Woven/Stable (Canvas, Denim, Twill):
  • Action: Use Medium Tearaway or Cutaway.
  • Why: The fabric structure itself supports the stitch; the stabilizer is just for crispness.
• IF Fabric = Knit/Stretchy (T-Shirts, Polo, Sweatshirt):
  • Action: MUST USE Cutaway. Also consider fusible webbing (Iron-on) to lock fibers.
  • Why: Knits will relax and shrink when removed from tension. Cutaway is the permanent skeleton holding the design together.
• IF Fabric = Slippery/Delicate (Performance wear, Silk):
  • Action: Use "No-Show" Mesh Cutaway + Consider magnetic embroidery hoops for brother.
  • Why: Traditional hoops leaves "burn marks" (crushed fibers) on delicate fabrics. Magnetic hoops clamp without the friction burn.
• IF Design = High Density (>20,000 stitches or >10 colors):
  • Action: Double layer of stabilizer.
  • Why: High needle penetration counts shred single layers.


Magnetic Hoops on Multi-Needle Machines: When They’re a Convenience and When They’re a Production Upgrade

Shirley’s video shows a Mighty Hoop 8"x13" in use, and you can see the label in the stitch-field close-up.

Here’s how I evaluate magnetic hoops after two decades in shops:

1. Phase 1: The Struggle. Beginners struggle to get thick items (towels, jackets) into standard hoops. This leads to broken outer rings or wrist pain (Carpal Tunnel is a real risk in this industry).
2. Phase 2: The Commercial Fix. Magnetic hoops remove the "Force" equation. You lay the top ring down, and it snaps shut.
3. Phase 3: The ROI. If you are doing a run of 50 jackets, saving 2 minutes per hooping = 100 minutes saved. That is nearly two hours of profit recovered.

If you’re comparing options like a mighty hoop 8x13 versus other frames, focus on repeatability. Can you hoop the 50th shirt exactly as tight as the 1st? With magnets, yes. With screws, usually not.

Warning: Magnetic Safety Hazard. Industrial magnetic hoops contain extremely powerful Neodymium magnets.
* Health: Keep them away from pacemakers, ICDs, and implanted medical devices.
* Injury: Pinch hazard! Do not place fingers between the rings. They snap together with enough force to bruise or break skin.
* Tech: Keep away from credit cards, hard drives, and phone screens.

The “Move the Hoop Forward” Trick: Using the Hoop Icon on the PR Front Screen

Another comment asked how Shirley gets the machine to move the hoop forward.

Her reply describes a specific on-screen control: an icon at the bottom of the front LCD that looks like a hoop.

• Action: Select the Hoop icon -> Press the "Move Out" arrow -> Confirm with OK.
• Result: The carriage brings the hoop toward you.
• Use Case: This is essential for the thread swap. It brings the needle area closer to your hands so you can thread needles 1-10 without leaning dangerously over the machine chassis.

The Real Time Saver Isn’t “20 Colors”—It’s a Repeatable System You Can Scale

Shirley’s finished floral arrangement proves the point: once you control the stop, 20 colors becomes a normal job instead of a special occasion.

If you’re stitching for fun, this method saves stress. If you’re stitching for money, it saves labor.

Here’s the upgrade path I recommend when your workload grows:

• Level 1 (Pain = Wrist Strain/Hooping Marks):
  Upgrade to Magnetic Hoops. This solves the physical interface problem and protects delicate fabrics.
• Level 2 (Pain = Centering Errors):
  Implement a consistent marking system or a Hooping Station.
• Level 3 (Pain = Capacity Ceiling):
  If you are turning down orders because you can't swap threads fast enough, or you need to run 15-color logos without any stops, it is time to look at SEWTECH Multi-Needle Machines (12 or 15 needle options). A 15-needle machine eliminates the "Stop and Swap" phase entirely for almost all commercial logos, allowing you to hit "Start" and walk away for an hour.

Quick Troubleshooting Table: Symptoms You’ll See During a Two-Set Color Run

The Bottom Line: One Toggle, One Icon, and You’re Free

Turn on Manual Color Sequence. Place the Stop Hand on the first color of the second set. Stitch the first 10. Tie on. Resume.

Once you’ve done it a couple of times, you’ll stop avoiding “too many colors” designs—and you’ll start treating them like what they really are: just another job with a planned pause.

If you are currently building a workflow around mighty hoops for brother pr1055x, the biggest win is that your hooping stays consistent while your thread plan changes—exactly what you want when you’re running complex, colorful designs. Mastering this process is the bridge between being a "hobbyist who owns a machine" and a "professional operator who runs a shop."

FAQ

• Q: On the Brother PR1055X, why does the machine keep stitching past Color #10 instead of stopping for a 20-color design?
  A: Turn ON Manual Color Sequence first; otherwise the Brother PR1055X may ignore the planned stop.
  • Go to the PR1055X Settings/Pages menu and navigate to Page 7.
  • Toggle Manual Color Sequence to ON, then press OK.
  • Return to the Color Sequence screen and re-assign the Stop Hand where needed.
  • Success check: the Stop Hand icon is visible in the color list and the PR1055X pauses automatically before the marked step.
  • If it still fails: stop the machine and re-check that Manual Color Sequence is still ON (some workflows reset settings) and confirm the stop icon is not the “No Stitch” icon.
• Q: On the Brother PR1055X Color Sequence screen, what is the difference between the Stop Hand icon and the No Stitch (circle/slash) icon?
  A: Use the Stop Hand icon to pause production; the No Stitch icon skips that color step entirely.
  • Tap the Stop Hand to create a planned hard pause for thread swapping.
  • Avoid applying No Stitch unless the design truly should omit that color.
  • Scroll the sequence list and confirm only the Stop Hand is used (no unintended skip markers).
  • Success check: the PR1055X stops and waits for Start when it reaches the Stop Hand, and it does not “delete” any sewing steps.
  • If it still fails: re-open the sequence list and remove any No Stitch markers that were accidentally applied.
• Q: On the Brother PR1055X, where should the Stop Hand icon be placed to pause cleanly after finishing the first 10 colors of a 20-color design?
  A: Place the Stop Hand on Color Step #11 (the first color of the second batch), not on Step #10.
  • Identify the swap boundary between Colors 1–10 (Set A) and Colors 11–20 (Set B).
  • Attach the Stop Hand to Step #11 so the machine finishes #10, trims, then pauses before #11.
  • Double-check the full sequence list shows the hand on the first color of the next set.
  • Success check: the PR1055X completes Color #10 fully and then pauses with the next color ready (no “one color left” confusion).
  • If it still fails: use the +/- stitch keys to advance to the correct point, then re-apply the Stop Hand to Step #11.
• Q: When swapping threads on the Brother PR1055X mid-design, how does the Tie-On Method avoid full rethreading, and what is the “Floss Check” for tension disks?
  A: Tie on at the spool side, pull through, and do a Floss Check—most immediate failures come from thread popping out of the tension disks.
  • Cut the old thread near the spool (leave a short tail), mount the new spool, and tie new thread to the old tail with a square knot.
  • Pull from the needle side until the knot reaches the needle area, then cut/finish threading as needed.
  • Perform the Floss Check: pull the thread near the needle and feel for consistent, “waxy” resistance.
  • Success check: the pull has steady drag (not free-sliding), and the first stitches after restart do not loop or shred.
  • If it still fails: completely re-thread the upper path because the thread may have jumped out of the tension disks.
• Q: During a long pause for a thread swap on the Brother PR1055X, how can hooping tension and stabilizer choice prevent registration drift between Color #10 and Color #20?
  A: Use drum-tight hooping and stable backing (often Cutaway for knits) because fabric relaxation during a 5–10 minute pause can shift alignment.
  • Tap the hooped fabric and adjust until it sounds like a crisp drum, not a dull thud.
  • Match stabilizer to fabric: use Cutaway for any knit/stretch fabric; use Tearaway/Cutaway on stable wovens as appropriate.
  • Avoid over-stretching fabric while hooping; over-stretched fabric may relax while threads are being swapped.
  • Success check: borders/outline stitches after restart land exactly on the prior stitching with no visible offset.
  • If it still fails: strengthen stabilizer (including doubling for high density) and consider a magnetic hoop to reduce fabric “creep” during the pause.
• Q: What table-side consumables should be ready before starting a two-set (1–10 then 11–20) color run on a Brother PR1055X to prevent slowdowns and mistakes?
  A: Stage the hidden consumables and both spool sets before touching the Brother PR1055X screen to avoid rushed errors during the stop.
  • Prepare curved snips, tweezers, an empty cup for waste threads, and temporary spray adhesive (505) if not using a magnetic hoop.
  • Lay out two labeled spool sets: Set A (1–10 loaded) and Set B (11–20 in order in a tray).
  • Confirm the exact pause point is between the sets (not “around color 10”).
  • Success check: when the PR1055X pauses, the next 10 spools are already in order and the swap happens without rummaging or second-guessing.
  • If it still fails: slow the process down and re-check sequence visibility (full 1–20 list) before starting the first stitch.
• Q: What mechanical safety steps should be followed when operating near the needle and carriage on a Brother PR1055X during a color-sequence stop?
  A: Press the physical Stop button before reaching into the stitching zone, because the Brother PR1055X carriage can move forcefully.
  • Keep fingers, hair, jewelry, and loose sleeves away from the needle area and moving carriage.
  • Press the physical Stop button before trimming, grabbing thread loops, or leaning in close.
  • Use the screen/controls to move the hoop toward you when possible, instead of reaching deep into the chassis.
  • Success check: the machine is fully paused (no carriage motion) before hands enter the needle area.
  • If it still fails: step back and re-engage safe workflow—never “hover-trim” while the head is active.
